TRENDnet TEW-649UB - Mini Wireless N Speed USB 2.0... User manual

TEW-649UB
rev:09.11.2009
• Wi-Fi compliant with IEEE 802.11n standard
• One-touch setup with Wi-Fi Protected Setup (WPS) support
• High speed USB 2.0 interface
• Supports Multiple Input Multiple Output (MIMO) antenna technology
• Backwards compatible with IEEE 802.11g and IEEE 802.11b devices
• Supports Ad-Hoc (Client-Client) and Infrastructure (AP-Client) Mode
• Maximum reliability, throughput and connectivity with automatic data rate switching
• Supports 64/128-bit WEP, WPA/WPA2-Radius and WPA-PSK/WPA2-PSK
• Low interference and high susceptibility provide reliable performance
• Wi-Fi Multimedia (WMM) Quality of Service (QoS) supporteds
• Compatible with Windows7, Vista, XP and 2000 operating systems
• Easy user setup and intuitive diagnostic utility
• Coverage of up to 50 meters indoor (160 feet) and 100 meters outdoor (320 feet) *
• 3-year llimited warranty
FEATURES
wireless

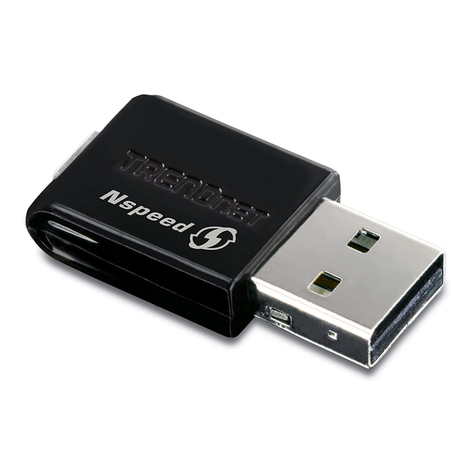

The Mini Wireless N Speed USB Adapter (model TEW-649UB) connects a
laptop or desktop computer to a wireless n network at up to 8x the speed and
4x the coverage of a wireless g connection.
Enjoy proven wireless n speed and reliability in an ultra compact design that
is slightly larger than a US penny.
Setup is a breeze with one-touch Wi-Fi Protected Setup (WPS) technology.
Advanced wireless encryption protects your valuable data. MIMO antenna
technology delivers superior range and eliminates dead spots. Wi-Fi
Multimedia (WMM) Quality of Service (QoS) prioritizes important video,
audio and gaming traffic. Stream video, download files, play games and talk
online with this ultra compact adapter.
TEW-649UB (V1.0R)
Mini Wireless N Speed USB Adapter

WPS Button
Power Consumption
Humidity
Frequency
• IEEE 802.11b, IEEE 802.11g and IEEE 802.11n
• 802.11b: 15dBm (typical)
• Receive mode: 290mA (max) ; Transmit mode : 320mA (max)
• 802.11n: 150Mbps(TX) / 300Mbps(RX)
• 64/128-bit WEP, WPA/WPA2-Radius, WPA-PSK/WPA2-PSK
• Windows 7 (32/64-bit)/ Vista (32/64-bit)/ XP(32/64-bit)/ 2000
• DBPSK/DQPSK/CCK/OFDM (BPSK/QPSK/16-QAM/64-QAM)
• 2.412 ~ 2.484 GHz
• 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps
Antenna
Wireless
Interface
Hardware
SPECIFICATIONS
• USB 2.0
LED Indicator
• Enables WPS connection
• Built-in on board antenna
• 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
Data Rate (auto fallback)
Modulation
• Activity, WPS
Standards
Certifications
• 10% ~ 95% max (non-condensing)
• CE, FCC
Supported OS
Dimensions (LxWxH)
• 1~ 11 (FCC), 1~13 (ETSI)
Weight
Temperature
• 33.9 x 17 x 7mm (1.3 x 0.66 x 0.27 in)
• 3g (0.1oz)
• Operating: 0° ~ 40° C (32° ~ 104° F); Storage: -10° ~ 70° C (14° ~ 158° F)
Output Power
Receiving Sensitivity
Encryption
Channels
• 802.11g: 14dBm (typical)
• 802.11n: 12dBm (typical)
• 802.11b: -76dBm (typical) at 11mpbs
• 802.11g: -65dBm (typical) at 54Mbps
• 802.11n: -61dBm at 150Mbps
*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on
interference, network traffic, building materials and other conditions.
TEW-649UB
TEW-649UB (V1.0R)
Mini Wireless N Speed USB Adapter
rev:09.11.2009

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet
products and is subject to change at any time, without notice. For the most recent product information please visit
http://www.trendnet.com.
©
Copyright TRENDnet. All Rights Reserved.
RELATED PRODUCTS
PACKAGE CONTENTS
• TEW-649UB
• Multi-Language Quick Installation Guide
ORDERING INFORMATION
To Order Please Call:
1-888-326-6061
NETWORKING SOLUTIONS
TEW-637AP
TEW-643PI
TEW-652BRP Wireless N Home Router
300Mbps Wireless Easy-N-Upgrader
Wireless N PCI Adapter
20675 Manhattan Place,Torrance, CA 90501 USA
Tel: [phone]
Fax: [phone]
Web:
Email: [email protected]
www.trendnet.com
• CD-ROM (Utility and Driver)
TEW-649UB (V1.0R)
Mini Wireless N Speed USB Adapter
Wireless N Home Router
(TEW-652BRP)
Workstation with
Wireless N PCI Adapter
(TEW-643PI)
(TEW-649UB)
Mini Wireless N Speed USB Adapter
Cable/DSL
Modem
Internet
Wireless N Network
