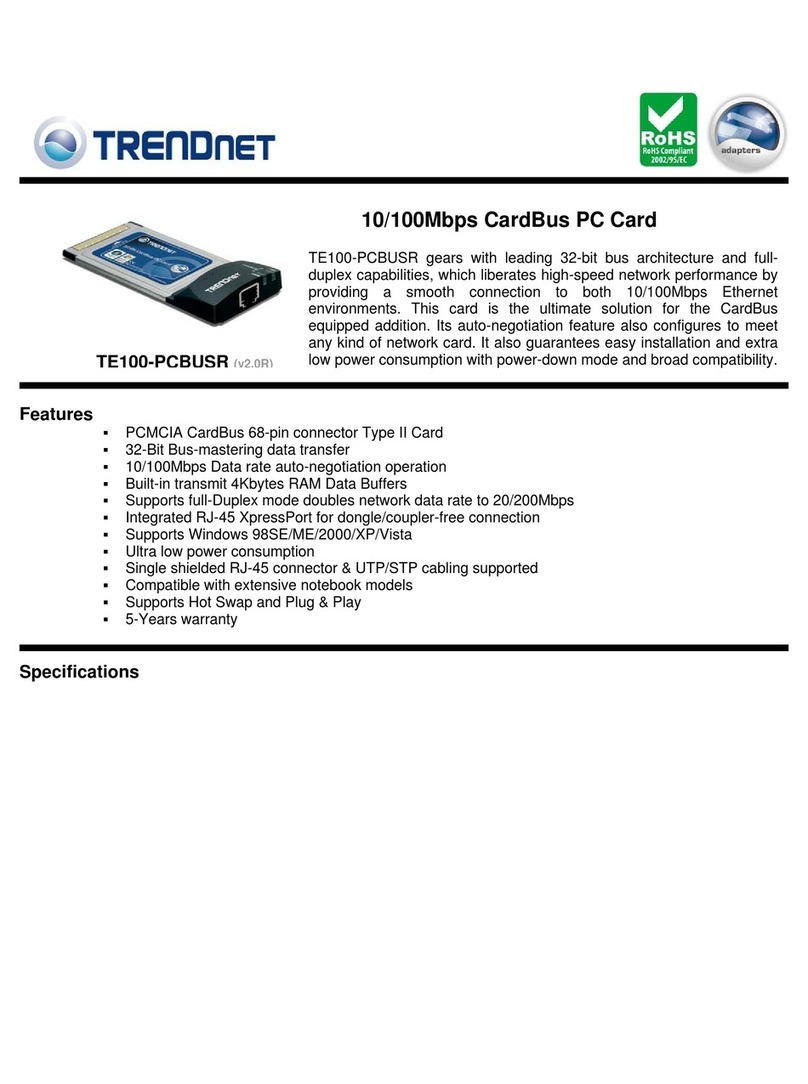

TE100-PCBUSR gears with leading 32-bit bus architecture and full-
duplex capabilities, which liberates high-speed network
performance by providing a smooth connection to both 10/100Mbps
Ethernet environments. This card is the ultimate solution for the
CardBus equipped addition. Its auto-negotiation feature also
configures to meet any kind of network card. It also guarantees easy
installation and extra low power consumption with power-down
mode and broad compatibility.
TE100-PCBUSR
10/100Mbps PC Card
TE100-PCBUSR
rev: 06.30.2010
• PCMCIA CardBus 68-pin Connector Type II Card
• 32-Bit Bus-Mastering Data Transfer
• 10/100Mbps Data Rate Auto-Negotiation Operation
• Built-in Transmit 4Kbytes RAM Data Buffers
• Supports Full-Duplex Mode Doubles Network Data Rate to 20/200Mbps
• Integrated RJ-45 XpressPort for Dongle/Coupler-Free Connection
• Supports Windows 98SE/ME/NT4.0/2000/XP (32-bit)/Vista (32/64-bit)
• Ultra Low Power Consumption
• Single Shielded RJ-45 Connector & UTP/STP Cabling Supported
• Compatible with Extensive Notebook Models
• Supports Hot Swap and Plug & Play
• 3-Year Limited Warranty
FEATURES
adapters

Network Media
Data Rate
Protocol
Interface
Dimension
Power Consumption
Diagnostic LED
Supported Drivers
Humidity
Temperature
Safety Emissions
• IEEE 802.3 10BASE-T Ethernet
• Ethernet: UTP Cat. 3, 4, 5, EIA/TIA-568 100-ohm STP
• Windows 98SE/ME/NT4.0/2000/XP (32-bit)/Vista (32/64-bit)
• Ethernet: 10Mbps/20Mbps (Half/Full-Duplex)
• CSMA/CD
• 32-Bit CardBus Type II
• 10M Link/Activity
• Operating: 10%~90% (Non-Condensing); Storage: 5%~90% (Non-Condensing)
• FCC, CE
• 120 x 53 x 3mm (4.7 x 2 x 0.1 inches)
• 3.3V DC
• Operating: 0° ~ 40° C (32° ~ 104° F); Storage: -10° ~ 70° C (14° ~ 158° F)
Standards
Hardware
TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet
products and is subject to change at any time, without notice. For the most recent product information please visit
http://www.trendnet.com.
©
Copyright TRENDnet. All Rights Reserved.
10/100Mbps CardBus PC Card
TE100-PCBUSR
RELATED PRODUCTS
PACKAGE CONTENTS
TE100-PCIWN
TEG-PCBUSR 32-bit Gigabit CardBus PC Card
• Driver CD-ROM
32-bit PCI 10/100Mbps N-way Fast Ethernet Card
• TE100-PCBUSR
• Multi-Language Quick Installation Guide
ORDERING INFORMATION
To Order Please Call:
1-888-326-6061
NETWORKING SOLUTIONS
SPECIFICATIONS
• ANSI/IEEE 802.3 Auto-Negotiation
• Fast Ethernet: UTP Cat. 5, EIA/TIA-568 100-ohm STP
• Fast Ethernet: 100Mbps/200Mbps (Half/Full-Duplex)
• 100M Link/Activity
• Novell NetWare Server 3.21, 4.1x, 5.0
• Novell Netware ODI for DOS / ODI Client 32
• Packet Driver, NDIS 2.0
• IEEE 802.3u 100BASE-TX Fast Ethernet
• PCMCIA 2.x
• 32-Bit CardBus
20675 Manhattan Place,Torrance, CA 90501 USA
Tel: [phone]
Fax: [phone]
Web:
Email: [email protected]
www.trendnet.com
Cable/DSL
Modem
Workstation with 32-bit
PCI Fast Ethernet Card
(TE100-PCIWN)
10/100Mbps
CardBus PC Card
(TE100-PCBUSR)
Cable/DSL 4-Port
Broadband Router
(TW100-S4W1CA)
Workstation with 32-bit
PCI Fast Ethernet Card
(TE100-PCIWN) Internet
