TRENDnet TV-IP262P User manual

TRENDnet User’s Guide Cover Page

© Copyright 2012 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide Table of Contents
i
Contents
Product Overview....................................................................................2
Package Contents......................................................................................................2
Features....................................................................................................................2
Product Hardware Features.......................................................................................3
Application Diagram..................................................................................................4
Installation...............................................................................................5
HardwareInstallation............................................................................................5
CameraInstallation...............................................................................................6
Starting IPSetup.......................................................................................9
Configuration.........................................................................................12
ViewingCameraBasic Function................................................................................12
Configuring the Camera Setting...............................................................................13
SmartWizard...........................................................................................................14
Basic........................................................................................................................15
Network..................................................................................................................17
Video& Audio.........................................................................................................20
EventServer............................................................................................................23
MotionDetect.........................................................................................................26
EventConfig............................................................................................................27
Tools.......................................................................................................................29
SD Card...................................................................................................................29
DeviceInfo..............................................................................................................31
How to setup/access the camera behind a Router................................32
Technical Specifications.........................................................................35
Troubleshooting.....................................................................................36

© Copyright 2012 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TV-IP262P
2
Product Overview
TV-IP262P
Package Contents
TV-IP262P
Multi-Language Quick Installation Guide
CD-ROM (Utility&User’sGuide)
Network cable (1.5m / 5ft)
Power adapter (12V DC, 1.5A)
Camera mounting kit
If any package contents aremissing or damaged, please contact the retail store, online
retailer, or reseller/distributor that the item was purchased.
Features
The Megapixel PoE Dome Internet Camera (model TV-IP262P) is an indoor, enterprise
class surveillance camera capable of transmitting H.264 video at up to 1280 x 1024
resolution. View and manage the tamper resistant domeIP camera from any computer
with an internet connection.
Manually pan the camera side-to-side350 degrees and tilt it up-and-down 70degrees to
fix its final viewing position. No need to install this camera near a power source, power
and data are received through a single Ethernet cable using Power over Ethernet (PoE)
technology. View this camera on your mobile device with TRENDnet’s free mobile App*.
Manage up to 32 TRENDnet cameras with the included complimentary camera
management software**. Define up tothreemotion detection windowswithemail
alert, image snapshot, and continuous recording triggers. Scheduled recording sessions
and define video storage location with Samba client support. Multiple video streaming
support for H.264, MPEG-4,and MJPEG compression types. Other features include two-
way audio support (mic and speaker sold separately), date/time text overlay, mask
overlay to conceal sensitive areas, and image flip capabilities for upside down
installations. Integrated cabling allows for easy wall/ceilingmounting and the off-white
IP camera housing blends into most environments.
* TRENDnet’s Mobile APP supports iPhone®, iPad®, iPod® Touch and
Android. Search for SecurView Mobile from iTunes® or Google Play™.
For future updates, please check www.trendnet.com/App
for details.
** Monitoring multiple cameras may required a high performance CPU

© Copyright 2012 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TV-IP262P
3

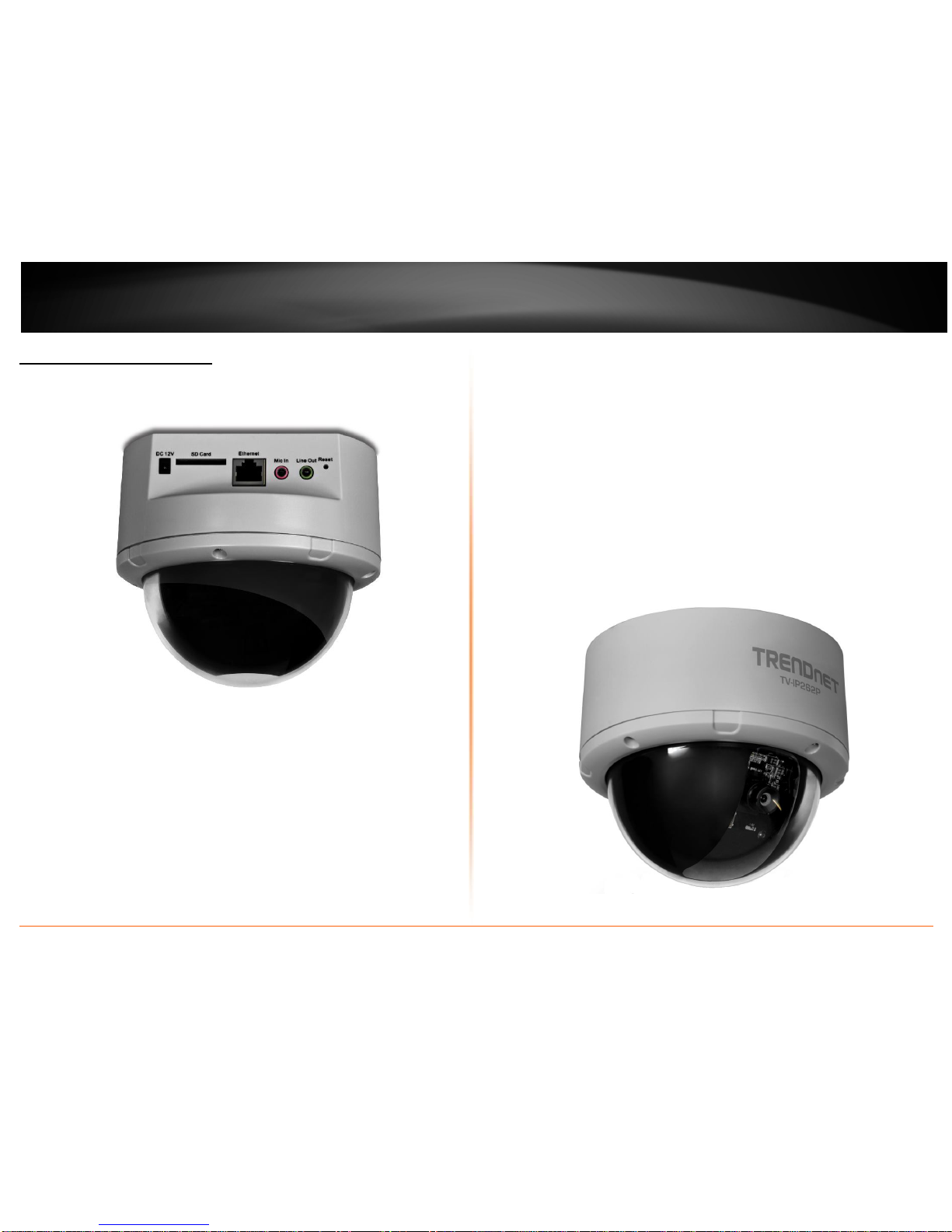

Product Hardware Features
Rear Panel View
Power : Connect theprovided AC power adapter to supply power to the
camera.
SD Card Slot: Insert a memory card for expansion of storage.
Ethernet Cable Connector: Connect the provided network cable (RJ-45 type)
-The connector supports Power over Ethernet standard, enabling the camera
to be powered by the Ethernet.
Mic In: Connect an external microphone.
Line Out: Connects an external active speaker.
Reset: Press and hold the reset button for five seconds to reset the camera to
factory default settings.
Front Panel View

© Copyright 2012 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TV-IP262P
4

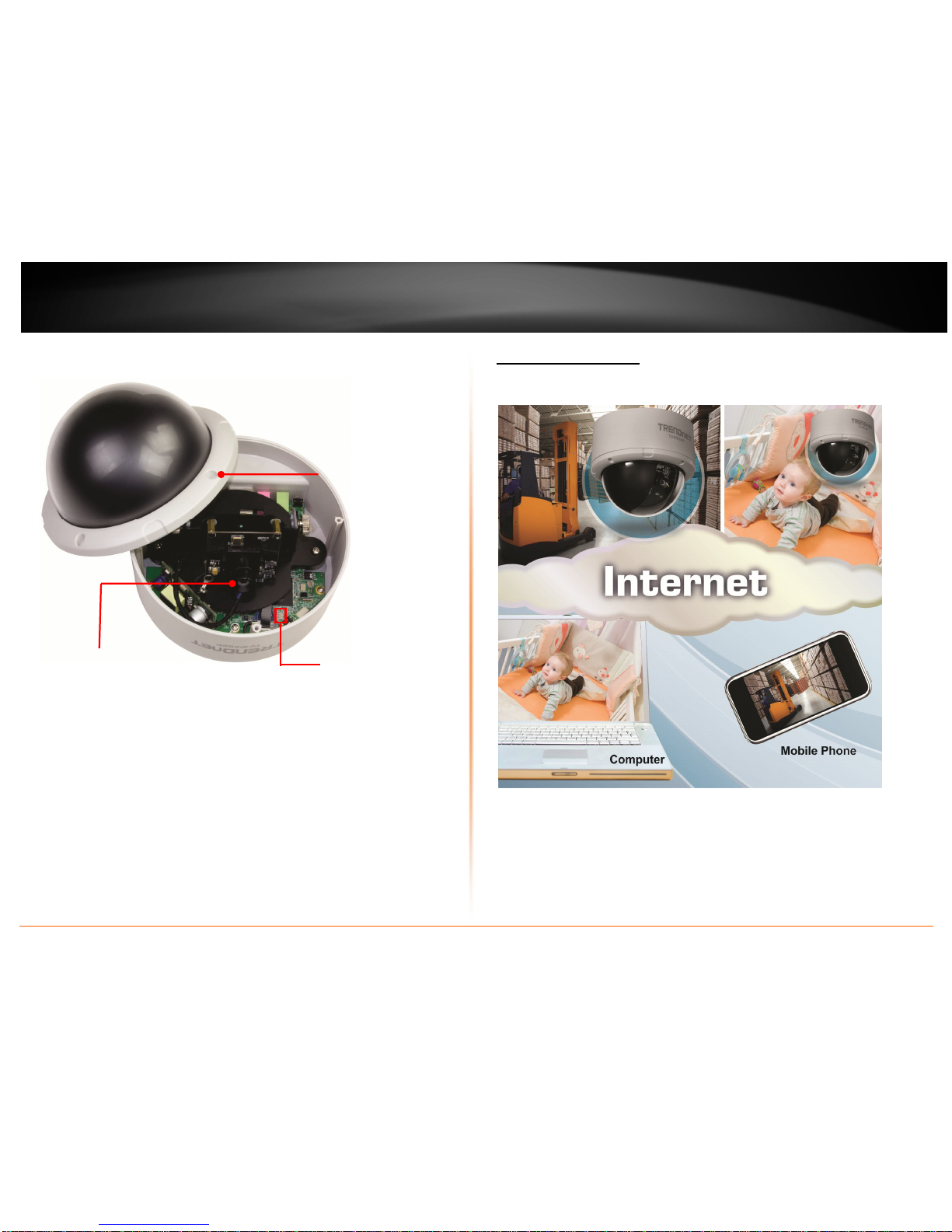

Inside Component
LED indicators
-Power: Indicate the camera is powered on with the steady amber
light.
-Link: Indicate the camera’s network connectivity with the flashing
green light.
Application Diagram
Unscrew four screwsto
disassemble the Dome
cover.
Lens assembly with
the adjustable base
LED indicators

© Copyright 2012 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TV-IP262P
5
Installation
Hardware Installation
The camera can be mounted to the ceiling surface directly by following the steps below:
1. Remove the Dome cover by unscrewing the four screws.
2. Use the includeddrill template to drill three mounting holes on the desire location
and hammer the plastic anchors into the holes.
3. Secured the camera to the location with three screws.
4. Before put the Dome cover back, adjust the lens assembly by the following steps:
Tilt the camera lens to a proper position by loosing the screws () and then
swinging the adjustable base ().
Rotate the camera lens by turning the base pedestal () in either clockwise or
anti-clockwise direction.
Adjust the lens focus by turning the lens ring slowly () in either clockwise or
anti-clockwise direction.
NOTE:You can reviewthe image quality fromthe Web browserwhen you complete the
installation. If the image quality is poor, you haveto disassemble the Dome cover to
adjust the lens focus until the desired image appears clearly.
5. Put the Dome cover back and secure with four screws.





© Copyright 2012 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TV-IP262P
6

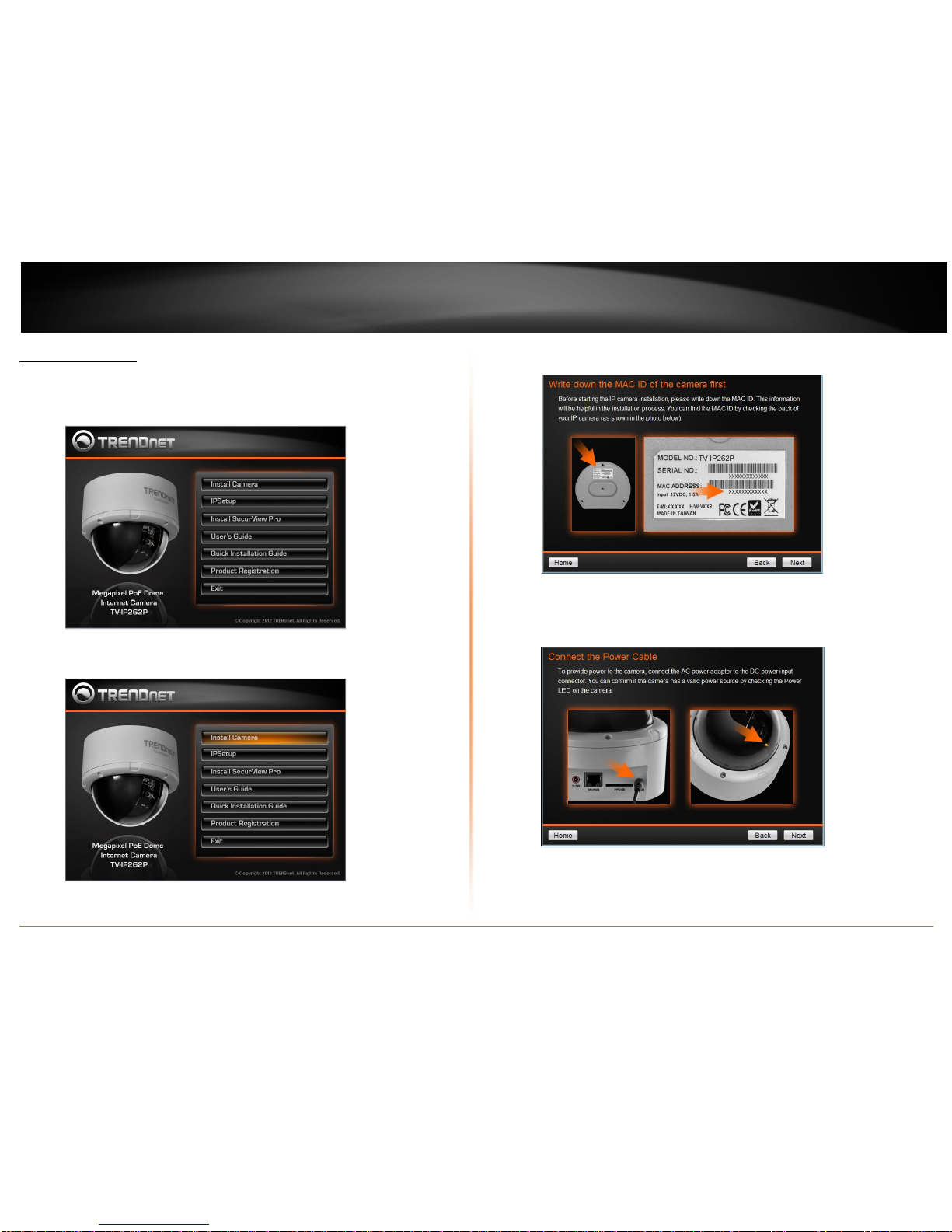

Camera Installation
1. Insert the Installation CD-ROM into your computer’s CD-ROM drive to initiate
the Auto-Run program.
2. lick the Install Camera.
3. Write down the MACID of the camera
4. Connect one end of the power adapter into the Power Connector, then click on
Next. Please click Next if you are using the PoE injector or switch.

© Copyright 2012 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TV-IP262P
7
5. Connect one end of the Ethernet (Network) Cable to the camera’s Ethernet
Port, and then connect the other end of the Ethernet cable to the router’s LAN
Port.
6. Wait while camerais searching.
7. The founded cameras will show on the screen. The camera already selected by
default if you have only one camera installed. If you have more than one
camera in the same Network, you will need to identify the camera by the MAC
ID.
8. Type in the Password. The password is “admin” by default. If you would like to
change camera’s password,check the Change Password now.

© Copyright 2012 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TV-IP262P
8

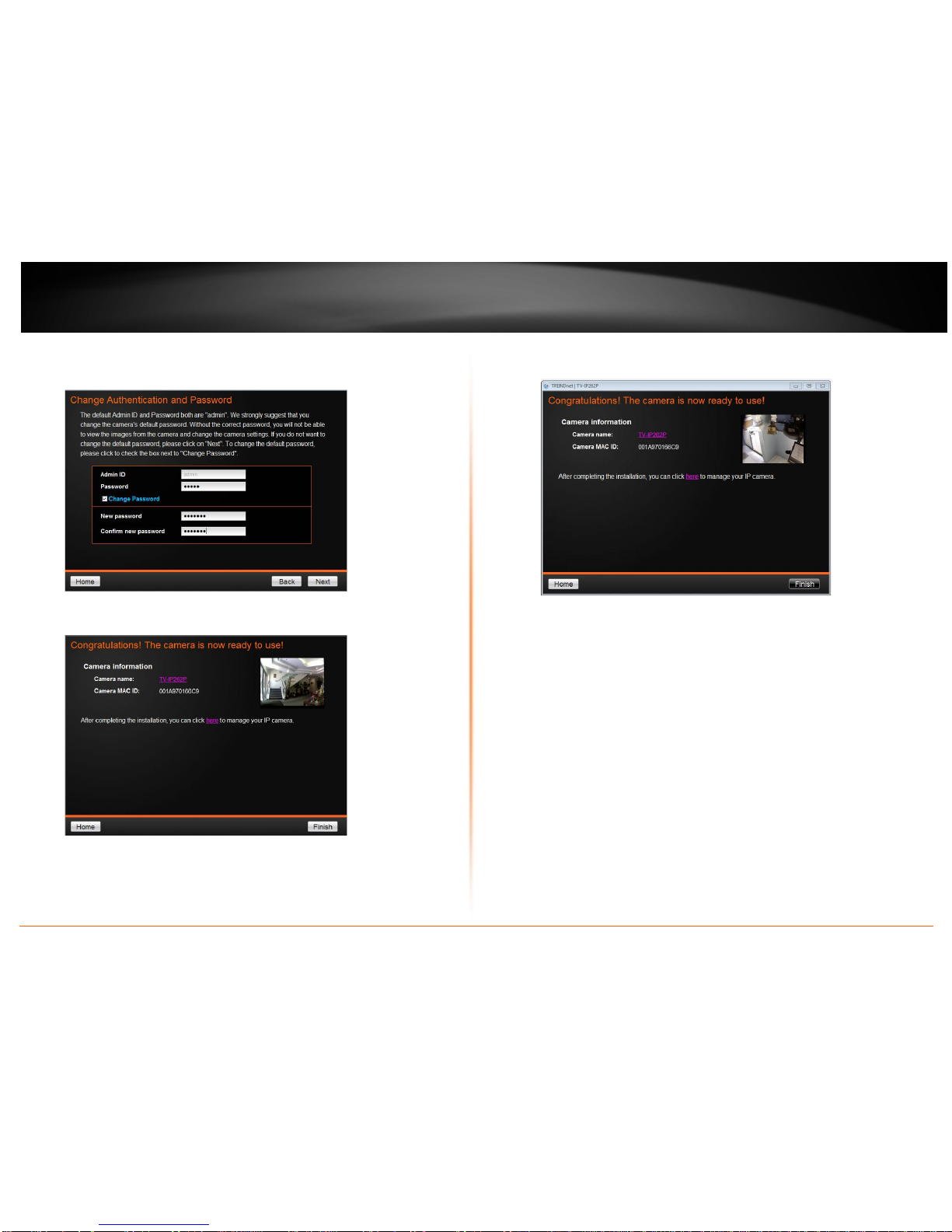

9. Type in the new and confirm the new password by entering the password
twice.
10. Click TV-IP262Pto access to the camera webpage.
11. Click Finish to exit the program or click Home return to the main screen.

© Copyright 2012 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TV-IP262P
9
Starting IPSetup
The camera comes with a conveniently utility, IPSetup,which isincludedin the
Installation CD-ROM, allowing you to search the camera on your network easily.
1. Insert the Installation CD-ROM into your computer’s CD-ROM drive to initiate
the Auto-Run program.
2. Click the IPSetup from the Auto-Runmenu screen. Then the IPSetup Wizard
will appear. Click Install to install the utility.
3. When the Completing theIPSetup Setup Wizard appears, click Finish.

© Copyright 2012 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TV-IP262P
10

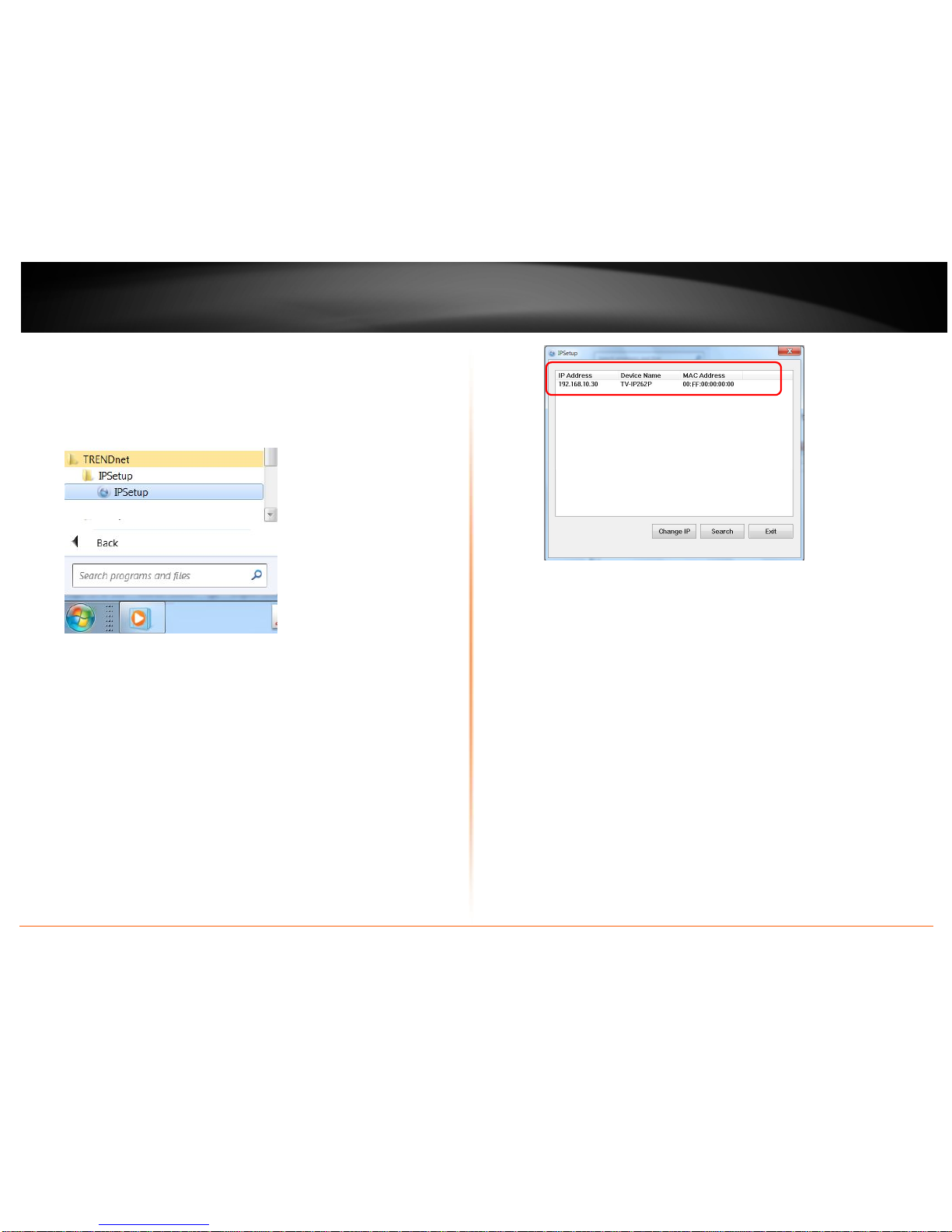

4. After installing the IPSetup utility, the application is automatically installed to
your computer,and creates a folder in Start\Program\TRENDnet\IPSetup.
5. Click Start>Programs>TRENDnet>IPSetup, and then click IPSetup.
6. The IPSetup window will appear. It will search for the camera within the same
network.
-Camera Display Area: Bydefault, theIP settingon the Camera is set to DHCP.
If you have DHCP server, the camera will automatic get the IP address from
DHCP server. If you do not have DHCP server on your network, it will show the
default IP as 192.168.10.30. Double click the IP address; it will link to Camera’s
Web Configuration page.

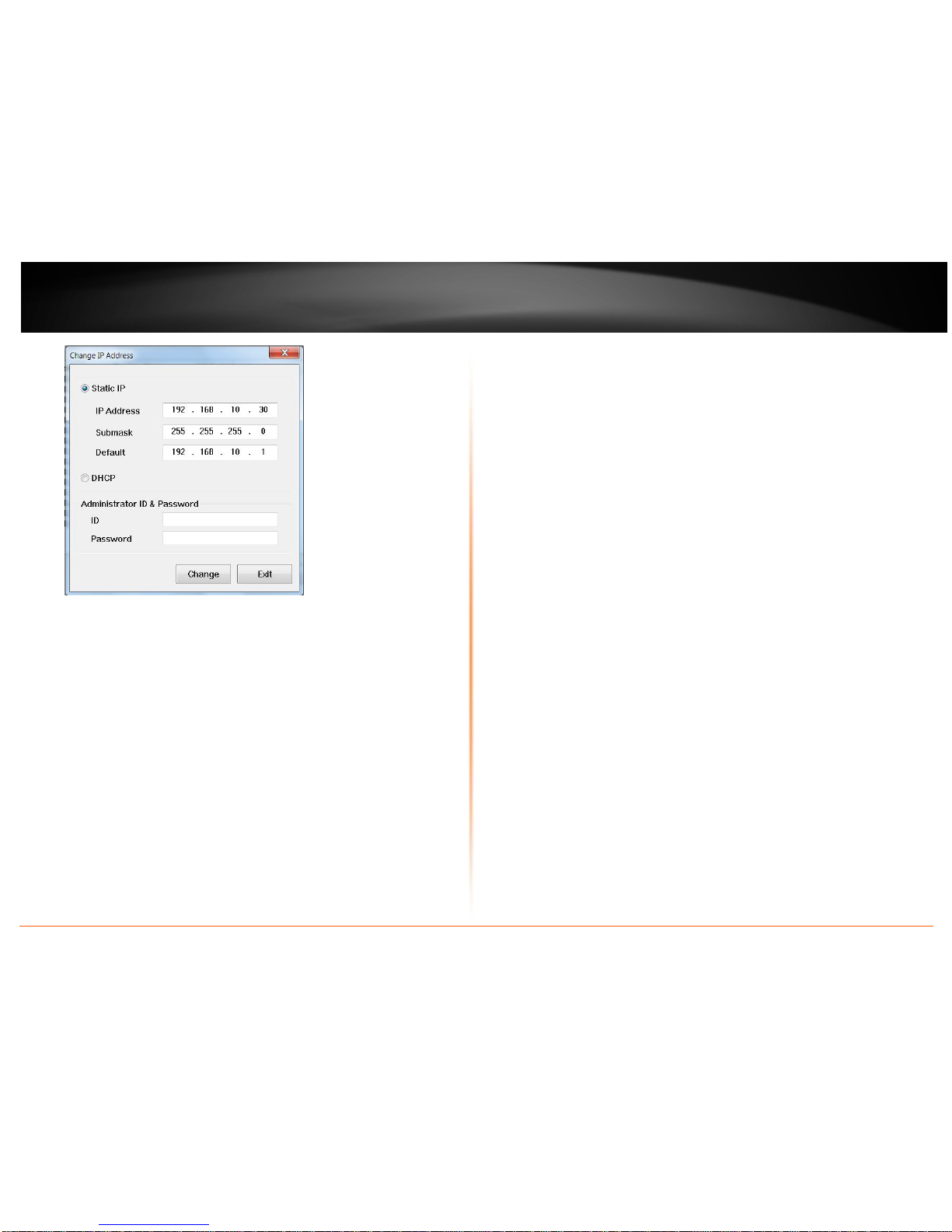

-Change IP: Click thisbutton to bring up the following window. It allowsyou to
change the IP Address. You can select either Static IP or click DHCP. Then,
enter the Administrator ID & Password. By default the ID/Password is: admin.
When complete,click Change.
Camera Display Area

© Copyright 2012 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TV-IP262P
11
-Search: Click this button to search the connected camera in the same network
-Exit: Click this button toexit the program.

© Copyright 2012 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TV-IP262P
12
Configuration

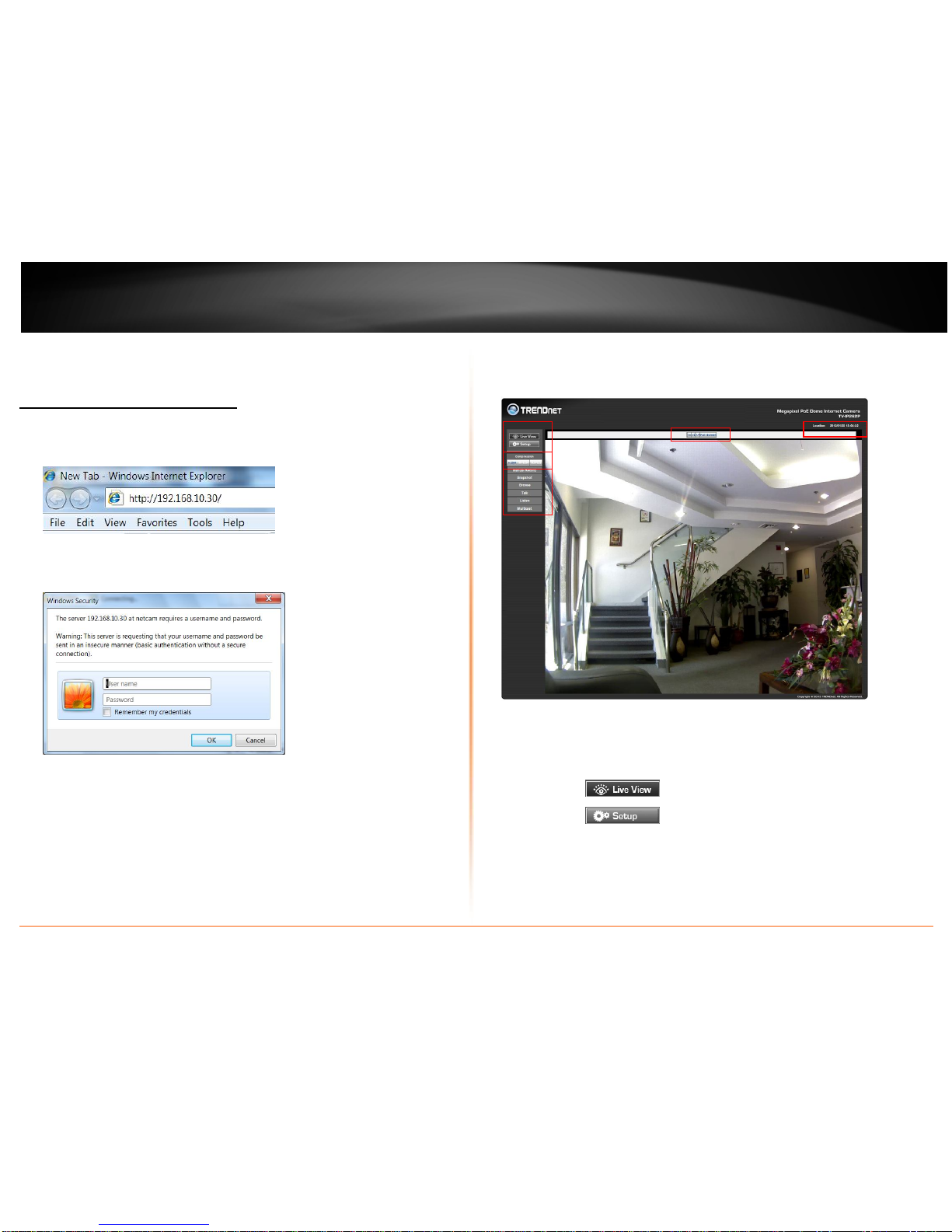

Viewing Camera Basic Function
Open the Web browser on your computer (example showed in the User’sGuide is based
on the Internet Explorer). Type the default IP address (192.168.10.30) or the IP address
found by IPSetup in the Address bar, and then press [Enter].
When the login window appears, enter the default User name (admin) and Password
(admin) and press OK toaccess tothe main screen of the camera’s Web Configuration.
NOTE: If you are initially access to the camera, you will be ask to install a new plug-in
for the camera. Permission request depends on the Internet security settings of
your computer. Click Yes to proceed.
After you login into the Web Configuration of the camera, the main page will appear as
below:
The Main screen of the Web Configuration provides you with many useful information
and functions,including:

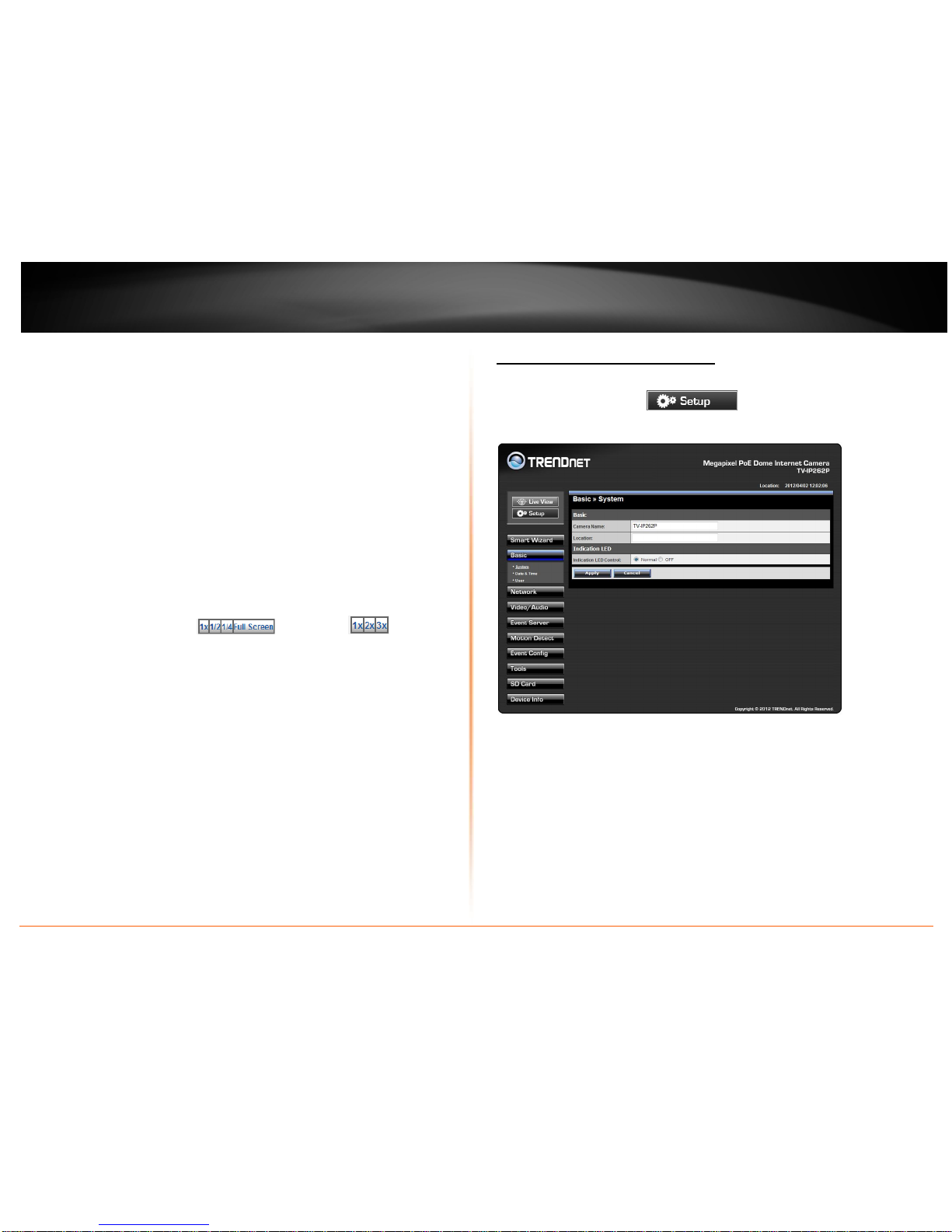

Live View/Setup Switch:
Click the button to configure the camera.
Click the button to return tothe Main screen toview the live
view image.
Compression Buttons: Select to transmit and record the video using H.264, MPEG4, or
MJPEG compression.

© Copyright 2012 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TV-IP262P
13
ManualRecordallowsyoumanuallyrecord and save a videoclip*.
Snapshot allows you to capture and save a still image*.
Browse allows youto assign the destination folder to store the video clips and
still images*.
Talkallows youto speakout through the camera. Please note onlyoneuser is
allowedto use this function ata time.
Listen allows you to receive the on-site sound and voice from the camera.
Multicast allows you to change the camera’s transmission type on multicast
Live View: The Live View Image window displays the real-time image of the connected
camera.
The currentcompressionmode of imageis displayed abovethe Live View
Image window.
Click the Zoom In buttons( for SXGA ) or ( for
VGA/QVGA/QQVGA/720p) above the Live View Image window to zoom in the
live view image by 1x, 2x, 3x, 1/2, 1/4, or full screen
Camera Information: Displays the camera’s location and the current date & time. The
information can be modified in the Web Configuration.
* If you are using Microsoft 7/Vistaplatform, youmay not be able to find the recorded
files by Snapshot or Manual Record. You will need to disable the protected mode of
Security in the IE browser before recording a video file or taking a snapshot.
Please follow the below steps:
1. Open IE Browser
2. Select ToolsInternet Options
3. Select Security
4. Uncheck the ”Enable Protected Mode” then press OK
Configuring the Camera Setting
To configure the camera, click on the Main screen of Web
Configuration. The Web Configuration will start from theBasic page.
The Web Configuration contains the settings that are required for the camera in the left
menu bar, including Smart Wizard,Basic, Network, Video/Audio,Event Server,Motion
detect,Event Config, Tools,SD Card, and Information.

© Copyright 2012 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TV-IP262P
14

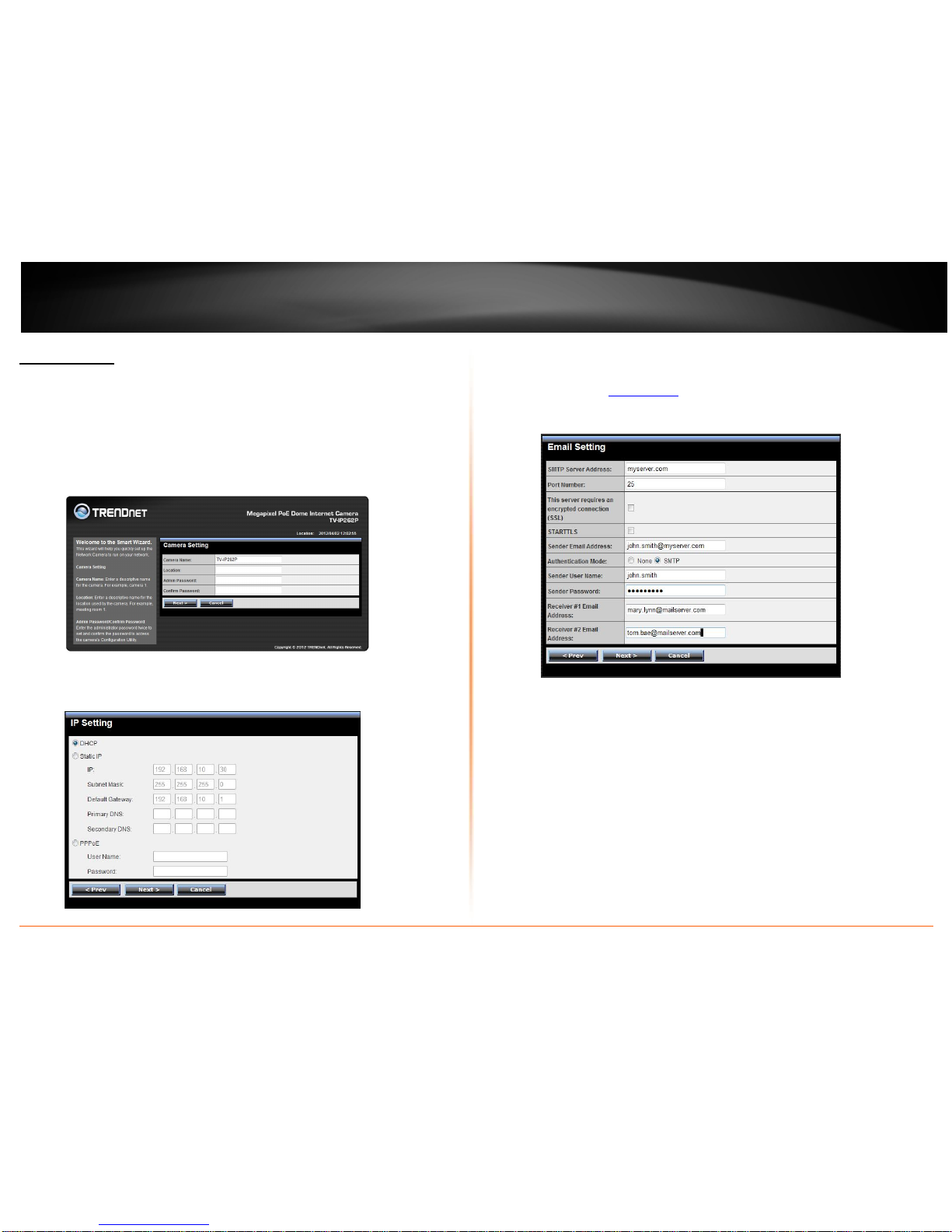

Smart Wizard
The camera’s Smart Wizard lets you configure your camera easily and quickly. The
wizard will guide you through the necessary settings with detailed instructions on each
step.
To start the wizard, click Smart Wizard in the left menu bar.
Camera Setting
By default, the camera name is set as model number. Change the name if
necessary. Enter the location and administrator password twice.
IP Setting
Select the IP setting according to your network: DHCP, Static IP, or PPPoE.
Email Settings
Enter the required information to be able to send email with image.
For example, myserver.com. If you are using a free mail service (e.g. Google
Gmail®, Yahoo®, Hotmail®), please enter the SMTP server address and the
corresponding information from the service provider.

© Copyright 2012 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TV-IP262P
15
Confirm Settings
The last step shows the configuration of your camera. When you confirm the
settings, click Apply to finish the wizard and reboot the camera. Otherwise,
click Prev to go back to the previous step(s) and change thesettings; or click
Cancel to end the wizard and discard the changes.
Basic
The Basicmenu contains three sub-menus thatprovide thesystem settings forthe
camera, such as the Camera Name, Location,Date & Time, and User management.
Basic >> System

© Copyright 2012 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TV-IP262P
16
Basic: This item allows you to assign the camera name and location information.
-Camera Name:Enter a descriptive name for the camera, which is helpful to
identify the camera easily while multiple cameras are connected within the
network.
-Location: Enter a descriptive name for the location where is monitored by
the camera.
-Language Default: Select the displayed language as default.
Indication LED: This item allows you to set the LED illumination as desired.
There are two options:Normal andOFF.
Basic >> Date & Time
Date&Time:Enterthecorrectdateandtimeforthe system.
-TimeZone: Select the proper time zone for the region from the pull-down
menu.
-Automatically adjust clock for daylight saving timechanges: selectthis
option for daylight saving
-Synchronize with PC: Select this option and the date& time settings of the
camera will be synchronized with the connected computer.
-Synchronize with NTP Server: Select this option and the time will be
synchronized with the NTP Server. You need to enter the IP address of the
server and select the update interval in the following two boxes.
-Manual: Select this option to set the Date andTime manually.
Basic >> User
Administrator: To prevent unauthorized access tothe camera’s Web Configuration,
you are strongly recommend to change the default administrator password. Type the
administrator password twice to set and confirm the password.
General User
-User Name: Enter the user’sname you want toadd touse the camera.
-Password: Enter the password for the new user. When youare finished, click
Add/Modify to add the new user to the camera. To modify the user’s information,
select the one you want to modify from UserList and click Add/Modify.
-UserList: Display the existing users of the camera. To delete a user, select the one
you want to delete and click Delete.
Guest
-User Name: Enter the guest’s name you want to add to use the camera.
-Password: Enter the password for the new guest.
-UserList: Display the existingguests of the camera. Todelete a user, select the
one you want to delete and click Delete.
NOTE: The “General User” is allowed to access the camera and control the Function
buttons on the Main screen of the Web Configuration.; the “Guest” can only view the
live view image from the Main screen while accessing the camera. Only the
“Administrator” is allowed to configure the camera through the Web Configuration.

© Copyright 2012 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TV-IP262P
17
Direct Video Stream Authentication:
To steam the video directly without going through the configuration page, you can
accessit via Internet.
-Enable: User needs to enter user name and password to stream the camera.
-Disable: User can stream the camera without entering the user name and
password.
Examples of the direct link to video:
H.264 Mode
http://camera_ip_address:port number/h264view.htm
MPEG4Mode
http://camera_ip_address:port number/mpgview.htm
MJPEG Mode
http://camera_ip_address:port number/jpgview.htm
NOTE This feature is enabled by default, and for security reason, it is recommended to
have the feature enabled atall time.
Network
The Network menucontains twosub-menus that provide the networking settings for
the camera, such as the IP Setting, DDNS Setting, and IP Filter.

© Copyright 2012 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TV-IP262P
18
Network >> Network
IP Setting: This item allows you to select theIP addressmode andset up the related
configuration.
-DHCP: Select this option when your network uses the DHCP server. When the
camera starts up, it will be assigned an IP addressfrom the DHCP server
automatically. This is the default IP setting on the camera.
-Static IP: Select this option to assign the IP address for the camera directly. You
can use IP Setup to obtain the related setting values.
IP Enter the IP address of thecamera. The
default setting is 192.168.10.30.
Subnet Mask Enter the Subnet Mask of the camera. The
default setting is 255.255.255.0.
Default Enterthe Default Gateway of the camera. The
Gateway
default setting is 192.168.10.1.
Primary/
Secondary
DNS
DNS (Domain Name System) translates
domain names into IP addresses. Enter the
PrimaryDNSand Secondary DNSthat are
providedby ISP.
-PPPoE: Select this option when you use a direct connection via the ADSL
modem. You should have a PPPoE account from your Internet service
provider. Enter the User Name andPassword. The camerawill get an IP
address from theISP as starting up.
NOTE: Once the cameraget anIP address fromthe ISP as startingup, it automaticallysends
a notification email to you. Therefore, when you selectPPPoE as your connecting type, you
have to set up the email or DDNS configuration in advance.
DDNS Setting: With the Dynamic DNS feature,you canassign afixed host and
domain name to a dynamic InternetIP address. To set up the DDNS:
1. Select the Enable option to enable this feature.
2. Select the Provider from the pull-down list.
3. Enter the required information in the Host Name,User Name, and Password
boxes.
NOTE:You have to sign up for DDNS service with the service provider before configuring this
feature.
UPnP: The camera supports UPnP (Universal Plug and Play),which is a set of
computer network protocols that enable the device-to-device interoperability. In
addition, it supports port auto mapping function so that you can access the
camera ifit isbehind an NATrouter or firewall.
Select the Enable option to enable this feature.
UPnP Port Forwarding: select this option to have the port forward to router.
Ports Number
-HTTP Port: The default HTTP port is 80.
-RTSP Port: Configure the transmissionof streaming datawithin the network.
The default RTSP (Real Time Streaming Protocol) port is 554.
NOTE:If the camera is behind an NAT router of firewall, the suggested to be used is from
1024 to 65535.

© Copyright 2012 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide TV-IP262P
19
Network >> Advanced
HTTPS
-Enable: Select this option to enable HTTPS, whichis a secure protocol to
provide authenticated and encrypted communication within your network.
-HTTPS Port: Assign a HTTPS port in the text box. The default HTTPS port is
443.
Bonjour: The devices with Bonjour will automatically broadcast their own
services and listen for services being offered for the use of others. If your
browser with Bonjour,you can find the camera on your local network without
knowing its IP address.
The Apple Safari is already with Bonjour. You can download the complete
Bonjour for Internet Explorer browser from Apple's website by visiting
http://www.apple.com/bonjour/.
RTSP
-RTSP Streaming: Select the Authentication as Disable or Basic, Digest for the
authentication level on the transmission of streaming data within the
network. The default RTSP Port (Real Time Streaming Protocol) is 554.
-Multicast settings: Configure the following settings so that you can deliver
information from your camera to a set of receivers.
Group IP Assign a category of IP addressesto receive
the informationfromthecamera.
H.264 Port Assign a multicast port for H.264 in the text
box. The default port is 1234.
MPEG4 Port Assign a multicast port for MPEG4 inthe text
box. The default port is 1236.
Audio Port Assign a multicast port for audio in the text
box. The default port is 1238.
TTL Set the TTL value from1 to 255, which is used
to modifythe timetolivefield in theIP
header.
QoS
-Live Video DSCP: Assign the DSCP (DiffServ Code Point) of the stream video
from the camera.
-Live Audio DSCP: Assign the DSCP (DiffServ Code Point) of the stream audio
from the camera.
