TRENDnet User’s Guide
TV-IP342PI
Product Overview
TV-IP343PI
Package Contents
TV-IP342PI
Multi-Language Quick Installation Guide
CD-ROM (Utility, Software & User's guide)
Power adapter (12V DC. 1A) (1.5M / 5 ft.)
Network cable (1.5 M/ 5 ft.)
RJ-45 coupler
Camera Mounting hardware
Features
The Outdoor 2MP Full HD PoE Day/Night Dome Network Camera, model TV-IP342PI,
offers 15 m (50 feet) night vision, an IP66 weather rating, tamper detection, and 3x
manual optical zoom for installation flexibility. Record full 1080p HD video (1920 x 1080)
at 30 fps in a space saving H.264 compression format. Manage up to 32 TRENDnet
cameras with included complimentary software and mobile apps.
Resolution
Record 2 Megapixel Full 1080p HD, 1920 x 1080 at 30 fps, in the space saving H.264
compression format
Multi-Language Interface
Support for English, French, Spanish, German, and Russian
Time and Text Stamp
Enable time and additional identifying text stamp overlays
IPv6
IPv6 support
ONVIF
ONVIF v2.20 and v1.01 compliant
Dynamic DNS Support
Support for dyn.com, no-ip.com, and iptecno.com
Samba Support
Record video to a defined network storage device
Tamper Detection

© Copyright 2014 TRENDnet. All Rights Reserved.
3
TRENDnet User’s Guide
TV-IP342PI
Receive tamper detection video clips via email, ftp, or save to network storage device or
Micro-SD card
D-WDR
Improved image quality in high contrast light environments with Digital Wide Dynamic
Range technology
Image Rotation
90 degree and 180 degree rotation for wall and ceiling installations
Motion Detection
Create up to 3 motion detection windows with separate sensitivity settings and event
triggers
Privacy Masks
Create up to three privacy masks to conceal sensitive areas
Product Hardware Features

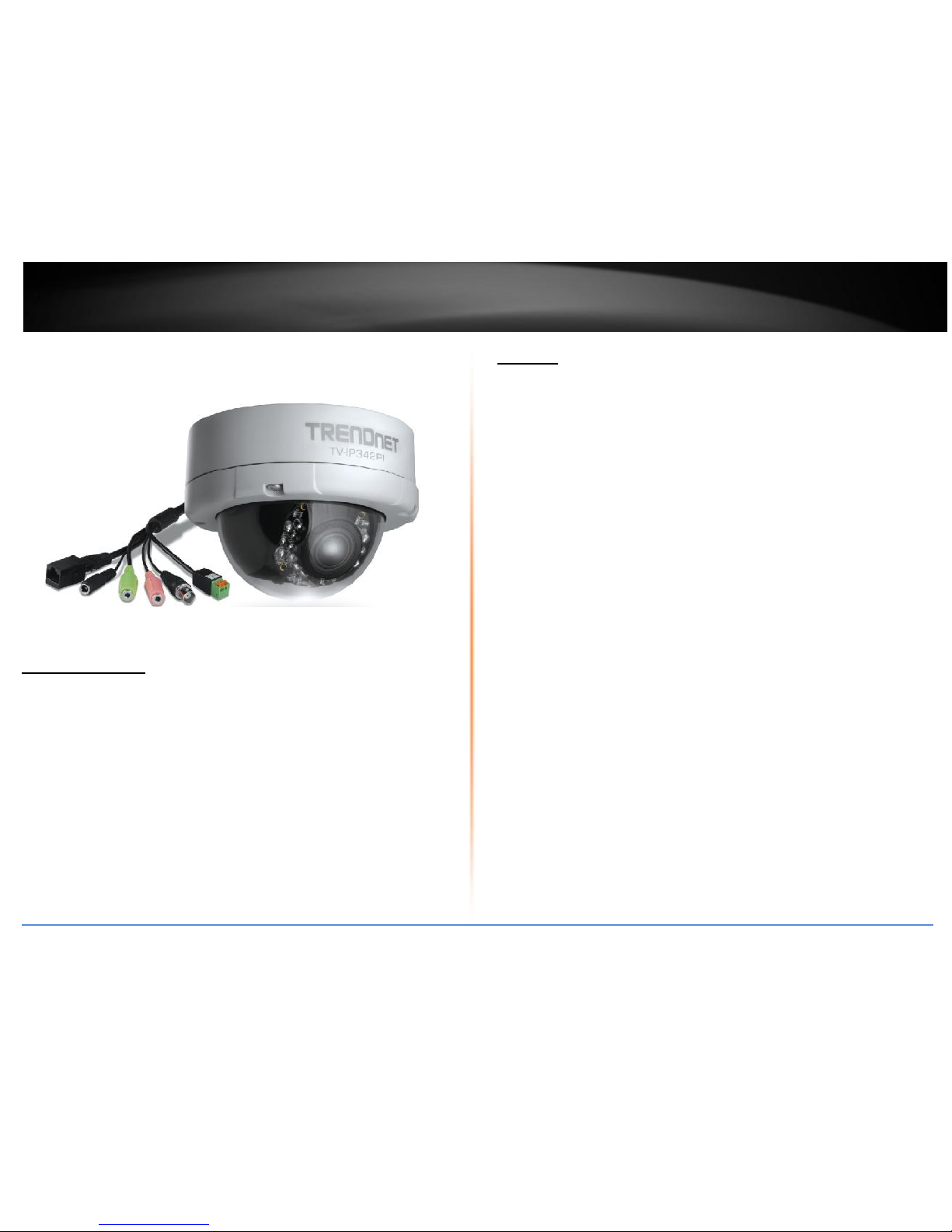

Camera Overview
IR Lens: IR lens for the camera.
Weatherproof Housing:Housing is rated with IP66.
IR Lens
Weatherproof housing

© Copyright 2014 TRENDnet. All Rights Reserved.
4
TRENDnet User’s Guide
TV-IP342PI

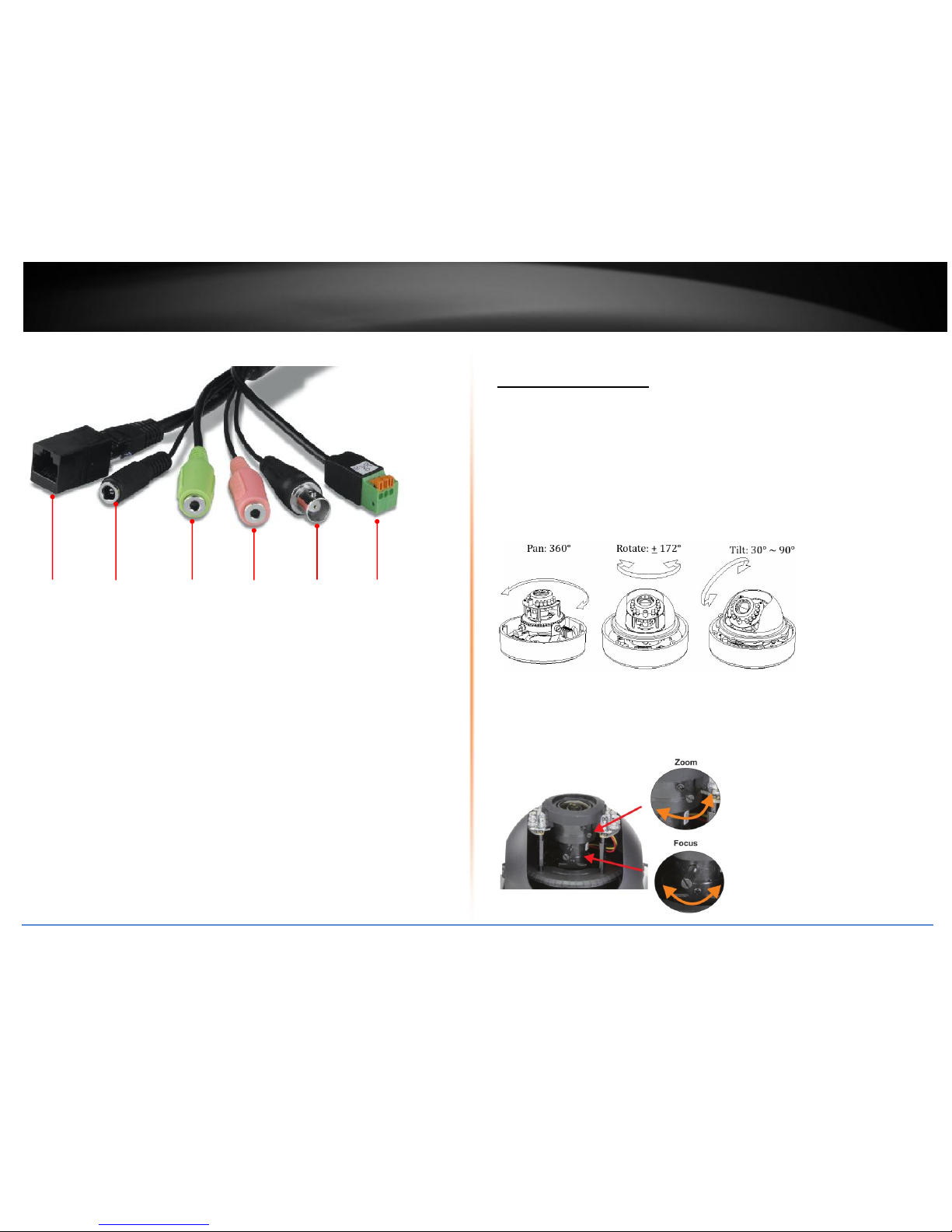

Camera Connectors
Ethernet/PoE Port: Plugs the network cable to connect to your local area
network (LAN). If you are using the PoE, you must have the network cable
connect to your PoE switch or PoE Injector.
Power Connector: Connects the power adapter to supply power to the camera
if using non-PoE connection
Speaker Out: Connects an external audio device (such as the active speaker) to
deliver sound via the camera.
Microphone In: Connects an external microphone to receive the on-the-spot
sound where the camera is installed.
BNC Video Out: Connect a CRT monitor or handheld monitor.
GPIO Port: Connect external device. Please refer to I/O setting paragraph. It's
also used for IP camera reset. Please refer to Factory Default paragraph.
Installation
Hardware Installation
Viewing Angle
Choose a location that has good angle to shoot the image you expect to see. The motion
detection area should also be considered when installing the camera.
Manual Pan/Tilt
The camera can manual pan/tilt to your desired location.
Vari-Focal Lens
The camera equipped with external vari-focus lens control. Achieve clear focus by
adjusting the zoom/focus button.
Power
Connector
Speaker
Out
Microphone
In
GPIO
Port
Ethernet /PoE
Port
BNC
Video Out

© Copyright 2014 TRENDnet. All Rights Reserved.
5
TRENDnet User’s Guide
TV-IP342PI
Waterproofing
The camera is designed to be waterproof. However, you need to protect the connectors
from water damage. For example, you can tape the junction points of the connectors
while you connect the cables or purchase a weatherproof cable/power cord protector.
Vandal Dome Installation Tips
In order to ensure IP66 waterproof level, please install the vandal dome according to the
instructions.
a. The unused cable outlet hole must be closed and the waterproof connector on the
used hole must be firmly locked.
b. We recommend the bottom of housing be set and firmly sealed on a smooth flat
surface.
c. When mounting the camera housing on a ceiling or wall, please use the screws with
the black rubber o-rings. Without the o-ring, water may seep into the machine.
d. Turn and loosen the control stick, shift right and left to adjust the vari-focal lens
until the image becomes clear, then turn and tighten the stick to fix it.
e. Before closing the dome cover, make sure that the black rubber band sticks to the
inside of the cover completely. If the rubber band is crooked or uneven, it may
cause the camera to no longer be waterproof.
f. Lock the screws on the dome cover tightly to ensure there's no gap between the lid
and the base.
Note: When connecting cables into machine, it is recommended to use a hose to include
all the cables inside instead of plugging in several cables separately. Water may seep
through a gap from bundled cables. You can also seal the connector hole with silicone
after installation.

© Copyright 2014 TRENDnet. All Rights Reserved.
6
TRENDnet User’s Guide
TV-IP342PI
Camera Installation
1. Insert the Installation CD-ROM into your computer’s CD-ROM drive to initiate the
Auto-Run program. Click the Install Camera.
2.
3. Write down the MAC ID of the camera.
4. Plug in and connect the power adapter to the camera. If you are using the PoE to
supply power to the camera, please skip to the next step. Click Next when you are
done.
5. Connect a network cable to the camera’s network port and then to your router. If
you are using PoE, please ensure the cable is connected to a PoE switch or PoE
injector.

© Copyright 2014 TRENDnet. All Rights Reserved.
7
TRENDnet User’s Guide
TV-IP342PI
6. Wait while searching the cameras.
7. The founded cameras will show on the screen. The camera already selected by
default if you have only one camera installed. If you have more than one camera in
the same Network, you will need to identify the camera by the MAC ID. Click Next.
8. Select "DHCP" option to assign an IP by DHCP server or Select "Fixed IP" to set IP
address manually. Click Next.
9. If you select "Fixed IP", fill out the IP address, subnet mask, default gateway, DNS
server. Please ensure that the IP address of the camera and the computer must
within the same network. Click Next.

© Copyright 2014 TRENDnet. All Rights Reserved.
8
TRENDnet User’s Guide
TV-IP342PI
10. Type in the Password. The default password is “admin”. You must change the
default password of the camera. Enter the default password: admin and enter the
new password. The password must be between 8 and 32 characters.
(Alphanumeric: a-z, A-Z, 0-9), and confirm the new password by entering the
password twice.
11. Click the hyperlink to access to the camera’s web page or click Next. It is
recommended that you access the IP camera now if it was using a DHCP
connection.
12. Click Finish to exit the program or click Home to return to the main screen.
This device also supports the Mobile App. Using your mobile device to scan the QR
code to install the App.

© Copyright 2014 TRENDnet. All Rights Reserved.
9
TRENDnet User’s Guide
TV-IP342PI
Configuration
Viewing Camera Basic Function
Open the Web browser on your computer (example showed in this User’s Guide is
based on the Internet Explorer). In the Address bar, type the IP address you got from
"Camera Installation" chapter or found by IP Installer, and then press [Enter].
When the login window appears, enter the User name (admin) and Password and press
OK to access to the main screen of the camera’s Web Configuration.
Note: if you are initially access to the camera, you will be prompted to install a new
plug-in for the camera. Permission request depends on the Internet security settings of
your computer. Click Allow and Install to process.

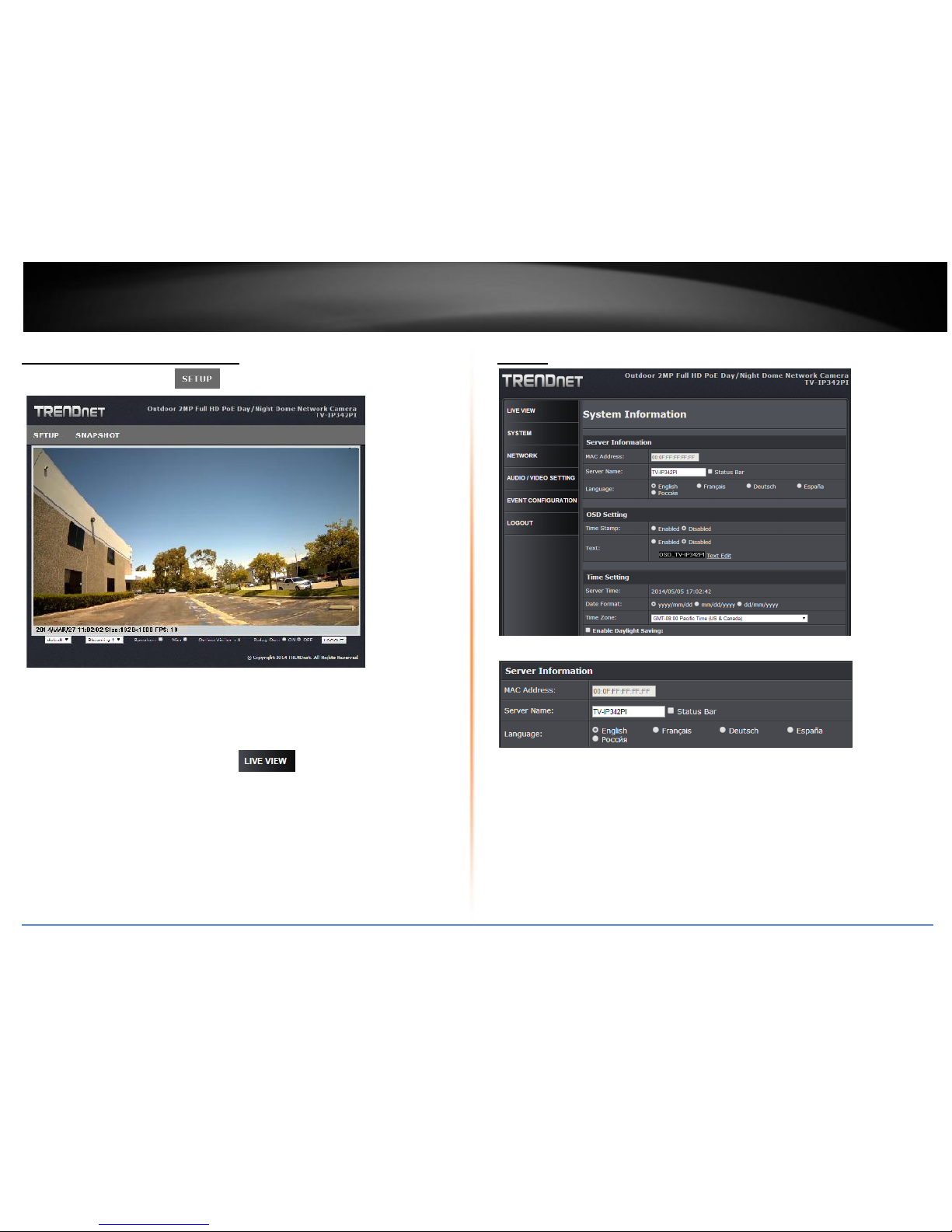

After you login into the live screen of the camera, the main page will appear as below:
The live screen of the IP camera configuration provides you with many useful
information and functions, including:
SETUP : Click the button to configure the camera.
SNAPSHOT: Click the button to take a snapshot. The snapshot will pop up another
window for your review first. Right click the mouse to save the snapshot at the
desire destination.
System Information: It shows current system Date, Time, Video Resolution, and
Video Refreshing Rate.
Digital Zoom: The drop down menu has 3 images size available, 1/2x, 1x and 2x. The
default is 1/2x.
Streaming Profile: Use the drop down menu to select Streaming 1 & Streaming 2
video. (If the streaming 2 setting is closed on “AUDIO/VIDEO SETTING >> Video”,
this option will not appear)






© Copyright 2014 TRENDnet. All Rights Reserved.
10
TRENDnet User’s Guide
TV-IP342PI
Speaker/Microphone: Click the "Mic" to speak out through the camera. Click the
“Speaker” to receive the on-side sound and voice from the camera.
Online Visitor: It shows how many people connect to this IP camera.
Relay On: Click the Relay out "ON" to trigger the relay output for testing. click "Off"
to stop triggering. To switch between these two types of relay out, please refer to
Event Configuration >> GPIO Setting session for detail.
Logout: Click to logout the camera

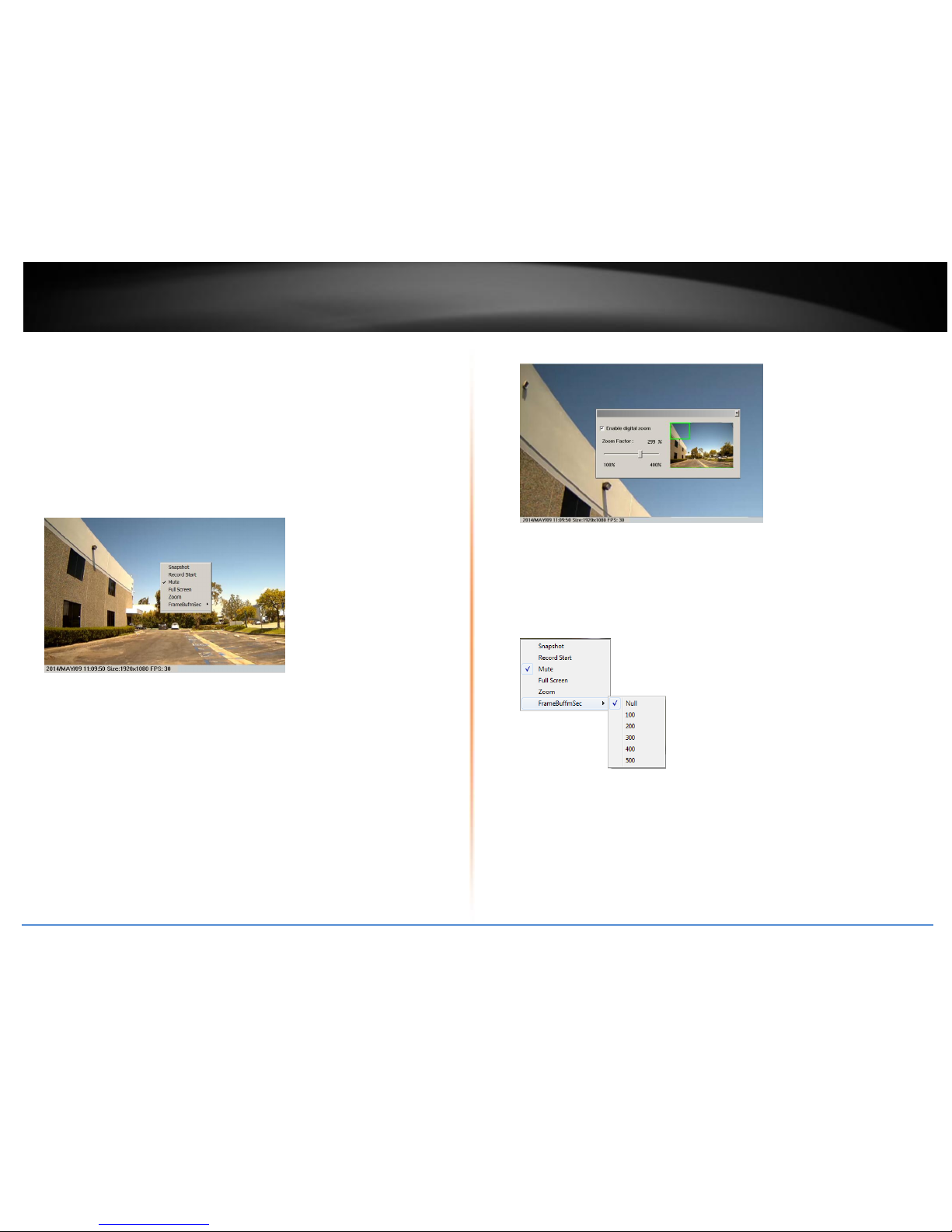

One the live view video, right click the mouse for the additional menu options.
Snapshot: Save a JPEG picture
Record Start: Record the video in the local PC. It will ask you where to save the
video. To stop recording, right-click the mouse again. Select “Record Stop”. The
video format is AVI. Use Microsoft Media Player to play the recorded file.
Mute: Turn off the audio. Click again to turn on it.
The "mute" button does not affect the playback recording video. As long as the "2-
Way Audio" option in the audio setting is enabled, all the audio will be recorded
into the playback video even you click "mute" in the live page.
Full Screen: Full-screen mode.
Zoom: Enable zoom-in and zoom-out functions. Select “Enable digital zoom” option
first within the pop-up dialogue box and then drag and drop the bar to adjust the
zoom factors.
Frame Buffer mSec: This function is to build a temporary buffer to accumulate
several video frames. This function can make video smooth-going when the
Network speed is slow and lag. If you select “100”, then it plays video after 100
mSec when starting receiving images from camera. The slower of the Network is,
the bigger value should be selected. The default value is null.






© Copyright 2014 TRENDnet. All Rights Reserved.
11
TRENDnet User’s Guide
TV-IP342PI
Configuring the Camera Setting
To configure the camera, click on the live screen.
The Web Configuration contains the settings that are required for the camera in the left
menu bar, including System, Network, Audio/Video Setting, Event Setting and Logout.
To return to the live screen, please click the button.
System
System >> System Information >> Server Information
MAC Address: It indicates the IP Camera’s MAC address.
Server Name: The Camera name.
LED Indicator: Turn the LED light on or off by click the ON/OFF button.
Language: There are 5 languages options. When changing the language, it will
prompt dialogue box for confirmation. Click "Yes" to proceed.

© Copyright 2014 TRENDnet. All Rights Reserved.
12
TRENDnet User’s Guide
TV-IP342PI
System >> System Information >> OSD Setting
Time Stamp: Enable or disable the time that will show on the live screen.
Position: After enabling time stamp, you can select the position of time stamp
on the live screen.
Text: Enable the Text option to have the desire text show on the camera live screen.
Text Edit: Click it to call out "text edit" window:
Text: Key in the words you want to show on the live screen.
Opaque: Set the background transparency of the text.
System >> System Information >> Time Setting
Server Time: It shows current IP camera server time.
Date Format: Select the date display format.
Time Zone: Select your time zone. It affect server time when you use "NTP" time.
Enable Daylight Saving: select the start and end daylight saving time.
NTP: Type in the IP address of the NTP server and interval time. The time of the IP
camera will be synchronized with NTP server time. To use this option, if the NTP
Server is under WAN, the IP camera must be set to access WAN ( Using the WAN IP
that provide by your ISP provider, or setup by UPnP Port Forwarding (page 18)
Synchronize with PC's time: In "Date" and "Time" column it shows your current PC
time. Click "Apply" to make the IP camera time the same with PC time. Note that IP
camera will not check with PC at every moment automatically. Every time when you
want to synchronize the IP camera time with PC time again, please select this
option and click "Apply".
Manual: Type in the date and time, and click "Apply".

© Copyright 2014 TRENDnet. All Rights Reserved.
13
TRENDnet User’s Guide
TV-IP342PI

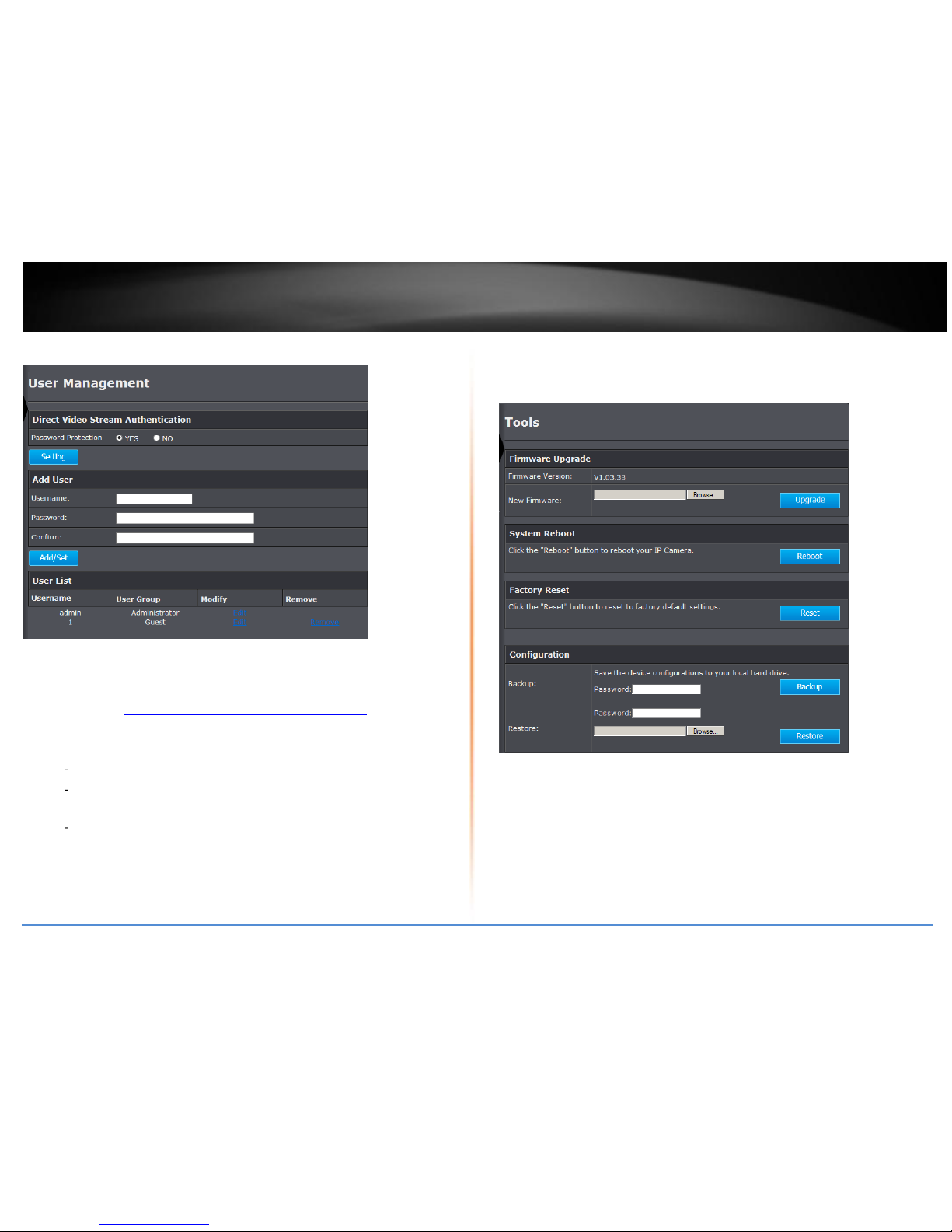

System >> User Management
Direct Video Stream Authentication:
To stream the video directly without going through the configuration page, you can
access it via Internet.
Stream 1 Video: http://camera_ip_address:port/stream1view.htm
Stream 1 Video: http://camera_ip_address:port/stream2 view.htm
Enable Password Protection:
Yes: User needs to enter user name and password to stream the camera.
No: User can stream the camera without entering the username and
password.
Add user:Enter the username and password to add guest users to access the
camera. The guest user can only view the live view video and is not allowed to do
any configuration.
User List:List all users that were added into the camera. Click “Edit” to modify
the user information. Click “Remove” to remove the users from the list.
System >> Tools
Firmware Upgrade:
To update the firmware, click “Browse” to select the firmware, then click
“Upgrade” to proceed. Please do not disconnect power or Network cable during
firmware upgrading.
System Reboot: Click Reboot to reboot the IP camera.
Factory Reset: Click Reset to reset all the settings back to factory default value
Configuration:

© Copyright 2014 TRENDnet. All Rights Reserved.
14
TRENDnet User’s Guide
TV-IP342PI
Backup: Click Backup to back up the camera configuration file that will be
saved on the local computer. A password is required to save a configure file.
You will need to enter the same key when restoring the configure file to the
camera.
Restore: Click "Browse..." to select the configure file from your computer then
click Restore to restore all setting. A previous saved password on this configure
file is required to restore configure file.
NETWORK
Network >> Network Setting >> IP Address Setting
DHCP: Select this option when your network uses the DHCP server. When the
camera starts up, it will be assigned an IP address from the DHCP server
automatically.
Static IP: Select this option to type in IP address, subnet mask, gateway, and DNS
manually. Default IP address is 192.168.10.30 if the camera doesn't connect with
DHCP server. DNS (Domain Name System) translates domain names into IP
addresses. Enter the Primary DNS and Secondary DNS that are provided by the ISP.
Network >> Network Setting >> IPv6 Setting
IPv6 is a newer numbering system that provides a much larger address pool than IPv4,
which accounts for most of today’s Internet traffic. You can manually enter IPv6 address
, enable DHCPv6 to get IPv6 address automatically.
Manually setup the IPv6 address: You can set up IPv6 manually by enter IP Address,
Gateway, and DNS.
DHCPv6: If you have a DHCPv6 server, enable this option to assign the IPv6 from
server. The assigned IP address will be displayed

© Copyright 2014 TRENDnet. All Rights Reserved.
15
TRENDnet User’s Guide
TV-IP342PI
IPv6 Address: A virtual IPv6 address generated by the IP camera. This virtual IPv6
address cannot use on WAN. To access the IP camera via IPv6 address, open a web
browser and type in http:// [IPv6 Address] in the address bar. The [ ] parentheses
mark is necessary for IPv6 address.
Network >> Network Setting >> Port Setting
Web Page Port: Setup HTTP web page connecting port which is also video
transmitting port (Default: 80)
HTTPS Port: Setup HTTPS connecting port (Default:443)
Network >> Network Setting >> Web Authentication
The camera supports two levels of authentication, Basic and Digest. The Basic option
having the username and password transmitted as plain text. The digest option
encrypted username and password during data transmission. The default
authentication is set to Digest.
Network >> Network Setting >> UPnP
UPnP:
This IP camera supports UPnP (Universal Plug and Play) which is a set of computer
network protocols that enable the device to device interoperability
UPnP Port Forwarding:
When the camera is installed under a router, enable UPnP Port Forwarding to let
the router open ports so that the video streams can be sent out from a LAN. Set
Web Port, Https Port, and RTSP port, and make sure your router supports UPnP and
the function has been activated.
After type in the port number and click "Apply", the port forwarding status will
display beside the port column. There are three status will show.
Registered successfully: UPnP port forwarding setting succeeds.
The router doesn't support UPnP Port Forwarding: The camera can detect the
router, but router return a message that it does not support UPnP Port
Forwarding.
The router is with some problems. Please reboot it: The camera cannot detect
the router. Please check your router.
If this router has a WAN IP, this function allows the camera to do WAN access. In
the address bar of browser, key in: "https:// (router WAN IP) : (external web port)
/" to access the IP camera.
Network >> Network Setting >> RTSP Setting
RTSP Server:
Enable it, then you can access camera and get image via RTSP protocol.

© Copyright 2014 TRENDnet. All Rights Reserved.
16
TRENDnet User’s Guide
TV-IP342PI
If you have a media player that supports RTSP protocol, you can use it to receive the
video streaming from IP camera. The RTSP address can be set for two streamings
respectively.
RTSP Authentication:
"Disable" means everyone who knows your camera IP Address can link to your
camera via RTSP. No username and password are required.
Under "Basic" and "Digest" authentication mode, the camera asks the user to give
username and password before allows accessing. The password is transmitted as
plain text under basic mode, which provides a lower level of security than under
digest mode. Make sure your media player supports the authentication schemes.
RTSP Port: It's used for TCP connection. Setup port for RTSP transmitting (Default:
554)
RTSP Start and End Port: It's used for UDP connection. Setup port for RTSP
transmitting (Default: 5000, 9000)
Network >> Network Setting >> Multicast Setting (Based on the RTSP Server)
Multicast is a bandwidth conservation technology. This function allows several users to
share the same packet sent from IP camera. To use Multicast, appoint IP Address and
port here. TTL means the life time of packet. The larger the value is, the more users can
receive the packet.
To use Multicast, be sure to enable the function "Force Multicast RTP via RTSP" in your
media player. Then key in the RTSP path of your camera: "rtsp://(IP address)/" to
receive the multicast.
Network >> Network Setting >> ONVIF
Under ONVIF connection, the video will be transmitted by RTSP. Be sure to enable the
RTSP server in IP setting, or you're not able to receive the video via ONVIF.
ONVIF:
Choose your ONVIF version. The two devices that use ONVIF to communicate
should be set to the same version.
Security:
Select "Disable", then the username and password are not required when
accessing the camera via ONVIF. Select "Enable", then username and password
are necessary.
RTSP Keepalive:
When the function is enabled, the camera checks once in a while if the user who
links to the camera via ONVIF still keeps connecting. If the connection had been
broken, the camera stops transmitting video to user.
Network >> Network Setting >> Bonjour
This function enable Safari browser's bookmark to link to this IP camera. The Bonjour
name is the name that display in the bookmark. Please note the Bonjour function on

© Copyright 2014 TRENDnet. All Rights Reserved.
17
TRENDnet User’s Guide
TV-IP342PI
Safari browser does not support https protocol. If you selected “https” mode, you will
see the camera appears on Safari’s bookmarks but will not be able to access the camera.
Network >> Network Setting >> LLTD
If your PC supports LLTD, enable this function then you can check the connection status,
properties, and device position(like IP address) of this IP Camera in the network map. In
Windows Vista or Windows 7, you can find LLTD through the path: Call out the Control
Panel → Network and Internet → Network and Sharing Center → Click "See full map".

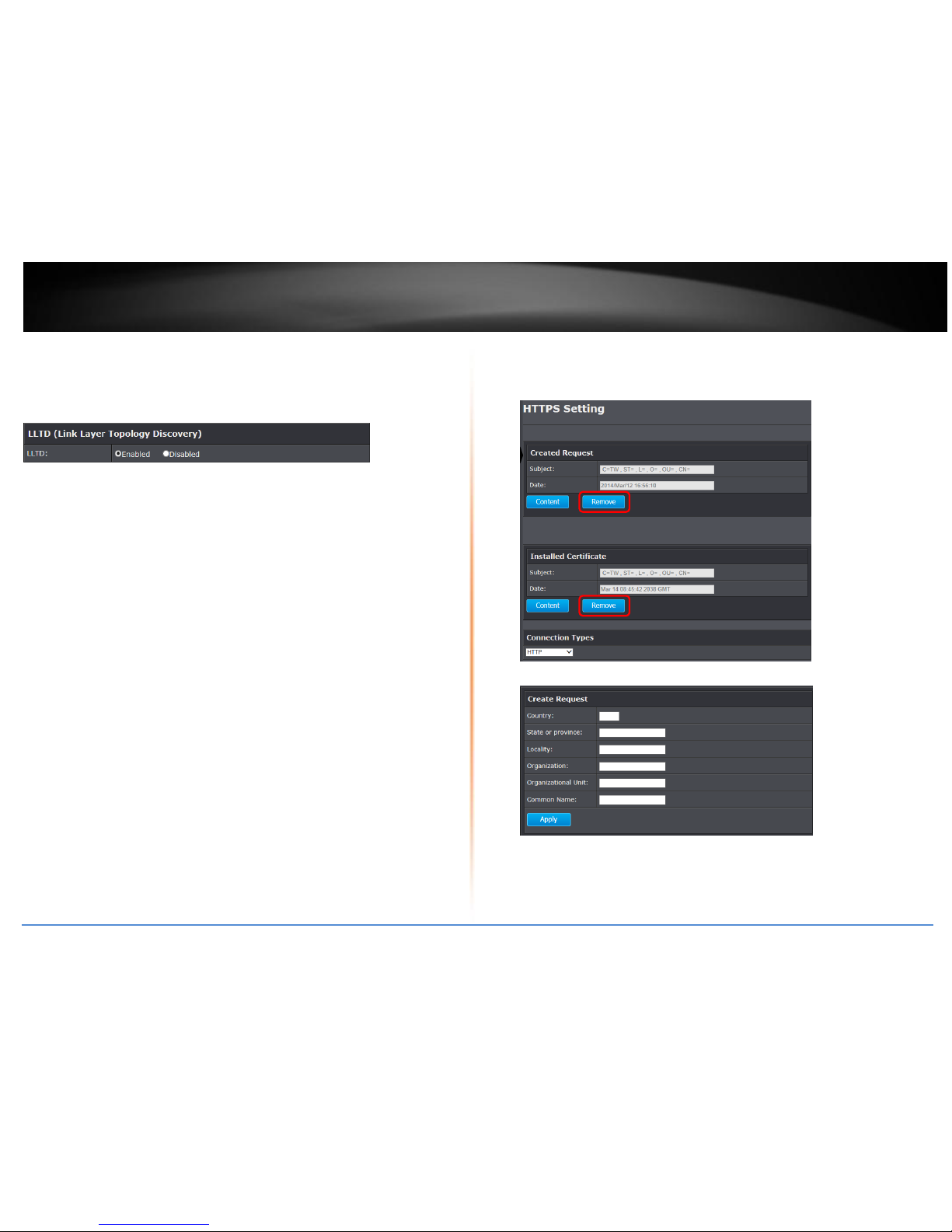

Network >> Advanced >> HTTPS
When the users access cameras via Https protocol, the transmitted information will be
encrypted so that the security level is arisen.
You can select the connection type.
Http: user can access the camera via Http path.
Https: user can access the camera via Https path but cannot via Http path.
Http & Https: Both the Http and Https path can be used to access the camera.
When you change the setting of connection type, it may cause connection error or
disconnection error if you switch the protocol directly. Therefore, Http & Https
mode is necessary. If you want to change from Http to Https, please switch to “Http
& Https” mode first, and then switch to “Https” mode. Same method when you
change from Https to Http.
The Https protocol has certificate verifying mechanism. When the user access a website
via Https, the browser will check the certificate of that domain and verify its trustiness
and secure.
Certificate generation process:
1. Remove the existing certificate: Before you generate a new certificate, please
remove existing one. Select "Http" connection type and click "Remove". If a dialog
box pops up to ask you to confirm, click “Yes”.
2. Created Request: Fill in the following form and click “apply”.

© Copyright 2014 TRENDnet. All Rights Reserved.
18
TRENDnet User’s Guide
TV-IP342PI
3. After you generate a certificate request, if you choose to turn it to the trusted third-
party to verify, please click “Content” and copy all the request content.
4. According to the certificate source, there are two ways to install the certificate.
If you had sent the certificate request to do sign and received a signed
certificate, please click” browse” and find the certificate file in your computer.
Click “Apply” to install it.
If you choose to generate a self-signed certificate, fill in the following forms and
set validity day, click “Apply” to finish installed it.
After finishing installation, you can click “Content” to call out and check the
certificate content.
5. To use Https to access camera, open your browser, and key in "https://(IP
address)/" in the address bar. Now your data will be transmitted via encrypted
communications, and the browser will check your certificate status. If it shows you
a warning message. The warning message meant that the certificate is self-signed
or signed by distrusted institution. Click Continue to this website to view the view
the camera.
Network >> Advanced >> SNMP
SNMP (Simple Network Management Protocol) provides a simple framework for
administering networked hardware. To manage the IP camera, you have to prepare a
MIB browser or similar tools first. SNMPv1, SNMPv2c, and SNMPv3 can be enabled
simultaneously.
The following examples are based on MG- SOFT MIB Browser. Depending on your MIS
Browser, you may see different interface and options. Please refer to the user manual of
your MIB Browser.
SNMPv1 and SNMPv2:
The term "Community name" in SNMPv1 and SNMPv2c can be roughly regarded as
key. The person who has the community name has the authority to read or edit the
information of IP camera via SNMP.

© Copyright 2014 TRENDnet. All Rights Reserved.
19
TRENDnet User’s Guide
TV-IP342PI
Click the box to enable SNMPv1 or SNMPv2c protocol, and specify the community
name for write (read and write) and read (read-only). The user who use read
community name to access the IP camera cannot modify any data of the camera.
The community name can be any English characters and numbers, and must be
shorter than 31 bits.
SNMPv3:
For data security reason, the authentication and encryption assurances are added
when developing SNMPv3. The user has to give not only the security name (similar
with "community name" in v1&v2c) but the password in order to access the IP
camera. Please set security name, authentication type, authentication password,
encryption type, encryption password of write and read respectively. The security
name can be any English characters and numbers, and must be shorter than 31
letters. The password must be 8~64 letters in length.
Different from in SNMPv1 and v2c, the user have to create an account when using
SNMPv3. In the account parameters, key in the security name and password you
set in the camera to get accessing.
SNMPv1/SNMPv2 Trap:
Trap is a mechanism that allows a managed device to send messages to the
manager instead of waiting passively for polling from the manager. Specify the trap
event. When those events occur, the camera will send the ring message to the Trap
Address, which is usually the manager's IP address. Trap Community means the
community that can receive the trap message.
Note: Trap Address must be under the same LAN with IP camera.
Cold Start: The camera starts up or reboots.
Setting changed: The SNMP setting is changed.
Network Disconnected: The network connection was broken down. (The
camera will send trap messages after the network being connected again)
V3 Authentication Failed: A SNMPv3 user account tries to get authentication
but failed. (Due to incorrect password or community)
