Triax S-HD 207 User manual

Content
1
305210
Triax S-HD 207
Digital Satellite Receiver
Operating Manual

Content
2
Content
Content...........................................................................................................................................1
Content...........................................................................................................................................1
General instructions.......................................................................................................................3
Safety Instructions .........................................................................................................................4
Cleaning and care..........................................................................................................................4
Control elements, front and rear panel..........................................................................................5
Connecting the receiver.................................................................................................................6
Remote control...............................................................................................................................7
Initial installation.............................................................................................................................8
Operating the receiver .................................................................................................................10
EPG –Electronic Programme Guide ..........................................................................................12
Settings.........................................................................................................................................12
Settings –Receiver setup......................................................................................................13
Settings –Picture ...................................................................................................................14
Settings –Sound....................................................................................................................15
Settings –Subtitle ..................................................................................................................15
Settings –OSD Configuration (Option) .................................................................................16
Settings –Parental lock .........................................................................................................17
Parental lock –device lock ....................................................................................................17
Parental Lock –changing the PIN .........................................................................................17
Installation ....................................................................................................................................18
Installation –antenna configuration.......................................................................................18
Installation - channel search ..................................................................................................19
Installation –Factory reset.....................................................................................................20
Installation –Smartcard Reader (Option)..............................................................................21
Installation –Software download...........................................................................................22
Channel list...................................................................................................................................24
Channel list –Edit main list....................................................................................................24
Channel list –Edit favourites list............................................................................................24
Channel list –Delete Antenna ...............................................................................................25
Timer ............................................................................................................................................25
Timer –record timer...............................................................................................................25
Timer –Sleep-Timer...............................................................................................................26
Information ...................................................................................................................................27
Videotext ......................................................................................................................................27

3
Connection of external mass storage device (option) ................................................................28
List of recordings..........................................................................................................................29
Operating the external mass storage device (Option)................................................................30
Recording ...............................................................................................................................30
Timeshift function ...................................................................................................................31
Playback.......................................................................................................................................31
Choosing the audio channel for recordings...........................................................................31
Fast forward and rewind.........................................................................................................31
Operating the hard disk –setting and managing markers....................................................32
Using serial interface ...................................................................................................................33
Make a contribution to environmental protection........................................................................33
Trouble-shooting..........................................................................................................................34
Technical data..............................................................................................................................35
General instructions
Warranty
The period of warranty starts when buying the device. Please verify the exact date by sales
check, delivery note, invoice, etc. Keep the documents carefully. Our warranty service refers
to our warranty terms valid at the time of buying the apparatus.
In case you require technical service please take or send the device to your specialised
dealer.
The unit is labelled with the CE-sign and therefore conforms with the
general requirements of the European guidelines. A Declaration of
Conformity is in the later part of this manual.
Dumping hint for packaging
Any packaging material is recyclable and should principally be supplied to the recycling
process.
Packaging and wrapping materials as plastic foils, etc. should never be available for children.

Safety Instructions
4
Safety Instructions
Before installing your digital receiver, all security and operating instructions should be read
carefully. The User’s Manual should be retained for future reference.
All operating and using instructions should be followed.
Never allow children to operate this electrical device without supervisor.
ENVIRONMENTAL CONDITIONS
Protect the receiver against humidity, heat and cold. Allow 10cm space around the receiver for
sufficient ventilation. Do not cover the receiver’s ventilation openings with items like
newspapers, tablecloths, curtains, etc. .
Do not place any objects filled with liquids, such as vases, on the digital receiver.
Take care that no foreign bodies or liquids are getting into the device.
Do not expose the digital receiver to dripping or splashing liquids.
CONNECTING TO MAINS SUPPLY (SAFETY FEATURE!)
Only connect the original mains adapter to a well reachable mains supply socket 230V~ 50Hz
only. Do not tilt, do not use disproportionate power and do not damage the receiver’s power
socket and its electrical connections when connecting the power cord. If the mains adapter
should fail to fit, contact your supplier.
FAILURE
If the mains adapter or the power socket or its electrical connection is damaged, immediately
unplug the mains adapter from the mains supply socket. Do not try to open or repair the mains
adapter or the receiver on your own! Service must be carried out only by experts at a proper
service centre.
If replacement parts are required, only original components are allowed to use. The use of
unauthorised components may result in risk of fire and electric shock.
Cleaning and care
Before cleaning, unplug the device from the mains adapter.
For cleaning the casing, please use a soft, damp cloth. Do not use any washing-up liquids that
affect the casing. Do not spray a cleaner towards the receiver
PLACEMENT
In touch with certain furniture surfaces it may happen that the receiver’s feet may rub off. You
should place the device on a proper underground that is stable and not easily inflammatory.
Otherwise the receiver may fall and cause serious injury to people and serious damages to the
device.
Do not use this product near water (e.g. bath tube, wash bowl, …).

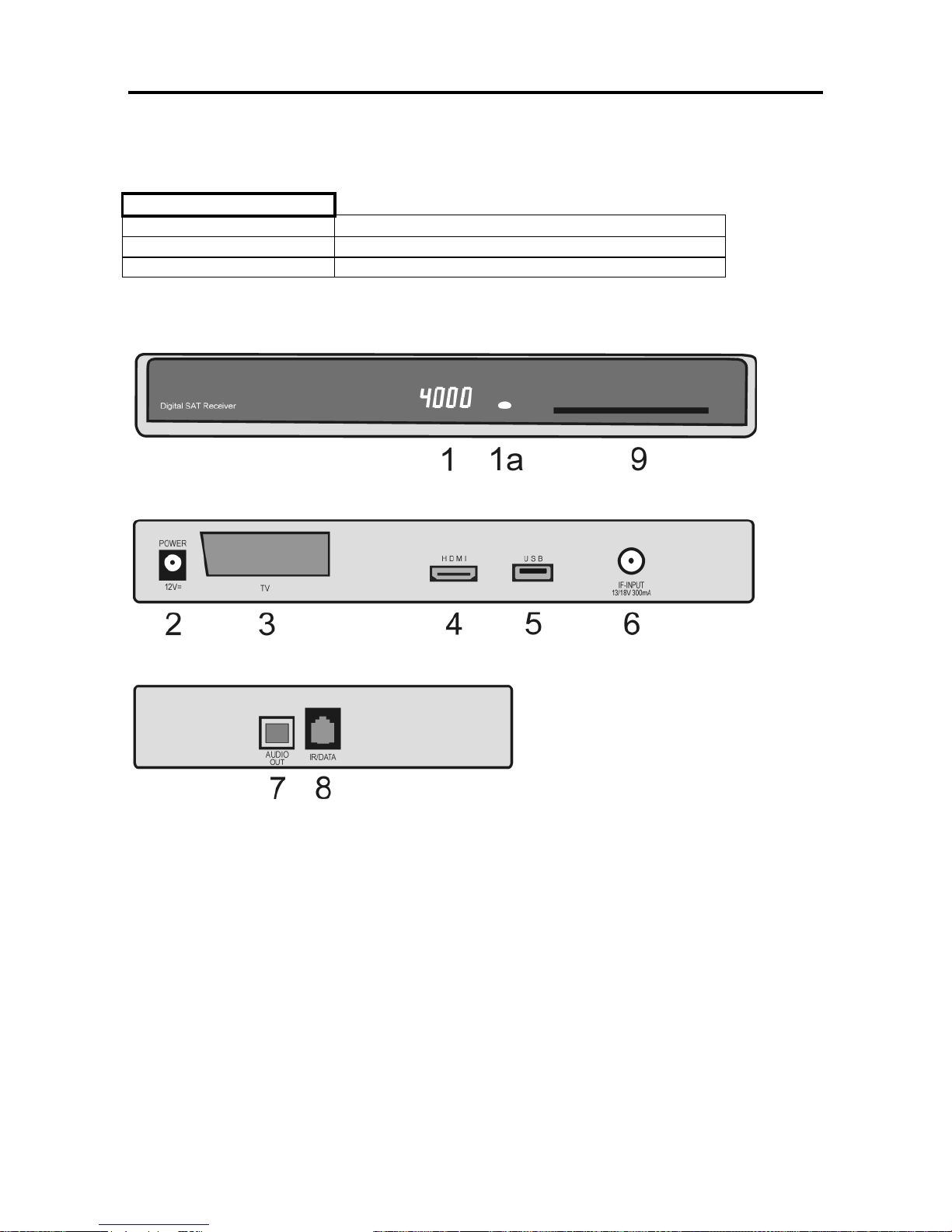

Control elements, front and rear panel
5
Control elements, front and rear panel
1 4-digit display shows channel number
1a or LED
Display
-
Receiver in standby mode.
Channel number
Receiver is ON
rEC.
Timer activated
9 Smartcard reader
2 Connector for mains adapter 12VDC
3 TV-Scart port for connecting the TV
4 HDMI-Output (digital Audio- and Videosignal) for connecting the TV
5 USB-socket for external mass storage device
6 IF Input Digital –F-Connector for antenna cable from LNB
Left side
7 Optical S/PDIF interface for DOLBY DIGITAL-Signal.
8 RJ-11-Socket: Connection for an External IR Receiver and Interface for
softwareupdate

Connecting the receiver
6
Connecting the receiver
Connecting a satellite antenna
Connect the coaxial cable of your satellite system with the socket IF-INPUT DIGITAL (6).
Caution: If, after connecting the receiver to the mains, the screen shows the message
“Short circuit or overload at antenna input”, there is a short circuit in the LNB cable or in
the LNB. In this case the receiver must be disconnected from the mains immediately, until
the short circuit has been remedied.
Connecting a television
Use a scart cable to connect the TV socket (3) on the receiver to the corresponding scart
socket on the television set.
HDMI output (4)
If your receiver is connected to the TV by a HDMI-cable, audio- and videosignal are digital.
Connecting a digital multi-channel amplifier
The receiver is optionally available with an AUDIO OUT socket (7) for a DOLBY DIGITAL signal.
Use a suitable cable to connect this socket to your multi-channel amplifier.
Connecting an External IR Receiver (optional)
If you want to set up the receiver where it can’t be seen, you can connect a external IR
receiver to the RJ-11 socket (8). This must be positioned in such a way that it can receive the
signals from the remote control. When installing the receiver, always be sure to follow the
safety and installation instructions.
Connecting an external mass storage device
For recording of TV programmes, an external mass storage device can be connected to the
optional USB-socket (5).
Connecting the mains adaptor
Connect the DC plug of the mains adaptor supplied with the unit to the socket DC-INPUT
+12V (2) on the receiver.
How to insert batteries into the remote control
Open the cover at the rear side of the remote control.
Insert two AAA type batteries (1.5V).
Attention: Take care of appropriate +/- polarity!
Note:
If the operational range of the remote control is getting smaller, it indicates that the batteries
are almost consumed. Always replace both batteries.
Caution:
Do not heat, disassemble or recharge the batteries.
Consumed batteries are not allowed to be disposed in domestic refuse. They must be supplied
to a facility, collecting and disposing exhausted batteries according to the EU environmental
protection rules.

Remote control
7

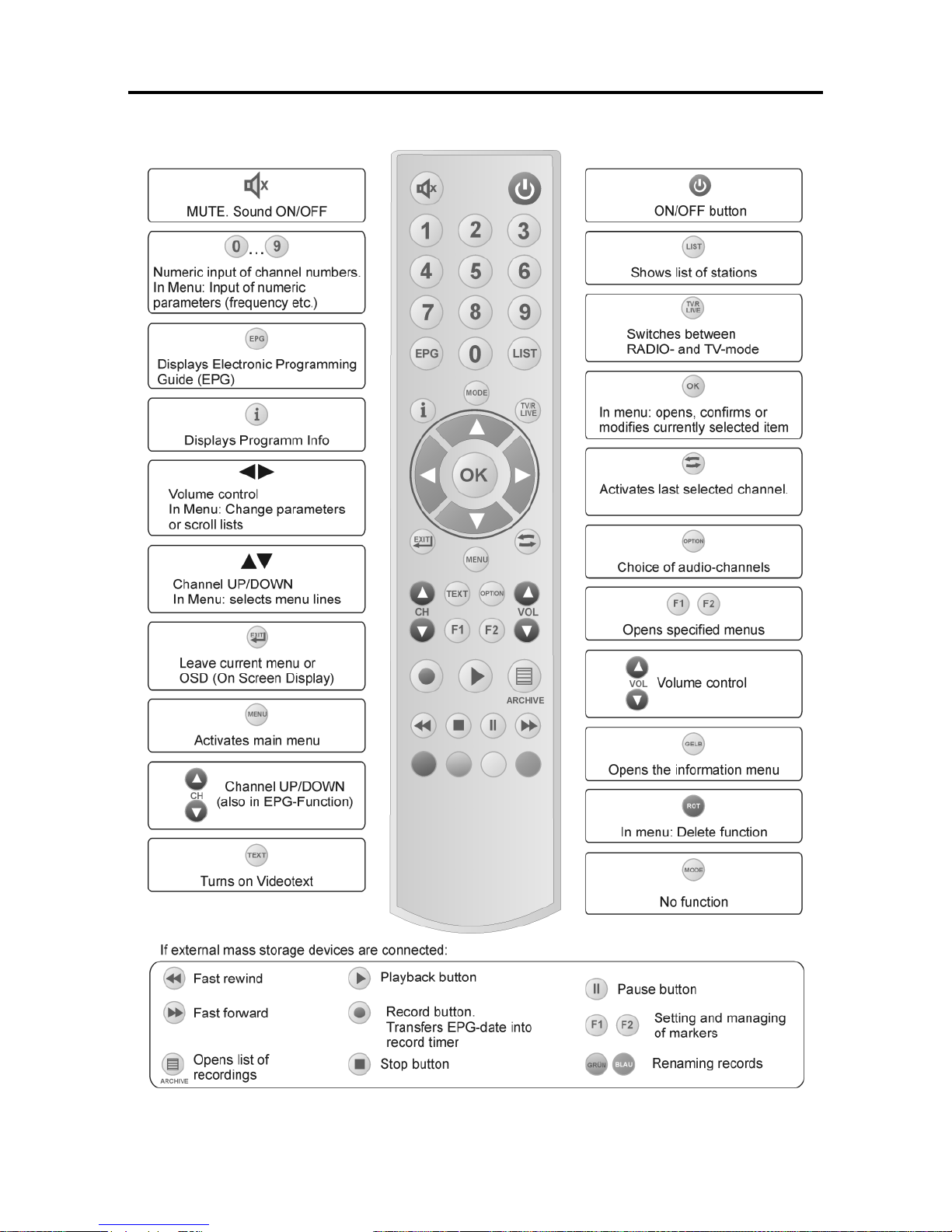

Remote control

Initial installation
8
Initial installation
After reading the safety instructions (see chapter “safety instructions)” and finishing the actions
explained in chapter “connecting the receiver” please use the supplied power cord for
connecting the apparatus to the power supply. When running the receiver for the first time the
“welcome menu” of the installation guide is displayed at the TV screen.
It helps you installing the most important settings.
Language of the menu
In the first step of the installation guide please select your
language
by using or . Confirm your choice by OK.
Country
In the second step please select your country.
Therefore press 
and then OK. If you want to get back to the language selection,
you have to use the EXIT button.
NOTE: The choice of the country affects the the channel list
sorting.
Satellite
In the third step please select the satellite whose channels
are to be sorted first in the channel list (use or ).
End the installation with OK.
A correction of the previous settings can be carried out
by pressing EXIT
Welcome
Menu language [2/14]
Deutsch
English
Italiano
Suomi
Francais
Čeština
Türkçe
Welcome
Country [1/9]
Germany
Austria
Switzerland
Italy
Greece
Portugal
Hungary
Welcome
Satellite (SAT)
Astra 19.2
Hot Bird
Astra 28.2
Turksat 1C
Sirius 4

Initial installation
9
Satellite reception
In the last step please select the type of your connected satellite antenna system (use 
or ).
Standard or SCR (Sat Channel Router)
Standard
Choose this option, if you want to connect the receiver to a conventional satellite antenna
system.
Move the cursor with or to Standard. By pressing the OK button all alignments are done
automatically.
SCR (Sat Channel Router)
Choose this option, if you want to connect the receiver to a special SCR satellite antenna
system.
Move the cursor with or to SCR and press the OK button.
The following menu is displayed:
Note:
Each connected receiver must have an ID-number (SCR-ID) and a receiving frequency. You
can find this informations in the manual of your antenna system or on the wall socket.
In the line SCR-ID choose the ID for your receiver (1…8) using the buttons ◄►.
Then move the cursor with or to Frequency and press the OK button.
Use the numeric input buttons 1…0 for entering the 4 digit frequency. Confirm your inputs by
OK.
Then move the cursor with or to Store and press the OK button.
Please note:
New programmes found by the channel search will be added to the beginning of the list of
stations. You can set out the order of stations as you wish, and delete programmes you do
not want.
Welcome
Satellite Reception
Standard
SCR (Sat Channel Router)
SCR (Sat Channel…)
SCR-ID
Frequency
1
1.400 GHz
Store

Operating the receiver
10
Operating the receiver
Switching receiver ON/OFF
1.) This receiver is optionally equipped with a low power standby circuit.
If this function is activated, the standby power consumption of the receiver is less
than 1W.
The function is switched ON or OFF in the menu SETTINGS/RECEIVER SETUP.
Low-Power Standby ON –Switching on the receiver takes about 10 seconds (Display:
“boot”).
Low-Power Standby OFF –Receiver switches ON immediately.
2.) The receiver is also equipped with the funcion „Auto-Standby“.
This function can be activated or deactivated in the menu SETTINGS/RECEIVER
SETUP.
If “Auto-Standby“ is activated, the receiver switches to Standby-Mode after 3 hours
running. Precondition: No timer is activated and no operations with the remote control
during this time.
You can switch on the receiver by pressing OK, or by using one of the numeric buttons
1…0. The last activated channel will be displayed (e.g. 0015).
The digital receiver is switched into standby mode by pressing .
ATTENTION: Only by pulling the mains adapter the receiver is disconnected from the power
supply completely.
TV & Radio mode
You can choose between the operation mode TV (viewing TV channels) and RADIO (listening
to radio channels) by pressing RADIO.
Volume control & Muting
The volume level can be adjusted by pressing ◄ ► or VOL  . The corresponding scale is
displayed on the screen.
Hint:
- It is not possible to change the volume level while the menu is active.
- The volume control only affects the audio output at the TV, VCR and AUDIO
ANALOG OUT ports of the receiver.
By pressing the button you can totally switch off the audio output (muting). For switching
on again, simply use the same button.
