Trident MINI User manual

1 | P a g e
TRIDENT AIR MINI –BY PLASMA SCIENCE
USER MANUAL

2 | P a g e
TRIDENT AIR MINI –BY PLASMA SCIENCE
TABLE OF CONTENTS
REPAIR ADVICE 3
STATEMENT OF ENVIRONMENT IMPACT 3
PRODUCT & ACCESSORIES 4
PACKING LIST 4
PARAMETER INFORMATION 4
SAFE AIR DOME TECHNOLOGY 5
WIFI CONNECTION 6
AIR QUALITY COLOUR DISPLAY 7
SAFETY PRECAUTIONS 7
CLEANING & MAINTENANCE 8
COMMON TROUBLESHOOTING METHODS 9
CONTACT INFORMATION 10
WARRANTY 10

3 | P a g e
TRIDENT AIR MINI –BY PLASMA SCIENCE
REPAIR ADVICE
Please read this user manual to operate this product properly and
safely.
Only Plasma Science technicians who have undergone the required
training are able to fix the air purifier.
Please inform Plasma Science Pte Ltd when the air purifier is
malfunctioning and do not attempt to fix it. Unplug the wire and
switch off the power and leave the rest to our technicians.
STATEMENT OF ENVIRONMENT IMPACT
1. All packaging materials are recyclable and environmentally
friendly. To preserve a healthy environment, kindly dispose of
these packaging materials in an eco-friendly manner.
2. Please keep packaging materials away from children as
playing with plastic films and cartons can result in a room-
breathing mishap.
3. Please help safeguard the environment by recycling or
disposing of waste properly.

4 | P a g e
TRIDENT AIR MINI –BY PLASMA SCIENCE
1. Aluminium Mesh Pre-Filter
2. Advanced Graphene Electrostatic Filter
3. Ozone Decomposition Carbon Filter
4. Trident Cold Plasma Ion Activator
PRODUCT & ACCESSORIES PACKING LIST
Trident Air Purifier 1 PC
Aluminium Mesh Pre-Filter 2 PCS
Advanced Graphene Electrostatic Filter 2 PCS
Ozone Decomposition Carbon Filter 2 PCS
Trident Cold Plasma Ion Activator 1 PCS
PARAMETER INFORMATION
Rated Voltage
220V
Rated Frequency
50Hz
Rated Power
13-63W
PM CADR
600m3/h
Lifespan
Up to 10Years
Coverage Area
74m2 (800 sq. ft)
Weight
12.8 kg
Noise
<30Db(A) –60 Db(A)
1. Air Outlet Grid
2. Control Panel
3. PM2.5 Indicator
4. VOCIndicator
5. VOC Sensor Cover
6. PM2.5 Sensor Cover
7. Air Inlet
8. Wheels
9. Filter Cover(back)

5 | P a g e
TRIDENT AIR MINI –BY PLASMA SCIENCE
SAFE AIR DOME TECHNOLOGY
HUNT
The Trident Ion Activator simulates the sun's normal process of
dispersing positive and negative oxygen ions while producing no heat,
light, or other unwelcome byproducts. Sanitizing surfaces and the air
effectively. 99.99% of the airborne viruses, germs, VOCs, and
allergens are hunted and killed by the ions that are released into the
environment.
CATCH
By using less energy than conventional air purifiers, Trident's
Advanced Graphene Electrostatic (A.G.E.) Plates can clean and
disinfect an area up to five times faster. Larger particles up to PM5.0
are caught by the aluminum mesh pre-filter. Trident can completely
eradicate smoke and odor by employing A.G.E. Plate, which has a
strong 99.9% absorption rate of tiny and aerosol particles of 0.01-
micron size. The A.G.E. Plate also creates a potent 4–8KV voltage
charge that rapidly kills bacteria and viruses by obliterating their
proteins and cells.
KILL
The revolutionary triple killing action Safe AirDome Technology inhibits
virus transmission within 30 minutes of usage and achieves up to
99.99% disinfection.
Applications:
Places such as homes, workplaces, schools, hospitals, restaurants,
daycare facilities, and clinics.

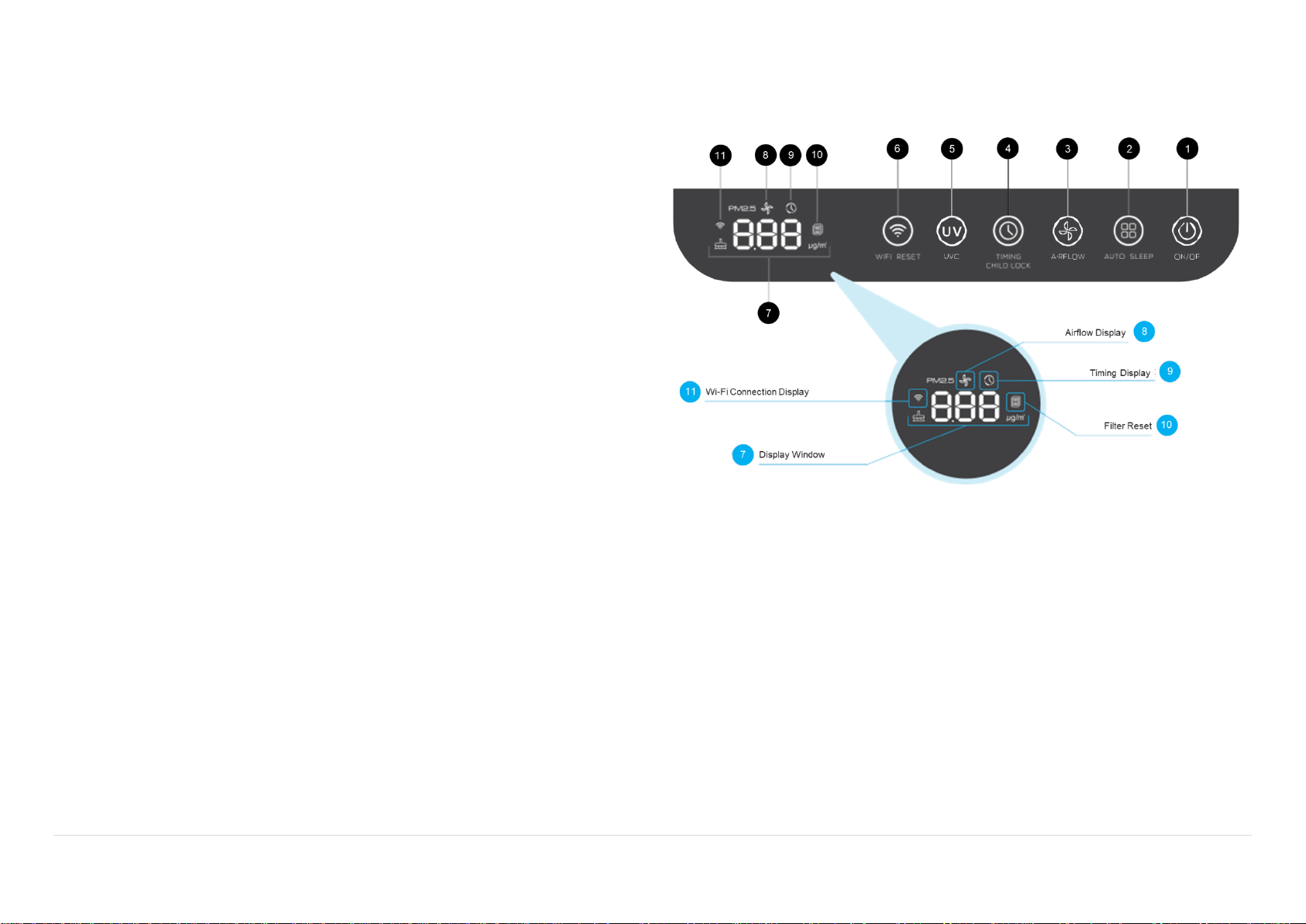

INSTRUCTIONS FOR USE
1. ON/OFF:
The power button icon turns red whenever the wall socket connected
to Trident is turned on.Pressing the power button will turn the power on
or off accordingly. All of the keys will illuminate in white when the
machine is turned on.
2. AUTO/SLEEP:
When in auto mode, pressing the button quickly will illuminate both
"AUTO" and the button; when in sleep mode, long pressing the button
for three seconds will illuminate both "SLEEP" and the button, while
also turning out all of the display lights on the panel and the device.

6 | P a g e
TRIDENT AIR MINI –BY PLASMA SCIENCE
3. AIRFLOW:
Press the button quickly to switch to speeds 1–2–3–4 and
simultaneously display icons 3 and 8; the PM2.5 display willreturn after
5 seconds.
4.
TIMING / CHILD-LOCK:
Quickly pressing the timing icon, shifts the timer from 1,2,4,6,8 Hours.
Icons 4 and 9 will appear asappropriate. It will take 5 seconds to restore
the PM2.5 display. The machine emits a "beep" prompt sound when
you long press forthree seconds, turning on the "CHILD LOCK" button.
This locks all of the keys to prevent tampering by children. When you
are ready to release the child lock, long press for three seconds.
5. UVC:
Short press for UVC filter sterilization. To disable, press the button one
more time. It is not necessary to turn on UVC for normal use. The UVC
is an added assurance to disinfect filter before removing filter for wash,
especially if machine is used in high-risk area such as hospitals.
6. WIFI / FILTER RESET:
When the network has been successfully configured, the "WIFI" icon
will be on and icons 6 and 11 will blink concurrently. Push the button
for 3 seconds to enable the wifi network configuration mode.
Icon 10 and "RESET" will blink simultaneously when it is time to wash
the filters. After washing the filters and placing the clean filters back
into Trident, press the button for 5 seconds, the machine will beep to
indicate that the filter has been correctly reset.
7. DISPLAY WINDOW
8. AIRFLOW DISPLAY
9. TIMING DISPLAY
10.FILTER RESET
11.WIFI CONNECTIVITY DISPLAY
WIFI CONNECTION
DOWNLOAD APP AND REGISTRATION
1. To download the "Smart Life" APP, scan the QR code, or
“TUYA” APP. To install the APP, you may also search for
"Smart Life" or “TUYA” in the Google Play or iOS APP stores.
2. Launch the APP and select "Register" to create an account
with "Smart Life" using your phone number or email address.
Then, log into the APP.
3. Click "add device" or press "+" in the top right corner of the
"Smart Life APP" homepage to launch it. There are two ways
to access the "add device" page: manually adding WiFi or
automatically looking for devices.
When adding a device manually, select any product from the
product ring to enter a new homepage and make sure the
indicator light flashes quickly.
Two configuration options are offered by the devices. Tap "Other
techniques" in the top right corner of the home page to enter Easy
mode and AP mode. From there, select one of the modes to
connect to WiFi.
Ensure that both your phone and smart gadget are powered on and
linked to your WiFi. If the WiFi indicator on a smart device does not
flash, please press and hold the light ring's center button for at least
5 seconds until the indicator light begins to flash rapidly, indicating
the device is ready for configuration.

7 | P a g e
TRIDENT AIR MINI –BY PLASMA SCIENCE
AIR QUALITY COLOUR DISPLAY
Accordingto thecurrentPM2.5condition,themachinePM2.5 indicator
light above the front panel changes color:
Blue: Excellent
Green:Good
Yellow:Moderate
Red:Poor
The current PM2.5 value will simultaneously be displayed in the display
window on the control panel.
According to thepresentstate ofgaseous pollutants,the VOC (Volatile
Organic Compound) indicator light beneath the machine's front
panel changes color:
Blue: Excellent
Green:Good
Yellow:Moderate
Red:Poor
SAFETY PRECAUTIONS
ABOUT POWER
1. Only make use of three-pin sockets that adhere to the
nameplate's standard voltage.
2. If the power cord, plug, or power socket are damaged, do not
use this product.
3. You must hold the plug when unplugging the electricity rather
than pulling the cord to prevent electric shock or fire from a
short circuit.
4. Regularly remove any dust from the power plug.
5. The manufacturer or trained maintenance employees must
replace the power cord if it is damaged.
WHEN IN USE
1. Never operate the machine without filters in place.
2. Avoid sticking your fingers or other objects inside the air intake
or outlet.
3. Avoid obstructing the air intake or outlet.
4. Avoid touching or putting anything near a heat source (such as
heating stove and other places that may be exposed to
flammable gas).
5. You should disconnectthe power cord fromthe wall socket right
away if there is any smoke, stench, or other malfunctions.
SERVICE RESTRICTIONS
1. To prevent electric shock, fire, and other harm, never use
equipment in a space filled with flammable gases such as
hydrogen, natural gas, propane, etc.
2. To prevent electric shock, fire, or other damage, do not use it
in unstable locations such as easy-dumping, hot, humid, or wet

8 | P a g e
TRIDENT AIR MINI –BY PLASMA SCIENCE
locations such as bathrooms.
ABOUT MOVING
1. When moving the machine, ensure that it is unplugged.
2. To prevent the machine from falling and injuring people, grab
the handle on the side of the machine while moving; do not hold
the front panel.
NOTICE FOR CLEANING
1. Never wash the carbon filter with water.
2. Use caution when cleaning the equipment because harsh
detergents that are corrosive will scratch the surface.
3. Always use soft cloths to wipe machine surfaces; otherwise,
they risk being fractured or damaged.
4. Avoid using alcohol or other organic solvents to clean the
device because doing so could harm it or result in electric
shock, fire, etc.
5. Please unplug the machine from the electrical outlet while
cleaning or not using the machine, as doing so could result in
an electric shock or a fire from a short circuit.
CLEANING & MAINTENANCE
INLET AND TOP OUTLET GRILLE CLEANING
1. To get rid of dust and debris, use a soft brush.
2. Avoid using any abrasives or cleaning pads on any sections of
the equipment and, if necessary, use a paper or cloth that has
been mildly moistened to remove big deposits.
VOC SENSOR CLEANING
Above the air inlet grille, on the machine's middle right side, is where
you'll find the VOC sensor.
1. To preserve precise smell identification, wipe away dust and
debris from the VOC sensor using a soft cloth.
2. Avoid tampering with the opening, or spraying water near the
grille aperture above the VOC sensor as this could void the
sensor's warranty.
PM2.5 SENSOR CLEANING
1. Remove the PM2.5 Sensor cover.
2. Clean the lens, air intake, and air output with a damp cotton
swab.
3. To get rid of any remaining waterstains on the dust sensor, use
a dry cotton swab.
4. Clean the PM2.5 sensor whenever readings is erratic.

9 | P a g e
TRIDENT AIR MINI –BY PLASMA SCIENCE
FILTER ASSEMBLY
Six pre-assembled filters are included with this purifier. After the filters
are inserted, please close the rear cover to turn on the machine.
CLEANING OF ALUMINUM MESH PRE-FILTER
Depending on the environment in which it is used, the aluminum mesh
filter needs to be cleaned at least once every four months. It captures
big particles >5 microns and also hair and tiny insects, etc
1. Use a vacuum cleaner to get rid of any dust or fluff.
2. Apply mild detergent and wash with a shower head.
3. Rinse the filter well to get rid of any remaining soap.
4. Air-dry the filter.
CLEANING OF A.G.E FILTER
1. Remove the A.G.E filter.
2. Place it in water with mild detergent and let it soak for 5
minutes.
3. To eliminate all dirt, use a shower head to spray clean.
4. Let the sun dry the filter or make use of a hair dryer.
CLEANING OF OZONE DECOMPOSITION CARBON FILTER
To get rid of dust and fluff, use a vacuum cleaner or soft brush to brush
off dust.
WHOLE MACHINE CLEANING
Clean with a damp sponge or cloth.
Do not immerse the air purifier in water.
COMMON TROUBLESHOOTING METHODS
MALFUNCTION
POSSIBILITY
METHOD
Touch panel
cannot be
pressed
Voltage fluctuation could be
the result of prolonged use.
It is advised to turn off the power
source and wait five seconds
before turning it back on.
The effects of
purification and
dust removal are
not immediately
apparent, and the
air quality does
not significantly
improve.
The device is without a filter.
The equipment is situated in a
constrained space or there are
obstructions around, which
reduces the effect of
purification.
The filters are dirty.
Set up the filter properly.
Remove the obstruction or find
another location.
Clean filters.
Unacceptably
loud running noise
Faulty fan.
Some object(s) dropped into
the fan area.
Wheel balance is off.
Contact after-sales service
centre.
Debris removal.
Moving it around and checking
the wheels
The filter won't fit.
The filter is fitted in reverse.
Align the bottom slot of the filter
with the proper adjustment.
The device is not
turning on.
Filter cover is open or
improperly placed filter
Put the cover and filter back on.
Contact after-sales service
centre.
Anomalies in fan
motors
Motor overheats.
Unplug, give it time to cool, and
then reconnect.
If the problem persists, contact
customer service.

10 | P a g e
TRIDENT AIR MINI –BY PLASMA SCIENCE
CONTACT INFORMATION
PLASMA SCIENCE PTE LTD
Trident Air Customer Service Centre
•7 Yishun Industrial Street 1 #03-49 North Spring Bizhub,
Singapore 768162
•Email: [email protected]
•Operating hours: Monday-Friday 9:00 AM - 6:00 PM
•Whatsapp: [phone]
•Website: tridentair.sg
WARRANTY
Register your warranty online at www.tridentair.sg
Standard Warranty Period: 1 year against manufacturer’s defects,
unless otherwise stated.
Standard warranty is on-site service for first 30 days, and thereafter,
CARRY-IN service to Trident Customer Service Centre:
7 Yishun Industrial Street 1 #03-49 North Spring Bizhub
Singapore 768162
For pick-up & delivery and On-Site service, additional charges apply.
Please contact our customer hotline to arrange appointment.
