Trimline Fires 64 Front DB User manual
trimline
Trimline 64 Front DB 1186
Trimline 64 Panoramic DB 1187
Trimline 64 Corner Left DB 1188
Trimline 64 Corner Right DB 1189
Trimline 64H Front DB 1190
Trimline 64H Panoramic DB 1191
Trimline 64H Corner Left DB 1192
Trimline 64H Corner Right DB 1193
GBR-IRL
INSTALLATION INSTRUCTIONS
For other languages, download the manual, open it in Acrobat Reader and
choose the desired language with the buttons on the bottom side of this page.
Trimline 64 Front/Panoramic/Corner DBInstallation instructions 2
CONTENTS
V110322
thermoCet International BV is not responsible for any
(consequential) damage due to incorrect installation.
thermoCet International B.V.
Laagerfseweg 27
3931 PC Woudenberg
The Netherlands
1 INSTALLATION INSTRUCTIONS........................................................................................................................3
2 PLACING THE APPLIANCE..................................................................................................................................3
2.1 Preparation and installation......................................................................................................................3
2.2 Connection to the gas supply pipes........................................................................................................4
2.3 Installation methods...................................................................................................................................4
3 REMOVING AND INSTALLING THE GLASS PANELS....................................................................................6
......................................10
5 INSTALLING REAR WALLS (OPTIONAL)........................................................................................................12
6 FITTING THE LED GLOW BED MODULE (OPTIONAL)................................................................................18
6.1 AR glass (Optional)...................................................................................................................................21
7 TECHNICAL DETAILS MAXITROL GV60........................................................................................................22
8 INSTRUCTIONS FOR MAXITROL GV60 .........................................................................................................24
9 GAS-TECHNICAL SPECIFICATIONS................................................................................................................25
10 CONCENTRIC PATHWAYS.................................................................................................................................27
11 CONCENTRIC FLUE SYSTEM ...........................................................................................................................28
........................................................................................28
...............................................................................................28
................................................................................28
11.4 Parts ............................................................................................................................................................29
11.5 Installation..................................................................................................................................................29
12 PASS-THROUGH POSITIONS AND FUNCTION CORRECTLY...................................................................30
13 CLEANING AND MAINTENANCE.....................................................................................................................31
14 QUICK REFERENCE GUIDE FOR FAULTSSEARCH FOR ENCLOSED GAS FIRES
USING MAXITROL GV60 GASCONTROL .......................................................................................................32
DIMENSIONAL DRAWINGS ..................................................................................................................34
BUILT-IN EXAMPLES...............................................................................................................................37
CONSTRUCTION DIAGRAM DOUBLE-WALL CONCENTRIC .......................................................41
PREPARATION AND INSTALLATION .................................................................................................42
PREPARING GAS CASSETTE GV60 FOR INSTALLATION ...........................................................43
EXPLODED VIEW AND SPARE PARTS...............................................................................................45
Trimline 64 Front/Panoramic/Corner DBInstallation instructions 3
English
1 INSTALLATION INSTRUCTIONS
NOTE
The installation should be performed only by an authorized
•The appliance must be installed, connected, inspected
according to local standards and regulations.
•
roof face must also meet the requirements outlined in
•The appliance has been approved in combination with
with European CE standards for gas appliances, and may
therefore only be applied with this system.
•
gas distribution (gas type and gas pressure) as indicated
•The instructions are only applicable if the relevant country
code is stated on the appliance.
•
•Ignite the appliance according to the user manual and check
must be removed from the glass panel using a glass cleaner
Distance from flammable materials
Distance to non-ammable materials
The appliance needs to be placed a minimum distance
of 25mm from the wall unless stated otherwise in these
instructions.
WARNING
•
appliance, the glass panel surface is considered to be an
active zone. The glass panel surface can become very hot.
•
children and those requiring help away from the immediate
2 PLACING THE APPLIANCE
NOTE
Before installing the appliance, please read Chapter
3Removing and installing the glass panel, 10Concentric
pathways, 11Concentric ue system and .
2.1
Preparation and installation
•Check the packaging for damage. Remove the packaging
and check the contents are intact and complete. Report
damage and defects to the supplier immediately.
•The packaging contains the following components:
- Unit
- Remote control
- Ceramic wood set
- Restrictor(s)
-
-
- Suction cup(s)
- Adjustable feet
- Wide trims packed separately
-
- 2 Convection grilles
- Installation instruction
- User manual
NOTE
Do not start the installation until you have read and
understood the installation instructions.
•Place the appliance on a stable surface. Remove the glass
panel (see Chapter 3 Removing and installing the glass
panel) so you can take out the packaged parts. Check it
•Put the appliance in place using the adjustable feet
(supplied) and the wall mounting. The adjustable feet can
Image 4
•
2.2 Connection to the gas supply pipes).
Optional
The gas valve can be mounted under the appliance
•The distance between the gas valve and the appliance
•
10Concentric
pathways and appendix4Preparation and installation).
Trimline 64 Front/Panoramic/Corner DBInstallation instructions 4
•
1 2 3
•
•
below the ceiling. If the space between the grille and the top
of the ceiling in the chimney is very high, it is recommended
that a false ceiling made of refractory material be installed
in the chimney.
2.2 Connection to the gas supply pipes
•Remove the protective bracket under the appliance
complete with gas valve (remove the tie straps) and secure
found inside.
•Take account of the power supply: batteries or
•You can determine where the gas supply pipes will be
placed, dependent on the layout. Ensure control equipment
tension. Accessibility of various connection points in relation
to components needs to be maintained. After installation,
a connector. Also ensure the gas supply pipe is free from dirt
or sand. To prevent damage to the gas control equipment,
•
Check all the gas connections for leaks again. You can then
switch the appliance off and put the ceramic wood set in
place (see Chapter 3 Installation of the ceramic wood set
and dispersion medium).
NOTE
•
do not look good, repeat the previous steps again while
checking and correcting if necessary.
•
13 Cleaning and maintenance).
2.3 Installation methods
Depending on the desired set-up, you can decide to work with
the glass panes of the appliance.
Applying the wide trims 1
•The standing trims have an adjustable magnet attachment
at the bottom. Pull the wide trim forward at the bottom and
unhook it at the top.
•Push the lower trim forward and then remove it.
•The unit can be built in, taking into account the correct
dimensions of the conversion in such a way that the wide
problems.
•
If the installation is too tight, less than 4mm clearance,
•
wallpaper) of the surround, the trims can be put back again.
Work with the Plateau directly on glass panes 2 3 4
•
pane, see the orange dotted line.1)
•Plateau materials must always be non-combustible.
The glazing bars with leaf springs must remain removable
at all times.
•
which can serve as a boundary for the plateau material.
3 4.
thickness.
NOTE
•The platform material must not rest on the adjusting
•
strips, the glass panel must remain removable.
5
5
1
15
5
1
5
3
4
4
1
1
2
6
Trimline 64 Front/Panoramic/Corner DBInstallation instructions 6

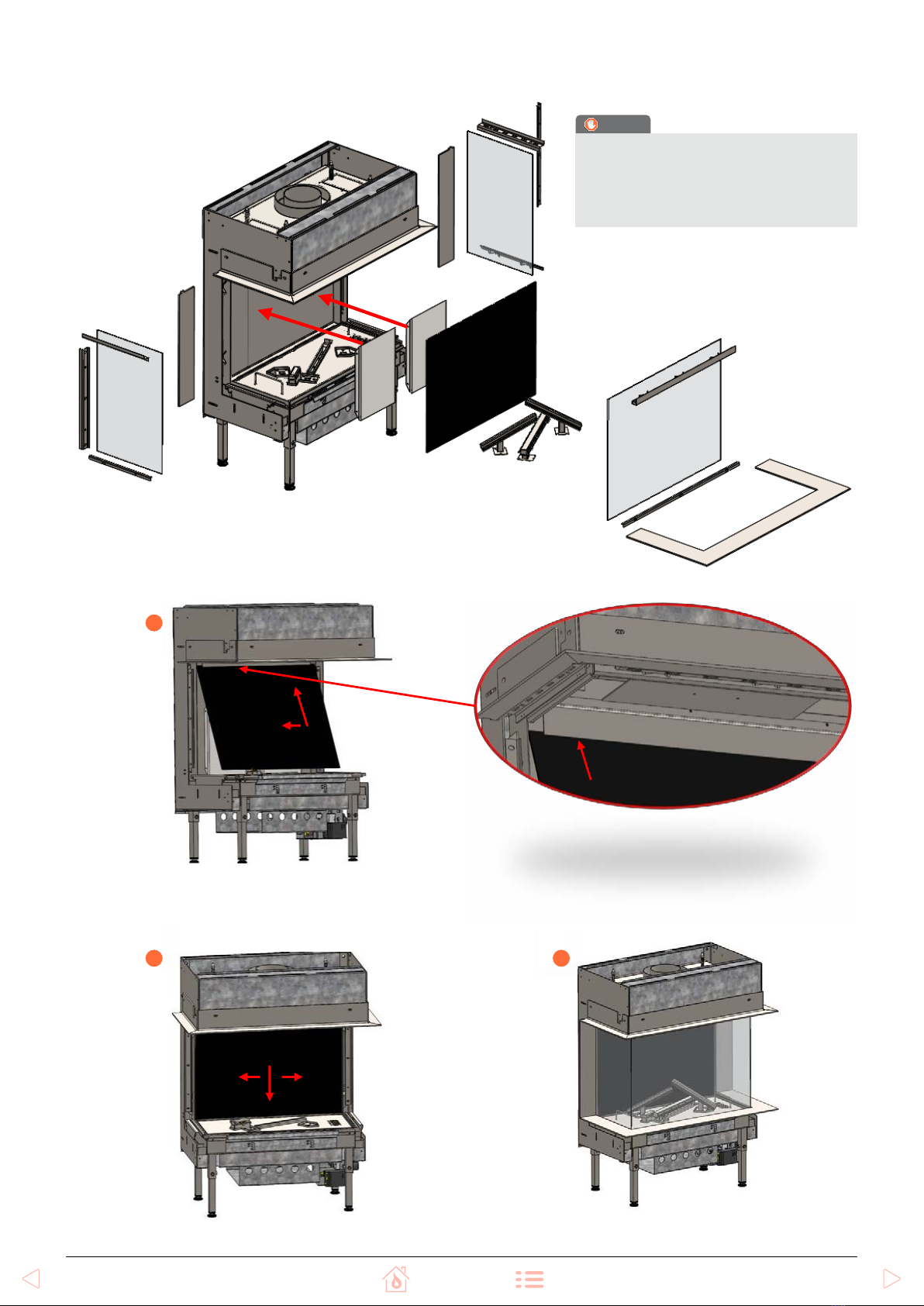

3 REMOVING AND INSTALLING THE GLASS PANELS
NOTE
10 Concentric Pathways.
Fitting the front glass panel
NOTE
breaking. The side glass panel is pressed against the front
glass panel by spring pressure. When removing the front
glass panel, the side glass panel can creep forward due to
the spring pressure.
•The side glass panel does not need to be removed, but it
must be pushed back.
•Loosen the screws of the glass holders of the side glass
panels 1 (do not remove the glass holder) or remove the
spring glass holder.
•Place the suction cup on the side glass panel and slide it,
against the spring pressure, to the rear 2, past the contact
surface of the front glass panel 3.
•Clamp the side glass panel(s) by tightening the glass holder
•Make sure the seals are complete, whole and clean.
•Fit the front glass panel and ensure it is aligned with
4.
•Clamp the front glass panel by tightening the glass holder
screws 5
•Loosen the side glass panel(s) by loosening the glass
holder screws (do not remove the glass holder) or removing
1.
•Carefully slide the side glass panel(s) forward using the
supplied suction cup 6
neatly against the front glass panel.
•Keep the side glass panel pushed against the front glass
•
•Check the appliance ignites properly again.
NOTE
Do not forget to re-tension the springs that push the glass
panel forwards so there is less chance of the window creeping.
1
2
1
23
1
2
1
2
1
2
1
23
1
2
1
2
1
2
1
23
1
2
1
2
Trimline 64 Panoramic DB
Trimline 64 Front/Panoramic/Corner DBInstallation instructions 8
➡ Disassemble wide trims
➡ Disassemble glass frames
➡ Remove the glass panel
➡➡ NOTE
NOTE
When removing side glass
panel. Note the leaf springs that
push the glass panel forward
when the front glass panel
comes out.
First push the side glass panel
backwards and secure it before
you place the glass panel back.
1
1
23
1
2
3
2
1
1
1
23
1
2
3
2
1
1
1
23
1
2
3
2
1
1
1
23
1
2
3
2
1
Trimline 64 Corner DB
Trimline 64 Front/Panoramic/Corner DBInstallation instructions 9
English
➡ Disassemble wide trims
➡ Disassemble glass frames
➡ Remove the glass panel
➡➡ NOTE
NOTE
When removing side glass
panel. Note the leaf springs that
push the glass panel forward
when the front glass panel
comes out.
First push the side glass panel
backwards and secure it before
you place the glass panel back.
1
C
D
E
BA B
Trimline 64 Front/Panoramic/Corner DBInstallation instructions 10
4 INSTALLATION OF THE CERAMIC WOOD SET
ANDDISPERSIONMEDIUM
NOTE
•If a choice has been made to install the optional rear
wall, this must be installed before positioning the logs
Installing rear walls (optional).
•If a choice has been made to install the optional LED glow
bed, this must be installed before positioning the logs
Installing the LED glow bed module).
•2and the perforated
burner mesh is installed. To make it easier to remove the
burner mesh, there are 2 integrated lifting brackets with
which the entire plate including glass/glowing material can
be removed after the burners have been removed.
•Spread the glass granules evenly over the central part of
the perforated burner mesh 3. If a LED glow bed module
is used: check whether there is a direct view of the LEDs
(light leakage). 4
Keep the glass granules off the burner mesh at the base of
the outer burners. Ensure glass granules do not fall into the
•Disassemble the outer burners 5. Ensure the sealing
gasket remains intact and that no glass granules fall into
the burner opening.
•Put the central log 6 Acorrectly in place over the central
applying undue load. The burner ports must be clear so
•Fit the outer burners 7
clean and ensure it makes a good seal.
•Place logs Bon the outer burners.
•The rebate in the log goes over the burner 8. Pay attention
to the location of the logs, they must lie tension-free over
the burner.
•Check the fuel openings at the front and rear remain open
•Spread the ashes over the dispersion medium.
WARNING
Placing the logs in the wrong place can seriously
to malfunction altogether.
•
and check there is no dispersion medium against the burner
ports and that the pilot light is not blocked.
•After checking and correcting if necessary, the glass can
•
least 15 minutes of heating time. Switch off the appliance
and check the appliance ignites without any problems.
•Put wooden blocks C, Dand E. 9
7
9
6
8 9
4
A
5
3
2
4
A
B
B
C
E
D
Trimline 64 Front/Panoramic/Corner DBInstallation instructions 11
English
Put the dispersion medium in place.
The marked places must remain free of the dispersion medium.
Put wooden block A in place.
Check to ensure no dispersion medium
has entered the opening.
Put logs B into place according to the picture.
Check the dispersion medium does not lift the ceramic block. Put logs D and E in place as shown in the picture.
Disassemble the outer burners.Only in combination with LED. Check for LED light leakage.
Return the outer burners back to their position.
Installation manual black glas For Front TL 63 log :
1. 2. 4.
3.
5. 6. 7. 8.
1
Installation manual black glas For Front TL 63 log :
1. 2.
4.
3.
5. 6. 7. 8.
Installation manual black glas For Front TL 63 log :
1. 2. 4.
3.
5. 6. 7. 8.
2
1
4
2
5
6
3
Installation manual black glas For Front TL 63 log :
1. 2. 4.
3.
5. 6. 7. 8.
Installation manual black glas For Front TL 63 log :
1. 2. 4.
3.
5. 6. 7. 8.
Installation manual black glas For Front TL 63 log :
1. 2. 4.
3.
5. 6. 7. 8.
7
Trimline 64 Front/Panoramic/Corner DBInstallation instructions 12
5 INSTALLING REAR WALLS (OPTIONAL)
Black glass rear wall for Trimline 64 Front NOTE
If you have opted for a high-gloss black glass,
before you put the wood set in place.
Disassemble the standard panels in
2
1
4
2
5
3
Trimline 64 Front/Panoramic/Corner DBInstallation instructions 13
English
Stone pattern rear wall for Trimline 64 Front
NOTE
If you have opted for a high-gloss black glass,
before you put the wood set in place.
Disassemble the standard panels in
Installation manual black glas For P TL 63 log :
1.
2.
3.
4.
Installation manual black glas For P TL 63 log :
1.
2.
3. 4.
1
2 3
Trimline 64 Front/Panoramic/Corner DBInstallation instructions 14
Black glass rear wall for Trimline 64 Panoramic
NOTE
If you have opted for a high-gloss black glass,
before you put the wood set in place.
Disassemble the standard panels in
Installation manual Natural stone For P TL 63 log :
1. 2.
3. 4.
3
Installation manual Natural stone For P TL 63 log :
1. 2.
3. 4.
Installation manual Natural stone For P TL 63 log :
1. 2.
3. 4.
Installation manual Natural stone For P TL 63 log :
1. 2.
3. 4.
1
2 3
Trimline 64 Front/Panoramic/Corner DBInstallation instructions 15
English
Stone pattern rear wall for Trimline 64 Panoramic
NOTE
If you have opted for a high-gloss black glass,
before you put the wood set in place.
Disassemble the standard panels in
1.
Installation manual black glas For Corner TL 63 log :
2.
3. 4. 5.
1.
Installation manual black glas For Corner TL 63 log :
2.
3. 4. 5.
1.
Installation manual black glas For Corner TL 63 log :
2.
3. 4.
5.
1.
Installation manual black glas For Corner TL 63 log :
2.
3. 4. 5.
1.
Installation manual black glas For Corner TL 63 log :
2.
3. 4. 5.
2
4
1
3
5
Trimline 64 Front/Panoramic/Corner DBInstallation instructions 16
NOTE
If you have opted for a high-gloss black glass,
before you put the wood set in place.
Disassemble the standard panels in
Black glass rear wall for Trimline 64 Corner
Installation manual Natural stone For Corner TL 63 log :
1. 2. 3.
4. 5. 6.
Installation manual Natural stone For Corner TL 63 log :
1. 2. 3.
4. 5. 6.
Installation manual Natural stone For Corner TL 63 log :
1. 2. 3.
4. 5. 6.
Installation manual Natural stone For Corner TL 63 log :
1. 2. 3.
4. 5. 6.
Installation manual Natural stone For Corner TL 63 log :
1. 2. 3.
4. 5. 6.
Installation manual Natural stone For Corner TL 63 log :
1.
2. 3.
4. 5. 6.
2
4
1
3
5
Installation manual Natural stone For Corner TL 63 log :
1. 2. 3.
4. 5. 6.
6
Trimline 64 Front/Panoramic/Corner DBInstallation instructions 17
English
NOTE
If you have opted for a high-gloss black glass,
before you put the wood set in place.
Disassemble the standard panels in
Stone pattern rear wall for Trimline 64 Corner
1A
B
C
D
2
Trimline 64 Front/Panoramic/Corner DBInstallation instructions 18
6 FITTING THE LED GLOW BED MODULE (OPTIONAL)
The LED glow bed module 1consists of:
ALED unit
BMains adapter
CGlass pane (one side is gloss, the other matte)
DGlassholders
Disassemble the burners and remove the burners and burner mesh from the appliance.
2. Remove the plate between the burner feet. 3 4
NOTE
Only use the supplied adapter.
3
6
4 5
7
8
Trimline 64 Front/Panoramic/Corner DBInstallation instructions 19
English
then put the LED unit in place on the two supports of the convection housing.
Place the glass, smooth glossy side
up, on top of the gasket and check
Fit the glazing bars on the glass
and tighten the screws (not too
tight to avoid breakage).
10
9
Trimline 64 Front/Panoramic/Corner DBInstallation instructions 20
Connect the cable to the receiver and connect the receiver to
the mains 230 V using the adapter supplied. Check the LED
unit is working (see LED operation part of the user manual).
Place the burner mesh and burners in the correct position,
the burners.
Ignition cableIgnition cableIgnition cable LED
module cable
LED
module cable
LED
module cable
WARNING
The LED module cable must not touch the ignition cable.
Beware of this during installation and after maintenance.
This manual suits for next models
13
Table of contents
Other Trimline Fires Indoor Fireplace manuals
Trimline Fires
Trimline Fires Trimline 83 Front DB User manual
Trimline Fires
Trimline Fires 70 SL User manual
Trimline Fires
Trimline Fires Zircon 1024 User manual
Trimline Fires
Trimline Fires 55 XH Tunnel DB User manual
Trimline Fires
Trimline Fires Trimline Opal 1121 User manual
Trimline Fires
Trimline Fires Tourmaline 1120 User manual
Trimline Fires
Trimline Fires Trimline 100 Panoramic User manual
Trimline Fires
Trimline Fires Trimline 140 Panoramic User manual
Trimline Fires
Trimline Fires 70 SL User manual
Trimline Fires
Trimline Fires Trimline 83 Front DB User manual
Trimline Fires
Trimline Fires WOODY LOFT User manual
Trimline Fires
Trimline Fires Trimline 83 Front DB User manual
Trimline Fires
Trimline Fires 83 Room Divider DB User manual
Trimline Fires
Trimline Fires Tourmaline 1120 User manual
Trimline Fires
Trimline Fires Zircon 1024 User manual
Trimline Fires
Trimline Fires 100 Tunnel DB User manual
Popular Indoor Fireplace manuals by other brands
FOCOTTO
FOCOTTO Firelax PLUS Instruction book
Jøtul
Jøtul 350 Installation instruction
Sierra Flame
Sierra Flame ABBOT-30-PG-PREM Installation and operating instructions
Monessen Hearth
Monessen Hearth WDV Wideview WDV500 Installation and operating instructions
Remii
Remii Amantii CLASSIC SLIM 33 Repair guide
Masport
Masport LE 3000 Installing and operating instructions
Hearth & Home
Hearth & Home COSMO-IFT-B Series installation instructions
Continental Refrigerator
Continental Refrigerator 30 Series Installation and operation manual
komodo
komodo SP5719 user manual
Superior Fireplaces
Superior Fireplaces DRT4040DMN Installation & operation instructions
Hearth & Home
Hearth & Home COSMO32-IFT installation instructions
Monessen Hearth
Monessen Hearth Designer Vent Free Firebox LLF36 Product specifications
kozy heat
kozy heat 911 Installation and operation manual
Monessen Hearth
Monessen Hearth Corner Fireplace 624WBCL Product specifications
Enviro
Enviro E30GID owner's manual
Desa
Desa EFS26NRA OWNER'S OPERATION AND INSTALLATION MANUAL
Outdoor GreatRoom Company
Outdoor GreatRoom Company Key Largo Nstallation instructions
Dik Geurts
Dik Geurts Instyle 700EA Instructions for installation
