Trimline Fires Tourmaline 1120 User manual
Trimline TourmalineInstallation instruction 2
CONTENTS
V300921
thermoCet International B.V.
Laagerfseweg 27
3931 PC Woudenberg
The Netherlands
thermoCet International BV is not responsible for any
(consequential) damage due to incorrect installation
1 GENERAL INSTRUCTIONS ...........................................................................................................................................................3
2 PLACING THE APPLIANCE...........................................................................................................................................................3
2.1 Preparation and installation.............................................................................................................................3
2.2 Connection to the gas supply pipes...............................................................................................................4
2.3 Removing the front glass panel ......................................................................................................................4
2.4 Removing the side glass panels .....................................................................................................................5
2.5 Fitting the front glass panel .............................................................................................................................6
................................................................................................................................7
.......................................................................8
4 TECHNICAL DETAILS MAXITROL GV60...............................................................................................................................10
5 INSTRUCTIONS FOR MAXITROL GV60.................................................................................................................................11
6 GAS-TECHNICAL SPECIFICATIONS .......................................................................................................................................12
7 CONCENTRIC PATHWAYS..........................................................................................................................................................14
8 CONCENTRIC FLUE SYSTEM....................................................................................................................................................15
.............................................................................................. 15
..................................................................................................... 15
...................................................................................... 15
8.4 Parts .................................................................................................................................................................. 16
8.5 Installation........................................................................................................................................................ 16
9 PASS-THROUGH POSITIONS AND FUNCTION CORRECTLY .......................................................................................17
10 CLEANING AND MAINTENANCE.............................................................................................................................................18
11 FITTING THE LED GLOW BED MODULE................................................................................................................................20
11.1 Installation instructions for the LED glow bed module ........................................................................... 20
11.2 Fitting the glass plate..................................................................................................................................... 20
11.3 Fitting the LED unit.......................................................................................................................................... 21
12 QUICK REFERENCE GUIDE FOR FAULTSSEARCH FOR ENCLOSED APPLIANCES
USING MAXITROL GV60 GASCONTROL ..............................................................................................................................23
Appendix 1 DIMENSIONAL DRAWINGS ........................................................................................................................ 25
Appendix 2 CONSTRUCTION DIAGRAM DOUBLE-WALL CONCENTRIC .............................................................26
Trimline TourmalineInstallation instruction
3
1 GENERAL INSTRUCTIONS
NOTE
The installation may only be carried out by an authorised
person.
•The appliance must be installed, connected, inspected
according to local standards and regulations.
•
roof face must also meet the requirements outlined in
•The temperature of the walls near the side and back of
the appliance may not exceed the ambient temperature
maximum increase of 60 K gives a maximum temperature
of 80 °C.
•The appliance has been approved in combination with
with European CE standards for gas appliances, and may
therefore only be applied with this system.
•
gas distribution (gas type and gas pressure) as indicated
•The instructions are only applicable if the relevant country
code is stated on the appliance.
•
used. The gas supply pipes therefore need to be vented
•Ignite the appliance according to the user manual and check
must be removed from the glass panel using a glass cleaner
Distance to ammable materials
Maintain the following minimum distances from combustible
materials: front 1000mm, side 500mm, top 1200mm to
curtains, fabrics and/or combustible material. Maintain
Distance to non-ammable materials
The appliance needs to be placed a minimum distance
of 25mm from the wall unless stated otherwise in these
instructions.
WARNING
•
appliance, the glass panel surface is considered to be an
active zone. The glass panel surface can become very hot.
•Therefore, you should take care by, for example, keeping
children and those requiring help away from the immediate
2 PLACING THE APPLIANCE
NOTE
Before installing the appliance, please read Chapter 8
Concentric ue system.
Option
Chapter 11 Installing the optional LED glow bed module.
2.1 Preparation and installation
•Check the packaging for damage. Remove the packaging
and check the contents are intact and complete. Report
damage and defects to the supplier immediately.
•The packaging contains the following components:
NOTE
Do not start the installation until you have read and
understood the installation instructions.
- Appliance
- Remote control
- Ceramic wood set
- Bag of glow wool
-Dispersion medium
(glass granules and
coal embers)
- Restrictor
- 4 x AA battery
- 2 x AAA battery
- Suction cup
- Installation instruction
- User Manual
3/8” connection point
4
5
6
1
2
3
22
22
11
11
33
33
Trimline TourmalineInstallation instruction 4
•Do not place the appliance on its side.
•Place the appliance on a stable surface. Remove the glass
panel (see Paragraph 2.3 Removing the front glass panel) so
and defects.
2.2 Connection to the gas supply pipes
•You can determine where the gas supply pipes will be
placed, dependent on the layout. Ensure control equipment
is not twisted during installation and there is no excessive
tension. Accessibility of various connection points in relation
to components needs to be maintained. After installation,
a connector. Also ensure the gas supply pipe is free from dirt
or sand. To prevent damage to the gas control equipment,
•
Check all the gas connections for leaks again. You can then
switch the appliance off and put the ceramic wood set in
place (see Chapter 3 Installation of the ceramic wood set
and dispersion medium).
2.3 Removing the front glass panel
The front glass panel is clamped at the bottom and top.
•Remove the strips next to the side glass panels 1.
screwdriver or a magnet 1.
•After removing the strips, the two clamping screws 2
the screws.
•Remove the clamping strip on the upper side of the front
glass panel B. The strip can be pressed downwards using
3.
•Place the suction cup approximately in the middle of
3.
•Carefully lift the glass panel up to the stop 4, the glass
panel can be moved forward at the bottom 5and taken out
diagonally downwards 6.
•Place the glass panel in a safe place so that it does not fall
and/or get damaged.
NOTE
If the dismantled glass panel is damaged (scratches and/or
damaged edges) do not use the glass panel; notify the supplier.
4
22
22
33
11
11
335
44
6
55
66
88
77
Trimline TourmalineInstallation instruction
5
2.4 Removing the side glass panels
The side glass panels do not need to be removed when
installing the appliance. For replacement or thorough cleaning,
proceed as follows:
•First remove the front glass panel, see previous text.
•The side glass panels are clamped with four bolts and
4.
•Take out the strips next to the back of the side glass panels 1.
from the bottom to the front.
•Loosen the four bolts per glass panel, two under 2and
3, but do not remove them.
•Remove the clamping strip on the upper side of the side
glass panel 5. The strip can be pressed downwards using
4.
•Place the suction cup in the centre of the side glass panel
6
•The side glass panel can now be carefully pushed upwards
to the stop 5.
•The side glass panel is then pushed forward 6, just enough
to be able to pivot the glass panel out at the bottom 7.
•The side glass panel can now be removed diagonally
downwards 8.
5
5
1
15
5
1
1
3
4
4
1
1
2
6
Trimline TourmalineInstallation instruction 6
2.5 Fitting the front glass panel
NOTE
breaking. The side glass panel is pressed against the front
glass panel by spring pressure. When removing the front
glass panel, the side glass panel can creep forward due to
the spring pressure.
•The side glass panel does not need to be removed, but it
must be pushed back.
•Loosen the screws of the glass holders of the side glass
panels 1 (do not remove the glass holder) or remove the
spring glass holder*.
•Place the suction cup on the side glass panel and slide it,
against the spring pressure, to the rear 2, past the contact
surface of the front glass panel 3.
•Clamp the side glass panel(s) by tightening the glass holder
•Make sure the seals are complete, whole and clean.
•Fit the front glass panel and ensure it is aligned with
4.
•Clamp the front glass panel by tightening the glass holder
screws 5
•Loosen the side glass panel(s) by loosening the glass
holder screws (do not remove the glass holder) or removing
1.
•Carefully slide the side glass panel(s) forward using the
supplied suction cup 6
neatly against the front glass panel.
•Keep the side glass panel pushed against the front glass
•
•Check the appliance ignites properly again.
7
11
22
Trimline TourmalineInstallation instruction
7
2.6 Restrictor and bae plate
The restrictor 71 2 can be mounted
Chapter 7 Concentric pathways contains a table that describes
1
A
FB G
Trimline TourmalineInstallation instruction 8
3 INSTALLATION OF THE BURNER MESH AND
DISPERSIONMEDIUM
Handle the logs carefully, the ceramic material is very fragile (for example, if dropped or bumped). Do this as accurately
•Remove the front glass panel, see chapter 2.
•Remove the right-hand part of the grille.
•Remove the right burner 2.
•Distribute the glass granules evenly over the middle part
•Place the middle log Aon the horizontal burner 3.
•Fit the right part of the grille.
•Place the coal embers on the left and right part of
4.
•Place log Fon the right burner, with the bark facing to
5.
•Place log Gon the left burner, with the bark facing
5.
•Place the 3 small logs Bin place 6.
NOTE
Two optional stools can be placed in the space under the
Always keep at least 25mm free at the top and at least
40mm at the sides.
5
31
2
4
Switch
6
89
7
Trimline TourmalineInstallation instruction 10
4 TECHNICAL DETAILS MAXITROL GV60
Gas valve type Maxitrol GV60
Automatic ignition control type
Ignition Remote control operation and piezo ignition
Gas connection 1
2Thermocouple connection
3Gas inlet 3/8"
4Gas outlet left and right burner
5Gas outlet front burner/middle burner
6Multi cable
7Piezo connection
8Connector double burner
9Receiver
Appliance category C11-C31-C91
Pilot ame
Security Thermocouple principle
WARNING
Sealed parts must not be adjusted.Schematic diagram.
Adjustment screw burner pressure
Main gas control knob
Supply pressure
Burner pressure Gas outlet middle burner
Thermocouple connection
Piezo connection
Main adjustment
Gas inlet
Gas outlet left and right burner
Switch piezo connection
Trimline TourmalineInstallation instruction
11
5 INSTRUCTIONS FOR MAXITROL GV60
WARNING
•Ensure the fuel supplied to the appliance is clean and free
from particles and moisture.
•The appliance must not be turned on if the glass pane(s)
Before a gas supply pipe (new or existing) is connected to
that have been cut must be deburred and blown clean before
they are connected.
Heat, moisture and dust are a threat to all
electroniccomponents
Protect the electronic gas control until all construction,
plastering and paintwork has been completed. If you cannot
avoid this work, then protect the control against dirt and
WARNING
•Electronic components become permanently faulty
Normal AA batteries will crack open at temperatures
>54°C and the battery contents will damage the electronic
switches below. Batteries have the longest life span
•Only install the gas valve and receiver as pre-installed at
•Remember that components may have to be replaced
or that repairs may have to be performed at a later date.
Only insert the batteries after the receiver, gas valve and
pilotame have been wired.
Premature connection to the power source can damage
the batteries is not permitted. Use the mains adapter supplied
with the LED module.
NOTE
Batteries should not be used in the receiver when using
Ensure the ignition cable is not near the antenna wire and
thatthey do not cross each other.
The high voltage released during ignition may damage
the appliance becomes less responsive or totally unresponsive
NOTE
•Do not tighten the contact breaker and the thermocouple
connection too tightly on the gas valve.
•
with an open-end spanner. Tightening too much will break
the connection to the magnetic coil below and/or the
insulation around the aluminium contact pin in the contact
breaker. This may cause the magnetic coil to not open
Only use the original extension set to extend the supplied
thermocouple. (Available through your supplier. Not available
with LED.) Extending the thermocouple beyond its limit will lead
to a reduction in voltage. This may in turn prevent the activation
of the magnetic coil.
Prevent leakage of ignition spark to parts of the installation
ignition cable is not in contact with the body or other
The receiver and the control units on the gas valve should
be switched on to ensure automatic start-up via the remote
control. The oval disc on the gas valve should be turned to
the ON position. The I/0switch should be set to I. The ignition
cable should be connected to the SPARK connection point on
the receiver.
The system’s thermostat sensor is located inside the remote
control. The remote control operates best at a distance of 2
occurs via shortwave radio signals, it is recommended that
you place the remote control in the line of sight of the gas
appliance, in a place where the user wishes to experience a
pleasant temperature. Do not place the manual transmitter
in direct sunlight or other warm locations. The thermostat
measures the temperature and, accordingly, regulates the
NOTE
•Sealed parts must not be adjusted, to do so would void
•A waiting time of 5 minutes between each start attempt
must be observed.
•Remove batteries not with a metal tool. Removing
batteries with a metal object can permanently damage
I/0 switch
NOTE
In the event of an emergency, the I/0 switch can be used
I/0 switch is located behind
the opening on the left side of the mounting plate.
Trimline TourmalineInstallation instruction 12
6 GAS-TECHNICAL SPECIFICATIONS
Type of indication(s)
Appliance type
Concentric extraction system
Gas type
Supply pressure in mbar
Country
Category
Primary air per burner mm
Supply pressure mbar
Burner pressure - high position mbar
Burner pressure - low position mbar
Injector orice Ømm
Pilot ame injector CODE
Low position orice mm Adjustable Adjustable Adjustable Adjustable
Load Hs kW
Load Hi kW
Gas consumption m³/h
Nominal power - high position kW
Nominal power - low position kW
NOx Hi EN613 classe
Eciency Class EN613
Useful return (NCV) system**
For nominal heat output %
For minimal heat output %
Supplementary electricity consumption
Nominal kWh
Stand-by kWh
Energy eciency***
Energy eciency index (EEI) %
Energy label
NOx Hs mg/kWh
Heat output type/room temperature control
Indirect heat functionality No
Single stage heat output, no room temperature control No
2 or more manually-adjustable stages, no control of the room temperature No
With mechanical control of room temperature by thermostat No
With electronic control of room temperature Yes
With electronic control of room temperature plus day-time switch Yes
With electronic control of room temperature plus week-time switch Yes
Other control options
Control of room temperature with presence detection* Yes
Control of room temperature with open window detection* Yes
With remote control option Yes
* In combination with home automation
** Shortest system path
*** EU directive 2015-1186/1188
Trimline Tourmaline – 1120
C11, C31, C91
Holetherm CC 100-150
G25,3 G20/G25 G20 G 20DG 25
25 20 20 20/25
NL DE AT/CH/CZ/DE/DK/
EE/ES/FI/GB/GR/
HR/IE/IT/LT/LU/ LV/
NO/PL/PT/RO/SE/
SI/SK/TR
BE/FR
I2EK
I2(43,46-45,3 MJ/m3)
I2ELL I2H/I2E I2E+
R=3x Ø5,5"
R=3x Ø5,5"
R=4x Ø5,5
R=4x Ø5,5
25 20 20 20D25
20,2 16,1 16,1 16,1 / 20,2
11,5 8,9 8,9 8,9 / 11,5
R= Ø1,3
R= Ø1,3
R= Ø1,3
R= Ø1,3
51 51 51 51
6,7 6,2 7,6 7,6
6,1 5,6 6,8 6,8
0,738 0,688 0,724 0,724
4,8 4,3 5,3 5,3
3,4 3,1 3,7 3,7
4444
2222
78,0 77,3 78,8 78,8
73,8 74,0 74,7 74,7
0000
0000
78 78 79 79
CCCC
120 126 126 126
Trimline TourmalineInstallation instruction
13
Type of indication(s)
Appliance type
Concentric extraction system
Gas type
Supply pressure in mbar
Country
Category
Primary air per burner mm
Supply pressure mbar
Burner pressure - high position mbar
Burner pressure - low position mbar
Injector orice Ømm
Pilot lame injector CODE
Low position orice mm Adjustable Adjustable
Load Hs kW
Load Hi kW
Gas consumption m³/h
Nominal power - high position kW
Nominal power - low position kW
NOx Hi classe
Eciency Class EN613
Useful return (NCV) system**
For nominal heat output %
For minimal heat output %
Supplementary electricity consumption
Nominal kWh
Stand-by kWh
Energy eciency***
Energy eciency index (EEI) %
Energy label
NOx Hs mg/kWh
Heat output type/room temperature control
Indirect heat functionality No
Single stage heat output, no room temperature control No
2 or more manually-adjustable stages, no control of the room temperature No
With mechanical control of room temperature by thermostat No
With electronic control of room temperature Yes
With electronic control of room temperature plus day-time switch Yes
With electronic control of room temperature plus week-time switch Yes
Other control options
Control of room temperature with presence detection* Yes
Control of room temperature with open window detection* Yes
With remote control option Yes
* In combination with home automation
** Shortest system path
*** EU directive 2015-1186/1188
Trimline Tourmaline – 1120
C11, C31, C91
Holetherm CC 100-150
G30/G31 G30
(28-30)-37 30/50
BE/CH/CY/CZ/ES/FR/GB/GR/IE/IT/LT/PT/
SI/SK
NL/BE/CH/CY/FR/GB/IT/LT/ SI/SK/AT/CH/
DE/ FR/SK/PL
I3+ I3B/P
(28-30)-37 30/50
27,9 27,9
16,5 16,5
30 30
7,0 7,0
6,5 6,5
0,202 0,202
5,2 5,2
3,8 3,8
4 4
2 2
79,4 79,4
75,2 75,2
0 0
0 0
80 80
C C
95,6 95,6
X1
Y
Y
Y
Y
X
X
X
X
X2
X
X1
X1
Y
Y
Y
Y
X
X
X
X
X2
X
X1
X1
Y
Y
Y
Y
X
X
X
X
X2
X
X1
X1
Y
Y
Y
Y
X
X
X
X
X2
X
X1
X1
Y
Y
Y
Y
X
X
X
X
X2
X
X1
A B C
D E
Trimline TourmalineInstallation instruction 14
7 CONCENTRIC PATHWAYS
Table of concentric pathways
Pathway Illustration X total in metres Y total in metres Restriction
x = vertical and y = horizontal Min* Max* Min* Max* Trimline Tourmaline 1120
Indirect façade outlet G20/25 See restriction conditions
Indirect façade outlet G30/G31 See restriction conditions
Roof pass-through without slope See restriction conditions
Roof pass-through with 45º slope** From X total - Y > 6 meter: 55mm
Roof pass-through with 90º slope*** From X + X1- Y > 6 meter: 55mm
* Length including roof or exterior wall outlets. Always adhere to a starting length of 1 metre
Restriction conditions all gas types
Distance Bae plate Restriction
G20 and G20/25 Vertical lay out
1-6m Yes 45mm
6-12m Yes 55mm
G25/25,3 Vertical lay out
1-6m Yes 50mm
6-12m Yes 55mm
G30/31 Vertical lay out
1-6m Yes 45mm
6-12m Yes 55mm
G20 and G20/25 horizontal sections up to 4,5 meter including wall ducts
1m 90° and 0.5m Yes 45mm
1m 90° and 4.5m No No
G25/25,3 horizontal sections up to 4,5 meter including wall ducts
1m 90° and 0.5m Yes 50mm
1m 90° and 4.5m No No
G30/31 horizontal sections up to 4,5 meter including wall ducts
1m 90° and 0.5m Yes 45mm
1m 90° and 4.5 m Yes No
A-B 1 3 0 4,5
A-B 1 3 0 4,5
C 2 12 - -
D 3 12 0 4
E 3 12 0 2
Trimline TourmalineInstallation instruction
15
8 CONCENTRIC FLUE SYSTEM
while the fresh combustion air is supplied via the gap between
8.1 Components of the concentric
uesystem
system. These are:
Through the roof face and through the exterior wall
The pathway used for this system can be laid in different ways,
but there are a few important conditions:
•
lengths for the bends). See Chapter 7Concentric pathways.
•90° bends have a 2-metre horizontal calculation length.
•45° bends have a 1-metre horizontal calculation length.
•The outlet can be installed at any point on the roof face or
exterior wall (supply and discharge in an identical pressure
area), but must meet applicable regulations.
•Flue pathways must not be insulated.
NOTE
•Ensure the restrictor is mounted in the correct manner,
•The correct restrictor will provide the appliance with the
•Mounting an incorrectly placed restrictor may cause
malfunction of the appliance.
8.2 Construction of concentric ue system
Indirect wall connection
•The outlet may also be installed in an upwards exhaust
in the wall, taking any hindrance to the surrounding area
into consideration, in accordance with local standards
NOTE
Ensure wind pressure on the outlet is not excessive, such as
alleys, etc., as this can negatively affect the performance of
the appliance.
•Make a recess in the façade of around 155mm or 205mm
plate on the inside of the wall. The wall plate of the exterior
leaks leaking into the living space. We recommend our
clearance box use as a direct façade pass-through through
a refractory façade.
•
•Determine the position of the appliance and outlet and
appliance, paying attention to the direction of installation
and connecting the elements by means of clamp strips.
•An adjustable pipe can be used between the bends or when
connecting to the appliance. If necessary, use wall brackets
Mounting using the roof pass-through option
•
roof face (supply and exhaust in identical pressure areas)
and must meet the applicable rules and regulations.
•
sloping tiled roofs can be used for a watertight duct.
in the roof decking should be 50mm larger all around to
•
resistance between rooms. (For this, see the applicable local
•Determine the position of the appliance and the outlet and
for draining purposes. Connect the elements using the
clamping straps. Ensure all connections are gastight.
•An adjustable pipe can be used between the bends or when
making the connection to the appliance and/or the roof
8.3 Installation instructions regarding
existing ues
Instructions
must be built in accordance with national rules and regulations
documentation and installation instructions.This means, among
other things, that the chimney pass-through must not be
as described below. For other situations, consult your supplier.
Trimline TourmalineInstallation instruction 16
8.4 Parts
Check all parts for damage before commencing the
.
NOTE
The renovation/sanitation set consists of parts:
3
4
7
8.5 Installation
• 56.
•Attach the slider 4
•Keep the bottom of the slider at the same height as
•
the chimney coping.
•
7, clamp it with a hose bracket. Stainless steel Ø90 to 165,
secure the whole with Parker screws.
•Attach the mounting plate to the chimney coping watertight
on the roof 7using silicone sealant and stainless steel
screws.
•Install the roof pass-through 9and secure it in place using
the supplied clamping strip 8.
•The slider 4will protrude approximately 100mm
•Attach the inner mounting plate 3gastight against
•Position the appliance in accordance with the instructions
•
1.
•
strip by hand in the mounting plate inside 3.
Trimline TourmalineInstallation instruction
17
9 PASS-THROUGH POSITIONS AND FUNCTION CORRECTLY
Dimensions Outlet positions Distance mm
A Distance to ventilation openings Room*
B Distance to ventilation openings Room*
C Distance to ventilation openings Room*
D Lower gutter bottom pipes or exhaust lines 500
E Under the eaves 500
F Under a carport, roof or balcony, inside and outside corners 500
G From ground level and rainwater drainage pipes 300
H Inside and outside a corner 500
I Above an external gas pressure regulator 1000
Side of a gas pressure regulator 500
J Room*
K Roof drain centre to centre 1000
L From the centre of both roof drains 450
M Two wall drains above each other 1000
N Two wall drains next to each other 1000
* In accordance with local building codes
Plot boundary
External extension pipe
Roof pass-through
1 2
3
Trimline TourmalineInstallation instruction 18
10 CLEANING AND MAINTENANCE
•The appliance must be checked and serviced by a recognised
installer at least once a year. The glass is also cleaned during
this process.
•It is advisable to clean the outside of the appliance regularly,
both in and out of the heating season.
•Do not use aggressive or corrosive cleaning agents or
•
A check must be carried out on:
2 seal of the upper and lower pressure release hatches
3 operation of the pressure release hatches; that they
4 the operation of the gas valve and ignition of the burner
Measuring points
The appliance has 4 measuring points: 2 on the gas control
block, and 2 at the top of the appliance under the upper cover
View from below
Pressure release
hatch upper
Supply air
measurement point
Supply pressure
measurement point Burner pressure
measurement point
Flue gas discharge
measurement point
Pressure release hatch lower
Trimline TourmalineInstallation instruction
19
AR glass (Anti-Reective glass)
cleaninginstructions
NOTE
•The AR glass with coating is more sensitive to damage
than normal glass.
•Always wear soft cotton gloves when removing and
installing AR glass.
•The rubber suction cup(s) must be clean.
•If the dismantled glass panel is damaged (scratches
and/or damaged edges) do not use the glass pane;
•Use the thermoCet cleaner set to clean the AR glass.
Other cleaning agents can damage the AR glass coating.
•Do not use hard (abrasive) sponges, steel wool, abrasives
and/or cleaning agents containing ammonia, (citric) acid
or ceramic hob cleaner.
•
These will burn in and cannot be removed.
Remove the glass panel
See Paragraph 2.3 Removing the front glass panel
on page 4.
IMPORTANT
immediately. The glass must be cleaned again after
the frequency of use of the appliance. Bear in mind that
the glass can become dull if it is not cleaned in good time.
1
3
2
11
22
66
33
77
77
88
44
55
88
Trimline TourmalineInstallation instruction 20
11 FITTING THE LED GLOW BED MODULE
11.1 Installation instructions for the LED glow
bed module
The LED glow bed module consists of:
•LED unit
•Mains adapter
•Sealing set
•Glass panel
•Glazing bars
Fitting the LED glow bed module consists of two parts:
1 Fit the glass plate in the combustion chamber
2 Fit the LED module to the mounting plate under
There must be a 230 VAC wall socket for the LED module
power supply in the vicinity of the appliance.
11.2 Fitting the glass plate
•Remove the front glass panel, Paragraph 2.3 Removing
thefront glass panel.
•Remove the right-hand part of the grille
1 1
.
•Remove the right burner
2
by loosening the 2 bolts.
•Slide the middle part of the grille
3
to the right and then
remove the middle burner
4
.
•Remove the middle grille
3
from the appliance.
•Remove the left grille
5
6
.
•Remove the air guide
2
7
and central sealing plate
8
,
•Be careful to ensure the seal does not get damaged.
•Place glass plate
4 9
on top of the seal, glossy side up
Other manuals for Tourmaline 1120
1
This manual suits for next models
3
Table of contents
Other Trimline Fires Indoor Fireplace manuals
Trimline Fires
Trimline Fires 64 Front DB User manual
Trimline Fires
Trimline Fires 70 SL User manual
Trimline Fires
Trimline Fires Trimline 83 Front DB User manual
Trimline Fires
Trimline Fires 83 Room Divider DB User manual
Trimline Fires
Trimline Fires Trimline 140 Panoramic User manual
Trimline Fires
Trimline Fires 70 SL User manual
Trimline Fires
Trimline Fires 55 XH Tunnel DB User manual
Trimline Fires
Trimline Fires Zircon 1024 User manual
Trimline Fires
Trimline Fires Zircon 1024 User manual
Trimline Fires
Trimline Fires Trimline Opal 1121 User manual
Trimline Fires
Trimline Fires WOODY LOFT User manual
Trimline Fires
Trimline Fires Trimline 83 Front DB User manual
Trimline Fires
Trimline Fires Trimline 83 Front DB User manual
Trimline Fires
Trimline Fires Tourmaline 1120 User manual
Trimline Fires
Trimline Fires Trimline 100 Panoramic User manual
Trimline Fires
Trimline Fires 100 Tunnel DB User manual
Popular Indoor Fireplace manuals by other brands
Dimplex
Dimplex DF2426 Service manual
kozy heat
kozy heat JORDAN-34S Installation and operation manual
FireplaceXtrordinair
FireplaceXtrordinair 36 DV-XL (Direct Vent Extra Large) owner's manual
El Fuego
El Fuego Venedig manual
Napoleon
Napoleon HDX52NT Installation and operating instructions
Rinnai
Rinnai SS850 installation manual
Continental Refrigerator
Continental Refrigerator 30 Series Installation and operation manual
Regency
Regency CV40E-NG Owners & installation manual
Napoleon
Napoleon Electric Fireplace EF30 Installation and operating instructions
Dickinson

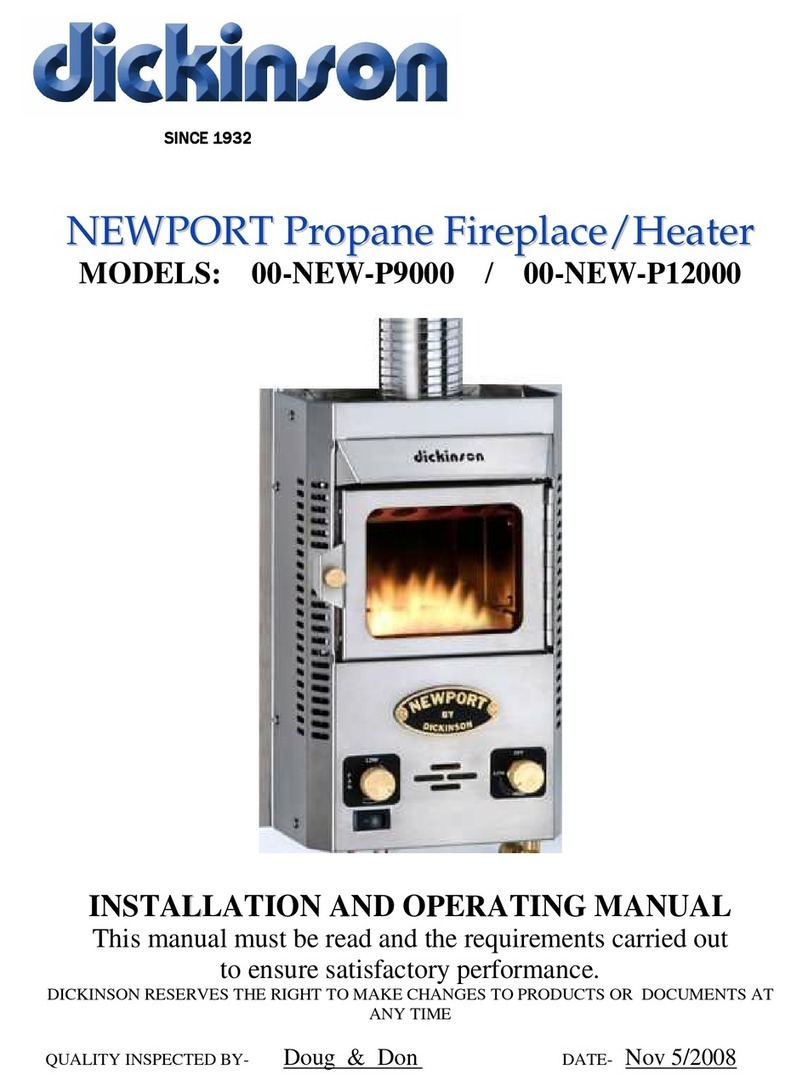

Dickinson 00-NEW-P9000 Installation and operating manual
Desa
Desa VVC36PE Series OWNER'S OPERATION AND INSTALLATION MANUAL
Vermont Castings
Vermont Castings Montpelier Homeowner's installation & operating manual
