OWNER’S MANUAL
OWNER’S MANUAL
TRINITY 80 QT DETACHABLE STAINLESS STEEL
COOLER W/ SHELF
Model # TXK-0803
Important / Important / Importante
FOR QUICK & EASY 3D ASSEMBLY INSTRUCTIONS
POUR DES DIRECTIVES D’ASSEMBLAGE 3D RAPIDES ET FACILES
PARA INSTRUCCIONES DE ENSAMBLAJE RÁPIDAS Y SENCILLAS EN 3D
Intelligent Instructions
Directives intelligentes
Instrucciones Inteligentes
DOWNLOAD THE FREEAPP | TÉLÉCHARGERL’APPLICATION GRATUITE| DESCARGUE LA APLICACIÓN GRATUITA

© 2020 TRINITY - 800.985.5506
1

PARTS LIST
Your TRINITY Stainless Steel Cooler should include the following parts. Please inspect box contents to
ensure you have received all components.
If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY
Customer Service: 800.985.5506 or [e-mail]. Parts can also be requested online
via “Contact Us” section at www.trinityii.com.
A
TUB (1)
B
LID (1)
C
SHELF (1)
D
FRAME (2)
E
CAP CATCHER (1)
F
LOCKING
CASTER (2)
G
NON-LOCKING
CASTER (2)
H
WRENCH (1)
© 2020 TRINITY - 800.985.5506 2

ASSEMBLY INSTRUCTIONS
STEP 1
Place FRAMES (D) upside down so that black
circular receivers are on the floor and
approximately SHELF (C) width apart.
Align holes in SHELF (C) with bottom of FRAME
(D), making sure that SHELF Lip is facing
downwards.
Screw LOCKING CASTERS (F) into bottom of
FRAMES (D), securing SHELF (C) in-between.
Make sure LOCKING CASTERS (F) are installed
on the same side.
Screw NON-LOCKING CASTERS (G) into bottom
of FRAME (D), securing SHELF (C) in-between.
Tighten all CASTERS (F, G) with provided
WRENCH (H).
Use provided caster wrench to tighten
completely. Failure to do as instructed could
result in caster stem breaking.
F
C
G
H
D
STEP 2
Attach CAP CATCHER (E) to TUB (A) by sliding
it downward, over the metal notch.
A
E
3© 2020 TRINITY - 800.985.5506

ASSEMBLY INSTRUCTIONS
STEP 3
Carefully turn cart right side
up. Set TUB (A) on top of
Cart. Make sure Tub Feet sit
securely inside receivers on
top of FRAME (D).
STEP 4
Set LID (B) on top of TUB (A).
Clean the inside of Cooler thoroughly
before using.
B
© 2020 TRINITY - 800.985.5506 4

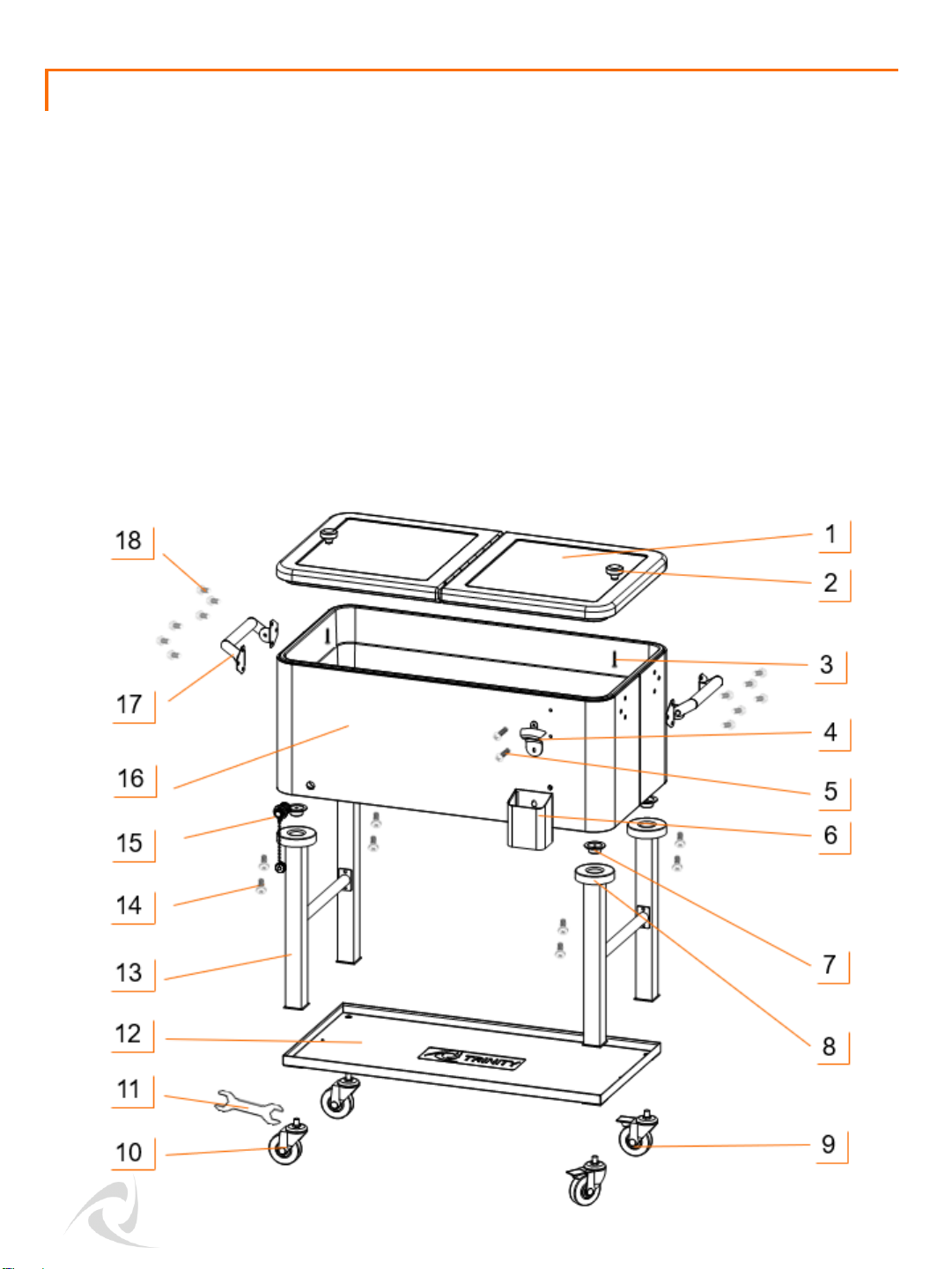

SERVICE PARTS LIST –TXK-0803
TRINITY Customer Service provides the following replacement parts:
Part Number Description Part Number Description
1) PBR-17-002-3115 Cooler Lid 10) ZSV-99-011-3010 Non-Locking Caster
2) AMA-05-005-0150 Lib Knob 11) XXX-97-002-0007 Wrench
3) XSV-01-010-0530 Knob Screw 12) PBR-03-028-2913 Shelf
4) XST-02-004-0001 Bottle Opener 13) PBR-14-015-1517 Frame
5) XSV-01-010-0416 Small Screw 14) XSV-01-033-0415 Receiver Screw
6) XST-02-005-0002 Cap Catcher 15) CGL-02-003-0001 Drain Plug
7) XBK-98-009-4818 Tub Foot 16) XST-18-015-3115 Cooler Tub
8) XBK-02-019-0001 Plastic Receiver 17) XSV-05-023-0675 Folding Handle
9) ZSV-99-012-3010 Locking Caster 18
）
XSV-01-010-0615 Large Screw
5© 2020 TRINITY - 800.985.5506

WARNINGS
1. Read and understand all instructions. Failure to follow all instructions may result in injury
and/or damage.
2. The warnings, cautions, and instructions discussed in this manual cannot cover all
possible conditions or situations that may occur. The user must always be aware of their
environment and ensure that they use the product in a safe and responsible manner.
3. Use the provided caster wrench to tighten completely. Failure to do as instructed could
result in the caster stem breaking thereby causing the cooler to collapse.
4. Do NOT modify the product in any way. Unauthorized modification may impair the
function and/or safety of the product, and may affect the life of the product. Any
modifications will void product warranty.
5. Check for damaged parts. Before using this product, carefully check that all parts are in
good condition, and that the product will operate properly and perform its intended
function. Check for damaged parts and any other conditions that may affect the operation
of this product. Replace damaged or worn parts, and never use this product with a
damaged part.
6. Lift cooler tub by side handles ONLY.
7. Do NOT let children climb or play in the tub or on the shelf.
8. Do NOT overload the product.
9. Lock the casters when leaving cooler in stationary position.
10. Ensure cooler tub is securely fastened to the leg frames before moving the cooler cart.
11. Do NOT push cooler with cart on uneven surface. Cooler tub may detach from the cart.
Volume Capacity 20 gallons / 80 qt
Weight capacity per shelf (evenly distributed) 50 lb
Total weight capacity (evenly distributed) 200 lb
© 2020 TRINITY - 800.985.5506 6

CARE AND MAINTENANCE
•Remember to drain remaining water and remove un-melted ice after use. Wipe dry for
storage.
•Avoid harsh, abrasive cleaners, and other corrosive chemicals.
•Do not use scouring pad for cleaning.
•Keep dry and avoid damp environments.
•Use a quality stainless steel cleaner and follow instructions that come with the cleaner.
Wipe ALONG the grain (NOT against).
•Cooler should not be left out unprotected in the elements. A protective Cooler Cover
(UBK-24-001-3519) is available as an accessory through www.trinityii.com.
7© 2020 TRINITY - 800.985.5506

PRODUCT REGISTRATION
Thank you for purchasing a TRINITY Stainless Steel Cooler. In order to register your product and
receive streamlined customer service, please fill out the following Product Registration Form and (1)
fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com
or (3) scan and email the form to [e-mail]. Include a copy of your original receipt
with your submission.
First Name: Last Name:
Address:
City: State: Zip Code:
Email Address: Phone:
Product Model #: TXK-0803 Purchase Date: / /
Location of Purchase:
Please rate the importance of each feature (1=least important; 10=most important)
Quality Price Size/Capacity Appearance Other
How did you hear about our product?
Magazine Ad Catalog Salesperson Word of Mouth
Internet Store Display Other
Marital Status: Single Married
Household Income: Below $50,000 $50,000-$150,000 $150,000+
Education: High School College Graduate School
Primary Residence: Own Rent
Comments/Suggestions:
© 2020 TRINITY - 800.985.5506 8

© 2020 TRINITY - 800.985.5506
9

1 YEAR LIMITED WARRANTY
TRINITY Stainless Steel Cooler
Model # TXK-0803
Trinity International Industries (“Trinity”) warrants to the original consumer purchaser (“Purchaser”) of the
TRINITY Stainless Steel Cooler (“Product”) that each Product shall be free from defects in workmanship and
materials for a period of 1 year from the date of original purchase. Trinity’s obligation under this warranty
shall be limited to repair or replacement of, or adequate compensation for the Product which shall not be
greater than the amount of the purchase price of the Product, at the option of Trinity, during the warranty
period. All replaced parts and Products become the property of Trinity and must be returned to Trinity.
This warranty excludes normal wear and tear of the Product and its parts or components, and damage arising
from any of the following: negligent use or misuse of the Product, use contrary to this User’s Manual, or
alteration by any one other than Trinity. The warranty period of 1 year shall not be extended or renewed by
the repair or replacement of, or compensation for, the Product. Any warranty implied by applicable law is
limited in duration to one year from the date of purchase and is subject to the same conditions and
limitations as is provided for our express warranty.
Except as set forth herein, and to the extent of applicable there are no warranties on this Product either
express or implied, and Trinity disclaims all warranties including, but not limited to, any implied warranties of
merchantability, infringement or fitness for a particular purpose. No warranty or guarantee given by any
person, firm, or corporation with respect to this product shall be binding on Trinity.
If your Product is defective or otherwise requires service or parts, please call TRINITY Customer Service toll-
free at [phone], between 5:00 a.m. and 5:00 p.m., PST. Please tell us which model you purchased,
the date of the purchase, and the problem with your Product. A copy of your original purchase receipt must
accompany your service request.
LIMITATION OF REMEDIES AND LIABILITY
Trinity (and its employees, officers, members, managers, affiliates and assigns) shall not be liable for any
incidental, consequential, special, indirect, remote, special or punitive damages for breach of any warranty,
express or implied, including, but not limited to, lost profits, lost savings, loss of anticipated benefits and
attorneys’ fees, which arise out of the purchase, use or inability to use the Product, whether arising out of
contract, negligence, strict tort, product liability, or any other legal theory on which a claim is based. As
noted above, to the extent damages are allowed by our express warranty or by applicable law, those
damages may not exceed the purchase price paid for the Product. Without limiting the foregoing Purchaser
assumes all risk and liability for loss, damage or injury to Purchaser and Purchaser’s property and to others
and their property arising out of the use, misuse, or inability to use this Product. This limited warranty shall
not extend to anyone other than the original purchaser of this product, is nontransferable and states your
exclusive remedy.
Some states do not allow the exclusion or limitation of incidental, consequential, special, or punitive
damages, so the above limitation or exclusion may not apply to you. The above warranty gives you specific
legal rights, and you may have other rights which vary from state to state.
© 2020 TRINITY - 800.985.5506 10

TRINITY Customer Service
TEL: [phone]
FAX: [phone]
EMAIL: [e-mail]
Monday through Friday
5:00 AM –5:00 PM (PST)
www.trinityii.com
QUESTIONS? NEED PARTS?
WE ARE HERE TO HELP!
Please feel free to contact us. There are no questions too small, or
any problems too big. We’re committed to providing our customers
with the highest level of service.
CONTACT US
