TRIOBIKE BOXTER User manual

ORIGINAL INSTRUCTIONS
BOXTER
ENGLISH V 2.7

Congratulations on your new bicycle! Proper assembling and
operation of your bicycle is important for your safety and
enjoyment. Our customer service department is dedicated to
your satisfaction with Triobike and its products. If you have
questions or need advice regarding assembly, parts, performance,
or returns, please contact the experts at Triobike.
Enjoy the ride!
phone: [phone]
email: [email protected]
website: www.triobike.com
social medias: youtube | facebook
hello new user
let's ride
our contacts

4
INDEX
ABOUT THIS MANUAL
REMINDER
WARNINGS
GENERAL SAFETY
ASSEMBLING THE BIKE
SAFETY CHECKLIST
INSTRUCTIONS
QUICK RELEASE SEAT CLAMP
HANDLEBAR
PARKING LOCK
GEAR
REAR DRIVE E-SYSTEM
MID DRIVE E-SYSTEM
SEATS
SEAT BELTS
HOOD

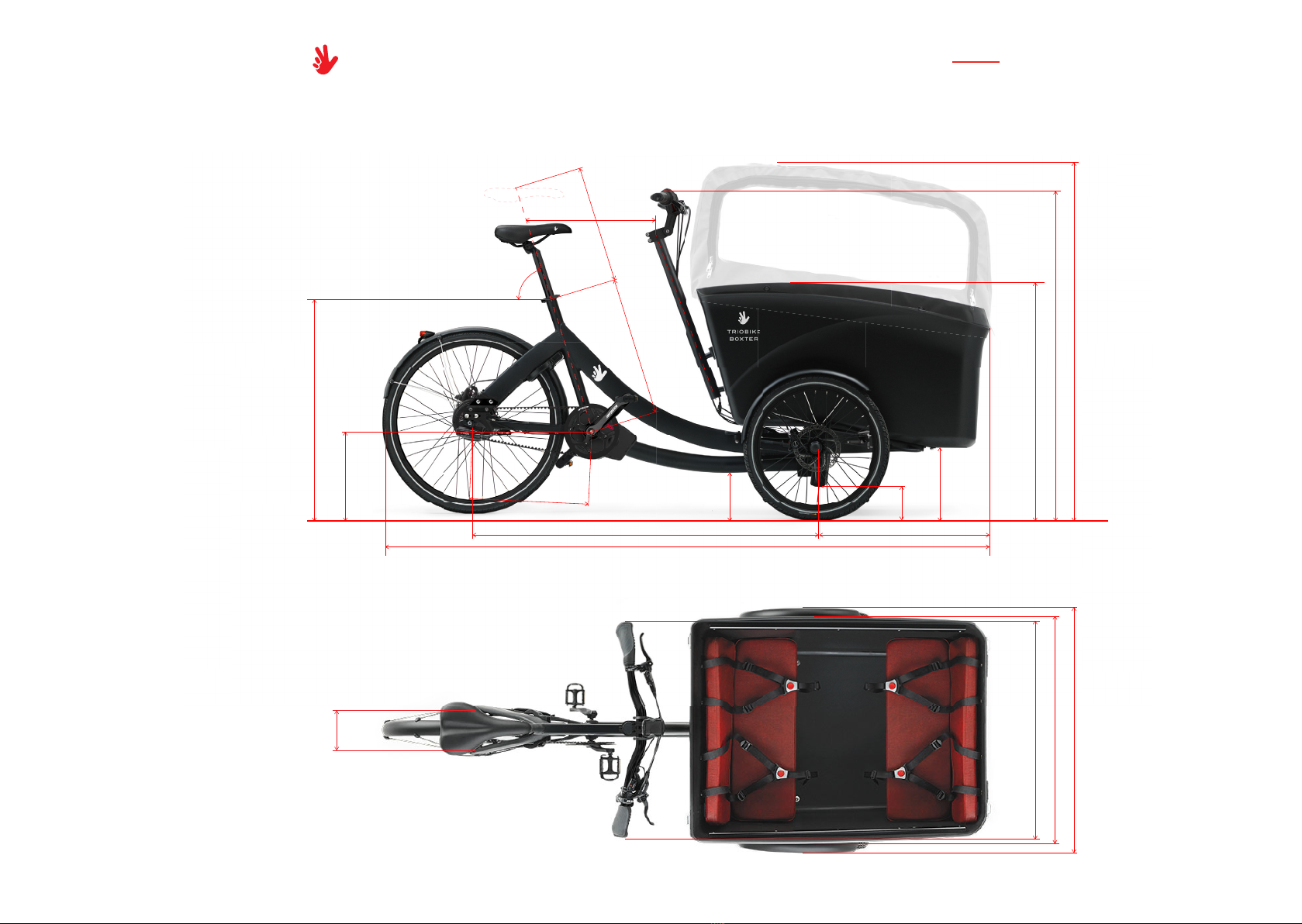

GENERAL SPECIFICATIONS
WARRANTY
MAINTENANCE
EC DECLARATION OF CONFORMITY
6
6
7
8
14
18
24
26
26
28
29
30
32
34
40
42
44
46
48
50

6
ABOUT THIS MANUAL WARNINGS
It is important that you understand your new bicycle. By reading this manual before you go
out on your first ride, you’ll know how to get better performance, comfort, and enjoyment
from your new bicycle. It is also important that your first ride on your new bicycle is in a
controlled environment, away from cars, obstacles and other cyclists.
This manual contains important information regarding safety, assembly, use, and
maintenance of the bicycle but is NOT intended to be a complete or comprehensive manual
covering all aspects concerning bicycle ownership.
We recommend consulting a bicycle specialist if you have any doubts or concerns
regarding your experience or ability to properly assemble and maintain the bicycle.
REMINDER
All persons assembling, using, and maintaining the bicycle must read and understand the
safety warnings and operating instructions in this manual before using the bicycle. It is
the responsibility of the user to ensure the bicycle is properly maintained and in proper
operating condition. Doing so will reduce the risk of injury.
Always conduct regular maintenance and inspection of your bicycle. Complete the Safety
Checklist at the end of this manual before each use.
DO NOT INSTALL ANY KIND OF ADDITIONAL ELECTRIC MOTOR
OR INTERNAL COMBUSTION ENGINE TO THE BICYCLE.
ADAPTING A BICYCLE IN THIS MANNER POSES AN EXTREME
SAFETY RISK TO RIDER AND COULD RESULT IN LOSS OF
CONTROL.
INABILITY TO SAFELY REACH THE HANDLEBARS AND
DISMOUNT THE BICYCLE MAY RESULT IN LOSS OF CONTROL
OF THE BICYCLE. IMPROPER SETUP OR MAINTENANCE OF THE
BICYCLE MAY RESULT IN AN UNEXPECTED MOVEMENT, LOSS OF
CONTROL, AND SERIOUS INJURY.
RIDING THE BICYCLE IN UNSAFE CONDITIONS, IN AN UNSAFE
MANNER, OR DISREGARDING TRAFFIC LAWS MAY RESULT IN AN
UNEXPECTED MOVEMENT, LOSS OF CONTROL, AND SERIOUS
INJURY.
7

8
GENERAL SAFETY
Inspect the entire bicycle before riding - ensure that there are no loose parts, bolts or
screws. Test the brakes and check if the pressure in the front tires is equal. Check rear tire
pressure too.
If you have any doubts or questions, contact your local bike dealer.
By not following these safety precautions, you may risk injuring yourself or others.
GENERAL BIKE SAFETY PRACTICES
- Always follow the traffic laws in your country.
- Never ride while under the influence of alcohol, medication or drugs.
- If you suffer from any health conditions, please consult your doctor before riding.
- Never endanger yourself or others by reckless riding.
- The usage of bicycles or any accessories such as lamps, bells etc. is the user’s own
responsibility, and TRIOBIKE cannot be held responsible for any damage, accidents,
personal injury or fines caused by the usage of these products.
- Familiarize yourself with all the bicycle’s features before riding.
- Practice gear shifts, braking, and the use of the electric system.
- Always ride defensively in a predictable, straight line.
- Never ride against traffic.
- Expect the unexpected (e.g., opening car doors or cars backing out of concealed driveways).
- Take extra care at intersections and when preparing to pass other vehicles.
- Maintain a comfortable stopping distance from all other riders, vehicles and objects. Safe
braking distances and forces are subject to the prevailing weather conditions. Do not lock
up the brakes.
- When braking, always apply the rear brake first, then the front. The front brake is more
powerful and if it is not correctly applied, you may lose control and rise the rear wheel.
Always use the correct hand signals to indicate turning or stopping.
- Obey the traffic laws (e.g., stopping at a red light or stop sign, giving way to pedestrians).
- Wear proper riding attire, reflective if possible, and avoid open toeshoes.
- Do not use items that may restrict your hearing and vision.
9

10
WET WEATHER NIGHT RIDING
HILL TECHNIQUE
ROAD CONDITIONS
GENERAL SAFETY GENERAL SAFETY
- When riding in wet weather always use safety lights to enhance visibility.
- Exercise extreme caution when riding in wet conditions.
- Ride at a slower speed. Turn corners gradually and avoid sudden braking.
- Brake earlier, it will take a longer distance to stop.
- Pot holes and slippery surfaces such as line markings and train tracks all become more
hazardous when wet.
- This bike is for on-road use only. Do not use the bike off-road or on rough terrain.
- Be aware of road conditions. Concentrate on the path ahead.
- Avoid pot holes, gravel, wet road markings, oil, curbs, speed bumps, drain grates and
other obstacles.
- Cross train tracks at a 90 degrees angle or walk your bicycle across.
- Do not ride the bike at night without lights on, both front and rear.
- If using battery powered lights, make sure batteries are well charged.
- Wear reflective and light colored clothing.
- Ride at night only if necessary. Slow down and use familiar roads with street lighting.
- Gear down before a climb and continue gearing down as required to maintain pedaling
speed. You will then obtain more power from each pedal revolution.
- If you reach the lowest gear and are struggling, don't stand up on your pedals, since you
may loose control of the bike.
- On the descent, use the high gears to avoid rapid pedaling.
- Do not exceed a comfortable speed; maintain control and take additional care. Don’t go
faster than 32 Km/h. If the bike is loaded, limit even further your speed.
- Braking will require additional distance. Initiate braking slowly and earlier than usual.
Please consider that a fully loaded bike can reach 240 Kg and this will heavily effect the
braking distance.
11

12
CORNERING TECHNIQUE
FRONT BOX
GENERAL SAFETY
- Brake slightly before cornering and prepare to lean your body into the corner.
- Decrease your riding speed, avoid sudden braking and sharp turns.
- When loading and unloading passengers on the front box, be sure that the parking lock is
activated.
- Load and unload only 1 passenger at a time.
- Always follow the specific instruction when loading and unloading passengers on the
front box.

14
SAFETY CHECKLIST
Before every ride, it is important to carry out the following safety checks. Do not ride a
bicycle that is not in proper working condition!
ACCESSORIES
- The reflectors are properly placed and not obscured.
- All other fittings on the bike are properly and securely fastened, and functioning (e.g.:
lights).
- Rider’s and passenger’s clothing and items are properly constrained and not loose.
BEARINGS
- All bearings are lubricated, run freely and display no excess movement, grinding or
rattling.
BRAKES
- The front and rear brakes work properly.
- The brake control cables are lubricated, correctly adjusted and display no obvious wear.
- The brake control levers are lubricated and tightly secured to the handlebar.
CHAIN
- The chain is oiled, clean and runs smoothly.
CRANKS AND PEDALS
- The pedals are securely tightened to the crank arms.
- The crank arms are secured to the axle and are not bent.
FRAME
- The frame is not bent or broken.
- The quick-release clamps are locked in place.
STEERING
- The handlebar and post are correctly adjusted and tightened, and allow proper steering.
- The handlebar binder bolt is tightened.
WHEELS AND TIRES
- The wheels are properly attached to the bicycle and axle.
- The tires are properly inflated within the recommended pressures displayed on the tires
sidewall.
- The tires have the proper amount of tread, no bulges or excessive wear.
15

16
QUICK RELEASE SEAT CLAMP
- Unlock the quick-release lever
- Adjust the seat height up or down until the rider feels that he/she has control of the
bicycle and are comfortable.
IMPORTANT: be sure the minimum insertion marks do not go past
the top of the seat clamp and are not visible.
- Try to close the quick-release lever. If it closes easily, open it up and tighten the
adjustment nut further. If it’s too difficult to close, open the quick release lever up and
loosen the adjustment nut a little and try again.
DO NOT ATTEMPT TO TIGHTEN BY TURNING THE QUICK-
RELEASE LEVER. THE QUICK-RELEASE LEVER IS FOR CLOSING,
THE ADJUSTMENT NUT IS FOR ADJUSTING THE PRESSURE.
IMPORTANT: you should feel resistance when you close the quick-
release lever and should leave a temporary impression on your
fingers. Open and close the handle to ensure the seat is securely
locked in place.
17

18
HANDLEBAR PARKING LOCK
- Using a 6 mm Allen wrench loosen the bolt at the front of the stem.
IMPORTANT: do not loosen the bolts on the side of the stem.
- Grasp the stem of the handlebar and rotate to the desired angle.
- Re-tighten the handlebar bolt at the front of the stem and check the
handlebar is securely attached and cannot move.
- Once you have adjusted the angle of the handlebar check the angle of the cables to be
sure they are facing forward.
LOCK
UNLOCK
- Press the LEFT brake lever IN.
- Rotate the small lever to the left.
- Press the LEFT brake lever IN.
- Rotate the small lever to the right.
ADJUSTING THE STEM ANGLE
19

20
GEAR
Shifting with the Enviolo system, while riding:
• Shifting into low ratios for starting or climbing
- Using the Nfinity grip, rotate in the direction indicating more of a “hill”
• Shifting into high ratios for higher speeds
- Using the Nfinity grip, rotate in the direction indicating more of a “flat”
Shifting with the Enviolo system, while stopped:
• Enviolo Cycling CVPs cannot be shifted completely through the ratio range while
stopped: 50-70% of the shift range is typically accessible, with the remaining accessible
with very little pedal rotation
ENVIOLO TRANSMISSION
The rear shifter is placed on the right handlebar and has an indicator that shows the
number of the engaged gear, from 1 to 5.
First gears are used for slower riding, hill climbing, or to allow for easier pedaling. It is
recommended to start off in this gear and move through the gears as speed increases as
needed, or comfortable.
To change gear, just twist the rubber handle close to the numbered window.
INTERNAL SHIMANO GEARS
H
L
H
L
21

WALK ASSIST PRESS FOR 2 SECS
LIGHTS
POWER
INCREASE
SUPPORT
LEVEL
MENU
DECREASE
SUPPORT
LEVEL
USING THE SYSTEM BROSE ALLROUND DISPLAY
- To turn on the system, press the power button.
- Choose the desired assist level by pushing the “+/-” on the handlebar control. Choose
between ECO, TOUR, SPORT and BOOST. To make the bike move with electric assistance
you just have to pedal.
- To activate the walk assist, just press for 2 seconds the specific button.
IMPORTANT: the walk assist works only when the assistance level is
set to ECO or more.
- Integrated lights can be switched on and off pressing the specific button.
- To turn off the system, press the power button on the handlebar control for 3 seconds.
When the display is off, the complete system is off too.
2322
MID DRIVE ESYSTEM
FRONT BOX MOUNTED BATTERY
- Insert the battery in the specific stand placed inside the front box and push it towards the
handlebar. Press the power button on the battery pack. The system now is active.
- To remove the battery, insert the key in the lock and turn it counterclock wise, then
remove the battery pulling it toward the front of the bike.
- To charge the battery, plug the charger magnetic connector in the specific socket. The
LED on the battery will start blinking. When the charge is done all the 5 LEDs are on.
IMPORTANT: don’t leave the battery charging too much time after
the full charge. When the battery is fully charged disconnect it from
the charger.

24
SEATS
On a boxter equipped with seats, to have more loading space is possible to remove the
bench: simply lift it applying some force in order to detach it from the Velcro strips.
To completely remove the seats, pull the backrest applying some force in order to detach it
from the Velcro strips.
REMOVING THE BENCH
REMOVING THE BACKREST
SEAT BELTS
- Join the two ending parts coming from the backrest parts of the seat belt. The right one
goes to the top.
- Insert the joint parts in to the buckle. Listen for the click.
- Tug on the seat belts to make sure the belts is securely fastened.
RELEASE THE SEAT BELTS
-Press the orange button to release the latches. The latches will eject from the buckle.
FASTEN THE SEAT BELTS
25

26
HOOD
OPENING HOOD
- move to the front of the box;
- turn the front metal locks, they’ve to be horizontally aligned;
- open the front zippers;
- lift the hood.
The right side window is openable too, just open its zippers.

Boxter Mid Drive
build up
FRAME: aluminium 7005
BOX: PU foam casted in one piece
REAR WHEEL: 26”
FRONT WHEELS: 20”
e-system
MOTOR: Brose Drive S | 250W – 90 Nm mid drive motor
DISPLAY: Brose Allround
BATTERY: Li-Ion cells, 36V – 501 Wh
E-SYSTEM WARRANTY: 1 - 2 years
components
BRAKES: Tektro hydraulic disc brakes with parking lock
GEARS / TRANSMISSION:
Shimano Nexus 5 Steps e-bike / chain
Enviolo CA manual groupset / Gates Carbon Drive
LIGHTS:
integrated front and rear lights
FRAME LOCK:
one AXA lock included
TIRES:
Puncture free Schwalbe Marathon plus 1.75”
SEAT POST:
Ø 31,6 mm
LENGTH 450 mm
STEERING DAMPER: one included
SADDLE: triobike gel
CRANKSET: FSA aluminium
STEM: adjustable
dimensions
BIKE:
LENGTH: 217 cm
WIDTH: 93 cm
BOX:
WIDTH: 74 cm, inside 71 cm
LENGTH: 100 cm, inside 96 cm
HEIGHT FROM SEAT TO ROOF: 80 CM
WEIGHT: 42 kg
MAX PAYLOAD ON THE FRONT BOX: 150 kg
MAX TOTAL WEIGHT: 250 kg
MAX OVERALL LOAD (RIDER+PASSENGERS): 208 kg
SPECIFICATIONS
SPECIFICATIONS

TRIOBIKE Boxter
Date: 03-03-2021
Copyright© TRIOBIKE A/S 2021
dimensions in mm
165
107
778
308
2170
1257 580
400
492
419-434
490
72.8°
1200
1330
830
930
245
660
740
135
Hub O.L.D.
135
DIMENSIONS
DIMENSIONS

32
WARRANTY
Limited warranty of manufacture fail of 24 months. This warranty does not apply to gear
hubs, brakes and shifters which are covered directly with these manufacturers.
Failure due to accidents, abuse, neglect, normal wear & tear, improper assembly, wrong
assembling operation, changes of the original product, improper use and maintenance
by any other than authorized bicycle mechanics or use of parts inconsistent with the use
originally intended for the bicycle as sold are not covered by this warranty.
The bicycles are intended to be used for city biking. TRIOBIKE shall not be held responsible
for any accidents, injury, losses or damage caused by use of the bicycle, being that of
responsibility of the owner.
The above limited warranty is conditional upon the bicycle being properly maintained and
operated under normal conditions and use.
In case of warranty claim contact the original place of purchase, accompanied by an
original bill of sale or proof of purchase that identifies the bike or the frame by the serial
number.
Outside Denmark, the original owner is responsible for any and all labour and
transportation charges associated with the warranty repair or replacement of all parts.

34
MAINTENANCE
GENERAL ADVISE
Please remember to have your first check & fine tune after 3 months. Hereafter we
recommend a complete service and fine tuning of your bike every year/2000 km. Please
consultant your local dealer or local shop.
For specific control point for each service contact your local bike shop - this bike must be
serviced only by trained and quilified bike mechanic.
Specific control points for each service: brakes, gears, battery status, spokes, bearings.
TIRES
It’s important to have correct air pressure on tires. It improves control and handling, and it
doesn’t stress tires. Correct pressure is 4.5 Bar (65 PSI).
BATTERIES
Batteries have to be charged every 4 weeks, also when the bike is parked and not in use.
For complete instructions please check the e-system manufacturer manual.
SPOKES
The users must check the tension and eventually tighten the spokes after 100 km. The
same operation has to be repeated every month/1000 km.
REPEAT ONCE A YEAR OR 2000 KM (1240 MILES)
year/km
3 months
check
1 year
2000 km
1240 miles
2 years
4000 km
2480 miles
3 years
6000 km
3730 miles
4 years
8000 km
4970 miles
5 years
10 000 km
6210 miles
brakes
gears
bearings
spokes
brakes
gears
bearings
battery status
tires check
chain
spokes
brakes
gears
bearings
battery status
tires check
chain
spokes
brakes
gears
bearings
battery status
tires check
chain
spokes
brakes
gears
bearings
battery status
tires check
chain
spokes
brakes
gears
bearings
battery status
tires check
chain
spokes
operation
checklist
dealer stamp
35

36
EC DECLARATION OF CONFORMITY
Manufacturer: Triobike A/S
Gammel Kongevej 80
1850 Frederiksberg C - Denmark
Hereby declares that the following product:
Product Name: boxter
Function: Transport bike with electric support
Type: mid drive, rear drive
Year: 2019
- meets all the provisions of the Directive 2006/42 / EC (on machinery);
- meets all the provisions of the Directive 2004 / 108EG (Electromagnetic Compatibility);
- meets the associated battery charger complies with all provisions of the Directive
2006/95 / EC (Low Voltage).
Triobike A/S
Copenhagen, 4 January 2019
Sammy Eisinger (managing director)
Copyright© Triobike A/S 2021. All Rights Reserved.

TRIOBIKE A/S
Gammel Kongevej 80, 1850 Frederiksberg C - Denmark
phone: [phone]
[email protected] | www.triobike.com
