Triple S Cheetan 1500 User manual

TABLE OF CONTENTS
Safety Precautions
Machine Operation
Machine Maintenance & Storage
Handle Release Assembly Instructions
Parts Lists
Wiring Diagram
Warranty Policy
3
4
4
5
6-10
11
12
-2-

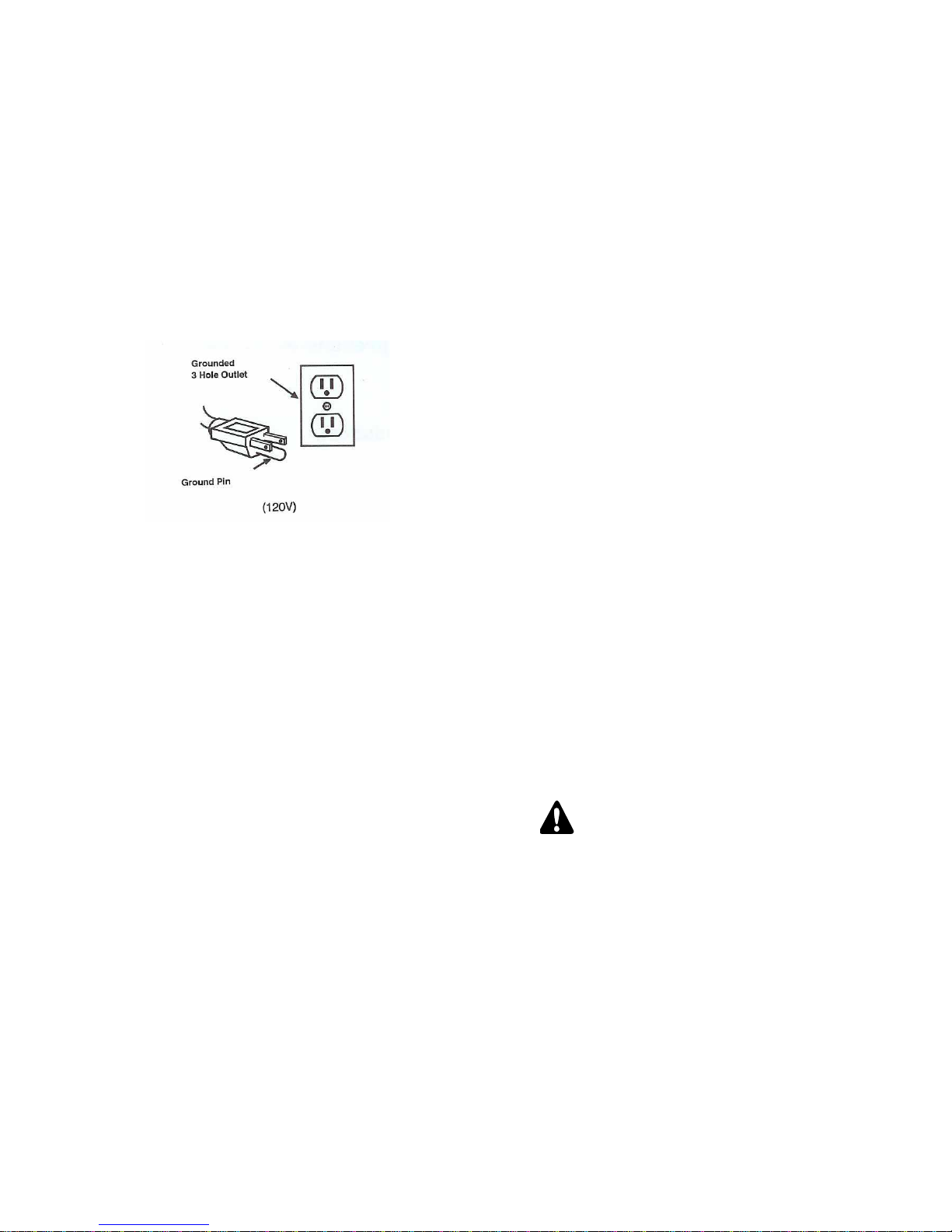

!!! This machine must be grounded! Grounding
provides the path of least resistance for
electrical current. To reduce the risk of electrical
shock should the machine malfunction, the
machine has a special grounding plug. Do not
remove the ground pin under any circumstances!
This machine is intended for commercial use. It
is constructed for use in an indoor environment
and is not intended for any other use. Use only
recommended accessories.
All operators shall read, understand and
exercise the following safety precautions:
1) Do not operate machine:
- Unless trained and authorized.
- Unless you have read and understand
operators manual.
- In flammable or explosive areas.
- With damaged cord or plug.
- If not in proper operating condition.
- In outdoor areas.
- In standing water.
- With the use of extension cords.
2) Before operating machine:
- Make sure all safety devices are in place
and operate properly.
3) When using machine:
- Only use approved burnishing pads.
- Do not run machine over cord.
- Do not pull machine by cord or plug.
- Do not pull cord around sharp edges or
corners.
- Ensure the dust collection bag is in place
and is tightly sealed to the machine.
- Turn power switch to “off “ prior to
unplugging machine.
- Do not unplug by pulling on the cord.
- Do not stretch cord.
- Do not handle plug with wet hands.
- Keep cord away from heated surfaces.
- Do not pick up burning or smoking
debris such as cigarettes, matches or
hot ashes.
- Report machine damage or faulty
operation immediately.
4) Before leaving or servicing machine:
- Turn off machine.
- Unplug cord from outlet.
5) When servicing machine:
- Unplug cord from outlet.
- Use manufacturer supplied or approved
replacement parts.
To avoid electrical shock, please
replace the power cord
immediately if any damage is being
detected. The replacement must be
performed only by an authorized person.
-3-
SAFETY PRECAUTIONS

Operation of High Speed Floor Machine
* READ OPERATORS MANUAL
THOROUGHLY PRIOR TO OPERATING
OR SERVICING THIS MACHINE.
GENERAL USE
1. Remove any obstructions or other obstacles
in the area which is to be cleaned.
2.
2.2.
2. Place the handle in the upright position and
tilt machine back until handle rests on the
floor
* Be sure the machine is not plugged into
an outlet
3. Attach the pad to the machine by first
unscrewing the male end of the “big mouth”
from the flexible pad driver. Place the
approved pad on the pad driver, place the
male end of the “big mouth” into the center
hole of the pad, and tighten the “big mouth”
firmly to the pad driver.
4. Place machine back into its upright position.
5. Plug power cord into a grounded outlet.
* Never use an extension cord in
conjunction with the standard power
cord.
6. The handle height may be adjusted by lifting
up the compression handle which is located
on the right side of the handle tube about 1
foot above floor level. Release the
compression handle and adjust handle to
safe operating height, then push back down
on the compression handle to lock the
handle in operating position.
7. To start the machine, press the red safety
button on the top of the upper switch
housing, and then squeeze either of the
operating triggers. (the safety button must
be depressed prior to squeezing the
operating triggers.)
8. When the machine is in operation, both
hands should be placed on the switch
housing (upper handle).
9. To stop the machine at any time, simply
release the operating trigger(s) and the
machine will stop automatically.
MAINTENANCE
To keep the machine performing well for
many years, please follow the following
maintenance procedures.
* Always confirm that the machine is
unplugged prior to performing any
maintenance or repairs.
1. Unplug machine as soon as you are done
using it.
2. Clean the outside of the machine with a
mild cleaner.
3. Check power cord for any damage. If
damage is detected, replace power cord
immediately.
4. Lubricate wheels with a water resistant
lubricant once a month.
5. Check machine for loose or missing nuts
and bolts, and replace as necessary.
6. If the machine is used in a dusty
environment, you may remove the motor
cover and blow the motor clean with
compressed air. This will ensure proper
ventilation, and allow the motor to run
cooler.
STORAGE
1. Unplug machine from power source and
wrap cord on handle.
2. Tilt machine so the pad is not touching the
floor.
3. Store machine in upright position and in a
dry area.
-4-

left of the machine when you arestanding behind it)
1)Placecordwrapassembly(2pieces)inplace,andsnugthem
2)Assemblehardwareinthe following orderspacer, letf handle
togetherwithhexbolt. (actualcordwrap facestothe
bracket, nylock nut. (do not overtighten nylock nut, Only
tighten it enough toholdhandleinplacewhen compression
leverisindownposition)
rdsotheylean against the motor.
2)Pushthe twohandlebracketsforwa-
1)Removenut and spacerfromhandle
bracketassembly.
1)Connect powercordstogether.
STEP 1
STEP 4
6mm
STEP 3
handleclampblocks
1)Removehandleclamp
basewithhexhead
3)Re-attachthe blocks tothe
2)Placehandleassemblyinto
blocks withhexhead
5mm
5mm
STEP 2
Handle Release Assembly Instructions
-5-
Handle Release Assembly Instructions

PARTS LIST
HANDLE GROUP
-6-

DIA
NO PART NUMBER DESCRIPTION NO REQ'D
1 VF30016 HANDLE RELEASE 1
2 VF30017 SCREW PIN, HANDLE RELEASE 1
3 VF30018 WASHER, PLAIN,HANDLE RELEASE 2
4 VF30015 BOLT, HANDLE RELEASE 1
5 VF13503 NUT, M8, NYLON INSERT 1
6 VF30014 COVER, HOOK, CABLE 1
7 VF45125 CORD, HANDLE, 14/3C 1
8 VF50120A GROMMET 1
9 VF14053 HEX SOCKET SCREW, M6x25 4
10 VF30011BD CLAMP BLOCK, HANDLE 2
11 VF13504 NUT, M10, NYLON INSERT 1
12 VF13517 WASHER, PLAIN, φ10xφ20x2.5 1
13 VF14114 SCREW, M8 x 55, HEX 1
14 VF30013 HOOK, CABLE 1
15 VF13493 SCREW, M6x10, HEX SOCKET 1
16 AS321207 TUBE HANDLE 1
17 AS22002 SCREW, M5x16 1
18 GV40238H COVER, LEVER, SOLUTION 1
19
VF48310TR
HANDLE GRIP
2
HANDLE GROUP
19 VF48310TR HANDLE GRIP 2
20 AS22005S LEVER, LEFT, SWITCH 1
21 VV13661 SCREW, M4x12 2
22 VF48309 CLAMP BLOCK 1
23 VF45119U CORD, POWER SUPPLY 1
24 AS22009 STRAIN RELIEF, CORD, POWER SUPPLY 1
25 GT13009 SCREW, M5x30 5
26 AS312209 REAR COVER, HANDLE 1
27 GT13008 SCREW, M5x20 2
28 VF52024TR SERIAL TAG 1
29 VF40994 READ MANUAL LABEL 1
30 GV40218 SPRING, SAFETY BUTTON 1
31 GV40209 SAFETY BOTTON 1
32 AS312203 COVER, LEVELING HANDLE 1
33 VF99010C CIRCUIT BREAKER, 17AMPS 1
34 VF45124A JUMP WIRE 1
35 VF44203 SWITCH ASSY 1
36 VF13511 WASHER, LOCK, INTERNAL TOOTH 2
37 VF14212 SCREW, M3x25 2
38 AS22004S LEVER, RIGHT, SWITCH 1
39 AS312208 FRONT COVER, HANDLE 1
40 GV40226TR LABEL 1
41 VF13604 EXTERNAL TOOTH WASHER, φ5 4
42 VF14222 SCREW, M5x12 4
43
AS22003
TOOTH WASHER, φ5
2
43
AS22003
TOOTH WASHER, φ5
2
44 VV13633 NUT, M5 2
-7-

-8-
PARTS LIST

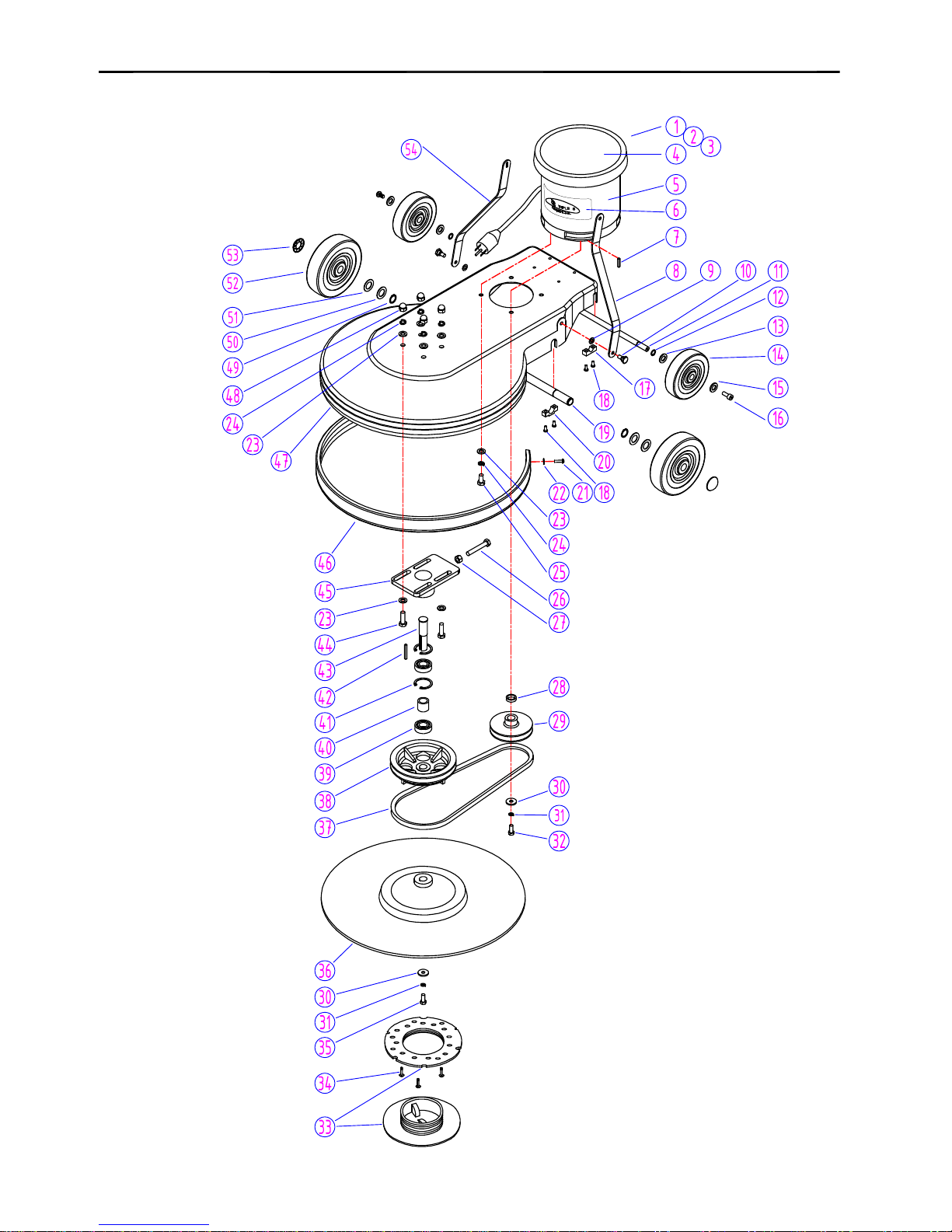

BASE GROUP

DIA
NO PART NUMBER DESCRIPTION NO REQ'D
1 ZD41000 MOTOR,120V 1
2 VF99926-2 CARBON BRUSH 1
3 VF44204 RECTIFIER 1
4 ZD41306 MOTOR COVER 1
5 VF53110 LABEL 1
6 VF41079TR LABEL, LOGO 1
7 ZD40205 KEY, MOTOR 1
8 VF53112 BRACKET, LEFT 1
9 VF13514 WASHER, PLAIN, φ8xφ16 2
10 VF53107 HEX SCREW, BRACKET 2
11 VF52011A AXLE, TRANSPORT 1
12 VF13520 RETAINING RING, EXTERNAL, φ12 2
13 VF50119 WAVING WASHER, φ12 2
14 VF48202 WHEEL, 5" 2
15 VF13666 WASHER, PLAIN, φ12 2
16 VF44012 SCREW, M5 x 12.7 2
BASE GROUP
17 GV40235 CLAMP BLOCK, AXLE 2
18 VV13621 SELF-TAPPING SCREW, ST5x20 8
19 VF52010R FRONT AXLE 1
20 VF47038 CLAMP BLOCK, AXLE 2
21 VA13474 SCREW, M5x16 2
22 VF13474A WASHER, PLAIN, φ5xφ16 2
23 VF13517 WASHER, PLAIN, φ8 12
24 VF13518 WASHER, LOCK, φ8 8
25 VF13497 SCREW, 3/8"-16 4
26 VF14009 HEX SCREW, M10x65 1
27 VF14005 NUT, M10 1
28 VF52008 SPACER 1
29 VF52009G DRIVING PULLEY 1
30 VF52021 WASHER, PLAIN,φ8xφ30x5 2
31 VF13519 WASHER, LOCK, φ8 2
32 VF14008 SCREW, 5/16"-18, HEX 1
33 VF99003A BIG MOUTH 1
34 VA13484 ST4x12, PH 3
35 GT13018 SCREW, M8x30, HEX 1
36 VF99024D PAD HOLDER 1
37 VF14079B VEE BELT 1
38
VF52004A
DRIVEN PULLEY
1
38
VF52004A
DRIVEN PULLEY
1
-9-

DIA
NO PART NUMBER DESCRIPTION NO REQ'D
39 VF14075 BEARING, 6004 2RS 2
40 VF52006 SPACER, BEARING 1
41 VF14003 RETAINING RING, INTERNAL, φ42 2
42 VF52001 KEY, DRIVEN SHAFT 1
43 VF52005 DRIVEN SHAFT 1
44 VF14007 HEX SCREW, M10x32 4
45 VF52007 MOUNTING PLATE, DRIVEN SHAFT 1
46 AS321203TR BUMPER, FRAME 1
47 AS321201TP FRAME 1
48 VF14059 CAP NUT, M10 4
49 VF14004 RETAINING RING, EXTERNAL, φ19 2
50 VF50123 WASHER, φ19 2
51 VF47027 WAVING WASHER, φ19 2
52 VF47055N WHEEL, 160MM 2
53 VA96851 CAP, FRONT AXLE 2
54 VF53113 BRACKET, RIGHT 1
BASE GROUP
54
VF53113
BRACKET, RIGHT
1
-10-

Power
Cord
Supply
STO 14/3C Handle
Cord Motor Cord
SwitchHousing
Switch
Black
Green
White
Circuit
Breaker
-11-
Wiring Diagram

The warranty terms outlined below are in lieu of any other warranties, either stated or
implied, including any implied warranty of merchantability, fitness for a particular
purpose or otherwise. Under no circumstances will seller be liable for any loss,
damage, expense or consequential damages arising in connection with the use or
inability to use this product.
This warranty does not apply to damage or defect caused by accident, misuse,
negligence, abuse, fire or to any Triple S product which has been serviced by anyone
other than a Triple S authorized service representative. Housings or parts that have
become damaged as a result of improper use of the machine are excluded from this
warranty. Refer to owner’s manual for proper machine use and maintenance. Parts
that are expected to wear from normal use and, therefore are not covered under the
parts warranty include, but are not limited to: batteries (pro-rated for one year);
bearings; belts; brushes; filters; squeegees; switches; and tires.
This warranty commences on the date of purchase of the product by the original end
user from an authorized Triple S distributor, subject to proof of purchase. If proof of
purchase date is unavailable, the warranty begins 90 days after the sale of the
product to an authorized Triple S distributor.
•Subject to the conditions outlined above, the manufacturer warrants the
rotationally-molded polyethylene housings and parts on its machines to be
free from defects in materials and workmanship, under normal use and
service for twelve (12) years to the original purchaser.
•Under this warranty, the manufacturer guarantees the performance of
non-polyethylene parts and components on Triple S machines to be free
from defects for up to five (5) years to the original end user. Parts replaced
under this warranty are guaranteed for the remainder of the original
warranty period.
•Labor charges are covered for two (2) full years from the date of purchase
for Triple S products, provided an authorized Triple S service provider is
used for repair. No travel coverage is extended for cord electric machines.
Product Exceptions & Exclusions:. Battery chargers and all accessories are
warranted for one year.
Triple S reserves the right to change the warranty policy without notice.
-12-
Warranty Policy
