Triplett TMP10 User manual

User Manual

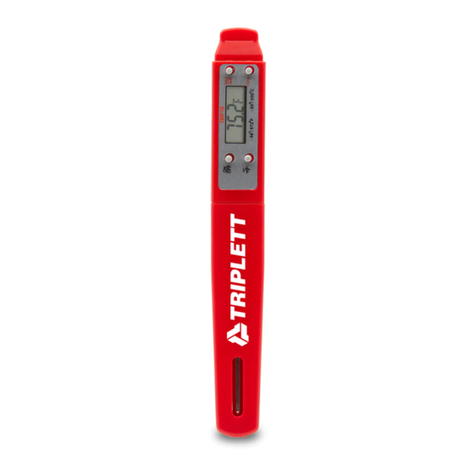

TPM10
Pocket Thermometer
Features
Congratulations on your purchase of the Triplett TPM10 Pocket
Thermometer. The thermometer is designed for measuring
temperatures of liquids and semi-solids.
•2.9” (73mm) food
grade stainless steel
probe
•Data Hold freezes the
reading on the display
•Min/Max with reset
•Includes LR44 battery
and protective probe
cover
Operation

ON/OFF: Press to Power ON/OFF
℃/℉: Press to witch between temperature units (℃and ℉)
HOLD: Locks the displayed temperature value.
MAX/MIN: Press the MAX/MIN button to save and display the data respectively.
*NOTE: Pressing the MAX/MIN key for 3 seconds will CLEAR the saved data.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Specifications

Temperature Range: -50℃~ 300℃（-58℉~ 572℉)
Temperature Resolution: 0.1℃/0.1
Temperature Accuracy: ±1°C(1.8°F) at 0°C~ 200°C(32°F~392°F) ±2°C
(3.6°F) at other ranges
Power supply: 1.5V ( LR44 Button Cell )
Stainless Steel Probe: 304# φ0.15 x2.8”(4.0×70mm)
Unit Size: 5.9”*0.78”*0.6” (151*20*17mm)
Warranty Information
Triplett / Jewell Instruments extends the following warranty to the original purchaser of
these goods for use. Triplett warrants to the original purchaser for use that the products sold
by it will be free from defects in workmanship and material for a period of (1) one year from
the date of purchase. This warranty does not apply to any of our products which have been
repaired or altered by unauthorized persons in any way or purchased from unauthorized
distributors so as, in our sole judgment, to injure their stability or reliability, or which have
been subject to misuse, abuse, misapplication, negligence, accident or which have had the
serial numbers altered, defaced, or removed. Accessories, including batteries are not
covered by this warranty Copyright ©2019 Triplett
