Owner’s Manual
HDMI Matrix Switch/Splitter with
Audio Extractor, 4K x 2K @ 60 Hz
Model: B118-2X4-4K-A
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2019 Tripp Lite. All rights reserved.
WARRANTY REGISTRATION
Register your product today and be automatically entered to
win an ISOBAR surge protector in our monthly drawing!
tripplite.com/warranty
Español 13 • Français 25 • Русский 37
19-10-159 93-36BF.indb 1 11/19/2019 12:05:57 PM

2
Package Contents
Optional Accessories
• B118-2X4-4K-A HDMI Matrix Switch/Splitter, 4K x 2K @ 60 Hz
• IR Remote Control (Battery included)
• External Power Supply*
(Input: 100-240V @ 50/60 Hz, 0.3A; Output: 5V/1A)
• Mounting Hardware
• Owner’s Manual
* Includes NEMA 1-15P (North America), CEE 7/16 Schuko (Europe),
BS 1363 (UK) and AS/NZS 3112 (Australia) plug adapters.
• P568-Series High-Speed HDMI Cables
• A102-0XM-THIN Series Toslink Digital Optical SPDIF Audio Cable
• A060-Series RF Digital Coax Audio Cable (M/M)
19-10-159 93-36BF.indb 2 11/19/2019 12:05:57 PM

3
Product Features
• Share up to four different HDMI sources between two HDMI-
compliant displays
• Supports video resolutions up to 4096 x 2160 @ 60 Hz
• Supports the connection of either digital or analog amplifiers,
speakers or receivers
• Supports 36-bit Deep Color (12 bits per channel)
• Supports LPCM 2 / 5.1 / 7.1 channel surround sound and
passthrough audio
• HDCP 2.2 compliant
• Plug-and-play – no software or drivers required
19-10-159 93-36BF.indb 3 11/19/2019 12:05:57 PM

4
Front Panel
1Power Button: Turn power ON and OFF.
2Power LED: Indicates the unit is receiving power.
3IR Receiver Head: Accepts IR signals from the remote
control.
4HDMI Output A LEDs (for HDMI Out 1): Corresponding
number LED (In 1, In 2…) illuminates when HDMI source is
connected and chosen.
5HDMI Output B LEDs (for HDMI Out 2): Corresponding
number LED (In 1, In 2…) illuminates when HDMI source is
connected and chosen.
6Switch A: Press to switch between the connected HDMI
sources to be displayed on HDMI Out 1.
7Switch B: Press to switch between the connected HDMI
sources to be displayed on HDMI Out 2.
8Service Port: Micro-B USB port is reserved for firmware
updates.
1 2 3 4 5 6 7 8
19-10-159 93-36BF.indb 4 11/19/2019 12:05:58 PM

5

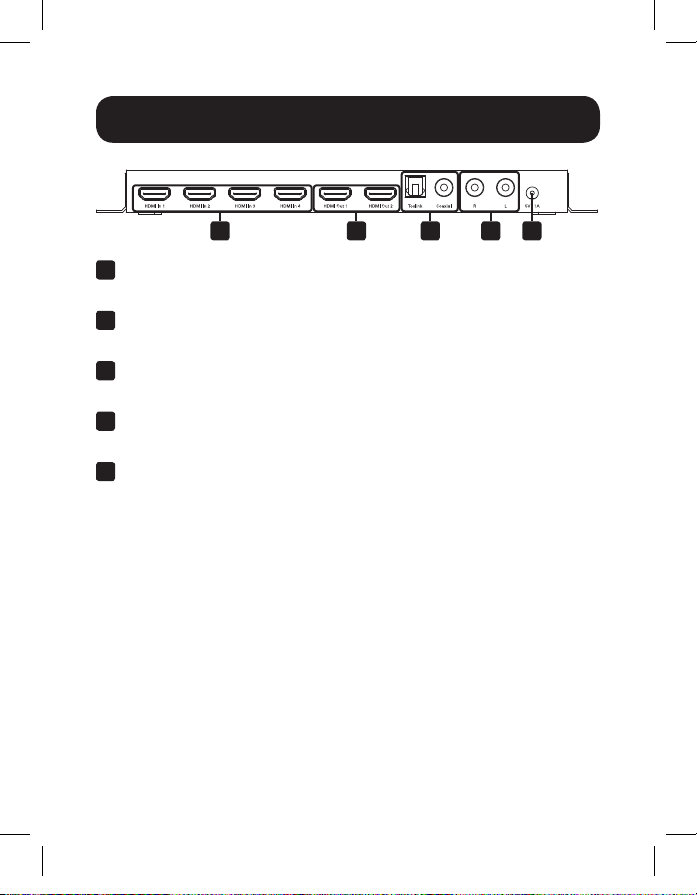

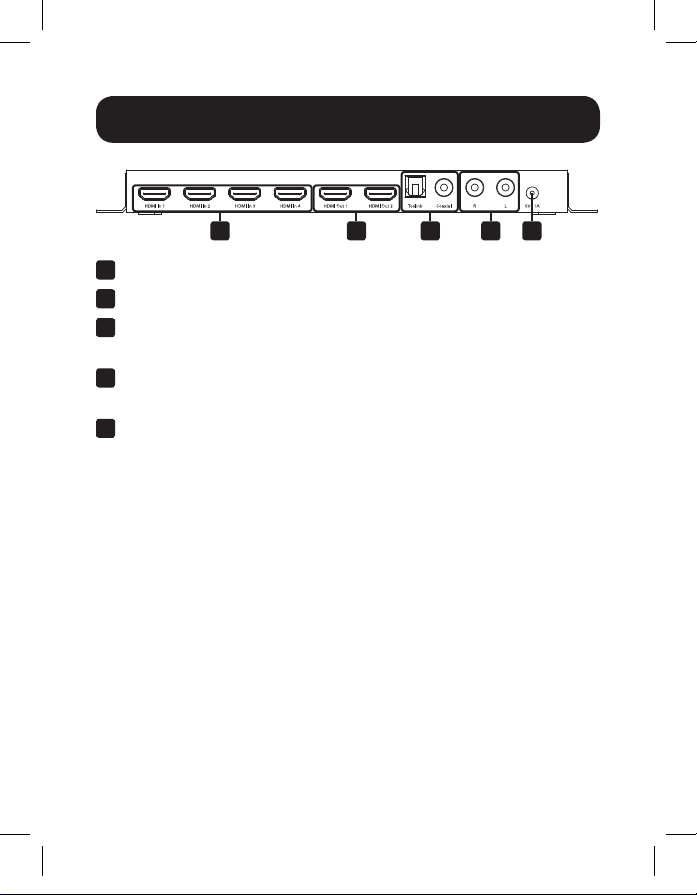

Rear Panel
1HDMI In Ports: Connect up to four HDMI sources.
2HDMI Out Ports: Connect up to two HDMI displays.
3Toslink/Coaxial Connectors: Allows for the connection of
optical or digital coaxial amplifiers or receivers.
4R/L RCA Connectors: Allows for the connection of analog
audio to amplifiers or receivers.
55V/1A Port: Plug the included 5V DC international power
supply into this port.
1 2 3 4 5
19-10-159 93-36BF.indb 5 11/19/2019 12:05:58 PM

6
Standard Installation
1. Connect up to four HDMI sources and up to two HDMI
displays to the B118-2X4-4K-A using high-speed HDMI
cables, such as Tripp Lite’s P569-Series (sold separately).
2. Attach a digital receiver or amplifier to either the Toslink
(optical) or digital coaxial port. If you have an analog receiver
or amplifier, connect it using the RCA “R” and “L” ports.
3. Power the unit by plugging in the included international power
supply to the 5V / 1A port. Press the Power button located on
the front panel to turn on the unit. By default, HDMI In 1 is
set to HDMI Out 1 and HDMI In 2 to HDMI Out 2.
4. Switch between all four HDMI input sources on the HDMI
Out 1 (or 2) display by pressing Switch A (or B). The
corresponding In 1, In 2, In 3, In 4 LEDs will illuminate to the
chosen source.
5. The auto extraction will follow the source for HDMI Out 1.
For example, if HDMI Output A shows LED In3 illuminated
and HDMI Output B shows LED In2 illuminated, the audio
extraction will come from HDMI Input source 3 (In3).
6. Instead of pushing the buttons on the front of the unit, the
included remote control can be used to switch between the
HDMI input sources, power the unit off and on and mute the
sound. See following page for individual button functions.
19-10-159 93-36BF.indb 6 11/19/2019 12:05:58 PM

7

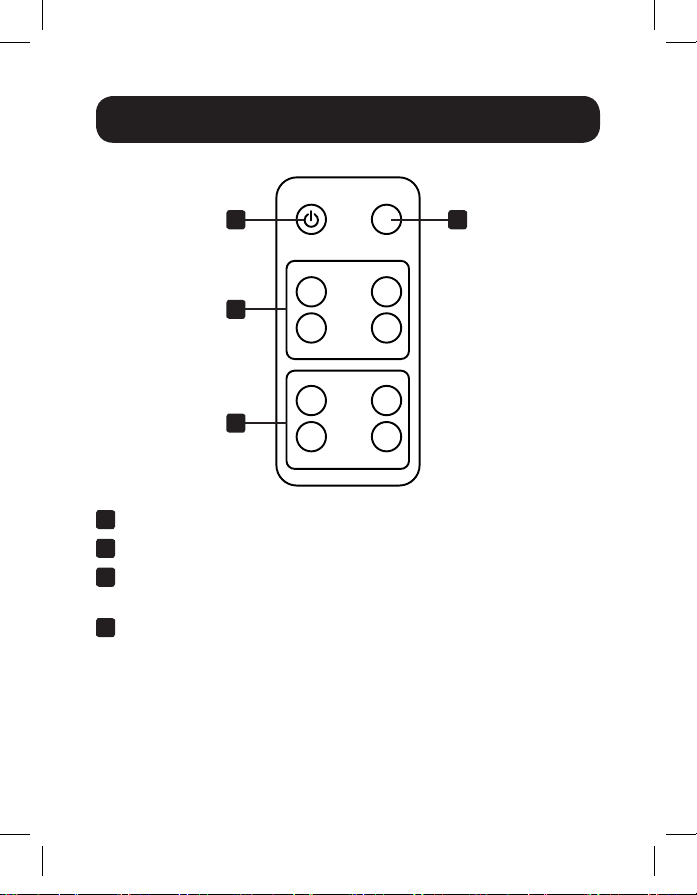

Standard Installation
1Power: Turns the power on and off to the unit.
2Mute: Turns the sound on and off.
3HDMI Output A: Choose between the connected HDMI
sources (up to 4).
4HDMI Output B: Choose between the connected HDMI
sources (up to 4).
MUTE
1
3
2
4
1
3
2
4
A
B
1
3
4
2
19-10-159 93-36BF.indb 7 11/19/2019 12:05:58 PM

8

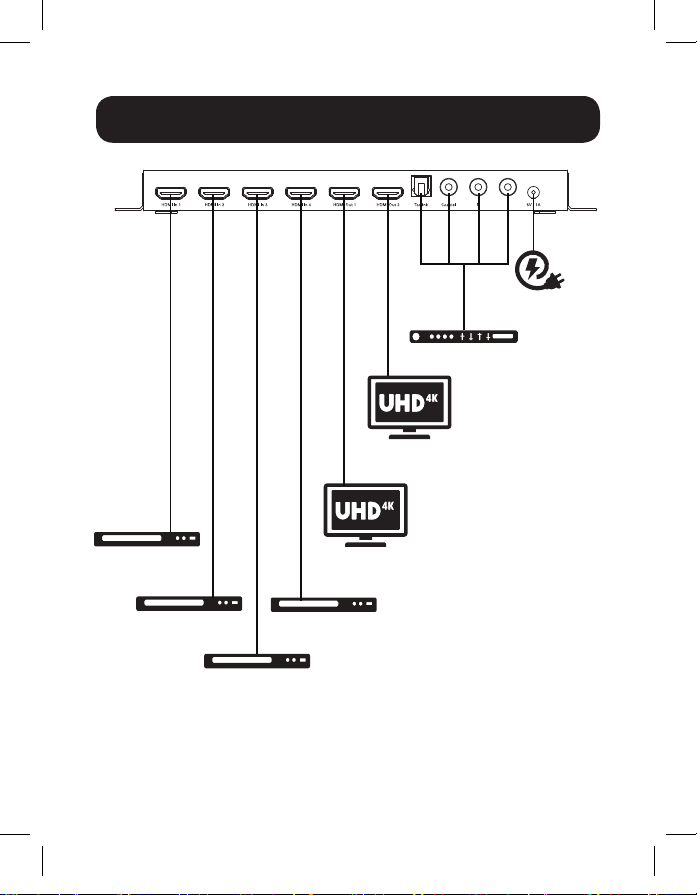

Connection
HDMI Source 1
HDMI Source 2
HDMI Source 3
HDMI Source 4
HDMI Display 1
4K / 60 Hz
HDMI Display 2
4K / 60 Hz
Amplifier Receiver
5V Power Adapter
19-10-159 93-36BF.indb 8 11/19/2019 12:05:58 PM

9
Specifications
Input Connector HDMI Female (x4)
Output Connector HDMI Female (x2)
Toslink Female (x1)
Digital Coaxial Female (x1)
RCA Female (x1 Red, x1 White)
Max. Resolution Supported 4096 x 2160 @ 60 Hz
Supported Audio LPCM 7.1 Channel Surround
Sound
HDMI Bandwidth 18G
Operating Temperature 32°F to 113°F (0°C to 45°C)
Storage Temperature 14°F to 176°F (-10°C to 80°C)
Operating Humidity 10% to 85% RH, Non-Condensing
Storage Humidity 5% to 90% RH, Non-Condensing
HDCP Specification 2.2
Supported Color Depth 36-bit (12 bit per channel)
Chroma Subsampling YCbCr 4:4:4, 4:2:2, 4:2:0 &
RGB 4:4:4
Unit Dimensions
[H x W x D]
0.8 x 8.5 x 3 in.
(20.3 x 214.9 x 76.2 mm)
Unit Weight 0.81 lb. (0.37 kg)
19-10-159 93-36BF.indb 9 11/19/2019 12:05:58 PM

10
Warranty & Product Registration
3-Year Limited Warranty
TRIPP LITE warrants its products to be free from defects in materials
and workmanship for a period of three (3) years from the date of initial
purchase. TRIPP LITE’s obligation under this warranty is limited to
repairing or replacing (at its sole option) any such defective products. To
obtain service under this warranty, you must obtain a Returned Material
Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE
service center. Products must be returned to TRIPP LITE or an authorized
TRIPP LITE service center with transportation charges prepaid and must
be accompanied by a brief description of the problem encountered
and proof of date and place of purchase. This warranty does not apply
to equipment, which has been damaged by accident, negligence or
misapplication or has been altered or modified in any way.
EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE.
Some states do not permit limitation or exclusion of implied warranties;
therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the
purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE
FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically,
TRIPP LITE is not liable for any costs, such as lost profits or revenue,
loss of equipment, loss of use of equipment, loss of software, loss of
data, costs of substitutes, claims by third parties, or otherwise.
19-10-159 93-36BF.indb 10 11/19/2019 12:05:58 PM

11
Warranty & Product Registration
Product Registration
Visit tripplite.com/warranty today to register your new Tripp Lite product.
You’ll be automatically entered into a drawing for a chance to win a FREE
Tripp Lite product!*
* No purchase necessary. Void where prohibited. Some restrictions apply. See
website for details.
FCC Notice, Class B
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications to this equipment not expressly approved by
Tripp Lite could void the user’s authority to operate this equipment.
19-10-159 93-36BF.indb 11 11/19/2019 12:05:58 PM

12
Warranty & Product Registration
WEEE Compliance Information for Tripp Lite Customers and
Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment (WEEE)
Directive and implementing regulations, when customers buy
new electrical and electronic equipment from Tripp Lite they are
entitled to:
• Send old equipment for recycling on a one-for-one, like-for-like
basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately
becomes waste
Use of this equipment in life support applications where failure of this
equipment can reasonably be expected to cause the failure of the life
support equipment or to significantly affect its safety or effectiveness is
not recommended.
Tripp Lite has a policy of continuous improvement. Specifications are
subject to change without notice. Photos and illustrations may differ
slightly from actual product.
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
19-10-159 93-3B6F_RevA
19-10-159 93-36BF.indb 12 11/19/2019 12:05:59 PM

13
Manual del Propietario
Interruptor/Divisor de Matriz
HDMI con Extractor de Audio,
4K x 2K a 60 Hz,
Modelo: B118-2X4-4K-A
1111 W. 35th Street, Chicago, IL 60609 EE. UU. • tripplite.com/support
Copyright © 2019 Tripp Lite. Todos los derechos reservados.
MÁS DE
AÑOS
English 1 • Français 25 • Русский 37
19-10-159 93-36BF.indb 13 11/19/2019 12:05:59 PM

14
Contenido de la Caja
Accesorios Opcionales
• B118-2X4-4K-A - Interruptor/Divisor de Matriz HDMI,
4K x 2K a 60 Hz,
• Control Remoto IR (Batería Incluida)
• Fuente de Alimentación Externa*
(Entrada: 100-240V a 50/60 Hz, 0.3A; Salida: 5V/1A)
• Accesorios de Instalación
• Manual del Propietario
* Incluye adaptadores de clavija NEMA 1-15P (Norteamérica), CEE 7/16
Schuko (Europa), BS 1363 (Reino Unido) y AS/NZS 3112 (Australia).
• Cables HDMI de Alta Velocidad Serie P568
• Cable de Audio SPDIF Óptico Digital Toslink Serie A102-0XM-THIN
• Cable Coaxial para Audio Digital de RF de la Serie A060 (M/M)
19-10-159 93-36BF.indb 14 11/19/2019 12:05:59 PM

15
Características del Producto
• Comparta hasta cuatro diferentes fuentes de HDMI entre dos
pantallas compatibles con HDMI
• Soporta resoluciones de video de hasta 4096 x 2160 a 60 Hz
• Soporta la conexión de amplificadores, bocinas o receptores
digitales o analógicos
• Soporta Color Verdadero de 36 bits (12 bits por canal)
• Soporta audio LPCM sonido envolvente de 2 / 5.1 / 7.1
canales y de paso directo
• Compatible con HDCP 2.2
• Conectar y Usar—No requiere software ni controladores
19-10-159 93-36BF.indb 15 11/19/2019 12:05:59 PM

16
Panel Frontal
1Botón de Encendido: Enciende y Apaga.
2LED de Encendido: Indica que la unidad está recibiendo
energía.
3Cabezal Receptor IR: Acepta las señales IR de desde el
control remoto.
4LEDs de Salida A HDMI (para Salida 1 HDMI): Número
correspondiente de LED (Entrada 1, 2…) se enciende cuando
está conectada y elegida la fuente HDMI.
5LEDs de Salida B HDMI (para Salida 2 HDMI): Número
correspondiente de LED (Entrada 1, 2…) se enciende cuando
está conectada y elegida la fuente HDMI.
6Switch A: Oprima para cambiar entre las fuentes HDMI
conectadas para mostrar en Salida 1 HDMI.
7Switch B: Oprima para cambiar entre las fuentes HDMI
conectadas para mostrar en Salida 2 HDMI.
8Puerto de Servicio: El puerto USB Micro-B está reservado
para las actualizaciones de firmware.
1 2 3 4 5 6 7 8
19-10-159 93-36BF.indb 16 11/19/2019 12:05:59 PM

17
Panel Posterior
1Puertos de Entrada HDMI: Conecte hasta cuatro fuentes
HDMI.
2Puertos de Salida HDMI: Conecte hasta dos pantallas
HDMI.
3Conectores Toslink/Coaxial: Permite la conexión de
amplificadores o receptores coaxiales digitales u ópticos.
4Conectores RCA R/L: Permite la conexión de receptores o
amplificadores analógicos de audio.
5Puerto de 5V/1A: Conecte la fuente de alimentación
internacional incluida de 5V CD en este puerto.
1 2 3 4 5
19-10-159 93-36BF.indb 17 11/19/2019 12:05:59 PM

18
Instalación Estándar
1. Conecte hasta cuatro fuentes de HDMI y hasta dos pantallas
HDMI al B118-2X4-4K-A usando cables HDMI de alta
velocidad, como la Serie P569 de Tripp Lite (vendido por
separado).
2. Acople un amplificador o receptor digital al puerto Toslink
(óptico) o digital coaxial. Si tiene un receptor o amplificador
analógicos, conéctelo usando los puertos RCA "R" y "L".
3. Alimente la unidad conectando la fuente de alimentación
internacional incluida al puerto de 5V / 1A. Oprima el botón
de Encendido ubicado en el panel frontal para encender la
unidad. De manera predeterminada, la Entrada 1 HDMI está
configurada para Salida 1 HDMI y la Entrada 2 HDMI para
Salida 2 HDMI.
4. Conmute entre los cuatro fuentes de entrada HDMI a la
pantalla en Salida HDMI 1 (o 2) oprimiendo el Switch A (o B).
Los LEDs de Entrada 1, Entrada 2, Entrada 3, Entrada 4 se
encenderán según la fuente seleccionada.
5. La extracción automática seguirá la fuente para Salida HDMI
1. Por ejemplo, si la Salida A HDMI muestra el LED In3
iluminado y la Salida B HDMI muestra el LED In2 encendido,
la extracción de audio provendrá de la fuente de entrada 3
HDMI (In3).
6. En lugar de oprimir los botones en el frente de la unidad,
se puede usar el control remoto incluido para cambiar entre
las fuentes de entrada HDMI, apagar y encender la unidad
y silenciar el sonido. Consulta la siguiente página para las
funciones de botón individuales.
19-10-159 93-36BF.indb 18 11/19/2019 12:05:59 PM

19
Instalación Estándar
1Encendido: Enciende y apaga la unidad.
2Silencio: Enciende y apaga el sonido.
3Salida A HDMI: Elige entre las fuentes HDMI conectadas
(hasta 4).
4Salida B HDMI: Elige entre las fuentes HDMI conectadas
(hasta 4).
MUTE
1
3
2
4
1
3
2
4
A
B
1
3
4
2
19-10-159 93-36BF.indb 19 11/19/2019 12:05:59 PM

20
Conexión
Fuente 1 HDMI
Fuente 2 HDMI
Fuente 3 HDMI
Fuente 4 HDMI
Pantalla 1 HDMI
4K / 60 Hz
Pantalla 2 HDMI
4K / 60 Hz
Receptor
Amplificador
Adaptador de
Corriente de 5V
19-10-159 93-36BF.indb 20 11/19/2019 12:06:00 PM
