Tripp Lite B110-SP-10G User manual

1
In-Line Network
Surge Protector,
10 Gbps, Cat6a
Model: B110-SP-10G
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2022 Tripp Lite. All rights reserved.
Quick Start Guide
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR®
surge protector in our monthly drawing!
tripplite.com/warranty
Español 9 • Français 17 • Русский 25

2
• B110-SP-10G 10 Gbps In-Line Network Surge Protector
• Grounding Wire
• Mounting Screws (x4)
• Screw Anchors (x4)
• Grounding Wire Screw
• Quick Start Guide
• Protects your network equipment’s inputs and outputs against electro-
static discharge (ESD), power surges and cable discharge events
• Meets the following IEC regulations:
oIEC 61000-4-2: Indirect discharge (4kV), direct discharge (8kV)
oIEC 61000-4-5 (Lightning) 2kA (8/20µs), 1kV (8/20µs)
• Easy to connect between network source and device using
standard Cat5/5e/6/6a/8 cabling
• Rapid reaction time under 1 ns helps prevent damage from
lightning/power surges
• Supports Ethernet network data transmission speeds up to 10 Gbps
• Plug-and-play operation with no software required for easy,
immediate installation
• Supports distance between the B110-SP-10G and equipment up
to 330 ft. (100 m)
• Compliant with the Federal Trade Agreements Act (TAA) for GSA
(General Services Administration) Schedule and other federal
procurement contracts
Package Includes
Product Features

3
Note: The following instructions assume that two network devices are
currently connected together.
Single Device Protection:
1. Disconnect the installed patch cable from the device you wish
to protect and attach it to the “Cable End” of the In-Line 10G
Network Surge Protector.
2. With a user-supplied Cat5/5e/6/6a/8 patch cable, connect the
device to be protected to the “Equipment End” of the In-Line
10G Network Surge Protector.
Note: For best protection performance, the patch cable between
the “Equipment End” on the B110-SP-10G and the equipment
to be protected should not exceed 330 ft. (100 m). Tripp Lite’s
N261-Series Cat6a Snagless Patch Cables are recommended.
3. Connect the ground wire to the In-Line 10G Network Surge
Protector and then to earth ground.
Installation

4
Etherent Switch Hub (10 Gbps)
10GB
Network Card PC
Installation
�
�
B110-SP-10G

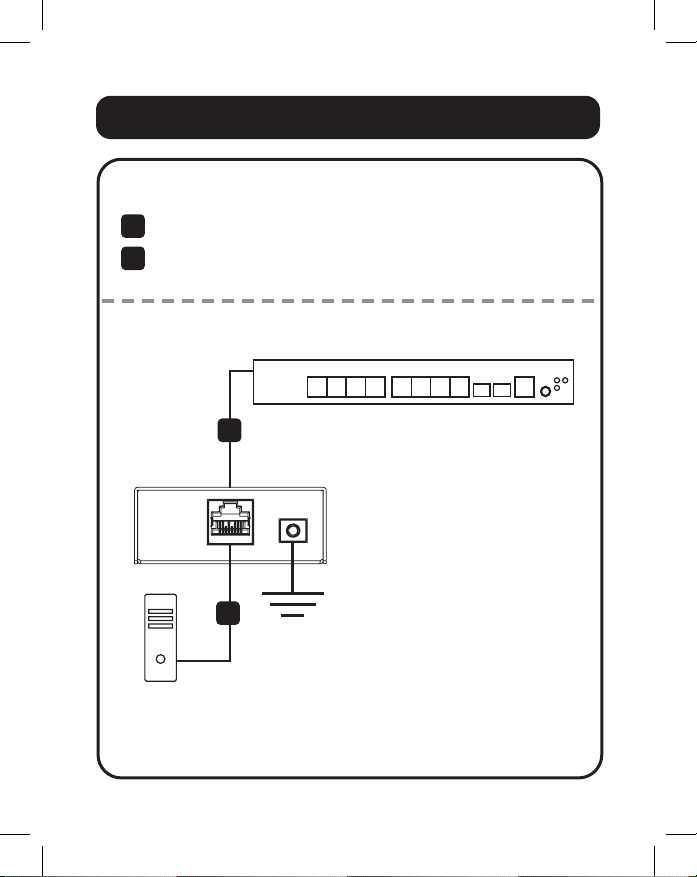

1Up to 15 ft. (5 m) Cat6a cable
2Up to 330 ft. (100 m) Cat6a cable
2
1

5
Installation
Multiple Device Protection:
Note: The maximum distance between any two In-Line 10G Network
Surge Protectors is 240 ft. (73 m).
1. Disconnect the installed patch cables from both of the devices
you wish to protect.
2. Connect a B110-SP-10G to each end of the previously
uninstalled patch cable, ensuring both ends of the patch cable
are connected to the “Cable End.”
3. With user-supplied Cat5/5e/6/6a/8 patch cables, connect the
“Equipment End” of each Surge Protector to the network devices
you wish to protect.
Note: For best protection performance, the Cat5/5e/6/6a/8 patch
cable between the “Equipment End” of the B110-SP-10G and
the network equipment to be protected should not exceed 240 ft.
(73 m). Tripp Lite’s N261-Series Cat6a Snagless Patch Cables are
recommended.
4. Connect the ground wire to each In-Line 10G Network Surge
Protector and then to earth ground.

6
Installation
�
�
�
Etherent Switch Hub (10 Gbps)
10GB
Network Card PC
B110-SP-10G
1Up to 15 ft. (5 m) Cat6a cable
2Up to 240 ft. (73 m) Cat6a cable
2
1
1

7
Specifications
Input / Output Connectors RJ45 (Female)
ESD Protection 15kV (Air), 8kV (Contact)
Lightning Protection 2kA (8/20µs) / 6kV (8/20µs)
Lightning Protection Reaction Speed <1 ns
Operating Temperature Range 32 to 104°F / 0 to 40°C
Storage Temperature Range 5 to 122°F / -15 to 50°C
Relative Humidity 0 to 85%, non-condensing
Bandwidth (Data Rate) Up to 10 Gbps
Return Loss (100Ω) 16 dB
Dimensions 2.63 x 3.43 x 1.06 inches /
67 x 87 x 27 mm
Weight 0.28 lb. / 127 g

8
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
21-09-024 933FAB_RevA
Warranty and Product Registration
2-Year Limited Warranty
Tripp Lite warrants its products to be free from defects in materials and workmanship for a period
of two (2) years from the date of initial purchase. Tripp Lite’s obligation under this warranty is
limited to repairing or replacing (at its sole option) any such defective products. To obtain service
under this warranty, you must obtain a Returned Material Authorization (RMA) number from
Tripp Lite or an authorized Tripp Lite service center. Products must be returned to Tripp Lite or an
authorized Tripp Lite service center with transportation charges prepaid and must be accompanied
by a brief description of the problem encountered and proof of date and place of purchase. This
warranty does not apply to equipment, which has been damaged by accident, negligence or
misapplication or has been altered or modified in any way.
EXCEPT AS PROVIDED HEREIN, Tripp Lite MAKES NO WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid
limitation(s) or exclusion(s) may not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL Tripp Lite BE LIABLE FOR DIRECT, INDIRECT,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS
PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, Tripp Lite is not
liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment,
loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.
Product Registration
Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically
entered into a drawing for a chance to win a FREE Tripp Lite product!*
* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.
Use of this equipment in life support applications where failure of this equipment can reasonably
be expected to cause the failure of the life support equipment or to significantly affect its safety or
effectiveness is not recommended.
Tripp Lite has a policy of continuous improvement. Specifications are subject to change without
notice. Photos and illustrations may differ slightly from actual products.

9
