Owner’s Manual
Power over Ethernet
Tester
Model: T015-POE
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2019 Tripp Lite. All rights reserved.
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR
surge protector in our monthly drawing!
tripplite.com/warranty
Español 20 • Français 39 • Русский 58
19-10-184-933B7C.indb 1 12/10/2019 2:01:01 PM

2
General Safety Instructions
• The emitter unit is powered by three AAA 1.5V dry-cell
batteries. The remote unit does not need supplied power.
• Use only batteries that meet the above specifications to avoid
damaging the tester.
• Do not place the tester in a location that is dusty, humid or
above 104°F (40°C).
• Do not disassemble the tester. There are no user-serviceable parts.
• When the tester will not be used for an extended period,
remove the batteries to prevent battery leakage and damage
to the unit.
• Do not use the tester to detect live power lines (such as 220V
power supply lines); damage to the unit or personal injury
may occur.
• Do not perform operations on communications lines during
thunderstorms in order to prevent personal injury from
lightning strikes.
19-10-184-933B7C.indb 2 12/10/2019 2:01:01 PM

3
Typical Applications
Package Contents
• Test the information of standard/non-standard PoE devices,
such as voltage, polarity, midspan or endspan
• Identify the power-supplying equipment (PSE) type, 802.3af or
802.3at standard
• Test the real-time power consumed by Power Delivery (PD)
devices in PoE power supply systems
• Test the open, short and cross status in the network cable
• Test the power consumed by DC applications
• Test the loopback function of a switch
• Emitter Unit
• Remote Unit
• Cable Lead
• AAA Batteries (3x)
• Carrying Case
• Owner’s Manual
19-10-184-933B7C.indb 3 12/10/2019 2:01:01 PM

4
Overview
The T015-POE Power over Ethernet Tester consists of two parts:
an emitter and a remote. It has functions such as standard
and non-standard PoE equipment detection, PoE power online
test, network cable continuity test, DC power test, switch loop-
back test and other functions. It is a practical tool for technical
personnel to use during installation and maintenance of security
monitoring equipment, communications wiring, integrated wiring
and other weak-current systems.
AB
C
D
E
I
J
F
K
L
M
G
H
19-10-184-933B7C.indb 4 12/10/2019 2:01:01 PM

5
Overview
ALight
BPoE Test Ports
CLoopback Test Port
DWire Mapping Test Port
ELight On/Off Key
FPower On/Off Key
GDC Power Input Port
HDC Power Output Port
IScroll Left Key
JReturn Key
KScroll Right Key
LOK Key
MCable Continuity Test Port
19-10-184-933B7C.indb 5 12/10/2019 2:01:01 PM

6
Specifications
Emitter Indicator LCD with Backlight, 128 x 64 mm
Continuity Function
Cable Types STP UTP
Max. Testing Range 1968 ft. (600 m)
Wire Mapping
Emitter + Remote
Emitter +
Switch/Router
PoE Function
Test Range DC 5V-60V POE
Switch
Standard Identify
802.3af/at
(Standard/Non-
Standard)
Test Range Power 0W-18W
Power Function Voltage Test Range DC 0V-60V Current Test Range 0A-3A
Power Test Range 0A-180W
Input Voltage Protection DC48V 5mA
Max. Working Current ≤80mA
Loopback Compatible with 10M, 100M, 1000M
Switch
Power Supply AAA Batteries, 3x
Remote Specifications
Port RJ45
Function Wire Mapping for Network Cables
Input Voltage Protection DC48V 5mA
19-10-184-933B7C.indb 6 12/10/2019 2:01:01 PM

7
Product Usage
Main Menu
• PoE – PoE switch test and PoE power test
• CONT – Test open, short and cross, etc.
• POWER – Test voltage and current between the power adapter
and the powered device, as well as calculate the power
consumed by the powered device
• LOOP – Test whether the loopback of the network cable that is
connected to the switch is working properly
• SET – Set up language, backlight time, auto power-off time,
contrast and versions
19-10-184-933B7C.indb 7 12/10/2019 2:01:02 PM

8
PoE Test Function
PoE Switch Test
Connect a LAN cable between the PoE switch and the PoE port of
the emitter. Once the connection is made, a fluctuating voltage
value will display on the screen. Press “OK” to starting testing.
The result will display at the screen.
Standard PoE Equipment

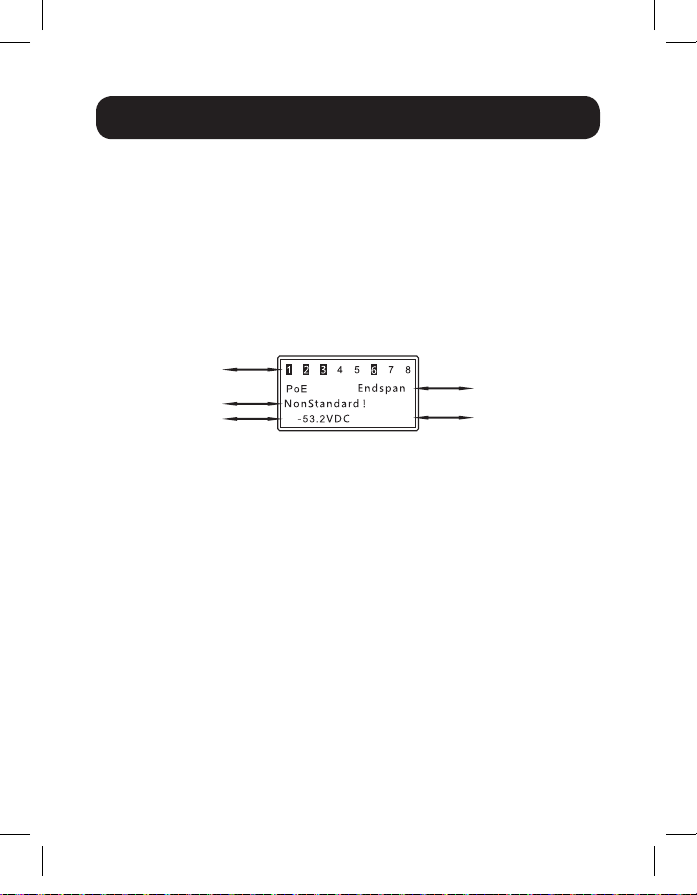

If the tested PoE switch is standard, the testing result will display
as the following image.
Non-Standard PoE Equipment
If the tested PoE switch is non-standard, the testing result will
display the following image.
Pins Providing Power
Pins Providing Power
PSE Type
PSE Type
Modes
Modes
Polarity
Polarity
Voltage
Voltage
19-10-184-933B7C.indb 8 12/10/2019 2:01:02 PM

9
PoE Test Function
Error Connection

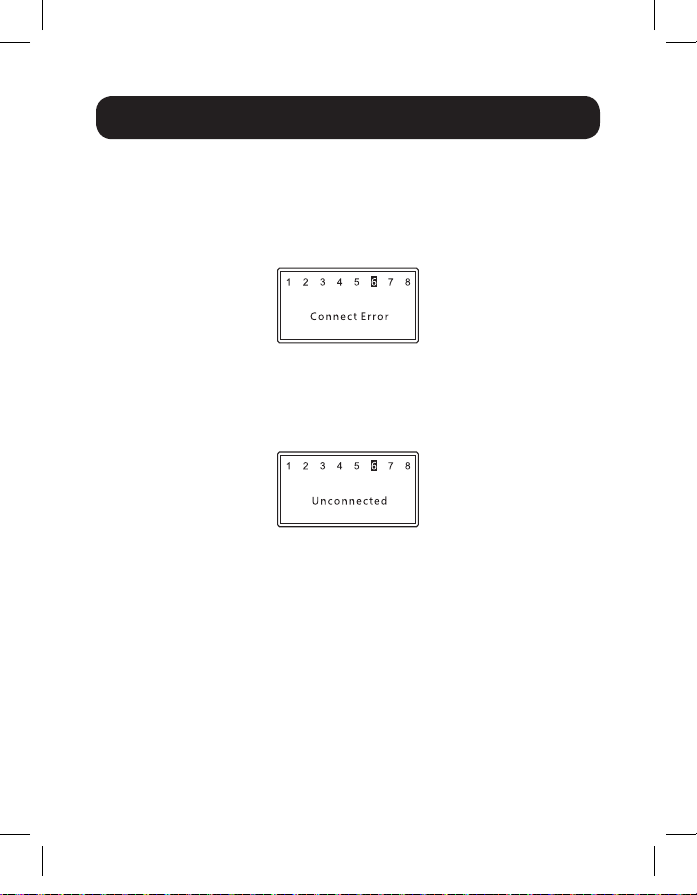

If the test result displays “Connect Error”, the connection is not
normal or other PoE devices are connected to the circuit. After
reconnecting correctly, perform the test again.
No Connection
If the test result displays Unconnected, the PoE equipment is not
detected.
19-10-184-933B7C.indb 9 12/10/2019 2:01:02 PM

10
PoE Test Function
PoE Power Test
In the PoE power test, a PoE power supply device and a PoE
powered device (such as a PoE switch and a PoE camera) need
to be connected to emitter’s PoE port.
After the correct connection is made, a fluctuating voltage value
will display at the screen. A few seconds later, it will automatically
enter the power testing interface. The display information appears
like the following image.
When the screen displays PoE Power, press the “OK” key to
identify the type of PSE. If the “Non-Standard” message appears,
the PoE power supply device does not comply with the PoE
standard. If no new message appears, it indicates the PoE power
supply device complies with the PoE standard. (PoE power is the
power currently consumed by the PoE powered device). Use the
PoE switch test function to test the switch separately.
Pins Providing Power
PSE Type Modes
Polarity Voltage
19-10-184-933B7C.indb 10 12/10/2019 2:01:03 PM

11
PoE Test Function
Special Circumstances
If a PoE device is connected to the emitter and enters the power
display interface directly as in the following first image, the PoE
device is a non-standard type. Under this condition, press the
“OK” key to see the screen prompt message as “Non-Standard”
as in the second image.
Pins Providing Power
Modes
Pins Providing Power
Polarity
PSE Type
Power
Modes
19-10-184-933B7C.indb 11 12/10/2019 2:01:03 PM

12
Wire Mapping Test
This test is to check cable short, open and cross status. The
tested cable can be UTP 8-core network cable or STP 9-core
network cable. The following images show good connection status.
8 Pins 9 Pins
If there is a short circuit, or short and cross circuit, open status
exists together, the device displays only short circuit, with no
other status displayed.
1 / 2 and 4 / 5 pair is short-circuited, respectively
Other Status Displays:
Pins 5 & 8 are broken Pins 5 & 6 are crossed; Good condition
Pins 1 & 8 are crossed
19-10-184-933B7C.indb 12 12/10/2019 2:01:03 PM

13
Wire Mapping Test
Power Test Function

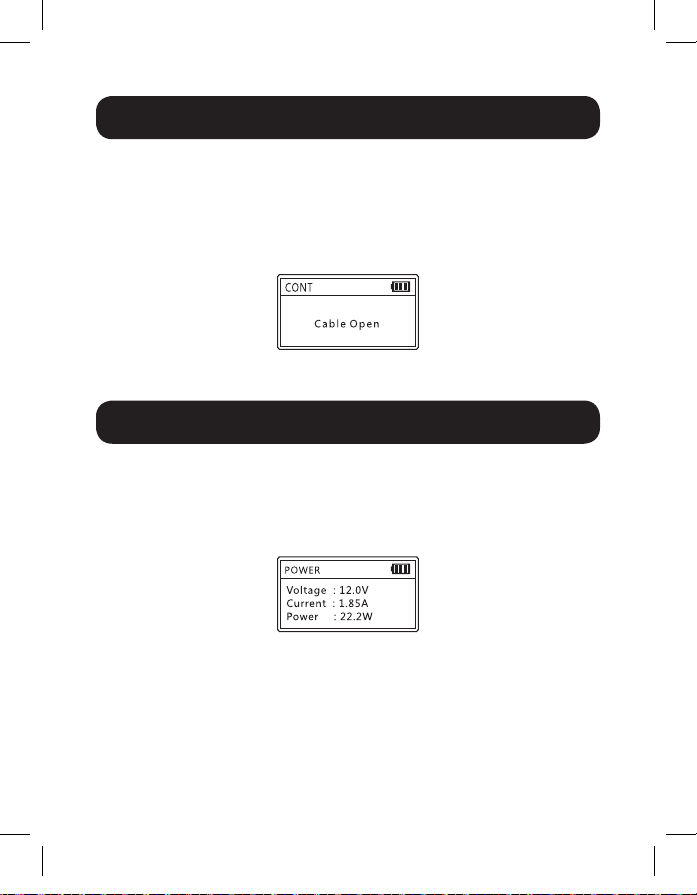

If the test result is “Cable Open”, check for these conditions:
1. The cable is open
2. The cable is not connected to the emitter
3. The cable to the remote unit has been disconnected
This test is to check voltage, current and power between the
power adapter and the powered device. Connect the power
adapter to device and choose “Power” at the main menu. The
results will display immediately.
19-10-184-933B7C.indb 13 12/10/2019 2:01:03 PM

14
Loop-Back Test
Lighting Function

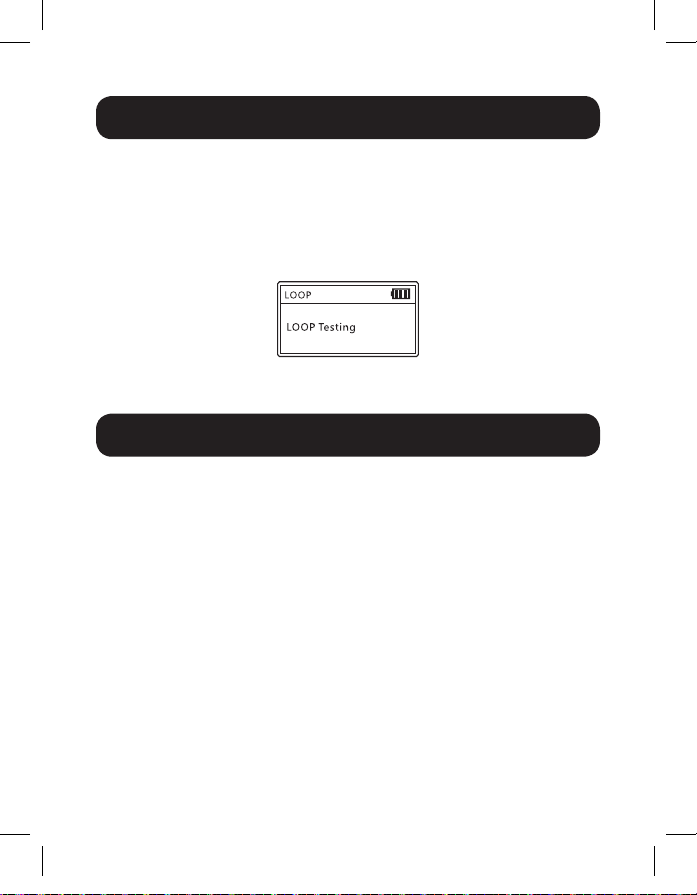

This test checks whether the loopback of the network cable that
is connected to the switch is functioning properly.
Connect the switch port to the loop-back port of the emitter with
a network cable. If the indicator is on, the loop is proper. If the
indicator is off, problems exist within the loop.
Press the Light key to turn on or turn off the light.
19-10-184-933B7C.indb 14 12/10/2019 2:01:04 PM

15
Settings
Language Settings
English is the only language setting available.
Backlight Settings
Adjust the backlight time among 15 seconds, 30 seconds,
60 seconds, long light and off.
Auto-Off Time
Adjust the backlight time among 15 minutes, 30 minutes,
1 hour, OFF.
19-10-184-933B7C.indb 15 12/10/2019 2:01:04 PM

16
Settings
Contrast Settings
Press the left and right keys to adjust the contrast until the
desired contrast is displayed.

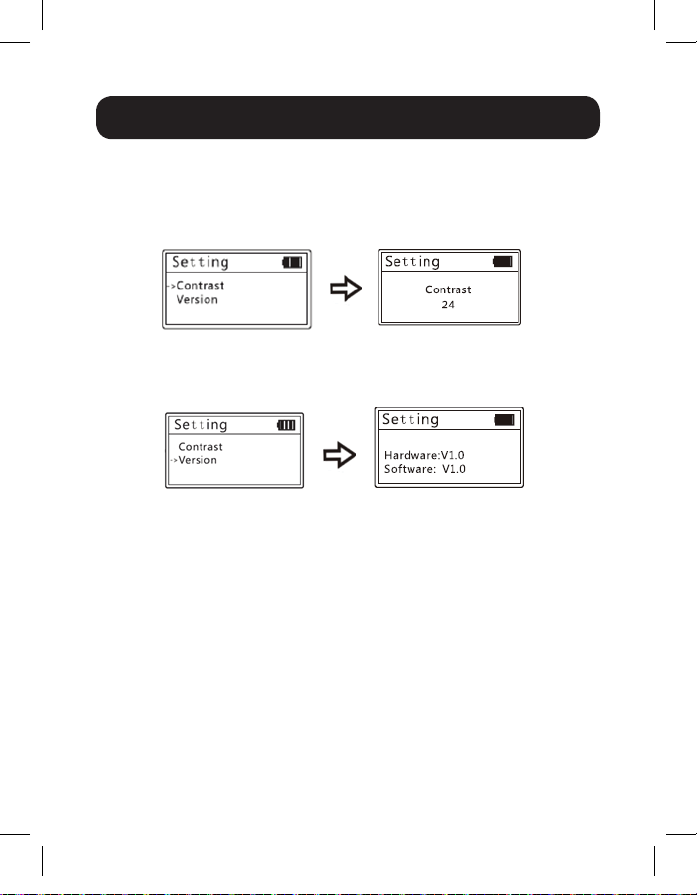

Version Information
Displays the current version information of software and hardware.
19-10-184-933B7C.indb 16 12/10/2019 2:01:04 PM

17
Warranty
2-YEAR LIMITED WARRANTY
TRIPP LITE warrants its products to be free from defects in materials
and workmanship for a period of two (2) years from the date of initial
purchase. TRIPP LITE’s obligation under this warranty is limited to
repairing or replacing (at its sole option) any such defective products. To
obtain service under this warranty, you must obtain a Returned Material
Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE
service center. Products must be returned to TRIPP LITE or an authorized
TRIPP LITE service center with transportation charges prepaid and must
be accompanied by a brief description of the problem encountered
and proof of date and place of purchase. This warranty does not apply
to equipment, which has been damaged by accident, negligence or
misapplication or has been altered or modified in any way.
EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE.
Some states do not permit limitation or exclusion of implied warranties;
therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the
purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE
FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically,
TRIPP LITE is not liable for any costs, such as lost profits or revenue,
loss of equipment, loss of use of equipment, loss of software, loss of
data, costs of substitutes, claims by third parties, or otherwise.
19-10-184-933B7C.indb 17 12/10/2019 2:01:04 PM

18
Warranty
Product Registration
Visit tripplite.com/warranty today to register your new Tripp Lite product.
You’ll be automatically entered into a drawing for a chance to win a
FREE Tripp Lite product!*
* No purchase necessary. Void where prohibited. Some restrictions apply. See
website for details.
FCC Notice, Class B
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications to this equipment not expressly approved by
Tripp Lite could void the user’s authority to operate this equipment.
19-10-184-933B7C.indb 18 12/10/2019 2:01:04 PM

19
Warranty
WEEE Compliance Information for Tripp Lite Customers and
Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment (WEEE)
Directive and implementing regulations, when customers buy new
electrical and electronic equipment from Tripp Lite they are entitled
to:
• Send old equipment for recycling on a one-on-one, like-for-like
basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately
becomes waste.
Use of this equipment in life support applications where failure of this
equipment can reasonably be expected to cause the failure of life support
equipment or to significantly affect its safety or effectiveness is not
recommended.
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
19-10-184 93-3B7C_RevA
19-10-184-933B7C.indb 19 12/10/2019 2:01:04 PM

20
Manual del Propietario
Probador de
Energía sobre Ethernet
Modelo: T015-POE
1111 W. 35th Street, Chicago, IL 60609, EE. UU. • tripplite.com/support
Copyright © 2019 Tripp Lite. Todos los derechos reservados.
English 1 • Français 39 • Русский 58
19-10-184-933B7C.indb 20 12/10/2019 2:01:05 PM
