Tripp Lite SmartPro SMX2200XLRT2U User manual

1
SmartPro®Intelligent,
Line-Interactive
UPS System
Models: SMX2200XLRT2U, SMX3000XLRT2U
(Series Numbers: AG-SM7145, AG-SM7144)
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2020 Tripp Lite. All rights reserved.
SmartPro®is a registered trademark of Tripp Lite.
Owner’s Manual
Important Safety Instructions 2
Mounting (Rack) 4
Mounting (Tower) 5
Quick Installation 6
Optional Installation 7
Basic Operation 8
Storage and Service 14
Battery Replacement 15
Regulatory Compliance 15
Español 17
Français 32
Deutsch 47
Русский 62

2
SAVE THESE INSTRUCTIONS
This manual contains important instructions and warnings that should be followed during the
installation, operation, maintenance and storage of all Tripp Lite UPS Systems and Batteries.
Failure to heed these warnings may affect your warranty.
UPS Location Warnings
• Use caution when lifting the UPS. Because of the considerable weight of all rack-mount
UPS systems, at least two people should assist in lifting and installing the UPS.
• Your UPS is intended to be used in a temperature-regulated, indoor area that is
relatively free of conductive contaminants, away from excess moisture or heat, dust or
direct sunlight.
• For best performance, the ambient temperature near the UPS should be between 0°C
and 40°C (32°F and 104°F).
• Leave adequate space around all sides of the UPS for proper ventilation. Do not obstruct
its vents or fan openings.
• Do not mount unit with its front or rear panel facing down (at any angle). Mounting in
this manner will seriously inhibit the unit's internal cooling, eventually causing product
damage not covered under warranty.
UPS Connection Warnings
• The UPS contains its own energy source (battery). The output terminals may be live
even when the UPS is not connected to an AC supply.
• Connect your UPS to a properly grounded AC power outlet. Do not modify the UPS
system’s plug in a way that would eliminate the UPS system’s connection to ground.
Do not use adapters that eliminate the UPS system’s connection to ground.
• Do not plug your UPS into itself; this will damage the UPS and void your warranty.
• If you are connecting the UPS to a motor-powered AC generator, the generator must
provide filtered, frequency-regulated computer-grade output.

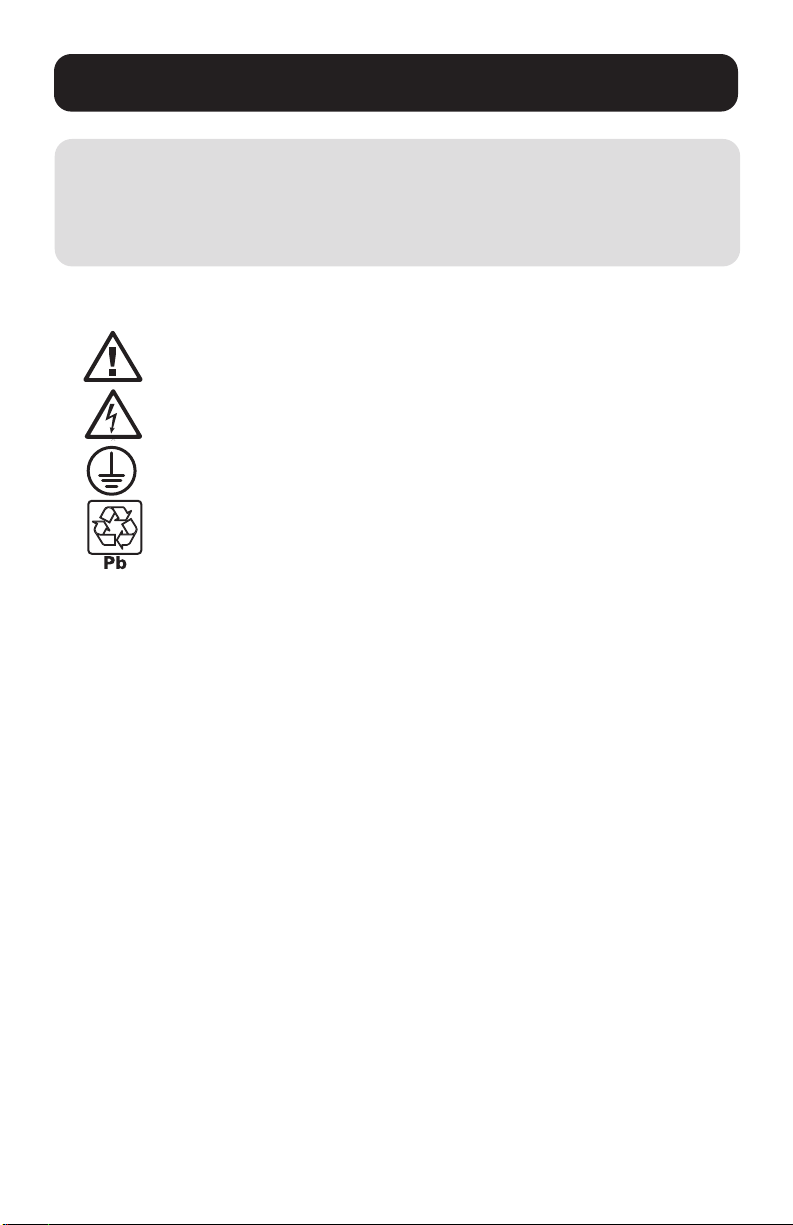

Explanation of Symbols
Important Safety Instructions
Caution—risk of danger
Electrical shock hazard
Protective earth ground
Recyclable—contains lead

32
Important Safety Instructions
• Install in accordance with National Electrical Code standards. Be sure to use the proper
overcurrent protection for the installation, in accordance with the plug/equipment rating.
• Branch circuit protection must be provided by building installation. Short-circuit backup
protection and overcurrent protection is provided by the building installation.
• The AC Mains Plug, serves as the disconnect device. The electrical outlets supplying
power to the equipment shall be installed near the equipment and easily accessible.
• Never attempt to install electrical equipment during a thunderstorm.
• Do not attempt to use this equipment if any part of it becomes damaged.
• Do not attempt to modify the UPS, enclosure, input plugs or power cables.
Equipment Connection Warnings
• Do not connect surge suppressors or extension cords to the output of your UPS. This
might overload the UPS and will void the surge suppressor and UPS warranties.
• Individual equipment connected to the UPS must not exceed the maximum nameplate
load rating.
• Use of this equipment in life support applications where failure of this equipment can
reasonably be expected to cause the failure of the life support equipment or to
significantly affect its safety or effectiveness is not recommended. Do not use this
equipment within oxygen-enriched atmospheres, or within 0.3 m (1 ft.) of a point at
which an oxygen-enriched atmosphere is intentionally vented.
External Battery Warnings
• Connect external battery ground wire before connecting the external battery
to the UPS.
• Installation is to be performed by qualified professional electrical service
personnel only.
• Do not connect or disconnect battery modules while the UPS is operating.
• Connect only compatible battery modules.
Battery Replacement and Recycling
Tripp Lite products use sealed lead-acid batteries, which are highly recyclable.
Refer to your local codes for disposal requirements, Call Tripp Lite at
1.773.869.1234 or visit tripplite.com/support/recycling-program for more
information on recycling the batteries or any other Tripp Lite product.
Tripp Lite offers a complete line of UPS System Replacement Battery Cartridges
(R.B.C.).Visit Tripp Lite
Online at tripplite.com/products/battery-finder/ to locate the specific replacement
battery for your UPS
Maintenance Warnings
• Your UPS does not contain user-serviceable parts. Do not disassemble.

4
Mounting (Rack)
2
3
4
1
Mount your equipment in either a 4-post or 2-post rack or rack enclosure. The user
must determine the fitness of hardware and procedures before mounting. If hardware
and procedures are not suitable for your application, contact the manufacturer of your
rack or rack enclosure. The procedures described in this manual are for common rack
and rack enclosure types and may not be appropriate for all applications.
4-Post Mounting
All UPS models include hardware required to mount in a 4-post rack. Select models
include an adjustable rack-mount shelf kit to provide additional support. If your UPS
model does not include an adjustable rack-mount shelf kit, skip steps 1 and 2.
Connect the two segments of each shelf A
using the included screws and nuts B.
Leave the screws slightly loose so that the
shelves can be adjusted in the next step.
Adjust each shelf to fit your rack, then mount
them in the lowest available space of your
rack with the screws, nuts and washers
provided C. Note that the support ledges
should face inward. Tighten the screws that
connect the shelf segments B.
Attach mounting ears Dto the front mounting
holes of your equipment Eusing the screws
provided F. The ears should face forward.
Using an assistant if necessary, lift your
equipment and slide it onto the mounting
shelves. Attach your equipment to the rack
by using the appropriate hardware Gthrough
its mounting ears and into the rack rails.
1
2
3
4
B
A
B
C
E
D F
G

54
1
2
Stand your UPS on its side with the LED/
Control panel at the top. Attach one rack
mounting ear Ato each side of the UPS
using included screws B. Attach the rack
mounting ears to the floor with
user-supplied hardware.
Rotate the LED/Control panel to view it
easier while the UPS is tower mounted.
Insert a small screwdriver, or other tool,
in the slots on either side of the panel.
Pop the panel out; rotate it; and pop the
panel back in place.
Note: For additional stability, order the 2-9USTAND
expandable tower stand accessory.
Mounting (Tower)
2-Post (Telecom) Mounting
Two-post mounting will require a Tripp Lite 2-Post Rack-Mount Installation Kit (Model
2POSTRMKITWM, sold separately). For detailed installation procedures, see the
2POSTRMKITWM Owner's Manual.
Mount all UPS models in an upright, tower position using included hardware. The user
must determine the fitness of hardware and procedures before mounting.
A
B
2
1

6
Insert a user-supplied power cord
(with country-specific plug) into the
UPS System's IEC-320-C20 AC input
receptacle. Plug the cord into an AC
wall outlet.*
NOTE! after you plug the UPS into a live AC
outlet, the UPS (in “Standby” mode) will
automatically charge its batteries,** but
will not supply power to its outlets until it is
turned ON.
* See the UPS system nameplate for input requirements.
** The BATTERY CHARGE LED will be the only LED
illuminated.
Find one of the C13-to-C14 power
cords that came with the UPS.
Insert the cord’s female plug into
your computer’s AC input. Insert
the cord’s male plug into any UPS
female output receptacle.
Plug your equipment into the UPS.*
Plug your equipment into the UPS. Repeat
the previous step, using the additional
power cord(s) included with the UPS
system.
Note: Additional interconnection cords
(C13-to- C14) are available from Tripp Lite.
Call +1.773.869.1234 (Part # P004-006).
* Your UPS is designed to support computer equipment
only. You will overload the UPS if the total VA ratings
for all the equipment you connect exceeds UPS output
capacity. To find your equipment’s VA ratings, look on
their nameplates. If the equipment is listed in amps,
multiply the number of amps by 230 to determine VA.
(Example: 1 amp × 230 = 230 VA).
If you are unsure if you have overloaded your UPS
system's outlets, see “OUTPUT LOAD LEVEL” LED
description.
Turn the UPS ON.
Press and hold the “ON/OFF/STANDBY”
button for one second. The alarm will beep
once briefly after one second has passed.
Release the button.
Quick Installation
2
4
3
1
1
2
3
4

76

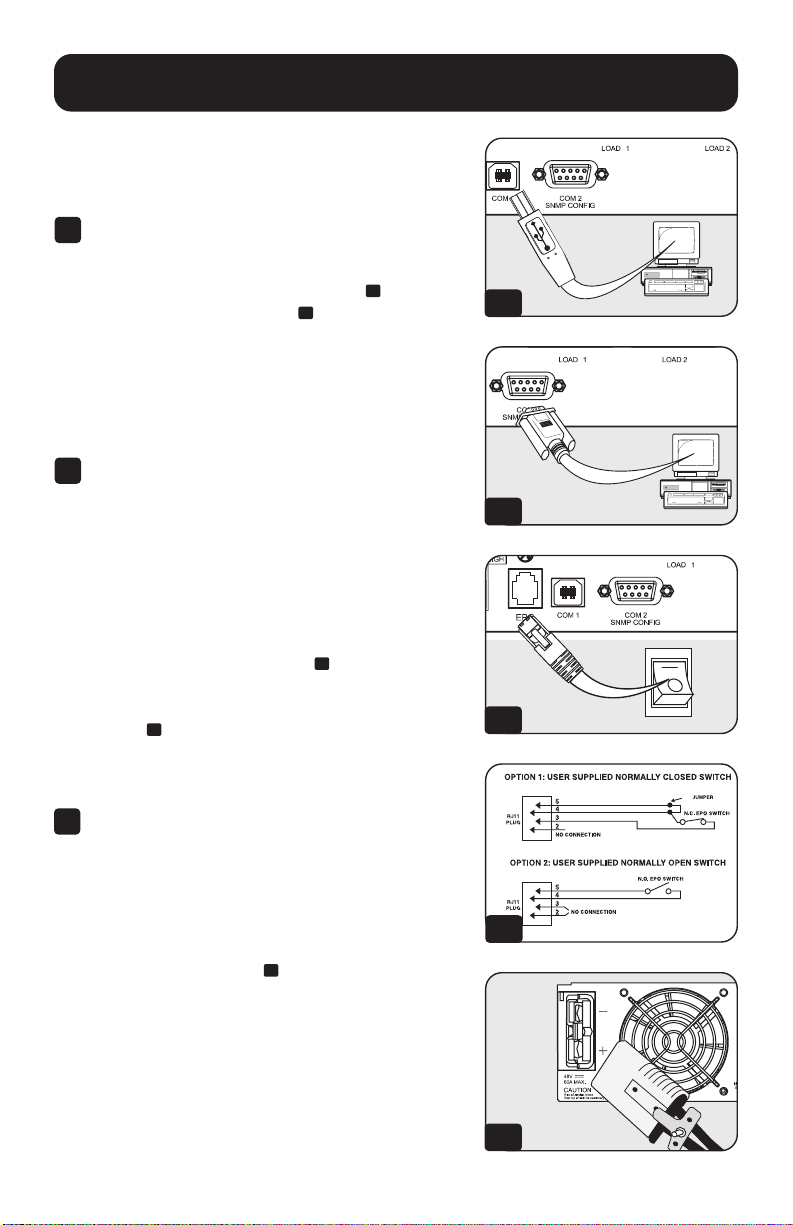

USB and RS-232 Serial
Communications
Use the included USB cable (see 1a ) and/
or DB9 serial cable (see 1b ) to connect
the communication port on your computer
to the communication port of your UPS.
Install on your computer the Tripp Lite
PowerAlert Software appropriate to your
computer’s operating system.
EPO Port Connection
This optional feature is only for those
applications which require connection to
a facility’s Emergency Power Off (EPO)
circuit. When the UPS is connected to this
circuit, it enables emergency shutdown of
the UPS system's inverter.
Using the cable provided, connect the
EPO port of your UPS (see 2a ) to a user-
supplied normally closed or normally open
switch according to the circuit diagram
(see 2b ). The EPO port is not a phone line
surge suppressor; do not connect a phone
line to this port.
External Battery Connection
Your UPS comes with a robust internal
battery system; external batteries are
needed only to extend runtime. Adding
external batteries will increase recharge
time as well as runtime.
The illustration (see 3a) shows the location
of your UPS system's External Battery
Connector, where you will insert the
battery pack cable. Complete installation
instructions for your battery pack appear
in the battery pack owner’s manual. Make
sure that cables are fully inserted into their
connectors. Small sparks may result during
battery connection; this is normal.
Optional Installation
1a
1
2
3
These connections are optional. Your UPS will
function properly without these connections.
1b
2a
4-5
2b
3a

“ON/OFF/STANDBY” Button
To turn the UPS ON: with the UPS plugged into a live AC wall outlet*,
press and hold the “ON/OFF/STANDBY” button for one second.**
Release the button. If utility power is absent, you can “cold-start”
the UPS (i.e.: turn it ON and supply power for a limited time from its
batteries***) by pressing and holding the “ON/OFF/STANDBY” button for
one second.**
To turn the UPS OFF: with the UPS ON and receiving utility power, press
and hold the “ON/OFF/STANDBY” button for one second.** Then unplug
the UPS from the wall outlet. The UPS will be completely OFF.
* After you plug the UPS into a live AC outlet, the UPS (in ”Standby” mode) will automatically
charge its batteries, but will not supply power to its outlets until it is turned ON. ** The alarm
will beep once briefly after the indicated interval has passed. *** If fully charged.
“MUTE/TEST” Button
To Silence (or “Mute”) UPS Alarms: briefly press and release the
MUTE/TEST button.*
To Run a Self-Test: with your UPS plugged in and turned ON, press and
hold the MUTE/TEST button. Continue holding the button until the alarm
beeps several times and the UPS performs a self test. See “Results of a
Self-Test” below. Note: you can leave connected equipment on during a
self-test. Your UPS, however, will not perform a self-test if the UPS is
not turned on (see “ON/OFF/STANDBY” Button description).
8
Basic Operation
Do not connect or disconnect battery packs
when the UPS is running on battery power.
If you connect any external batteries, set
the Battery Charge Level Switches (see 3b )
to the down position. This will increase your
UPS system's charger output so that the
additional batteries charge faster. 3b
Buttons (Front Panel)
Caution!
DO NOT set the Battery Charge Level Switches to the down position
without an external battery connected. There is a risk of damaging
the UPS system's internal battery system.

98
Basic Operation
CAUTION!
Do not unplug your UPS to test its batteries. This will
remove safe electrical grounding and may introduce a
damaging surge into your network connections.
Results of a Self-Test: The test will last approximately 10 seconds as
the UPS switches to battery to test its load capacity and battery charge.
• If the “OUTPUT LOAD LEVEL” LED remains lit red and the alarm
continues to sound after the test, the UPS system's outlets are
overloaded. To clear the overload, unplug some of your equipment
and run the self-test repeatedly until the “OUTPUT LOAD LEVEL” LED
is no longer lit red and the alarm is no longer sounding.
CAUTION!
Any overload that is not corrected by the user immediately
following a self-test may cause the UPS to shut down and
cease supplying output power in the event of a blackout
or brownout.
• If the “BATTERY WARNING” LED remains lit and the alarm continues
to sound after the test, the UPS batteries need to be recharged or
replaced. Allow the UPS to recharge continuously for 12 hours, and
repeat the self-test. If the LED remains lit, contact Tripp Lite for
service. If your UPS requires battery replacement, visit tripplite.com
to locate the specific Tripp Lite replacement battery for your UPS.

10
Basic Operation
All Indicator Light descriptions apply when the UPS is plugged into a
wall outlet and turned ON.
“POWER” LED: this green LED lights continuously when the UPS is
ON and supplying connected equipment with AC power from a utility
source. The LED flashes and an alarm sounds (4 short beeps followed
by a pause) to indicate the UPS is operating from its internal batteries
during a blackout or severe brownout. If the blackout or severe
brownout is prolonged, you should save files and shut down your
equipment since internal battery power will eventually be depleted.
See “BATTERY CHARGE” LED description below.
“VOLTAGE CORRECTION” LED: this green LED lights continuously
whenever the UPS is automatically correcting high or low AC voltage
on the utility line without the assistance of battery power. The UPS
will also emit a slight clicking noise. These are normal, automatic
operations of the UPS, no action is required on your part.
“OUTPUT LOAD LEVEL” LED: this multicolored LED indicates the
approximate electrical load of equipment connected to the UPS
system's AC outlets. It will turn from green (light load) to yellow
(medium load) to red (overload). If the LED is red (either illuminated
continuously or flashing), clear the overload immediately by
unplugging some of your equipment from the outlets until the LED
changes from red to yellow (or green). CAUTION! Any overload that
is not corrected by the user immediately may cause the UPS to shut
down and cease supplying output power in the event of
a blackout or brownout.
“BATTERY CHARGE” LED: when the UPS is operating from utility
power, this LED indicates the approximate charge state of the UPS
system's internal batteries: red indicates the batteries are beginning
to charge; yellow indicates the batteries are roughly midway through
charging; and green indicates the batteries are fully charged. When
the UPS is operating from battery power during a blackout or severe
brownout, this LED indicates the approximate amount of energy
(ultimately affecting runtime) which the UPS system's batteries will
provide: red indicates a low level of energy; yellow indicates a medium
level of energy; and green indicates a high level of energy. Since the
runtime performance of all UPS batteries will gradually deplete over
time, it is recommended that you periodically perform a self-test (see
MUTE/TEST Button description) to determine the energy level of your
UPS batteries BEFORE a blackout or severe brownout occurs. During
a prolonged blackout or severe brownout, you should save files and
shut down your equipment since battery power will eventually be
Indicator Lights (Front Panel)

1110
Basic Operation
depleted. When the LED turns red and an alarm sounds continuously,
it indicates the UPS system's batteries are nearly out of power and
UPS shut down is imminent.
“BATTERY WARNING” LED: this LED lights red and an alarm sounds
intermittently after you initiate a self test (See “MUTE/TEST” Button
description) to indicate the UPS batteries need to be recharged or
replaced. Allow the UPS to recharge continuously for 12 hours, and
repeat the self-test. If the LED continues to light, contact Tripp Lite
for service. If your UPS requires battery replacement, visit tripplite.com
to locate the specific Tripp Lite replacement battery for your UPS.
AC Receptacles: Your UPS features C13 outlets. These output
receptacles provide your connected equipment with AC line power
during normal operation and battery power during blackouts and
brownouts. The UPS protects equipment connected to these
receptacles against damaging surges and line noise. If you have
a serial or USB connection to your UPS, you can remotely reboot
connected equipment by turning individually controllable receptacles
OFF and ON using Tripp Lite's PowerAlert Software. Three receptacles,
labeled LOAD 1, LOAD 2 and LOAD 3, are individually controllable
and may be remotely switched OFF and ON using PowerAlert Software
without interrupting power to equipment connected to other outlets.
Outlets labeled UNSWITCHED may not be remotely turned off.
Unswitched outlets can only be turned off by turning off all output
receptacles. See software instructions for details.
Communications Ports (USB or RS-232): These ports connect
your UPS to any workstation or server. Use with Tripp Lite’s
PowerAlert Software and included cables to enable your computer
to automatically save open files and shut down equipment during a
blackout. Also use PowerAlert Software to monitor a wide variety of
AC line power and UPS operating conditions. Consult your PowerAlert
Software manual or contact Tripp Lite Customer Support for more
information. See “USB and RS-232 Serial Communications” in the
“Optional Installation” section for installation instructions.
EPO (Emergency Power Off) Port: Your UPS features a EPO port that
may be used to connect the UPS to a contact closure switch to enable
emergency inverter shutdown. See Optional Installation.
Other UPS Features (Rear Panel)
C13

12
Basic Operation

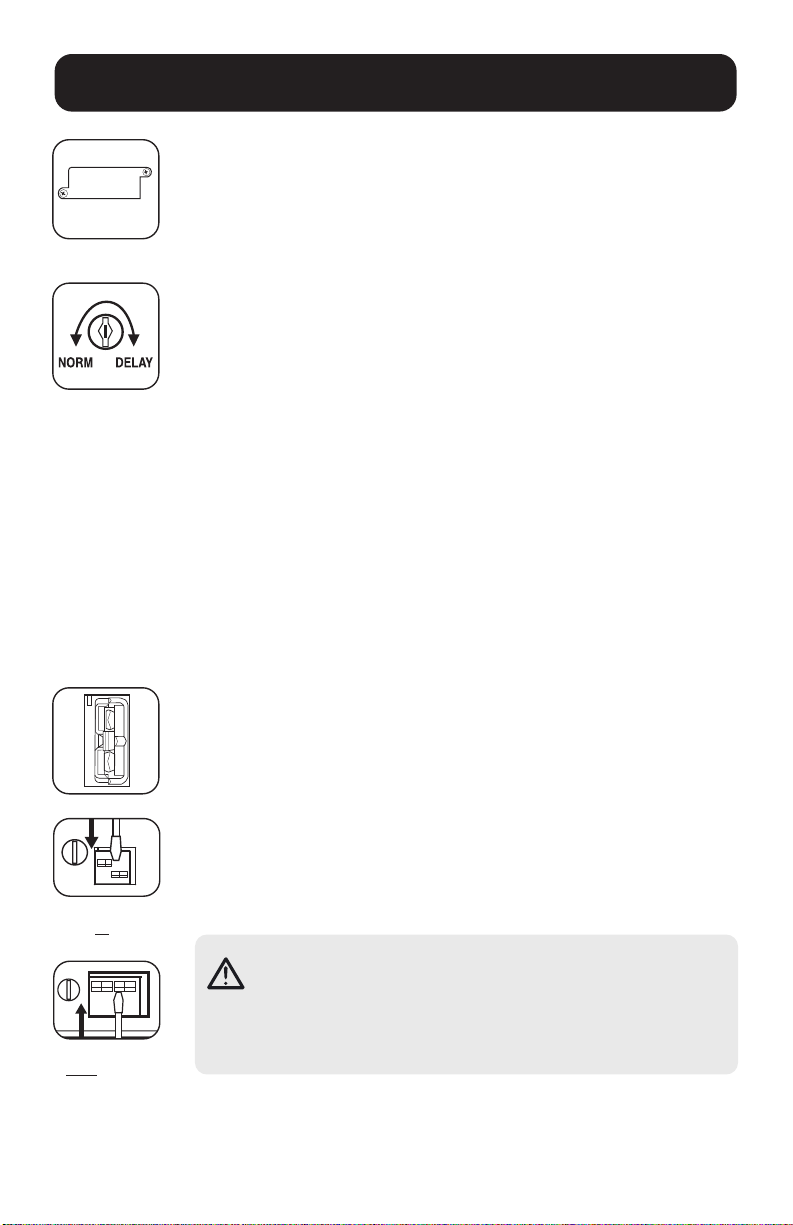

Accessory Slot: Remove the small cover panel from this slot to
install optional accessories to remotely monitor and control your
UPS. Refer to your accessory’s manual for installation instructions.
Contact Tripp Lite Customer Support at +1.773.869.1234 for more
information, including a list of available SNMP, network management
and connectivity products.
Power Sensitivity Adjustment: This dial is normally set fully counter-
clockwise, which enables the UPS to provide maximum protection
against waveform distortions in its AC input. When such distortion
occurs, the UPS will normally switch to providing sine wave power
from its battery reserves for as long as the distortion is present. In
areas with poor utility power or where the UPS system's input power
comes from a backup generator, chronic waveform distortion could
cause the UPS to switch to battery too frequently, draining its battery
reserves. You may be able to reduce how often your UPS switches to
battery due to moderate waveform distortion by experimenting with
different settings for this dial. As the dial is turned clockwise, the UPS
becomes more tolerant of variations in its input power’s AC waveform.
NOTE: The further the dial is adjusted clockwise, the greater the
degree of waveform distortion the UPS will allow to pass to connected
equipment. When experimenting with different settings for this dial,
operate connected equipment in a safe test mode so that the effect
on the equipment of any waveform distortions in the UPS system's
output can be evaluated without disrupting critical operations.
External Battery Connector (Select Models Only): Use to connect
Tripp Lite external battery packs for additional runtime. Refer to
instructions available with the battery pack for complete connection
information and safety warnings.
Battery Charge Level Switches (Select Models Only): Controls
the UPS system’s battery charge rate. If you connect any external
batteries, set the Battery Charge Level Switch to the down position.
This will increase your UPS system's charger output so the additional
batteries charge faster.
CAUTION!
DO NOT set the Battery Charge Level Switches to the
down position without an external battery connected.
There is a risk of damaging the UPS system's internal
battery system.
Charge Rate Setting
(when External
Batteries are connected)
Charge Rate Setting
(when External Batteries
are not connected)

1312
Basic Operation

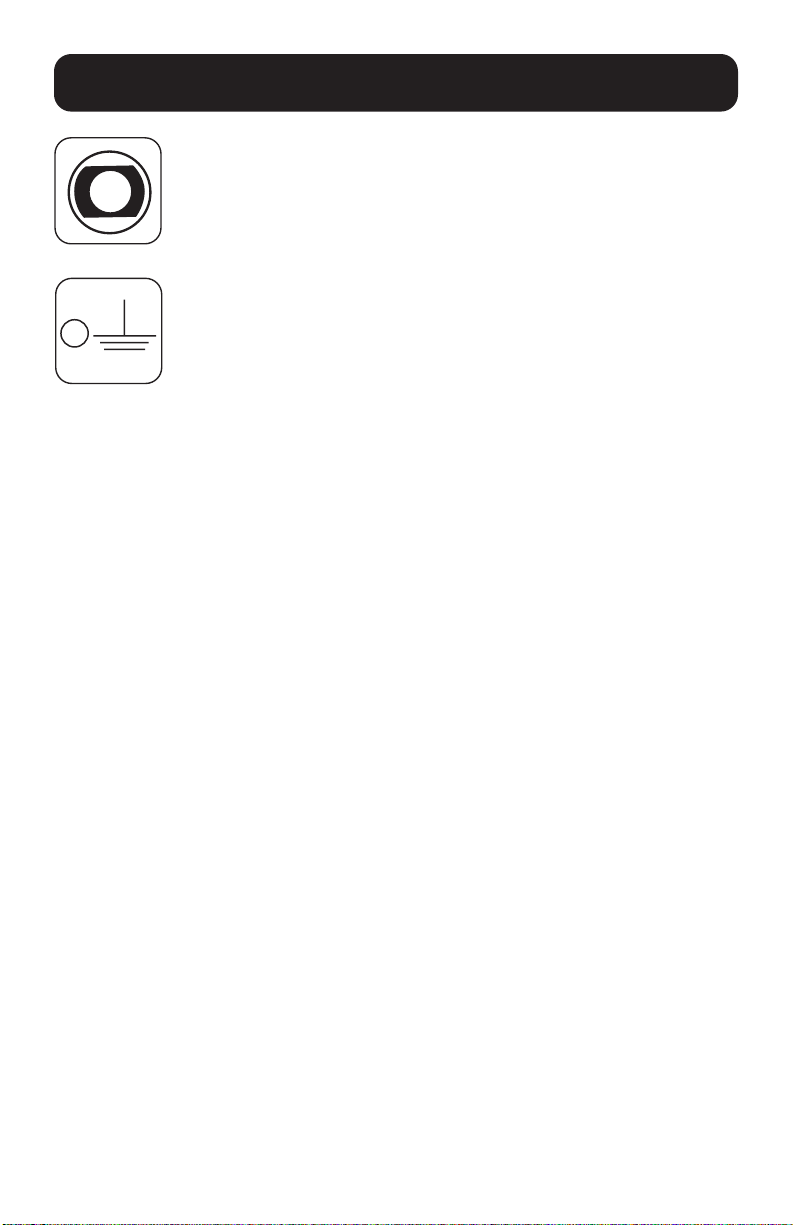

Input Breaker(s) (all models): Protect your electrical circuit from
overcurrent draw from the UPS load. If these breakers trip, remove
some of the load, then reset them by pressing the breaker(s) in.
Ground Screw: Use this to connect any equipment that requires a
chassis ground.

14
Storage
Before storing your UPS, turn it completely OFF: with the UPS ON and receiving utility
power, press and hold the “ON/OFF/STANDBY” button for one second (an alarm will
beep once briefly after the interval has passed); then, unplug the UPS from the wall
outlet. If you store your UPS for an extended period of time, recharge the UPS batteries
once every three months: plug the UPS into a wall outlet; allow it to charge for 12
hours; and then unplug it and place it back in storage. Note: after you plug the UPS in,
it will automatically begin charging its batteries; however, it will not supply power to its
outlets (see Quick Installation section). If you leave your UPS batteries discharged for an
extended period of time, they will suffer a permanent loss of capacity.
Service
Before returning your UPS for service, follow these steps:
1. Review the installation and operation instructions in this manual to ensure that the
service problem does not originate from a misreading of the instructions. Also, check
that the UPS System’s circuit breaker(s) are not tripped. This is the most common
cause of service inquiries which can be easily remedied by following the resetting
instructions in this manual.
2. If the problem continues, do not contact or return the UPS to the dealer. Instead, call
Tripp Lite at +1.773.869.1233. A service technician will ask for the UPS system's
model number, serial number and purchase date and will attempt to correct the
problem over the phone.
3. If the problem requires service, the technician will issue you a Returned Material
Authorization (RMA) number, which is required for service. If you require packaging,
the technician can arrange to send you proper packaging. Securely pack the UPS
to avoid damage during shipping. Do not use Styrofoam beads for packaging. Any
damages (direct, indirect, special, incidental or consequential) to the UPS incurred
during shipment to Tripp Lite or an authorized Tripp Lite service center is not covered
under warranty. UPS Systems shipped to Tripp Lite or an authorized Tripp Lite service
center must have transportation charges prepaid. Mark the RMA number on the
outside of the package. If the UPS System is within the 2-year warranty period,
enclose a copy of your sales receipt. Return the UPS for service using an insured
carrier to the address given to you by the Tripp Lite service technician.
Storage and Service

1514
Regulatory Compliance Identification Numbers
For the purpose of regulatory compliance certifications and identification, your Tripp Lite product has been
assigned a unique series number. The series number can be found on the product nameplate label, along with
all required approval markings and information. When requesting compliance information for this product, always
refer to the series number. The series number should not be confused with the marking name or model number
of the product.
WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations,
when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:
• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on
the country)
• Send the new equipment back for recycling when this ultimately becomes waste
Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Photos and illustrations may differ slightly from actual products.
Made in China.
Note on Labeling
Two symbols are used on the label.
V~ : AC Voltage
V : DC Voltage
Under normal conditions, the original batteries in your UPS will last many years. See
Safety section before replacing batteries. The batteries are designed for hot-swap
replacement (i.e. leaving the UPS in ON mode), but some qualified service personnel
may wish to put the UPS in the OFF mode and disconnect equipment before proceeding.
Procedure
1Remove Front Panel
2Disconnect Batteries
3Remove/Dispose of Batteries
4Add Batteries
5Connect Batteries
Attach connectors:
black-to-black and red-to-red.
6Replace Front Panel




Battery Replacement
3 4
2 5
1 6

16
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
20-05-136 93-2827_RevC

17
MÁS DE
AÑOS
SmartPro®Sistema
UPS Inteligente,
Interactivo
Models: SMX2200XLRT2U, SMX3000XLRT2U
(Números de Serie: AG-SM7145, AG-SM7144)
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2020 Tripp Lite. Todos los derechos reservados.
SmartPro® es una marca registrada de Tripp Lite.
Manual del propietario
Instrucciones de Seguridad Importantes 18
Montaje (Bastidor) 20
Montaje (En torre) 21
Instalación Rápida 22
Instalación Opcional 23
Operación Básica 24
Almacenamiento y Servicio 30
Reemplazo de la Batería 31
Cumplimiento de las Regulaciones 31
English 1
Français 32
Deutsch 47
Русский 62

18
CONSERVE ESTAS INSTRUCCIONES
Este manual contiene instrucciones y advertencias importantes que deben seguirse durante la
instalación, operación, mantenimiento y almacenamiento de todos los sistemas UPS y baterías
de Tripp Lite. La omisión en la observancia de estas advertencias puede afectar la garantía.
Advertencias para la Ubicación del UPS
• Tenga cuidado al levantar el UPS. Debido al peso considerable de todos los sistemas UPS
para instalación en rack, al menos dos personas deben ayudar a levantar e instalar el UPS.
• Su UPS está destinado para usarse en un área interior con temperatura regulada que esté
relativamente libre de contaminantes conductores, lejos de humedad o calor excesivos,
polvo o luz solar directa.
• Para un mejor rendimiento, la temperatura ambiente cerca del UPS debe estar entre
0 °C y 40 °C [32 °F y 104 °F].
• Deje suficiente espacio alrededor de todos los lados del UPS para una ventilación adecuada.
No obstruya las ventilaciones o aberturas de ventiladores.
• No instale la unidad con su panel frontal o posterior viendo hacia abajo (en cualquier
ángulo). El instalar de esta manera inhibirá seriamente el enfriamiento interno de la unidad,
causando finalmente daño al producto no cubierto por la garantía.
Advertencias en relación con la Conexión del UPS
• El UPS contiene su propia fuente de energía (batería). Las terminales de salida pueden estar
energizadas, aún cuando el UPS no esté conectado a una alimentación de CA.
• Conecte su UPS a un tomacorrientes de CA conectado correctamente a tierra. No modifique
la clavija del sistema UPS de modo tal que pueda eliminar la conexión a tierra del sistema
UPS. No use adaptadores que eliminen la conexión a tierra del sistema UPS.
• No enchufe su UPS en sí mismo; esto dañará al UPS y anulará su garantía.
• Si está conectando el UPS a un generador de CA activado por motor, el generador debe
pro-porcionar una salida de grado computadora, filtrada y con frecuencia regulada.
Explicación de los Símbolos
Instrucciones de Seguridad Importantes
Precaución – riesgo de peligro
Peligro de descarga eléctrica
Tierra física para protección
Reciclable – contiene plomo

1918
Instrucciones de Seguridad Importantes
• Instale conforme a los estándares de los códigos eléctricos locales. Asegúrese de usa
la protección adecuada contra sobre-corriente para la instalación, de conformidad con
la especificación de la clavija y del equipo.
• La protección del circuito derivado debe ser proporcionada por la instalación del edificio.
La protección de respaldo por corto circuito y la protección contra sobrecorriente es
proporcionada por la instalación del edificio.
• La clavija de la red pública de CA sirve como dispositivo de desconexión. Los tomacorrientes
eléctricos que alimentan al equipo deben instalarse cerca del equipo y ser de fácil acceso.
• Nunca intente instalar equipos eléctricos durante una tormenta eléctrica.
• No intente usar este equipo si se daña cualquier parte.
• No intente modificar el gabinete del UPS, las clavijas de entrada o los cables de alimentación.
Advertencias en relación con la Conexión del Equipo
• No conecte supresores de sobretensiones o cables de extensión a la salida de su UPS.
Esto puede sobrecargar al UPS y anulará las garantías del supresor de sobretensiones y del UPS.
• El equipo individual conectado al UPS no debe exceder la capacidad de carga máxima de
la placa de identificación.
• No se recomienda el uso de este equipo en aplicaciones de soporte de vida en donde
razonablemente se pueda esperar que la falla de este equipo provoque la falla del equipo
de soporte de vida o afecte significativamente su seguridad o efectividad. No use este
equipo en atmósferas enriquecidas con oxígeno o a distancias inferiores a 0.3 m (1 pie)
de un punto en que se ventile deliberadamente una atmósfera enriquecida con oxígeno.
Advertencias para la Batería Externa
• Conecte el cable de conexión a tierra de la batería externa antes de conectar
la batería externa al UPS.
• La instalación deberá llevarse a cabo solo por personal profesional de servicio
eléctrico calificado.
• No conecte o desconecte los módulos de baterías mientras el UPS esté funcionando.
• Conecte solamente módulos de baterías compatibles.
Reemplazo y Reciclado de la Batería
Los productos de Tripp Lite usan baterías selladas de plomo-ácido, que son
altamente reciclables. Para las exigencias de disposición, consulte sus códigos
locales, llame a Tripp Lite al +1.773.869.1234 o visite tripplite.com/support/
recycling-program para obtener información adicional sobre el reciclaje de baterías
o cualquier otro producto de Tripp Lite.
Tripp Lite ofrece una línea completa de Cartuchos de batería de repuesto (R.B.C.)
para sistemas UPS. Visite Tripp Lite
Online en tripplite.com/products/battery-finder/ para localizar la batería de
remplazo específica para su UPS.
Advertencias para Mantenimiento
• Su UPS no contiene partes a las que el usuario pueda dar servicio. No lo desensamble.

20
Montaje (Bastidor)
Monte su equipo en un bastidor de 2 o 4 postes (vea la siguiente página para
información sobre el montaje de 2 postes) El usuario debe determinar la idoneidad
de los materiales y accesorios, así como de los procedimientos antes del montaje.
Si los materiales y procedimientos no son adecuados para su aplicación, contacte
con el fabricante de su bastidor. Los procedimientos descritos en este manual son
para bastidores comunes y de tipo caja y podrían no ser apropiados para todas las
aplicaciones.
Montaje de 4 postes
Todos los modelos de UPS incluyen los accesorios requeridos para instalar en un rack
de 4 postes. Algunos modelos incluyen un juego de entrepaño ajustable para instalación
en rack para proporcionar soporte adicional. Si su modelo de UPS no incluye un juego
de entrepaño ajustable para instalación en rack, omita los pasos 1 y 2.
2
3
4
1
Conecte los dos segmentos de cada anaquel A
usando los tornillos y las tuercas de mariposa
Bincluidos. Deje los tornillos ligeramente
flojos de modo que los anaqueles puedan
ajustarse en el siguiente paso.
Ajuste cada anaquel para que se adapte a su
bastidor, y luego instálelos en el espacio más
bajo disponible del mismo con las tuercas, las
arandelas y los tornillos suministrados C. Note
que los bordes de apoyo deben mirar hacia
adentro. Apriete los tornillos que conectan los
segmentos de los anaqueles B.
Fije las orejas de montaje Da los agujeros de
montaje de la parte delantera de su equipo
Eusando los tornillos suministrados F. Las
orejas deben mirar hacia adelante.
Con la ayuda de otra persona si fuera
necesario, levante su equipo y deslícelo en
los anaqueles de montaje. Fije su equipo al
bastidor usando los accesorios suministrados
Ga través de las orejas de montaje y dentro
de los rieles del bastidor.
1
2
3
4
B
A
B
C
E
D F
G
