QUICK INSTALL GUIDE
Congratulations on your purchase of the SEE2
XTREME. The USB 2.0 interface allows the
SEE2 XTREME to work with most Windows-
based PC systems and a Macintosh running
OSX 10.4.11 or greater.
The SEE2 Xtreme provides a high-speed DVI /
VGA port that can support additional displays
with resolutions up to 1920 x 1200.
This easy-to-use solution will provide increased
productivity, expandability and connectivity to
both home and office users.
For the entire manual, including
troubleshooting, and un-installation
instructions, please insert the included CD
FEATURES
•High-Resolution Monitors supported; up to
1920 x 1200
•Supports Widescreen Resolutions; up to 1920
x 1200
•Plug-and-Play USB connectivity
•Multiple display modes – primary, extended,
mirror, rotated
•Full USB 2.0 Compliance
•Standard DVI / VGA (DB15) connector to
support secondary CRT/LCD monitor
•Rotated resolutions (PC Only)

.com
TRITTONUSA
.com
TRITTONUSA
.com
TRITTONUSA
.com
TRITTONUSA
.com
TRITTONUSA
.com
TRITTONUSA
.com
TRITTONUSA
.com
TRITTONUSA
Minimum PC SYSTEM REQUIREMENTS
• Windows 2000, XP 32/64 bit, Vista 32/64 bit
(Excluding Aero)
• Available USB 2.0 Port
• Pentium 4/Celeron family or AMD K6/Athlon/
Duron family with 1.5GHz
• For One-on-One display attaching structure:
256MB RAM
• For Multi-display attaching structure:
512MB RAM
Minimum mAC SYSTEM REQUIREMENTS
• Mac OS X 10.4.11 or higher
• Available USB 2.0 Port
• 1.5 GHz
PACKAGE CONTENTS
• SEE2 Xtreme USB TO DVI / VGA ADAPTOR
• DVI TO VGA ADAPTER
• CD (User Manual, Driver)
• USB Cable
• Quick Start Guide
REGULATORY COMPLIANCE
FCC / CE / C-tick / VCCI
Tested to comply with FCC Standards.
FOR HOME OR OFFICE USE.

.com
TRITTONUSA
.com
TRITTONUSA
Software installation (Windows)
Note: Do not plug the SEE2 into the computer
system before the driver is completely
installed.
Step 1:
Insert the CD into the drive,
click “Install Driver” and
follow the onscreen installer
directions.
Step 2:
When the installer
is completed, click
finish and reboot the
computer.
Open Quick Start PDF
In order to open PDF files, you must have Adobe Acrobat installed.
Tritton Product Catalog PDF
Install PC Driver
Open Manual PDF
Mouse over mounse click
Install MAC Driver
Open Quick Start PDF
Tritton Product Catalog PDF
Install PC Driver
Open Manual PDF
Install MAC Driver
Open Quick Start PDF
Tritton Product Catalog PDF
Install PC Driver
Open Manual PDF
Install MAC Driver

.com
TRITTONUSA
.com
TRITTONUSA
Hardware Installation (windows)

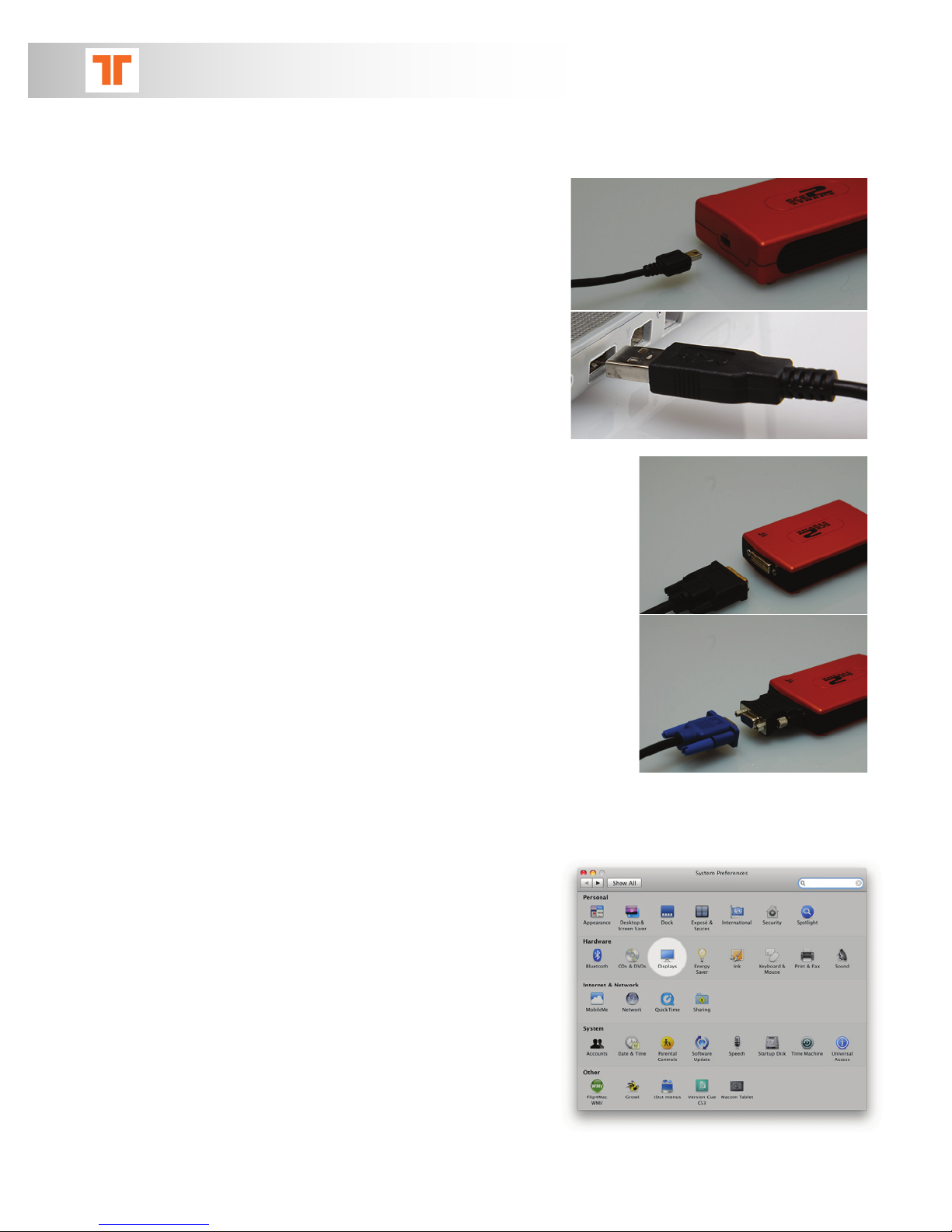

Step 3:
Plug the small end of the
USB cable into the SEE2
Xtreme and the larger end
of the USB cable into an
available USB port on
the computer.
Step 4:
Connect the DVI cable (or
VGA cable using the included
adapter) from the display to the
SEE2 Xtreme.
Step 5:
Select “Install the Software
Automatically (Recommended)”
when prompted.
Step 6:
Click Finish when prompted.
You are now ready
to use your SEE2!

.com
TRITTONUSA
.com
TRITTONUSA
Software installation (Mac)
Note: Do not plug the SEE2 into the computer
system before the driver is completely
installed.

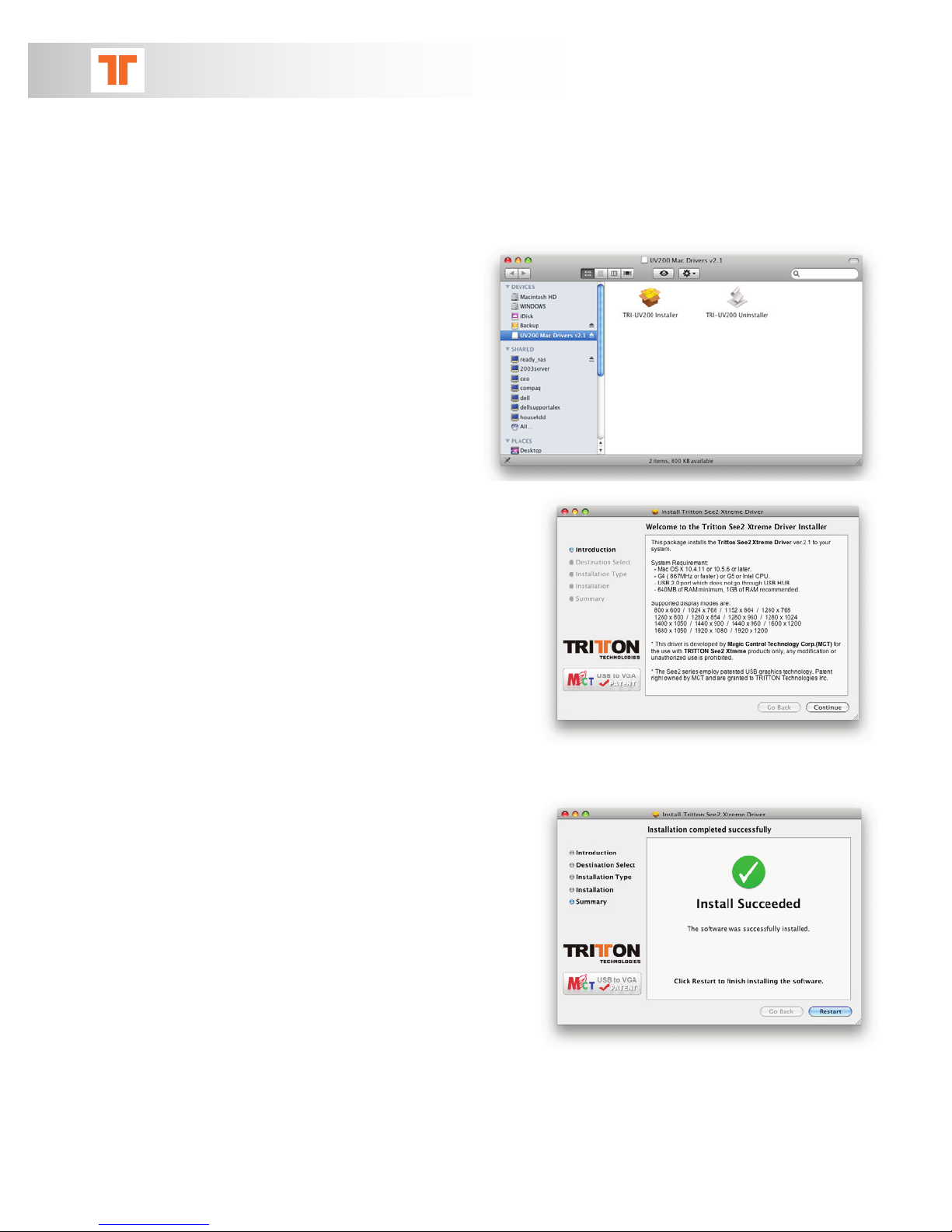

Step 1:
Insert the CD into the
drive, double click the
installer application.
Step 2:
Follow the onscreen
installer directions.
Step 3:
When the installer is
completed, click reboot to
reboot the computer.

.com
TRITTONUSA
.com
TRITTONUSA
Hardware Installation (Mac)
Step 4:
Plug the small end of the
USB cable into the SEE2
and the larger end of the
USB cable into an available
USB port on the
computer.
Step 5:
Connect the DVI cable (or
VGA cable using the included
adapter) from the display to the
SEE2 Xtreme.
Step 6:
Open “System
Preferences” and
click on “Displays”
to configure your
SEE2 Xtreme.

.com
TRITTONUSA
.com
TRITTONUSA
.com
TRITTONUSA
.com
TRITTONUSA
Modes Supported
Primary Mode:
Extended Mode:
Mirror Mode:
1
3 2
1
3 2
1
1 1
start menu
or menu bar
start menu
or menu bar
start menu
or menu bar
start menu
or menu bar
start menu
or menu bar

.com
TRITTONUSA
.com
TRITTONUSA
.com
TRITTONUSA
.com
TRITTONUSA
SUPPORT
If you have any issues using this product,
please try the following before returning this
product to the store:
The User Manual (located on the included
driver CD) includes a Troubleshooting Section.
Many common issues can be easily resolved by
reading this section of the manual.
For online support,
visit www.TRITTONUSA.com to find the latest
documentation, Knowledge Base articles, and
software for your device. You can also chat
live with a support technician or submit a
trouble ticket.
For telephone support,
please call us at 800-431-1176 and one of our
friendly support technicians will be happy to
assist you.
Call: 800-431-1176
E-mail: [email protected]
Chat: www.TRITTONUSA.com
