Trojan X FIT 300 User manual
CAUTION
READ ALL PRECAUTIONS AND
INSTRUCTIONS INTHIS MANUAL
BEFORE USING THIS EQUIPMENT.
KEEP THIS MANUAL FOR
FUTURE REFERENCE.
Visit facebook.com/trojanhealth
www.trojanhealth.co.za
X FIT 300
SPINNING BIKE
USER MANUAL
X FIT 300
SPINNING BIKE
USER MANUAL
2
10335
index
3
10335
It is the sole responsibility of the purchaser of Trojan products to read the owner’s manual, warning labels and
instruct all individuals, on proper usage of the equipment. Understanding each and every warning to the fullest
is important. If any of these instructions or warnings are unclear please contact Trojan Customer Services on
0861 TROJAN (0861 876526), within the Republic of South Africa.
The equipment is only intended for home use and is not intended for commercial, institutional and/or studio
facilities use.
Contact Trojan with any questions regarding this classication. It is recommended that all users of Trojan be
informed of the following information prior to use.
HEALTH WARNING
• Before starting any exercise or conditioning program you should consult with your personal physician to
see if you require a complete physical exam.This is especially important if you are inactive, pregnant or
suffer from any illness.
• If at any time during exercise you feel faint, dizzy or experience pain, stop exercising immediately and
consult your physician.
• To avoid muscular pain and strain, begin each workout by stretching and warming up and end each
session by cooling down and stretching.
ACCESS CONTROL
• Trojan recommends that all tness equipment be used in a supervised area. It is recommended that
the equipment be located in an access controlled area. Control is the responsibility of the owner. Keep
children away from all equipment.
• Parents or others supervising adults must provide close supervision of children if the equipment is used
in the presence of children.
INSTALLATION
Trojan recommends that all equipment:
• Be secured to or set up on a solid, level surface to stabilise and eliminate rocking or tipping over
during training.
• Be set up inside your home away from moisture and dust (the equipment is not designed for
outdoor use).
• Be set up with sufcient ventilation to ensure proper operation.
• Be set up with sufcient space around the equipment so that all exercises can be completed safely.
It is recommended that there should be at least 1 m of space around the equipment where access is
required to exercise.
4
10335
PROPER USAGE
• Do not use the equipment in any way other than as designed or intended by the manufacturer. It is
imperative that Trojan equipment is used properly to avoid injury.
• Injuries may result from exercising improperly or excessively.
• Your Trojan equipment should only be used by one person at a time.
• Be careful to maintain your balance while using, mounting, dismounting or assembling yourTrojan
equipment to avoid injury.
• Do not attempt to adjust the seat or handlebars while you are on your Trojan equipment.
• Servicing other than the procedures in this manual should be performed by an authorised service
representative only.
INSPECTION
• Do not use or permit use of any equipment that is damaged or has worn or broken parts. For all Trojan
equipment use only replacement parts supplied by Trojan.
• Always make sure that all nuts and bolts are tightened prior to each use.
• Maintain labels and nameplates – do not remove labels for any reason.They contain
important information.
• Equipment maintenance – preventative maintenance is the key to smooth operating equipment. Please
ensure that you follow our maintenance tips to ensure the continued correct function of your
Trojan equipment.
• Before any use, examine all accessories approved for use with the Trojan equipment for damage or wear.
• Should your Trojan equipment appear damaged or worn, do not attempt to use or repair the
equipment yourself.
• Please contact our service department on 0861 TROJAN (0861 876526) to arrange a repair.
OPERATING WARNINGS
• It is the purchaser’s responsibility to instruct all users as to the proper operating procedures of all
Trojan equipment.
• Keep children away from all moving parts. Parents must provide close supervision of children if the
equipment is used in the presence of children.
• Do not wear loose tting clothing or jewellery when using the equipment. It is also recommended that
users tie up long hair to avoid contact with moving parts.
• Ensure that anyone not using the equipment stays clear of the user, accessories and moving parts while
the machine is in operation.
USER WEIGHT LIMITATIONS
• This Trojan X Fit 300 Spinning Bike may not be used by persons weighing more than 115 kg.
SAVE THIS INSTRUCTION MANUAL FOR FUTURE USE AND REFERENCE
If any of these instructions or warnings are unclear please contact Trojan Customer Services on
0861 TROJAN (0861 876526) within the Republic of South Africa or visit www.trojanhealth.co.za.
5
10335
Thank you for choosing the Trojan X Fit 300 Spinning Bike.We take great pride in producing this product
and hope it will provide many hours of quality exercise to make you feel better, look better and enjoy life to
its fullest.Yes, it’s a proven fact that a regular exercise program can improve your physical and mental health.
Too often, our busy lifestyles limit our time and opportunity to exercise.The Trojan X Fit 300 Spinning Bike
provides a convenient and simple method to begin your assault on getting your body in shape and achieving
a healthier lifestyle. Before reading further, please review the drawing below and familiarise yourself with the
parts that are labelled.
Read this manual carefully before using the Trojan X Fit 300 Spinning Bike.

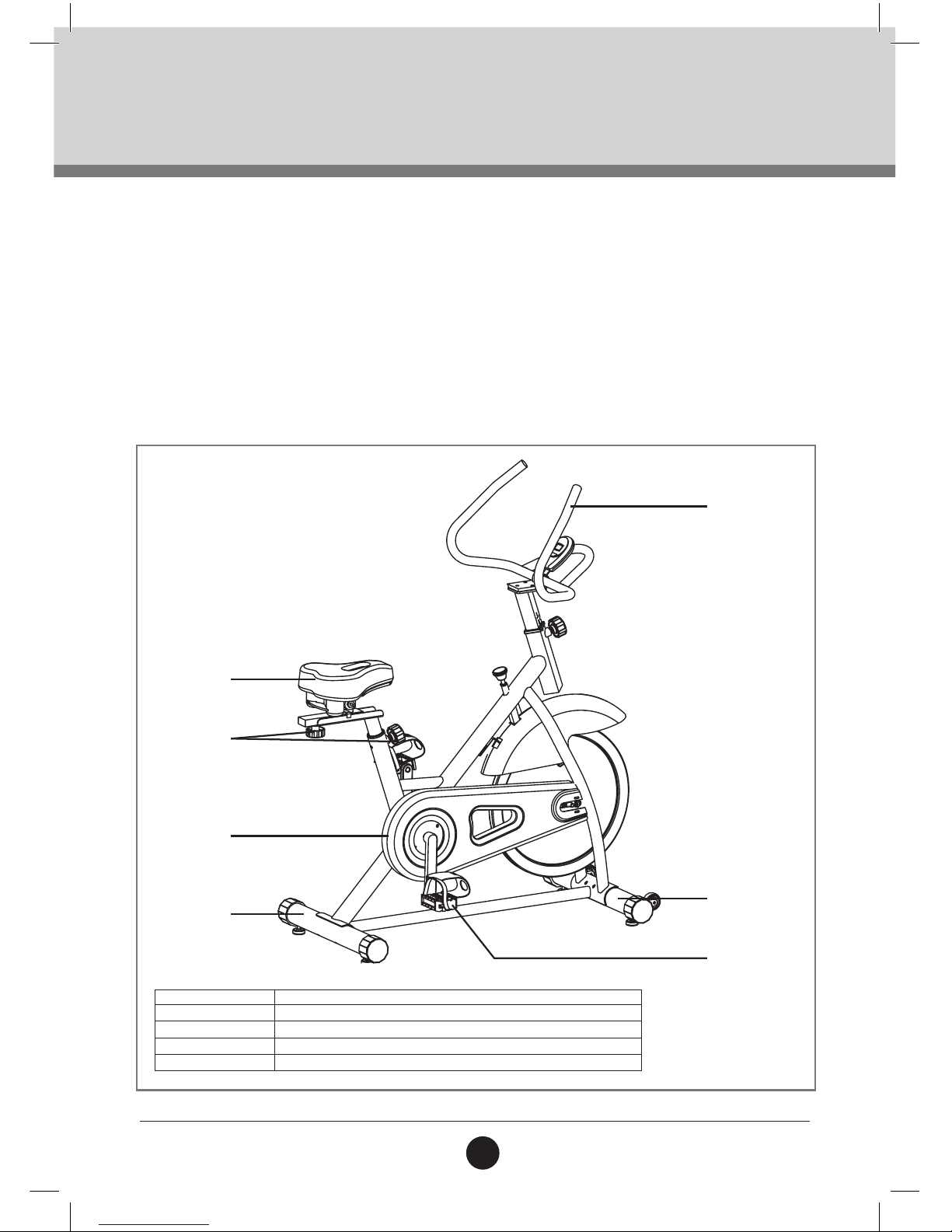

Front Stabiliser
Handlebar
Main Cover
Rear
Stabiliser
Seat
Adjustment
Knobs
Tension Control: Chain
Saddle: Vertical and Horizontal Adjustment
Set-up Size (mm): 1270 (l) x 510 (w) x 1120 (h)
Weight of Flywheel: 10 kg
User Weight: 115 kg (maximum)
Pedal
6
10335
INSTRUCTIONS FOR ASSEMBLY
• Before you start to assemble, please check the hardware packaging to make sure all parts are included.
• Basic tools, such as spanners will be provided for assembly.
Crosshead spanner
No. 7
No. 3
Spanner
Inner hexagon spanner (6#)
No. 5 No. 6
TOOLS & ACCESSORIES FOR BIKE
7
10335
no. no.
8
10335
no. no.
9
10335
10
10335
1. PREPARATION
• Before assembling make sure that you will have enough space around the item.
• Use the provided tools for the assembly.
• Before assembling, check whether all the parts needed have been supplied.
1
2
STEP 1: FRONT AND REAR
STABILISERS

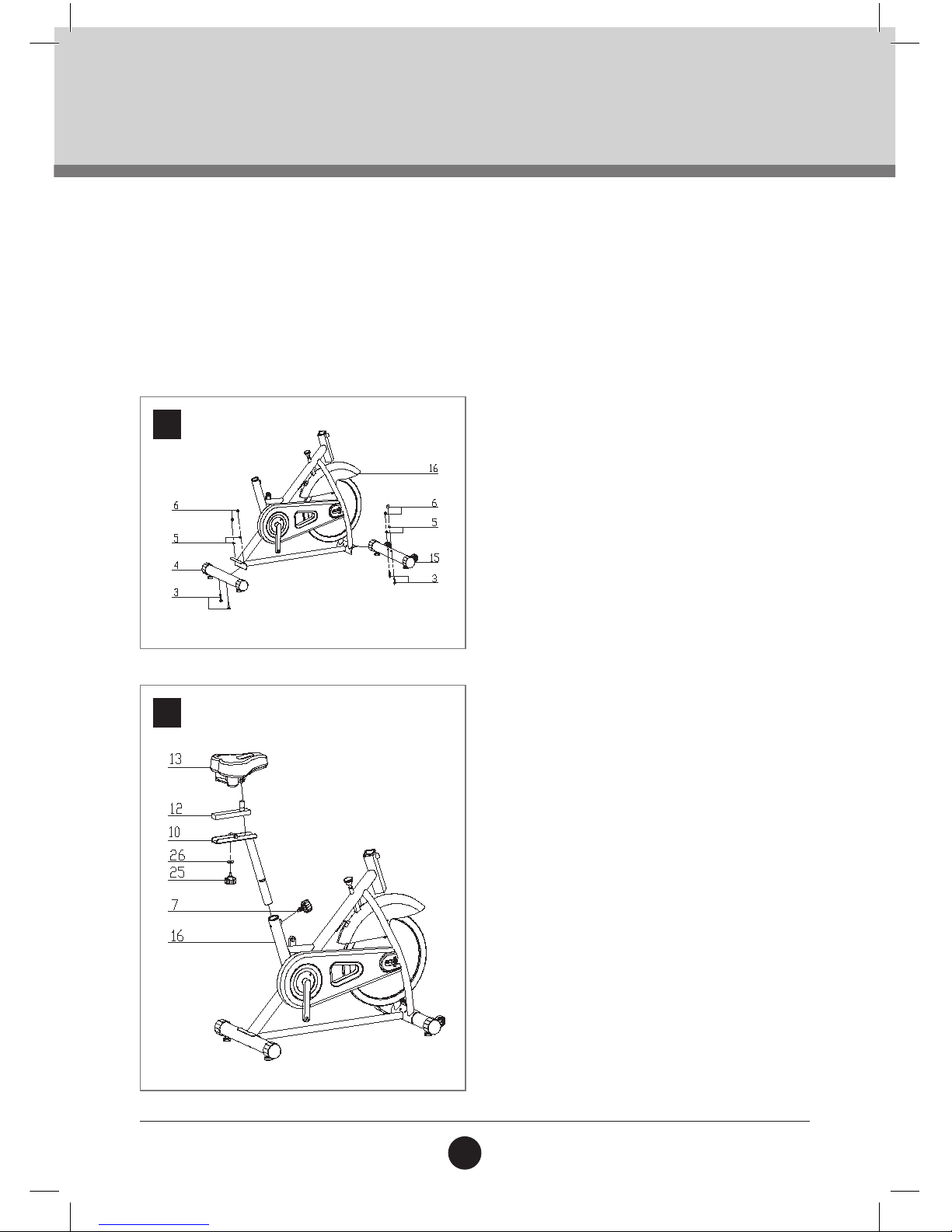

Attach the Front Stabiliser (15) to the Main Frame
(16) using two
Arc Washers (5), two Domed Nuts (6) and two
Carriage Bolt (3).
Attach the Rear Stabiliser (4) to the Main Frame
(16) using two Arc Washers (5), two Domed Nuts
(6) and two Carriage Bolts (3).
STEP 2: SEAT ASSEMBLY
Slide the Seat Post (12) into the Vertical Seat Post
(10) at the desired position by aligning the holes
and locking it in place with the Locking Knob (25)
and the Flat Washer (26).
Now attach the Seat (13) to the Seat Post (12) and
tighten.
Insert the Vertical Seat Post (10) into the Main
Frame (16) and line up the holes and secure in
place with the Adjustment Knob (7).The correct
height of the seat can be adjusted at a later stage.
11
10335
3
4
STEP 3: HANDLEBAR AND
HANDLEBAR POST
Slide the Handlebar Post (17) into the handlebar
post housing on the Main Frame (16).You will
have to slacken the knurled section of the Spring
Adjustment Knob (7) and pull the knob back select
and align the holes for the desired height.
Release the knob and retighten the knurled portion.
Attach the Handlebar (18) with three Spring
Washers (19) and three Bolts (21).
Note:Ensure that the handle bar is securely
tightened.

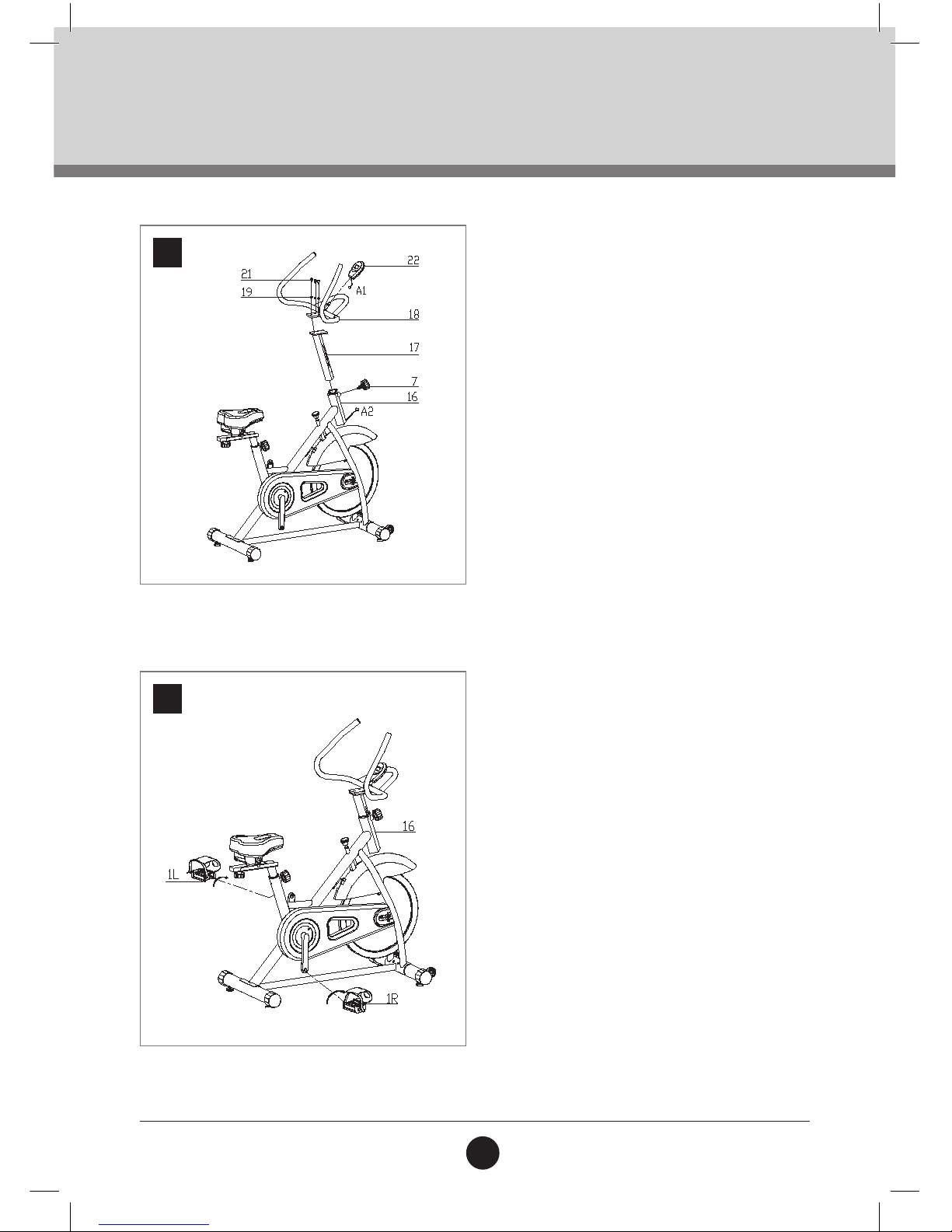

Slide the Console (22) onto the bracket on the
Handlebar and connect the A1 and A2.
STEP 4: PEDAL ASSEMBLY
The Pedals (1L & 1R) are marked “L” and “R” - Left
and Right.
Connect them to their appropriate crank arms.
The right crank arm is on the right hand side of the
cycle as you sit on it.
Note:The Right Pedal should be threaded clockwise
and the Left Pedal should be threaded anti-
clockwise.
12
10335
5
6
STEP 5:ADJUSTING THE
TENSION
Increasing or decreasing the tension allows you to
add variety to your workout sessions by adjusting
the resistance level of the bike.
To increase tension and increase resistance turn the
Emergency.
Brake & Tension Control Knob (52) to the right.
To decrease tension and decrease resistance, turn
the Emergency
Brake & Tension Control Knob (52) to the left.
STEP 6: USING THE
EMERGENCY BRAKE
FUNCTION:
The same knob that allows you to adjust the
tension of the bike also doubles as the Emergency
Brake. Use this safety feature in any situation where
you would need to get off the bike and/or stop the
bike’s ywheel immediately.
To use the Emergency Brake function in any
situation you would need it in, press down
Firmly on the Emergency.
Brake & Tension Control Knob (52).
13
10335
SEAT ADJUSTMENT (UP AND DOWN)
To adjust the seat height, slacken the spring knob on the vertical post stem on the main frame and pull back
the knob. Position the vertical seat post for the desired height so that holes are aligned, then release the knob
and retighten it.
SEAT ADJUSTMENT (BACKWARDS AND FORWARDS)
To move the seat forward in the direction of the handlebar or backwards away from it, loosen the adjusting
knob and washer and pull the knob back. Slide horizontal seat post into desired position.
Align holes and then retighten the adjusting knob.
HANDLEBAR HEIGHT ADJUSTMENT
To adjust the handlebar height, slacken the spring knob and secondary knob and pull both knobs back. Slide
the handlebar post along the housing on the main frame to the desired height and, with the holes
aligned correctly, tighten the spring adjusting knob and then the secondary knob.
14
10335
FUNCTION BUTTON
MODE/RESET: Push down to select functions.
Push down and hold for 3 seconds to reset Time, Distance and Calories.
FUNCTIONS AND OPERATIONS:
SCAN: Press MODE button until “ ” appears in the SCAN position.The
monitor will rotate through the following functions:Time, Speed,
Distance and Calorie. Each display will be held for 4 seconds.
TIME: Counts the total time from exercise start to end.
DISTANCE: Counts the distance from exercise start to end.
CALORIES: Counts the total calories from exercise start to end.
AUTO ON/OFF & AUTO START/STOP:
Without any signal for 8 minutes, the power will turn off automatically.
When the wheel is in motion or when you press the button, the
monitor will re-activate.
FUNCTION AUTO SCAN
TIME
CURRENT SPEED
TRIP DISTANCE
CALORIES
ODOMETER
PULSE
Every 4 seconds
00:00 - 99:59 min:sec
0.0 - 999.9 km/h
0.00 - 99.99 km
0.0 - 999.9 cal
0.00 - 99.99 km
40 - 200 beats/min
2 pcs of SIZE: AA or UM: 3
0 ° C to 40 ° C
-10 ° C to 60 ° C
BATTERY TYPE
OPERATING TEMPERATURE
STORAGE TEMPERATURE
15
10335
SPINNING BIKE SET-UP
• Stand next to the Spinning bike’s seat (also known as the saddle).The seat height should be
about level with your hips when you are standing next to it.
• Turn the seat-height adjustment knob counter-clockwise. Pull the handle out to release the pin
from the hole so you can adjust the seat height. Lower or raise the seat so it is approximately
level with your hips as you stand next to the bike.
• Insert the pin into the correct seat height hole and turn the handle clockwise to lock it in place.
• Get on the bike.
• Take one pedal all the way down to the bottom of your pedal stroke.You should have a full
extension in your leg without locking out your knee.The full extension should allow for a soft
knee or even a very slight bend.
• Bring one pedal forward and one pedal back so they are in a straight line (the front pedal
should be in the 3 o’clock position and the back in the 9 o’clock position). If you drop a straight
line down from your forward knee, it should fall directly over the centre of your front foot. If
this does not happen, you need to move the seat either forward or backward. The forward
knee should be at a 90 degree angle.You should also be able to comfortably rest your hands
on the handlebars. If you feel you are really stretching to reach the handlebars, you need to
move your seat or handlebars backwards or forwards until you are in your most comfortable
riding position.
• Dismount the bike and adjust the forward/backward seat or handlebars position. Again, turn
the handle counter-clockwise, pull the pin out and move the seat to the desired position. Place
the pin in the chosen hole and turn the handle clockwise to secure the position.
• Move to the front of the bike and adjust the handlebar height. The height of the handlebars
is more a matter of preference. Comfort should be the main key. Some experienced riders
choose to keep the handlebars low to replicate outdoor riding. Many riders choose a higher
handlebar height for more comfort.
16
10335
CLEANING
The Trojan X Fit 300 Spinning Bike can be cleaned with a soft cloth and mild detergent. Do not
use abrasives or solvents on plastic parts. Please wipe your perspiration off the Trojan X Fit 300
Spinning Bike after each use.
Please inspect all assembly bolts and pedals on the machine for proper tightness before use.
STORAGE
Store the Trojan X Fit 300 Spinning Bike in a clean and dry environment away from children.
17
10335
Tr apezius
Posterior
Tricep
Latissimus Dorsi
Gluteals
Hamstrings
Gastrocnemius
Tr apezius
Anterior
Pectoralis Major
Serratus Anterior
Biceps
Abdominal
Sartorius
Quadriceps
Tibialis
Trojan and the Heart and Stroke Foundation have joined forces to KEEP SOUTH AFRICA MOVING.
The Heart and Stroke Foundation South Africa encourages all South Africans to make heart-healthy choices
that include daily physical activity, exercise and a balanced diet. Use Trojan, SA’s No. 1 selling Home Fitness
brand to give you the ability to boost your tness level and lower your risk of cardiovascular disease.
Visit www.trojanhealth.co.za for equipment choices and exercise programs, and
www.heartfoundation.co.za for information on how to adopt a healthy lifestyle.
AEROBIC EXERCISE
Aerobic exercise is any sustained activity that sends oxygen to your muscles via your heart and lungs. Aerobic
exercise improves the tness of your lungs and heart − your body’s most important muscle. Aerobic exercise
tness is promoted by any activity that uses your large muscles (arms, legs, or buttock, for example).Your heart
beats quickly and you breathe deeply. An aerobic exercise should form part of your entire exercise routine.
WEIGHT TRAINING
Along with aerobic exercising which helps get rid of and keep off the excess fat that our bodies can store,
weight training is an essential part of the exercise routine process.Weight training helps tone, build and
strengthen muscle. If you are working above your target zone, you may want to do a lesser amount of reps.
Always consult your physician before beginning any exercise program.
MUSCLE CHART
Trojan X FIT 300 SPINNING BIKE
The exercise routine that is performed on the Trojan X Fit 300 Spinning Bike will develop the lower body
muscle group as well as condition the circulatory system and provide a good aerobic workout.These muscle
groups are highlighted on the muscle chart below.
18
10335
How you begin your exercise program depends on your physical condition. If you have been inactive for
several years, or are severely overweight, you must start slowly and increase your time on the equipment, a
few minutes per workout.
Initially, you may be able to exercise only for a few minutes in your target zone, however, your aerobic tness
will improve over the next six to eight weeks. Don’t be discouraged if it takes longer. It’s important to work
at your own pace. Ultimately, you’ll be able to exercise continuously for 30 minutes.The better your aerobic
tness, the harder you will have to work to stay in your target zone. Please remember these essentials:
• Have your doctor review your training and diet programs to advise you of a workout routine you
should adopt.
• Begin your training program slowly with realistic goals that have been set by you and your doctor.
• Monitor your pulse frequently.
• Establish your target heart rate based on your age and condition.
EXERCISE INTENSITY
To maximise the benets of exercising, it is important to
exercise with the proper intensity. The proper intensity
level can be found by using your heart rate as a guide.
For effective aerobic exercise, your heart rate should
be maintained at a level between 65% and 85% of your
maximum heart rate as you exercise.This is known as your
target zone.You can nd your target zone in the table below.
During the rst few months of your exercise program, keep
your heart rate near the low end of your target zone as
you exercise. After a few months, your heart rate can be
increased gradually until it is near the middle of your target
zone as you exercise.

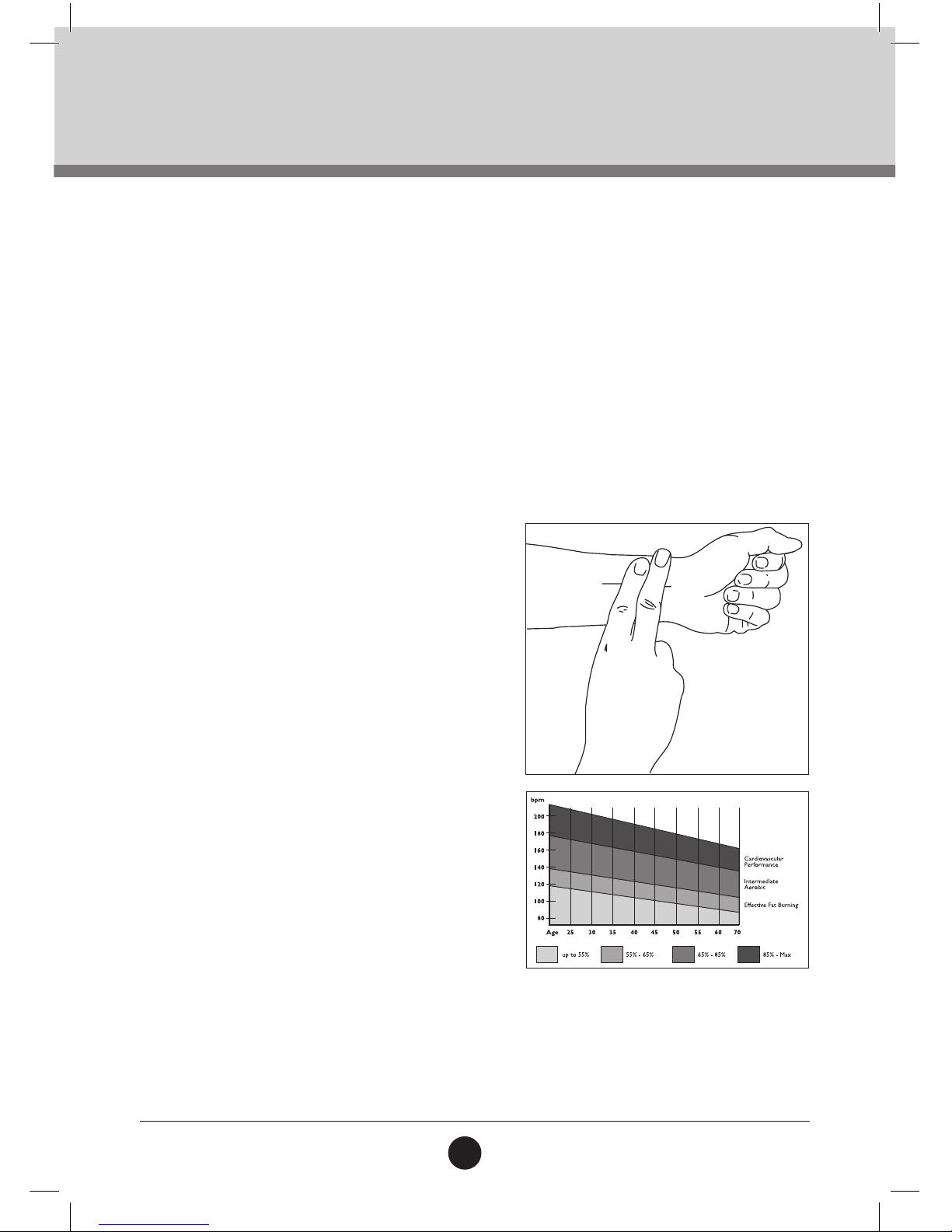

To measure your heart rate, stop exercising but continue
moving your legs or walking around and place two ngers
on your wrist. Take a six second heartbeat count and
multiply the results by 10 to nd your heart rate. For
example, if your six second heartbeat count is 14, your
heart rate is 140 beats per minute. (A six second count is
used because your heart rate will drop rapidly when you
stop exercising).
Adjust the intensity of your exercise until your heart rate is
at the proper level.
For more information visit:
www.trojanhealth.co.za
19
10335

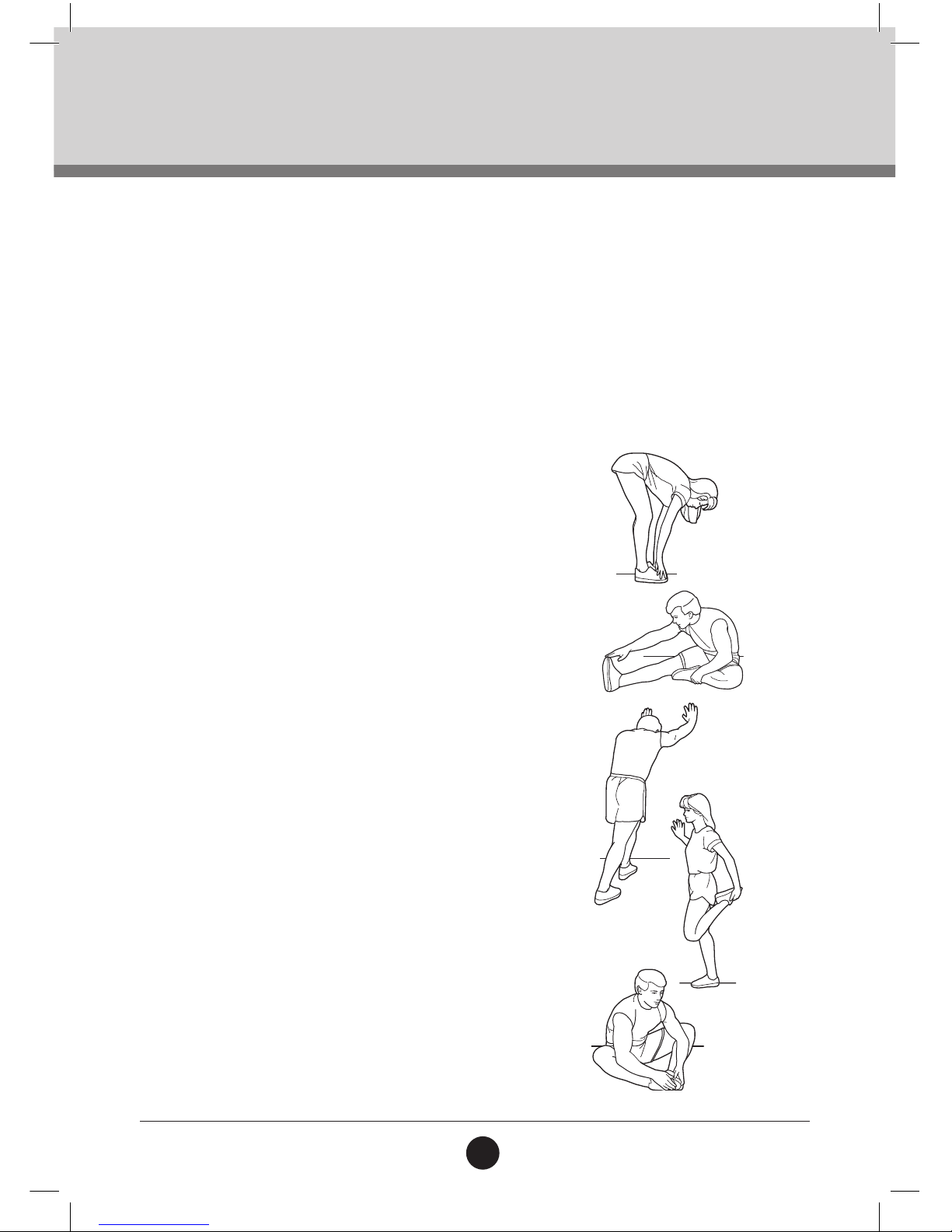

SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right.
Move slowly as you stretch, hold the position and never bounce.
1.Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts, and
then relax. Repeat 3 times.
Stretches: Hamstrings, back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended leg.
Reach toward your toes as far as possible. Hold for 15 counts, and
then relax. Repeat 3 times for each leg.
Stretches: Hamstrings, lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back foot
at on the oor. Bend your front leg, lean forward and move your
hips toward the wall. Hold for 15 counts, and then relax. Repeat 3
times for each leg. To cause further stretching of the Achilles ten-
dons, bend your back leg as well.
Stretches: Calves, Achilles tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your
buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times
for each leg.
Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for 15
counts, and then relax. Repeat 3 times.
Stretches: Quadriceps and hip muscles.
1
2
3
4
5
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up: 5 to 10 minutes of stretching and light exercise. A proper warm-up increases your body temperature, heart
rate, and circulation in preparation for exercise.
Training zone exercise: 20 to 30 minutes of exercising with your heart rate in your training zone. (Note: During the rst
few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes).
Cool-down: 5 to 10 minutes of stretching. This will increase the exibility of your muscles and will help to prevent post-
exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three workouts each week, with at least one day of rest between workouts. After
a few months of regular exercise, you may complete up to ve workouts each week, if desired. Remember, the key to success
is to make exercise a regular and enjoyable part of your everyday life.
20
10335
The Manufacturer hereby provides a warranty to the original purchaser of this product (‘the Consumer’) that this product
will be free of manufacturing defects in materials and workmanship which under normal, personal, family or household use
(commercial use expressly excluded) manifest themselves within the 1 year from the date of purchase.
EXCLUSIONS
•Thewarrantydoesnotincludeandwillnotbeconstruedtocoverproductsdamagedasaresultofdisaster,misuse,
commercial use, use not in accordance within the written instructions included with the product, abuse and/or any
non-authorised modication of the product, incorrect installation of the product or normal wear and tear.
•Alldemomodelscarrya3monthwarranty.
WAIVER
The warranty and the obligations of the manufacturer provided herein are in lieu of, and the consumer, waives all other
warranties, guarantees, conditions or liabilities, express or implied, arising by law or otherwise, including without limitation, any
obligation of the manufacturer in respect of any injury, loss or damage (direct, indirect or consequential) arising out of the use
of, or inability to use this product and whether or not occasioned by the manufacturer’s negligence or any act or omission on
its part.
PROOF OF PURCHASE
Any claim in terms of the warranty must be supported by a proof of purchase or a warranty number.Warranty numbers can
be issued through contacting our Trojan Call Centre on 0861 TROJAN (0861 876526) or online at www.trojanhealth.co.za.
If such proof is not available, then notwithstanding anything to the contrary herein, the service agent’s prevailing charges for
services/repairs including call-out and/or spares will be payable by the Consumer upon collection or delivery of the repaired
product.
The Consumer does not need to return the product to the store.The Consumer should call the Trojan Call Centre on
0861 TROJAN (0861 876526) and the Manufacturer’s authorised agent will at its discretion either repair the item at the
Consumer’s residence or collect and repair the item at their premises.
During the warranty period the product may only be serviced and/or repaired by the Manufacturer’s duly authorised agent(s).
Table of contents
Other Trojan Exercise Bike manuals
Trojan
Trojan PIONEER 300 Installation guide
Trojan
Trojan INFERNO 300 Installation guide
Trojan
Trojan POWER 500 User manual
Trojan
Trojan ERGO 510 Installation guide
Trojan
Trojan OMEGA 390 User manual
Trojan
Trojan SHAPE 260 User manual
Trojan
Trojan PRO-X 470 User manual
Trojan
Trojan SPIN 300 User manual
Trojan
Trojan ELITE 1000 User manual
Trojan
Trojan OMEGA 380 User manual
Trojan
Trojan PACE 370 User manual
Trojan
Trojan ELITE 3000 User manual
Trojan
Trojan PEAK 200 User manual
Trojan
Trojan SPIN 120 User manual
Trojan
Trojan DNETIK CONCEPT 510 Installation guide
Trojan
Trojan ENDURO 330 User manual
Trojan
Trojan PACE 380 User manual
Trojan
Trojan ECLIPSE 400 User manual
Trojan
Trojan TEMPO 400 Installation guide
Trojan
Trojan X-Trainer Air Bike User manual
Popular Exercise Bike manuals by other brands
Sunny Health & Fitness
Sunny Health & Fitness SF-B1913 user manual
Weslo
Weslo Pursuit T 169 Bike manual
York Fitness
York Fitness Diamond c301 owner's manual
Everlast
Everlast VECTOR BIKE user manual
Sunny Health & Fitness
Sunny Health & Fitness P8150 user manual
Stamina
Stamina Elite TOTAL BODY owner's manual
