TroposAir Vogue User manual

WARNING : Read and follow these instructions carefully and be mindful of all warnings shown throughout.
8.7 KGS.
19.0 LBS.
Net weight
Vogue & Vogue Plus
3SA60
This instruction contains 11 pages:
Page 1: Foreword
Page 2~3: Unpack and inspect parts contained
Page 4~5: Notes before installation and Hanging system installation
Page 5~6: Wire connection
Page 7: Blade installation and Canopy installation and Light kit installation
Page 8: Remote setting
Page 9~11: Troubleshoot
Toll Free: 1-855-676-7247
3SA60+LED

P1
WARNING : TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY
TO PERSONS, PLEASE OBSERVE THE FOLLOWING :
READ AND SAVE THESE INSTRUCTIONS
1]. To ensure the success of the installation, be sure to read the instructions and review the diagrams
thoroughly before beginning.
2]. To avoid possible electric shock, be sure electricity is turned off at the main power box before wiring.
All electrical connections must be made in accordance with local codes, ordinances and/or the
National Electric Code. If you are unfamiliar with the methods of installing electrical wiring and
products, require the services of a qualified and licensed electrician as well as someone who can
check the strength of the supportive ceiling members and make the proper installations and
connections.
3]. Make sure that your installation site will not allow rotating fan blades to come in contact with any
object. Blades should be at least 7 feet from floor when fan is in operation.
4]. If possible, mount ceiling fan on a ceiling joist - the joist must be able to support the motion and weight
of the moving fan. If the fan will be mounted on a ceiling outlet box, a 4" x 2-1/8" deep METAL octagon
box is required ; on UL listed as " suitable for fan support ". The box and its supporting members must
not be able to twist or work loose. DO NOT USE PLASTIC BOXES. Installation on a concrete ceiling should
be performed by qualified personnel.
5]. Blades should be attached after motor housing is hung and in place. Fan motor housing should be
kept in carton until ready to be installed to protect its finish. If you are installing more than one ceiling
fan, make sure that you do not mix fan blade sets.
6]. After making electrical connections, spliced conductors should be turned upward and pushed
carefully up into outlet box. The wires should be spread apart with the grounded conductor and the
equipment - grounding conductor on one side of the outlet box and the " HOT " wires on the other side.
7]. Electrical diagrams are for reference only.
8]. After fan is completely installed, check to make sure that all connections are secure to prevent fan
from falling and/or causing damage or injury.
9]. The fan can be made to work immediately after installation. The bearings are adequately charged with grease,
so that under normal conditions, further lubrication should not be necessary.
10]. The fan is downrod mount only.
11]. This fan is reversible.
12]. This fan is suitable for damp location use.

Unpack and inspect fan carefully to be certain
all contents are included.
Hardware Bag
For :Blade Balance
Balanced slide x 1
Weight block (3G x 3)
3 GM 3 GM 3 GM
Mounting Bracket
Canopy
Downrod
P2
For Blade Installation:
Blade Screw x 10 (one spare screw included)
Yoke Cover
Flat Washer x2
Spring Washer x2
Machine Screw x2
Wood Screw x2
For Mounting Bracket:
Unit pack / all in one box
Deco Ring
Hardware Bag
Wood Screw x 2
Wall plug anchor x 2
Remote Control (12V Battery Included)
For Wire Connection:
Wire Nut x 6
Fan Assembly Blade(3)
Wires
Without Light Kit

Unpack and inspect fan carefully to be certain
all contents are included.
P3
Unit pack / all in one box
Yoke Cover
Fan Assembly
Light Cover
LED
With Light Kit
Blade(3)
Hardware Bag
For :Blade Balance
Balanced slide x 1
Weight block (3G x 3)
3 GM 3 GM 3 GM
For Blade Installation:
Blade Screw x 10 (one spare screw included)
Flat Washer x2
Spring Washer x2
Machine Screw x2
Wood Screw x2
For Mounting Bracket:
For Wire Connection:
Wire Nut x 8
Mounting Bracket
Canopy
Downrod
Deco Ring
Hardware Bag
Wood Screw x 2
Wall plug anchor x 2
Remote Control (12V Battery Included)
Safety Light Cover

WARNING: blades should be at least 7 feet from floor
OFFOFFOFF
Turn off power at breaker
box to avoid possible
electrical shock.
Use metal outlet box suitable
for fan support.
Outlet box must support 35 lbs min.
Note 1: Note 2:

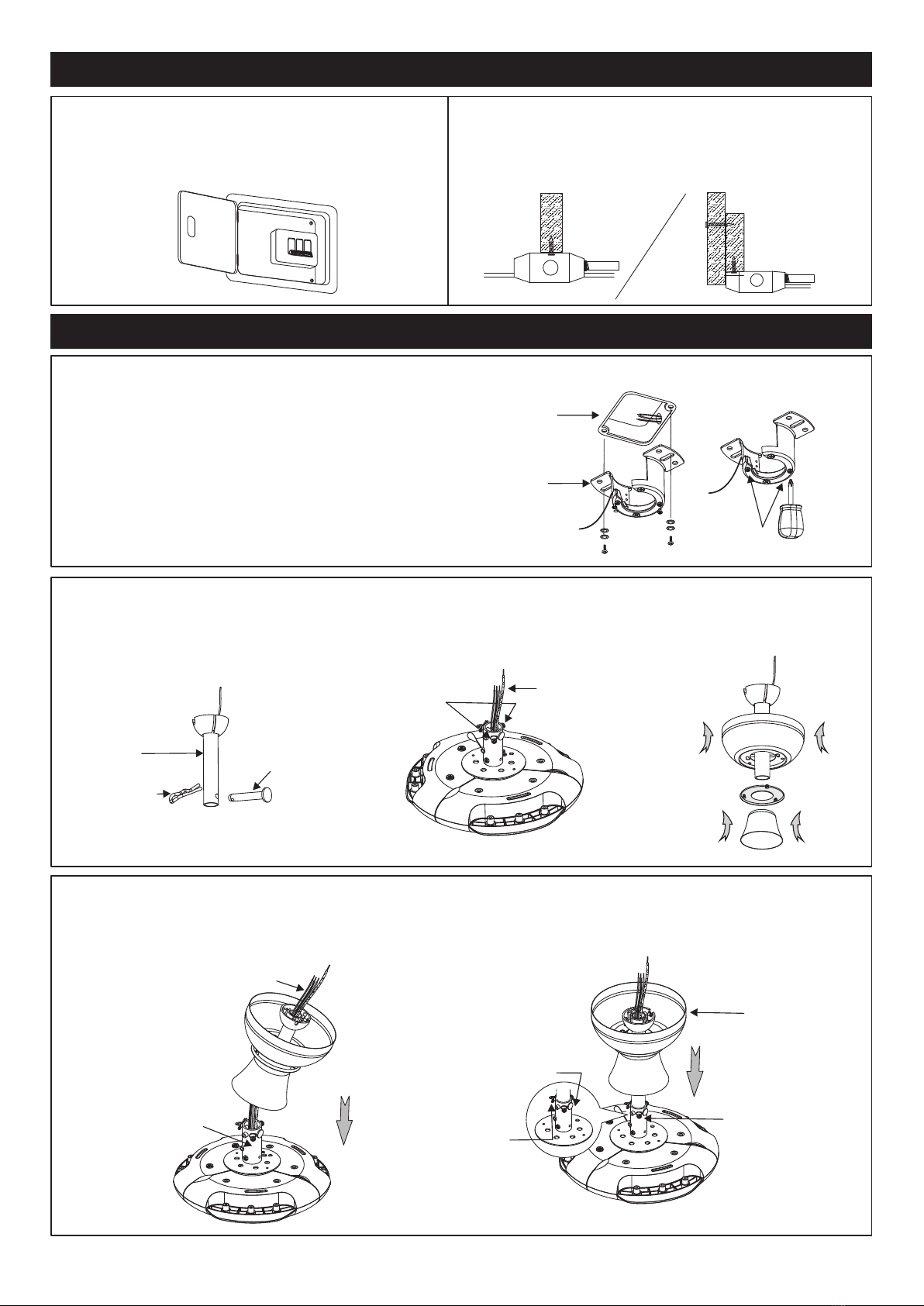

1. HANGING SYSTEM INSTALLATION
1A.Installing mounting bracket to ceiling outlet box
1Install mounting bracket to outlet box in ceiling
by using screws included with the outlet box and
washers from the hardware bag.
2Loosen the screws at mounting bracket.
1Outlet Box
2
(Loosening)
Screw (2)
Mounting
Bracket
1B. Installing Downrod and Yoke
Remove cross pin and cotter pin from downrod.
Loosen 2 downrod jam screws at yoke.
Insert yoke cover, deco ring, canopy onto downrod as pictured below.
Cross Pin
Cotter Pin
1
2
3
Canopy
Yoke cover
Downrod 1
1Deco Ring
P4
3
Wires
Yoke
4
Downrod
Assembly
Yoke cover
2
Screws (2)
(Loosening)
Downrod Jam
Fan Assembly
Yoke cover
Downrod Jam
Screws (2)
(Tightening)
Canopy
7
Cotter Pin
5
Cross Pin
5
Feed motor lead wires through downrod.
Insert downrod assembly into yoke and insert the cross pin through yoke & downrod, secure with cotter pin.
Tighten both downrod jam screws to secure downrod.
Pull down the yoke cover to cover yoke.
4
5
6
7
Wires
Fan Assembly
6

2. WIRE CONNECTION
2B-1.Making electrical wire connection
Follow diagram below and make sure that all exposed wires are secured inside wire nuts or terminal block.
Note : Wires from house may vary in color and may not include ground wire ( green ).
After wiring is completed, gently push wires into junction box with wire nuts pointing upward.
From Remote
From House
(AC-N)
(AC-L)
White
Black
From Fan
Black
White
Black
White
Gray
Black
White
Gray
(For motor)
(For motor)
(For motor)
Green
( for ground wire )
Green
Green
( from Hanger Ball )
( from mounting bracket )
P5
2A. Insert receiver into mounting bracket
Receiver
Mounting
Bracket
NOTE: Do not sq eeze all the wires while inserting the receiver into the mounting bracket.u
FOR VOGUE (NO LIGHT)
1C. Hanging the fan
1Lift fan assembly onto mounting bracket.
Mounting Bracket
Fan Assembly
2Rotate fan so that the groove on the ball engages
the ridge in the mounting bracket.
Mounting
Bracket
Ridge
Ball Groove
(For motor)
(For motor)
(For motor)

3. CANOPY INSTALLATION
1Push up canopy until two screws pre-screwed on mounting bracket are engaged with two key holes
on canopy.
2
3Rotate canopy slightly until two pre-installed screw heads are engaged in the narrow end of key holes.
4Tighten both screws.
5Aligning the nubs from Deco Ring to 3 holes on the canopy, push Deco Ring up and snap into the canopy.
Before rotating the canopy, make sure Key hole A & B of the canopy correspond to A & B positions
of the hanging bracket.
Note: Two screws are pre-installed on mounting bracket for canopy installation.
Key Hole (2)
Screw (2)
3
4
Canopy
Deco Ring
Canopy
1
2Key hole A2Key hole B
A
B
Canopy
2Key hole A2Key hole B
A
B
A
B
Hanging
Bracket
Receiver
P6
5

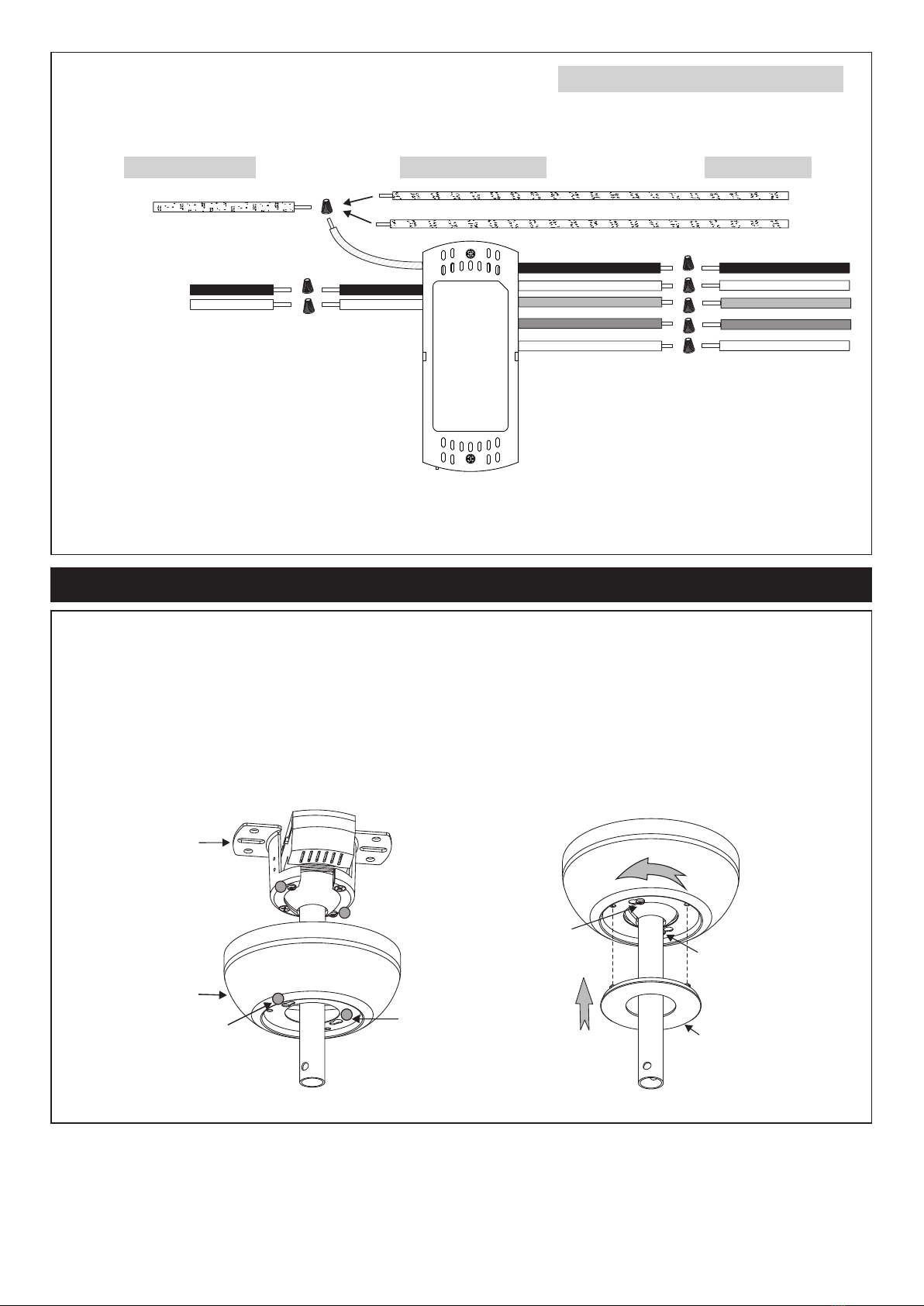

2B-2.Making electrical wire connection
Follow diagram below and make sure that all exposed wires are secured inside wire nuts or terminal block.
Note : Wires from house may vary in color and may not include ground wire ( green ).
After wiring is completed, gently push wires into junction box with wire nuts pointing upward.
From Remote
From House
(AC-N)
(AC-L)
White
Black
From Fan
Black
White
Black
White
Gray
Black
White
Gray
(For motor)
(For motor)
(For motor)
Green
( for ground wire )
Green
Green
( from Hanger Ball )
( from mounting bracket )
FOR VOGUE PLUS (W/LIGHT)
Blue Blue
(For Light Kit)
White White
(For Light Kit)
“Special note: Green grounding wire(s) must be attached to Ground/Earth
to prevent flickering of LEDs.”
(For motor)
(For motor)
(For motor)
(For Light Kit)
(For Light Kit)
███████
███████
Orange
Orange

LED already pre-installed.
.
1
2 Align the grooves in the Light Cover to the tabs in the Collar and attach the Light Cover clockwise
INSTALLATION FOR LED LIGHT COVER
P7
Blade
LED
Light Cover
Groove
4. BLADE INSTALLATION
Attach blades to fan assembly by using screws provided from hardware bag.
(* Repeat until all 3 blades are installed firmly.)
Blade Screw(3)
& Spring Washer(3)
Blade(3)
Fan Assembly
5.Turn on power at breaker box for remote setting.
OFF
OFF
OFF
ON
FOR VOGUE PLUS (W/LIGHT)
Safety Light Cover
(Do not open the safety light cover,
when fan is in operation.)

32Ft.
2
1
3
5
4
6
7
ON/OFF - Fan
1
2
3
4
5
6
7
ON/OFF - Light (3 steps dimming)
Direction of the fan (reverse switch)
Fan Speed(1-Low Speed -High Speed)5
Fan control timer (1hr/4hrs/8hrs)
LED indicator light
12V battery (included) x1
12V
*Install 12V 23AE battery x1
Open the battery housing cover
FIG.2
After completing the ceiling fan installation, install the 12V battery(included) in the hand-held
Transmitter (see below FIG.2). Your fan is ready for remote control setting and operation.
In the event the fan does not operate, repeat the remote control setting steps below.
(Once the fan assembly and wiring is completed and the fan operates properly, you may skip this SETTING step).
P8
First, switch the main power off and make sure fan has completely stopped . Then switch the power on
again, and immediately press and hold the Fan On/Off button for 8 seconds until the Receiver ” Beeps”.
This process must be done within 20 seconds of switching on the power.
This fan has completed the settings successfully and the fan is ready for operation!
Press and hold the Fan On/Off button for 8 seconds until the Receiver “Beeps”.
*Remote *Receiver
*NOTE:
Your DC motor is equipped with an automatically learned type Remote
control. The Remote control has been pre-set up and completed the
learning/setting. The serial number sticker is paired on both Transmitter
& Receiver. PLEASE DO NOT MIX THE SERIAL NUMBER! (See label on
receiver and remote control cover.)
1. Press Light On/Off button for 100%
2. Press Light On/Off button twice for dimming to 50%
3. Press Light On/Off button twice for dimming to 20%
Three Step Dimming by pressing light ON/OFF button twice for next step in dimming rotation function.
OFFOFFOFF
OFF
For model with light only
Pressing LIGHT ON/OFF button and it will cycle through the three steps of
brightness.
Remote will remember the last brightness setting used.
Pressing LIGHT ON/OFF button once and it will toggle the light between off and
the last set brightness.
OFF
100%
OFF
50%
20%
OFF
OFF
50%

Outlet Box
Troubleshoot

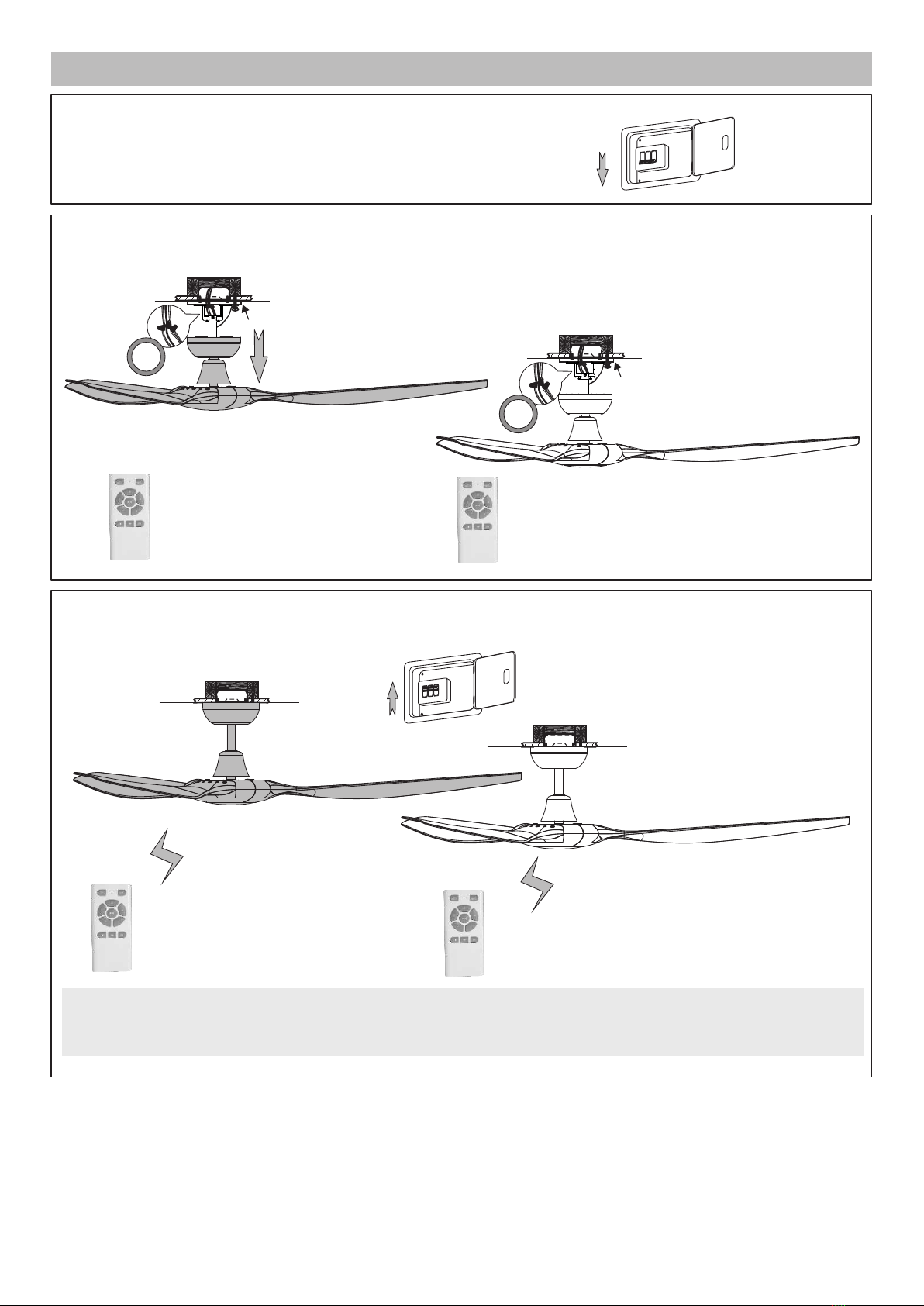

2-1. Disconnecting wire from #2 Fan
Before starting the remote control setting process, lower the canopy of #2 Fan and disconnect the Black wire.
Put the wire nut on the black wire from the house
*See the remote control setting process for step 2-2 to set up #1 Fan.
#1 Fan is ready for setting.
Outlet Box
#2 Fan
(Disconnecting)
#1 Fan
Mounting Bracket

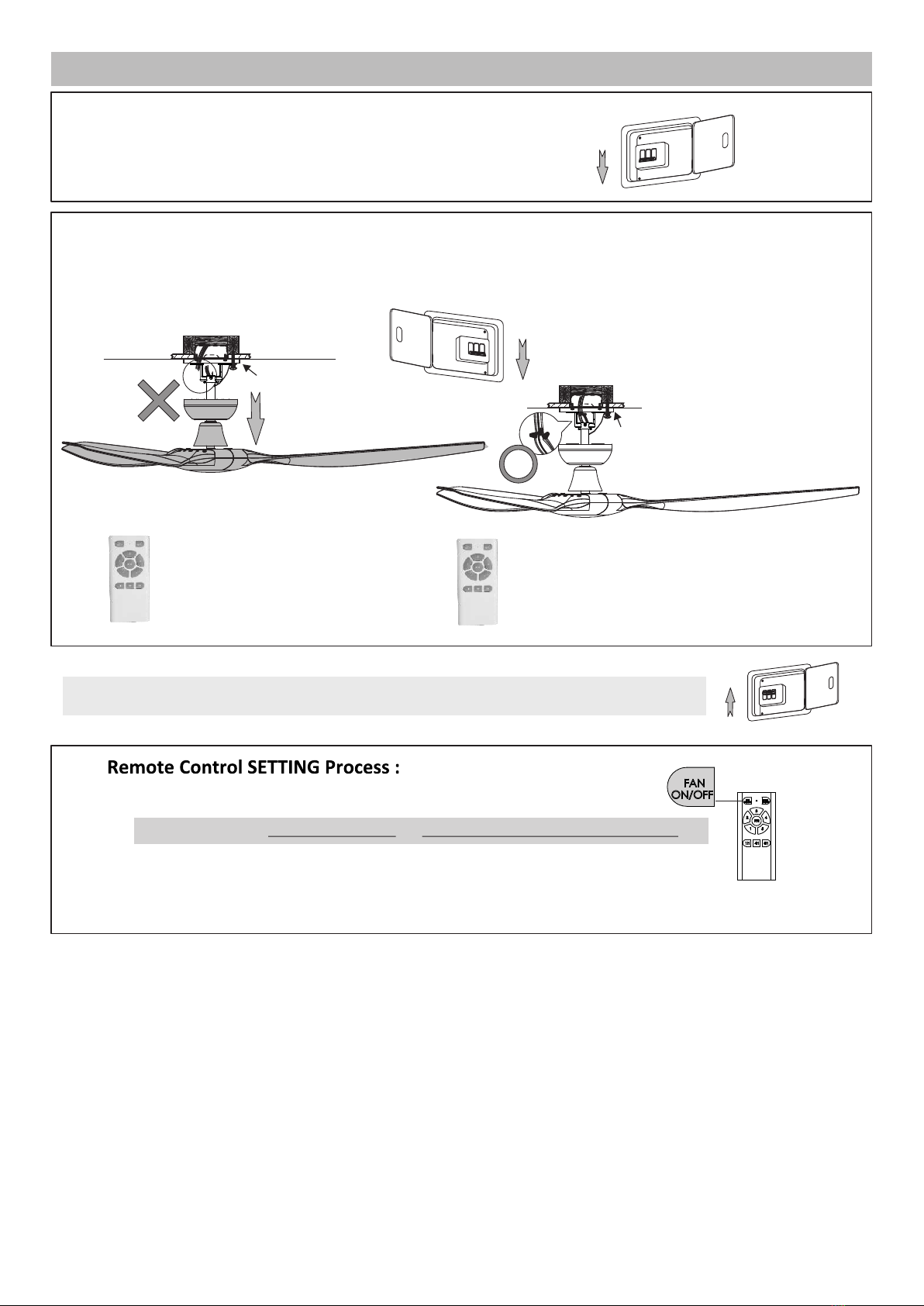

Step 1. Make sure to turn off power at breaker box.
OFF OFFOFF
OFF

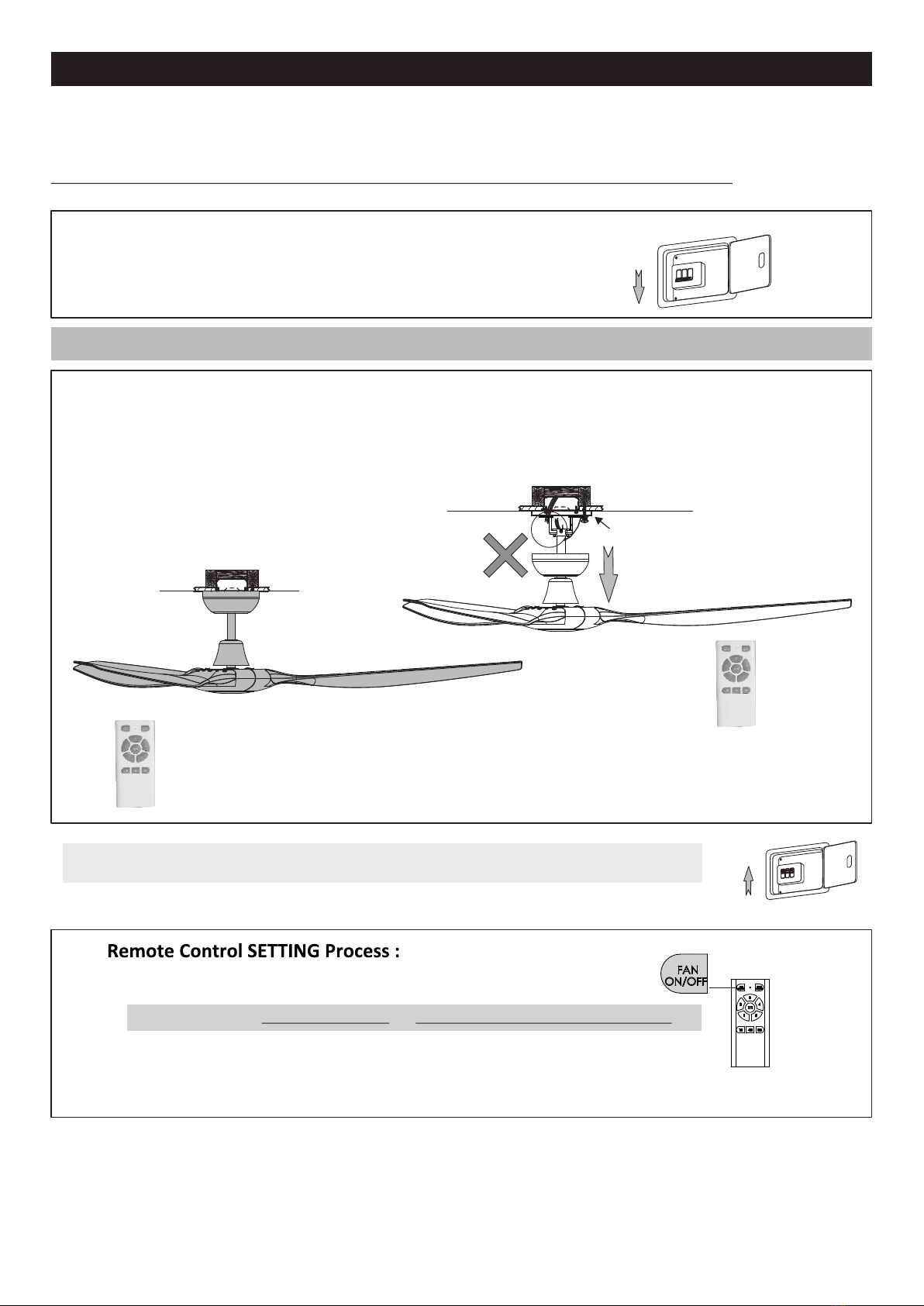

First, switch the main power off and make sure fan has completely stopped.
This fan has completed the settings successfully and the fan is ready for operation!
2-2.
Turn on power at breaker box and #1 Fan is ready for setting.
OFF
OFF
OFF
ON
P9
In general, the fan control is preset and should function normally, even if there are more
than one fan in the same area.
In the event of mixed paired remote & receiver, please do the following.
Step 2. To set up remote for #1 Fan
Press and hold the Fan On/Off button for 8 seconds until the Receiver “Beeps”.
(*NOTE: This process must be done within 20 seconds of switching on the power).

3-2. Disconnecting wire from #1 Fan
Disconnect the AC Black wires to the #1 Fans and connect the AC Black wires back to #2 Fan that you
remove from Step 2-1.
*See the remote control setting process for step 3-3. to set up #2 Fan
#2 Fan is ready for setting
Outlet Box
#1 Fan
(Disconnecting) Mounting Bracket
OFFOFFOFF
OFF
Outlet Box
Mounting Bracket
#2 Fan
P10
Turn on power at breaker box and #2 Fan is ready for setting.
OFF
OFF
OFF
ON
3-1. Make sure to turn off power at breaker box.
OFFOFF OFF
OFF
Switch the main power off and make sure fan has completely stopped.
Step 3. To set up remote for #2 Fan
This fan has completed the settings successfully and the fan is ready for operation!
3-3.
Press and hold the Fan On/Off button for 8 seconds until the Receiver “Beeps”.
(*NOTE: This process must be done within 20 seconds of switching on the power).

Outlet Box
NOTE: For more than two fans, the same rules apply. Make sure only one fan at a time is connected to
power when doing the Remote Setting. Already completed fans should be disconnected until all fans have
completed the Remote Setting process.
4-3.
Turn on the power from main switch and now each of these two fans are operated by its own remote
individually.
OFF
OFF
OFF
ON
(operating now) (operating now)
Outlet Box
#1 Fan
#2 Fan
4-2. Connect wire to #1 Fan and #2 Fan should already be wired
#1 Fan
Outlet Box
Mounting Bracket
#2 Fan
Outlet Box
Mounting Bracket
P11
4-1. Make sure to turn off power at breaker box.
OFF OFF OFF
OFF
Switch the main power off and make sure fan has completely stopped.
Step 4. Reconnecting all fans
