Trotec BQ21 User manual

TRT-BA-BQ21-TC211110TTRT01-001-EN
BQ21
EN
OPERATING MANUAL
PARTICLE COUNTER

2 EN
particle counter BQ21
Table of contents
Notes regarding the operating manual.................................2
Safety .....................................................................................2
Information about the device................................................4
Transport and storage...........................................................7
Operation ...............................................................................7
MultiMeasure Mobile app....................................................13
Maintenance and repair ......................................................19
Errors and faults..................................................................19
Disposal ...............................................................................19
Notes regarding the operating manual
Symbols
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
Warning of explosive substances
This symbol indicates dangers to the life and health of
persons due to potentially explosive substances.
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Caution
This signal word indicates a hazard with a low risk
level which, if not avoided, can result in minor or
moderate injury.
Note
This signal word indicates important information (e.g.
material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry
out your tasks quickly and safely.
Follow the manual
Information marked with this symbol indicates that the
operating manual must be observed.
You can download the current version of the operating manual
and the EU declaration of conformity via the following link:
BQ 21
https://hub.trotec.com/?id=44635
Safety
Read this manual carefully before starting or using the
device. Always store the manual in the immediate vicinity
of the device or its site of use.
Warning
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
• Do not use the device in potentially explosive rooms or
areas and do not install it there.
• Do not use the device in aggressive atmosphere.
• Do not immerse the device in water. Do not allow liquids to
penetrate into the device.
• The device may only be used in dry surroundings and must
not be used in the rain or at a relative humidity exceeding
the operating conditions.
• Protect the device from permanent direct sunlight.
• Do not remove any safety signs, stickers or labels from the
device. Keep all safety signs, stickers and labels in legible
condition.
• Do not open the device.
• Avoid looking directly into the laser beam.
• Never point the laser beam at people or animals.
• Only use the device, if sufficient safety precautions were
taken at the surveyed location (e.g. when performing
measurements along public roads, on building sites etc.).
Otherwise do not use the device.
• Observe the storage and operating conditions (see
Technical data).

EN 3
particle counter BQ21
Intended use
The device is intended for measuring the size and number as
well as the mass concentration of particles in the air.
To use the device for its intended use, only use accessories and
spare parts which have been approved by Trotec.
Foreseeable misuse
The device may not be used for measurements in liquids.
The device may not be used in potentially explosive
atmospheres, when wet or very humid.
Any unauthorised changes, modifications or alterations to the
device are forbidden.
Personnel qualifications
People who use this device must:
• have read and understood the operating manual, especially
the Safety chapter.
Residual risks
Warning of electrical voltage
There is a risk of a short-circuit due to liquids
penetrating the housing!
Do not immerse the device and the accessories in
water. Make sure that no water or other liquids can
enter the housing.
Warning of electrical voltage
Work on the electrical components must only be
carried out by an authorised specialist company!
Warning of explosive substances
Do not expose the battery to temperatures above 60°C!
Do not let the battery come into contact with water or
fire! Avoid direct sunlight and moisture. There is a risk
of explosion!
Warning of laser radiation
Laser class3R, Pmax.: < 1.5–3mW, λ: 780nm,
EN60825-1:2014
Do not look directly into the laser beam or the opening
from which it emerges.
Never point the laser beam at people, animals or
reflective surfaces. Even brief eye contact can lead to
eye damage.
Examining the laser output aperture by use of optical
instruments (e.g. magnifying glass, magnifiers and the
like) entails the risk of eye damage.
When working with a laser of class2, observe the
national regulations on wearing eye protection.
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Warning
The device is not a toy and does not belong in the
hands of children.
Warning
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Caution
Lithium-ion batteries might catch fire in case of
overheating or damage. Ensure a sufficient distance to
heat sources, do not subject lithium-ion batteries to
direct sunlight and make sure not to damage the
casing. Do not overcharge lithium-ion batteries. Only
use smart chargers that switch off automatically when
the battery is fully charged. Charge lithium-ion
batteries in due time before they are discharged
completely.
Caution
Keep a sufficient distance from heat sources.
Note
To prevent damages to the device, do not expose it to
extreme temperatures, extreme humidity or moisture.
Note
Do not use abrasive cleaners or solvents to clean the
device.

4 EN
particle counter BQ21
Information about the device
Device description
The particle counter is designed to measure the size and
number as well as the mass concentration of particles in the air.
The detected data can be used for analysing cleanrooms or
prove environmental burdens from particulates.
To detect the data, the particle counter sucks in air for a
selectable duration and determines the size and number or
mass concentration of particles contained in it.
Particles sized 2.5μm and 10.0μm are treated equally during
this process.
The detected values for all active particle sizes are
simultaneously displayed on a colour display. Additionally, the
air contamination is indicated on a colour scale. As soon as the
particle burden is no longer in the green area of this scale, a
beep is emitted (see table Alarm limit values for particle
concentration).
The device is equipped with an integrated measuring cell with
laser (class3R laser, 780nm, 1.5-3mW). Owing to the tamper-
proof enclosure it is classified as laser class1 (DINEN60825-1)
according to the Technical Regulations of the Occupational
Health and Safety Ordinance on Artificial Optical Radiation
(TROS) devised by the German Federal Institute for Occupational
Health and Safety. Maintenance and repair work may only be
carried out by trained expert staff observing the legal
regulations.
The device can be connected to another terminal device via
Bluetooth. In combination with the Trotec MultiMeasure Mobile
App, there are numerous possibilities for evaluating and
displaying the measured values.
The measurement results can be displayed and saved on the
terminal device either numerically or in form of a chart. Then,
the measurement data can be sent in PDF or Excelformat.
The app also includes a report generation function, an organiser
function, one for customer management and further analysis
options. Moreover, it is possible to share measurements and
project data with colleagues in another subsidiary. If
MultiMeasure Studio Professional is installed on a PC, you can
even use report templates and ready-made text blocks for
various fields of application to turn the data into professional
reports.
Alarm limit values for particle burden1)
Channel Green Yellow Orange Red Purple Brown
2.5μm 0 to 545 546 to
1235
1236 to
2470
2471 to
3300
3301 to
4950
> 4950
10μm 0 to 68 69 to
170
171 to
340
341 to
454
455 to
680
> 680
Alarm limit values for particle concentration1)
Air quality Value in μg/m3Indicator scale
Excellent 0 to 10μg/m3Green
Good 10 to 35μg/m3Yellow
Low contamination 35 to 75μg/m3Orange
Moderate
contamination
75 to 150μg/m3Red
High contamination 150 to 250μg/m3Purple
Severe
contamination
>250μg/m3Brown
1)The alarm limit values specified here refer to an average
PM2.5 particle concentration over a period of 24hours and are
derived from the global air quality guidelines of the WHO (World
Health Organization). They are in no way legally binding and
have a merely orientating function.

EN 5
particle counter BQ21
Device depiction
1
2
3
4
5
6
9
8
7
10
No. Designation
1 Measuring funnel
2 USB port
3 Tripod thread
4ESC / button
5 Bluetooth button
6START / ENTER button
7 Power button
8SET / button
9 Colour display
10 Protective cap
Display
11
12
13
14
15
16
17
18
19
20
No. Designation
11 Battery indication
12 Start delay
Measurement duration
Measuring interval
13 Unit (number or µg/m3)
14 Indicator scale for particle contamination
15 Relative humidity
16 Ambient temperature
17 Size and number or mass concentration of particles
18 Measurement status
19 Date and time
20 Bluetooth symbol

6 EN
particle counter BQ21
Technical data
Parameter Value
Model BQ 21
Dimensions (lengthx
widthx height)
188mmx 52mmx 35mm
Weight 175g
Interfaces USB port for charger
Tripod thread 1/4 inch– 20UNC
Operating conditions 0°C to +40°C with 20 to 80%RH
Storage conditions -10°C to +50°C with 10 to 90%RH
Display 2 inch colour LCD with background
illumination
Functions Alarm function, °C/°F switching
Data storage 5,000 data records on internal memory
Energy
Battery Li-ion
Nominal voltage 3.7V
Capacity 1500mAh
Operating time approx. 5hours of continuous
operation
Charging time approx. 3.5hours with an alternating
current adapter
Automatic switch-off 3min, 15min or 30min
Temperature measurement
Temperature range 0°C to 50°C (32°F to 122°F)
Temperature accuracy ±1°C (2°F)
Humidity measurement
Humidity level
measuring range
0%RH to 100%RH
Humidity level
accuracy
±3.5% RH at 20% to 80% RH
±5% RH at 0% to 20% RH and 80%
to 100% RH
Parameter Value
Particle counters
Channels (detectable particle
sizes)
2.5μm, 10.0μm
Flow rate 0.9l/min controlled by internal
pump
Counter mode Concentration
Counting efficiency 100% for particles > 0.45µm
(according to ISO21501)
Zero count 1 count/5 minutes (according
to JISB9921)
Start delay 5seconds
Sample inlet Isokinetic probe
Calibration Using monodisperse latex
particles (PSL particles;
compliant with NIST)
Light source of the measuring
cell
Laser class1 (class 3R laser
enclosed in a way to prevent
tampering, 780nm, 1.5-3mW,
classified according to
DINEN60825-1 and the
Technical Regulations of the
Occupational Health and Safety
Ordinance on Artificial Optical
Radiation (TROS))
Mass concentration
Channels PM2.5 / PM10
Measuring range 0 to 2000μg/m³
Resolution 1μg/m³
Scope of delivery
• 1 x Particle counter BQ 21
• 1 x USB connecting cable
• 1 x Charger
• 1 x Stand with screw
• 1x Quick guide

EN 7
particle counter BQ21
Transport and storage
Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Transport
For transporting the device, use the bag included in the scope of
delivery in order to protect the device from external influences.
The supplied Li-ion batteries are subjects to the requirements of
dangerous goods legislation.
Observe the following when transporting or shipping Li-ion
batteries:
• The user may transport the batteries by road without any
additional requirements.
• If transport is carried out by third parties (e.g. air transport
or forwarding company), special requirements as to
packaging and labelling must be observed. This includes
consulting a dangerous goods specialist when preparing
the package.
– Only ship batteries if their housing is undamaged.
– Please also observe any other national regulations.
Storage
When the device is not being used, observe the following
storage conditions:
• dry and protected from frost and heat
• protected from dust and direct sunlight
• with a cover to protect it from invasive dust if necessary
• the storage temperature complies with the values specified
in the Technical data
Operation
Charging the battery
The battery is partially charged upon delivery to avoid damage
to the battery caused by a deep discharge.
Warning of electrical voltage
Before each use of the charger or power cable, check
for damages. If you notice damages, stop using the
charger or power cable!
Note
The battery can be damaged in case of improper
charging.
Never charge the battery at ambient temperatures
below 10°C or above 40°C.
The battery should be charged prior to initial start-up and when
the battery is low (battery indicator(11) flashes). To do so,
please proceed as follows:

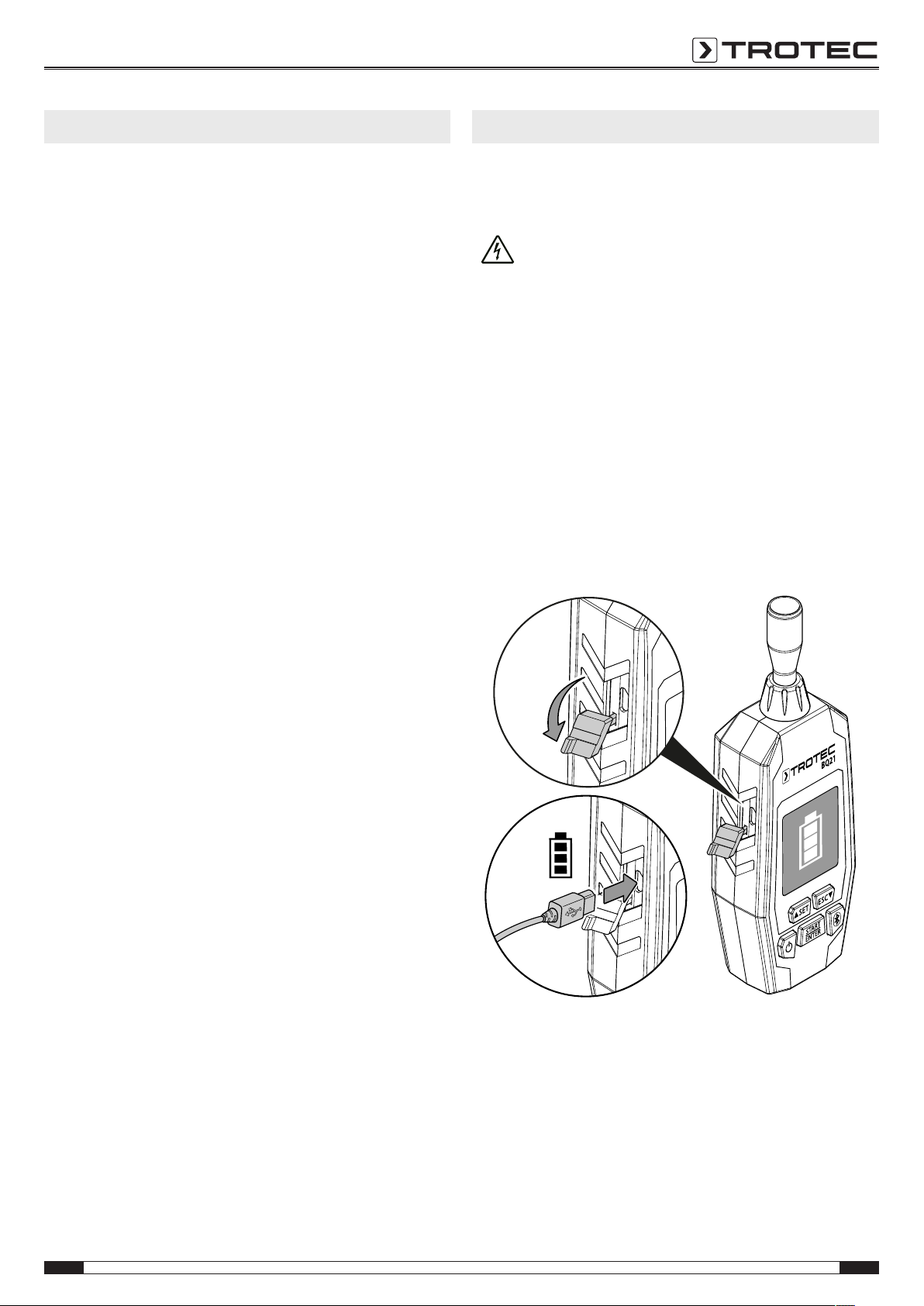

1. Plug the charger into a properly fused mains socket.
2. Connect the charging cable to the device's USB
connection.
I.
II.
ðA charging indicator appears on the display.

8 EN
particle counter BQ21
Mounting the stand (optional)
If required, you can fasten the stand to the tripod thread using
the screw included in the scope of delivery.
Switch-on
1. Press and hold the Power button(7) until the colour display
turns on.
ðAn acoustic signal is emitted.
ðThe device is ready for operation as soon as the start
screen is displayed.
Enable or disable Bluetooth
The device can be connected to another terminal device via
Bluetooth. In combination with the Trotec MultiMeasure Mobile
App, there are numerous possibilities for evaluating and
displaying the measured values.
1. Press the Bluetooth button(5) to activate the function.
ðThe Bluetooth symbol(20) is indicated.
2. Press the Bluetooth button(5) again to deactivate the
Bluetoothfunction.
ðThe Bluetooth symbol(20) goes out.
The Bluetooth function can also be activated and deactivated via
the system settings.
For more information on the download and the functionalities of
the app, please refer to the chapter Trotec MultiMeasure Mobile
app.
Carrying out a measurement
Info
Please note that moving from a cold area to a warm
area can lead to condensation forming on the device's
circuit board. This physical and unavoidable effect can
falsify the measurement. In this case, the display
shows either no measured values or they are incorrect.
Wait a few minutes until the device has become
adjusted to the changed conditions before carrying out
a measurement.
1. Remove the protective cap(10) from the measuring
funnel(1).
2. Point the device at the area to be measured.
3. Press the START button(6).
ðThe device counts down for approx.5s before starting
the measurement.
ð The measurement will run for the measuring interval set.
ðThe measurement results are displayed for each
measurement channel.

EN 9
particle counter BQ21
System settings

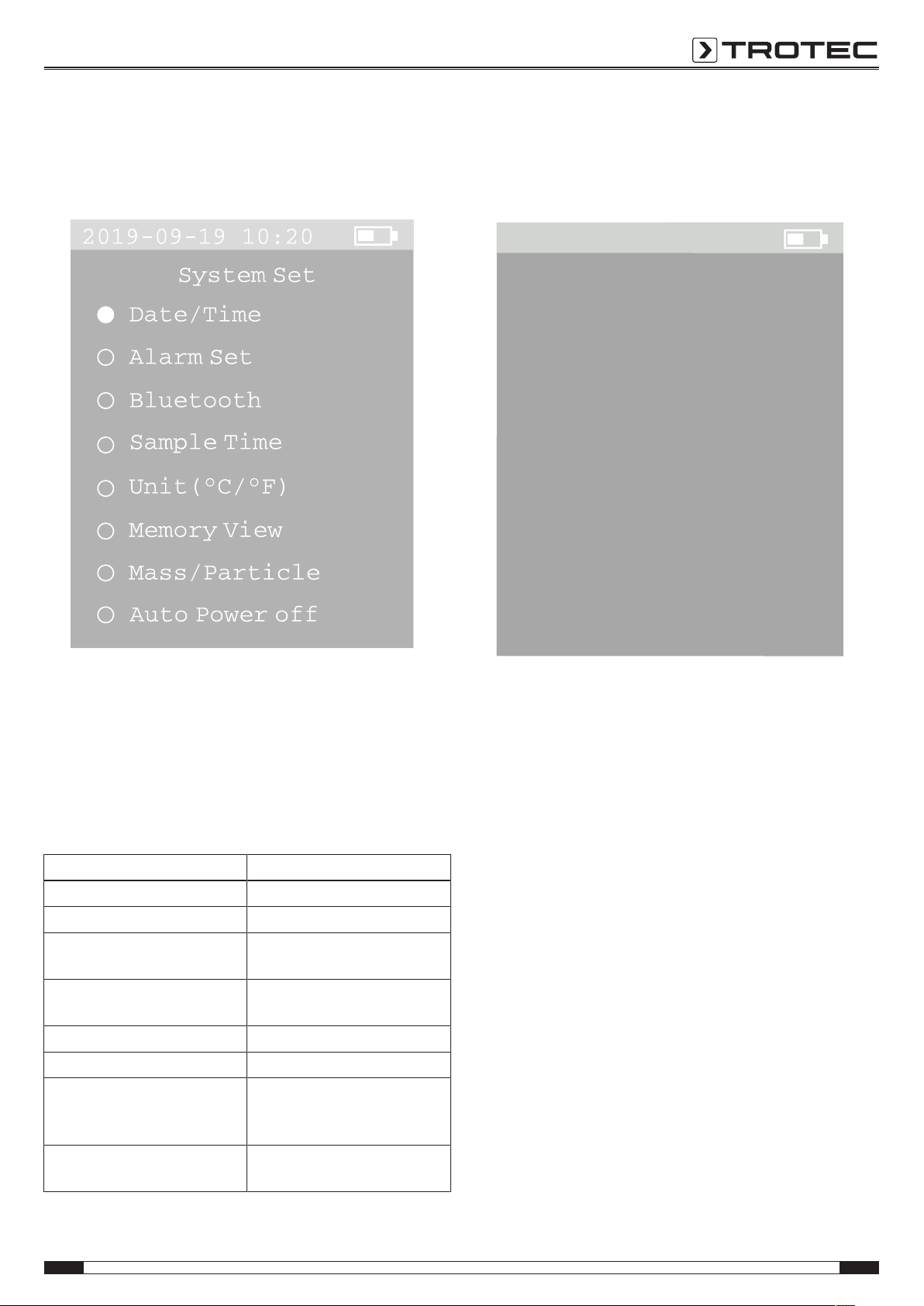

1. Press the SET button(8) for approx. 2s to open the system
settings.
ðThe following menu is displayed:
2. Press the SET(8) or ESC button(4) to select a submenu.
3. Press the START/ENTERbutton(6) to confirm the selection.
4. Press the SET(8) or ESC button(4) to make the desired
setting in the submenu.
5. Afterwards press the ESC button(4) for approx.2s to
leave the submenu or the system settings menu.
The following submenus offering further setting options can be
accessed from the main menu:
Submenu Function
Date/Time Set date and time
Alarm Set Enabling/disabling the alarm
Bluetooth Switching the Bluetooth
function on and off
Sample Time Setting the measurement
duration
Unit (°C / °F) Changing the temperature unit
Memory View Displaying the memory use
Mass/Particle Selecting the measuring mode
Particle (Particle) or mass
concentration (Mass)
Auto Power Off Setting the automatic switch-
off
Set date and time
You can set the date and time and select whether to display the
time in 24h or 12h format.
Please proceed as follows to set the date and time:
2019-09-19 10:20
Date 2016-09-19
24 Hour 16:24
Date Set
1. Press the SET(8) or ESC button(4) to set the year.
2. Press the STARTbutton(6) to confirm the selection.
3. Press the SET(8) or ESC button(4) to set the month.
4. Press the STARTbutton(6) to confirm the selection.
5. Press the SET(8) or ESC button(4) to set the day.
6. Press the STARTbutton(6) to confirm the selection.
7. Press the SET(8) or ESC button(4) to select either 24h or
A.M./P.M. format.
8. Press the STARTbutton(6) to confirm the selection.
9. Press the SET(8) or ESC button(4) to set the hours.
10. Press the STARTbutton(6) to confirm the selection.
11. Press the SET(8) or ESC button(4) to set the minutes.
12. Press the STARTbutton(6) to confirm the selection.
13. Press the ESC button(4) for approx.2s to return to the
system settings menu.
ðThe date and time settings are saved.

10 EN
particle counter BQ21
Enabling/disabling the alarm
2019-09-19 10:20
ON
OFF
Alarm Set
Please proceed as follows to enable or disable the alarm:
1. Press the SET(8) or ESC button(4) to select the ON (alarm
enabled) or OFF (alarm disabled) setting.
2. Press the ESC button(4) for approx.2s to return to the
system settings menu.
Switching the Bluetooth function on/off
Please proceed as follows to activate or deactivate Bluetooth via
the system settings:
1. Press the SET(8) or ESC button(4) to select the ON
(Bluetooth on) or OFF (Bluetooth off) setting.
2. Press the ESC button(4) for approx.2s to return to the
system settings menu.
ðThe Bluetooth symbol appears on the start screen.

EN 11
particle counter BQ21
Setting the measurement duration
You can select whether a measurement is to take 30s, 1min,
2min or 5min.
2019-09-19 10:20
30S
1 Min.
2 Min.
5 Min.
Sample Time
Please proceed as follows to set the measurement duration:
1. Press the SET(8) or ESC button(4) to select the desired
measurement duration.
2. Press the ESC button(4) for approx.2s to return to the
system settings menu.
Changing the temperature unit
You can select whether the temperature is to be displayed in °C
or °F.
2019-09-19 10:20
°C
°F
Unit Set
Please proceed as follows to change the temperature unit:
1. Press the SET(8) or ESC button(4) to switch between °C
and °F.
2. Press the ESC button(4) for approx.2s to return to the
system settings menu.

12 EN
particle counter BQ21
Displaying the memory use
Up to 5,000 data records can be stored on the device's internal
memory.
2019-09-19 10:35
2016-09-19 10:20
2016-09-19 10:23
2016-09-19 10:25
2016-09-19 10:30
2016-09-19 10:31
2016-09-19 10:32
2016-09-19 10:33
00001
Memory View
Please proceed as follows to display the memory use:
1. Press the SET(8) or ESC button(4) to select the desired
measurement.
2. Press the STARTbutton(6) to confirm the selection.
ðThe measurement values are shown on the display(9).
ðAlternatively, you can also select the different
measurements from this screen using the SET(8) and
ESC(4) buttons. The upper left-hand corner of the
display shows the corresponding number of the
respective measurement.
3. Press the ESC button(4) for approx. 2s to return to the
overview of measurements.
4. Press the ESC button(4) for approx.2s to return to the
system settings menu.
Info
You can delete the memory by first pressing the ESC
button(4) in the measurement screen and then
simultaneously pressing the Bluetooth button(5) until a
longer acoustic signal is emitted.
Selecting the measuring mode
You can select whether particles (Particle) are counted or the
mass concentration (Mass) of the particles is displayed.
2019-09-19 10:35
Mass
Particle
Mass/particle
Please proceed as follows to select the measuring mode:
1. Press the SET(8) or ESC button(4) to select either Particle
or Mass concentration measuring mode.
2. Press the ESC button(4) for approx.2s to return to the
system settings menu.

EN 13
particle counter BQ21
Setting the automatic switch-off
You can select whether the device switches off automatically
after 3, 10 or 30min. You can also Disable automatic switch-off.
2019-09-19 10:20
Disable
3MIN
10MIN
30MIN
Auto Pow off
Please proceed as follows to set the automatic switch-off:
1. Press the SET(8) or ESC button(4) to select the desired
switch-off time.
2. Press the ESC button(4) for approx.2s to return to the
system settings menu.
Switch-off
1. Press and hold the Power button(7) until the colour display
turns off.
ðAn acoustic signal is emitted.
ðThe device has switched itself off.
2. Put the protective cap(10) on the measuring funnel(1).
MultiMeasure Mobile app
MultiMeasure Mobile app
Install the Trotec MultiMeasure Mobile app on the terminal
device you want to use in combination with the device.
Info
The Trotec MultiMeasure Mobile app is only available
in the following languages: German, English, Spanish,
French, Italian, Dutch, Polish and Turkish. Please select
another language if your local language is not listed.
Please also observe that the translations of the
following screenshots in this chapter only serve for a
better understanding of the user.
Info
Some of the app's functions require access to your
location and an active Internet connection.
The app is available for download in the Google Play Store as
well as in Apple's app store and via the following link:
https://hub.trotec.com/?id=43083

14 EN
particle counter BQ21

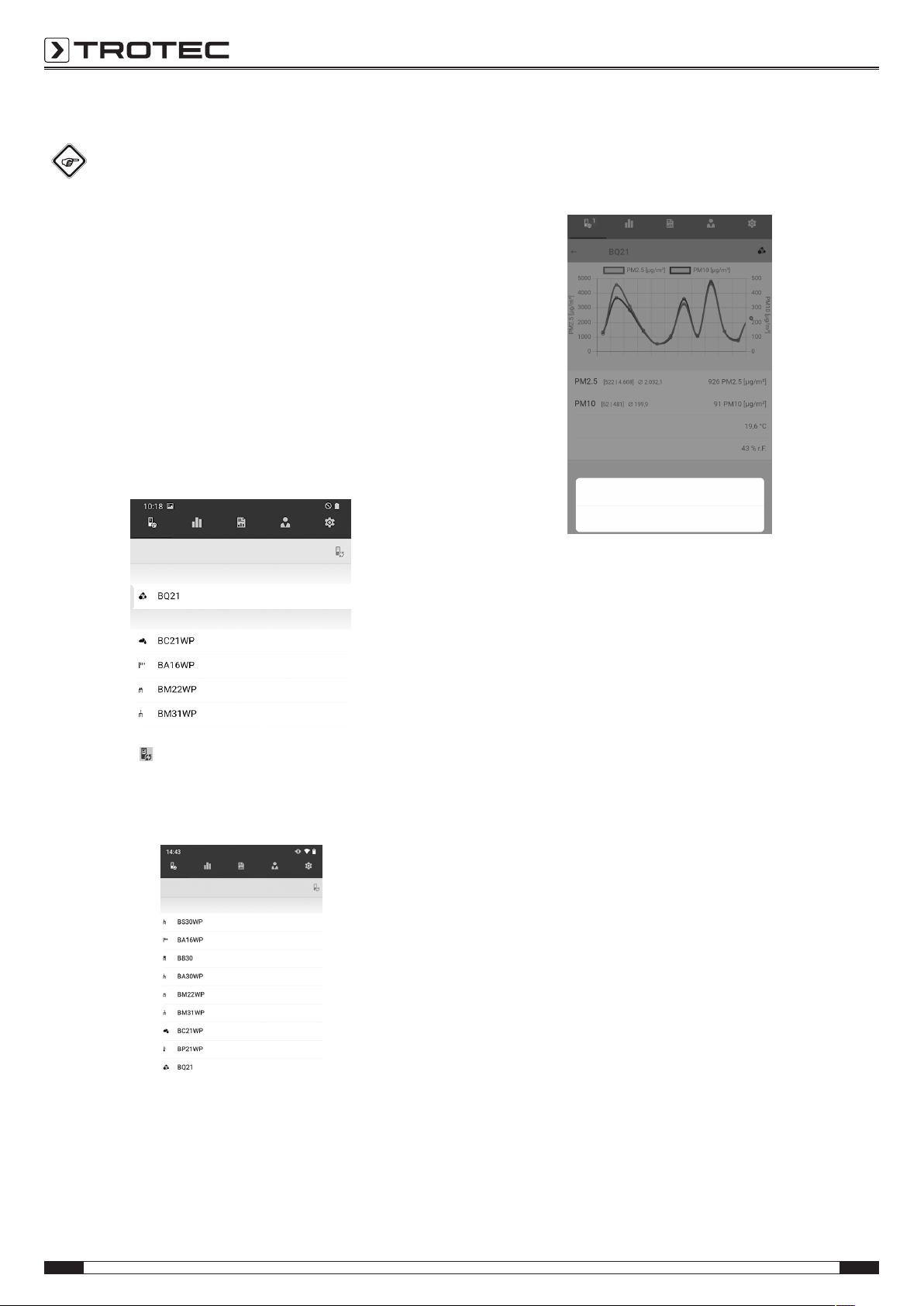

Connecting a measuring device
Info
The app can simultaneously be connected to several
different measuring devices or measuring devices of
the same type and also record several measurements
at the same time. The number of the sensors that can
be connected depends on the terminal device.
Proceed as follows to connect a measuring device to the
terminal device:
üThe Trotec MultiMeasure Mobile app is installed.
üThe Bluetooth function on your terminal device is activated.
1. Switch on the measuring device (see chapter Operation).
2. Make sure that the Bluetooth function is activated on the
measuring device.
3. Start the Trotec MultiMeasure Mobile app on the terminal
device.
ðA list of active and available sensors will be displayed.
Sensors Measurements Reports Customers
Available sensors
Active sensors nearby
Sensors
Settings
Connect
4. Press the button to refresh the display or if the desired
measuring device is not displayed.
ðThe terminal device now scans the surroundings for all
active sensors.
Sensors
Measurements
Reports
Customers
Settings
Sensors
Active sensors nearby
Connect
Connect
Connect
Connect
Connect
Connect
Connect
Connect
Connect
5. Select the desired sensor from the list of active sensors.
ðThe measuring device now connects to the terminal
device.
ðThe measured value indication appears on the display.
Measured value indication
After the sensor has been successfully connected to the
terminal device, the submenu for the measurement opens and a
request appears on whether the measurement is to be recorded.
Sensors
Measurements
Reports
Customers
Settings
Recording a
measurement
Do not record
The current measured value and the corresponding unit are
displayed in the measured value field.
After several measurements have been carried out, the lowest
value, highest value, average value and current value are
displayed below the measured value field.
Depending on the setting of the measuring mode on the device,
the measured values are indicated on the display:
• particle concentration in Number per litre (n/l) or
• mass concentration(µg/m3)
You can change the indication by changing the measuring mode
on the device (see chapter Selecting the measuring mode).
After starting the measurement, a continuous measurement (X/T
measurement) is carried out according to the preset
measurement duration. The detected measured values are
indicated in the measurement value display.
The measured values can be displayed numerically or
graphically. By tapping the measured value field, you can switch
between the display modes.

EN 15
particle counter BQ21
Particle concentration measuring mode
Graphic display:
Sensors Measurements Customers Settings
Temperature
Relative humidity
[0 | 26,6] Ø 25,3
[0 | 41,6] Ø 39,6
Reports
Numeric display:
Sensors Measurements Reports Customers Settings
Temperature
Relative humidity
[0 | 26,6] Ø 25,3
[0 | 41,6] Ø 39,6
Mass concentration measuring mode
Graphic display:
Sensors Measurements Reports Customers Settings
Temperature
Relative humidity
[0 | 26,6] Ø 25,3
[0 | 41,6] Ø 39,6
Numeric display:
Sensors Measurements Reports Customers Settings
Temperature
Relative humidity
[0 | 26,6] Ø 25,3
[0 | 41,6] Ø 39,6
Measuring menu
Press the button or the free area below the measurement
value display to open the measuring menu at the bottom of the
display. You can select from the following options in the
measuring menu:
• reset the min/max average value
• terminate the connection to the sensor
• view and modify sensor settings
• start recording of measured values

16 EN
particle counter BQ21

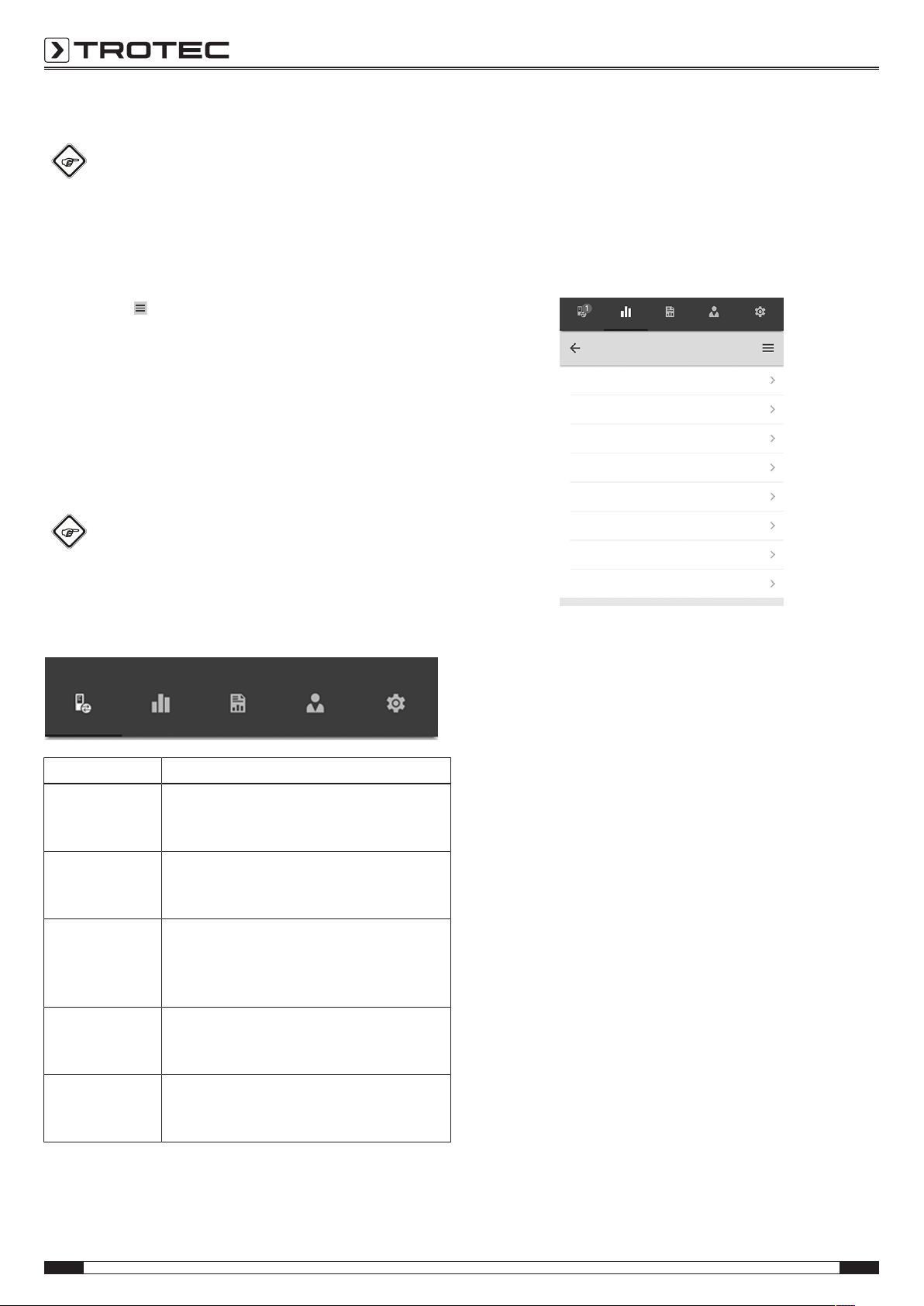

Recording measurements
Info
The minimum recording time is 30seconds. If a
measurement is interrupted or cancelled before this
minimum measurement time has elapsed, it cannot be
saved and may have to be performed again.
By actuating the Start Recordingbutton, the app starts
recording the measured values.
Instead of the button, the symbol of the active sensor flashes
to indicate that recording is in progress. You can press this
flashing symbol or the free area below the measurement value
display to open the context menu to stop recording.
You can choose from saving or discarding the record after
stopping recording.
Menu bar
The functions of the MultiMeasure Mobile App are controlled via
the menu bar from which the submenus can be accessed.
Info
Depending on the operating system of the terminal
device, the menu bar is located at the top (Android) or
bottom (IOS) of the display. In the further description
the displays of the Android system are shown as an
example.
Sensors Measurements Reports Customers Settings
Designation Function
SENSORS Opens the sensors overview. After
connecting to the selected sensor, the
submenu for the measurement opens.
MEASUREMENTS Opens the overview of saved measurements.
The measurement series can be opened and
edited.
REPORTS Opens the overview of saved reports. You
can generate on-site reports for the
measurements and link them to customer
data.
CUSTOMERS Opens the customers overview. You can
select existing customers or create new
customers.
SETTINGS Opens the settings menu. You can select the
language and– depending on the measuring
device– adjust different settings.
Submenu measurements
In the submenu MEASUREMENTS, the saved recordings of the
measured values are displayed along with date, name and
number of measuring points. Having selected the desired
recording, the context menu of the measurement opens.
Depending on the sensor type and the measuring mode,
different functionalities can be opened. The following menu
items are available:
Sensors Measurements Reports Customers Settings
test_a1
Basic data
Evaluations
Evaluation parameters
Values
Generate table
Generate graphic
Generate image overlay
Colour scaling
•Basic data:
Opens an overview of the data saved for the measurement.
•Evaluations:
Opens an overview of the evaluations generated for the
measurement (photos, graphics and tables).
•Evaluation parameters:
Opens a menu to select and deselect individual evaluation
parameters.
•Values:
Opens a tabular overview of all logged values for the
measurement.
•Generate table:
Creates a table containing the logged values of the
measurement and saves it as a*.CSVfile.
•Generate graphic:
Creates a graphic representation of the logged values and
saves it as a*.PNGfile.
•Generate image overlay:
Combines a background image with the representation of
the measured values.
•Colour scaling:
Allows you to adjust the colour display of the measured
values.

EN 17
particle counter BQ21
Submenu reports
The reports generated in the MultiMeasure Mobile app are short
reports providing a fast and simple documentation.
You can select from the following options in the REPORTS
submenu:
•Indicate existing reports:
Having selected a report, a submenu opens where you can
view and modify information.
Sensors Measurements Reports Customers Settings
Reports
03/26/2019
report 01
report 02
•Generate a new report:
Press the +button to open the input mask for a new
report.
Sensors
Measurements
Reports
Customers
Settings
Customer data
KUNDE
Last name
Import
NAME
SIGNATURE, CUSTOMER
MEASUREMENTS
Select
Select
Evaluations
Measurement duration submenu
Press the >button to open the Measurement duration submenu.
Reset min/ max/ Ø
X/Tmeasurement
Disconnect sensor
Sensor settings
Measurement duration
Start recording
In the Measurement duration submenu, the desired duration of
the recording is selected. You can choose between 30seconds,
1minute, 2minutes or5minutes. Press the button behind the
desired time to select it.
Measurement duration
Seconds
Minutes
Minutes
Minutes
Sensors Measurements Customers
Reports Settings
Info
The parameters set here can also be set directly in
theBQ21. The setting of the device from which the
measurement is started is always given priority.

18 EN
particle counter BQ21
Submenu customers
Using the integrated customer management function all of the
measured data can be assigned to specific clients via the app.
You can select from the following options in the CUSTOMERS
submenu:
•Call up an already created customer:
Having selected a report, a submenu opens where you can
view and modify information or directly start a
measurement.
Sensors Measurements Reports Customers Settings
Customers
test_a1
test_a2
•Creating a new customer:
Press the button to open the input mask for a new
customer. You can create a new customer set or import an
existing contact from the phone book of the terminal
device.
Sensors
Measurements
Reports
Customers
Settings
First name
FIRST NAME
Import from address book
Last name
NAME
ADDRESS
Address
PHONE
Phone
ADDITIONAL INFORMATION
Save
Submenu settings
In the submenu SETTINGS you can adjust different settings, e.g.
changing the menu language.
Note
The various sensors have slightly different setting
options.
Example: Submenu SETTINGS:
Sensors Measurements Reports Customers Settings
Settings
Language
English
Help
41
[Temperature °F]

EN 19
particle counter BQ21
Maintenance and repair
Charging the battery
The battery should be charged if the battery indicator(11) on
the device flashes or if the device can no longer be switched on
(see chapter Charging the battery).
Cleaning
Clean the device with a soft, damp and lint-free cloth. Make
sure that no moisture enters the housing. Do not use any
sprays, solvents, alcohol-based cleaning agents or abrasive
cleaners, but only clean water to moisten the cloth.
Repair
Do not modify the device or install any spare parts. For repairs
or device testing, contact the manufacturer.
Errors and faults
The device has been checked for proper functioning several
times during production. If malfunctions occur nonetheless,
check the device according to the following list.
Display segments are only faintly visible or flicker:
• The battery capacity is too low. Recharge the battery
without delay.
The device unexpectedly indicates an abnormally high or
inexplicable particle concentration at different locations in
the room:
• Check whether the device has been exposed to strong
sunlight or concentrated light from other (possibly artificial)
sources. This can affect the optical sensor and cause a
malfunction. For this reason, do not position the device in
exposed locations (e.g. on window sills).
• Switch the device off and restart it.
• If the device continues to indicate high values, use
another, comparable device (if possible) and check
whether it indicates a similar particle concentration.
– If the reference device, too, indicates abnormally high
values, it can be assumed that the particle
concentration is indeed significantly increased.
– If the reference device indicates a significantly lower or
negligible particle concentration while the affected
device continues to indicate excessive values after
another restart, the affected device must be repaired/
inspected.
Disposal
The icon with the crossed-out waste bin on waste
electrical or electronic equipment stipulates that this equipment
must not be disposed of with the household waste at the end of
its life. You will find collection points for free return of waste
electrical and electronic equipment in your vicinity. The
addresses can be obtained from your municipality or local
administration. You can also find out about other return options
that apply for many EU countries on the website
https://hub.trotec.com/?id=45090. Otherwise, please contact an
official recycling centre for electronic and electrical equipment
authorised for your country.
The separate collection of waste electrical and electronic
equipment aims to enable the re-use, recycling and other forms
of recovery of waste equipment as well as to prevent negative
effects for the environment and human health caused by the
disposal of hazardous substances potentially contained in the
equipment.
Li-Ion
In the European Union, batteries and accumulators must not be
treated as domestic waste, but must be disposed of
professionally in accordance with Directive 2006/66/EC of the
European Parliament and of the Council of 6September 2006
on batteries and accumulators. Please dispose of batteries and
accumulators according to the relevant legal requirements.

Trotec GmbH
Grebbener Str. 7
D-52525 Heinsberg
[phone]
[phone]
[email protected]
www.trotec.com
