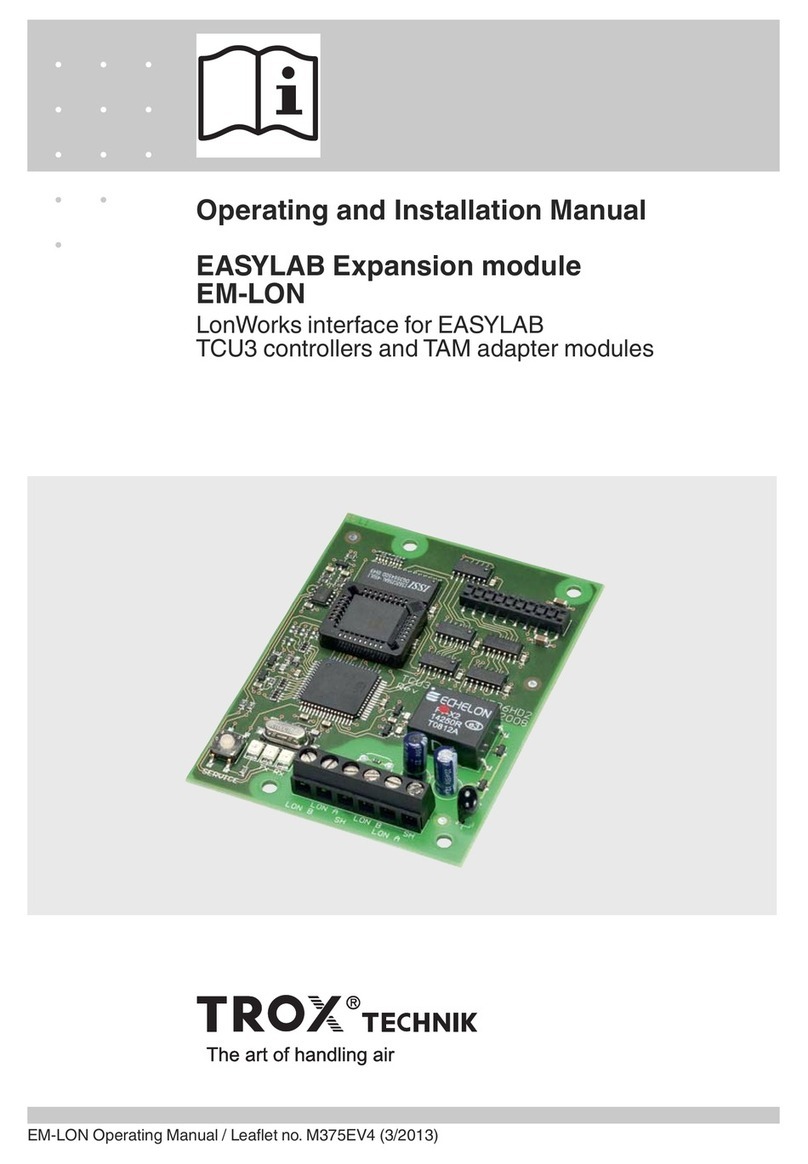

Trox EM-LON User manual

Expansion module
EM-LON
Installation manual GB/en
LonWorks interface
for EASYLAB controller TCU3 and adapter module TAM
Firmware from 4.0

M375EV4, 2, GB/en
Translation of the original
© TROX GmbH 2017
TROX GmbH
Heinrich-Trox-Platz
47504 Neukirchen-Vluyn
Germany
Telephone: [phone]
Fax: [phone]
email: [email protected]
Internet: www.troxtechnik.com
04/2018
Expansion module EM-LON
2

1 Important notes.......................................... 4
2Safety.......................................................... 5
Correct use.................................................. 5
Incorrect use................................................ 5
Safety signs................................................. 5
Residual risks............................................... 6
Risk of damage to property.......................... 6
System owner's responsibility...................... 6
Qualified staff............................................... 6
Environmental protection............................. 7
3 Structure and functional description....... 7
Functional description.................................. 8
4 Technical data............................................ 9
5 Delivery and storage................................ 10
Delivery check............................................ 10
Carrying the expansion module................. 10
Storage ..................................................... 10
6 Installation................................................ 11
7 Commissioning / Configuration............. 13
Required TCU3 software version .............. 13
8 Interface information............................... 13
9 Removal and disposal............................. 14
Safety notes regarding removal and dis-
posal.......................................................... 14
Removal..................................................... 14
Disposal..................................................... 14
Table of contents
Expansion module EM-LON 3

1 Important notes
Information on the installation manual
This manual enables operating or service personnel
to correctly install EM-LON and to use it safely and
efficiently.
This manual is intended for use by fitting and instal-
lation companies, in-house technicians, technical
staff, properly trained persons, and qualified electri-
cians or air conditioning technicians.
It is essential that these individuals read and fully
understand this manual before starting any work.
The basic prerequisite for safe working is to comply
with the safety notes and all instructions in this
manual.
The local regulations for health and safety at work
and general safety regulations also apply.
This manual must be given to the system owner
when handing over the system. The system owner
must include the manual with the system documen-
tation. The manual must be kept in a place that is
accessible at all times.
Illustrations in this manual are mainly for informa-
tion and may differ from the actual design.
Other applicable documentation
In addition to these instructions, the following docu-
ments apply:
Configuration manual for EM-LON
see www.troxtechnik.com
Documentation for EASYLAB controller TCU3
or adapter module TAM
Project-specific wiring documents, if any
TROX Technical Service
To ensure that your request is processed as quickly
as possible, please keep the following information
ready:
Product name
TROX order number
Delivery date
Brief description of the fault
Online www.troxtechnik.com
Phone [phone]
Limitation of liability
The information in this manual has been compiled
with reference to the applicable standards and
guidelines, the state of the art, and our expertise
and experience of many years.
The actual scope of delivery may differ from the
information in this manual for bespoke construc-
tions, additional order options or as a result of
recent technical changes.
The obligations agreed in the order, the general
terms and conditions, the manufacturer's terms of
delivery, and the legal regulations in effect at the
time the contract is signed shall apply.
Defects liability
For details regarding defects liability please refer to
Section VI, Warranty Claims, of the Delivery and
Payment Terms of TROX GmbH.
The Delivery and Payment Terms of TROX GmbH
are available at www.troxtechnik.com.
Important notes
Expansion module EM-LON4

2 Safety
Safety notes
Symbols are used in this manual to alert readers to
areas of potential hazard. Signal words express the
degree of the hazard.
DANGER!
Imminently hazardous situation which is due to
live components and which, if not avoided, will
result in death or serious injury due to electrical
voltage.
DANGER!
Imminently hazardous situation which, if not
avoided, will result in death or serious injury.
NOTICE!
Potentially hazardous situation which, if not
avoided, may result in property damage.
ENVIRONMENT!
Environmental pollution hazard.
Correct use
EM-LON provides a LonWorks interface for
EASYLAB base components.
Use the expansion module only for an EASYLAB
TCU3 controller or a TAM adapter module.
Incorrect use
Do not use the expansion module for areas of appli-
cation that are not described in this manual.
Do not use the expansion module:
outdoors
in wet areas
in areas with potentially explosive atmospheres
Residual risks
Failure of the network interface does not affect the
control function of the volume flow controller but
does affect data exchange with the central BMS.
Additional safety measures are required for safety-
relevant applications.
Safety signs
The following symbols and signs are usually found
in the work area. They apply to the very location
where they are found.
Electrical voltage
Location where a hazard due to electrical voltage
exists.
Earthing
This symbol marks all equipotential bonding con-
nection points on EM-LON.
Safety
Expansion module EM-LON 5

Residual risks
EM-LON is a state-of-the-art product and meets
current safety requirements. Residual risks cannot
be excluded, however, and you should proceed with
caution.
Always observe the safety notes provided in the fol-
lowing chapters of this manual to reduce health
hazards and prevent any hazardous situations.
Electric current
DANGER!
Danger of death due to electric current!
Danger of death if live components are touched.
– Switch off the supply voltage and secure it
against being switched on again before
working on the unit.
–Only skilled qualified electricians are allowed
to work on live components.
– Equipotential bonding is required.
Risk of damage to property
Temperature differences
NOTICE!
Risk of damage to property due to large tem-
perature differences
If EM-LON has been kept in an unheated area,
condensation may form and damage the elec-
tronic components beyond repair.
– Let EM-LON warm up to room temperature
before you install it.
Electrostatic charge
NOTICE!
Risk of damage to property due to electro-
static charge
Electrostatic charge can damage the electronics
of the expansion module.
– Before you remove the expansion module
from its protective wrapping, touch an equi-
potentially bonded metal surface, e.g. a
water pipe, for electrical earthing.
–Avoid skin contact with any components or
printed circuits on the expansion module or
the main PCB.
– Wear conductive footwear and antistatic
clothing.
System owner's responsibility
System owner's obligations
EM-LON is intended for commercial use. The
system owner is therefore subject to the legal obli-
gations of occupational health and safety regula-
tions.
In addition to the safety notes in this manual, the
applicable regulations for safety, accident preven-
tion and environmental protection must also be
complied with.
Qualified staff
Qualification
The work described in this manual has to be carried
out by individuals with the qualification, training,
knowledge and experience described below:
Network administrator
Network administrators design, install, configure
and maintain the IT infrastructure in companies or
organisations.
Safety
Expansion module EM-LON6

Skilled qualified electrician
Skilled qualified electricians are individuals who
have sufficient professional or technical training,
knowledge and actual experience to enable them to
work on electrical systems, understand any poten-
tial hazards related to the work under consideration,
and recognise and avoid any risks involved.
Any work has to be carried out by individuals who
can be expected to carry out their assigned duties
reliably. Individuals whose reaction time is delayed
due to alcohol, drugs or other medication must not
carry out any work.
Passwords
Webserver setup is password protected to prevent
unauthorised individuals from entering or changing
data.
Environmental protection
The following substances and materials which
are hazardous to the environment are used in
this product:
Electrical and electronic parts
Electrical and electronic parts may contain toxic
materials and substances. These parts have to be
disposed of separately from other waste, i.e. taken
to your local reuse and recycling centre or disposed
of by a specialist disposal company.
Batteries
Batteries contain toxic heavy metals. They are haz-
ardous waste and must be taken to a hazardous
waste collection point or disposed of by a specialist
company.
3 Structure and functional description
①
②
③④⑤
Fig. 1: EM-LON
①Plug base for connection with the EASYLAB
main PCB
②Terminals for the LonWorks network
③Indicator lights – data transfer; TX: Sending
data; RX: Receiving data
④Service pin push button indicator light
⑤Service pin
Status LEDs
There are two LEDs on the expansion module:
RX LED, green, blinking - Receiving data
TX LED, green, blinking - Sending data
Service pin LED, red - ???
Structure and functional description
Expansion module EM-LON 7

Functional description
Expansion module EM-LON provides the EASYLAB
base components (controller TCU3 or adapter
module TAM) with a LonWorks interface to link
rooms or individual volume flow controllers to the
central BMS.
The LonWorks interface supports the EASYLAB
room operating mode scheme. It is possible to set
operating mode defaults in order to control different
volume flow rates for daytime and night-time opera-
tion; it is also possible to increase or reduce the air
change rate by a certain amount (volume flow rate
setpoint change), e.g. to influence the room temper-
ature.
Using the LonWorks interface, an individual alarm
management system can be set up by consolidating
configurable EASYLAB alarms. The interface also
enables the transfer of actual operating values such
as volume flow rates and damper blade position for
a controller or for all controllers in a room.
The PCB contains terminals for the LonWorks net-
work and a service pin push button with indicator
light.
The expansion module is mounted with a header to
the main PCB of the EASYLAB base component.
To simplify diagnosis during commissioning the
expansion module is equipped with two additional
indicator lights that indicate data traffic on the Lon-
Works interface.
Standard network variables are used for the com-
munication within the LonWorks infrastructure.
These variables ensure unambiguous data
exchange between the nodes.
For commissioning, it is necessary to link the net-
work variables between the nodes (binding). Project
software is used to link the outputs of a node to the
inputs of other nodes.
Structure and functional description
Expansion module EM-LON8

4 Technical data
Item Value Unit
Dimensions (B x H x T) 78 × 15 × 100 mm
Supply voltage
(from the controller TCU3 or adapter module TAM)
5 V DC
Acceptable temperature range for storage -10 to +70 °C
Acceptable temperature range for operation –0 to +50 °C
Maximum humidity, no condensation (for storage and operation) < 90 %
Protection level IP 20
Communication interface
Physical interface LonWorks transceiver FTT-10A (Free Topology, Twisted
Pair)
Protocol LonWorks
Data transfer speed
Firmware version
4.0
Supported groups of devices
EASYLAB TCU3 / TAM from software version 7.0
Network connection
6 terminals for cable cross sections of 0.12 – 1.5 mm² (LON A, LON B and shielding, two of each)
Ä on page 11
Displays
Two status indicator lights, Rx and Tx,
Ä ‘Status LEDs ’ on page 7
Technical data
Expansion module EM-LON 9

5 Delivery and storage
Delivery check
Check delivered items immediately after arrival for
transport damage and completeness.
Properly dispose of packaging material.
A complete shipment includes:
EM-LON expansion module
Pin header
Mounting material
–Distance pieces (4x)
– Fixing screws with washers (4x)
Ground strap
Installation manual
Carrying the expansion module
If possible, take the module in its transport
packaging up to the installation location.
Do not remove the protective wrapping until
just before installation.
Storage
If you need to store EM-LON, make sure that the
following conditions apply:
Store in its original (antistatic) packaging.
Do not store outdoors.
Store in a dry and dust free place.
Store away from direct sunlight.
Do not expose to any aggressive media.
Avoid any mechanical impact.
Storage temperature: -10 °C to +70 °C.
Relative humidity: < 90 %, no condensation.
If a product has to be stored for more than
3 months, regularly check the general condi-
tion of all parts and of the packaging.
Delivery and storage
Expansion module EM-LON10
