True North TN19 User manual

INSTALLATION
AND OPERATING
INSTRUCTIONS
SAFETY NOTICE: If this stove
is not properly installed, a house
re may result. For your safety,
follow the installation instructions.
Contact local building or re officials
about restrictions and installation
inspection requirements in your
area.
121211-20 TN19 5055.551
TESTED and LISTED to CAN/ULC S627
AND UL 1482
Meets the Environmental Protection
Agency's July 1990 Particulate Emission
Standards
IMPORTANT:
THESE INSTRUCTIONS ARE TO
REMAIN WITH THE HOMEOWNER
SAVE THESE INSTRUCTIONS
MODEL: TN19
SERIES: A

2 TN19 121211-20
Contents
Safety and Maintenance...................................................................................... 3
Creosote ............................................................................................................... 4
Formation and Need for Removal.......................................................................................4
Chimney Fires..................................................................................................................... 4
In Case of a Chimney Fire ..................................................................................................4
Avoiding a Chimney Fire.....................................................................................................4
Operation.............................................................................................................. 5
Wood Selection...................................................................................................................5
How to Test Your Wood .......................................................................................................5
Lighting for the First Time ................................................................................................... 5
Lighting a Fire ..................................................................................................................... 5
Normal Operation ...............................................................................................................5
Restarting After Extended or Overnight Burns.................................................................... 5
More Wood, More Heat....................................................................................................... 6
Proper Draft ........................................................................................................................ 6
Ash Removal ......................................................................................................................6
Disposal of Ashes ...............................................................................................................6
Baffle Installation................................................................................................. 6
Installation ..........................................................................................................................6
Removal..............................................................................................................................6
Stove Dimensions................................................................................................ 7
Minimum Clearance to Combustibles .................................................................................7
Minimum Clearance to Combustibles with Optional Side Shields ...................................... 8
Residential ........................................................................................................... 9
Installation............................................................................................................ 9
Crate Removal....................................................................................................................9
Clearances .........................................................................................................................9
Chimney and Connector ..................................................................................................... 9
Double-Wall Connector.......................................................................................................9
Single-Wall Connector ........................................................................................................9
Procedure ...........................................................................................................................9
Through Wall Installations................................................................................................. 11
Mobile Home Installation .................................................................................. 12
Clearances ....................................................................................................................... 12
Chimney Installation ......................................................................................................... 12
Procedure:......................................................................................................................... 12
Listed Chimney and Chimney Connector ......................................................................... 13
Floor Protector................................................................................................... 14
Combustion Air.................................................................................................. 14
Optional Blower ................................................................................................. 15
Blower Installation.............................................................................................................15
Blower Operation.............................................................................................................. 15
Firebrick Installation.......................................................................................... 16
Optional Side Shield Installation...................................................................... 16
Appendix A......................................................................................................... 17
Troubleshooting ................................................................................................................17
Replacement Parts ........................................................................................................... 18
Label................................................................................................................................. 19

TN19 121211-20 3
Safety and
Maintenance
PLEASE SAVE THESE INSTRUCTIONS
Please read this entire manual before you install and
use your new room heater. Failure to follow instruc-
tions may result in property damage, bodily injury,
or even death.
NOTE: WE STRONGLY RECOMMEND THAT SMOKE
DETECTORS BE INSTALLED.
If smoke detectors have been previously installed, you
may notice that they are operating more frequently. This
may be due to curing of stove paint or fumes caused by
accidentally leaving the re door open.Do not disconnect
the detectors. Please consult the detectors installation
instructions.
SAFETY NOTICE: If this stove is not properly installed,
a house re may result. For your safety, follow the
installation instructions. Contact local building or re
officials about restrictions and installation inspection
requirements in you area.
WARNING: NEVER USE CHEMICALS OR ANY
OTHER VOLATILE LIQUID TO START A FIRE. DO
NOT BURN GARBAGE, OR FLAMMABLE FLUIDS
SUCH AS GASOLINE, NAPTHA, OR ENGINE OIL. WE
STRONGLYRECOMMENDTHATSMOKEDETECTORS
BE INSTALLED.
WARNING: ONLY USE MATERIALS SUPPLIED BY
MANUFACTURERWHEN DOING MAINTENANCE OR
REPLACEMENTS.
1. Burn only dry and well seasoned wood. The denser
or heavier the wood when dry, the greater its heat value.
This is why hardwoods are generally preferred. Green or
wet wood will cause a rapid buildup of creosote. If you
feel it is necessary to burn wet or unseasoned wood, do
so only with the air inlet set open enough to maintain a
good strong re and fairly high chimney temperatures.Do
not attempt to burn overnight using green wood or wet
wood. Wet wood can cause up to 25% drop in heater
output, as well as contributing signicantly to creosote
buildup.
2. Remove ashes frequently. Embers can roll out the
door and create a re hazard. Maintain a 1" minimum
ash base.
3. If glass becomes darkened through slow burning or
poor wood, it can readily be cleaned with replace glass
cleaner when stove is cold. Never scrape with an object
that might scratch the glass. The type and amount of
deposit on the glass is a good indication of the ue pipe
and chimney buildup. A light brown dusty deposit that is
easily wiped off usually indicates good combustion and
dry, well-seasoned wood and therefore relatively clean
pipes and chimney. On the other hand, a black greasy
deposit that is difficult to remove is a result of wet and
green wood and too slow a burning rate. This heavy
deposit is building up at least as quickly in the chimney.
4. DOOR GASKETS -The gasket used for theTrue North
(5/8" medium density berglass rope) requires only light
pressure to seal. This will prolong seal life. It is impor-
tant that the door seal be maintained in good condition.
Periodically inspect seals and replace if necessary. Follow
instructions included in the TN19.DGKIT kit obtainable
from your nearest True North dealer.
5. DOOR GLASS - Do not slam loading door or otherwise
impact glass. When closing door, make sure that no logs
protrude to impact the glass. If the glass gets cracked
or broken, it must be replaced before using the stove.
Replacement glass can be obtained from your dealer.
Use 9-1/4" x 13-1/4" x 5 mm. Ceramic glass only. Do not
substitute with any other type.
-To remove broken glass, undo the four retaining screws
and remove clamps, noting position for re-assembly.
Remove all particles of glass .Be careful as they are very
sharp. Install new glass complete with gasket. Replace
clamps and screws.
CAUTION:
- do not overtighten, tighten screws very carefully
- do not clean glass when hot
- do not use abrasive cleaners on glass
6. The area where boost combustion air enters the rebox
must be kept clear of excessive ash buildup which will
block air ow. This area is at the front of the rebox.
7. Do not store wood within heater installation clearances,
or within the space required for fuel loading and ash
removal. Keep the area around the heater clean and
free of loose combustibles, furniture, newspapers, etc.
8. Establish a routine for the fuel, woodburning and
ring technique. Check daily for creosote buildup until
experience shows how often you need to clean to be
safe.
9. Be aware that the hotter the re, the less creosote is
deposited. Weekly cleaning may be necessary in mild
weather, even though monthly cleaning is usually enough
in the coldest months when burning rates are higher.
10.Instruct all members of your family on the safe operation
of the heater. Ensure they have enough knowledge of the
entire system if they are expected to operate it. Stress the
section on chimney res and the importance of following
the steps outlined "In Case of Chimney Fire".

4 TN19 121211-20
Creosote
Formation and Need for Removal
When wood is burned slowly, it produces tar and other
organic vapours, which combine with expelled moisture
to form creosote. The creosote vapours condense in the
relatively cool chimney ue of a slow burning re. As a
result, creosote residue accumulates on the ue lining.
When ignited, this creosote makes an extremely hot re.
The chimney connector and chimney should be inspected
periodically (at least once every two months) during the
heating season to determine if a creosote buildup has
occurred.If creosote has accumulated (3 mm. or more), it
should be removed to reduce the risk of a chimney re.
1. Highest smoke densities occur when a large amount
of wood is added to a bed of hot coals and the air inlet is
closed. The heated wood generates smoke, but without
ample air, the smoke cannot burn. Smoke-free, clean
burning requires small fuel loads, two or three logs at
a time or 1/4 to 1/2 of fuel load and leaving the air inlet
relatively wide open, especially during the rst 10 to 30
minutes after each loading, when most of the smoke
generating reactions are occurring. After 30 minutes or
so, the air inlet can be turned down substantially without
excessive smoke generation. Wood coals create very
little creosote-producing smoke.
2. The cooler the surface over which the wood smoke is
passing, the more creosote will be condensed. Wet or
green wood contributes signicantly to creosote formation
as the excess moisture that is boiled off cools the re, mak-
ing it difficult for the tars and gases to ignite, thus creating
dense smoke and poor combustion. This moisture-laden
smoke cools the chimney, compounding the problem by
offering the smoke the ideal place to condense.
In summary, a certain amount of creosote is inevitable
and must be lived with.Regular inspection and cleaning is
the solution. The use of dry, seasoned wood and ample
combustion air will help to minimize the buildup.
Chimney Fires
The result of excessive creosote buildup is a chimney
re. Chimney res are dangerous. Chimney inside
temperatures can exceed 2000° F. This causes much
higher than normal temperatures in the chimney and on
its exterior surfaces. Thus ignition of nearby or touching
combustible material is more likely during a chimney re.
Proper clearances are critical during such a re.
Chimney res are easy to detect; they usually involve one
or more of the following:
-Flames and sparks shooting out of the top of the
chimney
-A roaring sound
-Vibration of the chimney
In Case of a Chimney Fire
1. Have a re extinguisher handy. Contact your local
municipal or provincial re authority for further information
on how to handle a chimney re. It is most important that
you have a clearly understood plan on how to handle a
chimney re.
2. Close air inlet on stove.
3. Call local re department.
4 Prepare to evacuate to ensure everyone's safety. Have
a well understood plan of action for evacuation. Have a
place outside where everyone is to meet.
5. After the chimney re is out, the chimney must be
cleaned and checked for stress and cracks before
starting another re. Also check combustibles around
the chimney and the roof. The services of a competent
or certied installer, (certied by the Wood Energy
Technical Training program (WETT) - in Canada, Hearth
Education Foundation (HEARTH) - in U.S.A.,) are strongly
recommended.
Avoiding a Chimney Fire
There are two ways to avoid chimney res:
1. Do not let creosote build up to a point where a chimney
re is possible.
2. Do not have res in the heater that may ignite chimney
res. These are hot res, such as when burning household
trash, cardboard, Christmas tree limbs, or even ordinary
fuel wood; (e.g.. with a full load on a hot bed of coals and
with the air inlet excessively open.)
3. The Chimney connector pipe should be disconnected
from stove to clean and inspect the chimney. Only if this
is not possible should you remove baffle assembly

TN19 121211-20 5
Operation
CAUTION: Hot while in operation. Keep children,
clothing and furniture away. Contact may cause
skin burns.
WARNING: Always keep loading door closed when
burning. This heater is not designed for open door
burning.
WARNING: No alteration or modication of the
combustion air control assembly is permitted. Any
tampering will void warranty and could be very
hazardous.
WARNING: Do not use grates or andirons to elevate
the fuel. Burn directly on the re bricks. Replace
broken or missing bricks. Failure to do so may create
a hazardous condition.
WARNING: Never use gasoline,gasoline-type lantern
fuel,kerosene,charcoal lighter uid,or similar liquids
to start or‘freshen up’a re in this heater. Keep all such
liquids well away from the heater while in use.
Your True North heater is designed for maximum overall
efficiency at a moderate ring rate. Overring is hazardous
and a waste of fuel. Too slow a burn contributes to
creosote buildup and lowers combustion efficiency.
Wood Selection
This heater is designed to burn natural wood only. Higher
efficiency and lower emissions generally result when
burning air-dried seasoned hardwoods, as compared to
softwoods or to green or freshly cut hardwoods.
Wood should be properly air dried (seasoned) for six
months or more. Wet or undried wood will cause the re
to smoulder and produce large amounts of creosote.
Wet wood also produces very little heat and tends to go
out often.
DO NOT BURN :
-Salt water wood * -Treated wood
-Wet or green wood -Coal/charcoal
-Garbage/Plastic * -Solvents
* These materials contain chlorides which will rapidly
destroy metal surfaces and void warranty.
Do not burn anything but wood. Other fuels, eg.charcoal,
can produce large amounts of carbon monoxide,
a tasteless, odourless gas that can kill. Under no
circumstances should you attempt to barbecue in this
heater.
How to Test Your Wood
Add a large piece of wood to the stove when it has a good
large bed of coals. It is dry if it is burning on more than
one side within one minute. It is damp if it turns black
and lights within three minutes. If it sizzles, hisses and
blackens without igniting in ve minutes it is soaked and
should not be burned.
Lighting for the First Time
Remove the retaing clip on the front of the baffle
before lighting for the rst time.
Curing of the Paint Finish
To achieve the best nish, the paint on your stove must
be baked on with small res. When burning your stove
for the rst 2-3 times it is very important that the room
be well ventilated. Open all windows and doors. Smoke
and fumes caused by the curing process may cause
discomfort to some individuals.
Lighting a Fire
1. Move air control lever to the left-most position (maximum
ring rate) and open door.
2. Place crumpled newspaper in the centre of the heater
and criss-cross with several pieces of dry kindling. Add
a few small pieces of dry wood on top.
3. Ignite the paper and close the door.
4. After the re has established itself, open the door and
add a few small logs. Close door.
5. Begin normal operation after a good coal base exists
and wood has charred.
Normal Operation
1. Set air control to a desired setting. If smoke pours
down across the glass (waterfall effect) this indicates you
have shut the control down too soon or you are using
too low a setting. The wide range control panel makes
nding the desired setting for your application easy. As
every home's heating needs vary (ie.insulation, windows,
climate, etc.) the proper setting can only be found by trial
and error and should be noted for future burns.
2. To refuel, adjust air control to high, and give the re
time to brighten. Open the door slowly, this will prevent
backpuffing.
3. Use wood of different shape, diameter and length (up
to 18"). Load your wood endwise and try to place the
logs so that the air can ow between them. Always use
dry wood.
4. Do not load fuel to a height or in such a manner that
would be hazardous when opening the door.
5. For extended or overnight burns, unsplit logs are
preferred. Remember to char the wood completely on
maximum setting before adjusting air control for overnight
burn.
Restarting After Extended or
Overnight Burns
1. Open door and rake hot embers towards the front of the
heater. Add a couple of dry, split logs on top of embers,
close door.
2. Adjust air control to high (control lever to the left) and
in just a few minutes, logs should begin burning.
3. After wood has charred, reset air control to desired
setting.

6 TN19 121211-20
Baffle Installation
The Chimney connector pipe should be disconnected
from stove to clean and inspect the chimney. Only if
this is not possible should you remove baffle assembly.
DO NOT OPERATE WITH BAFFLE ASSEMBLY OR
INSULATION REMOVED.
Installation
1. Insert one half of baffle board above the two back
baffle tubes inside the rebox, slide over to the right and
allow to rest on the baffle air assembly.
2. Ensure that the second half is inserted to allow the
two cuts in the baffle boards to overlap. Insert the other
half of the baffle board and allow to rest on the left side
baffle air assembly.
3. With the holesd facing forward and the notch to the
left side, insert a baffle tube into the hole in the baffle
air channel on the right at an angle and then raise and
insert into the opposite hole on the left side baffle air
assembly.
4. With a set of vise-grips, grasp the baffle tube on the left,
slightly away from the baffle air assembly.While squeezing
tightly, use a hammer to hit the pliers and push the tube
to the left to engage the tube in the hole on the left.
5. Repeat steps #3 & #4 with the remaining baffle tube.
6. Slide the baffle board halfs together and then separate
slightly to ensure there are no gaps on either side of the
baffle board.
7. Push baffle board tight against the rear of the
rebox.
Removal
1. With a set of vise-grips, grasp the front baffle tube
on the right, slightly away from the baffle air assembly.
While squeezing tightly, use a hammer to hit the pliers
and pull the tube to the right to disengage the tube from
the hole on the left. Allow the tube to hang freely from
the hole on the right.
2 Repeat step #1 for second baffle tube.
3. Grasp the front edge of the left half of the baffle board
and tilt up at the back.Guide the board down and through
the door opening.
4. Grasp the right half of the baffle board the slide over
to the left.
5. Tilt the back of the board up and guide it down and
through the door opening.
6. Reverse the process to replace the baffle assembly.
4. To achieve maximum ring rate, set air control lever to
the left-most position. Do not use this setting other than
for starting or preheating fresh fuel loads.
DO NOT OVERFIRE THIS HEATER: Attempts to
achieve heat output rates that exceed heater design
specications can result in permanent damage to
the heater and chimney.
More Wood, More Heat
Seasoned wood has approximately 7500 BTU's per pound.
If you put 10 pounds of wood in your stove for an eight
hour burn the wood will be producing 9375 BTU's per hour.
(7500 BTU x 10 lbs./8hrs.=9375 BTU's per hr.) If you put
20 lbs of wood in your stove for eight hour burn you will
get 18,750 BTU's per hr. (7500 BTU x 20lbs./8hr.=18,750
BTU's per hr.). This is only an example and is based on
100% efficiency. In reality, your stove should perform up
to 82% efficiency.
Experience will give you the right settings for proper
combustion and efficient burning. Remember the correct
air inlet setting is affected by variables such as type of
wood, outside temperature, chimney size and weather
conditions. With practice, you will become procient in
operating your heater and will obtain the performance
for which it was designed.
Proper Draft
1. Draft is the force which moves air from the appliance up
through the chimney.The amount of draft in your chimney
depends on the length of the chimney, local geography,
nearby obstructions and other factors.
2. Too much draft may cause excessive temperatures in
the appliance. An uncontrollable burn or a glowing red
stove part or chimney indicates excessive draft.
3. Inadequate draft may cause backpuffing into the room
and plugging of the chimney.Smoke leaking into the room
through appliance and chimney connector joints indicates
inadequate draft.
Ash Removal
Caution: Ashes are to be removed only when the heater
is cold. Whenever ashes get 3 to 4 inches deep in your
rebox, and when re has burned down and cooled,
remove excess ashes. Leave an ash bed approximately
1" (25 mm) deep on the rebox bottom to help maintain
a hot charcoal bed.
Disposal of Ashes
Ashes should be placed in a metal container with a tight
tting lid. The closed container of ashes should be placed
outside on a non-combustible oor or on the ground,
well away from all combustible materials, pending nal
disposal. If the ashes are disposed of by burial in soil or
otherwise locally dispersed, they should be retained in
closed container until all cinders have thoroughly cooled.
Other waste should not be placed in this container.

TN19 121211-20 7

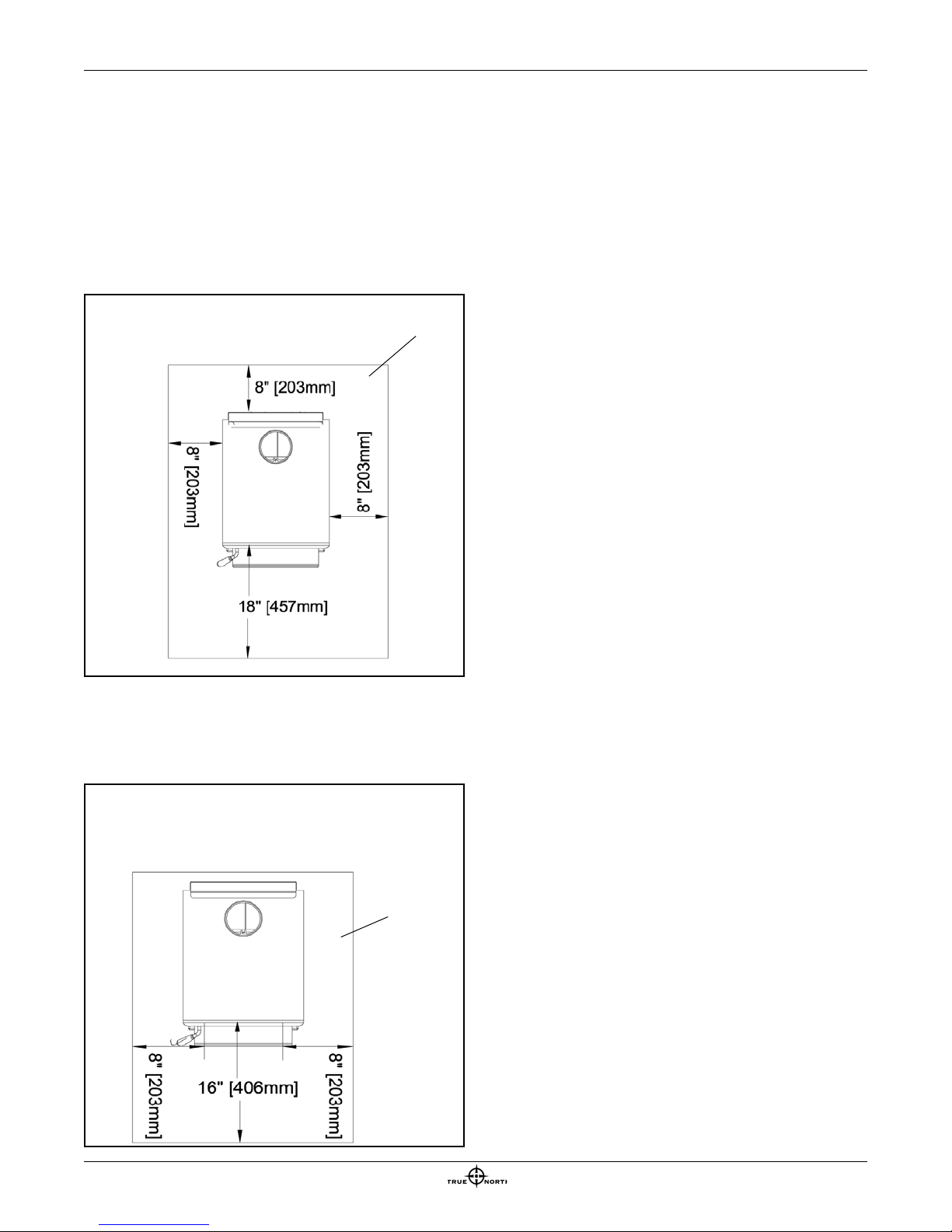

Stove Dimensions
28 7/8”
23 7/8”
27 7/8”
27 7/8”
23 7/8”
28 7/8”
26 1/4”
26 1/4”
19 7/8” 19 7/8”
6 1/2” 6 1/2”
FIG. #1
16 1/2” 10”
30”
20”
6 1/2”
13”
30”
20”
22 1/2”
22 1/2”
12”
12”
12”
12”
16 1/2” 10”
37”
27”
29 1/2”
19”
19”
Double Wall Connector - Mobile Home
Single Wall Connector - Residential
Minimum Clearance to Combustibles
Double Wall Connector - Residential

8 TN19 121211-20
16 1/2”
10”
16”
26”
6 1/2”
13”
26”
16”
6 1/2”
13”
20” 9 1/2”
9 1/2”
26”
16”
17 1/2” 7”
7”
23 1/2” 13”
13”
16 1/2” 10”
30”
20”
16”
Double Wall Connector - Mobile Home
Alcove: Min. Height 7 1/2'
Max. Depth 3'
Double Wall Connector - Residential
Single Wall Connector - Residential
Minimum Clearance to Combustibles with Optional Side Shields
(Part# TRNO.19SSA)
FIG. #2

TN19 121211-20 9
Residential
Installation
Warning: Under no circumstances is this heater to
be installed in a makeshift or "temporary" manner.
It may be red only after the following conditions
have been met.
* DO NOT ATTEMPT TO CONNECT THIS HEATER TO
ANY AIR DISTRIBUTION DUCT.
* The services of competent installer are strongly
recommended.
* Outside combustion air or fresh air into the room may
be required in your area, consult local building codes
(see Combustion Air section).
* Remove the retaing clip on the front of the baffle
before lighting for the rst time
Crate Removal
1) Carefully remove wood top and supports.
2) Remove plastic cover.
Clearances
1. This heater may be installed using a single-wall
connector (smoke pipe) or listed double-wall connector
(see Mobile Home installation).
2. Clearances to combustible surfaces and materials us-
ing single-wall connector are shown in Figure #1, page
7 and Fig #2, Page 8.
Clearances may be reduced with various heat insulating
materials. Consult local re codes and authorities for ap-
proval.
3. Alternately, for close clearances, use a listed double-wall
connector. See Figure #1, page 7 and Fig #2, Page 8.
Chimney and Connector
Connect to a listed chimney or a chimney suitable for
use with solid fuel that is lined and in good condition and
meets local building codes.The chimney ue size should
be the same as the stove outlet for optimal performance.
Reducing or increasing the ue size may adversely affect
stove performance. Chimney ue exit is to be 3 feet (1 m.)
above roof and two feet (0.6 m.) above highest projection
within 10 feet (3 m.). The installation must meet all local
codes. Do not connect this unit to a chimney ue
serving another appliance. Minimum system height is
12 feet (3.0 m.) (measured from top of appliance).
Double-Wall Connector
- Use a listed double-wall connector.
- Install all components to the chimney connector manu-
facturer's installation requirements.
Single-Wall Connector
Smoke pipe must be:
* as short and straight as possible, use six inch diameter,
24 gauge black pipe that is clean and in new condition.
* secured at every joint and collar with 3 sheet metal
screws.
* installed with the crimped or male ends pointing down.
This will carry any liquid creosote or condensation back
into the stove.
* The chimney connector shall not pass through an at-
tic, roof space, closet or similar concealed space, oor,
or ceiling. Where passage through a wall, or partition
of combustible material is desired, the installation shall
conform to CAN/CSA-B365, Installation Code for Solid-
Fuel-Burning Appliances and Equipment.
Procedure
1. If a listed chimney and double-wall connector is to be
connected to the stove, install all components to the chim-
ney manufacturer's installation requirements. (Outside
combustion air may be required, consult local building
codes. See Combustion Air section.)
2. If it is desirable to use smoke pipe in conjunction with
the insulated chimney, see step 4.
3. If a roof or ceiling support is used in the installation,
you will nd the chimney manufacturer's complete instruc-
tions packed with the roof support.
4. To start installing smoke pipe (chimney connector),
slip crimped edge of the pipe inside the stove collar.
Use holes provided in collar to secure pipe with three
screws.
5. Install the remaining lengths of pipe one on top of the
other to the nished height of the chimney connector and
secure to each other.
ATTENTION: VAPOUR BARRIER MUST BE
MAINTAINED WHEREVER CHIMNEY OR OTHER
COMPONENTS PENETRATE TO THE EXTERIOR OF
THE STRUCTURE. SEE LOCAL BUILDING CODES
FOR PROPER AND APPROVED METHODS OF
MAINTAINING VAPOUR BARRIER.
NATIONAL
FIREPLACE
INSTITUTE
CERTIFIED
www.nficertified.org
We recommend that our products be
installed and serviced by professionals
who are certified in the U.S. by the
National Fireplace Institute (NFI)
or in Canada by Wood
Energy Technical
Training (WETT)
Wood Energy
Technical Training
www.wettinc.ca

10 TN19 121211-20
FIG. #3
Chimney
* 4" diameter air inlet with rodent screen
* If the crawl space is well ventilated
it is not necessary to extend air inlet to
outside
Concrete cap
Chimney Connector
Fireclay Flue liner
57 3/4" (1442 mm)
Minimum
Minimum 7' (2.1m.)
Ceiling Height
Non-combustible
oor protector
48"
(1219 mm)
Hooded vent or
90 elbow turned down
Ensure that the Masonry chimney
meets all National Fire Protection
Association and local building codes.
Have the chimney cleaned and
inspected by a professional to ensure
there are no cracks, weak mortar or
other signs of deterioration. See pipe
manufactuers installation instructions
for further information
Approved Through
Wall Installation

TN19 121211-20 11
Through Wall Installations System A. Minimum 3.5 in. (90 mm) thick brick
masonry wall framed into combustible wall with a
minimum of 12 in. (305 mm) brick separation from
clay liner to combustibles. Fireclay liner (ASTM C
315, Standard Specications for Clay Fire Linings, or
equivalent), minimum 5/8 in. (16 mm) wall thickness,
shall run from outer surface of brick wall to, but not
beyond, the inner surface of chimney ue liner and
shall be rmly cemented in place.
Clearance: 12 in. (305 mm)
System B. Solid-Insulated, listed factory-built chimney
length of the same inside diameter as the chimney con-
nector and having 1 in. (25.4 mm) or more of insulation
with a minimum 9 in. (229 mm) air space between the
outer wall of the chimney length and combustibles.
The inner end of the chimney length shall be ush
with the inside of the masonry chimney ue and shall be
sealed to the ue and to the brick masonry penetration
with non-water-soluble refractory cement.Supports shall
be securely fastened to wall surfaces on all sides.
Fasteners between supports and the chimney length
shall not penetrate the chimney liner.
Clearance: 9 in. (229 mm)
System C. Sheet steel chimney connector, minimum
24 gauge [0.024 in. (0.61 mm)] in thickness, with a
ventilated thimble, minimum 24 gauge [0.024 in. (0.61
mm)] in thickness, having two 1 in. (25.4 mm) air chan-
nels, separated from combustibles by a minimum of 6
in. (152 mm) of glass ber insulation. Opening shall
be covered, and thimble supported with a sheet steel
support, minimum 24 gauge [0.024 in. (0.61 mm))] in
thickness.
Supports shall be securely fastened to wall surfaces
on all sides and shall be sized to t and hold chimney
section.Fasteners used to secure chimney section shall
not penetrate chimney ue liner.
Clearance: 6 in. (152 mm)
System D. Solid-Insulated, listed factory-built chimney
length with an inside diameter 2 in. (51 mm) larger
than the chimney connector and having 1 in. (25.4mm)
or more of insulation, serving as a pass-through for a
single-wall sheet steel chimney connector of minimum
24 gauge [0.024 in. (0.61 mm)] thickness, with a mini-
mum 2 in. (51 mm) air space between the outer wall
of chimney section and combustibles.
Minimum length of chimney section shall be 12 in.(305
mm).Chimney section concentric with and spaced 1 in.
(25.4 mm) away from connector by means of sheet steel
support plates on both ends of chimney section. Open-
ing shall be covered, and chimney section supported
on both sides with sheet steel supports of minimum 24
gauge [0.024 in. (0.61 mm)] thickness.
Supports shall be securely fastened to wall surfaces
on all sides and shall be sized to t and hold chimney
section.Fasteners used to secure chimney section shall
not penetrate chimney ue liner.
Clearance: 2 in. (51 mm)
SYSTEM A
SYSTEM B
SYSTEM C
SYSTEM D

12 TN19 121211-20
Note: See "Combustion Air" section on page 9.
1. Position stove and oor protection with hole for com-
bustion air in accordance with the clearances as stated
on the label and in Figure #1. or #2
2. Mark the position for the hole in the ceiling and roof
by using a string and plumb-bob.
3. Check that the intended location will not interfere with
oor joists, ceiling joists or rafters before proceeding
further.
4. Cut a hole in the ceiling and roof to suit the chimney
system and frame in the sides. The chimney support is
mounted to the framing.
5. Assemble chimney sections so the nished length is
resting on the support and protruding through the roof.
Avoid having joints between ceiling and roof. Install
radiation shield. Assemble ashing and storm collar and
be sure to maintain the vapour barrier at this point. (Seal
securely.) Attach rain cap and check ashing for leaks.
6. Install connector as per manufacturer's instructions.
7. Attach stove to oor using two 1/4" x 1" or longer lag
screws.
8. If installing a leg model, insert anchor tabs into slot
on bottom of two rear legs and secure to oor with 1/4"
x 1" or longer lag screws. Fig. #3a
Mobile Home
Installation
Warning: Under no circumstances is this heater to
be installed in a makeshift or "temporary" manner. It
may be red only after the following conditions have
been met.
- DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE
SERVING ANOTHER APPLIANCE.
- DO NOT INSTALL IN A SLEEPING ROOM.
- Outside air supply must be used for Mobile Home
instalations see Figure #3, Page 11.
Clearances
This heater must be installed with listed double-wall connec-
tor and compatible chimney system listed on page 11.
Clearances to combustible surfaces and materials are
shown in Figure #1, page 6 and Fig #2, Page 7.
Clearances may be reduced with various heat insulating
materials. Consult local re codes and authorities for
approval.
Chimney Installation
This room heater should be connected to a 6" factory
built chimney conforming to CAN/ULC-S629, Stand-
ard for 650 degrees Celsius factory built chimneys.
Minimum chimney height from oor is 12' (3.66m) or
as per chimney manufacturers roof clearances.
NOTE: Longer chimney lengths and different pitch ashings
may be used. All other parts listed must be installed (see
Figure #4, Page 13). Install all components to the connec-
tor or chimney manufacturer's installation requirements.
Consult your chimney supplier for installation advice.
Procedure:
WARNING:THE STRUCTURAL INTEGRITY OFTHE MOBILE
HOME FLOOR, WALL AND CEILING/ROOF MUST BE
MAINTAINED.
NATIONAL
FIREPLACE
INSTITUTE
CERTIFIED
www.nficertified.org
We recommend that our products be
installed and serviced by professionals
who are certified in the U.S. by the
National Fireplace Institute (NFI)
or in Canada by Wood
Energy Technical
Training (WETT)
Wood Energy
Technical Training
www.wettinc.ca
FIG. #3a

TN19 121211-20 13
FIG. #4 Chimney
Roof ashing
Storm collar
* 4" diameter air inlet with rodent
screen
* If the crawl space is well ventilated
it is not necessary to extend air inlet to
outside
Spark arrestor
rain cap
Radiation shield
Chimney Connector
Chimney Support
57 3/4" (1426 mm)
Minimum
Minimum 7' (2.1m.)
Ceiling Height
Non-combustible
oor protector
48"
(1219 mm)
3' (914 mm)
Minimum
Hooded vent or
90 elbow turned down
The chimney may incorporate
an offset. To do this safely, all
sections of listed connector,
offset elbows and chimney
section must be screwed to-
gether by at least three sheet
metal screws per joint. The
chimney must be suitably
supported by the chimney
manufacturer's listed offset
support.
Listed Chimney and Chimney Connector
This appliance, when installed in a Mobile Home, must be installed with:
A. One of the following 6" double-wall connector systems:
1. Security Model DL or DC 5. Metal Fab Model DW
2. Pro-Jet H.T.3000 6. Ameri-Tec Model DBSP
3. Energy Vent 7. Industrial Chimney Model Excel Ultra-Black
4. Selkirk Metalbestos Model DS 8. Simpson Dura-Vent Model DVL
B. As well as one of the following compatible chimney systems - All parts 6":
CANADA ONLY: Security Pro-Jet ICC Selkirk Energy Vent
S2100 H.T.3000 Excel 2100 Sentinal CF Commander 5000
Ceiling support XSF FCS SF CF-CSP CH6LCS
Rafter radiation shield RRS
3' Chimney length XL3 SL3 L3 CF-36SL CH636
2' Chimney length XL2 SL2 L2 CF-24 CH624
Roof ashing XFA RF17 FA CF-FRA CH6TCF
Storm collar XSC SC SC CF-SC CH6SC
Spark arrestor rain cap XCPE RCSA CPE CF-SA,CT CH6RC, SS
USA ONLY: Security Pro-Jet Security Pro-Jet Metalbestos MetalFab Ameritech ICC Simpson Dura-Vent
S2100 H.T.3000 ASHT HT3103 SSII 2100 TEC HS Excel 103HT Dura/Plus Dura Tech
Ceiling support XSF FCS SF FCS T-SFA TGCSP 6PL-CS RDS/SQS SDP-SB SDP-SB
Rafter radiation shield RRS RRS T-JSMH TGRS
3' Chimney length XL3 SL3 L3 SL3 T-36 TG3 HS 36 CL48 SDP-P SDT-P
2' Chimney length XL2 SL2 L2 SL2 T-24 TG2 HS 24 CL24 SDP-P SDT-P
Roof ashing XFA RF17 FA RF T-SFA TGF 8RFFU VF SDP-F SDT-F
Storm collar XSC SC SC SC T-SC TGSC PL-ASCG SC SDP-SC SDT-SC
Spark arrestor rain cap XCPE RCSA CPE RCSA T-CT TGC 6PL-MPC RCS SDP-C SDT-C

14 TN19 121211-20
Canada Only
Floor Protector
The stove may be installed on a combustible oor provided
noncombustible ember protection is used.
This protection must extend as follows:
In Canada: 18" (457 mm) on the ring side and 8" (203
mm) to the other sides. See Figure #4, below.
Combustion Air
Intake or combustion air must be supplied to the stove
in one of two ways. Consult your local building code or
CAN/CSA-B365, Installation Code for Solid-Fuel-Burning
Appliances and Equipment before proceeding.
1. Outside air supply - (Necessary for mobile home
installation, optional for residential installation.) To draw
outside air through the oor, leave the 4" knockout or
square cover plate in the rear of the pedestal in place.(On
Leg Model attach pipe to hole on underside of unit)
Cut or drill a 4" diameter or larger hole in the oor
anywhere inside the perimeter of the pedestal base.
Cover the hole with a 4" x 4" (100 mm x 100 mm) rodent
screen and staple/nail in place.
This hole must get its air from a ventilated crawl space
or be extended with duct to the outdoors (see Figure #3,
Page 10 or Fig. #4, Page 13). The use of outside com-
bustion air for residential installation requires the unit to
be secured to the structure to prevent dislodging of the
air duct. Outside air may also be ducted from outside
through the 4" diameter hole in the rear of the pedestal
enclosure.
Note: This unit is not designed to be operated with the
ring door open. In addition to the obvious hazard of
sparks landing on combustibles, an open re door will
cause the heater to draw air from the living space and
possibly cause suffocation.
2. Room air supply - Remove the 4" knockout or cover
plate from the rear of the pedestal enclosure. The stove
will now draw its air from the room through this opening
and into the rebox intake. (This step not applicable to
Leg Model)
Note: The living space around the heater must be well
ventilated with good air circulation. Anything that may
cause a negative pressure can cause gases or fumes
to be pulled into the living area. During extremely cold
weather, and especially when burning at very slow rates,
the upper parts of the exposed chimney may ice up,
partially blocking the ue gases. If blockage occurs, ue
gases may enter living space.
U.S.A. Only
Non-combustible
oor protector
FIG. #5
FIG. #6
In USA: 16" (406 mm) to the front and 8" (203 mm) to the
sides of the fuel loading door opening. See Figure #5,
below. This protection is also required under the chimney
connector and 2" (51 mm) beyond each side.
Minimum Width - 35 7/8"
Minimum Overall Depth - 49 7/8"
Non-combustible
oor protector
Minimum Width - 28 1/4"
Minimum Overall Depth - 39 7/8"

TN19 121211-20 15
Optional Blower
The optional blower kit (kit #TRNO.19BLOWA) is equipped
with a three prong power cord and may be installed at any
time. Route power supply cord away from heater.
Electrical rating: 115 volts A.C.-1.02 amps.
Blower Installation
1. Remove the 4 screws and cover plate from the rear
shield on the stove. Fig.#8
2. Using the same 4 screws, place the blower into the
opening in the rear shield with the blower outlet pointing
up. Fig. #8
3. Tighten the screws.
Blower Operation
Proper blower speed matched with air control setting
will ensure peak performance from your stove. Operate
as follows:
- Except on "High" setting, wait 30 minutes before
turning on blower to desired setting.
FIG. #8
FIG. #9
POWER CORD
SPEED
CONTROL
ELECTRICAL RATING 115V, 60Hz, 1.1A
BLOWER
FIG. #7

16 TN19 121211-20
FIG. #10
FIG. #11
FRONT SCREWS BACK SCREWS
Optional Side
Shield Installation
1. Loosen the two front screws approxiamately 1 - 2 turns
and remove the two back screws. Fig.#10
2. Insert the two pronged anges on the front of the side
shield under the front screws and tap gently backwards
until sitting tightly against screws. Fig #11
3. Align holes in rear of side shield with holes in rebox
side and secure tightly with screws previously removed.
Firebrick Installation
The package contains 20 full-size rebricks. With the
woodstove in the upright position, install rebricks as
follows:
1) Place 4 full-size rebricks against the rear wall.
2) Next install rebricks on the bottom of the unit. Use a
total of 8 full-size.
3) Finally install 4 full-size rebricks on each side of the
rebox as shown.
FIG. #12

TN19 121211-20 17
Troubleshooting
Problem Cause Cure
Glass is Dirty 1. Wood is wet - Use dry wood
2.Turning down air control - Do not turn down until
or damper too soon a) there is a good bed of coals
b) the wood is charred
3.Draft too low - Improper chimney height and / or diameter
- Chimney plugged or restricted, check ue
- Provide outside air for combustion
4. Door gasket leakage - Replace gasket
- Check latch
Excessive Creosote Buildup - See 1,2,3, above.
Low Heat Output 1. Wood is wet - Use dry wood
2.Fire too small - Build a larger re
3.Draft too low - Chimney plugged or restricted, inspect and
clean
Won't Burn Overnight 1. Air control is set too high - Set control lower
2. Not enough wood - Unsplit wood is preferred for overnight burns
3. Draft too high - Excessive chimney height and/or diameter,
see page 11, Proper Draft.
Stove Won't Burn 1. Combustion air supply blocked - Check outside air supply for obstruction
- Check that room air cover is removed
2.Draft too low - Chimney plugged or restricted, inspect and
clean
Appendix A

18 TN19 121211-20
10
1a
2a
2b
1b
3
4
5
6
7
8
9
Replacement Parts
(WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION)
ITEM DESCRIPTION PART NO.
1a,1b.....Side Shield Kit, Set L&R, (Optional)...TRNO.19SSA
2a..........Baffle Board (2pcs.) ..............................TRNO.BAFF
2b..........Baffle Tube Set(4pcs.) ....................TRNO.50001101
3............Door CastingAssy(c/w Handle) ...........TRNO.DRBK
4............Replacement Glass (c/w gasket)...........TRNO.7025
5............Door Gasket ........................................ TN19.DGKIT
6............Glass Clamps (4 pc.).......................................7608
7............Firebrick Set 9"x4 1/2"x1 1/4"(20pcs.).. TRNO.BRIC
8............Rear Brick Rail(c/w 2 screws) ..........................7625
9............ Quadrant Assembly............................... TRNO.7617
10..........Fan(Optional) ............................... TRNO.19BLOWA
All parts may be ordered from your nearest True North dealer.
Contact True North for the location of the dealer nearest you.
FIG. #13

TN19 121211-20 19
Label
MADE IN CANADA
FABRIQUÉ AU CANADA
CERTIFIED FOR CANADA AND U.S.A.
LISTED ROOM HEATER, SOLID FUEL TYPE. ALSO FOR USE IN
MOBILE HOMES. SUITABLE FOR MOBILE-HOME INSTALLATION
301110 5050.851 TN19-1
DO NOT REMOVE THIS LABEL
• INSTALLAND USE IN ACCORDANCE WITH PACIFIC ENERGY'S INSTALLATION
AND OPERATING INSTRUCTIONS.
• CONTACT LOCAL BUILDING OR FIRE OFFICIALSABOUT RESTRICTIONS,
INSTALLATION PERMIT AND INSPECTION IN YOUR AREA.
• DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER
APPLIANCE (USA. ONLY).
• USE 6 INCH / 150MM DIAMETER MINIMUM 24 MSG BLACK OR LISTED
CONNECTOR.
• DO NOT OBSTRUCT THE SPACE BENEATH THE HEATER. COMBUSTION AIR
OPENINGS ARE NOT TO BE OBSTRUCTED.
• SEE LOCAL BUILDING CODE AND MANUFACTURER'S INSTRUCTIONS
FOR PRECAUTIONS REQUIRED WHEN PASSING A CHIMNEY THROUGHA
COMBUSTIBLE WALL OR CEILING.
• DO NOT PASS A CHIMNEY CONNECTOR THROUGH A COMBUSTIBLE WALL OR
CEILING.
• MINIMUM CLEARANCE BETWEEN SINGLE WALL CHIMNEY CONNECTOR
AND COMBUSTIBLE MATERIALS-18INCHES/455MM. CLEARANCE MAY BE
REDUCED BY THE USE OF LISTED PIPE SHIELDS, WALL PROTECTORS OR
OTHER MEANS APPROVED BY LOCAL BUILDING OR FIRE OFFICIALS.
• COMPONENTS REQUIRED FOR MOBILE HOME AND ALCOVE INSTALLATION:
OUTSIDE AIR KIT, AND ONE OF THE FOLLOWING LISTED CONNECTORS AND
COMPATIBLE CHIMNEY SYSTEMS:
IN CANADA - ULC S-641 LISTED CONNECTOR AND ULC-S-629 LISTED CHIMNEY
IN USA - UL-103 HT LISTED CONNECTOR AND CHIMNEY
• USE COMPONENTS SPECIFIED IN PACIFIC ENERGY INSTALLATION INSTRUC-
TIONS.
• OPTIONAL COMPONENTS - FAN KIT #TRNO.19BLOWA, FAN ELECTRICAL RATING:
115V, 60HZ, 80WATTS. SIDE SHIELDS #TRNO.19SSA. DO NOT ROUTE POWER
CORD BENEATH HEATER.
• CAUTION: RISK OF EXCESSIVE TEMPERATURES.
• OPERATE ONLY WITH FEED DOOR CLOSED. OPEN TO FEED FIRE ONLY. FOR
SOLID WOOD FUEL ONLY.
• KEEP FURNISHINGS AND OTHER COMBUSTIBLE MATERIALS WELL AWAY FROM
HEATER.
• REPLACE GLASS ONLY WITH CERAMIC GLASS.
J F M A M J J A S O N D
2010 2011 2012 2013 2014 2015
DATE OF MANUFACTURE
MANUFACTURED BY:
PACIFIC ENERGY FIREPLACE PRODUCTS LTD.
2975 ALLENBY RD., DUNCAN, BC V9L 6v8
HOT WHILE IN OPERATION. DO NOT TOUCH.
KEEP CHILDREN, CLOTHING AND FURNITURE
AWAY. CONTACT MAY CAUSE SKIN BURNS.
SEE NAMEPLATE AND INSTRUCTIONS.
U.S. ENVIRONMENTAL PROTECTION AGENCY
CERTIFIED TO COMPLY WITH JULY, 1990,
PARTICULATE EMISSION STANDARDS
CAUTION
WN#16679 ETL#4001507
• INSTALLEZ ET UTILISEZ SELON LES INSTRUCTIONS D’INSTALLATION ET
D’OPÉRATION DU FABRICANT.
• CONTACTEZ LES OFFICIELS DE LA CONSTRUCTION OU DE SERVICE
D’INCENDIE POUR DES INFORMATIONS QUANT AUX RESTRICTIONS. PERMIS
D’INSTALLATION ET INSPECTIONS DANS VOTRE RÉGION.
• UTILISEZ UN RACCORDEMENT NOIR OU CLASSÉ DE 24 MSG ET AVEC UN
DIAMÈTRE D’AU MOINS 6 POUCES / 150 mm.
• RACCORDEZ À UNE CHEMINÉE REVÊTE DE MAÇONNERIE, QUI CONVIENT À
L’UTILISATION DE COMBUSTIBLES SOLIDES.
• NE PAS OBSTRUEZ L’ESPACE SOUS LE POÊLE. LES OUVERTURES D’AIR DE
COMBUSTION SONT ne PAS ETRE ENCOMBRE.
• CONSULTEZ LE CODE LOCAL DE CONSTRUCTION ET LES INSTRUCTIONS
DU FABRICANT QUANTAUX PRÉCAUTIONS À PRENDRE LORSQUE VOUS
FAITES PASSER UNE CHEMINÉE À TRAVERS D’UN MUR OU D’UN PLAFOND
COMPOSÉS DE MATÉRIAUX COMBUSTIBLES.
• NE FAITES PAS PASSER UN RACCORDEMENT DE CHEMINÉE À TRAVERS
D’UN MUR OU D’UN PLAFOND COMPOSÉS DE MATÉRIAUX
• DÉGAGEMENT MINIMAL ENTRE UN RACCORDEMENT DE CHEMINÉE À UN
MUR SIMPLE ET TOUT MATÉRIEL COMBUSTIBLE - 18 POUCES / 155 mm.
CE DÉGAGEMENT PEUT ÊTRE RÉDUIT EN UTILISANT DES PROTECTEURS
DE TUYAUX CLASSÉS, PROTECTEURS DE MUR OU AUTRES MOYENS
APPROUVÉS PAR LES OFFICIELS DE LA CONSTRUCTION OU DU SERVICE
D’INCENDIE DE VOTRE RÉGION.
CERTIFIÉ POUR CANADA ET U.S.A.
APPAREIL DE CHAUFFAGE, TYPE À COMBUSTIBLE SOLIDE.
AUSSI PEUT-ÊTRE UTILISÉ DANS LES MAISONS MOBILES. CONCU POUR MAISONS MOBILE
TESTED TO / ÉPROUVÉ SELON: CAN/ULC S627-00 AND / ET UL 1482-2010
S ERIES / SÉRIE: A MODEL / MODÈLE: TN19
• PIÈCES REQUISES POUR INSTALLATION EN MAISON MOBILE OU EN ALCÔVE:
NÉCESSAIRE D’APPROVISIONNEMENT D’AIR EXTÉRIEUR ET L’UN DES RAC-
CORDS SUIVANTS: EN COMBINAISON AVEC L’UN DES SYSTÈMES DE CHEMINÉE
COMPATIBLES SUIVANTS: L’APPARIEL DOIT COMPORTER UN ENSEMBLE POUR
PIEDSTABLE OU SUR PATTES.
AU CANADA - .
UTILISEZ LES PIÈCES SPÉCIFIÉES DANS LES INSTRUCTIONS D’INSTALLATION
DE PACIFIC ENERGY.
• PIÈCES EN OPTION - NÉCESSAIRES DE SOUFFLERIE, INDICES ÉLECTRIQUES
DE SOUFFLERIE: 115V, 60HZ, 80WATTS. PROTEGE DE COTÉ #TRNO.7633. LE FIL
ÉLECTRIQUE NE DOIT PAS ÊTRE PLACÉ SOUS LE POÊLE.
• POUR UTILISATION AVEC COMBUSTIBLE AU BOIS SEULEMENT.
• ATTENTION: RISQUE DE TEMPÉRATURES EXCESSIVES - GARDES LE TIROIR DE
CENDRES FERMÉ PENDANT L’ALLUMAGE DU POÈTE.
• OPÉREZ SEULEMENT LORSQUE LA PORTE D’ALIMENTATION EST FERMÉE.
OUVREZ SEULEMENT POUR ALIMENTER LE FEU.
• GARDEZ LES MEUBLES ET AUTRES MATÉRIAUX COMBUSTIBLES BIEN ÉLOI-
GNÉS DU POÊLE.
• REMPLACES LA VITRE AVEC UNIQUEMENT DE LA VITRE CÉRAMIQUE.
WH-
A. SIDEWALL TO UNIT 20in. / 508 mm 20in. / 508 mm 27 in. / 686 mm
B. BACKWALL TO UNIT 10 in. / 254 mm 10 in. / 254 mm 10 in. / 254 mm
C. CORNER TO UNIT 12 in. / 305 mm 12 in. / 305 mm 19 in. / 483 mm
D.
SIDEWALL TO CONNECTOR 27 in. / 686 mm 27 in. / 686 mm 33.5 in. / 851 mm
E.
BACKWALL TO CONNECTOR 13.5 in. / 343 mm 13.5 in. / 343 mm 13 in. / 330 mm
F. CORNER TO CONNECTOR 19.5 in. / 495 mm 19.5 in. / 495 mm 26 in. / 660 mm
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS
IN CANADA G. 18 INCHES / 455 MM
AU CANADA H. 8 INCHES / 200 MM
I. 8 INCHES / 200 MM
IN U.S.A. G. 16 INCHES / 405 MM
H. 5 INCHES / 127 MM
I. 0 INCHES / 0 MM
RESIDENTIAL INSTALLATION
USING SINGLE WALL CONNECTOR
VERTICAL CONNECTOR HORIZONTAL CONNECTOR
MOBILE HOME
INSTALLATION
USING
DOUBLE WALL
ADJACENT WALL
BACK WALL
BACK I
HEATER
G
SIDE
H
FRONT
SIDE
H
D
A
SIDE WALL
BE
ADJACENT WALL
F
C
COTE
COTE
DEVANT
POELE
DOS
MUR COTE
MUR ARRIERE
MUR ADJACENT
MUR ADJACENT
A.SIDEWALL TO UNIT 16 in. / 406 mm 16 in. / 406 mm 20 in. / 508 mm
B.BACKWALL TO UNIT 6.5 in. / 165 mm 6.5 in. / 165 mm 10 in. / 254 mm
C.CORNER TO UNIT 7 in. / 178 mm 7 in. / 178 mm 13 in. / 330 mm
D.
SIDEWALL TO CONNECTOR 23 in. / 584 mm 23 in. / 584 mm 26.5 in. / 673 mm
E.
BACKWALL TO CONNECTOR 9.5 in. / 241 mm 9.5 in. / 241 mm 13 in. / 330 mm
F. CORNER TO CONNECTOR 14 in. / 356 mm 14 in. / 356 mm 20 in. / 508 mm
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS WITH
OPTIONAL SIDE SHIELDS(PART#TRNO.7633)
* ALCOVE
INSTALLATION
USING
DOUBLE WALL
CONNECTOR
RESIDENTIAL INSTALLATION
USING SINGLE WALL CONNECTOR
MOBILE HOME
INSTALLATION
USING
DOUBLE WALL
CONNECTOR
VERTICAL CONNECTOR HORIZONTAL CONNECTOR
VERTICAL CONNECTOR HORIZONTAL CONNECTOR
RESIDENTIAL CLOSE CLEARANCE
INSTALLATION
USING DOUBLE WALL CONNECTOR
071210 5050.8512 TN19-2
A.SIDEWALL TO UNIT 16 in. / 406 mm 16 in. / 406 mm 16 in. / 406 mm
B.BACKWALL TO UNIT 10in. / 254 mm 10in. / 254 mm 6.5 in. / 165 mm
C.CORNER TO UNIT 9.5 in. / 241 mm 9.5 in. / 241 mm N/A
D.
SIDEWALL TO CONNECTOR 23 in. / 584 mm 23 in. / 584 mm 23 in. / 584 mm
E.
BACKWALL TO CONNECTOR 13.5 in. / 343 mm 13.5 in. / 343 mm 10 in. / 254 mm
F. CORNER TO CONNECTOR 17 in. / 432 mm 17 in. / 432 mm N/A
A. MUR DE CÔTE / APPAREIL 20 po. / 508 mm 20 po. / 508 mm 27 po. / 686 mm
B. MUR DE FOND / APPAREIL 10 po. / 254 mm 10 po. / 254 mm 10 po. / 254 mm
C. COIN / APPAREIL 12 po. / 305 mm 12 po. / 305 mm 19 po. / 483 mm
D. MUR DE CÔTE / RACCORD 27 po. / 686 mm 27 po. / 686 mm 33.5 po. / 851 mm
E. MUR DE FOND / RACCORD 13.5 po. / 343 mm 13.5 po. / 343 mm 13 po. / 330 mm
F. COIN / RACCORD 19.5 po. / 495 mm 19.5 po. / 495 mm 26 po. / 660 mm
RACCORD VERTICAL RACCORD HORIZONTAL
INSTALLATION
EN MAISON MOBILE
UTILISANT UN RACCORD
DE MUR DOUBLE
DÉGAGEMENTS MINIMALES AUX MATÉRIAUX
COMBUSTIBLES
A. MUR DE CÔTE / APPAREIL 16 po. / 406 mm 16 po. / 406 mm 16 po. / 406 mm
B. MUR DE FOND / APPAREIL 10 po. / 254 mm 10 po. / 254 mm 6.5 po. / 165 mm
C. COIN / APPAREIL 9.5 po. / 241 mm 9.5 po. / 241 mm N/A
D. MUR DE CÔTE / RACCORD 23 po. / 584 mm 23 po. / 584 mm 23 po. / 584 mm
E. MUR DE FOND / RACCORD 13.5 po. / 343 mm 13.5 po. / 343 mm 10 po. / 254 mm
F. COIN / RACCORD 17 po. / 432 mm 17 po. / 432 mm N/A
RACCORD VERTICAL RACCORD HORIZONTAL
INSTALLATION RÉSIDENTIELLE
UTILISANT UN RACCORD DE
MUR SIMPLE
* INSTALLATION EN
ALCÔVE UTILISANT
UN RACCORD DE MUR
DOUBLE
INSTALLATION RÉSIDENTIELLE AVEC
DÉGAGEMENT MINIMAL, UTILISANT UN
RACCORD DE MUR DOUBLE
A. MUR DE CÔTE / APPAREIL 16 po. / 406 mm 16 po. / 406 mm 20 po. / 508 mm
B. MUR DE FOND / APPAREIL 6.5 po. / 165 mm 6.5 po. / 165 mm 10 po. / 254 mm
C. COIN / APPAREIL 7 po. / 178 mm 7 po. / 178 mm 13 po. / 330 mm
D. MUR DE CÔTE / RACCORD 23 po. / 584 mm 23 po. / 584 mm 26.5 po. / 673 mm
E. MUR DE FOND / RACCORD 9.5 po. / 241 mm 9.5 po. / 241 mm 13 po. / 330 mm
F. COIN / RACCORD 14 po. / 356 mm 14 po. / 356 mm 20 po. / 508 mm
RACCORD VERTICAL RACCORD HORIZONTAL
INSTALLATION
EN MAISON MOBILE
UTILISANT UN RACCORD
DE MUR DOUBLE
DÉGAGEMENTS MINIMALES AUX MATÉRIAUX
COMBUSTIBLES AVEC DES ÉCRANS SIDE FACULTATIF
SERIES: A MODEL: TN19
INSTALLATION RÉSIDENTIELLE
UTILISANT UN RACCORD DE
MUR SIMPLE
HORIZONTAL CONNECTOR NOT PERMITTED IN MOBILE HOMES
 AS TESTED - PIPE SHIELD MAY BE REQUIRED BY LOCALAUTHORITIES.
* COMBUSTIBLE ALCOVE SIZE : DEPTH - 3 FT. / 0.9 M MAXIMUM, HEIGHT 7
1/2 FT. / 2.3 M MINIMUM
COMBUSTIBLE FLOOR MUST BE PROTECTED BY A CONTINUOUS NON-
COMBUSTIBLE MATERIAL EXTENDED TO THE FRONT, SIDES AND BACK
AS INDICATED.
 TEL QUE ÉPROUVÉ UN PROTECTEUR DE TUYAU PEUT ÊTRE REQUIS
PAR LES AUTORITÉS LOCALES
* DIMENSION D’ALCOVE COMBUSTIBLE: PROFONDEUR - 4 PIEDS / 1.22 M
MAXIMUM, HAUTEUR 7.5 PIEDS / 2.3 M MINIMUM.
LE PLANCHER COMBUSTIBLE DOIT ÊTRE PROTÉGÉ PAR UN MATÉRIEL
NON-COMBUSTIBLE TOUT D’UNE PIÈCE QUI DOIT S’ÉTENDRE DE PAR
LE DEVANT, LES COTÉS ET L’ARRIÈRE TEL QU’INDIQUÉ.
LOCATED ON BACK OF STOVE

20 TN19 121211-20
PACIFIC ENERGY FIREPLACE PRODUCTS LTD.
2975 Allenby Rd., Duncan, BC V9L 6V8
Phone: [phone]
Web site: http://www.pacicenergy.net
