TrueLife NannyTone VM3 User manual

NannyTone VM3
EN – INSTRUCTIONS
DE – ANLEITUNG

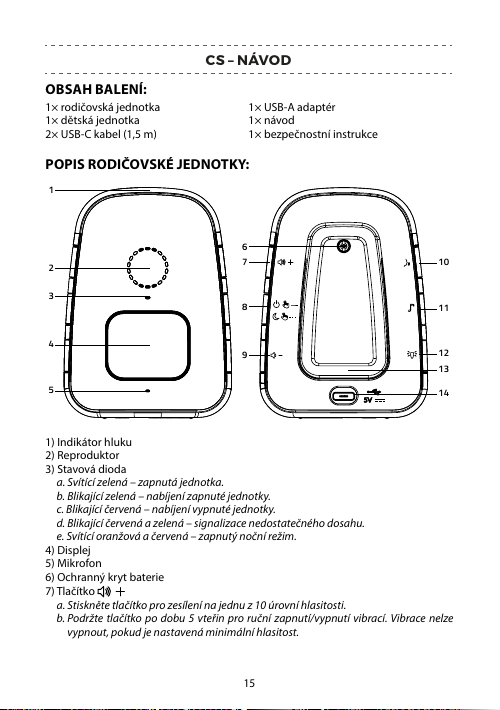

CS – NÁVOD
SK – NÁVOD
PL – INSTRUKCJA
HU – HASZNÁLATI ÚTMUTATÓ
SL – NAVODILA
HR – UPUTE

3

3

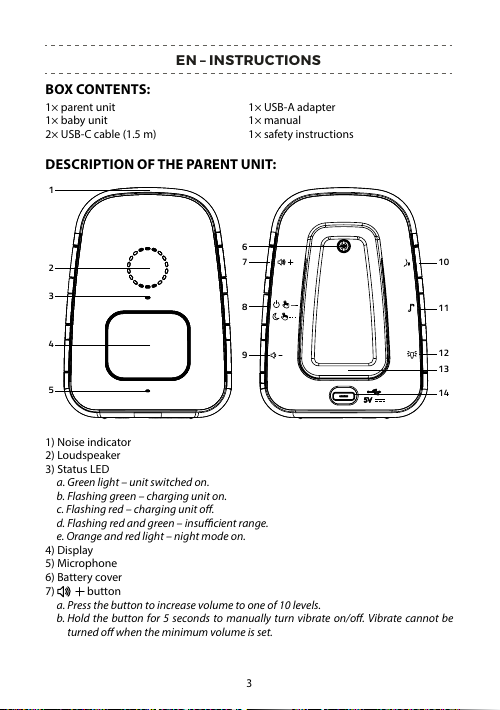

EN – INSTRUCTIONS
BOX CONTENTS:
1× parent unit
1× baby unit
2× USB-C cable (1.5 m)
1× USB-A adapter
1× manual
1× safety instructions
DESCRIPTION OF THE PARENT UNIT:
5V
1
6
10
11
12
14
13
7
8
9
2
3
4
5
1) Noise indicator
2) Loudspeaker
3) Status LED
a. Green light – unit switched on.
b. Flashing green – charging unit on.
c. Flashing red – charging unit o.
d. Flashing red and green – insucient range.
e. Orange and red light – night mode on.
4) Display
5) Microphone
6) Battery cover
7) button
a. Press the button to increase volume to one of 10 levels.
b. Hold the button for 5 seconds to manually turn vibrate on/o. Vibrate cannot be
turned o when the minimum volume is set.

4
8) / button
a. Hold the button to turn the unit on/o.
b. Press three times to turn the unit‘s VOX mode on/o.
9) button
a. Press the button to decrease the volume to one of 10 levels.
b. When the volume is all the way down, vibrate will automatically turn on.
c. Hold the button to turn the temperature alarm on/o. Switching on is indicated by a
2× beep. Switching o is indicated by a 1× beep.
10) button
a. Hold the button to transmit the voice signal to the child.
11) button
a. Hold the button to turn lullabies on/o.
b. Press the button once to play the next lullaby.
c. Press three times to toggle the temperature unit shown on the display (°C/°F).
d. To mute the lullaby, hold the then press button.
e. To turn the lullaby up, press then press .
12) button: press to turn the night light on/o
13) Clip
14) USB-C input for power cable

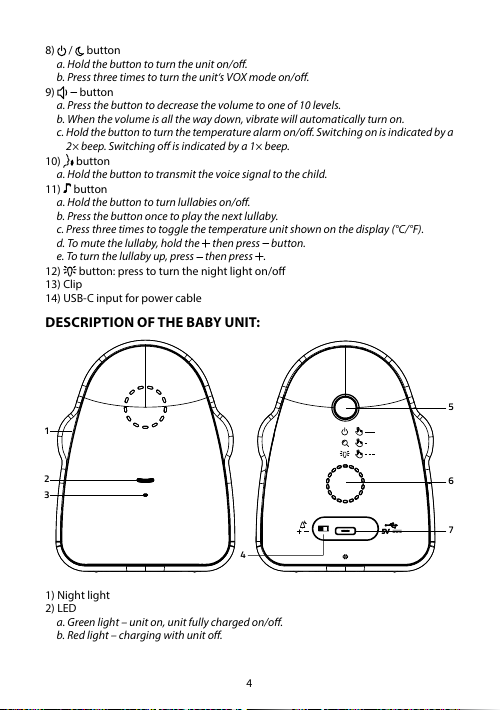

DESCRIPTION OF THE BABY UNIT:
5V
5
6
7
1
2
3
4
1) Night light
2) LED
a. Green light – unit on, unit fully charged on/o.
b. Red light – charging with unit o.

5
c. Orange light – charging with unit on.
3) Microphone
4) button
a. Switch to to increase the sensitivity of the baby unit to noise (50 dB).
b. Switch to to decrease the sensitivity of the baby unit to noise (50 dB).
5) / / button
a. Hold the button to turn the unit on/o.
b. Press the button three times to turn the night light on/o.
c. To locate the parent unit, press the button to hear an audible signal. Press again
to turn it o.
6) Speaker
7) USB-C input for power cable
DISPLAY LAYOUT:
1) Baby unit battery
2) Parent unit battery
3) Night light
4) Lullabies
5) Volume
6) Vibration
7)Voice signal transmission
8) Temperature measured by the baby unit
9) Signal
22
92
3
4
5
1
8
7
6
°C
PAIRING UNITS:
1) Pairing the parent and baby unit
−Turn on both units at the same time by holding down the . button. Both
units will pair automatically when switched on. Correct pairing of the units
is indicated by two green LEDs on the front of the parent and baby units.
2) Pairing multiple parent units at the same time
−Press and hold the button on the powered o baby unit until the status
LED starts ashing green.
−Then press and hold the buttons on both parent units at the same time
until the status LEDs start ashing green.
−This will automatically pair the parent units. Correct pairing of the units is
indicated by the green LEDs on the front of each unit.
3) Switching o the units
−Press and hold the button on both the parent and baby units until the LEDs
on the front turn o.
UNIT LOCATIONS:
1) Parent unit
−The parent unit can be placed in any location that is easily visible, audible
and accessible, or it can be attached using the clip.

6 7

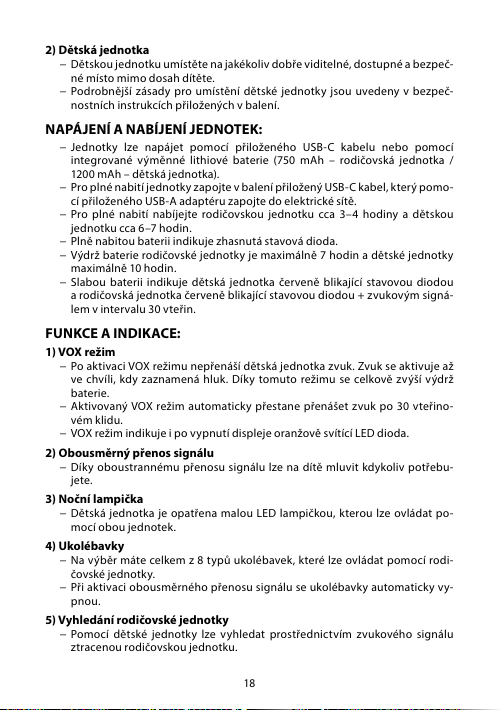

2) Baby unit
−Place the baby unit in any visible, accessible and safe place out of the child‘s
reach.
−Refer to the safety instructions included in the box for more detailed guide-
lines on positioning the baby unit.
POWERING AND CHARGING THE UNITS:
−The units can be powered using the included USB-C cable or the integrated
replaceable lithium battery (750 mAh – parent unit / 1200 mAh – baby unit).
−To fully charge the unit, plug the included USB-C cable into the mains using
the included USB-A adapter.
−For a full charge, charge the parent unit for approx. 3–4 hours and the baby
unit for approx. 6–7 hours.
− A fully charged battery is indicated by an o status LED.
−The battery life of the parent unit is a maximum of 7 hours and the baby unit,
a maximum of 10 hours.
−A low battery is indicated by a red ashing status LED on the baby unit and
a red ashing status LED + audible signal on the parent unit at an interval
of 30 seconds.
FUNCTIONS AND INDICATORS:
1) VOX mode
−When VOX mode is activated, the child unit does not transmit sound. The
sound is only activated when it detects a noise. This mode increases the ove-
rall battery life.
−VOX mode automatically stops transmitting sound after 30 seconds of silen-
ce.
−The VOX mode is indicated by an orange LED even after the display is swit-
ched o.
2) Two-way audio
− Talk to the child whenever you need to.
3) Night light
−The baby unit is equipped with a small LED lamp that can be controlled by
both units.
4) Lullabies
− Choose from a total of 8 lullabies controlled using the parent unit.
− When two-way audio is activated, the lullabies are automatically turned o.
5) Locating the parent unit
− Using the baby unit, you can locate a lost parent unit via an audible signal.
6) Low signal detection
−A weak signal is indicated by the parent unit after 20 seconds by an audible
signal and the green and red status LEDs ashing.

7
7) Vibrate
− Vibrate can be turned o/on.
− Vibrate cannot be turned o if the minimum volume is set
− When sound is detected, the parent unit will automatically vibrate.
8) Temperature sensor
−If the temperature drops below 16°C / 61°F, the parent unit will indicate this
with an audible signal after a 30-second interval.
−If the temperature is higher than 30°C / 86°F, the parent unit will indicate this
with an audible signal after a 30-second interval.
RANGE:
−The maximum range of the baby monitor is 800 m in an undeveloped area
and 300 m in a building.
−The maximum range of the baby monitor and signal transmission may be
aected by the environment in which the baby monitor is used such as thick
walls, reinforced concrete structures, etc.
CHANGING BATTERIES:
−The batteries can be replaced in both units. If replacement is necessary, fo-
llow the instructions in the manual.
1) Parent unit (750 mAh)
a. Unscrew the rear cover of the parent unit with a Phillips head screwdriver.
b. Remove the back cover.
c. Disconnect the old dead battery from the connector by hand.
d. Plug the new working battery back into the connector by hand.
e. Screw the back cover back on.
2) Baby unit (1200 mAh)
a. Unscrew the bottom screw to the front cover of the baby unit with a Phillips
screwdriver.
b. Remove the front cover.
c. Disconnect the old dead battery from the connector by hand.
d. Plug the new working battery back into the connector by hand.
e. Screw the back cover back on.

8
SPECIFICATIONS:
Communication type: Two-way
Channel frequency: 2400 MHz – 2480 MHz
Range: Up to 800 m in undeveloped areas, Up to 300 m in a building
Battery life: Up to 7 hours for the parent unit, Up to 10 hours for the baby unit
Battery type: 750 mAh lithium-ion in parent unit, 1200 mAh lithium-ion in baby unit
Adapter type: EU USB-A, 5 V, 1000 mA
Dimensions: Parent unit: 70×44×97 mm, Baby unit: 78×45×104 mm
Weight: Parent unit: 99 g, Baby unit: 101 g
Operating temperature: 3–35 °C
Storage temperature: -5 – 45 °C
SAFETY WHEN WORKING WITH THE DEVICE:
Carefully read the enclosed safety instructions.
For proper handling of the product, download and read the most up-to-date version
of the manual, which can be downloaded at www.truelife.eu.
Printing errors and changes to information reserved.
Manufacturer:
elem6 s.r.o.,
Braškovská 15, 16100 Prague 6,
Czech Republic

9
DE – ANLEITUNG
VERPACKUNGSINHALT:
1× Elterneinheit
1× Babyeinheit
2× USB-C-Kabel (1,5 m)
1× USB-A-Adapter
1× Anleitung
1× Sicherheitshinweise
BESCHREIBUNG DER ELTERNEINHEIT:
5V
1
6
10
11
12
14
13
7
8
9
2
3
4
5
1) Geräuschanzeige
2) Lautsprecher
3) Status-LED
a. Leuchtet grün – Einheit eingeschaltet.
b. Blinkt grün – Auaden der eingeschalteten Einheit.
c. Blinkt rot – Auaden der ausgeschalteten Einheit.
d. Blinkt rot und grün – signalisiert eine unzureichende Reichweite.
e. Leuchtet orange und rot – Nachtmodus eingeschaltet.
4) Display
5) Mikrofon
6) Batteriefachdeckel
7) Taste
a. Drücken Sie die Taste, um die Lautstärke auf eine der 10 Stufen zu erhöhen.
b. Halten Sie die Taste 5 Sekunden lang gedrückt, um die Vibration manuell ein-/aus-
zuschalten. Die Vibration kann nicht ausgeschaltet werden, wenn die Mindestlaut-
stärke eingestellt ist.

10
8) Taste /
a. Halten Sie die Taste gedrückt, um die Einheit ein-/auszuschalten.
b. Drücken Sie dreimal, um den VOX-Modus der Einheit ein-/auszuschalten.
9) Taste
a. Drücken Sie die Taste, um die Lautstärke auf eine der 10 Stufen zu reduzieren.
b. Wenn die Lautstärke ganz heruntergedreht wird, schaltet sich die Vibration auto-
matisch ein.
c. Halten Sie die Taste gedrückt, um den Temperaturalarm ein-/auszuschalten. Das
Einschalten wird durch einen 2fachen Piepton signalisiert. Das Ausschalten wird
durch einen 1fachen Piepton signalisiert.
10) Taste
a. Halten Sie die Taste gedrückt, um das Sprachsignal an das Kind zu übertragen.
11) Taste
a. Halten Sie die Taste gedrückt, um die Wiegenlieder ein-/auszuschalten.
b. Mit einem Tastendruck wird ein weiteres Wiegenlied abgespielt.
c. Drücken Sie dreimal, um die auf dem Display angezeigte Wärmeeinheit (C/°F) um-
zuschalten.
d. Um die Lautstärke des Wiegenlieds zu reduzieren, halten Sie die Taste gedrückt
und drücken Sie dann die Taste .
e. Um die Lautstärke des Wiegenlieds zu erhöhen, halten Sie die Taste gedrückt und
drücken Sie dann die Taste .
12) Taste : Ein- und Ausschalten der Nachtlampe
13) Befestigungsclip der Einheit
14) USB-C-Anschluss für Netzkabel
BESCHREIBUNG DER BABYEINHEIT:
5V
5
6
7
1
2
3
4
