TRUST RIVA DRAGON TNT2 32MB PCI
Instruction manual
Version 1.0

Trust Riva Dragon TNT2 32MB PCI
01 UK 11973CDMANUAL.doc
Thank you
Thank you very much for purchasing this product from the Trust range. We wish you hours of fun
with it. Please read this manual carefully before using the product.
Registration
Register your purchase now at the Trust Internet site (www.trust.com) and you could win one of
the fabulous prizes. The website is also the place to look for dealer addresses, comprehensive
product information, drivers and FAQ's (Frequently Asked Questions).
Copyright statement
No part of this instruction manual may be reproduced or transmitted, in any form or by any means,
electronic or mechanical, including photocopying, recording, or information storage and retrieval
systems, for any purpose other than the purchaser's own personal use, without prior written
permission from the manufacturer.
Disclaimer statement
The manufacturer specifically disclaims all warranties, either express or implied, including, but not
limited to, implied warranties for the marketability and suitability for a particular purpose, with
respect to the software, the accompanying product manual(s) and written material, and all other
accompanying hardware. The manufacturer reserves the right to revise or make improvements to
its product at any time and without obligation to notify any person of such revisions or
improvements.
In no event shall the manufacturer be liable for any consequential or incidental damages, including
any loss of business profits or any other commercial damages, arising out of the use of its
products.
All company or product names are trademarks or registered trademarks of their respective
owners.

Trust Riva Dragon TNT2 32MB PCI
1
GB
Contents
1.Introduction ......................................................................................................................................... 2
1.1 Contents of the package.......................................................................................................... 2
2.Safety.................................................................................................................................................... 3
2.1 Minimum system requirements .............................................................................................. 3
3.Installing the Trust Riva Dragon TNT2 32MB PCI............................................................................ 3
4.Software installation........................................................................................................................... 4
4.1 Installing the driver in Windows 95 ........................................................................................ 4
4.2 Installing the driver in Windows 98 ........................................................................................ 6
4.3 Installing the driver in Windows NT4 ..................................................................................... 8
4.4 Installing the driver in Windows 2000 .................................................................................... 8
4.5 Installing DirectX 7 ................................................................................................................. 11
5.Changing the settings ...................................................................................................................... 12
6.Troubleshooting................................................................................................................................15
7.Specifications.................................................................................................................................... 16
8.Trust Service Centres ....................................................................................................................... 17

Trust Riva Dragon TNT2 32MB PCI
2
1. Introduction
This manual is intended for users of the Trust Riva Dragon TNT2 32MB PCI. No prior knowledge is
necessary to install and use this product.
If you have any questions after reading this instruction manual, please contact one of the Trust
Service Centres. You can find your nearest Service Centre at the end of this manual. You can also
visit the Trust website (www.trust.com) for support, detailed product information, drivers and FAQ's
(Frequently Asked Questions).
The following conventions have been used in this manual to indicate instructions:
<key> Here you should press a key. The name of the key is given between brackets.
‘System’ This is a specific term used in a program. These are the terms used by, for example,
Microsoft Windows 98.
[DIR] Key in the text shown in square brackets [….].
(term) The text between the parentheses {….} is the English term, e.g. (File) used in the figure
referred to.
Additional information will be shown as follows:
Note: Turn off the computer before connecting the device.
1.1 Contents of the package
Please check the contents of the package before reading the instruction manual. It should contain the
following:
•Trust Riva Dragon TNT2 32MB PCI VGA card
•CD-ROM containing the drivers, applications and instruction manual
•The quick installation manual
Please contact your dealer if anything is missing or damaged.

Trust Riva Dragon TNT2 32MB PCI
3
GB
2. Safety
Before using the product, please read the following instructions carefully.
1. Computer components are sensitive to static electricity. You can discharge yourself by touching the
computer casing.
2. Switch off the computer and remove the plug from the wall socket before opening the computer.
3. Make sure that the components you are adding to your computer are compatible with your system.
4. Hardware installation.
2.1 Minimum system requirements
•Pentium 166 MMX processor
•32 MB RAM
•Windows 95, 98, NT4 or 2000 operating system
•A free PCI slot
•10 MB free hard disk space
•4x CD-ROM drive
3. Installing the Trust Riva Dragon TNT2 32MB PCI
Note: If another VGA card (the card that the monitor is connected to) is still in your system, then you
should remove this before you install the Riva Dragon TNT2 32MB PCI.
1. Turn off your PC.
2. Remove the plug from the wall socket.
3. Remove the computer casing (if necessary, read your computer's instruction manual).
4. Remove the metal cover plate or your old VGA card from the PCI slot.
5. Insert the Riva Dragon TNT2 32MB PCI into the free PCI slot and screw the card firmly into place.
6. Close the PC.
7. Connect the monitor cable.
8. Turn on the computer.

Trust Riva Dragon TNT2 32MB PCI
4
4. Software installation
4.1 Installing the driver in Windows 95
1. Start Windows 95.

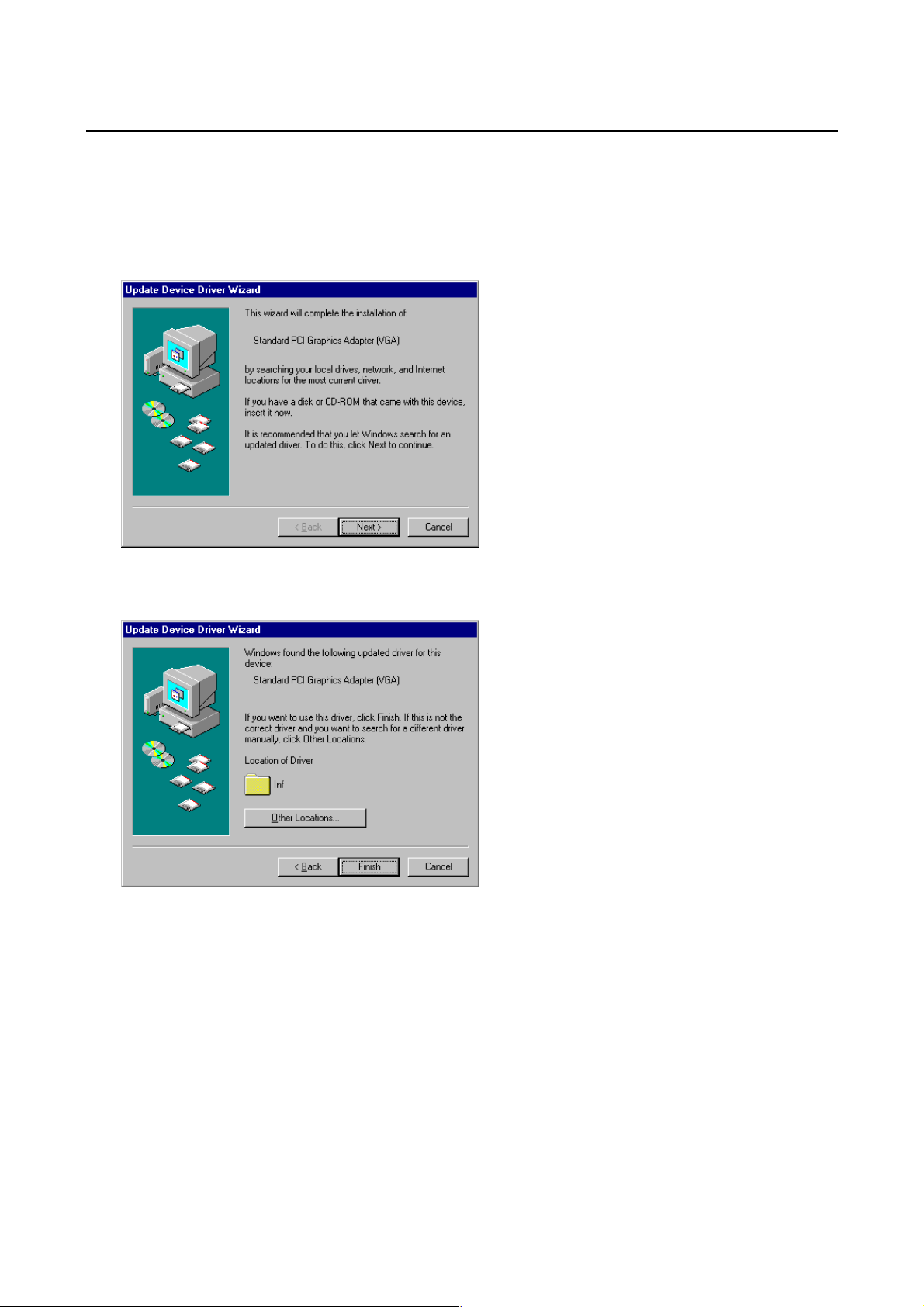

2. A ‘Standard PCI Graphics Adapter (VGA)’ will be automatically detected. Click on 'Next' (see figure 1).
Figure 1: Automatic detection in Windows 95
3. In the next screen, click 'Other locations' (see figure 2).
Figure 2: Installation in Windows 95
4. Insert the CD-ROM containing the drivers into your CD-ROM drive.

Trust Riva Dragon TNT2 32MB PCI
5
GB

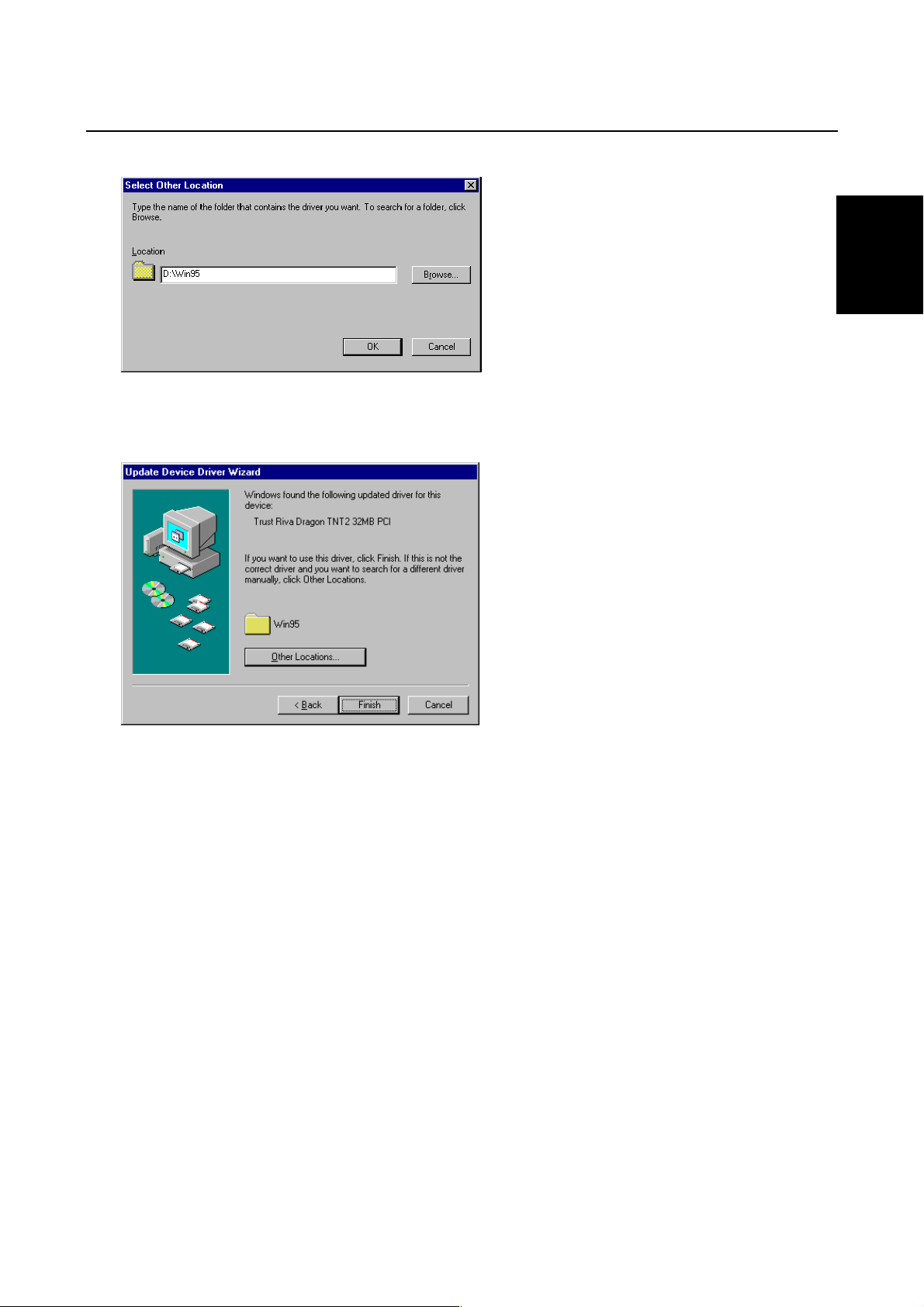

5. In the 'Select Other Location' window, give the location as [D:\Win95] and click on 'OK' (see figure 3).
Figure 3: Installation in Windows 95
6. The driver for the 'Trust Riva Dragon TNT2 32MB PCI' will be found. Click 'Finish' to complete the
installation (see figure 4).
Figure 4: Installation in Windows 95
Windows may request the location of the driver again. If it does, give the location as [D:\Win95] again.
7. Restart your computer.
You have now completed the installation of the driver. Continue to chapter 4.5 for the installation of DirectX 7.

Trust Riva Dragon TNT2 32MB PCI
6
4.2 Installing the driver in Windows 98
1. Start Windows 98.
2. A ‘Standard PCI Graphics Adapter (VGA)’ will be automatically detected. Click on 'Next' (see figure 5).
Figure 5: Automatic detection in Windows 98
3. Select Windows to search for the best driver. Click on 'Next' (see figure 6).
Figure 6: Installation in Windows 98
4. Insert the CD-ROM containing the drivers into your CD-ROM drive.

Trust Riva Dragon TNT2 32MB PCI
7
GB

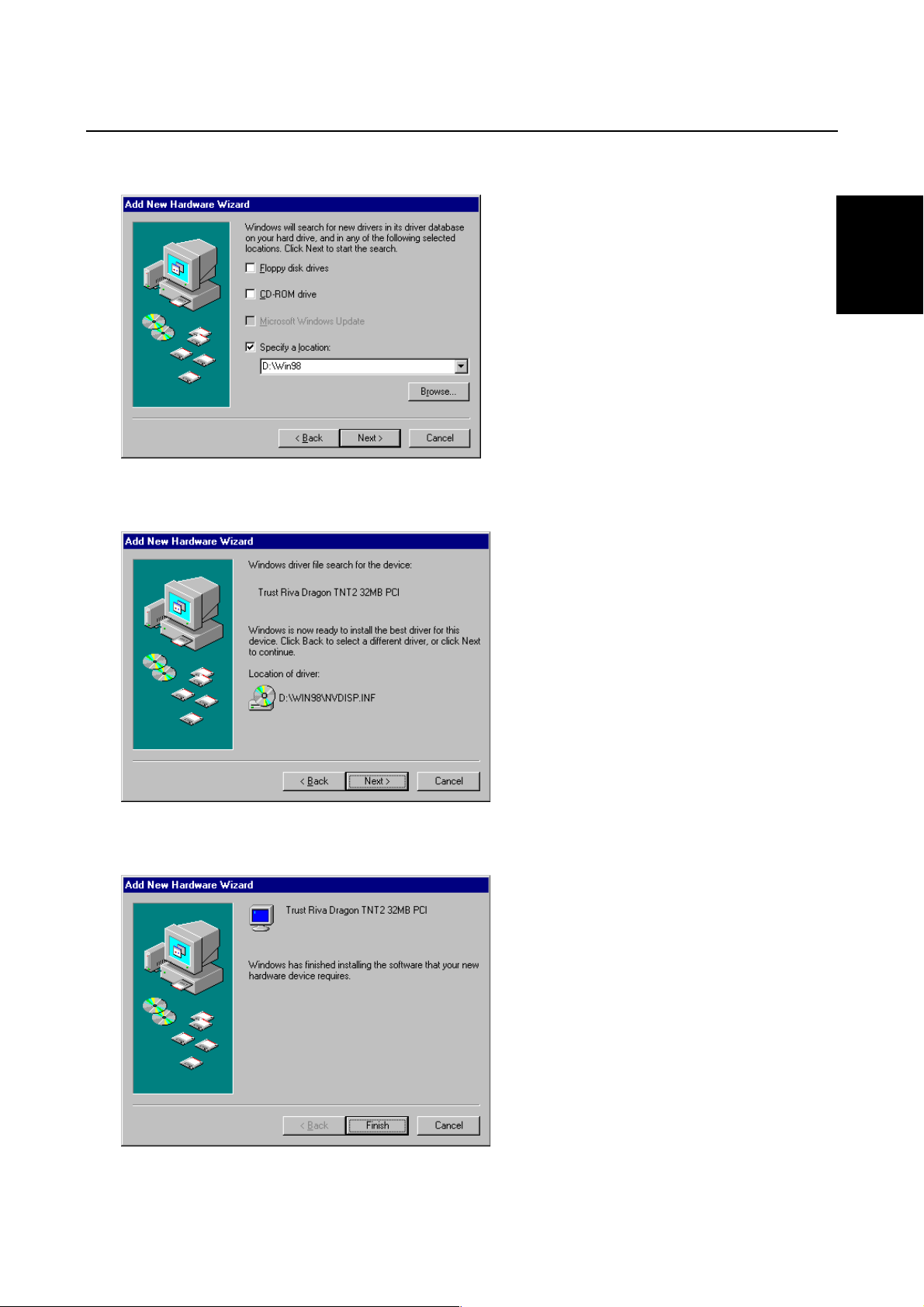

5. Select Windows to search in a specific location. Give the location as [D:\WIN98]. Click on 'Next' (see
figure 7).
Figure 7: Installation in Windows 98
6. The driver will be found. Click on 'Next' (see figure 8). The driver will be installed.
Figure 8: Installation in Windows 98
7. Click on 'Finish' to complete the installation (see figure 9).
Figure 9: Installation in Windows 98

Trust Riva Dragon TNT2 32MB PCI
8
8. Restart your computer.
You have now completed the installation of the driver. Continue to chapter 4.5 for the installation of DirectX 7.
4.3 Installing the driver in Windows NT4
1. Start Windows NT4 and log in as 'Administrator'.
2. Go to 'Start - Settings - Control Panel' and double click on the 'Display' icon. Click on the 'Settings' tab.
3. Click on 'Monitor' and then click on 'Change'.
4. Insert the CD-ROM containing the drivers into your CD-ROM drive.
5. Click on 'Have Disk' and give the location as [D:\WinNT4]. Click on 'OK'.
6. Select the 'Trust Riva Dragon TNT2 32MB PCI'. Click on 'OK'.
7. Follow the on-screen instructions to complete the installation.
8. Restart your computer.
Your system is now ready for use.
4.4 Installing the driver in Windows 2000
1. Start Windows 2000 and log in as 'Administrator'.
2. The new hardware will be detected. Click on 'Next' (see figure 10).
Figure 10: Automatic detection in Windows 2000

Trust Riva Dragon TNT2 32MB PCI
9
GB
3. Select Windows to search for a suitable driver. Click on 'Next' (see figure 11).
Figure 11: Installation in Windows 2000
4. Select Windows to search in a specific location. Click on 'Next' (see figure 12).
Figure 12: Installation in Windows 2000
5. Insert the CD-ROM containing the drivers into your CD-ROM drive.

Trust Riva Dragon TNT2 32MB PCI
10

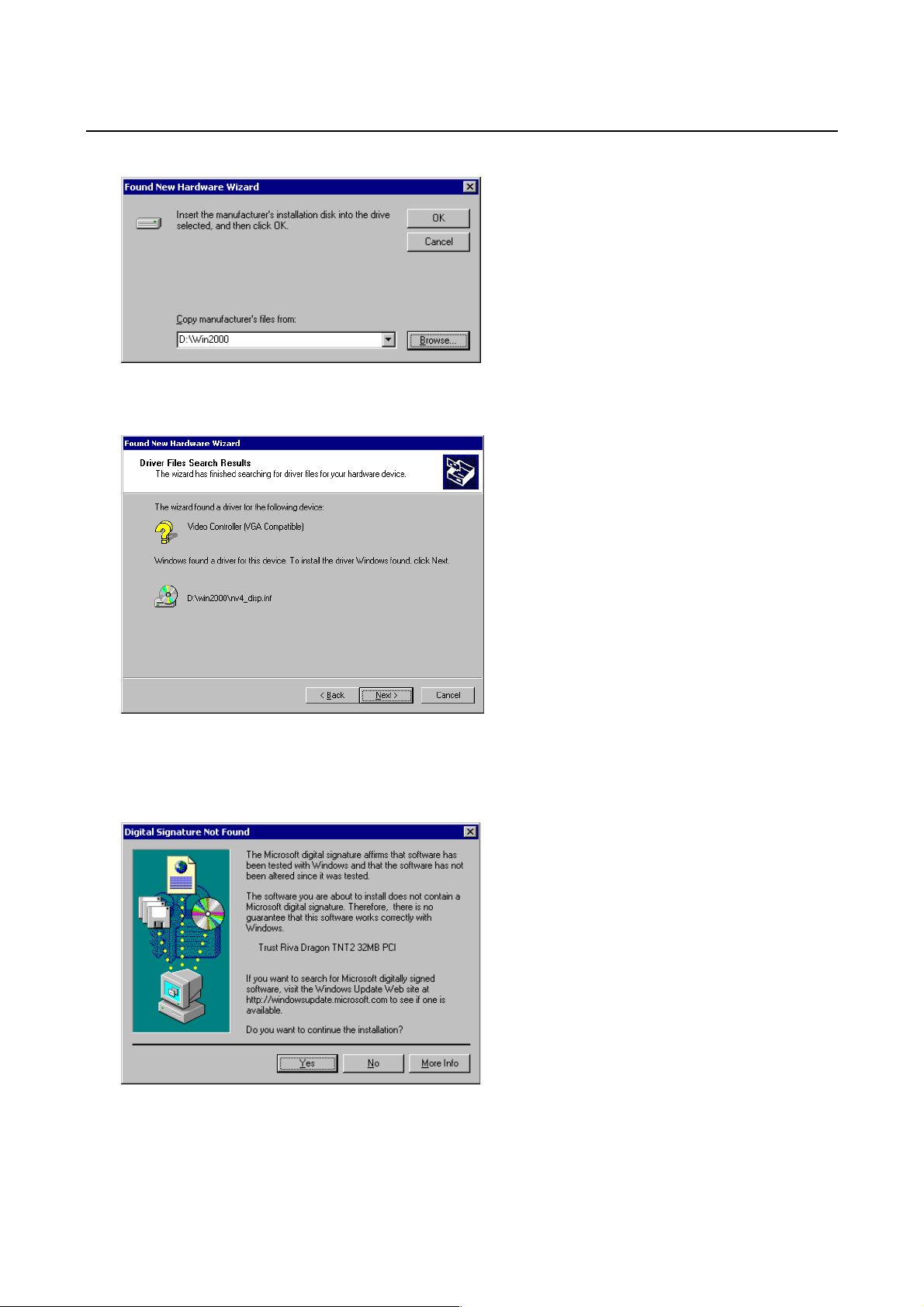

6. In the next screen, give the location as [D:\Win2000]. Click on 'OK' (see figure 13).
Figure 13: Installation in Windows 2000
7. The driver will be found at the location given. Click on 'Next' (see figure 14).
Figure 14: Installation in Windows 2000
8. Windows 2000 will display a message stating that the driver's digital signature has not been found. Due
to the fast development of computer technology, it is not always possible to have the newest drivers
signed in time. Click on 'Yes' to accept and continue with the installation (see figure 15).
Figure 15: Installation in Windows 2000

Trust Riva Dragon TNT2 32MB PCI
11
GB
Note: Make sure that Windows 2000 allows non-signed drivers to be installed. You can set this by going
to 'Control Panel - System' and clicking the 'Hardware' tab. In this tab, click on 'Driver Signing...'
and select 'Warn'.
9. Figure 16 will be displayed after the driver has been installed. Click on 'Finish' to complete the
installation.
Figure 16: Installation in Windows 2000
Your system is now ready for use.
4.5 Installing DirectX 7
You must install DirectX 7 for the 3D functions of the Trust Riva Dragon TNT2 32MB PCI to work optimally in
Windows 95 and 98.
Note: DirectX 7 does not work in Windows NT4.
1. Click on the 'Start' button in the taskbar and select 'Run'.
2. In the command line, type [D:\DirectX\Dx7setup.exe] to install DirectX 7. Next, click on 'OK' (see figure
17). Follow the on-screen instructions.
Figure 17: Installing DirectX 7
3. Restart your computer.
Your system is now ready for use. See chapter 5 for information on changing the settings of the Trust Riva
Dragon TNT2 32MB PCI.

Trust Riva Dragon TNT2 32MB PCI
12
5. Changing the settings
Note: These settings are only possible in Windows 98. Only change the settings if it is necessary.
1. Go to 'Start - Settings - Control Panel'.
2. Double click on the 'Display' icon.
3. Click on the 'RIVA TNT2' tab. In Windows 98, the 'RIVA TNT2' tab can be found by clicking on 'Settings
- Advanced Properties' (see figure 18).
Figure 18: Changing the settings

Trust Riva Dragon TNT2 32MB PCI
13
GB
4. Click on ‘Additional Properties’. Figure 19 will appear.
Figure 19: Changing the colour settings
5. You can alter various colour settings using the 'Color Correction' tab (see figure 19). See the table below
for all the possible options.
ASelects the colour that you wish to adjust (red, green and/or blue).
BSets the brightness.
CSets the contrast.
DSets the gamma correction.
ERestores the present colour settings after restarting Windows.
FSaves the changed colour settings.
GResets the default settings.
HSelects the colour settings that you have saved.
6. Besides the ‘Color Correction’ tab, there are also the ‘Direct3D Settings’, ‘OpenGL Settings’, ‘Overlay
Color Control’ and ‘Other Options’ tabs (see figure 19). You can use these screens to adjust the settings
for applications that are based on Direct3D or OpenGL.
Note: These options are only for advanced users. The wrong settings will reduce the performance.
7. Click on the ‘Output Device’ tab (see figure 18).

Trust Riva Dragon TNT2 32MB PCI
14
8. Figure 20 will appear. Click on ‘Device Settings’.
Figure 20: Display settings
9. Figure 21 will appear. You can use this screen to change the position of the image on your monitor by
dragging the monitor image with the mouse. The left mouse button must be kept pressed down.
Figure 21: Changing the position of the image
10. Use the arrow buttons to fine-adjust the position of the image.
11. Click on 'Default' to return to the default settings.
12. Click on 'OK' to save the settings.

Trust Riva Dragon TNT2 32MB PCI
15
GB
6. Troubleshooting
If your Trust Riva Dragon TNT2 32MB PCI does not work correctly, check the points given in the table below.
If this does not help to solve the problem, check the FAQ's and the latest version of the driver on the Internet
(www.trust.com), or contact your dealer or the Trust Helpdesk. The following details will be required:
•The article number
•Your windows version
•CPU type
•Memory
•The name of the program or game
•The exact error message or a good description of what does not work and when it happens.
Problem Cause Possible solution
The monitor cable has not
been connected correctly.
Connect the monitor cable correctly.
The Trust Riva Dragon
TNT2 32MB PCI card has
not been inserted into the
slot firmly enough.
Firmly push the Trust Riva Dragon TNT2 32MB PCI
card into the PCI slot.
No image.
The old VGA card is still
present.
Remove the old VGA card from the system.
There is only an
resolution of
640x480 and
16 colours.
The driver for the Trust
Riva Dragon TNT2 32MB
PCI has not been installed.
Install the driver for the Trust Riva Dragon TNT2 32MB
PCI (see chapter 4).
The driver
cannot be
installed in
Windows 2000.
Windows 2000 blocks
non-signed drivers.
Set Windows 2000 so that it accepts non-signed
drivers (see chapter 4.4).
The resolution is too high
for the monitor.
Reduce the resolution. Try 640x480 first.
The monitor cable has not
been connected correctly.
Connect the monitor cable correctly.
Visit www.trust.com for updates of the Trust Riva
Dragon TNT2 driver.
The image is
distorted.
The game is not
compatible with the Trust
Riva Dragon TNT2. Visit the game supplier's website for a patch.
The driver for the Trust
Riva Dragon TNT2 has not
been installed.
Install the driver.An error
message is
displayed when
games are
started. DirectX has not been
installed.
(Re)install DirectX.

Trust Riva Dragon TNT2 32MB PCI
16
7. Specifications
PCI
Windows 95, 98, NT4 and Windows 2000
Compatibility
DirectX 7
Chip set NVIDIA RIVA TNT2 M64
Memory 32MB SDRAM
Maximum pixel
frequency
250 MHz RAMDAC
Windows 95
Windows 98
Direct3D
acceleration
Windows 2000
Direct 3DSupported 3D
standards Open GL
Video display MPEG-I, MPEG-II/DVD, DirectShow and Indeo
Standard and multi-frequency analogue monitorsMonitor support
DDC2B Plug & Play
Resolutions Renewal frequencies Colour pallet
640x480 60, 70, 72, 75, 85, 100, 120, 140, 144, 150, 170, 200, 240 Hz 16, 32 bit
800x600 60, 70, 72, 75, 85, 100, 120, 140, 144, 170, 200, 240 Hz 16, 32 bit
1024x768 60, 70, 72, 75, 85, 100, 120, 140, 144, 170 Hz 16, 32 bit
1152x864 60, 70, 72, 75, 85, 100, 120, 140, 150 Hz 16, 32 bit
1280x960 60, 70, 72, 75, 85, 100, 120 Hz 16, 32 bit
1280x1024 60, 70, 72, 75, 85, 100, 120 Hz 16, 32 bit
1600x900 60, 70, 72, 75, 85 Hz 16, 32 bit
1600x1200 60, 70, 72, 75, 85 Hz 16, 32 bit
1920x1080 60, 70, 72, 75 Hz 16, 32 bit
1920x1200 60, 70 Hz 16, 32 bit
1920x1440 60 Hz 16, 32 bit
2048x1536 60 Hz 16 bit

Trust Riva Dragon TNT2 32MB PCI
17
GB
8. Trust Service Centres
Inhabitants of Great Britain and Ireland should contact:
From:
9:30 - 17:00
GB Office
Internet www.trust.com
E-mail [e-mail]
Fax [phone]
Tel. [phone]
Inhabitants of Italy should contact:
From:
9:00 - 13:00
/ 14:00 -
18:00
Italian Office
Internet www.trust.com
E-mail support-[email protected]
Fax [phone]
Tel. [phone]
Inhabitants of France and North Africa should contact:
From:
9:00 - 17:00
French Office
Internet www.trust.com
E-mail [e-mail]
Fax [phone]
Tel. [phone]
Inhabitants of Germany should contact:
From:
9:00 - 17:00
German Office
Internet www.trust.com
E-mail [e-mail]
Fax [phone]
Tel. 0800-00TRUST (=0800-0087878)
Inhabitants of Spain should contact:
From:
9:00 - 17:00
Spanish Office
Internet www.trust.com
E-mail [e-mail]
Fax [phone]
Tel. [phone]
Inhabitants of the Netherlands should contact:
From:
9:00 - 17:00
Dutch Office
Internet www.trust.com
E-mail [e-mail]
Fax [phone]
Tel. 0800-BELTRUST (=0800-23587878) of 078-
6549999
Inhabitants of all other European countries should contact:
From:
9.00 - 17.00
European Head Office
Internet www.trust.com
E-mail s[email protected]om
Fax [phone]
Tel. [phone]
