TS-market EDIC-mini LCD User manual

Operation manual
© TS-Market
Digital voice recorder
EDIC-mini LCD
Version 05.08.29

Introduction
Thank you for purchasing the Edic-Mini LCD digital voice recorder
(DVR). Prior to operation, read the operation manual thoroughly.
Purpose
Voice recorders of Edic-mini LCD series are professional devices
intended for making high quality record of voice messages into built-in
flash-memory. You can playback recorded messages using an
earphone and save them in your computer as standard sound files.
Voice recorders feature extremely small dimensions and weight, long
record time (varies with the model up to 600 hours) and standby
operation (up to 1000 hours), a wide dynamic range and highly
sensitive built-in microphone. Due to the absence of moving parts, the
DVR functions even under conditions of strong vibration, dustiness
and low temperatures.
The supplied USB adapter provides high-speed data exchange
between the DVR and computer (1.5 Mb). The supplied on the CD
software makes it possible to save the recorded messages as
standard sound files, to set the DVR parameters and to control
admission to the DVR functions. You may use your DVR for message
recording, as well as a flash-disc at the same time, to store and
transfer data of any format.
For the user's convenience while operating the DVR, there is a push-
button manipulator (joystick) and a liquid-crystal display to indicate all
the information needed, including built-in timer and real time clock.
The DVR has a Voice Activating System (VAS) which effectively
compresses pauses in messages, therefore increasing the actual
record time. The pause length can be restored at further file
processing with the software supplied.
3
Contents
2
Introduction ................................................................................................3
Purpose.......................................................................................................3
Delivery set .................................................................................................4
Basic technical and functional features ..................................................4
DVR overview .............................................................................................7
Display symbols.........................................................................................8
DVR operating ............................................................................................9
Prestarting procedures.......................................................................9
Battery installation and replacement ..................................................9
Earphone and remote control connection ..........................................11
Operating modes........................................................................................12
Record mode (REC)...........................................................................12
Playback mode (PLAY) ......................................................................15
Erasing mode (CLEAR)......................................................................16
Tuning mode (REC PR) .....................................................................17
Setup mode (SETUP) ........................................................................18
Profile setting mode ...........................................................................20
Recording startup by timer .................................................................22
Standby mode (Stop mode) ...............................................................23
Energy-saving mode ..........................................................................23
Admission levels ................................................................................23
Antialiasing median program filter......................................................24
Connection to computer............................................................................24
System requirements .........................................................................24
Connection .........................................................................................24
Firmware updating .............................................................................25
DVR accessories ........................................................................................26
External microphone with a compressor, combined with the remote
control ................................................................................................26
Phone talk record adapter..................................................................27
Record adapter for cellular phone with a stereo ................................27
connector
Troubleshooting: possible causes and corrective measures ...............28
Technical support ......................................................................................30
Control chart...............................................................................................32
Guarantee card...........................................................................................40

Introduction
Thank you for purchasing the Edic-Mini LCD digital voice recorder
(DVR). Prior to operation, read the operation manual thoroughly.
Purpose
Voice recorders of theEdic-mini LCD series are professional devices
intended for making high quality recording of voice messages into built-in
flash-memory. You can playback recorded messages using
headphone and save them in your computer as standard audio files.
Voice recorders feature extremely small dimensions and weight, long
record time (varies with the model up to 600 hours), standby
operation (up to 1000 hours), and highly sensitive built-in microphone
with a wide dynamic range. Due to the absence of moving parts, the
DVR functions even under the conditions of strong vibration, dustiness,
and low temperatures.
The supplied USB adapter provides high-speed data exchange
between the DVR and the computer (1.5 Mb). The software supplied
on the CD makes it possible to save the recorded messages as
standard audio files, set the DVR parameters, and control
admission to the DVR functions. You may use your DVR for message
recording, as well as a flash-disc at the same time, to store and
transfer data of any format.
For the user's convenience, while operating the DVR, there is a push-
button manipulator (joystick) and a liquid-crystal display to indicate all
the information needed, including abuilt-in timer and areal time clock.
The DVR has a Voice Activating System (VAS) which effectively
compresses pauses in messages therefore increasing the actual
recording time. The pause length can be restored at further file
processing with the software supplied.
3
Contents
2
Introduction ................................................................................................3
Purpose.......................................................................................................3
Delivery set .................................................................................................4
Basic technical and functional features ..................................................4
DVR overview .............................................................................................7
Display symbols.........................................................................................8
DVR operating ............................................................................................9
Prestarting procedures.......................................................................9
Battery installation and replacement ..................................................9
Earphone and remote control connection ..........................................11
Operating modes........................................................................................12
Record mode (REC)...........................................................................12
Playback mode (PLAY) ......................................................................15
Erasing mode (CLEAR)......................................................................16
Tuning mode (REC PR) .....................................................................17
Setup mode (SETUP) ........................................................................18
Profile setting mode ...........................................................................20
Recording startup by timer .................................................................22
Standby mode (Stop mode) ...............................................................23
Energy-saving mode ..........................................................................23
Admission levels ................................................................................23
Antialiasing median program filter......................................................24
Connection to computer............................................................................24
System requirements .........................................................................24
Connection .........................................................................................24
Firmware updating .............................................................................25
DVR accessories ........................................................................................26
External microphone with a compressor, combined with the remote
control ................................................................................................26
Phone talk record adapter..................................................................27
Record adapter for cellular phone with a stereo ................................27
connector
Troubleshooting: possible causes and corrective measures ...............28
Technical support ......................................................................................30
Control chart...............................................................................................32
Guarantee card...........................................................................................40

4 5
Delivery set
- Edic-Mini LCD digital voice recorder
- Headphone
- USB adapter
- CD with software
- 2 batteries
- Operation manual
- Guarantee card
Basic technical and functional features
1.Available recording time in ExtraLongPlay mode (modified 2-bit ADPCM,
sample rate 8 kHz, 16 Kbit/s).
- Supply voltage: 2.7-3.2 V;
- Operating temperature: -20- +50°C;
- Maximum bandwidth:
- at playback on PC: 100-6000 Hz;
- at playback through the earphone: 100-3800 Hz;
- Sample rate: 16000, 8000, 4000 Hz;
- Codec capacity: 16 bits;
- Signal/noise ratio: 72 dB;
- Quality, formats and density of data record:
Without compression (linear), sample rate is 16 kHz, 256 Kbit/s, k=16
Without compression (linear), sample rate is 8 kHz, 128 Kbit/s, k=8
Without compression (linear), sample rate is 4 kHz, 64 Kbit/s, k=4
Logarithmic compression, sample rate is 16 kHz, 128 Kbit/s, k=8
Logarithmic compression, sample rate is 8 kHz, 64 Kbit/s, k=4
Logarithmic compression, sample rate is 4 kHz, 32 Kbit/s, k=2
Modified 4-bit ADPCM, sample rate is 8 kHz, 32 Kbit/s, k=2
Modified 2-bit ADPCM, sample rate is 8 kHz, 16 Kbit/s, k=1
Modified 4-bit ADPCM, sample rate is 4 kHz, 16 Kbit/s, k=1
Modified 2-bit ADPCM, sample rate is 4 kHz, 8 Kbit/s, k=0.5
where k is the coefficient, showing how many times the maximum
record time decreases at record quality increase.
- Automated Voice Activation System (VAS);
- Antialiasing median program filter;
- Recording in the linear and circular modes (in the circular mode, the
buffer size is set in per cent of total memory size);
- Built-in microphone sensitivity: 7-9 m.;
- 8 user sets of record parameters (profiles);
- Random record delete;
- Real time clock;
- Battery charge indicator;
- USB interface with a PC, data exchange speed: 1.5 Mb;
Index Record time Built-in flash memory size
560
560 min.(9.3 hours) 64 MB
1120 1120 min. (18.6 hours) 128 MB
2240 2240 min.(37.3 hours) 256 MB
4480 4480 min. (74.6 hours) 512 MB
8960 8960 min. (149.3 hours) 1 GB
17920 17920 min. (298.6 hours)
2 GB
The DVR features a SuperExtraLongPlay mode (modified 2-bit
ADPCM, sample rate 4 kHz, 8 Kbit/s), which increases the recording time
twice as much as regards the data in the table.

4 5
Delivery set
- Edic-Mini LCD digital voice recorder
- Earphone
- USB adapter
- CD with software
- 2 batteries
- Operation manual
- Guarantee card
Basic technical and functional features
1. Record time in ExtraLongPlay mode (modified 2-bit ADPCM,
sample rate 8 kHz, 16 Kbit/s).
- Supply voltage: 2.7-3.2 V;
- Operating temperature: -20- +50°C (68-122F);
- Maximum bandwidth:
- at playback on PC: 100-6000 Hz;
- at playback through the earphone: 100-3800 Hz;
- Sample rate: 16000, 8000, 4000 Hz;
- Codec capacity: 16 bits;
- Signal/noise ratio: 72 dB;
- Quality, formats and density of data record:
Without compression (linear), sampling rate is 16 kHz, 256 Kbit/s, k=16
Without compression (linear), sampling rate is 8 kHz, 128 Kbit/s, k=8
Without compression (linear), sampling rate is 4 kHz, 64 Kbit/s, k=4
Logarithmic compression, sampling rate is 16 kHz, 128 Kbit/s, k=8
Logarithmic compression, sampling rate is 8 kHz, 64 Kbit/s, k=4
Logarithmic compression, sampling rate is 4 kHz, 32 Kbit/s, k=2
Modified 4-bit ADPCM, sampling rate is 8 kHz, 32 Kbit/s, k=2
Modified 2-bit ADPCM, sampling rate is 8 kHz, 16 Kbit/s, k=1
Modified 4-bit ADPCM, sampling rate is 4 kHz, 16 Kbit/s, k=1
Modified 2-bit ADPCM, sampling rate is 4 kHz, 8 Kbit/s, k=0.5
where k is the coefficient, showing how many times the maximum
recording time decreases when record quality increases.
- Automated Voice Activation System (VAS);
- Antialiasing median program filter;
- Recording in the linear and circular modes (in the circular mode, the
buffer size is set in per cent of total memory size);
- Built-in microphone sensitivity: 7-9 m.;
- 8 user sets of record parameters (profiles);
- Random record delete;
- Real time clock;
- Battery charge indicator;
- USB interface with a PC, data exchange speed: 1.5 Mb;
Index Record time Built-in flash memory size
560
560 min.(9,3 hours) 64 MB
1120 1120 min. (18,6 hours) 128 MB
2240 2240 min.(37,3 hours) 256 MB
4480 4480 min. (74,6 hours) 512 MB
8960 8960 min. (149,3 hours) 1 GB
17920 17920 min. (298,6 hours)
2 GB
The DVR features a SuperExtraLongPlay mode (modified 2-bit
ADPCM, sample rate 4 kHz, 8 Kbit/s), which increases the record time
twice as much as regards the data in the table.

6 7
- Reliable data storage in flash-memory: over 10 years;
- Consumption in Standby mode with the indicator on: 0.14 mA;
- Consumption in Standby mode with the indicator off: 0.016 mA.
Antialiasing
Sample rate, kHz
Compression On Off
16 no 3.6 mА 2.8 mА
8 no 3.4 mА 1.8 mА
4 no 3.3 mА 1.6 mА
16 log1-16 3.4 mА 3.4 mА
8 log1-16 3.3 mА 1.9 mА
4 log1-16 3.3 mА 1.5 mА
8 ADPCM2,4 3.2 mА 2.5 mА
4 ADPCM2,4 3.2 mА 1.6 mА
With the VAS on and the signal below equils the threshold,
consumption does not exceed 0.2 ma. At
playback the consumption is 5-7 m A in all modes.
model B8
EDIC-mini LCD
up
down
enter
left right
Push-button joystick
Connector for external
microphone and
USB adapter
Earphone
connector
EDIC-mini LCD B8 overview
LCD
DVR overview

6 7
- Reliable data storage in flash-memory: over 10 years;
- Consumption in Standby mode with the indicator on: 0.14 mA;
- Consumption in Standby mode with the indicator off: 0.016 mA.
Antialiasing
Sample rate, kHz
Compression On Off
16 no 3,6 mА 2,8 mА
8 no 3,4 mА 1,8 mА
4 no 3,3 mА 1,6 mА
16 log1-16 3.4 mА 3,4 mА
8 log1-16 3,3 mА 1,9 mА
4 log1-16 3,3 mА 1,5 mА
8 ADPCM2,4 3,2 mА 2,5 mА
4 ADPCM2,4 3,2 mА 1,6 mА
With the VAS on, and the signal below the threshold value,
consumption does not exceed 0.2 ma.
Consumption at playback is 5-7 mA in all modes.
model B8
EDIC-mini LCD
up
down
enter
left right
Push-button joystick
Connector for external
microphone and
USB adapter
connector of headphone
EDIC-mini LCD B8 overview
LCD
DVR overview

8 9
DVR Operating
Prestarting procedures
Battery installation
We do recommend that only the batteries, produced by well known
manufacturers should be used in the DVR. In this case you may
expect your DVR to work continuously. Other battery types of the
same dimension-type may provide much less DVR operation time in
Record and Playback modes, even if they are called compatible and
announced to have better features.
When inserting the battery, make sure you have observed the polarity.
Warning!
Special attention should be paid to polarity while inserting the battery:
the positive battery contact is to be upward (the top side of the DVR is
where the joystick and the display are).
Display Symbols
- Indication of the DVR connection to PC by means
of the USB adapter.
- Battery charge indicator;
- Record mode indicator;
- Standby mode indicator;
- Playback mode indicator
1 - Symbol line
2 - Numeric line
3 - Alphabetic line
1
2
3
R 50C 24
mode B8l
EDIC m ni LCD- i

8 9
DVR Operating
Prestarting procedures
Battery installation
We do recommend that only the batteries, produced by well known
manufacturers should be used in the DVR. In this case you may
expect your DVR to work continuously. Other battery types of the
same dimension-type may provide less DVR operation time in
Record and Playback modes, even if they are called compatible and
announced to have better features.
When inserting the battery, make sure you have checked the polarity.
Warning!
Special attention should be paid to polarity while inserting the battery:
the positive battery contact is to be upward (the top side of the DVR is
where the joystick and the display are).
Display Symbols
- Indication of the DVR connection to PC by means
of the USB adapter.
- Battery charge indicator;
- Record mode indicator;
- Standby mode indicator;
- Playback mode indicator
1 - Symbol line
2 - Numeric line
3 - Alphabetic line
1
2
3
CR 2450
model B8
EDIC-mini LCD

1011
Battery is fully
charged
Battery is
discharging
Battery is
discharged
If the battery is inserted properly, the DVR will execute self-testing,
and you will see the total memory capacity and firmware version on
the display, then all the LCD elements will be indicated for a
moment. After that you will see the following information on the
display:
- In the symbol line battery charge indicator and mode symbol
(Stop mode);
- In the numeric line the current time (hours and minutes), the
separator blinks at a 2-second interval. (Fig. 1)
Battery replacement
Battery charge indicator shows how much the battery is discharged.
If the battery is fully charged, the battery indicator border and three
lines inside will be shown on the display
The DVR is in the Standby mode and ready to work. If let without a
push-button activity for a minute, the DVR goes to Sleeping
mode and the LCD display goes off. Push the joystick up to switch back it
on.
If there is only the battery border on the display, it means that the
battery is discharged and should be replaced. When the battery is
discharged, the DVR does not react to button pressed or pushed,
the display is off.
You can replace the battery without switching off the DVR. At that it
can work for some seconds without the battery. Thus, if the battery
is replaced fast enough, the built-in real time clock does not reset.
Earphone and remote control connection
The earphone and remote control can be connected through the
earphone connector in the side bottom part of the case. You should
insert the earphone plug into the connector up to the stop.
Fig.1

1011
Battery is fully
charged
Battery is
discharging
Battery is
discharged
If the battery is inserted properly, the DVR will execute self-testing,
and you will see the total memory capacity and firmware version on
the display, then all the LCD elements will be indicated for a
moment. After that you will see the following information on the
display:
- In the symbol line battery charge indicator and mode symbol
(Stop mode);
- In the numeric line the current time (hours and minutes), the
separator blinks at a 2-second interval. (Fig. 1)
Battery replacement
Battery charge indicator shows how much battery life is left.
If the battery is fully charged, the battery indicator border and three
lines inside will be shown on the display
The DVR is in the Standby mode and ready to work. Without a
push-button activity for a minute, the DVR goes to the Sleeping
mode and the LCD display goes off. Push the joystick up to switch it
on.
If there is only the battery border on the display, it means that the
battery is discharged and should be replaced. When the battery is
discharged, the DVR does not react to the pressing or pushing of
buttons, and the display remains off.
You can replace the battery without switching off the DVR. At that it
can work for some seconds without the battery. Thus, if the battery
is replaced fast enough, the built-in real time clock does not reset.
Earphone and remote control connection
The headphone and remote control can be connected through the
headphone connector on the side part of the case. You should fully
insert the headphone plug into the connector.
Fig.1

1312
Operating Modes
You can select a mode with the push-button manipulator
(joystick) in accordance with the diagram. (See the control chart at
the end of the manual).
If it is left without a push-button activity for a minute, the DVR switches
to the Energy-saving mode and the LCD display goes off.
Push the button up to switch it backon.
Record mode (REC)
To start the Record mode, press the button once or twice, depending
on settings made when connecting to thePC.
On the display you will see:
In the symbol line battery charge indicator and mode symbol;
Socket for external
accessories
In the numeric line on the left: net recording time (hours and minutes),
the separator blinks at a 2-second interval; on the right: the current
profile number;
In the alphabetic line on the left: the percentage of free memory
size, on the right: the number of the record being made. (Fig. 2)
Fig.2
Push the joystick up to pause recording, PAUSE will appear on the
display.

1312
Operating Modes
You can select a needed mode with the push-button manipulator
(joystick) in accordance with the diagram. (See the control chart at
the end of the manual).
Without a push-button activity for a minute, the DVR switches to the
Energy-saving mode from most modes; the LCD display goes off then.
Push the button up to switch it on.
Record mode (REC)
To start the Record mode, press the button once or twice, depending
on settings made when connecting to PC.
On the display you will see:
In the symbol line battery charge indicator and mode symbol;
Socket for external
accessories
In the numeric line on the left: net recording time (hours and minutes),
the separator blinks at a 2-second interval; on the right: the current
profile number;
In the alphabetic line on the left: the percentage of available memory,
on the right: the number of the recording being made. (Fig. 2)
Fig.2
Push the joystick up to pause recording, PAUSE will appear on the
display.

15
To continue recording, press the button once again.
If you push the joystick down, recording will stop, the DVR will go to
Standby mode.
If trere is no more free memory,the DVR will automatically go to Sleeping
mode.
Recording may be saved either in the cycle buffer mode or in the line
messages mode. The DVR can provide some memory size to the
cycle buffer. (See Profile setting)
Warning! When recording into the cycle buffer (cycle record), the
DVR will start recording into the record beginning (i.e. deleting the
previously recorded data), as soon as the provided memory space
comes to the end. The time of the current record will go on, but the
remaining memory size will stay constant on the display.
Each recording made is marked with the time and date by means of the
built-in real time clock.
You may adjust your DVR (see Setup mode) to record in the VAS
mode. This will allow you to compress the pauses in messages
efficiently therefore the available recording time increases. Using this system
saves memory in pauses, but stores information about time intervals.
The pause length can be restored at further file processing with the
14
supplied software.
In the VAS mode, while recording into flash memory, the Record
symbol will be lit on the display. If the signal does not exceed the fixed
level, and it is not recorded into flash-memory, there will be Record and
Stop symbols on the display
You can make the VAS mode settings with the supplied software.
The VAS working algorithm is as follows: the DVR controller sleeps for
T1 time, then it switches on for T2 time and analyzes the signal. If it
discovers X1 threshold exceeding by the signal during this time, the
controller attempts to discover X2 threshold exceeding by T4 time
during T3 time. If the controller succeeds, the record starts, otherwise
the recorder continues sleeping. The record stops, if the signal does
not exceed X3 threshold during T5 time. And so on, in cycle. The user
can set T and X values corresponding to software settings to conform
to specific requirements.
Playback mode (PLAY)
When you push the joystick down, PLAY will appear on the display. If
you want to playback any record, press the push button to confirm
choosing the Playback mode. Push the button right or left to select the
record number to be played. Then press the button, and the playback
of the chosen record will start. The display will show the following
information (Fig. 3):
- In the symbol line battery charge indicator and mode symbol;
- In the numeric line on the left: playback time (hours and minutes), the
separator blinks at a 2-second interval, on the right: volume level;
- In the alphabetic line on the left: the size of the record segment
played, as the percentage of the total record size, on the right: the
number of the record being played.

15
To continue recording, press the button once again.
If you push the joystick down, recording will stop, the DVR will go to the
Standby mode.
The DVR will automatically go to the Sleeping mode, if there is no
more free memory.
Record may be carried out either in the cycle buffer mode or in the line
messages mode. The DVR can provide some memory size to the
cycle buffer. (See Profile setting)
Warning! When recording into the cycle buffer (cycle record), the
DVR will start recording into the record beginning (i.e. deleting the
previously recorded data), as soon as the provided memory space
comes to the end. The time of the current record will go on, but the
remaining memory size will stay constant on the display.
Each record made is marked with the time and date by means of the
built-in real time clock.
You may adjust your DVR (see Setup mode) to record in the VAS
mode. This will allow you to compress the pauses in messages
efficiently, therefore increasing the real record time. Using this system
saves memory in pauses, but stores information about time intervals.
The pause length can be restored at further file processing with the
14
supplied software.
In the VAS mode, while recording into flash memory, the Record
symbol will be lit on the display. If the signal does not exceed the fixed
level, and it is not recorded into flash-memory, there will be Record and
Stop symbols on the display
You can adjust the VAS mode settings with the supplied software.
The VAS working algorithm is as follows: the DVR controller sleeps for
T1 time, then it switches on for T2 time and analyzes the signal. If it
discovers the X1 threshold exceeding by the signal during this time, the
controller attempts to discover the X2 threshold exceeding by T4 time
during T3 time. If the controller succeeds, the recording starts, otherwise
the recorder continues sleeping. The recording stops, if the signal does
not exceed the X3 threshold during T5 time and so on in cycle. The user
can set T and X values, corresponding to software settings, to confirm
to specific requirements.
Playback mode (PLAY)
When you push the joystick down, PLAY will appear on the display. If
you want to playback any recording, press the button to confirm
choosing the Playback mode. Push the button right or left to select the
recording number to be played. Then press the button, and the playback
of the chosen record will start. The display will show the following
information (Fig. 3):
- In the symbol line battery charge indicator and mode symbol;
- In the numeric line on the left: playback time (hours and minutes), the
separator blinks at a 2-second interval, on the right: volume level;
- In the alphabetic line on the left: the size of the record segment
played, as the percentage of the total record size, on the right: the
number of the recording being played.

1716
Fig. 3
You can change the volume by pushing the button up. The volume varies
vary from 0 (off) to 8 (max).
If there are no recordings to be played, EMPTY will appear on the display.
To exit this mode, push the button down.
Erasing mode (CLEAR)
To erase a record, push the joystick down twice. You will see CLEAR
on the display.
0
4
2
6
1
5
3
7
Extra high
Extra high VAS
Normal
Normal VAS
Super high
Super high VAS
Medium
Medium VAS
Sample rate 16 kHz, linear (without compression),
256 Kbit/s
Sample rate 16 kHz, linear (without compression),
VAS, 256 Kbit/s
Sample rate 16 kHz, logarithmic compression (16
LOG), 128 Kbit/s
Sample rate 16 kHz, logarithmic compression (16
LOG), VAS, 128 Kbit/s
Sample rate 8 kHz, logarithmic compression (16
LOG), 64 Kbit/s
Sample rate 8 kHz, logarithmic compression (16
LOG), VAS, 64 Kbit/s
Sample rate 8 kHz, modified 4-bit ADPCM, 32
Kbit/s
Sample rate 8 kHz, modified 4-bit ADPCM, VAS,
32 Kbit/s
Press the button to confirm choosing this mode. Push the joystick right
or left to select the number of the record (NUM) to be erased and press
the button. Then free memory size will be indicated on the display, in
per cent of the total size. If you press the button again, the next record
will be offered to be erased. If you have erased all the records or there
are no records, EMPTY will appear on the display. It means that 100%
memory is free. Press the button up to exit this mode.
Tuning mode (REC PR)
The DVR provides for eight user settings for record parameters
(profiles). The DVR has the following preset profiles in the factory
configuration. (Each profile contains its own set of record parameters,
including quality and voice compression at recording, VAS
parameters, record in linear/circular buffer). You can set profiles as
you wish.

1716
Fig. 3
You can change the volume by pushing the button up. The volume will
vary from 0 (off) to 8 (max) in circle.
If there are no records to be played, EMPTY will appear on the display.
To exit this mode, push the button down.
Erasing mode (CLEAR)
To erase a record, push the joystick down twice. You will see CLEAR
on the display.
0
4
2
6
1
5
3
7
Extra high
Extra high VAS
Normal
Normal VAS
Super high
Super high VAS
Medium
Medium VAS
Sampling rate 16 kHz, linear (without compression),
256 Kbit/s
Sampling rate 16 kHz, linear (without compression),
VAS, 256 Kbit/s
Sampling rate 16 kHz, logarithmic compression (16
LOG), 128 Kbit/s
Sampling rate 16 kHz, logarithmic compression (16
LOG), VAS, 128 Kbit/s
Sampling rate 8 kHz, logarithmic compression (16
LOG), 64 Kbit/s
Sampling rate 8 kHz, logarithmic compression (16
LOG), VAS, 64 Kbit/s
Sampling rate 8 kHz, modified 4-bit ADPCM, 32
Kbit/s
Sampling rate 8 kHz, modified 4-bit ADPCM, VAS,
32 Kbit/s
Press the button to confirm choosing this mode. Push the joystick right
or left to select the number of the recording (NUM) to be erased and press
the button. The available memory size will be indicated on the display, in
percent according to the total size. If you press the button again, the next recording
will be offered to be erased. If you have erased all the recordings or there
are no recordings, EMPTY will appear on the display. It means that 100%
memory is free. Press the button up to exit this mode.
Tuning mode (REC PR)
The DVR provides eight settings of recording parameters
(profiles). The DVR has the following preset profiles in the factory
configurations. (Each profile contains its own set of recording parameters,
including quality and voice compression at recording, VAS
parameters, recording in linear/circular buffer). You can set profiles as
you wish.

18
You can change the profile parameters using the Setup mode. (See
Setup mode) We recommend you to select the profile before
recording. For that, push the button down three times, you will go to the
Tuning mode. Then press the button, and by pushing it right or left, select
a profile (from 0 to 7). Press the button and PR SET will
appear on the display. It means that the selected parameters are set.
Then push the button up to go to the Standby mode.
Remember, that the record time depends on the record
quality: the higher is the quality, the shorter is the time. You may
approximately calculate the record time using the coefficient stated in
the technical characteristics. To do this, divide the maximum record
time of your DVR by the coefficient corresponding to the chosen
parameters. In the Tuning mode, if without a push-button activity for 14
seconds, the DVR will switch to the Energy-saving mode. The chosen
profile will be saved. These settings are also saved when replacing the
battery.
Setup mode (SETUP)
Push the button down four times to switch to the profile Setup mode.
Here you can set the real time, check the available memory size and format
it completely as well. Then press the button to enter the Setup mode.
Then, pushing the button down, you can select from the following
items (in circle):
1. Viewing the available memory size (MEM).
Press the button to view free memory in percent of the total memory
size.
19
9 9
O O 2 II
Push the button up to return to the Setup mode.
2. Profile setting (PROF). (See Profile setting mode)
3. Real time setting (TIME). Press the button to enter this mode. Push
the joystick left to set hours, and right to set minutes. Then push it
down and left/right to set the date, month and year.
Then press the button, SET will appear on the display.
Push the button up to return to the Setup mode.
4. Memory formatting (FORMAT).
Warning! At memory formatting, all the recorded messages will be
lost.

18
You can change the profile parameters using the Setup mode. (See
Setup mode) We would recommend you to select the profile before
recording. For that, push the button down three times, you will go to the
Tuning mode. Then press the button, and pushing it right or left, select
the needed profile (from 0 to 7). Press the button and PR SET will
appear on the display. It means that the selected parameters are set.
Then push the button up to go to the Standby mode.
Remember, that the record time depends on the record
quality: the higher is the quality, the shorter is the time. You may
approximately calculate the record time using the coefficient stated in
the technical characteristics. To do this, divide the maximum record
time of your DVR by the coefficient corresponding to the chosen
parameters. In the Tuning mode without a push-button activity for 14
seconds, the DVR will switch to the Energy-saving mode. The chosen
profile will be saved. These settings are also saved when replacing the
battery.
Setup mode (SETUP)
Push the button down four times to switch to the profile Setup mode.
Here you can set the real time, check the free memory size and format
it completely as well. Then press the button to enter the Setup mode.
Then, pushing the button down, you can select from the following
items (in circle):
1. Viewing the free memory size (MEM).
Press the button to view free memory in per cent of the total memory
size.
19
9 9
O O 2 II
Push the button up to return to the Setup mode.
2. Profile setting (PROF). (See Profile setting mode)
3. Real time setting (TIME). Press the button to enter this mode. Push
the joystick left to set hours, and right to set minutes. Then push it
down and left/right to set the day, month and year.
Then press the button, SET will appear on the display.
Push the button up to return to the Setup mode.
4. Memory formatting (FORMAT).
Warning! At memory formatting, all the recorded messages will be
lost.

To format the memory, press the button. By pushing the button left or
right, select YES and press the button again. DONE will appear on the
display. Push the button up to return to the Setup mode.
If you do not want to format the memory, select NO, press the button or
push it up. The DVR will return to the Setup mode.
5. Switching the record on/ off by single and everyday timer.
(See Record startup on timer mode).
Profile setting mode
Select the Setup mode (push the button down four times, then press
it), then push the button down once and press it. The DVR is in the
Profile setting mode now.
You can select parameter values by pushing the joystick left or right,
and switch to the next parameter by pressing the button. Push the
joystick up to return to the Setup mode.
First of all, select the profile number (NUM) by pushing the button left
or right, and press the button. The DVR will offer to set (in cycle):

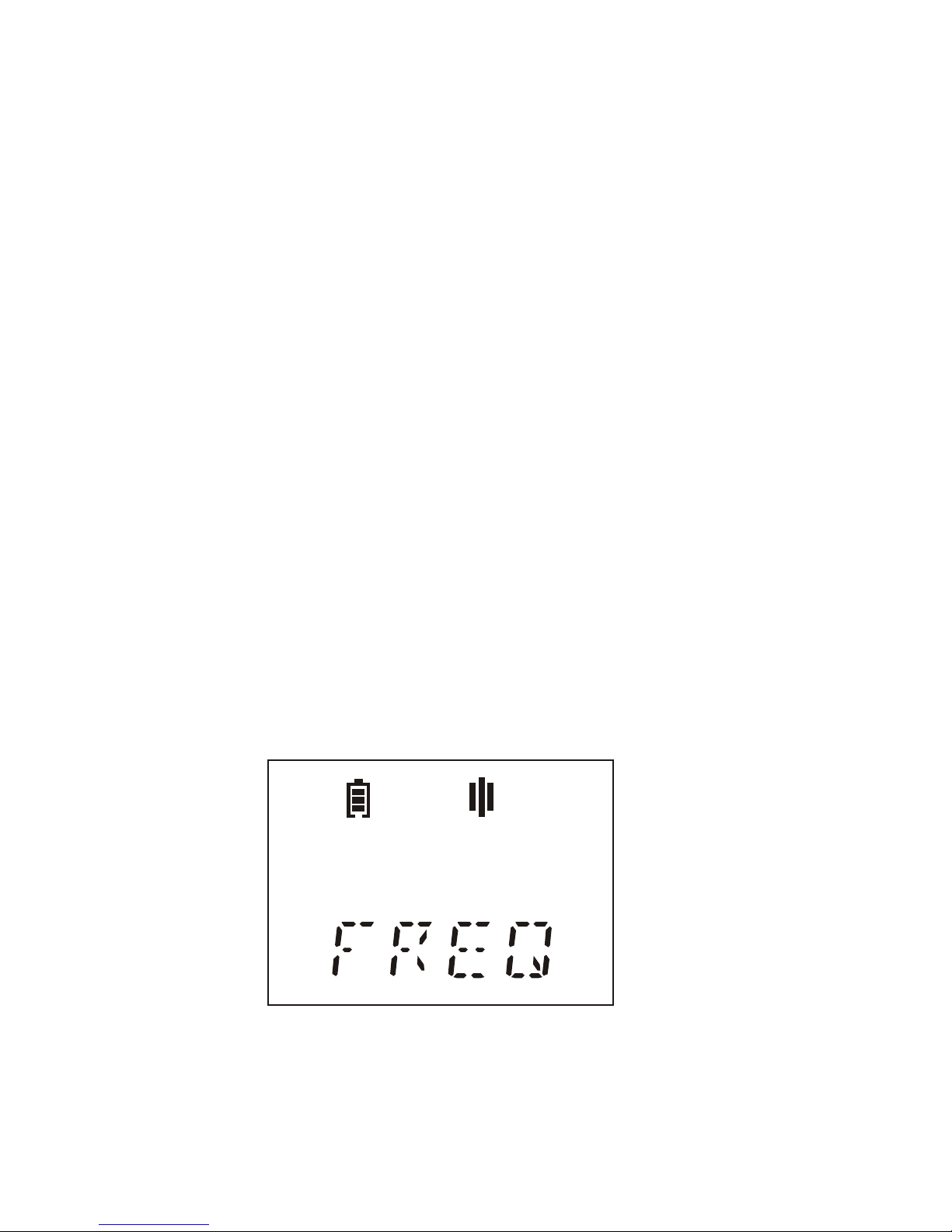

1. Audio sample rate (FREQ) of 4, 8 or 16 kHz.
20 21
I 6 O O O
Set it by pushing the button left or right. Push the button down to go to
the next parameter setting. Push the button up to return to the Setup
mode (without saving the selected parameters).
If you press the button, the setting will be completed, and PR SET and
the profile number will appear on the display.
2. Audio compression format. Push the button right to select the
format, and left to select the parameter value.
- NO recording without compression;
- LOG logarithmic compression. You can set the sensitivity parameter
(1, 2, 4, 8 or 16) by pushing the joystick left. The parameter depends on
recording conditions. You should set a low parameter value to make a
high quality record of a weak signal; the strong signal will be recorded
with distortion. If the parameter value is big, loud signals will be
recorded at high quality, but low signals can be fuzzy.
- ADPCM Adaptive Differential Pulse Code Modulation. You can set
the parameters (2 or 4) by pushing the joystick left.
You may set the following quality, formats and density of data
recording:
- Without compression (linear), sample rate is 16 kHz, 256 Kbit/s, k=16
- Without compression (linear), sample rate is 8 kHz, 128 Kbit/s, k=8
- Without compression (linear), sample rate is 4 kHz, 64 Kbit/s, k=4
- Logarithmic compression, sample rate is 16 kHz, 128 Kbit/s, k=8
- Logarithmic compression, sample rate is 8 kHz, 64 Kbit/s, k=4
- Logarithmic compression, sample rate is 4 kHz, 32 Kbit/s, k=2
- Modified 4-bit ADPCM, sample rate is 8 kHz, 32 Kbit/s, k=2
- Modified 2-bit ADPCM, sample rate is 8 kHz, 16 Kbit/s, k=1
- Modified 4-bit ADPCM, sample rate is 4 kHz, 16 Kbit/s, k=1
- Modified 2-bit ADPCM, sample rate is 4 kHz, 8 Kbit/s, k=0.5
where k is the coefficient, showing how many times the maximum
record time decreases at record quality increase. You should
