Tsurumi Pump TE3 Series Setup guide

OPERATION, SERVICE, AND
REPAIR MANUAL
FOR TSURUMI TE3-SERIES
CENTRIFUGAL PUMPS
MODELS
TE3-50HA
TE3-80HA
TE3-100HA

LIMITED WARRANTY
TSURUMI MANUFACTURING CO., LTD. (“TSURUMI”) warrants to the original end purchaser during
the warranty period, every new TSURUMI pump or product to be free from defects in material and
workmanship under normal use and service, when properly installed, used, and maintained (in accor-
dance with Tsurumi’s Operation, Service, and Repair Manual) for a period of two years from the date
the unit was first installed or twenty six months from the date of shipment by TSURUMI to wholesaler,
whichever comes first.
TSURUMI’S sole obligation under this warranty is to repair or replace at TSURUMI’S option, with new
or remanufactured parts, any part(s) that fail or that are found to be defective during the warranty peri-
od. No allowance will be made for shipping charges, damages, labor, or other charges due to failure,
repair or replacement.
This warranty does not apply to any TSURUMI product that has been disassembled without prior
approval of TSURUMI nor does it apply to any product that has been subjected to misuse, neglect,
alteration, misapplication, accident or act of God.
TSURUMI assumes no responsibility for compliance with any regulations, codes, standards, or ordi-
nances applicable to the installation, location, operation or maintenance of its products.
No other warranty, expressed or implied, is authorized by, or applicable to, the seller. No person, agent
or dealer is authorized to enlarge upon this warranty.
TSURUMI expressly disclaims liability for consequential or incidental damages or breach of expressed
or implied warranty; and any implied warrant of fitness for a particular purpose and merchantability
shall be limited to the duration of the expressed warranty.
Some states do not allow limitations on the duration of an implied warranty, so the above limitation or
exclusion may not apply to you. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation of exclusion may not apply to you.
This warranty gives you specific legal rights and you may also have other rights, which vary from state
to state.
Tsurumi Manufacturing Co., Ltd.

TABLE OF CONTENTS
Section/Title Page
1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1-1. Using Your Tsurumi Operation, Repair and Service Manual . . . . . . . . . . . . . 1
1-2. Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1-3. Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1-4. Specifications / Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1-5. Performance Curves. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2-1. Operating Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2-2. Check the Engine Oil Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2-3. Check Engine Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2-4. Check Fuel Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2-5. Pre-Start Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2-6. Starting and Operating the Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2-7. Using the Centrifugal Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2-8. Stopping the Centrifugal Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2-9. Oil Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3-1. Troubleshooting Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4-1. Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4-2. Changing Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4-3. Air Cleaner Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4-4. Sediment Cup Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4-5. Cleaning and Adjusting Spark Plug. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4-6. Disassembly of Centrifugal Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4-7. Replacement of Mechanical Seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4-8 Removal and Installation of Engine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4-9 Replacement of Cushions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4-10. Assembly of Centrifugal Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4-11. Replacing of Check Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5. Storage Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5-1. Procedures for Storing Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6. Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6-1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6-2. Ordering Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Exploded View/Parts Listing - TE3-50HA . . . . . . . . . . . . . . . . . . . . . . . . . . .
26/27
Exploded View/Parts Listing - TE3-80HA . . . . . . . . . . . . . . . . . . . . . . . . . . .
28/29
Exploded View/Parts Listing - TE3-100HA . . . . . . . . . . . . . . . . . . . . . . . . . .
30/31

INTRODUCTION
1-1 Using Your Tsurumi Operation, Repair and Service Manual
We thank you for purchasing a Tsurumi centrifugal pump. We are sure that the centrifugal pump you
have selected will meet your portable pumping needs.
This manual applies to the Tsurumi centrifugal pumps listed below. Specifications for the centrifugal
pumps are provided in the SPECIFICATIONS section. Key features of the centrifugal pump are shown
in the DESCRIPTION section.
TE3-50HA
TE3-80HA
TE3-100HA
This manual provides instructions for operation, service, and repair of your centrifugal pump. We
strongly recommend that those who operate the centrifugal pump become familiar with the centrifugal
pump’s features and controls, and read the operating instructions before using the centrifugal pump.
The Operation, Repair, and Service Manual provides instructions to service, checkout, and repair the
centrifugal pump. This manual also provides replacement parts information.
Repair and service information for the Honda engine is provided in the Owner’s Manual for Models
GX160, GX240, and GX340. A copy of the Owner’s Manual has been provided in the centrifugal pump’s
literature package. Parts information for the Honda Engine is available in Honda’s Parts Catalogs.
When there are differences between centrifugal pump models, separate instructions are provided. The
separate instructions are provided to make sure the correct procedures are used on the affected cen-
trifugal pumps.
All information in the Tsurumi manuals is based upon the latest production configuration of the cen-
trifugal pump at the time of printing.
If you have a problem with your centrifugal pump that cannot be resolved using the Operation, Repair,
and Service Manual, or if you have questions about the operation, service, repair, or maintenance of
your centrifugal pump, contact your local Tsurumi centrifugal pump dealer.
1-2 Precautions
Pay special attention to precautionary notes preceded by the words WARNING,CAUTION, and NOTE.
WARNINGS indicate that there is a strong possibility of personal injury or loss of lifeif the procedure
is not followed, or if cleaning, lubricating, adhesives, and other materials are not used properly.
CAUTIONS indicate that there is a possibility of equipment damage if instructions are not followed.
NOTES are used in procedures to provide additional or supplemental information to make the proce-
dure easier or more efficient.
WARNING:
• The centrifugal pump is designed to give safe and dependable service when operated accord-
ing to the instructions in the technical manual provided with the centrifugal pump.
Introduction Page 1
Tsurumi’s Operation, Service, and Repair Manual

• Do not operate the centrifugal pump before you have read and understand the instructions
and the engine manufacturer’s manual. Failure to do so could result in personal injury or
equipment damage.
1-3 Safety Precautions
WARNING:
• IN ORDER TO ASSURE SAFE AND EFFICIENT OPERATION OF THE CENTRIFUGAL PUMP,
OPERATORS SHOULD READ AND COMPLY WITH THE FOLLOWING SAFETY PRECAU-
TIONS.
• Do not operate the centrifugal pump near gasoline or gaseous fuels because of the poten-
tial danger from explosion or fire.
• Do not fill the fuel tank with fuel while the engine is running. Be careful not to spill fuel during
refueling. If fuel is spilled, wipe it off and let it dry before starting the engine.
• Do not smoke or use an open flame near the fuel tank.
• Do not place flammable materials near the centrifugal pump. Be careful not to place fuel,
matches, gunpowder, oily cloths, straw, or any other combustibles near the centrifugal pump.
• Do not operate the centrifugal pump inside a room, cave, tunnel, or other insufficiently ven-
tilated area. Always operate the centrifugal pump in a well-ventilated area. The engine may
become overheated, and the poisonous carbon monoxide gas contained in the exhaust gases will
endanger human lives.
• Keep the centrifugal pump at least 1 meter (3 feet) away from any structure or building dur-
ing use. When a centrifugal pump is located close to a building or nearby equipment, heat and
exhaust from the engine will cause the surrounding temperature to rise. This will degrade the
engine’s cooling efficiency, causing overheating.
• Do not enclose the centrifugal pump nor cover it with a box. The centrifugal pump has a built-
in, forced-air cooling system, and may become overheated if it is enclosed.
• Operate the centrifugal pump on a level surface. It is not necessary to prepare a special foun-
dation for the centrifugal pump. However, the centrifugal pump will vibrate on an irregular surface.
Therefore, choose a level place without surface irregularities.
• Shutoff the centrifugal pump when moving the centrifugal pump to another work site. It the
centrifugal pump is tilted or moved during operation, fuel may spill and/or the centrifugal pump may
tip over, causing a hazardous situation. Proper lubrication cannot be expected if the centrifugal
pump is operated on a steep incline or slope. In such a case, the piston may seize; it may seize
even if the oil is above the upper level.
Page 2 Introduction
Tsurumi’s Operation, Service, and Repair Manual

1-4 Specifications / Key Features
•Hea y-duty Honda Engine — proven reliabili y — quie opera ion — efficien fuel consump ion
•Oil Le el Sensor — preven s engine opera ion when oil level is low
•New Design — larger pump casing for increased durabili y
•Mechanical Seal — silicon carbide seal elemen for long life
•Rubber Vibration Isolation Mounts — isola es pump/engine vibra ion from he frame for maxi-
mum pro ec ion and noise reduc ion.
•Durable Rolled Steel Frame — for s reng h and durabili y
•High Chrome Impeller — increase abili y o wi hs and he impac of debris passing hrough he
pump
•Cast Iron Volute Casing.
1-5 Perfor ance Curves
Refer o he performance curves for he pumping capaci y of TE3 series cen rifugal pumps.
In roduc ion Page 3
Tsurumi’s Opera ion, Service, and Repair Manual
MODELS
TE3-50HA TE3-80HA TE3-100HA
Pump Output Gal./Min-to-Total Head See Performance Curve See Performance Curve See Performance Curve
Suction Size Inches 2 NPT Male 3 NPT Male 4 NPT Male
PUMP
Discharge Size Inches 234
Engine Models (Honda) - - - - GX120K1-WKT2 GX160K1-WKT2 GX240K1-WKT2
Max. HP (rpm) hp/rpm 4.0 (3600 rpm) 5.5 (3600 rpm) 8.0 (3600 rpm)
Displacement CC (In3) 118 163 242
Fuel Tank Capacity Gals. 0.66 0.95 1.59
Noise Level (Rated Load) dB 64 dB 68 dB 72 dB
ENGINE
Starting System - - - Recoil Recoil Recoil
Dimensions (L x W x H) Inches 18 1/2 x 14 5/8 x 17 1/8 28 1/2 x 16 1/2 x 18 7/8 25 x 18 x 23 1/2
SET
Shipping Weight Lbs. 55 64 109
GROUP
PERFORMANCE
MODELS
TE3-50HA
TE3-80HA
TE3-100HA
TE-2 Series Revised:TE-2 Series 11/6/08 11:46 AM Page 18

INDIVIDUAL
PERFORMANCE
MODEL
TE2-50HA
INDIVIDUAL
PERFORMANCE
MODEL
TE3-80HA
INDIVIDUAL
PERFORMANCE
MODEL
TE3-100HA
Page 4 Introduction
Tsurumi’s Operation, Service, and Repair Manual

Introduction Page 5
Tsurumi’s Operation, Service, and Repair Manual

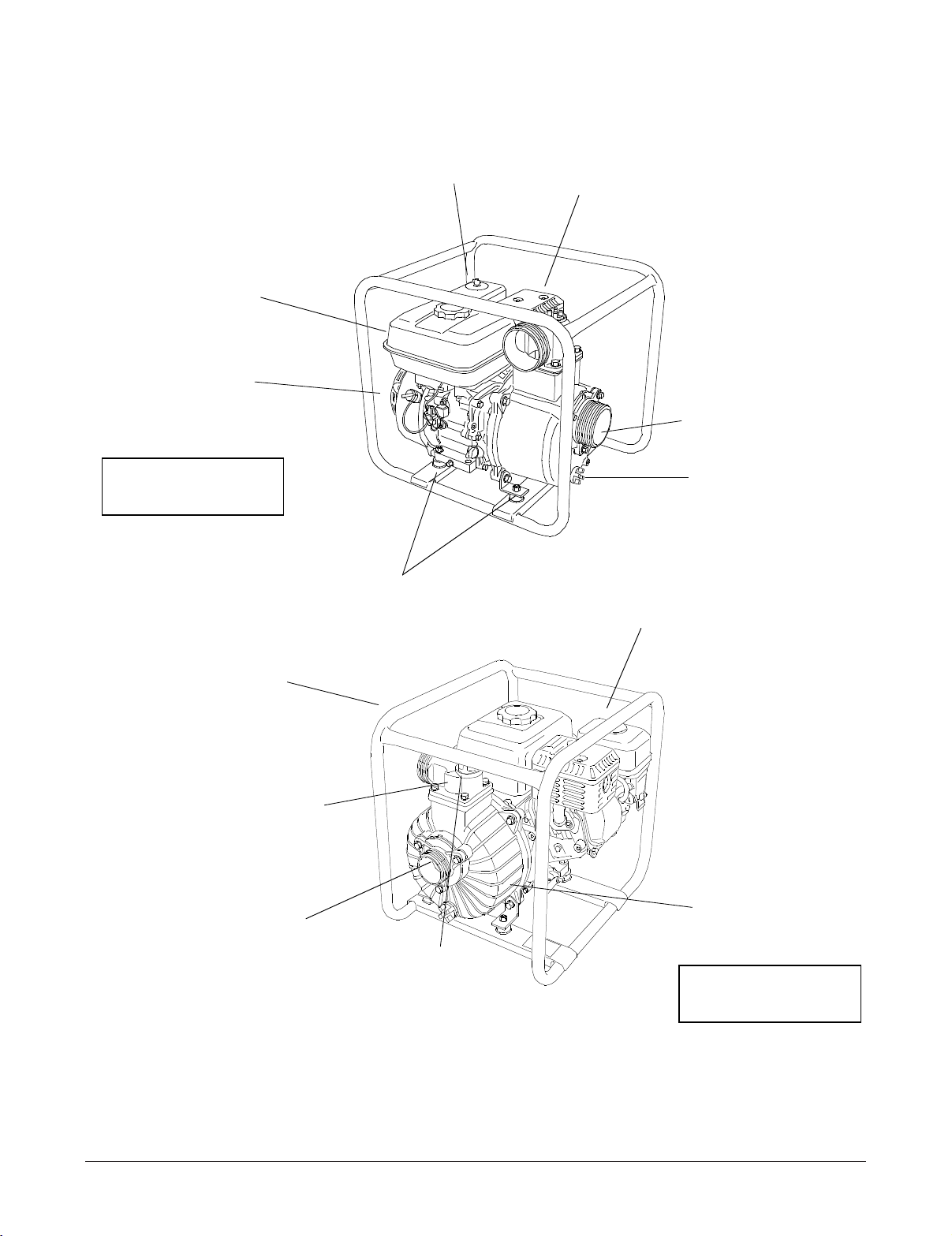

Vibration
Isolation Mounts
Suction
Fitting
Pump
Casing
Tubular
Frame
Engine Controls
(Next to Air Cleaner)
Honda
Engine
MODEL TE3-80HA
SHOWN
Fuel
Tank
Priming
Plug
Check Valve
(Under Suction Fitting)
Discharge
Fitting
MODEL TE3-50HA
SHOWN
Engine
Muffler
A
ir
Cleaner
Drain Plug

OPERATING INSTRUCTIONS

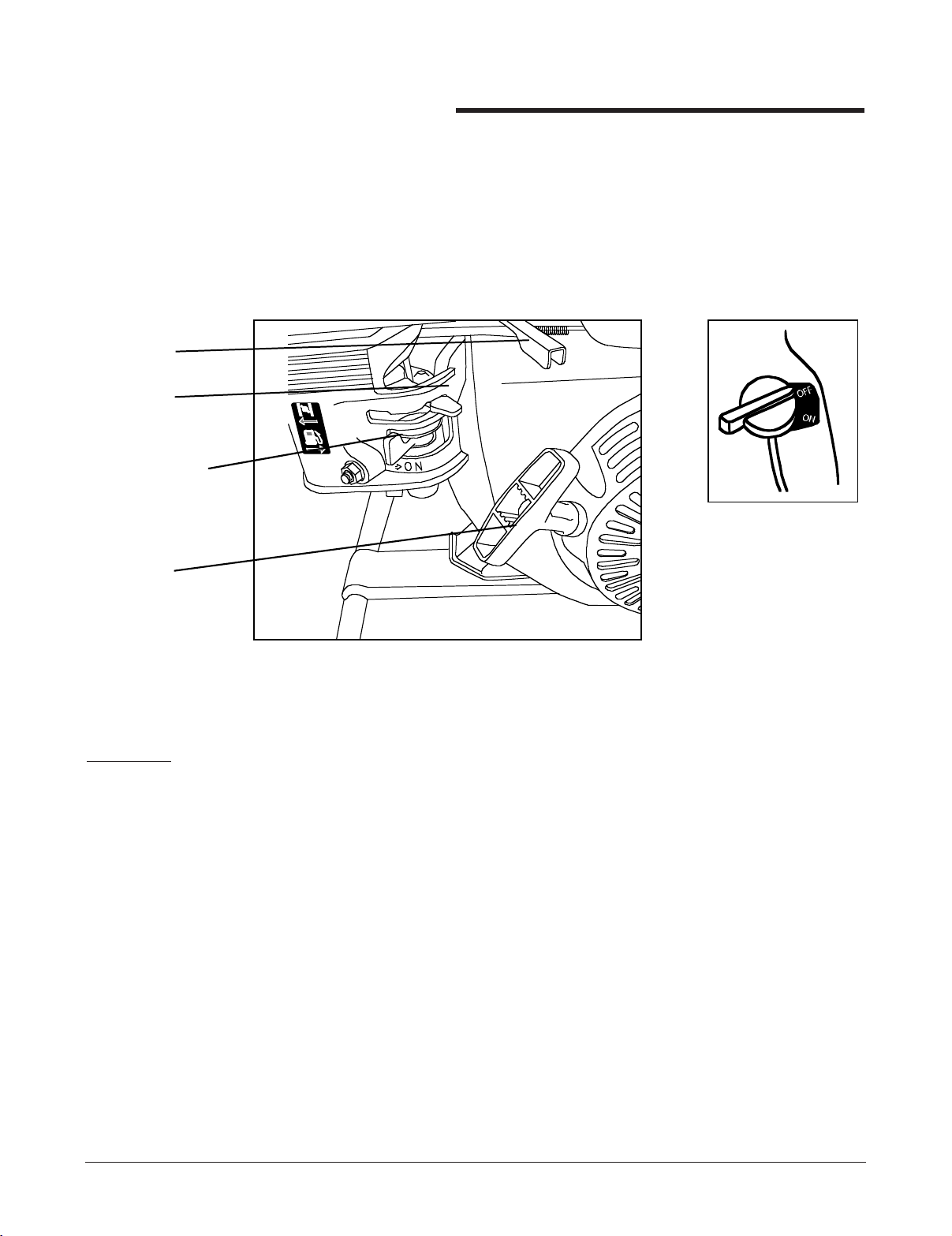

2-1 Operating Controls
A. The centrifugal pump is operated using the engine operating controls. The engine controls
are located at the engine end of the pump frame.
B. The controls consist of a throttle lever (for speed control), choke lever (for cold weather
starting), fuel shutoff lever (to prevent fuel spills), and a recoil starter (to turnover engine
by hand). (Refer to Figure 2-1.)

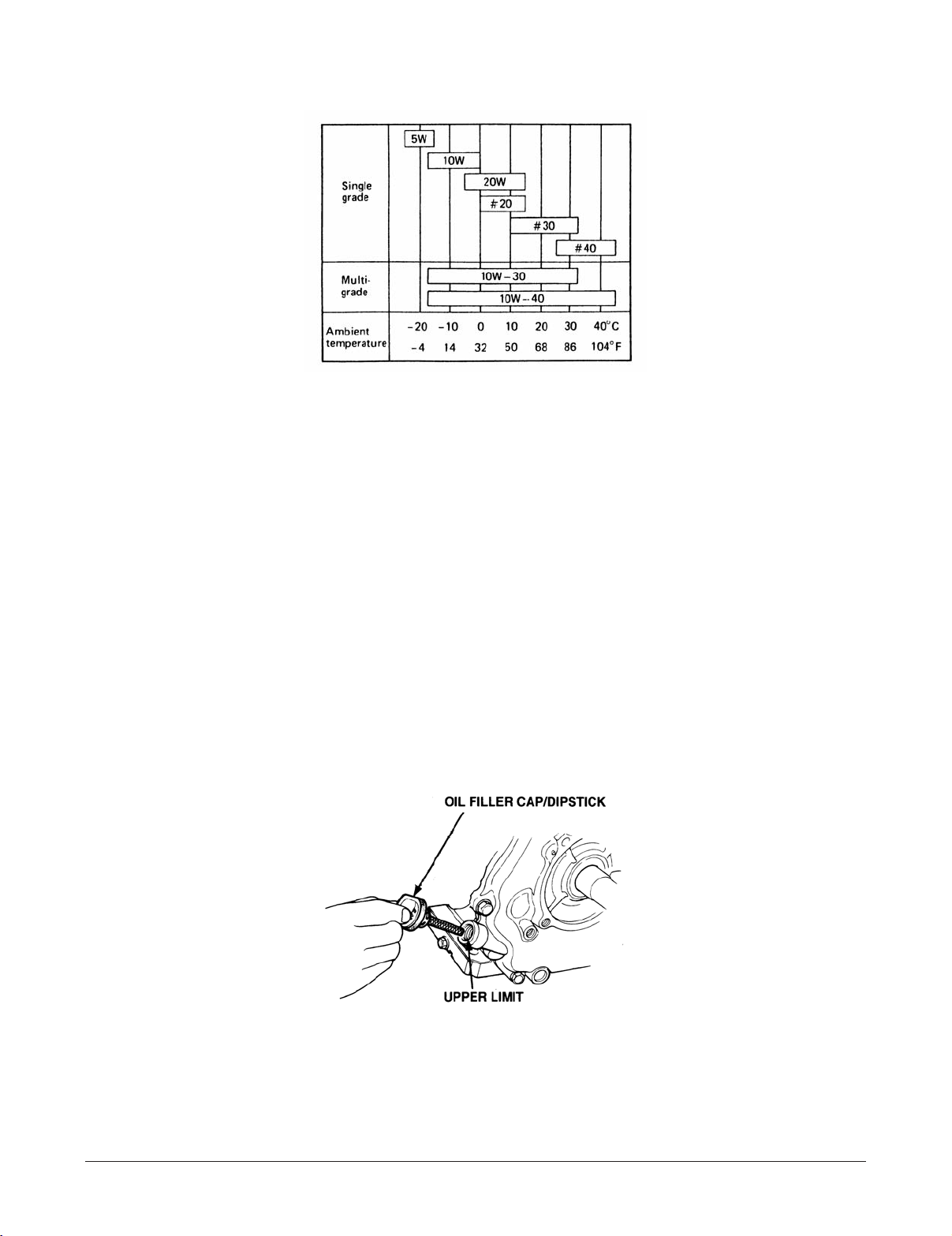

2-2. Check the Engine Oil Level
CAUTION:
• ENGINE OIL IS A MAJOR FACTOR AFFECTING PERFORMANCE AND SERVICE LIFE.
NON-DETERGENT OILS AND 2-STROKE OILS ARE NOT RECOMMENDED BECAUSE
THEY HAVE INADEQUATE LUBRICATING CHARACTERISTICS
• CHECK THE OIL LEVEL WITH THE ENGINE ON A LEVEL SURFACE AND THE ENGINE
STOPPED.
A. Use Honda 4-stroke oil, or use an equivalent high detergent, premium quality motor oil cer-
tified to meet or exceed U.S. automobile manufacturer’s requirements for Service
Classification SG, SF. Motor oils classified SG, SF will show this designation on the con-
tainer. SAE 10W/30 is recommended for general, all-temperature use.
B. Other viscosity grades (see Figure 2-2) may be used when the average temperature in your
area is within the indicated range.
Page 6 Operating Instructions
Tsurumi’s Operation, Service, and Repair Manual
Throttle
Lever
Choke
Lever
Recoil
Starter
Hand Grip
ON/OFF Switch
(Located on Recoil
Starter Shroud)
Figure 2-1: Operating Controls
Fuel Shutoff
Valve

C. When checking oil, observe the following (refer to Figure 2-3):
(1) Make sure the engine is in a level position.
(2) Remove the oil filler cap/dipstick and wipe it clean.
(3) Insert the filler cap/dipstick into the oil filler neck, but do not screw it in.
(4) Remove the filler cap/dipstick and check the oil level.
(5) If the level is low, fill to the top of the oil filler neck with the recommended oil.
(6) Reinstall the oil filler cap/dipstick.
Operating Instructions Page 7
Tsurumi’s Operation, Service, and Repair Manual
Figure 2-2: Oil Viscosity Grade-to-Temperature Recommendations
Figure 2-3: Checking Oil Level
Figure 2-2: Oil Viscosity Grade-to-Temperature Recommendations

2-3 Check Engine Fuel
WARNING
• MAKE SURE YOU REVIEW EACH WARNING IN ORDER TO PREVENT FIRE HAZARD.
• DO NOT REFILL TANK WHILE ENGINE IS RUNNING OR HOT.
• CLOSE FUEL SHUT OFF VALVE BEFORE REFUELING.
• BE CAREFUL NOT TO GET DUST, DIRT, WATER OR OTHER FOREIGN OBJECTS INTO
FUEL.
• WIPE OFF SPILLED FUEL THOROUGHLY BEFORE STARTING ENGINE.
• KEEP AWAY FROM OPEN FLAMES.
• DO NOT USE SMOKING MATERIALS WHEN FILLING THE FUEL TANK.
• DO NOT REFUEL WHILE SMOKING OR NEAR OPEN FLAME OR OTHER SUCH POTEN-
TIAL FIRE HAZARDS. OTHERWISE FIRE ACCIDENT MAY OCCUR.
• AVOID REPEATED OR PROLONGED CONTACT WITH SKIN OR BREATHING OF VAPOR.
• KEEP OUT OF REACH OF CHILDREN.
2-4 Check Fuel Level
A. Remove cap from fuel tank. If fuel level is low, refill with unleaded automotive gasoline.
B. Fuel tank capacities are provided below:
TE3-50HA . . . . . . . . . . . . . . . .0.95 gal.
TE3-80HA . . . . . . . . . . . . . . . .1.60 gal.
TE3-100HA . . . . . . . . . . . . . . .1.70 gal.
Page 8 Operating Instructions
Tsurumi’s Operation, Service, and Repair Manual

2-5 Pre-Start Checks
WARNING:
• MAKE SURE YOU REVIEW EACH WARNING IN ORDER TO PREVENT FIRE HAZARD.
• KEEP AREA CLEAR OF FLAMMABLES OR OTHER HAZARDOUS MATERIALS.
A. Check the following items before starting the engine.
(1) Fuel leakage from fuel hose, sediment cup, etc.
(2) Bolts and nuts for looseness. Components for damage or breakage.
(3) Check centrifugal pump surroundings.
(a) Keep centrifugal pump at least three (3) feet (one [1] meter) away from buildings
or other structures.
(b) Only operate centrifugal pump in a dry, well-ventilated area.
(c) Keep exhaust pipe clear of foreign objects.
(d) Keep centrifugal pump away from open flame.
(a) Keep centrifugal pump on a stable and level surface.
(b) Do not block centrifugal pump air vents with paper or other material.
2-6 Starting and Operating the Engine
A. Refer to the Honda engine owner’s manual.
B. Put the fuel valve in the ON position.
C. Move the choke lever to the closed position.
Operating Instructions Page 9
Tsurumi’s Operation, Service, and Repair Manual

Page 10 Operating Instructions
Tsurumi’s Operation, Service, and Repair Manual
NOTE:
•The choke may not be needed if the engine is warm or the air temperature is high.
D. Set the ON/OFF switch to ON (the ON/OFF switch is mounted on the recoil shroud).
E. Move the throttle lever slightly to the left.
F. Pull the starter grip lightly until resistance is felt, then pull briskly.
NOTE:
•Do not allow the starter grip to snap back against the engine. Return it gently to prevent damage
to the starter.
G. As the engine warms up, gradually move the choke lever to the OPEN position.
2-7 Using the Centrifugal Pump
A. Connect suction and discharge hoses. Make sure suction hose is fitted with a strainer.
B. Remove priming plug from top of pump and fill chamber with water.
C. Operate the engine at idle speed for 3 to 5 minutes.
D. After engine warm up, move the throttle lever to the operating speed.
2-8 Stopping the Centrifugal Pump
A. Move the throttle lever fully to the right.
B. Set the ON/OFF switch to OFF.
C. Turn the fuel valve to the OFF position.
2-9 Oil Alert
A. The oil alert sensor detects the lowering of the oil level in the crankcase and automatical-
ly stops the engine when the oil level falls below the predetermined level.
(1) When the engine stops automatically, check the oil level. Refill engine oil to the upper
level and restart the engine.
(2) If the engine does not start by usual starting procedures, check the oil level.

Troubleshooting Page 11
Tsurumi’s Operation, Service, and Repair Manual
TROUBLESHOOTING
The troubleshooting tables below can be used as a guide to isolate centrifugal pump faults. Refer to
these tables when the engine fails to start after several attempts. If, after following these procedures, the
pump fails to start, contact the nearest Tsurumi pump dealer.
Table 3-1: Troubleshooting Table
Fault Probable Cause Remedy
Pump does not pump. Insufficient priming water. Add more water through priming plug.
Mechanical seal chipped or broken. Replace mechanical seal.
Check valve damaged. Replace check valve.
Suction hose damaged or strainer
clogged.
Replace hose. Clean strainer.
Air leaks caused by O-ring
damage.
Replace O-rings.
Discharge flow or pump
pressure too low.
Air leaks caused by O-ring
damage.
Replace O-rings.
Suction hose or strainer clogged. Replace hose.
Clean strainer.
Excessive impeller clearance. Disassemble to obtain casing cover and
impeller. Determine clearance and re-
shim as required (refer to Replacement
of Mechanical Seal).
Engine rpm too low. Check rpm and reset throttle as
required.
Lift head too high. Lower lift head.
Pump primes too
slowly.
Insufficient priming water. Add more water through priming plug.
Mechanical seal chipped or broken. Replace mechanical seal.
Check valve damaged. Replace check valve.
Suction hose damaged or strainer
clogged.
Replace hose.
Clean strainer.
Air leaks caused by O-ring
damage.
Replace O-rings.
Engine rpm too low. Check rpm and reset throttle as
required.
Lift head too high. Lower lift head.
Noise or vibration. Faulty mounting. Pump/engine attaching parts loose.
Tighten as required.
Damaged vibration isolation mounts.
Replace mounts.

Page 12 Maintenance
Tsurumi’s Operation, Service, and Repair Manual
MAINTENANCE
4-1 Maintenance Schedule
To maintain the centrifugal pump in peak operating condition, observe and implement the maintenance
and adjustment schedule in Table 4-1. Inspect and/or service the centrifugal pump at the intervals
shown in Table 4-1.
WARNING:
• SHUT OFF THE ENGINE BEFORE PERFORMING ANY MAINTENANCE. IF OPERATION OF
THE ENGINE IS REQUIRED, MAKE SURE THE AREA IS WELL VENTILATED; THE ENGINE
EXHAUST CONTAINS POISONOUS CARBON MONOXIDE GAS.
CAUTION:
• REFER TO THE HONDA ENGINE OWNER’S MANUAL FOR OTHER MAINTENANCE
REQUIREMENTS.
Table 4-1: Maintenance Schedule
Frequency Maintenance Action
Daily Check oil level.
Check all components according to the PRE-OPERATIONAL
CHECKS section.
50 Hours Wash cleaner element.
Check spark plug and clean if necessary.
100 Hours Change engine oil.
200 Hours Adjust spark plug gap.
Clean fuel strainer.
500 Hours (12 Months) Replace spark plug and cleaner element.
Clean and adjust carburetor, valve clearance, and valve seat
along with cylinder head.
1,000 Hours (24 Months) Check rotor and stator.
Replace engine isolation mounts.
Overhaul engine.
Change fuel lines.

Maintenance Page 13
Tsurumi’s Operation, Service, and Repair Manual
4-2 Changing Engine Oil
A. An initial oil change should be performed after the first twenty- (20) hours of use.
Thereafter, change oil every 100 hours.
B. Before changing the oil, check for a suitable way to dispose of the used oil. Do not pour it
down sewer drains, onto garden soil or into open streams. Refer to your local zoning and
environmental regulations for disposal and handling requirements.
C. Drain the oil while the engine is still warm to assure rapid and complete draining.
D. Remove the oil filler dipstick/cap and drain plug. Allow oil to drain from the engine (refer to
Figure 4-1).
E. Install the drain plug, and tighten it securely.
F. Refill with the recommended oil (refer to Figure 2-2).
G. After filling with oil, check the oil level.
H. When oil reaches the upper limit, install the oil filler dipstick/cap (Figure 4-2).
NOTE:
•Engine oil capacity: 1.1 liters (1.16 U.S. Quart)
Figure 4-1: Draining Engine Oil
Figure 4-2: Checking Oil Level

Page 14 Maintenance
Tsurumi’s Operation, Service, and Repair Manual
4-3 Air Cleaner Service
WARNING:
• NEVER USE GASOLINE OR LOW FLASH POINT SOLVENTS FOR CLEANING THE AIR
CLEANER ELEMENT. A FIRE OR EXPLOSION COULD RESULT.
CAUTION:
• NEVER RUN THE ENGINE WITHOUT THE AIR CLEANER. RAPID ENGINE WEAR WILL
RESULT FROM CONTAMINANTS, SUCH AS DUST AND DIRT, BEING DRAWN THROUGH
THE CARBURETOR AND INTO THE ENGINE.
A. A dirty air cleaner will restrict airflow to the carburetor.
B. To prevent degraded engine operation, service the air cleaner regularly. Service more fre-
quently when operating the engine in extremely dusty areas.
4-4 Sediment Cup Cleaning
WARNING:
• GASOLINE IS EXTREMELY FLAMMABLE AND IS EXPLOSIVE UNDER CERTAIN CONDI-
TIONS. DO NOT SMOKE OR ALLOW OPEN FLAMES OR SPARKS IN THE AREA.
A. Turn the fuel valve to OFF (refer to Figure 2-1).
B. Remove the sediment cup and O-ring. Wash both parts in nonflammable or high flash point
solvent.
C. Wipe the sediment cup and O-ring dry, then reinstall.
WARNING:
• AFTER INSTALLING THE SEDIMENT CUP, CHECK FOR LEAKS, AND MAKE SURE THE AREA
IS FREE OF RESIDUAL FUEL SPILLS OR SEEPAGE BEFORE STARTING THE ENGINE.
D. Set the fuel shutoff valve (Figure 2-1) to ON.
E. Check for leaks.
4-5 Cleaning and Adjusting Spark Plug
Recommended spark plugs: BPR6ES(NGK)
W20EPR-U (NIPPONDENSO)
A. To ensure proper engine operation, the spark plug must be properly gapped and free of
deposits.
B. Remove the spark plug cap.
C. Clean any dirt from around the spark plug base.
D. Use the proper size spark plug wrench to remove the spark plug.

Maintenance Page 15
Tsurumi’s Operation, Service, and Repair Manual
WARNING:
• THE MUFFLER BECOMES VERY HOT DURING OPERATION AND REMAINS HOT FOR A
WHILE AFTER STOPPING THE ENGINE. BE CAREFUL NOT TO TOUCH THE MUFFLER
WHILE IT IS HOT.
E. Visually inspect the spark plug. Discard spark plug if the insulator is cracked or chipped.
Clean the spark plug with a wire brush if it is to be reused.
F. Measure the plug gap with a feeler gauge. Adjust the gap as necessary by bending the side
electrode (refer to Figure 4-3).
G. The gap should be 0.7 - 0.8 mm (0.028 - 0.031 inch) as shown.
4-6 Disassembly of Centrifugal Pump
WARNING:
• THE SHIPPING WEGHT OF THE MODEL TE2-SERIES PUMPS RANGE FROM 55 TO 109
POUNDS. TO AVOID PERSONAL INJURY, USE AN OVERHEAD LIFTING DEVICE OR GAIN
THE ASSISTANCE OF ANOTHER PERSON TO LIFT THE PUMP ON AND OFF THE BENCH.
• IT IS RECOMMENDED THAT THE PUMP BE ASSEMBLED AND DISASSEMBLED ON A
BENCH OR SIMILAR SURFACE WITH THE ENGINE SHROUD FACING DOWN. IN ADDI-
TION, WOODEN BLOCKS IN A VARIETY OF LENGTHS AND THICKNESSES SHOULD BE
AVAILABLE FOR SUPPORT OF THE ENGINE AFTER PUMP REMOVAL.
NOTE:
•Exception notes are provided where the procedures differ between pump models.
•Separate parts listings are provided for each model of centrifugal pump.
•The item numbers in procedures correspond with the item numbers used in the REPLACEMENT
PART S section of the manual. Refer to exploded view in Figure 4-4 for parts location.
•Use wooden blocks to steady and support frame (21) and engine (33) during disassembly and
assembly.
Figure 4-3: Spark Plug Gap

Page 16 Maintenance
Tsurumi’s Operation, Service, and Repair Manual
A. Remove Centrifugal Pump Components
(1) Remove two screws (30) from bracket (25) and pump casing (1). Remove two spring
nuts (27) and two brackets (25).
(2) Position the frame (21) so the pump is facing up (with the engine shroud down).
(3) Remove four bolts (18) and lift casing (1) from casing cover (2).
(4) Remove volute casing (4), packing (9), and O-ring (8). Check packing (9) and O-ring
(8) for damage and replace if damaged.
(5) Using a hard plastic hammer, sharply rap on the end of the hex on impeller (3). If
impeller (3) did not come loose, put a wooden block against one of the impeller
vanes. Then strike the wooden block (counterclockwise) with a hammer to loosen the
impeller.
(6) Rotate impeller (3) until it can be removed from the threaded end of the engine crank-
shaft.
2
17
14,15,16
9
731
3
A: PUT TAB ON (4)
IN POCKET OF (2)
A
MEASURE AND
CALCULATE
SHIM (31)
A412,13
5
19
10 INSTALL CHECK VALVE
WITH FLAT SIDE OUT.
PUT TAB AT TOP.
1
18
11
6
20
12,13
27
30
25
FRAME
(REF. 21)
BOLT (TE3-100 HA)
33
21
8
NOTE: ITEM (27) IS ITEM
(26) ON TE3-100HA
34
CUSHION (TE3-50 HA/TE3-80 HA)
Figure 4-4: Removal of Internal Components

Maintenance Page 17
Tsurumi’s Operation, Service, and Repair Manual
(7) If installed, remove shim (31) from bore in impeller (or remove shim from end of
engine crankshaft).
(8) Remove four bolts (14), spring washers (15), plain washers (16), and seals (17).
Remove casing cover (2) from the engine (33). Check the condition of seals (17) and
replace if damaged.
(9) Assemble the centrifugal pump according to the procedures in Assembly of the
Centrifugal Pump unless one of the following applies:.
(a) If the pump has been disassembled to replace mechanical seal (7), refer to
4-8. Replacement of Mechanical Seal for replacement procedures.
(b) If the pump has been disassembled to replace cushions (23 or 24), refer to
4-9. Replacement of Cushions for replacement procedures.
(c) If the pump has been disassembled to remove or replace engine (33), refer to
4-10. Replacement of Engine for replacement procedures.
4-7 Replacement of Mechanical Seal
A. Description of the Mechanical Seal
(1) The mechanical seal (7) is a two part seal. The seal consists of a fixed element and
a rotating element.
(2) The fixed element is installed in the center bore of the cover casing. The fixed ele-
ment is sealed between the seal and the center bore that is provided by a strip of
sealant on the outside diameter of the seal.
(3) The rotating element is installed in the center bore of the impeller. The rotating ele-
ment consists of a silicone-carbide mating ring and a close-fitting rubber cushion.
(4) A static seal is provided between the pump casing and the volute casing.
B. Removal of Mechanical Seal
(1) Disassemble the pump only to the extent required to access the seal in casing cover
(2) and impeller (3). Refer to Remove Centrifugal Pump Components.
(2) Remove old mechanical seal (7) from casing cover (2) using a driver similar to the
driver in Figure 4-5.
NOTE:
•Sealant is used on the outside diameter of mechanical seal (7). The sealant has a strong bond
in the casing cover bore and requires considerable driving force to remove the seal. Use of an
arbor press is therefore recommended.
