Tsurumi Pump KTV series User manual

17236124/B-10005-6
INTRODUCTION
Thank you for selecting the Tsurumi KTV/NK Series submersible general dewatering pump.
This operation manual explains the product operations and gives important precautions regarding its safe
use. In order to use the product to maximum benefit, be sure to read the instructions thoroughly and follow
them carefully.
To avoid accident, do not use the pump in any way other than as described in this operation manual. Note
that the manufacturer cannot be responsible for accidents arising because the product was not used as
prescribed. After reading this operation manual, keep it nearby as a reference in case questions arise during
use.
When lending this product to another party, always be sure to include this operation manual as well.
If this operation manual should become lost or damaged, ask your nearest dealer or Tsurumi representative
for another copy.
Every effort has been made to ensure the completeness and accuracy of this document. Please contact your
nearest dealer or Tsurumi representative if you notice any possible error or omission.
The contents of this document may not be copied in whole or in part without the express permission of
Tsurumi Manufacturing Co., Ltd.
OPERATION MANUAL
CONTENTS
1. BE SURE TO READ FOR YOUR SAFETY ..................... 1
2. NAME OF PARTS .......................................................... 4
3. PRIOR TO OPERATION ............................................... 5
4. INSTALLATION ............................................................. 6
5. ELECTRICAL WIRING .................................................... 8
6. OPERATION .................................................................... 9
7. MAINTENANCE AND INSPECTION ............................... 12
8. DISASSEMBLY AND REASSEMBLY ............................. 14
9. TROUBLESHOOTING .................................................. 17
TSURUMI MANUFACTURING CO., LTD.
KTV/NK Series
Submersible General Dewatering Pump

-1-
1

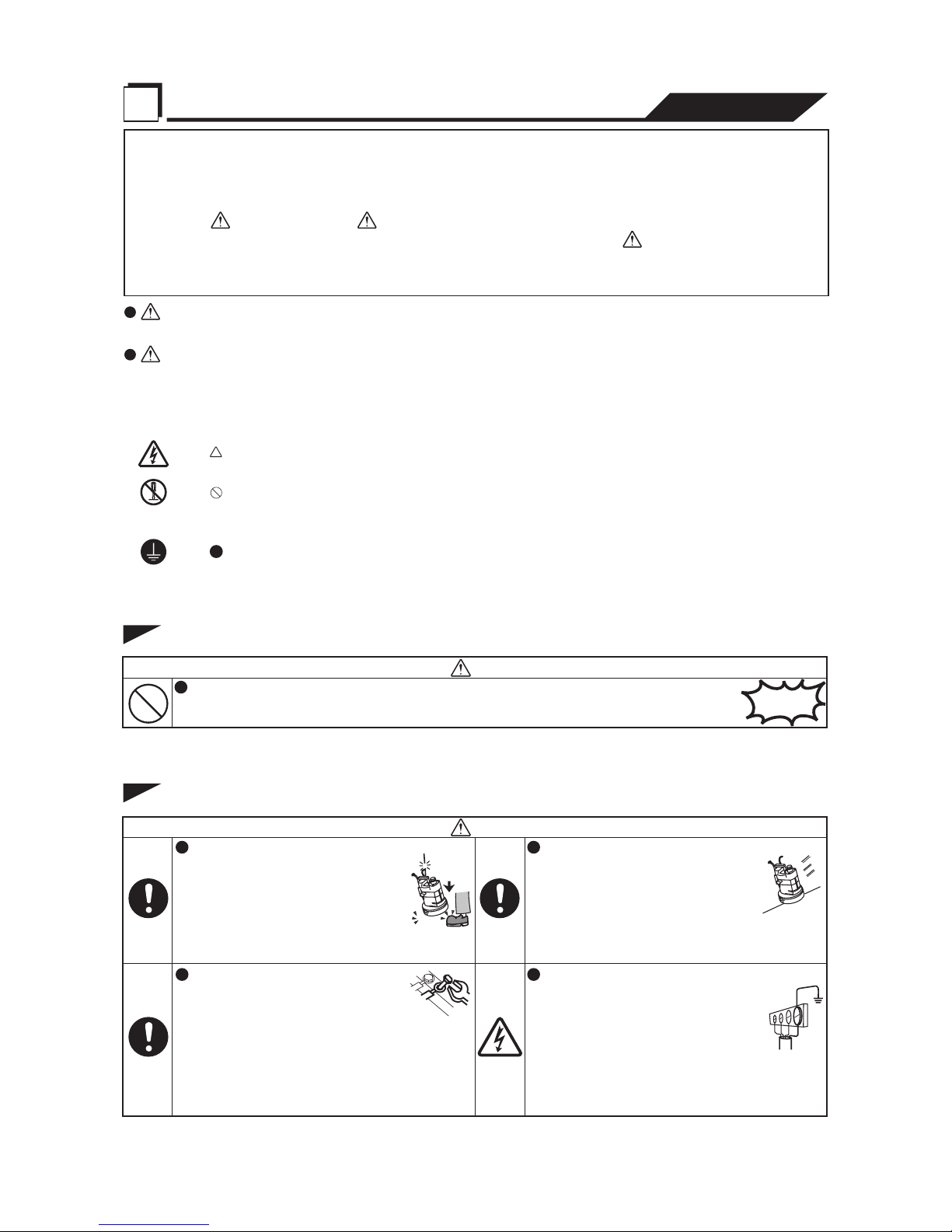

BE SURE TO READ FOR YOUR SAFETY
：The mark indicates an action that must be taken, or instructs how to perform a task. The symbol
inside the mark describes the precaution in more detail ("provide ground work", in the case of the
example on the left).
：The mark indicates a WARNING or CAUTION item. The symbol inside the mark describes the
precaution in more detail ("electrical shock", in the case of the example on the left).
●
: Operating the equipment improperly by failing to observe this precaution may possibly
cause injury to humans and other physical damage.
: Operating the equipment improperly by failing to observe this precaution may possibly
lead to death or injury to humans.
: Gives information that does not fall in the WARNING or CAUTION categories.
●
：The mark indicates a prohibited action. The symbol inside the mark, or a notation in the vicinity of
the mark describes the precaution in more detail ("disassembly prohibited", in the case of the
example on the left).
Be sure to thoroughly read and understand the SAFETY PRECAUTIONS given in this section before using
the equipment in order to operate the equipment correctly.
The precautionary measures described in this section are intended to prevent danger or damage to you or
to others. The contents of this manual that could possibly be performed improperly are classified into two
categories: WARNING, and CAUTION. The categories indicate the extent of possible damage
or the urgency of the precaution. Note however, that what is included under CAUTION may at times
lead to a more serious problem. In either case, the categories pertain to safety-related items, and as such,
must be observed carefully.
WARNING
CAUTION
NOTE
Explanation of Symbols:
PRECAUTIONS TO THE PRODUCT SPECIFICATIONS
WARNING
When transporting the product,
pay close attention to its center of
gravity and mass. Use an appro-
priate lifting equipment to lift the
unit. Improper lifting may result
in the fall of the product which
could cause damage of the
product or human injury.
Electrical wiring should be
performed in accordance with all
applicable regulations in your
country. Absolutely provide a
dedicated earth leakage circuit breaker
and a thermal overload relay suitable for
the product (available on the market).
Imperfect wiring or improper protective
equipment can lead to electrical leak-
age, fire, or explosion in the worst case.
Install the product properly in
accordance with this instruction
manual. Improper installation
may result in electrical leakage,
electrical shock, fire, water
leakage, or injury.
Provide a secure grounding
dedicated for the product. Never
fail to provide an earth leakage
circuit breaker and a thermal
overload relay in your starter or
control panel (Both available on
the market). If an electrical
leakage occurs by due to a
product failure, it may cause
electrical shock.
PRECAUTIONS DURING TRANSPORT AND INSTALLATION
Do not operate the product under any conditions other than those for which it is speci-
fied.Failure to observe the precaution can lead to electrical leakage, electrical
shock, fire, water overflow or other problems.
CAUTION
Frequency
Voltage

-2-

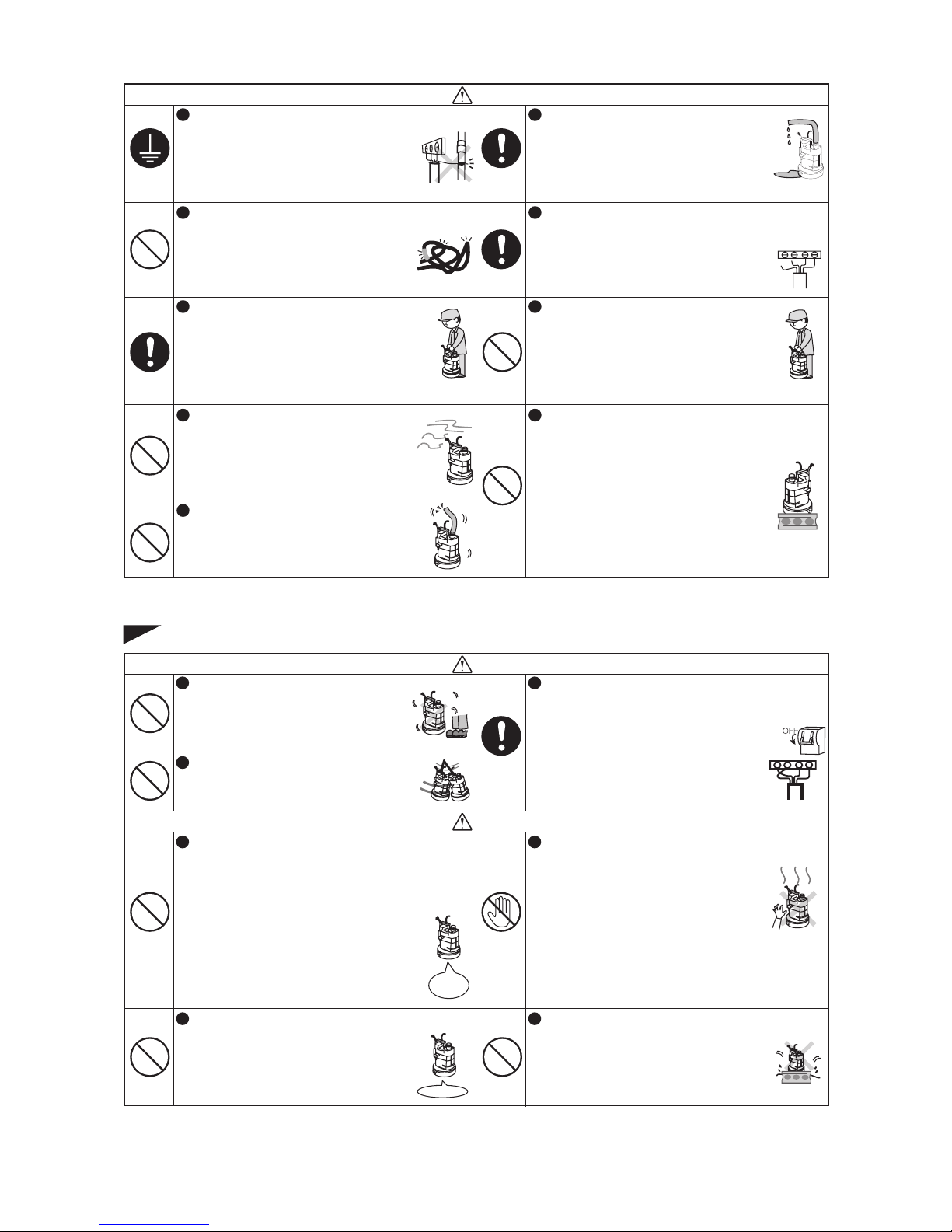

CAUTION
Do not scratch, fold, twist, make
alterations, or bundle the cable, or
use it as a lifting device. The cable
may be damaged, which may
cause electrical leakage, short-
circuit, electrical shock, or fire.
When the product will be carried by
hand, decide the number of persons
considering the mass of the product.
When lifting up the product, do not
attempt to do it by simply bowing
from the waist. Use the knees, too,
to protect your back.
This pump is neither dust-proof nor
explosion-proof. Do not use it at a
dusty place or at a place where
toxic, corrosive or explosive gas is
present. Use in such places could
cause fire or explosion.
If a hose is used for the discharge
line, take a measure to prevent the
hose from shaking. If the hose
shakes, you may be wet or
injured.
Be sure to provide a ground wire
securely. Do not connect the
ground wire to a gas pipe, water
pipe, lightening rod, or telephone
ground wire. Improper grounding
could cause electrical shock.
Use the handle when installing or
carrying the pump. Never use the
cable to carry or to suspend.
Doing so may damage the cable
which could cause electrical
leakage, short circuit, or fire.
Allow the pump to suck as few
foreign object as possible. If there
is a risk that the pump could be
buried under the sediment, place
it on a solid base like concrete
block. Failure to do so may
result in breakdown of the
pump and could cause electri-
cal leakage or short circuit.
Do not use the cabtyre cable if it is
damaged. Connect every conduc-
tor of the cabtyre cable securely to
the terminals. Failure to observe
this can lead to electrical shock,
short-circuit, or fire.
Attach a hose securely to the hose
coupling. Imperfect connection of
hose could cause water leakage
which may result in the damage
of nearby walls, floors, and other
equipment.
PRECAUTIONS DURING TEST OPERATION AND OPERATION
CAUTION
WARNING
Never try to operate the pump if
somebody is present in the pump
sump. If an electrical leakage
occurs, it can cause electrical
shock.
When changing power connection is
needed to correct the direction of rotation,
be sure to turn off the power supply
(earth leakage circuit breaker,
etc.), and perform the work after
making sure that the impeller has
stopped completely. Failure to do
so may lead to electrical shock,
short-circuit, or injury.
Never start the pump while it is
suspended, as the unit may jerk
and could lead to injury.
Do not operate the product under any
voltage other than described on the
nameplate with the voltage variation limit
within ±10%. If it is operated with a genera-
tor, it is strongly suggested not to
operate other equipment with the
same generator. Failure to observe
this caution may cause malfunc-
tion and breakdown of the prod-
uct, which may lead to electrical
leakage or electrical shock.
Do not run the product dry or
operate it with its gate valve closed,
as doing so will damage the
product, which may lead to
electrical leakage or electrical
shock.
Do not use the product in a liquid
other than water. Use in oil, salt
water or organic solvents will
damage it, which may lead to
electrical leakage or electrical
shock.
Do not touch the product with
bare hands during or immediate
after the operation, as the
product may become very hot
during operation. . Failure to
observe this caution may lead
to be burned.
water only
rated
voltage

-3-

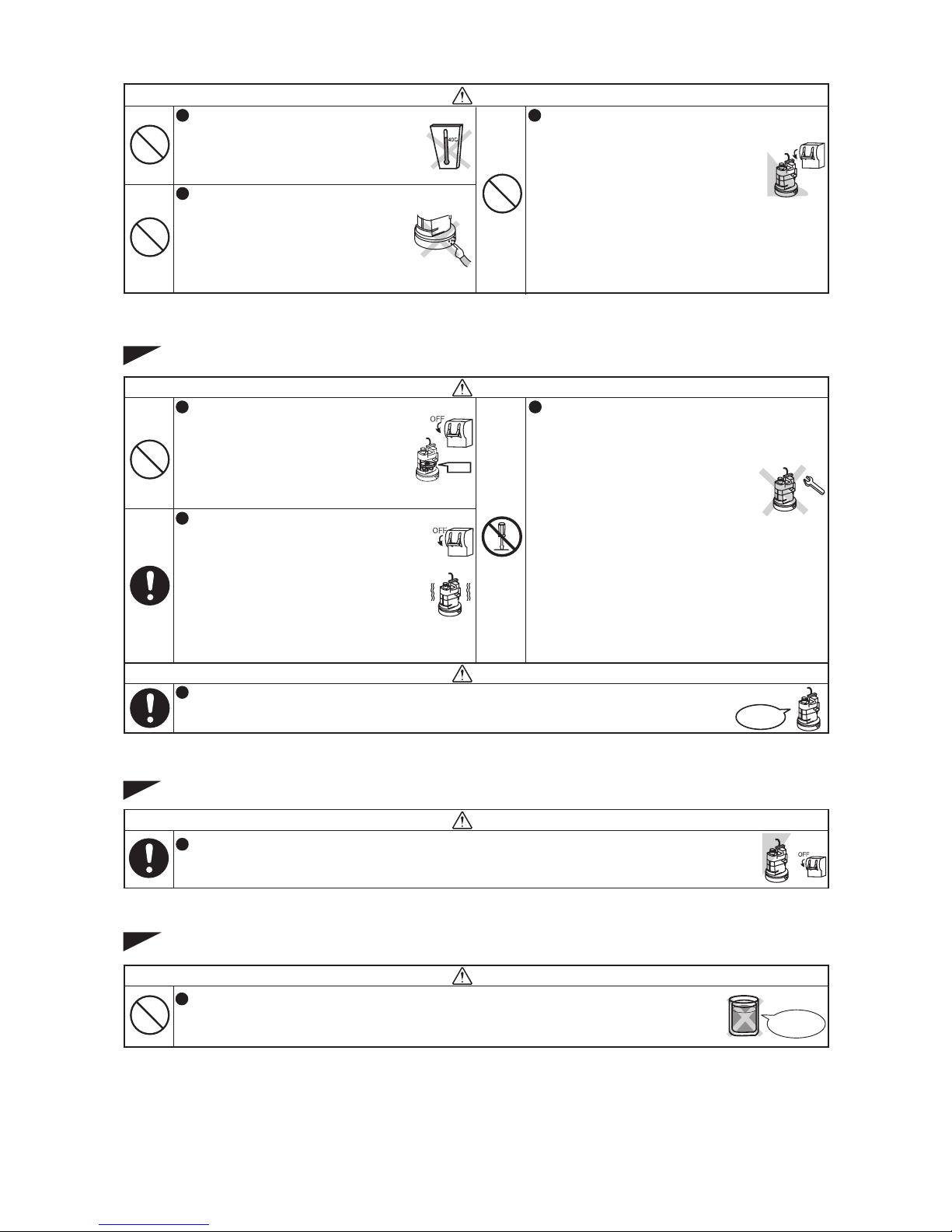

PRECAUTIONS DURING MAINTENANCE AND INSPECTION
PRECAUTION TO POWER OUTAGE
In case of power outage, turn off the power supply. The product will resume opera-
tion when the power is restored, which presents serious danger to people in the
vicinity.
WARNING
power
outage
CAUTION
WARNING
Absolutely turn off the power
supply or disconnect the plug
before starting maintenance or
inspection. Do not work with wet
hands. Failure to observe these
cautions may lead to electrical
shock or injury.
After reassembly, always perform a test operation before resuming use of the prod-
uct. Improper assembly can result in electrical leakage, electrical shock, fire, or
water leakage.
In case any abnormality (excessive
vibration, unusual noise or odor) is
found in the operation, turn the
power off immediately and consult
with the dealer where it was
purchased or Tsurumi representa-
tive. Continuing to operate the
product under abnormal condi-
tions may result in electrical
shock, fire, or water leakage.
Do not disassemble or repair any
parts other than those designated
in the operation manual. If repairs
are necessary in any other than
the designated parts, consult with
the dealer where it was
purchased or Tsurumi representa-
tive. Improper repairs can
result in electrical leakage,
electrical shock, fire, or water
leakage.
Test
operation
stop
OTHER PRECAUTION
CAUTION
Never use the product for potable water. It may present a danger to human
health. Potable
Water
CAUTION
When the product will not be used
for an extended period, be sure to
turn off the power supply (earth
leakage circuit breaker, etc.).
Deterioration of the insulation
may lead to electrical leakage,
electrical shock, or fire.
Do not use the product for hot or
warm liquid over 40℃, as doing so
will damage the product, which
may lead to electrical leakage or
electrical shock.
Do not allow foreign object (pin,
wire, etc.) to enter the suction inlet
of the pump. Failure to observe
this caution could cause it to
malfunction or to operate abnor-
mally, which may lead to electri-
cal leakage or electrical shock.
OFF

-4-
Cabtyre Cable
Hose Coupling
Mechanical Seal
Protective Packing
Handle
Lubricant
Oil Plug
Rear Liner
Oil Casing
Pump Casing
Strainer Stand
Impeller
V-Ring
Shaft Sleeve

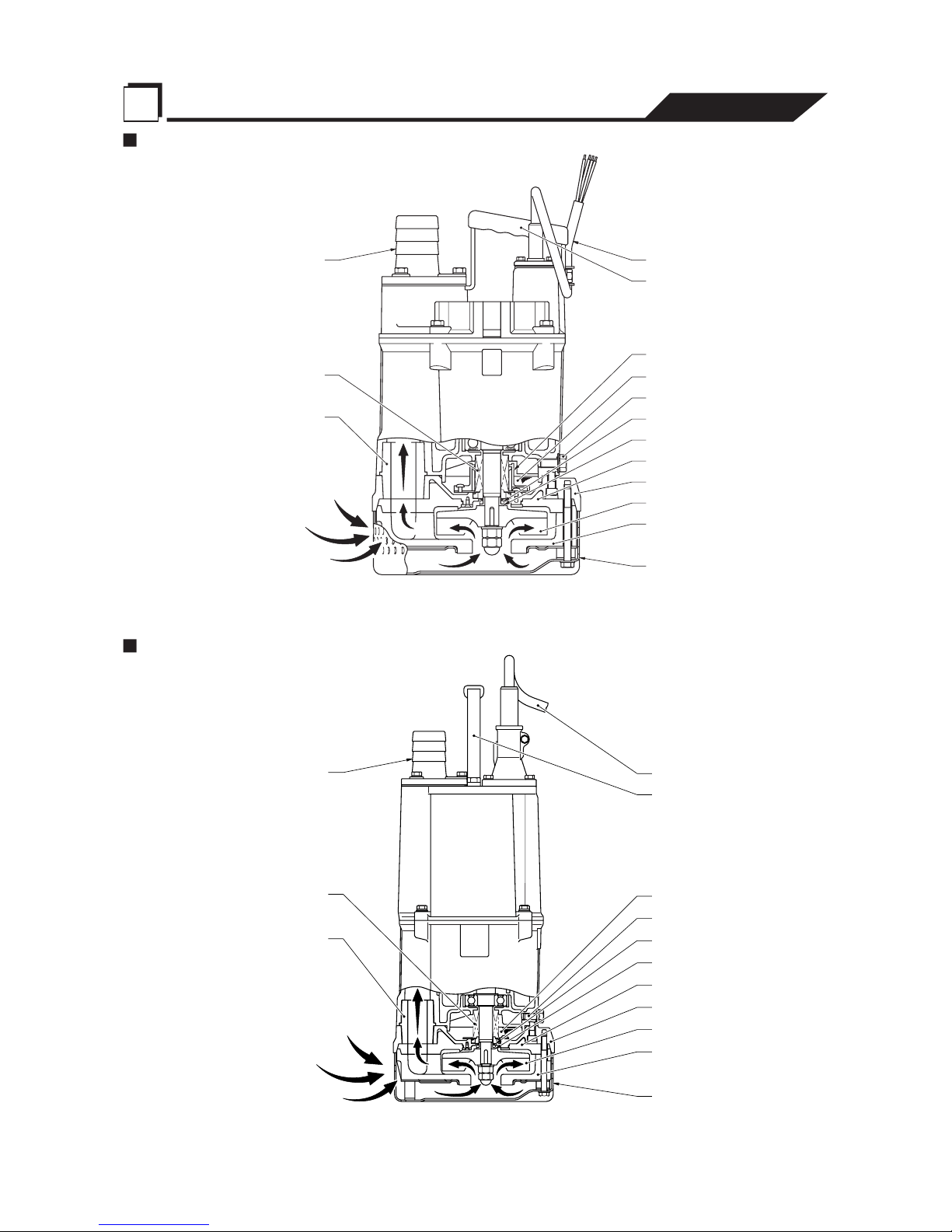

Example ; KTV Series
2NAME OF PARTS
Example ; NK Series
Note:
The above diagram is typical of the KTV2-22, but some models may vary slightly in
appearance or internal structure.
Note:
The above diagram is typical of the NK2-22, but some models may vary slightly in
appearance or internal structure.
Cabtyre Cable
Hose Coupling
Mechanical Seal
Protective Packing
Handle
Lubricant
Oil Lifter
Oil Plug
Rear Liner
Oil Casing
Pump Casing
Strainer Stand
Impeller
V-Ring
Shaft Sleeve

-5-
When the pump is delivered, first perform the following checks.
Inspection
While unpacking, inspect the product for damage during shipment, and make sure all bolts
and nuts are tightened properly.
Specification Check
Check the model number to make sure it is the product that was ordered. Be certain it is the
correct voltage and frequency.
Note:
If there is any problem with the product as shipped, contact your nearest dealer or
Tsurumi representative at once.
3PRIOR TO OPERATION
Product Specifications
CAUTION
Do not operate this product under any conditions other than those for which
it is specified. Failure to observe this precaution can lead to electrical shock,
electrical leakage, fire, water leakage or other problems.
Major Standard Specifications
Applicable Liquids Consistency and Temperature Rain water, Ground water, Sand carrying water ; 0 ~ 40℃
Pump
Impeller Semi-vortex-Type
Shaft Seal Double Mechanical Seal
Bearing Shielded Ball Bearing
Specification Dry Submersible Induction Motor 2-Pole
Insulation Class E (KTV Series), Class B (NK Series)
Protection System (Built-in) Circle Thermal Protector
Turbine oil VG32 (non-additive) Lubricant
Connection Hose Coupling
Motor
Standard specifications (50/60Hz)
Model
KTV2-8 15.0/16.0 0.32
-/53 85
20.0/21.0 0.42
- /69 110
24.0/26.0 0.53/0.49
- /85 - /130
33.8/35.0 0.50/0.48
- /115 - /127
26.5/28.5 0.83/0.82
- /94 - /217
35.0/37.0 0.98/0.87
- /121 - /230
20.0/21.0 0.42
- /69 111
24.0/26.0 0.53/0.49
- /86 - /130
11.5
50 3 Direct-on-Line 0.75
KTV2-15 19.5
50 3 Direct-on-Line 1.5
KTV2-22 23.0
50 3 Direct-on-Line 2.2
KTV2-37H 35.0
50 3 Direct-on-Line 3.7
KTV2-37 35.0
80 3 Direct-on-Line 3.7
KTV3-55 * 46.5
80 3 Direct-on-Line 5.5
NK2-15 28.8
50(80) 1 Capacitor-Start 1.5
NK2-22 29.0
50(80)
2
2
2
2
3.2
3.2
2(3.2)
2(3.2) 1Capacitor-Start
Capacitor-Run 2.2
Bore
(mm)
(inch)
Starting Method Output
(kW)
Max Head
(m)
(feet)
Weight
(kg)
Max Capacity
(m3/min)
(GPM)
Phase
* USA market: KTV2-55
Note:
The weight (mass) given above is the operating weight of the pump itself, not including the
cabtyre cable.
Note:
If you discover any damage or discrepancy in the product, please contact the dealer where
this equipment was purchased or the Tsurumi sales office in your area.
Accessory Check
Verify that all accessory items are included in the package.
• Hose Band (0.75kW) ..............1 pc
• Operation Manual ................1

-6-

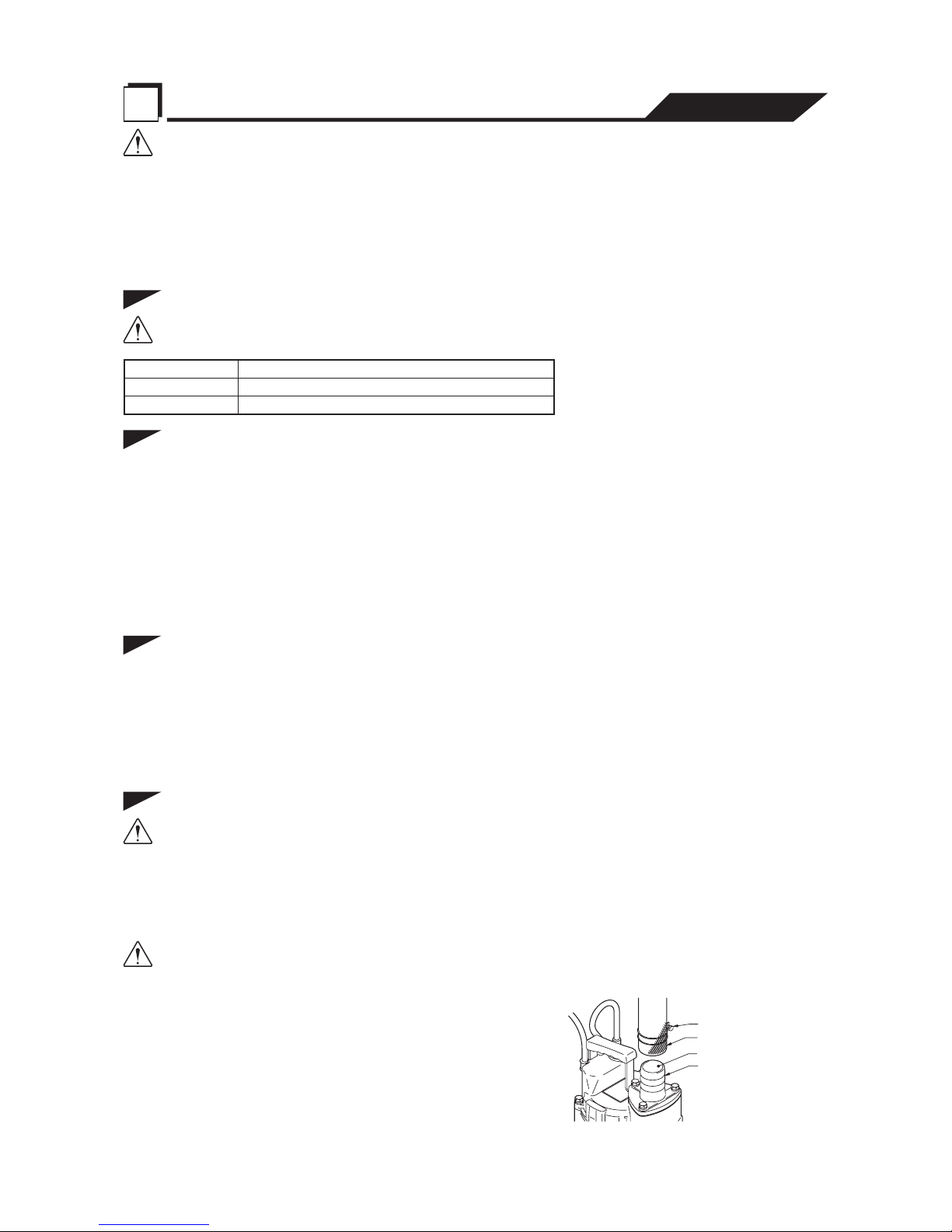

CAUTION
• Do not use this pump in liquids other than water, such as oil, salt water, or
organic solvents.
• Use with a power supply voltage variation within ± 10% of the rated voltage.
• Do not use in water temperatures outside the range of 0 ~ 40°C, which can
lead to failure, electrical leakage or shock.
•
Do not use in the vicinity of explosive or flammable materials.
• Use only in fully assembled state.
Note:
Consult your local dealer or Tsurumi representative before using with any liquids other
than those indicated in this document.
4INSTALLATION
Precautions in installation
WARNING
• When installing the pump, pay close attention to its center of gravity and
weight. If it is not lowered into place correctly, it may fall and be damaged
or cause injury.
• When transporting the pump by hand, be sure to employ manpower
commensurate with the weight of the pump. To avoid back injury when
lifting the pump, bend the knees to pick it up rather than bending your back
only.
CAUTION
Do not under any circumstances install or move the pump by suspending
it from the cabtyre cable. The cable may be damaged, causing electrical
leakage, shock, or fire.
Checks to make before installation
Use the megohmmeter to measure the motor insulation resistance between the cabtyre
cable plug tips and ground lead (Green or Green/Yellow).
Note:
The reference insulation resistance (20MΩ or greater) is the value when the pump is
new or has been repaired. For the reference value after installation, see below at section
"7.Maintenance and Inspection".
Preparing for installation
Before installing the pump at a work site, you will need to have the following tools and
instruments ready:
• Insulation resistance tester
• AC voltmeter
• AC ammeter (clamp-on type)
• Bolt and nut tighteners
• Power supply connection tools (screwdriver or box wrench)
Note:
Please read also the instructions that come with each of the test instruments.
Maximum allowable water pressure
CAUTION
Do not use at greater than the water pressure shown below, which can
damage the pump resulting in electrical leakage and electrical shock.
Model Maximum allowable water pressure
KTV2-8
All other models
0.2 MPa (2 kgf/cm2) - discharge pressure used
0.3 MPa (3 kgf/cm2) - discharge pressure used
Hose Band
Hose
Discharge Connection
Hose Coupling
(1) Attach the hose to the hose coupling as far as it will
go, then fasten it securely with the hose band.

-7-

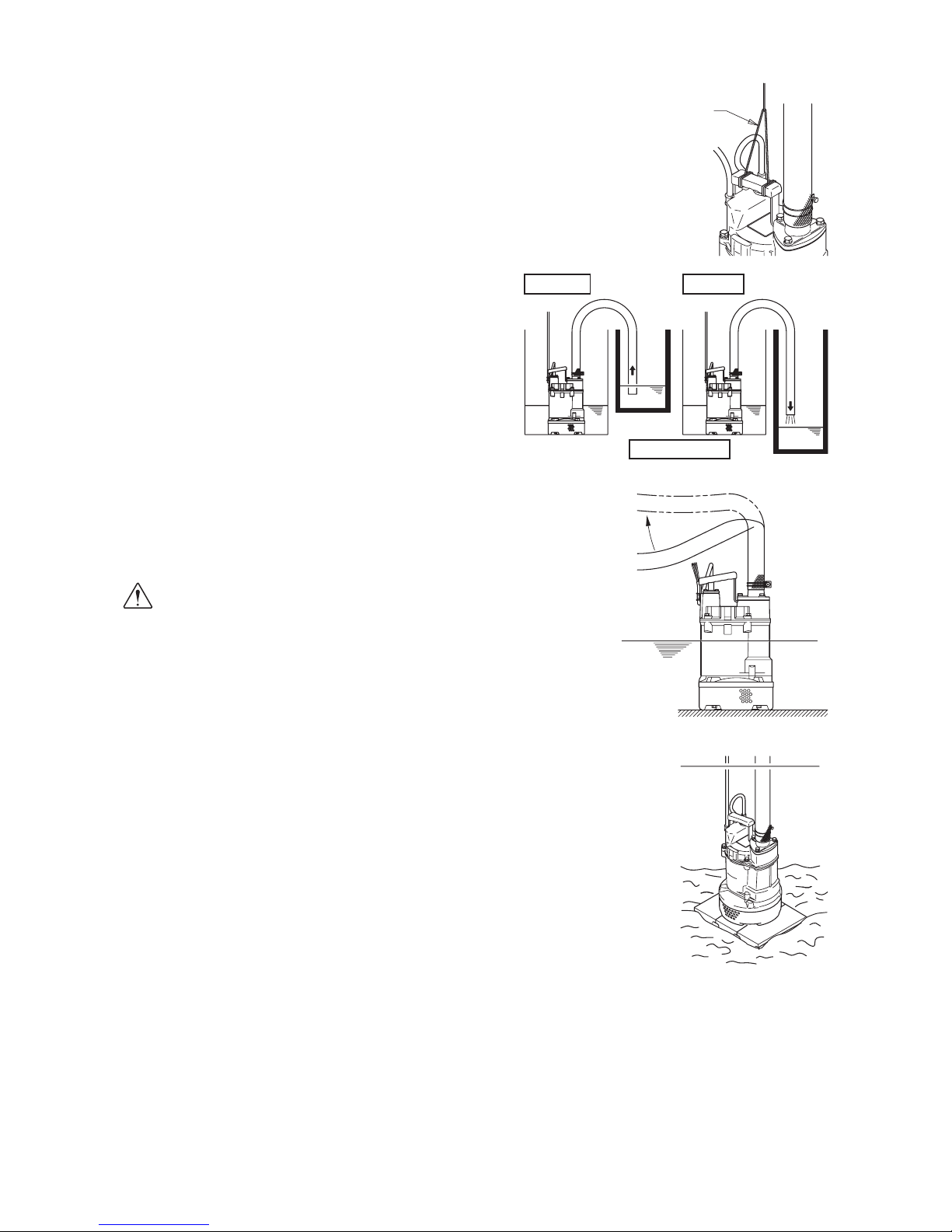

(3) Install the pump in a location with sufficient
water level, where water collects readily.
Note:
The "Operating water level" chart below
shows the water level necessary for operation.
The tip of the hose (discharge end) should be
located higher than the water surface. If the
end of the hose is submerged, water may flow
back to the pump when the pump is stopped;
and if the hose end is lower than the water
surface, water may overflow when the pump
is turned off.
Pump stopped
Backflow Outflow
(5) Use the pump in the upright position. To prevent the pump
from becoming submerged in mud, mount it on a block or
other firm base if necessary.
(4) The hose should be run as straight as possible, since
excessive bending will hinder the water flow, preventing
sufficient lift, and can even cause the hose to become
clogged with earth. If the hose is crimped near the pump, air
can become trapped in the pump and cause idle running.
CAUTION
• If large quantities of earth are sucked up,
damage resulting from friction in the pump
can lead to electrical leakage and shock.
• When the pump is installed at a work site,
make sure the hose is connected in such a
way as to ensure proper drainage. Otherwise
water may leak out and cause damage to
surrouding walls or flooring, or to equipment.
(2) Avoid dropping the pump or other strong impact. Lift the pump
by holding it firmly with the hands or by attaching a rope or
chain to the handle.
Note:
On Cabtyre cable handling, see below Electrical Wiring.
Rope

-8-
Connecting the cabtyre cable
WARNING
Before connecting leads to the terminals, make certain the power supply
is turned off (circuit breaker, etc.), to avoid electrical shock, shorting, or
unexpected starting of the pump, leading to injury.
CAUTION
Do not use the pump if the cabtyre cable is worn or damaged, which can
result in electric shock, shorting, or fire.
Connect the leads of cabtyre cable to the control panel terminals as shown in the diagram,
being careful not to let the leads become twisted together.
Cabtyre cable
CAUTION
• If it is necessary to extend the cabtyre cable, use a core size equal to
or larger than the original. This is necessary not only for avoiding a
performance drop, but to prevent cable overheating which can result in fire,
electrical leakage or electrical shock.
•
If a cable with cut insulation or other damage is submerged in the water,
there is a danger of water seeping into the motor causing a short. This may
result in damage to the pump, electrical leakage, electrical shock, or fire.
• Be careful not to let the cabtyre cable be cut or become twisted. This may
result in damage to the pump, electrical leakage, electrical shock, or fire.
• If it is necessary to submerse the connection leads of the cabtyre cable
in water, first seal the leads completely in a molded protective sleeve, to
prevent electrical leakage, electrical shock, or fire.
Do not allow the cabtyre cable leads to become wet.
Make sure the cable does not become excessively bent or twisted, and does not rub against
a structure in a way that might damage it.

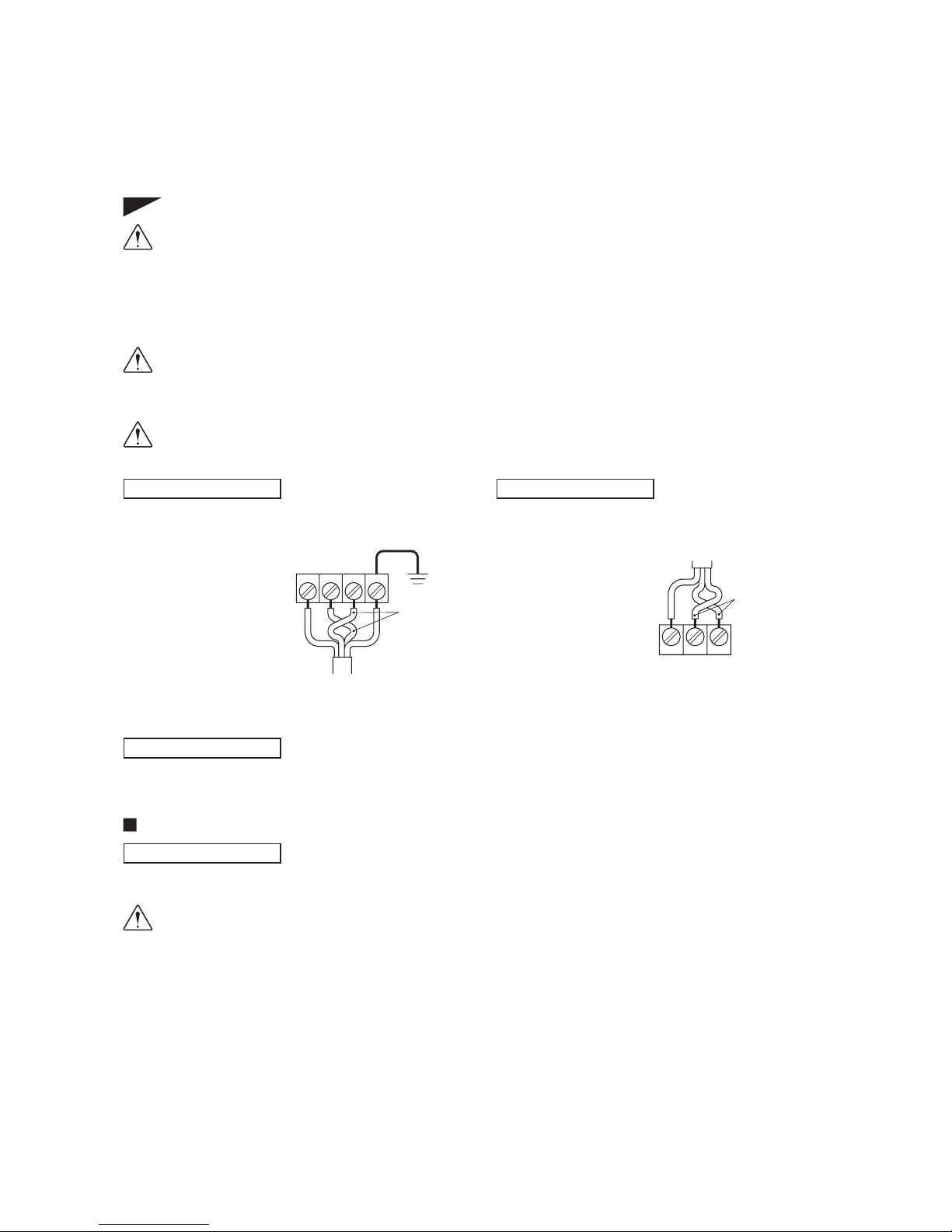

Grounding
WARNING
Do not use the pump without first grounding it properly. Failure to ground it
can lead to electrical shock from an electrical leak or pump malfunction.
CAUTION
Do not attach the grounding wire to a gas pipe, water pipe, lightening arrestor
or telephone grounding wire. Improper grounding can result in electrical
shock.
L1 L2 G VU W G
G-Green
(Green/Yellow)
G-Green
(Green/Yellow)
L1-Red
(Brown)
L1-White
(Blue)
U-Red(Brown)
V-White
(Blue or Grey) W-Black(Black)
Single-phase models Three-phase models
Ground Ground
Performing electrical wiring
WARNING
•
Eelectrical wiring should be performed by a qualified person in accord with
all applicable local regulations. Failure to observe this precaution not only
risks breaking the law but is extremely dangerous.
• Incorrect wiring can lead to electrical leakage, electrical shock or fire.
• Absolutely provide a dedicated earth leakage circuit breaker and a thermal
overload relay suitable for the pump (available on the market). Failure
to follow this warning can cause electrical shock or explosion when the
product fails or an electrical leakage occurs.
Operate well within the capacity of the power supply and wiring.
5ELECTRICAL WIRING

-9-
6OPERATION
Protector
Protector
Capacitor Capacitor
Main Coil1
Main Coil2
Aux. Coil Aux. Coil
Aux. Coil
Main Coil1
Main Coil
Aux. Coil
Main Coil
Main Coil2
CSCRCapacitor
Terminal Block Terminal Block
Centrifugal Swich Centrifugal Swich
Centrifugal Swich
Centrifugal Swich
NK2-15 Capacitor-Start models, Single-phase motor
(110V-50/60Hz)
NK2-15 Capacitor-Start models, Single-phase motor
(220V-50/60Hz)
NK2-15 Capacitor-Start models, Single-phase motor
(230/240V-50Hz, 200V-50/60Hz)
NK2-22 Capacitor-Start and Capacitor-Run models, Single-phase motor
L1
1
2
3
Protector
1
1
3
2
2
Protector
1
3
2
3
L2T2 P2 P3
P1 T4T5 T1 T3
L1 L2 T2P2 P3
P1 T4T5 T1 T3
CS : Starting capacitor
CR : Running capacitor
Circle Thermal Protector
Coil
U V W G
Red
(Brown)
White
(Blue or Grey)
Black
(Black)
Green
(Green/Yellow)
Direct on line
Ground
Before starting
(1) Make sure once again that the product is of the correct voltage and frequency rating.
CAUTION
Using the product at other than rated voltage and frequency will not only
lower its performance but may damage the product.
Note:
Confirm the rated voltage and frequency on the model name plate.
(2) Confirm the wiring, supply voltage, circuit breaker capacity, and motor insulation
resistance.
Reference insulation resistance = 20 MΩ or greater
Note:
The reference insulation resistance (20MΩ or greater ) is the value when the pump is
new or has been repaired. For the reference value after installation, see below at section
"7.Maintenance and Inspection "
Electrical circuit diagrams

-10-
Example :
Interchanging
phases V and W
U V W G
Ground
(2) If the direction is reversed, correct it using the countermeasure shown below.
WARNING
Before changing the connections to correct the rotation, be sure to turn off
the power supply (circuit breaker), and make sure the impeller has stopped
completely, to avoid electrical shock or shorting.
Test operation
WARNING
•
Never operate the pump while it is suspended in the air. The recoil may
result in injury or other major accident.
•
Never start the pump when people are standing next to it. An electrical leak
can result in electrical shock.
(1) Run the pump for a short time(1~2 seconds) to check the direction of rotation. The
rotation is correct if the pump recoil direction is counter-clockwise.
CAUTION
Always perform the rotation check in air, not while the pump is submersed.
Running the pump in reverse direction while submersed may damage the
pump, resulting in electrical leakage or electrical shock.
(3) Run the pump for a short time (3~10minutes) and confirm the following.
Using an ammeter(clamp-on type), measure the operating current at the U, V, and W
phase leads on the terminal strip.
COUNTERMEASURE
If the operating current exceeds the rated value, pump motor overload may be a cause. Make sure the pump
has been installed under proper conditions as described in the section on Installation.
Using an AC voltmeter(tester), measure voltage at the terminal strip.
Supply voltage variation : within ± 10% of rated voltage.
COUNTERMEASURE
If the supply voltage is outside the variation, possible causes are the power supply capacity or an inadequate
extension cable. Look again at Electrical Wiring and make sure the conditions are proper.
CAUTION
In case of very excessive vibration, unusual noise or odor, turn off the power
immediately and consult with your nearest dealer or Tsurumi representative.
Continuing to operate the pump under abnormal conditions may result in
electrical shock, fire, or electrical leakage.
(4) If the test operation turns up no problems, continue with full operation.
COUNTERMEASURE
(Direct-on-line start models):
Interchange connections between any two of
the three leads U, V, or W.
COUNTERMEASURE
(Star-delta start models):
Interchange connections between any two of
the three leads R, S, or T.
R S T
Example :
Interchanging
phases S and T
(3) The setting on the circuit breaker or other overload protector should be made in accord
with the rated currency of the pump.
Note:
See the model name plate on the pump for its rated current.
(4) When powering the pump with a generator, do not share the generator with other
equipment.

-11-
Operation water level
CAUTION
Do not operate the pump below the C.W.L. (Continuous Running Water
Level). Failure to observe this condition may result in damage to the pump,
electrical leakage or electrical shock.
Motor protection system
WARNING
During inspections or repairs, always be sure to turn off the power. Sudden
unexpected starting of the pump can cause electrical shock, shorting, or
serious injury.
CAUTION
• Always determine the cause of the problem and resolve it before resuming
operation. Simply repeating cycles of stopping and restarting will end up
damaging the pump.
• Do not continue operation at very low water level, or while the strainer
stand is clogged with debris. Not only will performance sufffer, but such
conditions may cause noise, heavy vibration, and malfunctioning.
Circle Thermal Protector
If an excessive current is detected or the motor overheats, for reasons such as the
following, the pump will automatically stop operating regardless of the water level, to
protect the motor.
• Change in supply voltage polarity
• Overload
• Open-phase operation or operation under constraint
The table shows the C.W.L. for different output classes.
Be careful not to allow the water level to drop below the
applicable limit.
Applicable Model C.W.L. (mm)
KTV2-8
KTV2-15
65
80
KTV2-22
KTV2-37H
80
90
KTV2-37 90
KTV3-55 *
NK2-15
90
80
NK2-22 80
* USA market: KTV2-55
C.W.L.
Operation
WARNING
• The pump may become very hot during operation. Be careful not to contact
the pump accidentally to avoid being burned.
• To avoid serious injury, do not insert a finger or any other object in the
pump inlet holes.
• When the pump is not used for an extended period, be sure to turn off the
power (circuit breaker, etc.). Deterioration of the insulation may lead to
electrical leakage, electrical shock, or fire.
•
In case of a power outage, turn off the power to the pump to avoid having it
start unexpectedly when the power is restored, presenting serious danger
to people in the vicinity.
Pay careful attention to the water level while the pump is operating. Dry operation may
cause the pump to malfunction.
Note:
See below,"Operating water level" for the water level necessary for operation.

-12-
Regular maintenance and inspections are a necessity for continued efficient
functioning of the pump. If any abnormal conditions are noticed, refer to the section
"9.Troubleshooting" and take corrective measures immediately. It is recommended that
a spare pump be kept ready in case of any problems.
Prior to inspection
WARNING
Detach the cabtyre cable from the receptacle or terminals, after making
certain the power supply (circuit breaker, etc.) is turned off. Failure to follow
this precaution may result in a serious accident from electrical shock or
unexpected starting of the pump motor.
(1) Washing the pump
Remove accumulated matter from the surface of the pump and wash it with clean water.
Take special care to remove any debris from the impeller.
(2) Inspecting the pump exterior
Look for any peeling or chipped paint, and make sure the nuts and bolts are fastened
tightly. Any cracks in the surface should be repaired by cleaning that area, drying it
and then applying a touchup coating.
Note:
Touchup is not supplied. Note that some kinds of damage or looseness may require that
the unit be disassembled for repairs. Please consult with your nearest dealer or Tsurumi
representative.
Regular Inspection
7
MAINTENANCE AND INSPECTION
Storage
When the pump is out of use for an extended period, wash it and dry it thoroughly, then
store it indoors. If the pump is left in the water, it should be run at a minimum of once a
week to prevent it from locking up.
Note:
Always run a test operation before putting the pump back into service.
Frequency
Monthly
Daily
Semi-annually
Inspection Items
Annually
Every
2 to 5 years
Measuring the operating current
Measure insulation resistance
Note: If the insulation resistance has become notably lower than the previous inspection, an
inspection of the motor will be necessary.
Note: Consult with your nearest dealer or Tsurumi representative regarding overhauls.
Note: Specialized know-how is required for inspecting and replacing the mechanical seal.
Consult with your nearest dealer or Tsurumi representative.
Note: See below for details of oil inspection and oil change.
Overhaul
Change oil
Change mechanical seal
Change the oil every 12 months or after 6,000 hours of use, whichever comes first.
Oil inspection Check the oil every six months or after 3,000 hours of use, whichever comes first.
Pump inspection A noticeable drop in performance may indicate wear in the impeller etc., or else
clogging of the strainer stand, etc. Remove the clogged debris,and replace any
worn parts.
Designated oil : Turbine oil VG32
Power supply voltage variation
= within ±10% of the rated voltage
Measuring the power voltage
To be below the rated current
Reference insulation resistance = 1MΩ or greater
This should be carried out even if there are no problems with the pump.
The frequency depends on how continuously the pump is in use.
Inspection of lifting wire rope or chain
Replace if damage, corrosion, or wear has occurred to the wire rope or the chain.
Remove if foreign object is attaching to it.

-13-

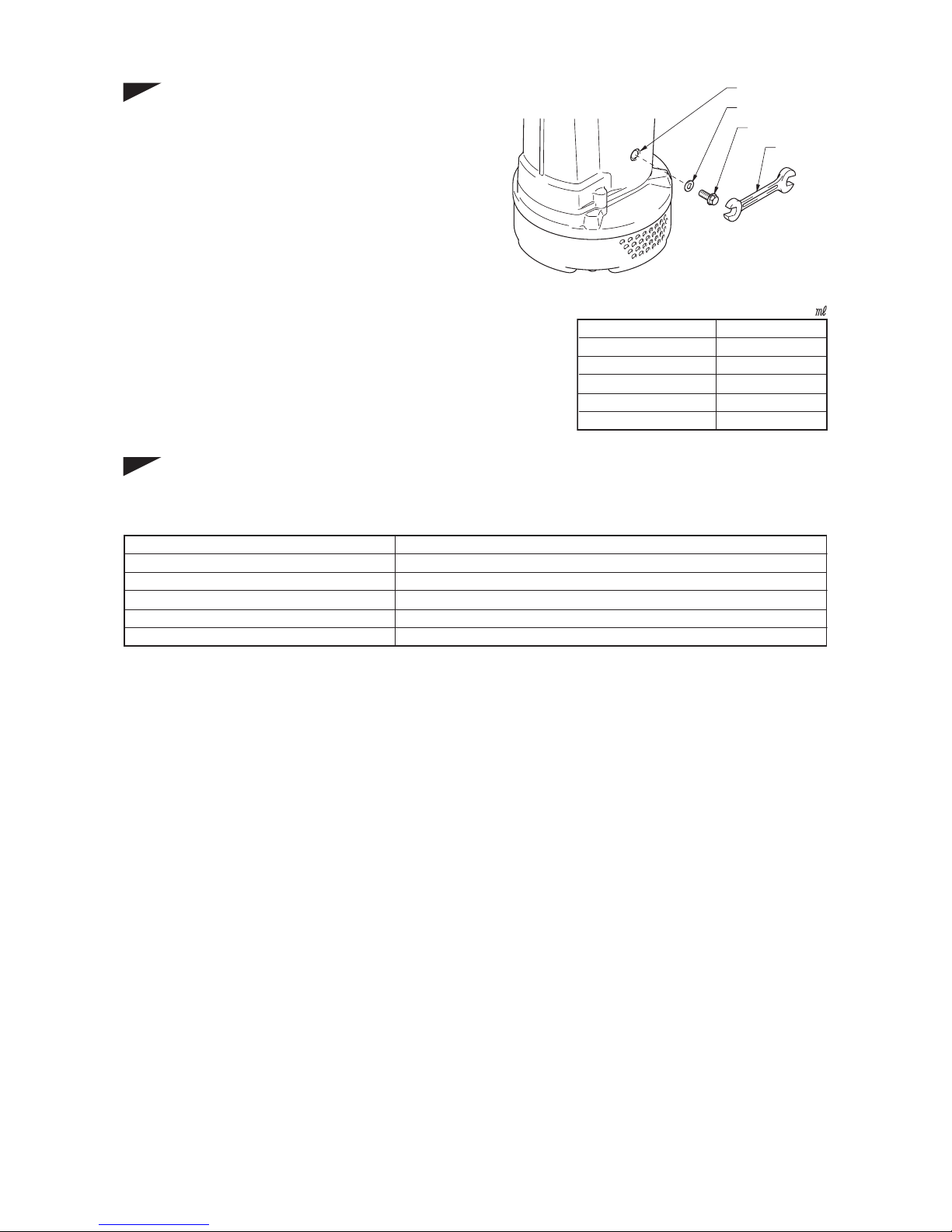

Oil inspection and Oil change
Note:
Worn oil and other waste products should be
disposed of by a qualified agent, in accord with
applicable laws. The oil plug packing should be
replaced each time the oil is inspected or changed.
Inspecting oil
Remove the oil plug (hex. bolt) and tilt the
pump to drain a small amount of oil. If the
oil is milky white or has water mixed in with
it, the mechanical seal may be faulty. In this
case the pump will need to be disassembled
and repaired.
Replacing oil
Remove the oil plug and drain all the oil,
then replace it with the specified amount.
Unit :
* USA market: KTV2-55
Specified Oil : Turbine Oil VG32 (non-additive)
Applicable Model
Specified Volume
KTV2-8
KTV2-15, KTV2-22
150
270
KTV2-37H, KTV2-37
KTV3-55 *
400
680
NK2-15, NK2-22 270
Oil Inlet
Packing
Oil Plug
Spanner
Replacement Parts
The table lists the parts that need to be replaced periodically. Replace these using the
recommended frequency as a guideline.
Part Replacement frequency
Mechanical Seal
Lubricant ; Turbine Oil VG32 (non-additive)
When oil in oil compartment becomes milky.
Every 6,000 hours or 12 month, whichever comes first.
Packing, O-Ring
V-Ring
Each time pump is disassembled or inspected.
When ring is worn, and each time pump is disassembled or inspected
Shaft sleeve When it becomes worn

-14-
Disassembly (KTV2-22)
Note:
Remove the oil prior to disassembly.
(1) Removing the Strainer Stand, Fixing Plate and Pump Casing
Remove the Strainer Stand Hex. Bolts and Plain Washers, then remove the Strainer
Stand, Fixing Plate and Pump Casing from the pump.
(2) Removing the Impeller
With a socket wrench or other tool, loosen the Impeller Nut and Hex. Nuts, remove
the Plain Washer and key, then remove the Impeller, Shaft Sleeve and V-Ring from the
Shaft.
(3) Removing the Rear Liner
Remove the Rear Liner from the Oil Casing.
WARNING
A worn Impeller may have sharp edges that can cause injury, and should be
handled with care.
WARNING
• Before disassembling the pump, first detach the Cabtyre Cable from the receptacle, after
making certain the power supply (circuit breaker, etc.) is turned off. To avoid electrical
shock, do not work with wet hands. Never check the operation of any parts (impeller rotation,
etc.) by turning on the power while the unit is partially assembled. Failure to observe these
precautions may result in serious accident.
• Do not disassemble or repair any parts other than those designated here. If repairs are
necessary in any other than the designated parts, consult with your nearest dealer or Tsurumi
representative. Improper repairs can result in electrical leakage, electrical shock, fire, or water
leaks.
• After reassembly, always perform a test operation before resuming use of the pump. Improper
assembly will cause the pump to malfunction, resulting in electrical shock or water leaks.
The procedure for disassembly and reassembly is shown here to the extent necessary
for impeller replacement. A specialized environment and facilities are necessary for
work in the mechanical seal and motor parts. Contact your nearest dealer or Tsurumi
representative in the event such repairs are necessary.
8
DISASSEMBLY AND REASSEMBLY

-15-

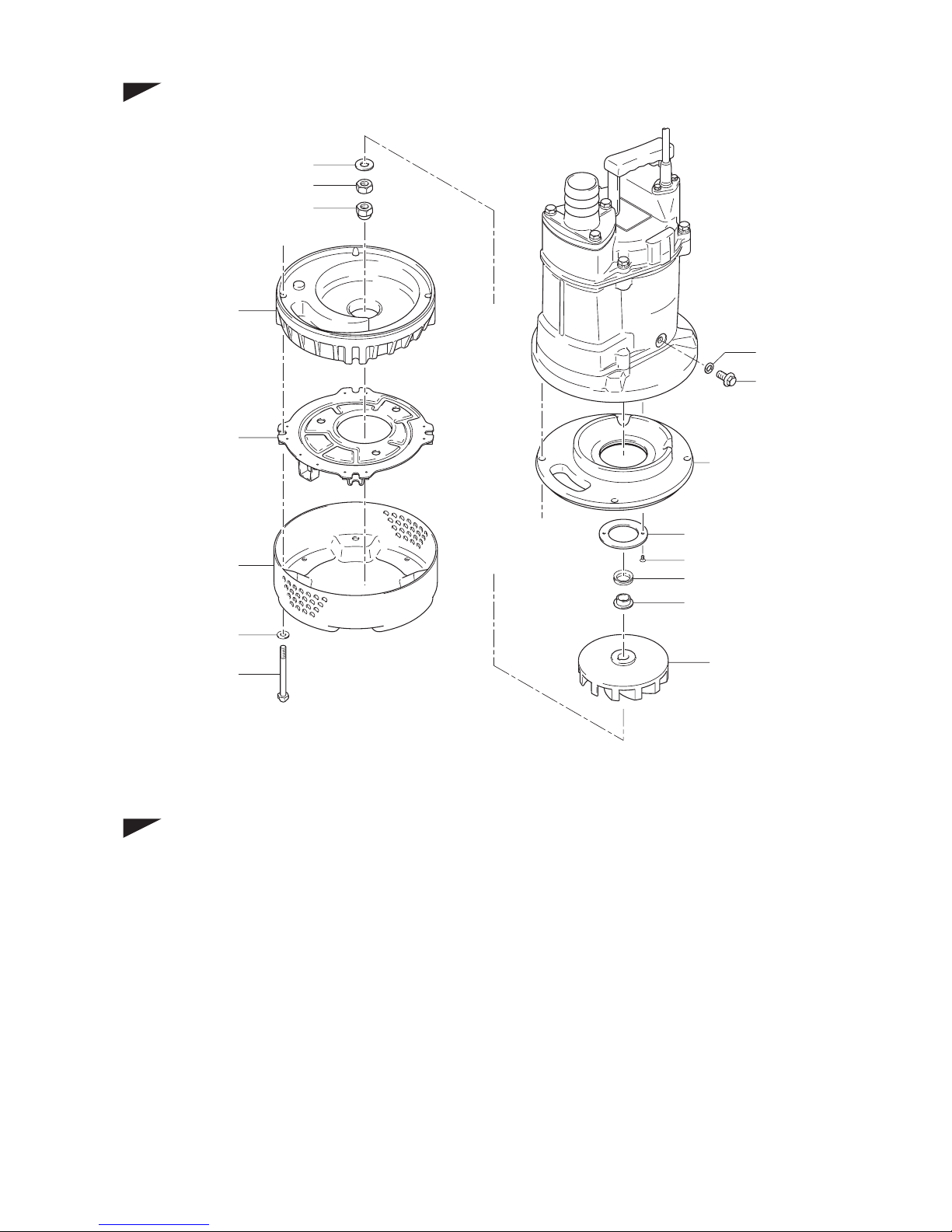

Exploded View ; KTV2-22
Reassembly (KTV2-22)
Reassembly can be performed by reversing the steps for disassembly, paying attention to
the following precautions.
Note:
After assembling the pump, do not forget to fill it with Oil up to the required amount.
Replace the Packing and O-Ring each time this operation is performed. Replace any other
worn or damaged parts as well.
After attaching the Impeller, and again after completing assembly, check to make sure the
Impeller rotates smoothly and that it does not rub against the Pump Casing.
Packing
Pump Casing
Fixing Plate
Strainer Stand
Plain Washer
Plain Washer
Impeller Nut
Hex. Nut
Hex.Bolt
Oil Plug
Rear Liner
Protective Plate
Round Head Screw
Shaft Sleeve
Impeller
V-Ring
Note:
The above exploded view is for model KTV2-22. Other models may differ slightly in shape
and construction.

-16-
Packing
Pump Casing
Fixing Plate
Strainer Stand
Plain Washer
Plain Washer
Impeller Nut
Hex. Nut
Hex.Bolt
Oil Plug
Rear Liner
Shaft Sleeve
Impeller
V-Ring
Protective Plate
Round Head Screw
Disassembly (NK2-22)
Note:
Remove the oil prior to disassembly.
(1) Removing the Strainer Stand, Fixing Plate and Pump Casing
Remove the Strainer Stand Hex. Bolts and Plain Washers, then remove the Strainer
Stand, Fixing Plate and Pump Casing from the pump.
(2) Removing the Impeller
With a socket wrench or other tool, loosen the Impeller Nut and Hex. Nuts, remove
the Plain Washer and key, then remove the Impeller, Shaft Sleeve and V-Ring from the
Shaft.
(3) Removing the Rear Liner
Remove the Rear Liner from the Oil Casing.
WARNING
A worn Impeller may have sharp edges that can cause injury, and should be
handled with care.

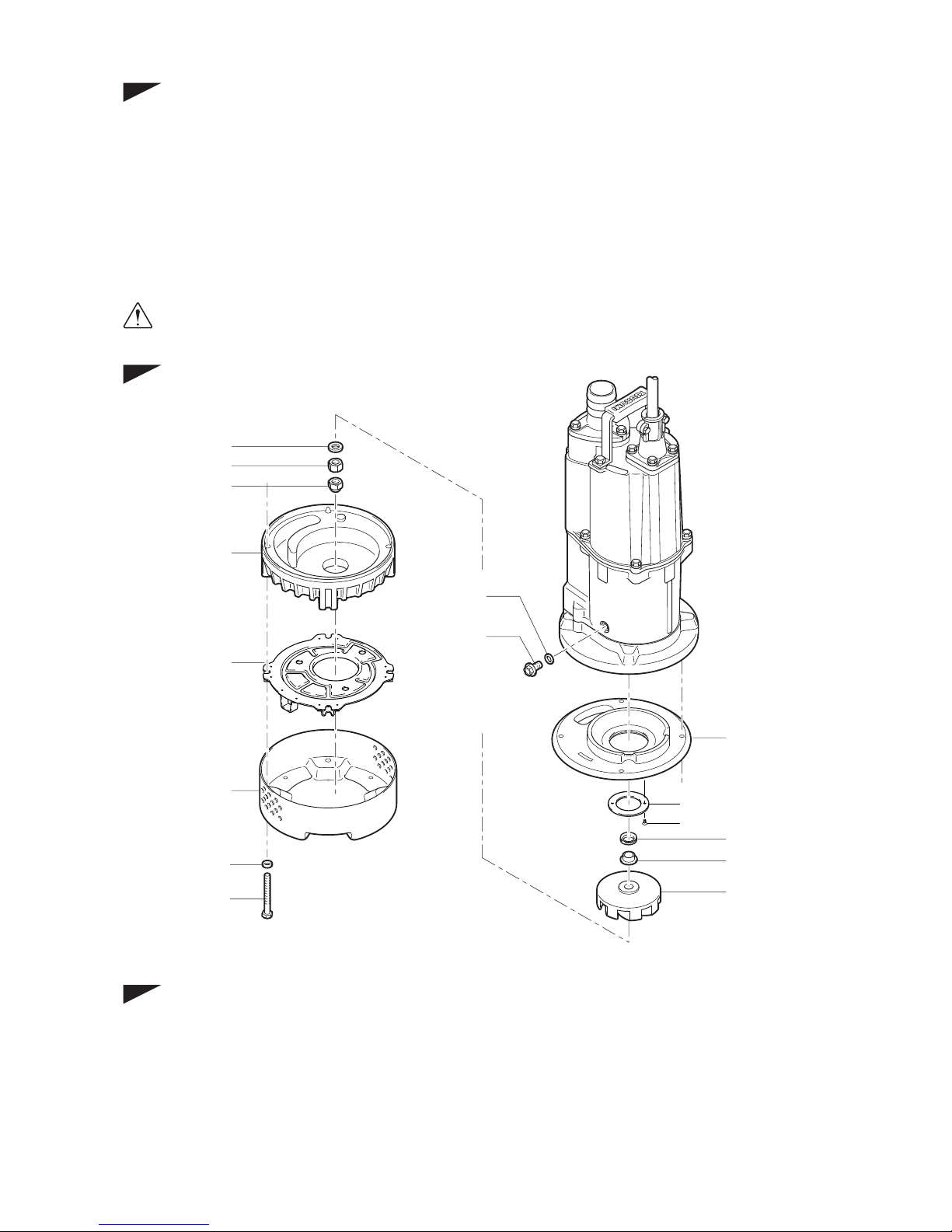

Exploded View ; NK2-22
Reassembly (NK2-22)
Reassembly can be performed by reversing the steps for disassembly, paying attention to
the following precautions.
Note:
After assembling the pump, do not forget to fill it with Oil up to the required amount.
Replace the Packing and O-Ring each time this operation is performed. Replace any other
worn or damaged parts as well.
After attaching the Impeller, and again after completing assembly, check to make sure the
Impeller rotates smoothly and that it does not rub against the Pump Casing.
Note:
The above exploded view is for model NK2-22. Other models may differ slightly in shape
and construction.

-17-
WARNING
Always turn off the power before inspecting the pump. Failure to observe this
precaution can result in serious accident.
Before ordering repairs, carefully read through this instruction manual, than repeat the
inspection. If the probrem remains, contact your nearest dealer or Tsurumi representative.
Disposal Product
Properly dispose of the product by disassembling it, presorting the contents, and sending
them to the waste material treatment site.
The following information is required when ordering repairs or making other inquiries.
9TROUBLESHOOTING
Remarks
Purchase date
Manufacturing number
Product model
(1)Power is off.
(2)Cabtyre cable is cut or not
connected properly.
(3)Impeller is clogged.
(1)Turn power on
(2)Repair/replace the cable or fix the
connection.
(3)Inspect the pump and remove any
debris.
(1)Impeller is clogged.
(2)Low voltage.
(3)Wrong power frequency.
(4)Extended operation with a clogged
strainer stand.
(5)Faulty motor (burning, water
infiltration, etc.).
(6)Motor protection system was
triggered.
(1)Remove debirs.
(2)Provide the rated voltage, or make sure
the cabtyre cable extension is the proper
standard.
(3)Check the name plate, and replace the
pump or the impeller.
(4)Remove debris from the strainer stand.
(5)Repair or replace the motor.
(6)If the pump is to be used for heavy liquid
or other high loads, upgrade impeller.
(1)Worn out impeller or suction cover.
(2)Sharply bent or clogged hose.
(3)Strainer stand clogged or buried.
(4)Motor direction is reversed.
(5)Wrong power frequency.
(1)Repair or replace the worn parts.
(2)Straighten out any sharp bends.Enclose
the pump with a screen to keep away
debris.
(3)Remove debirs from the strainer stand,
or place a block under the pump.
(4)Interchange power supply leads as per
p.10.
(5)Check the name plate, and replace the
pump or the impeller.
Pump will not start
Pump stops soon
after starting
(Motor protector
operates)
Pool life or dischage
capacity
(1)Damaged motor shaft. (1)Contact dealer and replace motor.
Heavy vibration or noise
Problem Possible causes Countermeasure
