TTI BackUp16 Service manual

Manufacturer of The Safest Tanks in Motion
www.tti.com.au
BackUp16™ / StandBy10™
HANDBOOK
OPERATOR’S
Portable Fire Fighters

TTi’s BackUp16™/StandBy10 HandBook
2Call 1800 816 277www.tti.com.au 2
Table of Contents
Introduction 3
Your Safety 3
Risk Assesment 4
Operating Instructions 5
Maintenance 6
Parts List 7
Warranty 10
Warranty Registration Card 11

TTi’s BackUp16™/StandBy10 HandBook
3Call 1800 816 277www.tti.com.au 3
Introduction
Please carefully read your operators handbook before mounting & using your
Backup16 or Standby10. Keep your handbook in a safe place.
Thank you for your purchase of a BackUp 16 or StandBy10 which is complete and
ready to use.
These highly efficient and portable fire fighters are your first defence for ember
suppression, managing spot fires and burning off. They feature a reliable, double
action hand pump with an adjustable nozzle. Twin one-way valves prevent syphoning
or leakage when not in use.
The robust, ergonomic tanks are designed to withstand rough handling associated
with fire situations.
Your Safety
1. To ensure your own safety and that of your employees if applicable you must
comply with
2. all relevant environmental, work place health and safety legislation and codes
of practice. In particular, be aware of Rural Fire Service guidelines for safety
when fighting fires or backburning.
3. Select and wear appropriate Personal protection Equipment in accordance with
the label of the product you intend using and your own safe work practices.
4. You must be in good mental health to operate this sprayer and not be under the
influence of alcohol or any drugs that could impair your vision, physical strength,
dexterity, judgment, or other mental capacity
5. All operators must be trained in safe use of this unit

TTi’s BackUp16™/StandBy10 HandBook
4Call 1800 816 277www.tti.com.au 4
Risk Assesment
Product Information Risk Assessment Sheet
TTi - BackUp16™ and Standby10™
TASK HAZARDS RISK CONTROL MEASURES
Partially fill the
tank with water,
start the motor &
test the spray unit
Manual handling;
slips, trips
or falls; petrol;
fumes; fingers
jammed
Med
• Concentrate on task;
• follow safe manual handling techniques:
• don’t lift on your own if > 20kg, bend
knees & keep back straight
• keep fingers clear
• keep unit at least 8m away from overhead
powerlines
• fire extinguisher nearby
• follow warning stickers on tanks
• wear PPE for petrol & fumes-mask & gloves
Check weather
conditions
& select the
appropriate
PPE to suit the
chemicals to be
used
Manual handling;
slips, trips or falls Low
• Put on PPE as per the chemical
requirements in the Material Safety Data
Sheet-coveralls, gloves, safety footwear,
glasses & respirator;
• Follow safe manual handling techniques:-
don’t lift on your own if >20kg, bend
knees & keep back straight.
Mix chemicals
(if applicable)
Fill spray tank/fire
fighting units
As above; spray
drift, chemical
spillage, emission
of vapors or
flammability;
weather; untrained
visitors
Med
• As above;
• User trained in the state’s chemical mixing
& administration course eg Chem. Cert;
• Follow the relevant Environment Protection
Authority requirements; fire extinguisher
present;
• Keep visitors away from the job unless
wearing full PPE.
Use spray or fire
fighter units.
As above; loss
of load; heat
& cold; noise;
exceed load limit
of vehicle; hose
entanglement;
exhaust fumes;
terrain & slopes;
run over by unit
High
• As above
• Wear clothes to suit heat & cold;
• Wear hearing protection if noise > 85 dBa;
• Follow the manufacturer’s safe operation
instruction for the vehicle and the spray
unit
• Don’t overload - water weighs 1kg for
every 1 litre
• Secure load to vehicle;
• Keep hose tidy;
• Put unit brakes on.
Clean up,
maintenance &
storage
As above High
• As above;
• Continue to wear PPE for clean up;
• Store unit in a dry, well ventilated area.
Burn Risk
Hot exhaust/muffler Med
• Do not reach over hot exhaust
• Do not service engine while hot
• Wear appropriate PPE

TTi’s BackUp16™/StandBy10 HandBook
5Call 1800 816 277www.tti.com.au 5
Operating Instructions
Before Use
Check all hoses, connections and hose clamps to ensure that the unit has been
delivered to you without transportation loss or damage.
Before attempting any spraying with your new unit, operate it with water only to
familiarize yourself with its features and capabilities and to ensure that your sprayer
has arrived in a safe working condition.
Please contact your dealer immediately should anything appear to have been
damaged.
Operation - BackUp16
Fill tank from appropriate water source. Place the unit on a surface at the same
height as your back. Slide one arm through a strap and stand upright while swinging
the opposite arm through the remaining strap.
Tighten straps securely
To operate. Remove lance from storage position. Grasp the centre handle firmly
and pull the front of the lance outward using the angled handle.
Aim the water jet at the base of the fire and continue pumping by moving handle
in & out. Due to the double action pump mechanism water is pumped on both in
& out stroke to deliver a consistent water jet.
Adjust nozzle by turning tip to achieve the desired spray pattern.

TTi’s BackUp16™/StandBy10 HandBook
6Call 1800 816 277www.tti.com.au 6
Operation - Standby10™
1. Your Standby10 is supplied with two spring steel mount brackets for easy mounting
on any convenient location on your tractor or trailed equipment.
2. To mount unit, remove the clips from the tank & fasten securely to any suitable flat
surface approx. 280 mm apart. Take care not to drill or screw thru any electrical
cables, pneumatic or hydraulic lines which may be located on the underside of
the fixing area.
3. After filling tank locate in clips by pushing down firmly.
4. To operate. Remove unit from storage clips with a firm upward pull. Grasp the
centre handle firmly and pull the front of the lance outward using the angled
handle.
5. Aim the water jet at the base of the fire and continue pumping by moving
handle in & out. Due to the double action pump mechanism water is pumped
on both in & out stroke to deliver a consistent water jet.
6. Adjust nozzle by turning tip to achieve the desired spray pattern. After use ensure
tank is refilled before returning to storage position.
Please note that the unit is designed for fire fighting use and not for chemical
spraying.
Please consult the manufacturer for further information.
Maintenance
Periodically unscrew knurled greasing cover [#812] on the lance, fill with grease &
screw up again.
Periodically check all hoses, fittings and nozzle parts. Replace any worn or broken
parts
When storing the unit ensure that it is clean and dry and store in a well ventilated
place.

TTi’s BackUp16™/StandBy10 HandBook
7Call 1800 816 277www.tti.com.au 7
Parts List

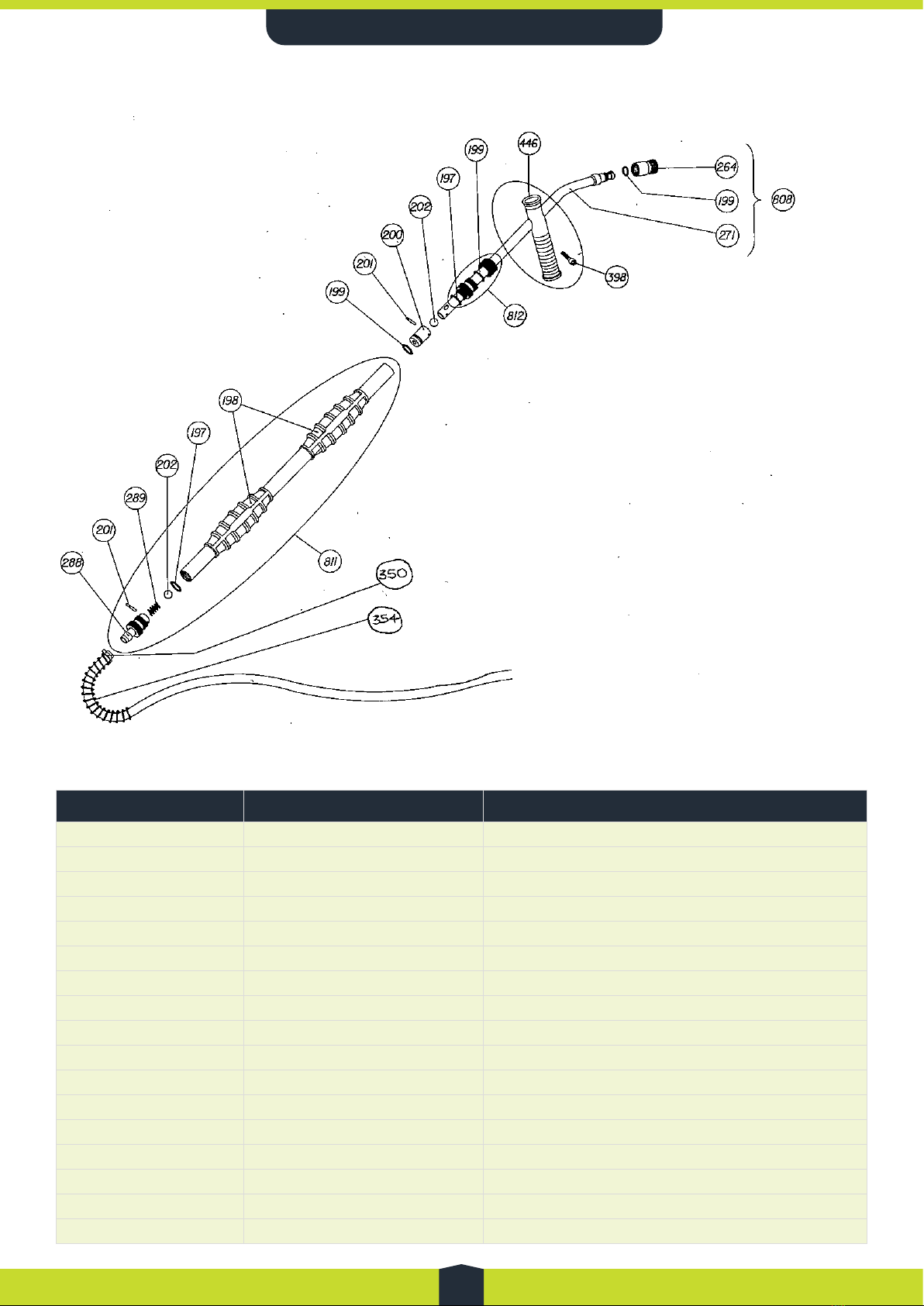

Lance Parts
No Code Description
197 8.39.04.303 Rubber Washer
198 8.39.04.306 Grip
199 2.23.15.911 Round Joint AN-11
200 8.39.04.009 Piston
201 8.39.04.005 Pin
202 2.20.08.010 Stainless eteel ball Φ 10
264 8.39.08.017 Nozzle
271 8.39.08.620 Tube with Sprayer
288 8.39.08.002 Inlet Nipple
289 8.39.08.324 Spring
350 2.03.24.012 Clamp
354 8.39.08.327 100mm Spring
398 2.59.26.740 Screw
446 8.39.04.324 Grip
808 8.39.08.803 Tube with nozzle
811 8.39.08.801 Complete Body
812 8.39.08.805 Greasing Nipple

TTi’s BackUp16™/StandBy10 HandBook
8Call 1800 816 277www.tti.com.au 8

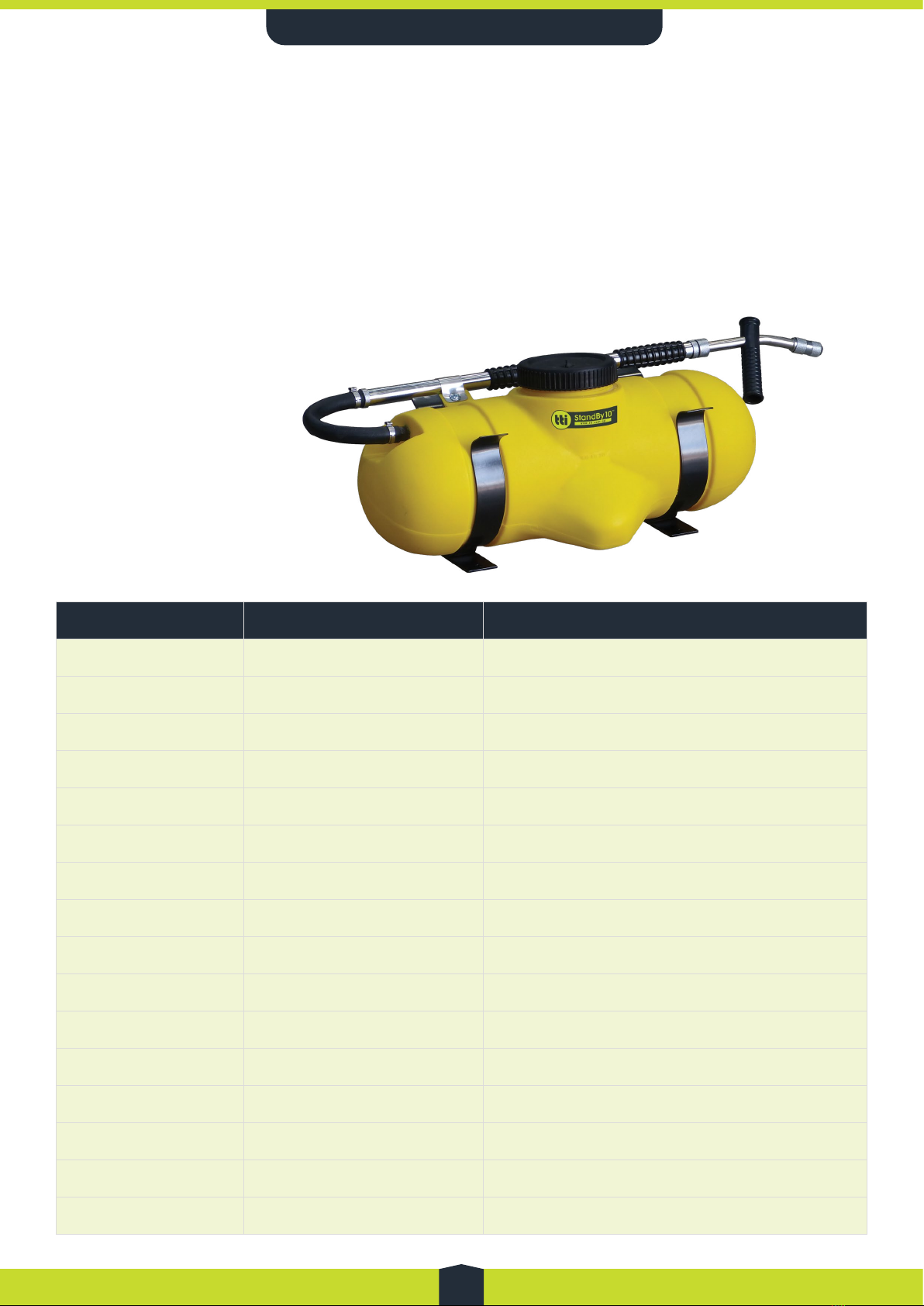

BackUp16 Parts
No Code Description
1YP1016 Fire fighting knapsack - tank only
2YP1000 Lance
3YP105 Filter basket
4YP286 Lid - no breather
5YP286B Lid breather
6YP1002 1/2” rubber hose
7YP1005 Clip clamps
8YP1001 knapsack pick up tube
9STA69 8mm foot filter
10 YP1003 3/8”bspm x 1/2” tail, nylon
11 YP1010 Shoulder pad
12 YP1011 38mm strap, per mtr
13 YP1012 Plastic buckles
14 YPHTRG 16 X 8mm rubber gasket
15 BOX15 Packing box

TTi’s BackUp16™/StandBy10 HandBook
9Call 1800 816 277www.tti.com.au 9
StandBy10 Parts
No Code Description
1YFATM10TANK Tank only - Tractor mount fire fighter
2YFBKT Mounting barckets - per pair
3YP105 Filter basket
4YP286 Lid - no breather
5YP286B Lid breather
6YP1002 1/2” rubber hose, per mtr
7YP1005 clip clamps
8YP1007 Tractor mount pick up tube
9STA69 8mm foot filter
10 YP1003 3/8”bspm x 1/2” tail, nylon
11 YP1000 Lance, complete
12 YP1006 Stainless steel lance strap
13 B14X1.12/R 1/4” x 1-1/2” roofing bolt
14 NN14 1/4” unc nyloc nut
15 YPHTRG 16 X 8MM Rubber gasket
16 BOX16 Packing box

TTi’s BackUp16™/StandBy10 HandBook
10 Call 1800 816 277www.tti.com.au 10
Warranty
This Fire Fighting unit has been guaranteed free from defect in materials, workmanship
or manufacture for 12 months from the date of purchase. Any parts which appear
to us to be defective either in material or workmanship will be replaced or repaired
at no cost to the purchaser, subject to the following conditions:
1. The registration card enclosed in this handbook must be returned to us within 7
days of purchase
2. The guidelines in this handbook have been adhered to in every respect.
3. In unlikely event of sprayer failure, this should be reported to your dealer who will
act on your behalf to resolve the issue to your satisfaction.
4. Any defective parts will be returned by your dealer within 7 days of failure,
together with a report describing the failure and conditions in which the failure
occurred.
5. The following are specifically excluded from the terms of warranty
• Fair wear and tear to pump moving parts and diaphragms
• Fair wear and tear to nozzles and nozzle bodies
• Damage caused by neglect or lack of lubrication
• Damage caused by misuse or abuse
• Damage caused while the sprayer is in transit
Whilst every care has been taken in the preparation of these instructions, no liabilities
can be accepted with regard to errors or omissions. Product specifications are
subject to change in line with our commitment to continuous improvement.

TTi’s BackUp16™/StandBy10 HandBook
11 Call 1800 816 277www.tti.com.au 11
Warranty Registration Card
To validate your warranty, please complete registration on-line at:
www.tti.com.au/warranty-registration
Alternatively if you are unable to register on-line fill in all the details below, copy
and email to warr[email protected] or post to the address on the back cover.
I have read and understood the instructions in this booklet.
[located on side of tank]
Model:
Serial Number:
Date Purchased:
Purchaser’s Name:
Post code:
Purchaser’s Address:
Phone #: Mobile #:
Email Address:
Purchaser’s Signature:
/.
/.
/.
/.

www.tti.com.au
1800 816 277
[e-mail]
PO Box 137, Nathalia, VIC, 3638
Murray Valley Hwy, Nathalia, VIC 3638
