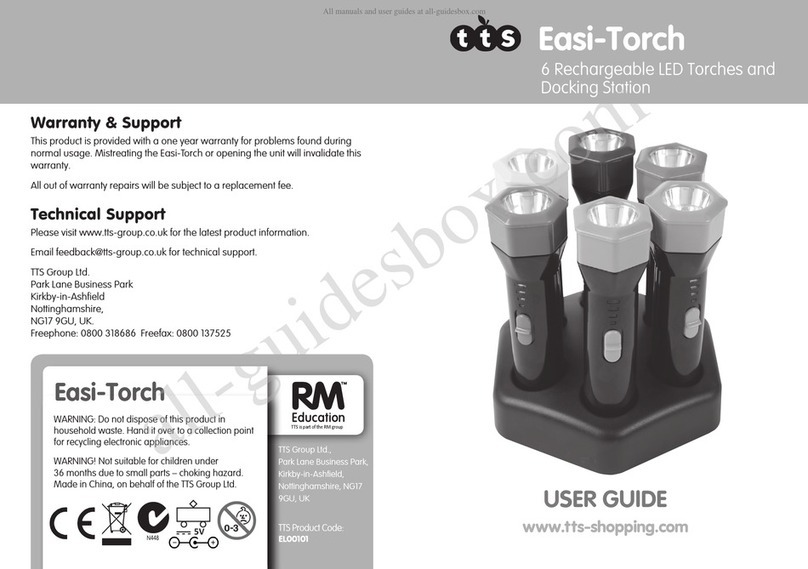

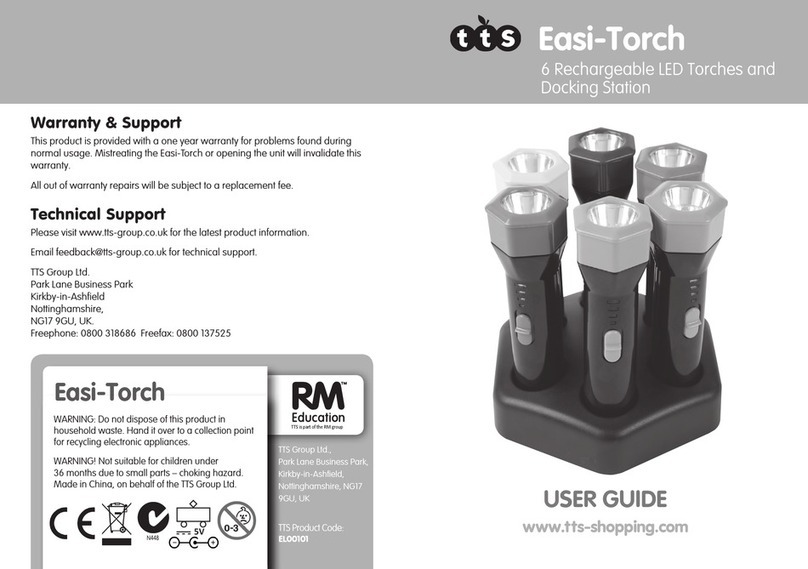

TTS Easi-Torch EL00101 User manual

Warranty & Support
This product is provided with a one year warranty for problems found
during normal usage. Mistreating the Easi-Torch or opening the unit will
invalidate this warranty.
All out of warranty repairs will be subject to a replacement fee.
Technical Support
Please visit www.tts-group.co.uk for the latest product information.
Email [email protected] for technical support.
TTS Group Ltd.
Park Lane Business Park
Kirkby-in-Ashfield
Nottinghamshire,
NG17 9GU, UK.
Freephone: 0800 318686 Freefax: 0800 137525
TTS Product Code:
EL00101
WARNING: Do not dispose of this product in
household waste. Hand it over to a collection
point for recycling electronic appliances.
WARNING! Not suitable for children under 36
months due to small parts – choking hazard.
Made in China, on behalf of the TTS Group Ltd.
Nxxxxx
N448
5V
Easi-TorchTM

6 Rechargeable LED Torches
and Docking Station
Easi-TorchTM
USER GUIDE

Important Information
Please read these instructions carefully before using the Easi-Torches and
retain for future reference.
nEasi-Torch contains a non-replaceable, rechargeable battery.
nDo not attempt to remove the battery.
nDo not allow your Easi-Torch to come into contact with water or other
liquids.
nIn the event of static your Easi-Torch may malfunction. In this case,
please switch it off and then back on again to reset it.
Charging Your Easi-Torch
Before using your Easi-Torch for the first time, the torch will require
charging. Place all the torches onto the docking station, plug the power
adaptor into the docking station, and a green LED will light on the docking
station to show that the docking station is powered, and a red LED will
light on each of the torches indicating that they are charging. After
approximately four hours the amber LED on the torch will light indicating
that the Easi-Torch is fully charged and ready for use.
Using Your Easi-Torch
A fully charged Easi-Torch will last for approximately two hours continuous
use. The battery life indicator (above the on/off switch indicates the
remaining battery life (100%, 75%, 50%, 25%). When less than 10% of the
battery life remains, the red LED will begin to flash. When this occurs the
torch should be turned off and returned to the docking station to recharge.
Note the torch must be turned OFF or it will not recharge.
Easi-Torch Charger
The Easi-Torch is supplied with a charging adaptor. The adaptor is supplied
with a UK plug only.
The safety isolating transformer to be used with the Docking Station
should be regularly examined for potential hazards such as damage to the
cable, cord, plug, enclosure or other parts. In the event of any damage,

the Docking Station must not be used until the damage has been properly
repaired.
nThe Docking Station is not intended for children under 3 years old.
nThe transformer is not a toy.
nThe Docking Station must only be used with the recommended
transformer.
nToys liable to be cleaned with liquids are to be disconnected from the
transformer before cleaning.
Problem
Troubleshooting
Easi-Torch is designed to work reliably and predictably in all normal
conditions. However, it is possible that problems may occur. Please check
the following before contacting technical support:
Specifications
Easi-TorchTM
Specification
Voltage 2.4V dc
Voltage 5V dc
100mA
-20 to 80ºC
2 hours continuous use (approx)
4 hours (approx)
Working
Charge
Charge current
Temperature range
Battery life
Recharge time
Battery is very low. Recharge the Easi-Torch
The Easi-Torch must be switched off
prior to placing on charge
Red LED flashes
Easi-Torch does not charge
Solution
