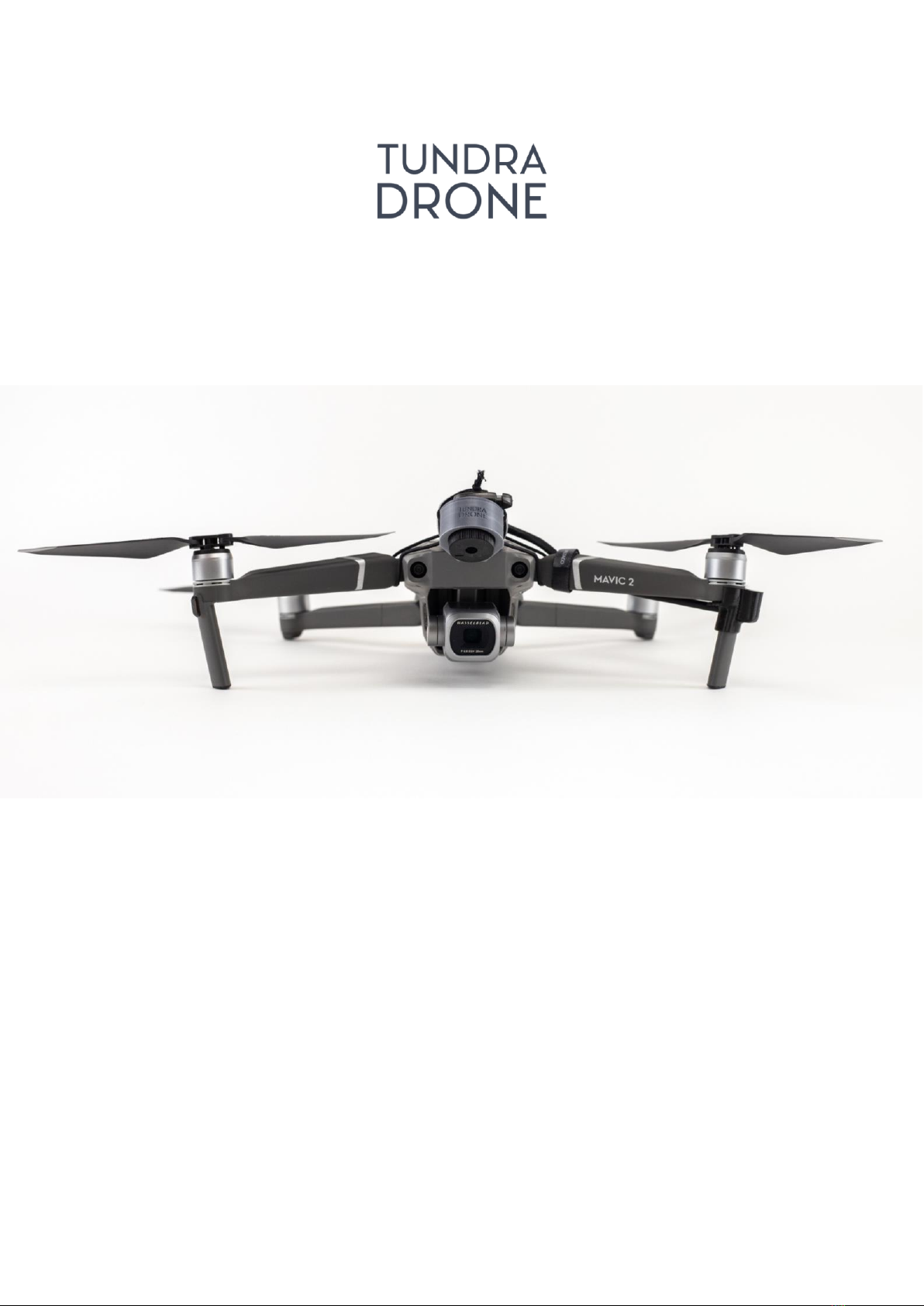

Tundra Drone Siren Herder User manual
SIREN HERDER
QUICK START GUIDE
Page 2 / 17
IMPORTANT SAFETY INFORMATION
Please read and follow the instructions and beware of the warnings and cautions.
Use:
-The Tundra Drone Siren Herder outputs a very loud sound that may harm
or damage your hearing permanently.
-Never use it stationary without any hearing protection for you and people
around you. Always use hearing protection when operating it in close
proximity (closer than 20 meters).
-Do not activate the siren sound before you have flown at least 20 meters
away from yourself and other people.
-Never use the Tundra Drone Siren Herder indoors.
-Do not use the product in rain, snow or wet weather conditions.
-Do not expose the device for moisture.
-Do not place the device where it can be exposed to excessive heat or a
dusty enviroment.
Tundra Drone Siren herder is equipped with a rechargable lithium battery. Lithium
batteries may have regulations and limitations for transportation, especially with air
planes.
This product cannot be used in combination with DJI Goggles.
SPECIFICATIONS
Sound output 107dB
Operating temperature -10⁰C to 40⁰C (14⁰F to 104⁰F)
Battery 3.7V 380mAh
Charging temperature range 5⁰C to 40⁰C (41⁰F to 104⁰F)
Product size 8x4x4cm / 3.2×1.6×1.6”
Weight 72g (0.15 lbs)
Page 3 / 17
PRODUCT OVERVIEW
Sound output
Siren activator module
Velcro for securing cable
Rubber band for
3-point-mounting
mechanism
Velcro for securing rubber band
USB-C port for Siren activator module
Cord lock
Page 4 / 17
PREPARING THE DJI GO APP FOR USE WITH THE SIREN HERDER
1. Tap the three dots
2. Tap on the radio controller symbol.
3. Tap on the field on the right side of “C2” and scroll up till you find «Turn on/off
Head LEDs» and tap on that.
4. That`s it, you are ready to start using Siren Herder.
1
2
3
4
Page 5 / 17
CHARGING THE BATTERY
Use a USB-C-cable to charge the Tundra Drone Siren herder´s battery. Charging time
for empty battery can take up to 3 hours, depending on the type of charger you use.
HOW TO USE
1. Prepare the DJI Mavic drone for flight. Power up the drone and make sure that
the DJI GO 4 app connects to the drone. Turn off front LEDs by pressing C2
button on the DJI remote controller.
C2-button
Page 6 / 17
2. Be sure that the drone is turned off before mounting the Siren herder on the
drone. Follow the mounting instructions below.
Release the Velcro holding the rubber band for 3-point mounting
mechanism.
Pull out the rubber band in full length to the right.
Page 7 / 17

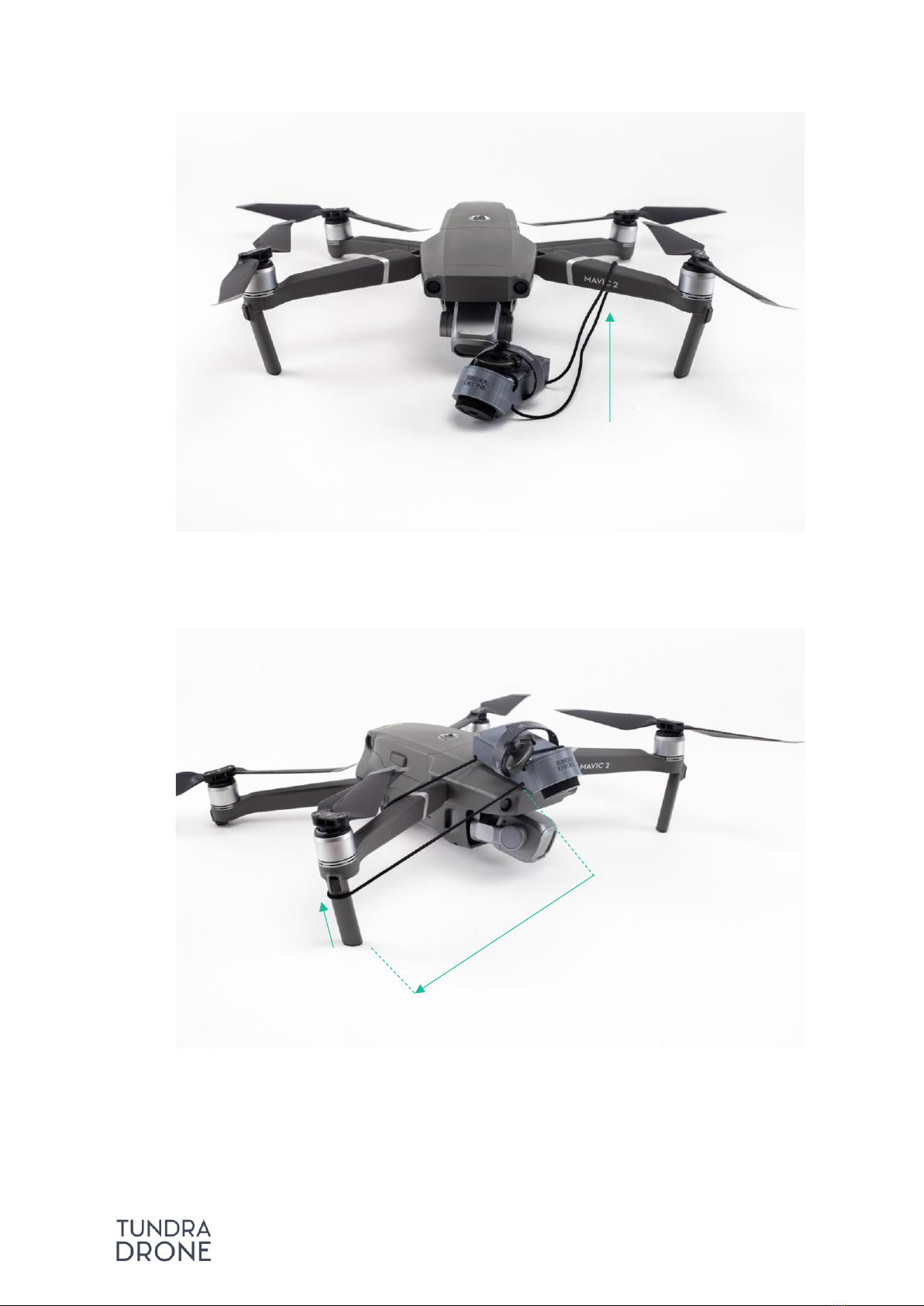

Lift the drone´s front arm and place the released rubber band over one of
the drone propeller arms, as shown in the illustration above.
Be careful not to damage the propeller (remove the propeller if needed).
Pull out the rubber band in full length to the left side. Lift the drone´s left
front arm and place the released rubber band over the drone propeller arm,
as shown in the illustration. Be careful not to damage the propeller (remove
the propeller if needed). Continues on next page.
Page 8 / 17
Place the released rubber band over the left drone propeller arm, as shown
in the illustration.
Place the Siren herder´s bottom edge against the drone roof´s edge.
Page 9 / 17
Tighten the rubber band on both sides by pulling full length of the rubber
band towards the cord lock.
Tighten the rubber band and use the cord lock to lock the rubber band in
place. Make sure the rubber band is tight on both sides and ensure it cannot
move in any direction.
Page 10 / 17

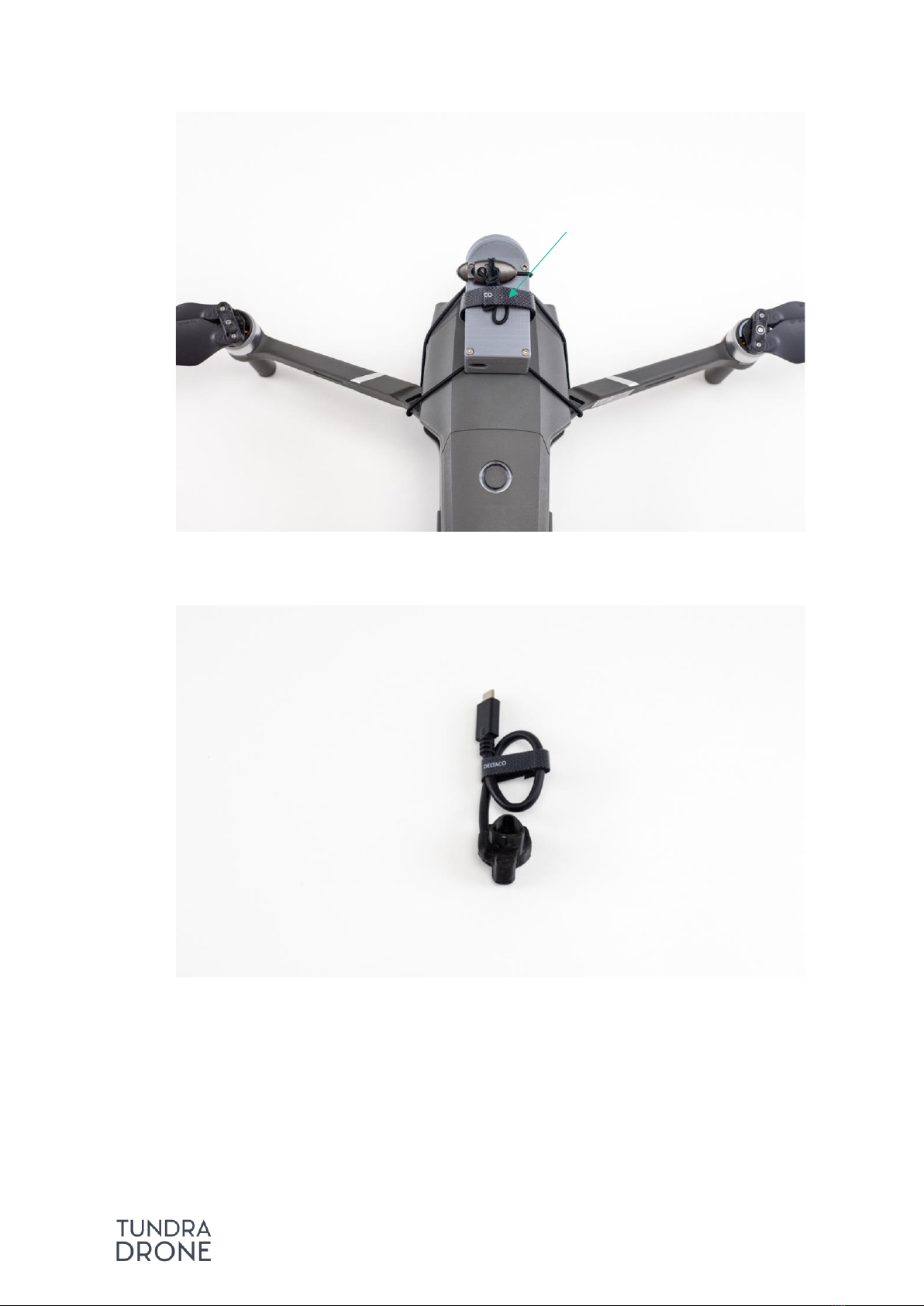

Use the velcro to securely fasten the rubber band in place.
Find the Siren activator module.
Page 11 / 17
Release the velcro band on the Siren activator module.

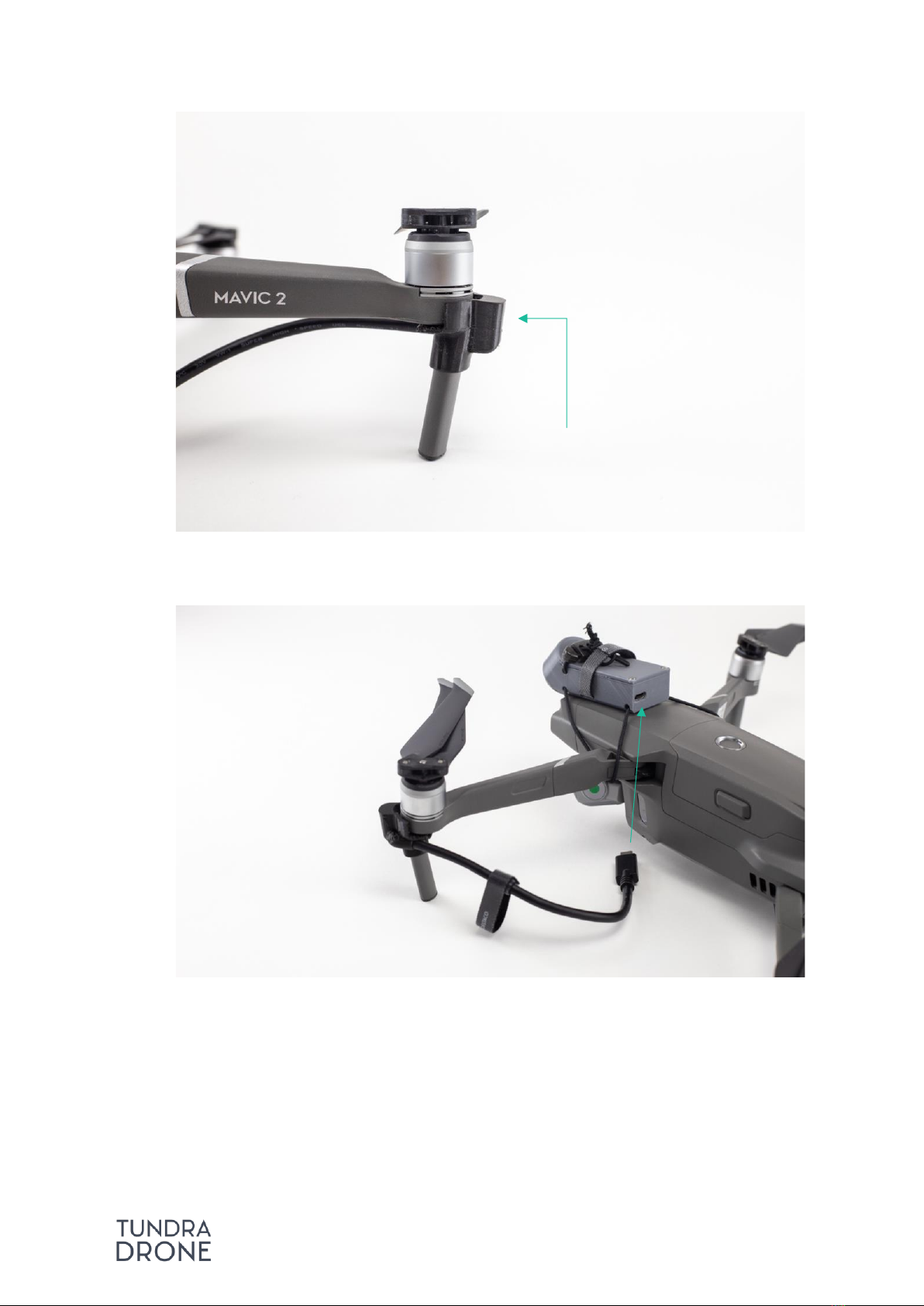

Place the Siren activator module next to the drone´s front leg.
Page 12 / 17
Lift the drone´s front leg and place the Siren activator module at the bottom.
Slide the Siren activator module upwards.
Page 13 / 17
Slide it upwards until it covers the drone´s front LED
Connect the Siren activator module to the Siren herder´s USB-C port.
CAUTION: Do NOT connect the Siren activator module to the USB-C port
before you have slid it over the drone´s front LED. The Siren herder may be
activated and produce a loud siren sound if it´s exposed to light. This could
harm your hearing. If this happens, unplug the Siren activator module from
the USB-C port immediately!
Page 14 / 17

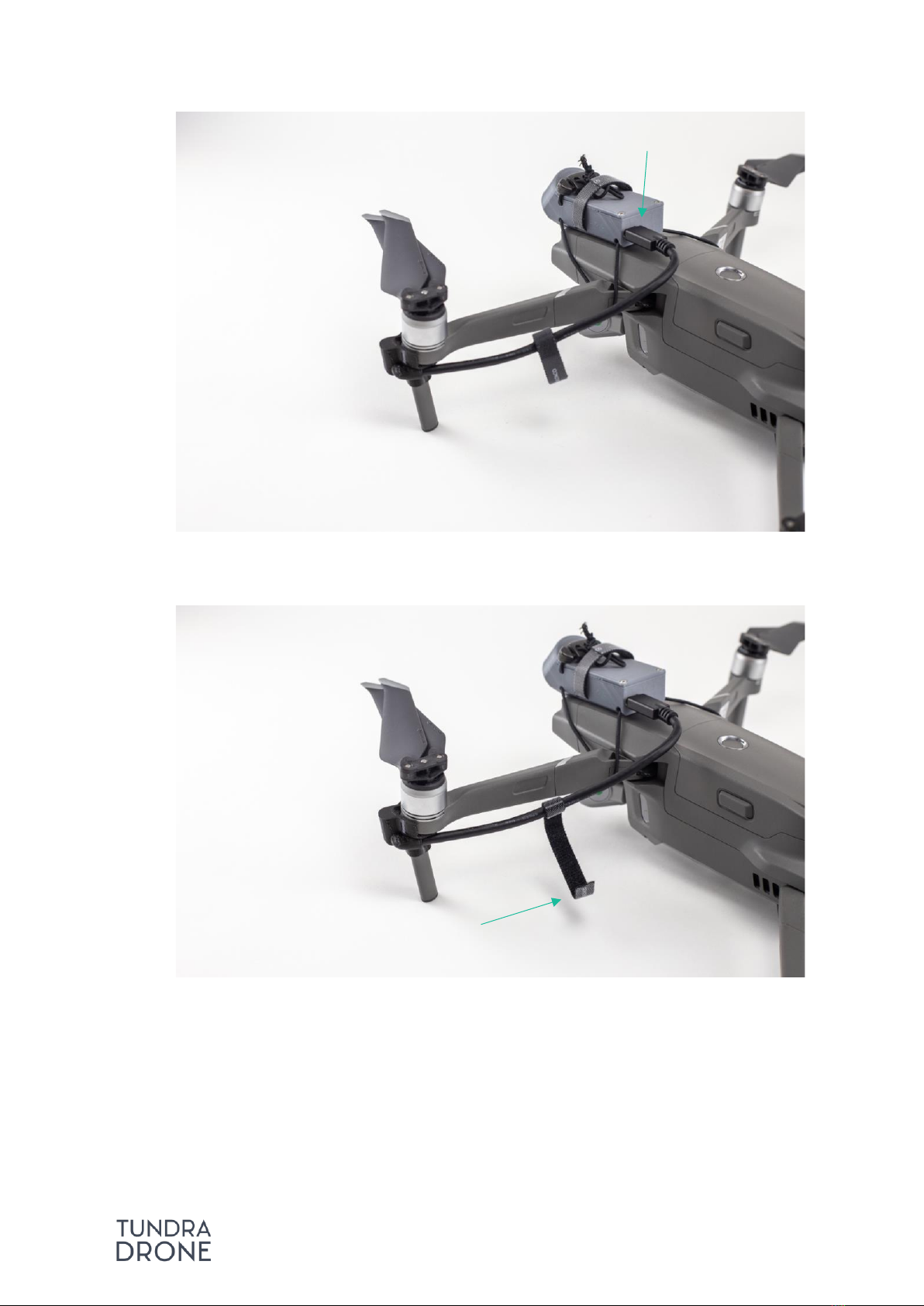

The Siren activator module is now connected the USB-C port.
Release the velcro band.
Page 15 / 17

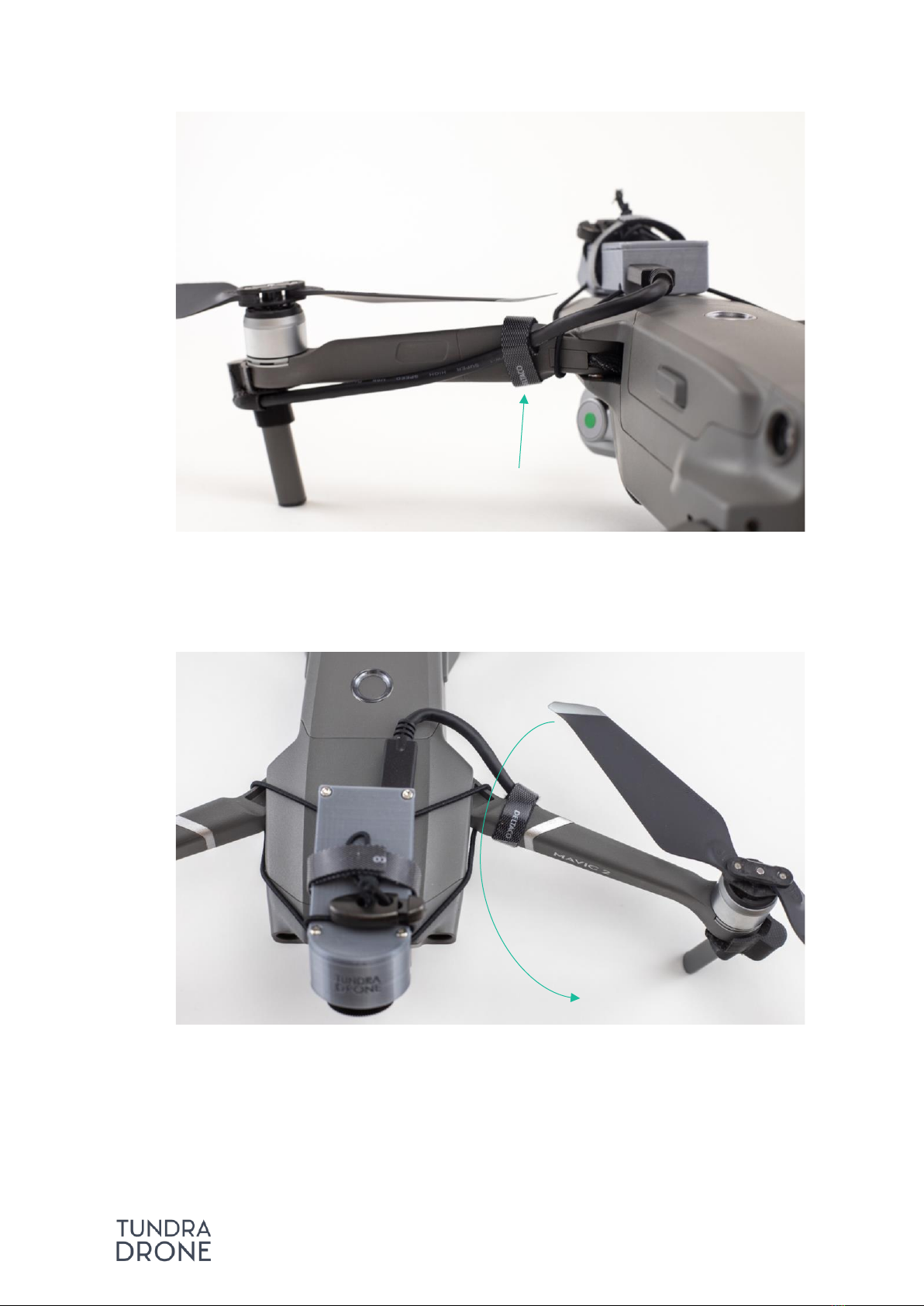

Fasten the velcro band and make sure it holds the cable tight against the
drone´s propeller arm. Make sure the propeller does not get in touch with
the cable or any other objects.
After securing the cable with the Velcro, the propeller should be able to spin
around freely without touching the cable or other objects.
Page 16 / 17
Ensure the propeller can spin freely above and around without touching the
cable or anything other objects.
Warning: Do NOT turn on the drone while doing this!
If the propeller can spin freely, you are ready to fly!
Warning: If the propeller cannot spin around freely or is touching any
objects or cables, please repeat the steps above until the propeller can spin
freely around without touching any objects.
Page 17 / 17
You are now ready to herd your livestock more efficiently with Tundra Drone
Siren herder.
Fly safely!
HOW TO UNMOUNT AND STORE THE TUNDRA DRONE SIREN HERDER
1. Turn off your drone. Remove propellars if needed.
2. Follow the “How to use” procedure in reversed order to unmount the Tundra
Drone Siren herder from your drone.
3. Fully charge your battery (approx. 2 hours) before you store it for a longer
period of time.
4. Store your Tundra Drone Siren herder and the Siren activator module in a
protected storage space. Store it in a calm and dry environment. Do not place
the device where it can be exposed to excessive heat or a dusty enviroment.
SUPPORT
For support please contact us by email mail@tundradrone.com or visit our website
tundradrone.com
