Tundra Drone Siren Herder User manual

SIREN HERDER
QUICK START GUIDE
Updated: 11.07.2022

Page 2 / 23
USING THIS MANUAL
LEGEND
Warning
Important
READ BEFORE THE FIRST FLIGHT
Read the following documents before using the Tundra Drone Siren herder:
1. USE AND CARE OF THE PRODUCT–CUSTOMER RESPONSIBILITY
2. IMPORTANT SAFETY INFORMATION
3. Specifications
4. Product overview
5. Charging the battery
6. Prepare the DJI Remote controller’s GO 4-app before first flight
7. How to use the DJI Remote controller with the Tundra Drone Siren herder
8. Mount the Tundra Drone Siren herder unit on the aircraft and prepare for takeoff
9. How to unmount and store the Tundra Drone Siren herder
10.Support

Page 3 / 23
USE AND CARE OF THE PRODUCT –CUSTOMER RESPONSIBILITY
The Drone Pilot shall only use the «Tundra Drone Siren herder» (herafter
Product) as the described in this manual.
Drones, aircrafts, or unmanned aerial vehicles (UAVs) (hereafter aircraft or
drone) mounted with the Product from Tundra Drone AS (herafter Tundra
Drone) shall only be used in accordance with the regulations for drone flying in
the country in which the Drone Pilot operates. The Drone Pilot must ensure
that the drone, where the Product is mounted, is insured at all times with
statutory liability insurance, if required by national law in the country where
operating the aircraft.
The Drone Pilot understands that the use of a Product from Tundra Drone on
drones may entail a higher risk due to the fact that mounting of additional
drone equipment on the drone may affect the performance of the drone itself,
in both short and long term. It is therefore recommended that the Drone Pilot
performs more frequent maintenance of the drone than the drone
manufacturer’s recommendations, to ensure that performance is not reduced.
Furthermore, additional drone equipment mounted to the drone may increase
the likelihood that weather and other conditions may affect the drone’s flight
characteristics. The Drone Pilot understands that this constitutes conditions
that the Drone Pilot must be especially careful with when flying the drone. The
Drone Pilot must read and understand the user manuals for both the drone and
the Product from Tundra Drone before the Product is used, and then carry out
their own training with these in a calm, delimited and safe area, before the
Drone Pilot takes the Product from Tundra Drone into ordinary use.
Negligent use of drones with mounted drone equipment may lead to crashes,
accidents or other dangers to the environment and people. If an incident as
mentioned causes damage or death to people and animals, or damage to
buildings, other physical objects or surroundings, and/or economic loss or
damage, the Drone Pilot agrees that the Drone Pilot cannot hold Tundra Drone
liable for damages, and the Drone Pilot waives the right to pursue Tundra
Drone via legal action in any country. Should claims be made against Tundra
Drone as a result of damage or loss that occurs when the Product is used by
the Drone Pilot, or for breach of public and private regulations and permits, the
Drone Pilot is obliged to indemnify Tundra Drone. This also applies if the
damage occurs to a third party.

Page 4 / 23
IMPORTANT SAFETY INFORMATION
Please note that this product cannot be used in combination with DJI Goggles.
SPECIFICATIONS
Sound output 107dB
Operating Range 1000 m (unobstructed)
Modes ON/OFF
Battery Life 75 minutes (with sound on continuously)
Battery 3.7V 380mAh, 1.4Wh
Operating temperature -10⁰C to 40⁰C (14⁰F to 104⁰F)
Charging temperature range 5⁰C to 40⁰C (41⁰F to 104⁰F)
Product size 8x4x4cm / 3.2×1.6×1.6”
Weight 72g (0.15 lbs.)
Color Black
Use with caution:
•The Tundra Drone Siren Herder outputs a very loud sound that may harm or
damage your hearing permanently.
•Never use it stationary without any hearing protection for you and people
around you. Always use hearing protection when operating it in close
proximity (closer than 20 meters).
•Do not activate the siren sound before you have flown at least 20 meters
away from yourself and other people.
•Never use the Tundra Drone Siren Herder indoors.
•Do not use the product in rain, snow or wet weather conditions.
•Do not expose the device for moisture.
•Do not place the device where it can be exposed to excessive heat or a
dusty enviroment.
Tundra Drone Siren herder is equipped with a rechargable lithium battery.
Lithium batteries may have regulations and limitations for transportation,
especially with air planes.

Page 5 / 23

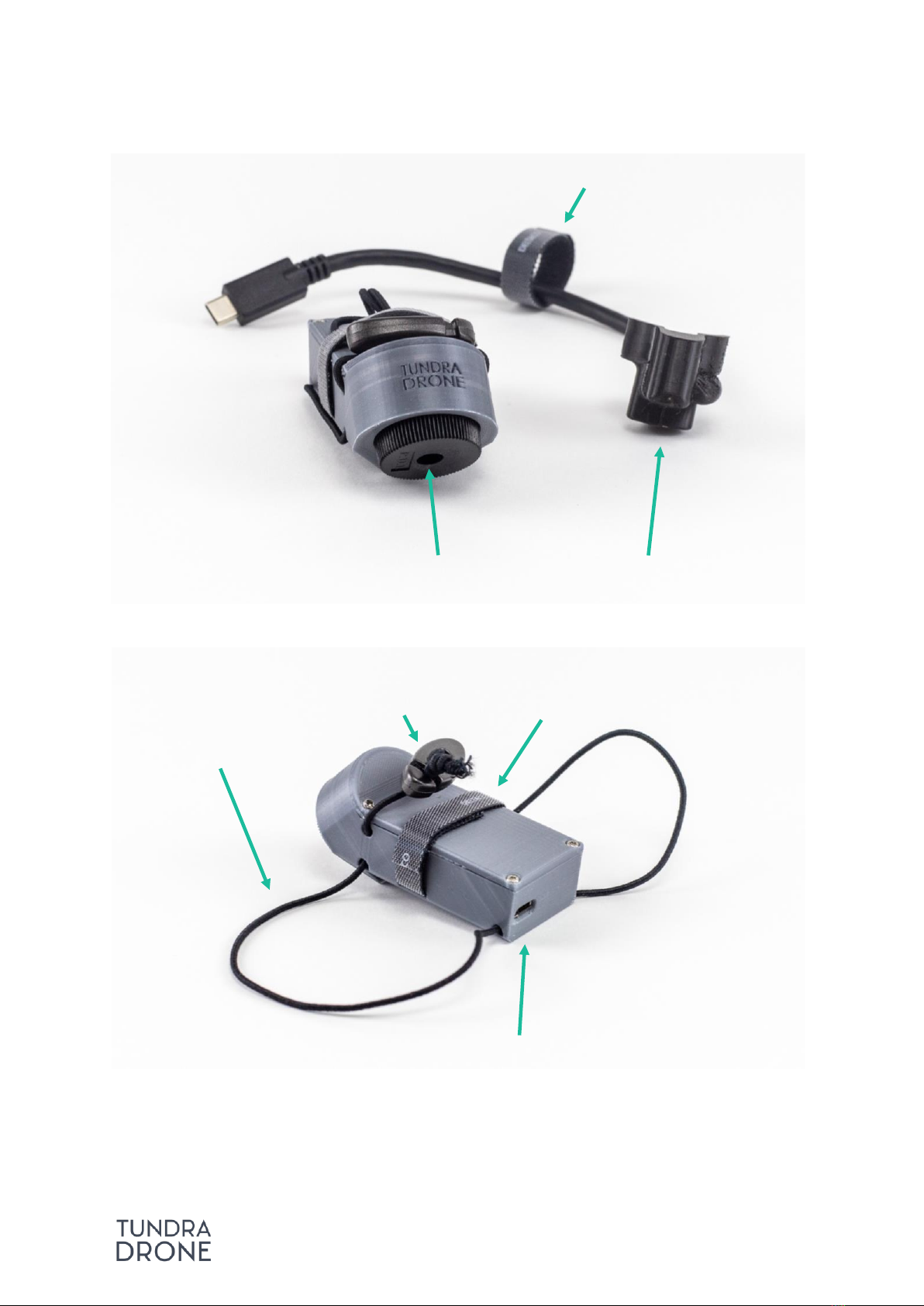

PRODUCT OVERVIEW
Sound output
Siren activator module
Velcro for securing cable
Rubber band for
3-point-mounting
mechanism
Velcro for securing rubber band
USB-C port for Siren activator module
Cord lock

Page 6 / 23
CHARGING THE BATTERY
Use a USB-C-cable to charge the Tundra Drone Siren herder’s battery before first use.
Charging time for empty battery can take up to 3 hours, depending on the type of
charger you use.
Indicator lights
•DO NOT charge the Tundra Drone Siren herder’s battery immediately after
flight as the temperature may be too high. Wait until the battery cools down
to room temperature before charging again.
•The ideal charging temperature is 22oto 28oC (71.6oto 82.4o F).
Green light
Power is on ON.
Blue light
Battery is charging. The battery
is fully charged when the blue
light is turned off.
Red light
Battery is empty.

Page 7 / 23
PREPARE THE DJI REMOTE CONTROLLER’S DJI GO 4-APP BEFORE FIRST
FLIGHT

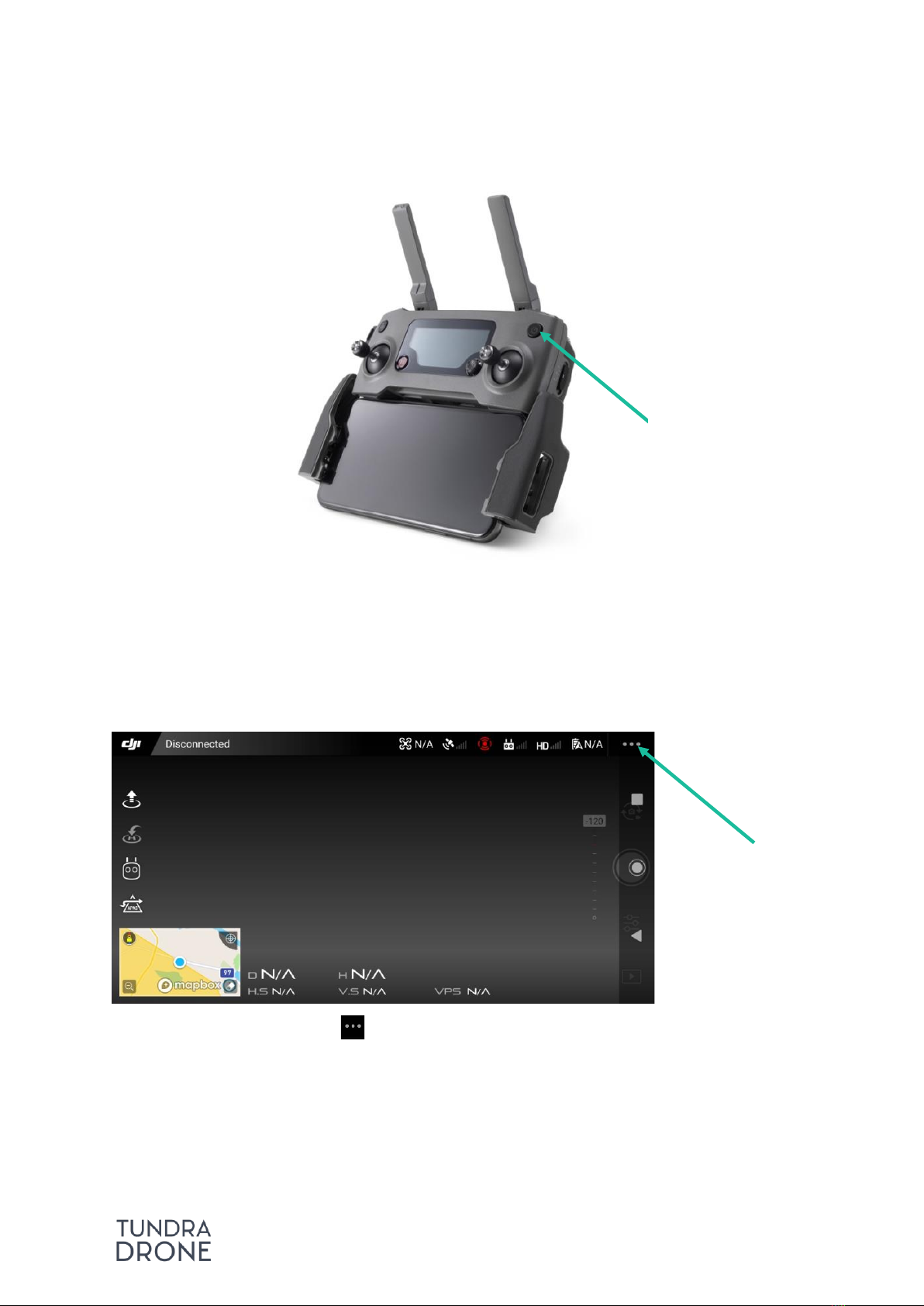

1. Connect your smart phone to the DJI Mavic 2 Remote controller and turn ON the
Remote controller.
2. Open the DJI GO 4-app from your smart phone.
1. Go to setting by tapping (General settings button)
3
1

Page 8 / 23

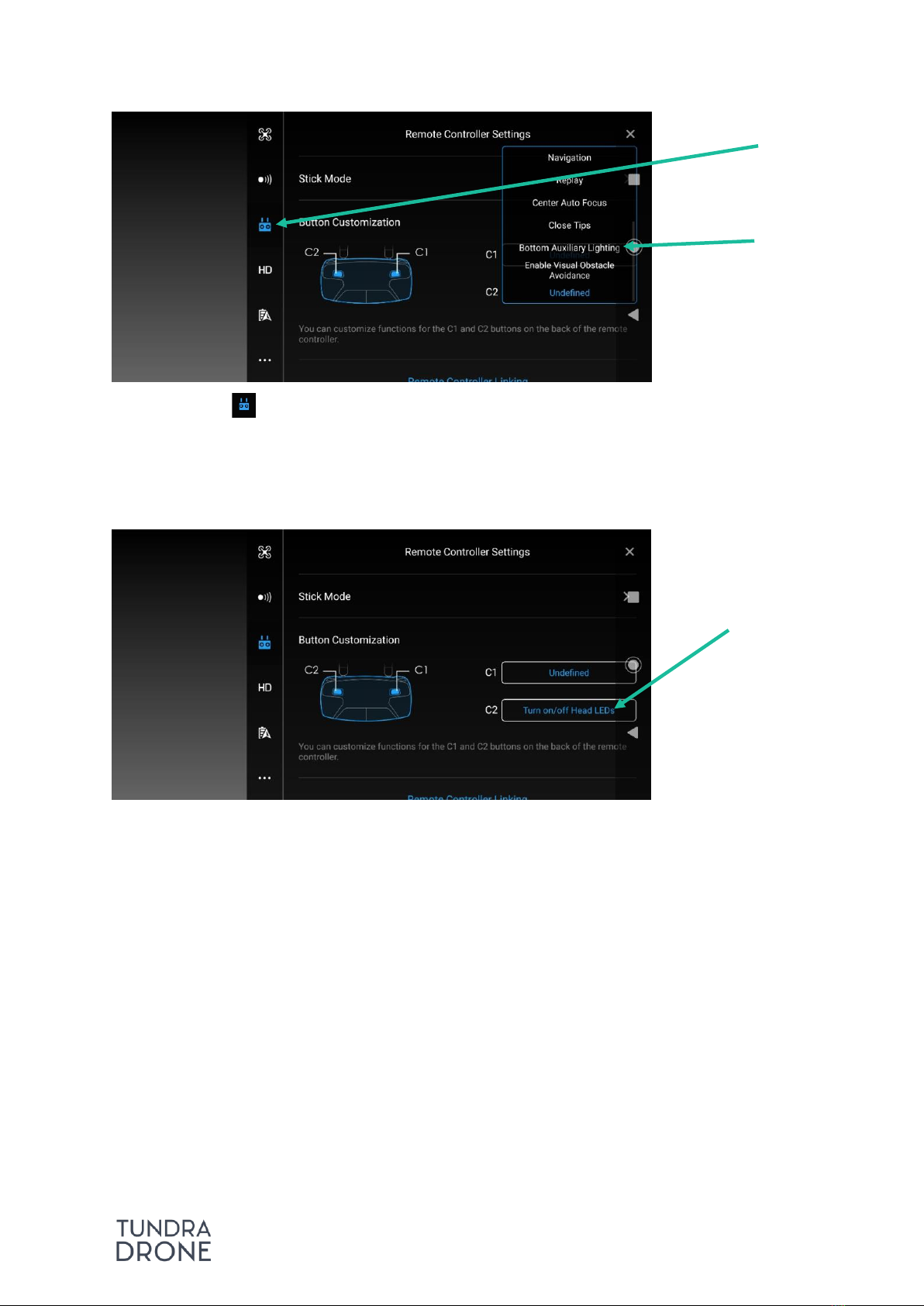

2. Tap on the (Remote Controller Settings button)
3. Tap on the menu on the right side of «C2» and «scroll» up till you find the
«Turn on/off Head LEDs» option; Tap on that to program this function to the «C2»
button.
4. You have now successfully prepared the DJI GO 4-app for first flight with the
Tundra Drone Siren herder.
4
5
6

Page 9 / 23
HOW TO USE THE DJI REMOTE CONTROLLER WITH THE TUNDRA DRONE
SIREN HERDER
1. Prepare the DJI Mavic 2 aircraft for flight.
2. Power up the aircraft and make sure that the DJI GO 4-app connects to the
aircraft.
3. Turn ON/OFF the aircraft’s front LEDs by pressing «C2» button on the DJI Remote
controller. The Automoving light will then be turned «ON/OFF» in sync with the
aircraft’s front LEDs being turned ON/OFF.
C2-button
Right Front
LED
Left Front
LED

Page 10 / 23

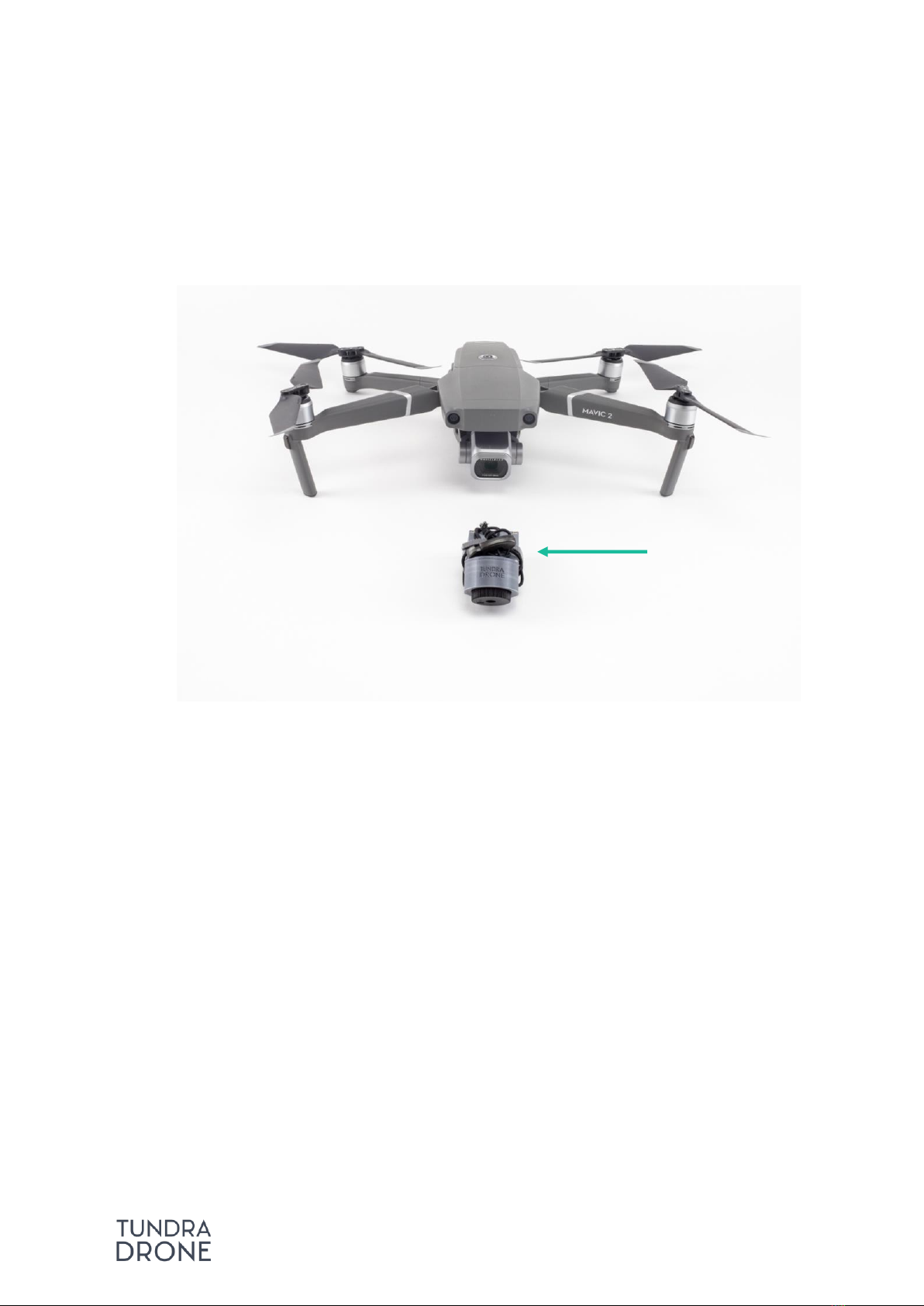

MOUNT THE TUNDRA DRONE SIREN HERDER UNIT ON THE AIRCRAFT
AND PREPARE FOR TAKEOFF
Be sure that the drone is turned OFF before mounting the Tundra Drone Siren herder
on the aircraft. Follow the mounting instructions below.
Release the Velcro holding the rubber band for 3-point mounting
mechanism.

Page 11 / 23
Pull out the rubber band in full length to the right.
Lift the drone’s front arm and place the released rubber band over one of
the drone propeller arms, as shown in the illustration above.
Be careful not to damage the propeller when mounting the unit.
Remove the propeller if needed.

Page 12 / 23
Pull out the rubber band in full length to the left side. Lift the drone´s left
front arm and place the released rubber band over the drone propeller arm,
as shown in the illustration.
Be careful not to damage the propeller when mounting the unit.
Remove the propeller if needed.

Page 13 / 23
Place the released rubber band over the left drone propeller arm, as shown
in the illustration.
Place the Tundra Drone Siren herder’s bottom edge against the drone roof’s
edge.

Page 14 / 23
Tighten the rubber band on both sides by pulling full length of the rubber
band towards the cord lock.
Tighten the rubber band and use the cord lock to lock the rubber band in
place. Make sure the rubber band is tight on both sides and ensure it cannot
move in any direction.

Page 15 / 23
Use the Velcro to securely fasten the rubber band in place.
Find the Siren activator module.
The design of the Siren activator module may vary depending by the
aircraft model.

Page 16 / 23
Release the Velcro band on the Siren activator module.
Place the Siren activator module next to the drone’s front leg.

Page 17 / 23
Lift the drone’s front leg and place the Siren activator module at the bottom.
Slide the Siren activator module upwards.

Page 18 / 23
Slide it upwards until it covers the drone’s front LED.
Connect the Siren activator module to the Siren herder´s USB-C port.
Do NOT connect the Siren activator module to the USB-C port before
you have slid it over the drone’s front LED. The Siren herder may be
activated and produce a loud siren sound if it’s exposed to light. This
could harm your hearing. If this happens, unplug the Siren activator
module from the USB-C port immediately!

Page 19 / 23
The Siren activator module is now connected the USB-C port.
Release the Velcro band.

Page 20 / 23
Fasten the velcro band and make sure it holds the cable tight against the
drone’s propeller arm. Make sure the propeller does not get in touch with
the cable or any other objects.
After securing the cable with the Velcro, the propeller should be able to spin
around freely without touching the cable or other objects.
