Tundra TUNVERLIF01 User manual

VERTICAL PLATE CLAMP
1.0 - 2.0 TONNE SERIES
USER MANUAL
TUNVERLIF01 • TUNVERLIF02

2
USER MANUAL
TUNVERLIF01 • TUNVERLIF02
Disclaimer:
The information in this document is to the best of our knowledge true and accurate, but all recommendations or suggestions are
made without guarantee. Since the conditions of use are beyond their control, Tundra Industrial ® disclaim any liability for loss or
damage suffered from the use of this data or suggestions. Tundra Industrial ® reserve the right to change product specifications
and warranty statements without further notification. All images are for illustration purposes only.

3
USER MANUAL
TUNVERLIF01 • TUNVERLIF02
1. SAFETY GUIDELINES
Important: Read and understand all safety instructions before use. Keep instructions safe for future reference. Ensure that this
equipment is in sound, clean condition and good working order before use. The operator must have a clear and unobstructed view
of the entire travel area before operating the lever block - it is preferable to operate with one or more persons on hand.
General Safety:
• Always inspect equipment for damage before use
• Ensure any damaged parts are replaced before use - use only Tundra Industrial recommended parts - contact your dealer for
advice
• Do not use this equipment if damage or weakness is detected during inspection
• Do not modify this equipment for any use other than that which it has been designed and tested for
• Never exceed the rated capacity
• Keep the equipment clean and well maintained for optimal, safe performance
• Ensure that the working environment is well lit and kept clean and free from clutter, keep children and animals away
• Ensure that the floor is level and strong enough (preferably concrete) to take the weight of the lift and the bike
• This equipment should only be used by fully-trained and competent individuals (never under the influence of drugs or alcohol)
• Raise and lower the load in a smooth, controlled manner
• Use a qualified person to lubricate and maintain this equipment
• Unauthorised parts may be dangerous and will invalidate the warranty
Equipment Safety:
• Never use this equipment for lifting, supporting or transporting people or animals
• Dot not use the clamp in areas containing flammable vapors, liquids, gasses or combustible dust or fibres
• Do not use the clamp in highly corrosive, abrasive, wet environments or in applications involving exposure to temperatures
below -40°C or above 80°C
• Keep children and animals out of the working environment during operation
• Ensure that the nameplate / specification plate is kept clean, clear and visible at all times
WARNING: Do not use this equipment if any damage or wear is detected - remove from service immediately and seek advice for
repair
• Never lift under 20% of the rated capacity
• Used on all hot rolled structural steel plates and sections up to a surface hardness of 300 Brinell/32 Rockwell C
WARNING:
No responsibility is accepted for incorrect use of this equipment. Incorrect use can result in damage to the equipment and
danger to the user. Warranty will be void in the event of incorrect use. The warnings, cautions and instructions discussed
in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the
operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the
operator.

4
USER MANUAL
TUNVERLIF01 • TUNVERLIF02
2. SPECIFICATIONS
Model TUNVERLIF01 TUNVERLIF02
CAPACITY (Tonne) 1.0 2.0
Test load (KN) 14.7 29.4
Jaw Opening (mm) 0.20 0.25
Dimensions (mm):
(Refer to Fig.1 below:)
A 22 27
B 63 76
C 167 202
D 295 370
E 48 60
F 138 164
G 50 52
H 51 56
K 12 16
Net weight (kg) 5 8

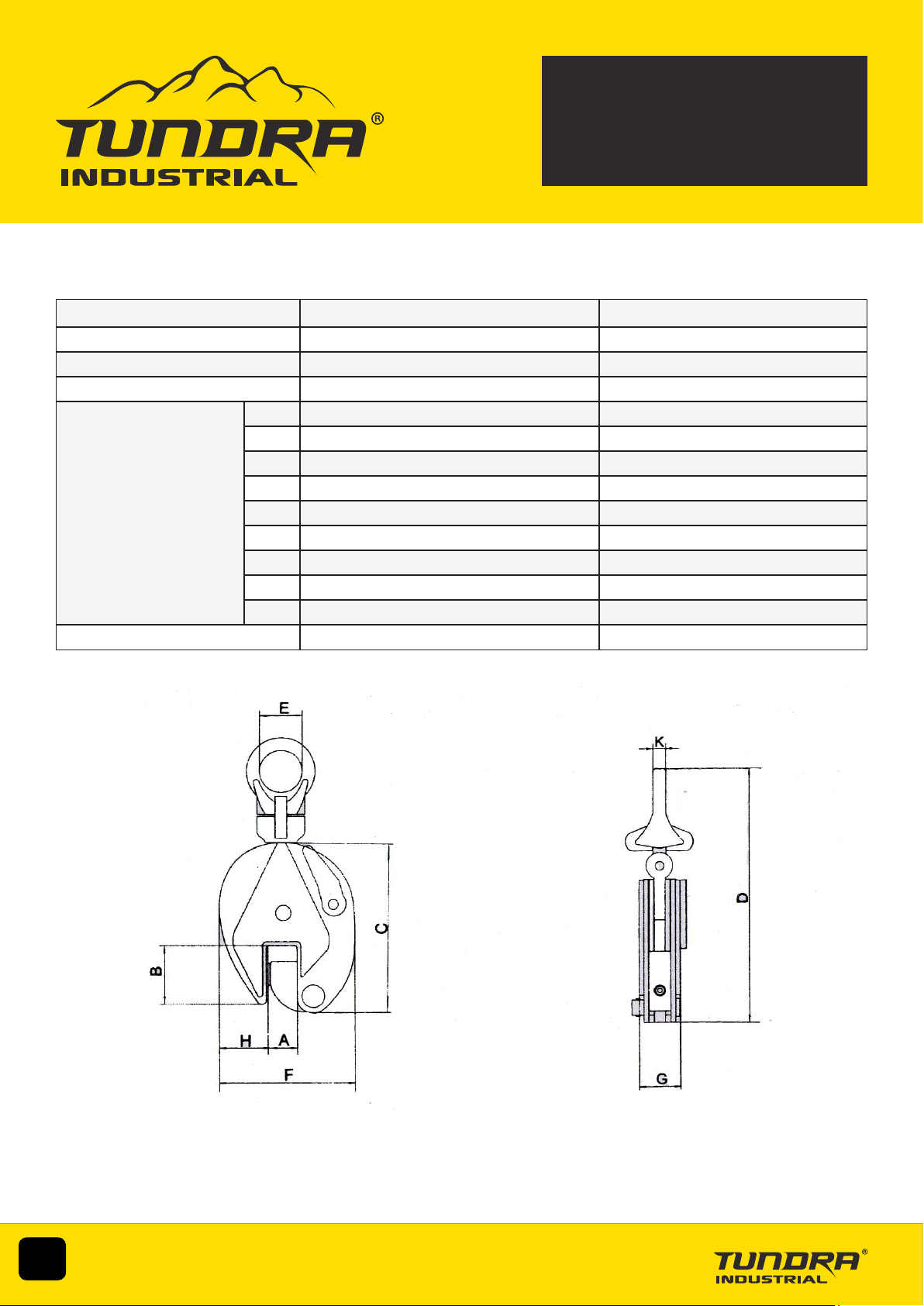

Fig.1: Specifications & Dimensions

5
USER MANUAL
TUNVERLIF01 • TUNVERLIF02
3. OPERATION GUIDE
• Estimate the plate that is to be lifted or moved and make sure it does not exceed the rated load of the clamp.
• This clamp with pivoting shackle can be used for lifting and transporting plates at various angles, but the load capacity is
reduced, as seen on the diagram (Fig.1 below) showing the load/force capacities.
• The pivoting shackle has the added advantage of providing enough clamping force to hold a plate safely, even
when transporting large-sized plates with the 2-legged lifting system. Slipping or damage to the clamp is
prevented.
• When using two clamps to transport large-sized plates, pay attention to the reduced capacities of the clamps.

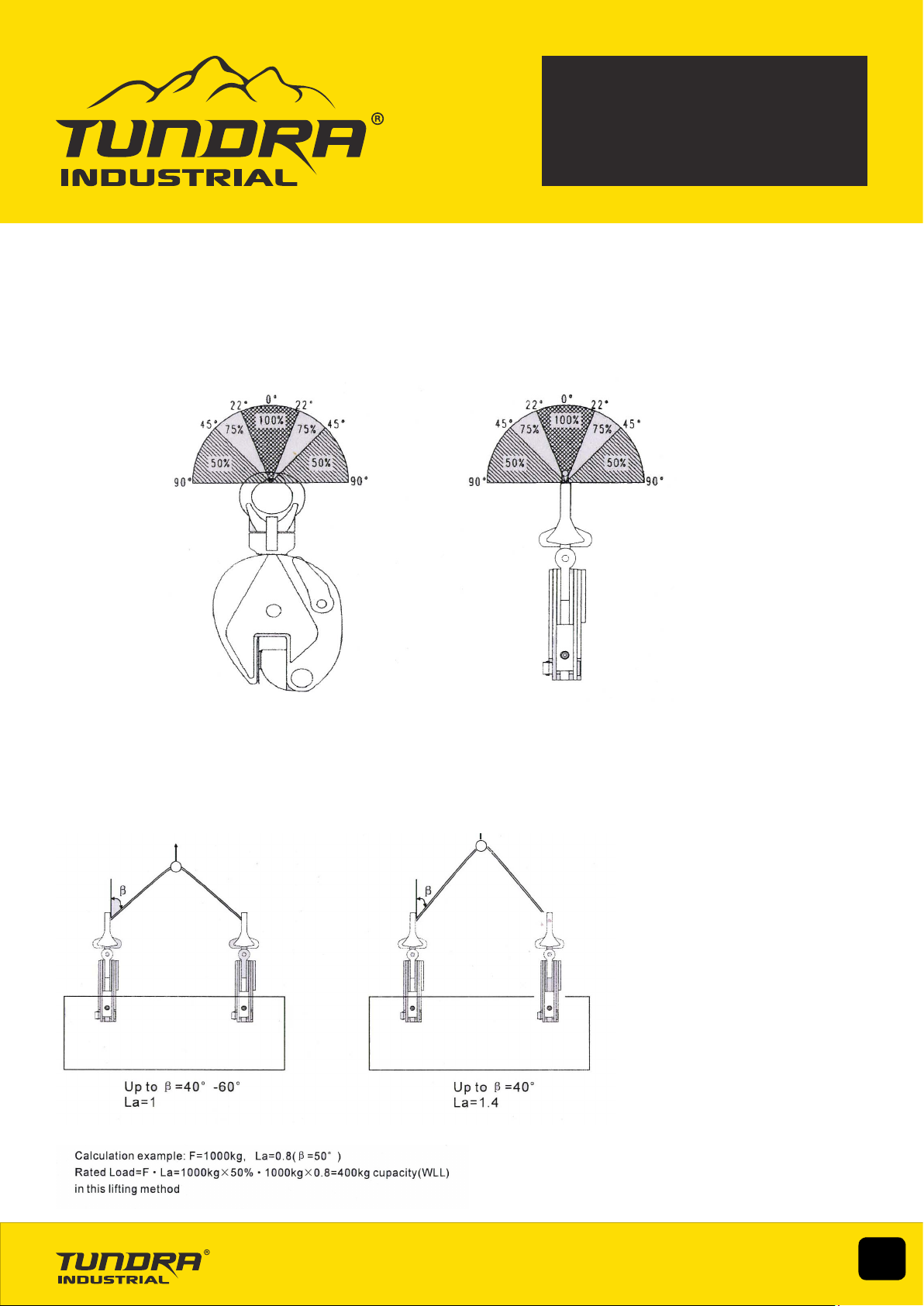

Fig.2: Load / Force Capabilities
F= Working Load Limit of the clamp
La = Factor
Fig.3: Load Capacities using 2 Clamps

6
USER MANUAL
TUNVERLIF01 • TUNVERLIF02
3.1 ATTACHING THE PLATE
• Turn the function lever clockwise to disengage the jaws.
• Then put the plate to the end of the mouth of clamp.
• Move the function lever counter- clockwise lo grip and lock the plate.
3.2 LIFTING SAFETY
• Do not lift or transport loads while other personnel are in the work/lift area.
• Do not stand or place hands or feet under the raised plate.
• Raised loads are not to be left unattended for a longer period of time.
• The operator may only start to move the load when he is sure the load will not overturn and that all personnel have
• left the work area.
3.3 TO LOOSEN LOAD
• Move the function lever clockwise to disengage the jaws.
4. MAINTENANCE
To maintain continuous and satisfactory operation, a regular inspection procedure must be initiated so that worn or damaged parts
can be replaced before they become unsafe.
If faults are detected the clamp must be put out of service immediately. The intervals of inspection must be determined by the
individual application and are based upon the type of service to which the clamp is subjected.
The components of the clamp are to be inspected for damage, wear, corrosion or other irregularities. Repairs may only be carried
out by trained professionals using Tundra Industrial approved parts. Contact your nearest dealer for advice.

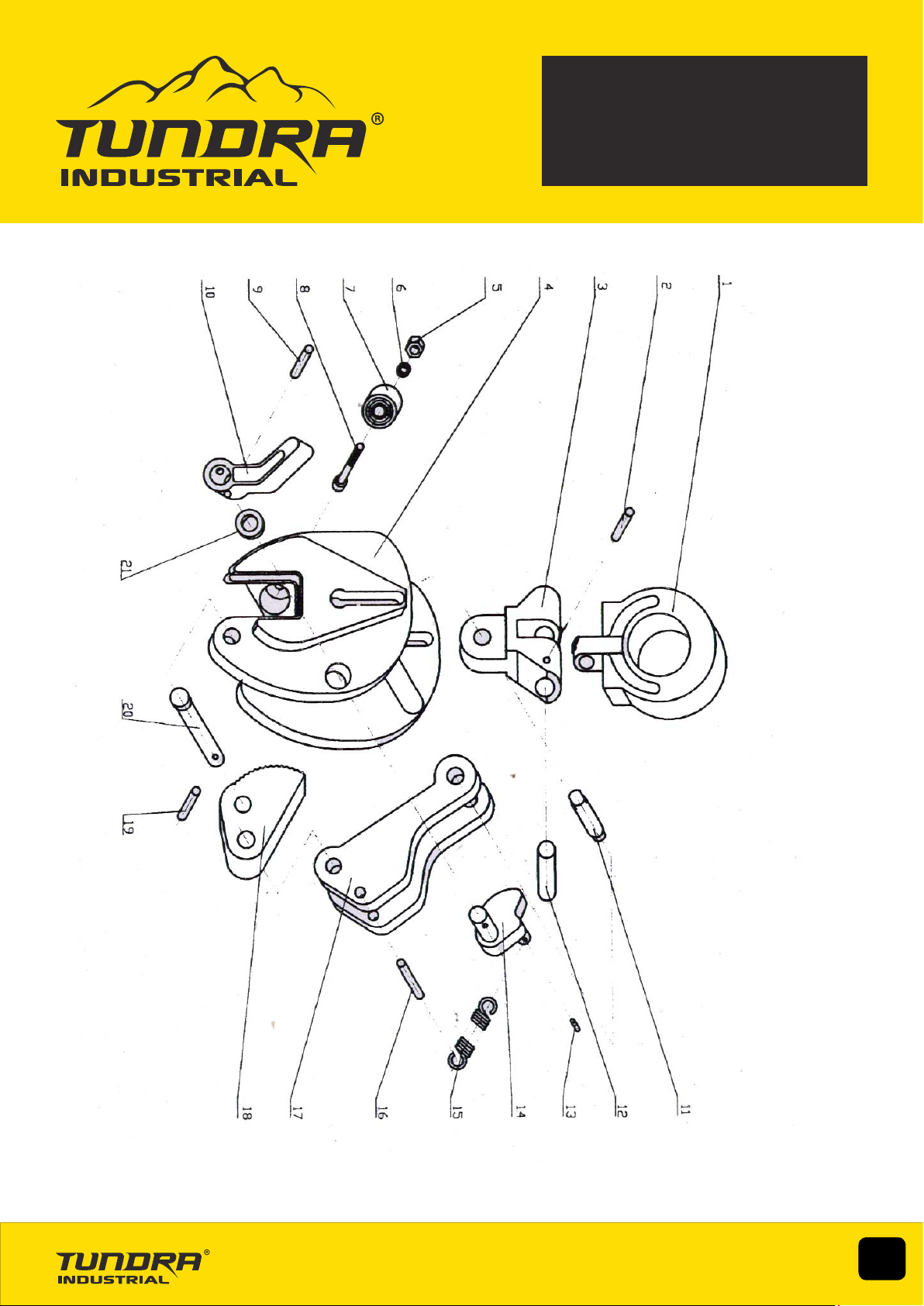

5. PARTS LIST & DIAGRAM
Item Description Quantity Item Description Quantity
1 Pivoting Shackle 1 11 Connecting Block Pin 1
2 Rollpin 1 12 Pivoting Shackle Pin 1
3 Connecting Block 1 13 Rollpin 1
4 Body 1 14 Function Block 1
5 Locknut 1 15 Pulling Spring 1
6 Lockwasher 1 16 Rollpin 1
7 Round Jaw 1 17 Connecting Plate 1
8Screw 1 18 Clamping Jaw 1
9 Roll pin 1 19 Rollpin 1
10 Function Lever 1 20 Jaw Pin 1
21 Shim Washer 1

7
USER MANUAL
TUNVERLIF01 • TUNVERLIF02

8
USER MANUAL
TUNVERLIF01 • TUNVERLIF02
LIMITED WARRANTY STATEMENT
Tundra Industrial warrants its customers that its products will be free of defects in workmanship or material.
Tundra Industrial shall, upon suitable notification, correct any defects, by repair or replacement, of any parts or components of
this product that are determined by Tundra Industrial to be faulty or defective.
This warranty is void if the equipment has been subjected to improper installation, storage, alteration, abnormal operations,
improper care, unauthorised service or repair.
Warranty Period
Tundra Industrial will assume both the parts and labour expense of correcting defects during the stated warranty periods below.
All warranty periods start from the date of purchase from an authorised Tundra Industrial dealer. If proof of purchase is not
available from the end user, then the date of purchase will be deemed to be 3 months after the initial sale to the distributor.
1 Year
• TUNVERLIF01 • TUNVERLIF02
90 Days
• All replacement parts purchased outside of the warranty period
Important: All parts used in the repair or replacement of warranty covered equipment will be subject to a minimum of 90 days
cover or the remaining duration of the warranty period from the original date of purchase.
Warranty Registration / Activation
You can register and activate your warranty by visiting the Jefferson Tools website using the following address:
www.jeffersontools.com/warranty and completing the online form. Online warranty registration is recommended as it eliminates
the need to provide proof of purchase should a warranty claim be necessary.
Warranty Repair
Should Tundra Industrial confirm the existence of any defect covered by this warranty the defect will be corrected by repair or
replacement at an authorized Tundra Industrial dealer or repair centre.
Packaging & Freight Costs
The customer is responsible for the packaging of the equipment and making it ready for collection. Tundra Industrial will arrange
collection and transportation of any equipment returned under warranty. Upon inspection of the equipment, if no defect can be
found or the equipment is not covered under the terms of the Tundra Industrial warranty, the customer will be liable for any
labour and return transportation costs incurred. These costs will be agreed with the customer before the equipment is returned.
Warranty Limitations
Tundra Industrial will not accept responsibility or liability for repairs made by unauthorised technicians or engineers. Tundra
Industrial's liability under this warranty will not exceed the cost of correcting the defect of the Tundra Industrial products. Tundra
Industrial will not be liable for incidental or consequential damages (such as loss of business or hire of substitute equipment etc..)
caused by the defect or the time involved to correct the defect. This written warranty is the only express warranty provided by
Tundra Industrial with respect to its products.
Any warranties of merchantability are limited to the duration of this limited warranty for the equipment involved. Tundra Industrial
is not responsible for cable wear due to flexing and abrasion. The end user is responsible for routine inspection of cables for pos-
sible wear and to correct any issues prior to cable failure.

9
USER MANUAL
TUNVERLIF01 • TUNVERLIF02
Claiming Warranty Coverage
The end user must contact Tundra Industrial (Tel: [phone]) or their nearest authorised Tundra Industrial dealer
where final determination of the warranty coverage can be ascertained.
Step 1 - Reporting the Defect
Online Method:
• Visit the website www.jeffersontools.com/warranty and complete the Warranty Returns form. You can complete the form
online and submit it to us directly or download the form to print out and return by post.
Telephone Method:
Contact your Tundra Industrial dealer or sales representative with the following information:
• Model number
• Serial number (usually located on the specification plate)
• Date of purchase
A Warranty Returns form will be sent to you for completion and return by post or fax, together with details of your nearest
authorised Tundra Industrial repair centre. On receipt of this form Tundra Industrial will arrange to collect the equipment from you
at the earliest convenience.
Step 2 - Returning the Equipment
It is the customer's responsibility to ensure that the equipment is appropriately and securely packaged for collection. Please
ensure that you include a copy of your proof of purchase. Please note that Tundra Industrial cannot assume any responsibility for
any damage incurred to equipment during transit. Any claims against a third party courier will be dealt with under the terms &
conditions of their road haulage association directives.
Step 3 - Assessment and Repair
On receipt, the equipment will be assessed by an authorised Tundra Industrial engineer and it will be determined if the equipment
is defective and in need of repair and any repairs needed are covered by the warranty policy. In order to qualify for warranty cover
all equipment presented must have been used, serviced and maintained as instructed in the user manual.
Where repair is not covered by the warranty a quotation for repair, labour costs and return delivery will be sent to the customer
(normally within 7 working days). Note: If the repair quotation is not accepted Tundra Industrial will invoice 1 hour labour time at
£30 per hour plus return carriage costs (plus VAT).
In cases where no fault can be found with the equipment, or, if incorrect operation of the equipment is identified as the cause
of the problem, a minimum of 1 hour labour at £30 per hour plus carriage costs will be required before the equipment will be
despatched back to the customer.
Any equipment repaired or replaced under warranty will normally be ready for shipment back to the customer within 7 working
days upon receipt of the equipment at an authorised Tundra Industrial Repair centre (subject to part availability). Where parts are
not immediately available Tundra Industrial will contact you with a revised date for
completion of the repair.
General Warranty Enquiries
For any further information relating to Tundra Industrial warranty cover please call [phone].

10
USER MANUAL
TUNVERLIF01 • TUNVERLIF02
EC DECLARATION OF CONFORMITY
We, Tundra Industrial, as the authorised European Community representative of the manufacturer, declare that the following
equipment conforms to the requirements of the following Directives:
EN 2006/42/EC
Machinery Directive
Equipment Category: Lifting Equipment
Product Name/Model: Vertical Plate Clamps [TUNVERLIF01 • TUNVERLIF02]
Signed by: Stephen McIntyre
Position in the company: Operations Director
Date: 20 April 2017
This technical document is held by: Jimmy Hemphill
Technical file holder's address as shown below
Name and address of manufacturer or authorised representative:
Tundra Industrial,
Herons Way,
Chester Business Park,
Chester,
United Kingdom,
CH4 9QR
Telephone: [phone]
Fax: [phone]
