Introduction
iVi the intelligent pendant with automatic fall detection is a small body worn device that can be
used to raise manual alarms by using the integral help button. The device can also detect falls
and raise an automatic alarm using an integrated accelerometer and a barometer. The device is
sealed to a rating of IP67, which means the device can be used in the bath/shower without
causing an issue.
The fall algorithm is designed to make use of changes in barometric pressure, acceleration and
static orientation in order to assess whether a fall event has taken place.
When the iVi detects an event which is assessed to be like a fall (this takes up to 20 seconds)
then it will alert the user by emitting tones from the sounder and lighting the green LED. The
user then has 10 seconds to cancel the alert by pressing the cancel button.
The iVi can send an alert to the monitoring centre if it hasn’t been worn for a period of time. This
period of time is configurable (3, 5 or 7 days). This feature is turned off by default and only
turned on in advanced mode.
The device is battery powered by a CR2450 and has an approximate battery life of 12 months.
Both this guide and the user guide should be read carefully before providing the iVi to a user.
NOTE: The iVi is supplied in a sleep m de t preserve battery p wer. T wake the iVi press the help
butt n nce. The sec nd press f the help butt n will send a radi signal t the c nnected Tunstall
h me unit.

Page 4
Wearing Options

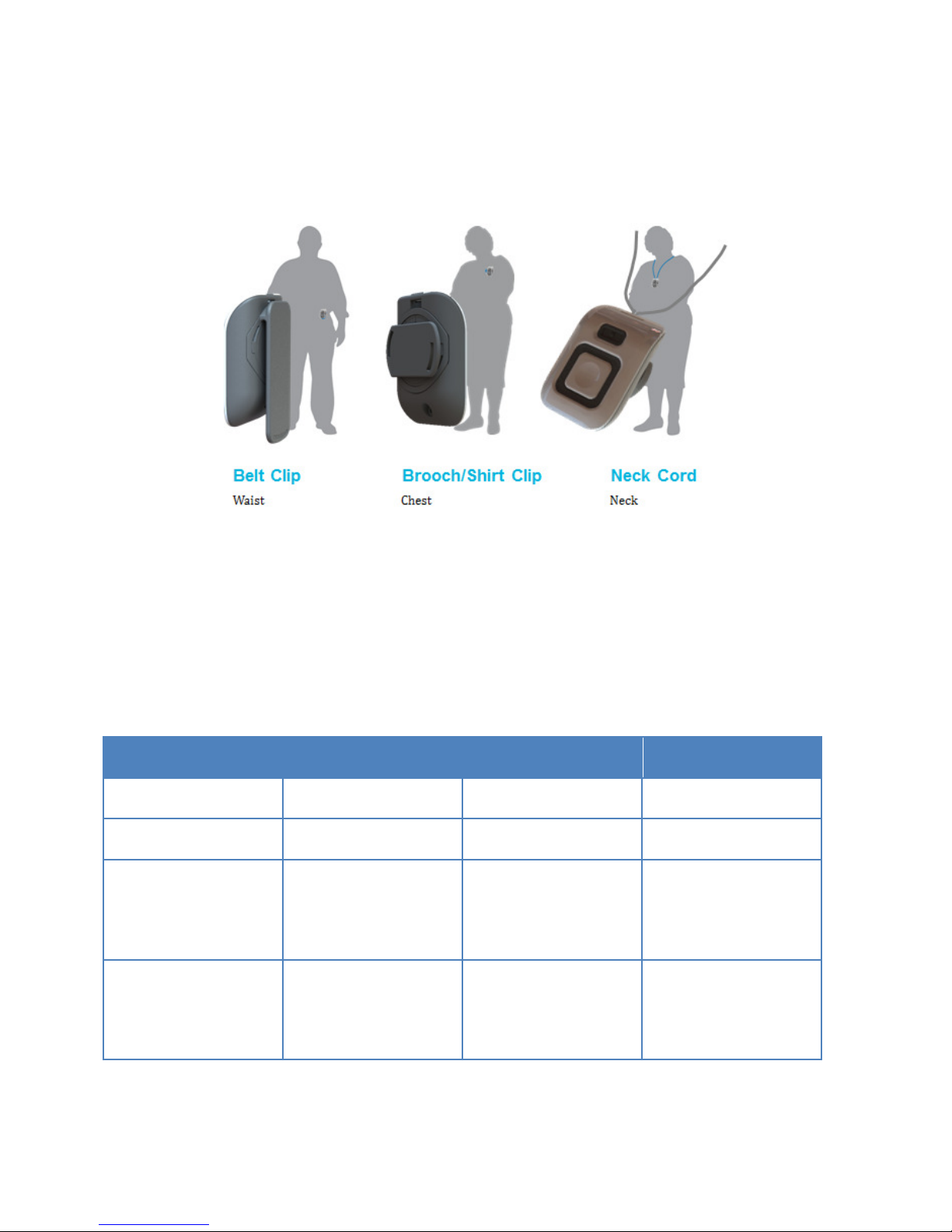

The Device can be worn in 3 different ways; these are Belt Clip, Brooch/Shirt Clip and Neck
Cord. The neck cord (inc brooch/shirt clip) wearing option provides the most optimal position in
terms of overall performance however should the user be unable to wear the pendant using this
option the belt clip can be used.
For details on how each of the wearing options is fitted, refer to the User guide that is included
in the iVi packaging.
Alert Types
The following table explains what alarms will be presented at a PNC and what caused that
particular alarm.
Alert Description Note
Ademco Protocol
(USA Only)
Fall Detector
Button
User has pressed the
Help button
Call presented to an
operator at PNC Code 101
Fall Detector Fall A fall has been
detected
Call presented to an
operator at PNC Code 572
Fall Detector
Activation
Cancelled
(Tunstall Vi/Vi+ only)
The user has
pressed the cancel
button during a fall
alert
Tunstall Vi/Vi+ (TT21
only), Background
call in PNC, alert
turned off in normal
mode
Code 573
Fall Detector Not
Worn
(Tunstall Vi/Vi+ only)
The iVi has not
moved for 7 days
indicating the user is
not wearing the
device
Tunstall Vi/Vi+ (TT21
only), Call presented
to an operator at
PNC, alert turned off
in normal mode
Code 571

Page 5
Getting Started
Before the device is programmed for the user, there are a number of important points/steps that
need to performed
•How is the device going to be worn?
•How tall is the person who will be wearing the iVi?
•What model of home units is the iVi going to be programmed to e.g. Tunstall 400, 4000,
Caresse+, CEL450, CEL500, Vi and Vi+?
•Is the user capable of using the cancel button correctly?
Once the above points are known, it is possible to program the iVi correctly and then program
the iVi to the Tunstall.
In many circumstances the default settings will meet the requirements therefore only
programming the iVi to the Tunstall home unit will be necessary.
Identify
Wearing
meth d
Identify
Tunstall
type
Identify
the
required
sensitivity
Pr gram
iVi
Pr gram
iVi t the
Tunstall

Page 6
Default iVi settings
The default settings are as follows:
Menu
Setting
Note
Sensitivity
Medium Medium sensitivity should be suitable for
the majority of users however very
active or very inactive users may require
an adjustment to the sensitivity to suit
their levels of activity.
Equipment ty
p
e
Normal mode ‘Not worn’ and ‘Activation cancelled’
events are turned off.
Wearing option
Neck and Brooch
(users 5ft 2in or above)
Waist Worn
(users 5ft 10in or above)
If the height of the user falls outside of
these settings then the wearing option
will need to be changed for optimum
performance.
Cancel button
Enabled The user can cancel an automated fall
alert when the iVi is beeping.
Not worn period
7 days The Not Worn alert is disabled

Page 7
Programming the iVi
The iVi needs to be placed into program mode to configure the following parameters:
•Adjusting Sensitivity
•Equipment type connected to
•Wearing Option Setting
•Disable cancel button
•Not worn period
•Sleep mode

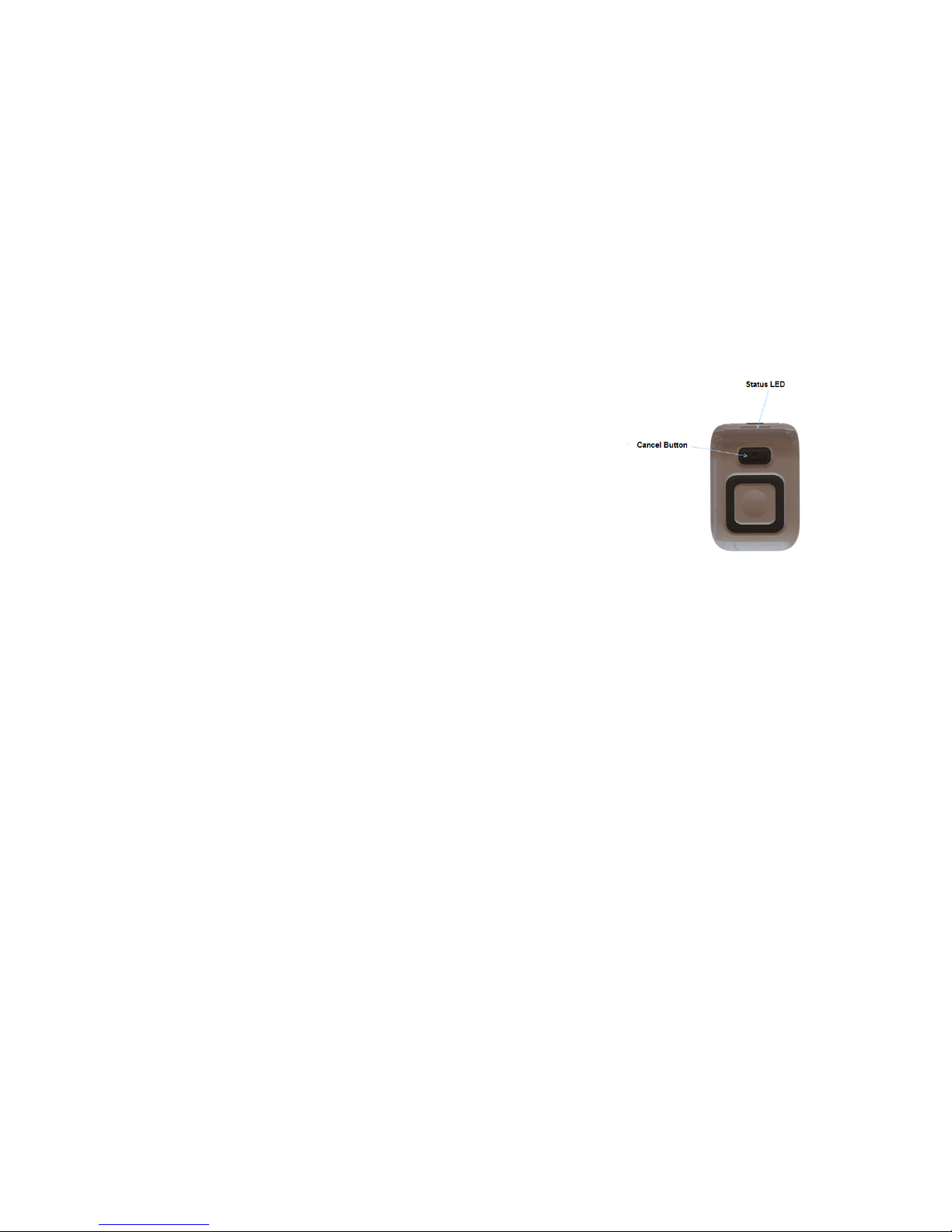

The programming mode is accessed by pressing the buttons in the following sequence:
•Press and hold the Cancel button for more than 3
seconds.
•Release the Cancel button (the green status LED will light)
•Press and hold the Help button and then the Cancel key
and hold both for 3 seconds.
•After more than 3 seconds release the Alarm key then release the Cancel key (iVi beeps
and the green status LED lights up)
•The iVi is now in programming mode

Page 8
Programming Menu
Once the menu has been entered, you can scroll through the menu options using the cancel
and help buttons. A press of the Cancel button will move to the next menu item and is indicated
by the color of the status LED. A press of the Help button within each menu will cycle between
the options within that menu and is indicated by different tones played by the iVi. The settings
are automatically saved when the programming menu is exited (after 20 seconds of no button
presses).
The next time the menu is entered the beeps within each menu option will help to indicate the
settings that had previously been saved in the unit.
There are 6 menus; the currently selected menu is indicated by the state of the LEDs. For more
details on each menu please refer to the following pages.
Menu
Number Operation LED Indication
Menu options
Press alarm button to scroll to next menu option
High Tone Medium Tone Low Tone
Press Cancel button to scroll to next menu
1 Adjusting
Sensitivity Green
High
Medium
(Default setting)
Low
2 Equipment Type Red Advanced Mode
(Vi/Vi+ only) N/A
Normal Mode
(Default setting)
3 Wearing Option Orange
Neck and Brooch
(users 5ft 2in or
above)
Waist Worn (users
5ft 10 in or above)
(Default setting)
N/A
Neck and
Brooch (users 4ft
6 in to 5ft 2 in)
Waist Worn
(users 5ft to 5ft 10
in)
4 Disable cancel
button
Flashing
Green
Cancel Button
Enabled
(Default setting)
N/A Cancel Button
Disabled
5 Not worn period Flashing Red
7 Days
(Default setting) 5 Days 3 Days
6 Sleep mode Flashing
Orange
Pressing alarm button in this menu puts iVi
immediately into sleep mode

Page 9
Option Setting Indicator Tone Note
1High High Tone Inactive user susceptible to falls
2Medium Medium Tone Default setting
3Low Low Tone Active user less susceptible to
falls
Option Setting Indicator Tone Note
1 Advanced Mode High Tone To be used with Tunstall
Vi/VI+ and Caresse+ (firmware
version 231V1R9.15 or later) Only
2 Normal Mode Low Tone Default setting
Supports Tunstall 400, 4000,
Caresse, CEL450, CEL500,
Option Setting Indicator Tone Note
1 Neck and Brooch
(5ft 2in or above)
Waist worn
(5ft 10in or above)
High Tone Default setting
2 Neck and Brooch
(4ft 6in to 5ft 2in)
Waist Worn
(users 5ft to 5ft 10in)
Low Tone
Option Setting Indicator Tone Note
1 Cancel Button
Enabled
High Tone Default setting
2 Cancel Button
Disabled
Low Tone
Option Setting Indicator Tone Note
1 7 Days High Tone Default setting
2 5 Days Medium Tone
3 3 Days Low Tone
iVi Quick Programming Guide
Menu 1 - Adjustable Sensitivity - Green LED on
Menu 2 – Equipment Type - Red LED on
Menu 3 - Wearing Option - Orange LED on
Menu 4 - Disable Cancel Button - Flashing Green LED
Menu 5 – Not Worn Period – Flashing Red LED
Menu 6 – Sleep Mode (for transportation) - Flashing Orange LED
Help button press = enters sleep mode immediately
Cancel button press = move to next menu (menu 1)

Page 10
Full Programming Guide
Menu 1 - Adjustable Sensitivity
Green LED on
This menu item is used to set the shock level that will initiate the algorithm into determining
whether a fall has taken place. There are 3 sensitivity settings.
Pressing the Help button will cycle between High/Medium/low levels. After each press a
different tone will sound to indicate the setting selected. When the correct setting is selected,
either press the cancel button to move to Menu 2 or press no further buttons and after 20
seconds the iVi will exit the programming menu.
Option
Sensitivity
Indicator Tone
Note
1
High High Tone Inactive user susceptible to falls
2
Medium Medium Tone Default setting
3
Low Low Tone Active user less susceptible to
falls
Menu 2 – Equipment Type
Red LED on
Normal Mode The normal mode is for use with all Tunstall home units
and radio systems. It prevents the ‘Activation Cancelled’
and ‘Not Worn’ alerts from being sent by iVi as these alerts are
not supported by all systems.
Advanced Mode Must only be used with Tunstall Vi/Vi+ and Caresse + (firmware version
231V1R9.15 or later) and when ‘Activation Cancelled’ and ‘Not Worn’
alerts are also required.
Pressing the Help button will cycle between Advanced/Normal mode. After each press a
different tone will sound to indicate the setting selected. When the correct setting is selected,
either press the cancel button to move to Menu 3 or press no further buttons and after 20
seconds the iVi will exit the programming menu.
Option
Setting
Indicator Tone
Note
1 Advanced Mode High Tone
To be used with
Tunstall
Vi/VI+ and Caresse +
(firmware version
231V1R9.15 or later) Only
Activates cancelled and not
worn alarms
2 Normal Mode Low Tone
Default
setting
Supports Tunstall 400, 4000,
Connect, Caresse, CEL450,
CEL500, Vi, Vi+
Press
Help
button
Press
Help
button
