AIR CURTAINS
INSTALLATION MANUAL
TS3E06M (RM-1206S-D/Y)TS3E06T (RM-1206S-3D/Y)
TS3E09M (RM-1209S-D/Y)TS3E09T (RM-1209S-3D/Y)
TS3E1M (RM-1210S-D/Y)TS3E1T (RM-1210S-3D/Y)
TS3E12M (RM-1212S-D/Y)TS3E12T (RM-1212S-3D/Y)
TS3E15M (RM-1215S-D/Y)TS3E15T (RM-1215S-3D/Y)
TS3E18M (RM-1218S-D/Y)TS3E18T (RM-1218S-3D/Y)
TS3E20M (RM-1220S-D/Y) TS3E20T (RM-1220S-3D/Y)
Thanks for purchasing this Air Curtain,
Please read these instructions carefully before use.

1、PRODUCT INTRODUCTION
As one of the new top-class products for modern decoration, air curtain is also
matched with the air-conditioner. And it is installed at the entrances of supermarket,
theater, meeting room, hotel, office room, and storeroom to prevent the dust, mosquito
and warm air, and so on.
2、IDENTIFICATION & INSTALLATION DIMENSIONS
MODEL A B C D F G H I J
RM-1206S-D/Y
RM-1206S-3D/Y
600 180
240
---
55 90 210 190 110
RM-1209S-D/Y
RM-1209S-3D/Y 900 330 ---
RM-1210S-D/Y
RM-1210S-3D/Y 1000 380 ---
RM-1212S-D/Y
RM-1212S-3D/Y 1200 480 ---
RM-1215S-D/Y
RM-1215S-3D/Y
1500 330
840
---
RM-1218S-D/Y
RM-1218S-3D/Y 1800 480 ---
RM-1220S-D/Y
RM-1220S-3D/Y 2000 580 ---

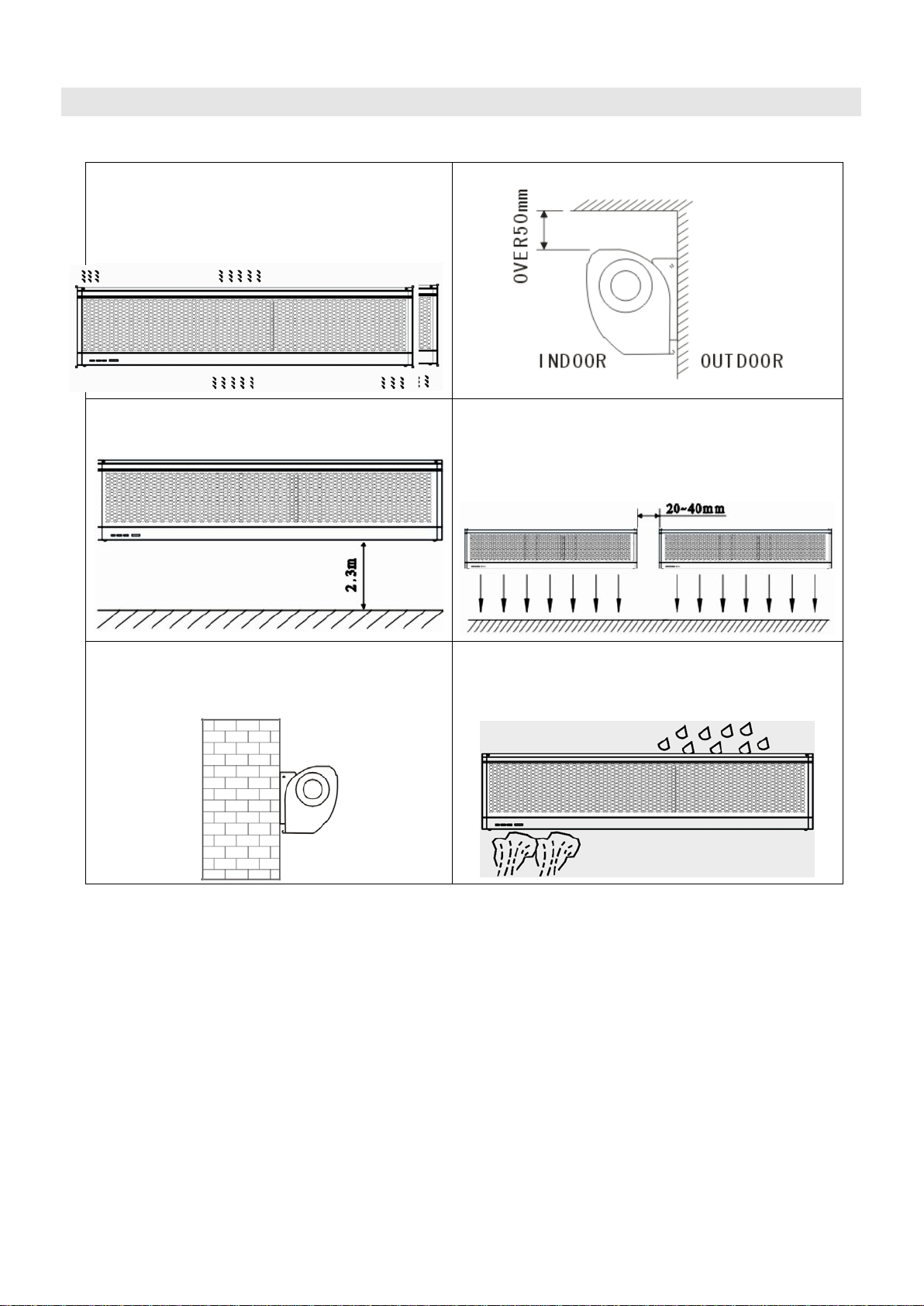

3、INSTALLATION CAUTION
Before installation, please apply the same voltage and frequency, then follow the below requests
when install the air curtain：
3.1 Please install the unit in a sturdy place to
avoid the shaking and ensure its security
(because it maybe causes the wall becoming
flexible or shaking and noising.)
3.2 Please install the unit inside the room.
3.3 Don’t install the unit too low, no less than
2.3 meters from the ground.
3.4 When the entrance is wider than the unit, it is
recommended to install two or more units in
parallel. In this case, provide 20-
40mm gaps
between the units.
3.5 Don’t allow gaps between the unit and the
wall. When hanging it from the ceiling,
purchase the extra ceiling brackets.
3.6 Don’t install the unit in a place where it is
splashed by water, exposed to excessive steam,
explosive gas or corrosive gas.

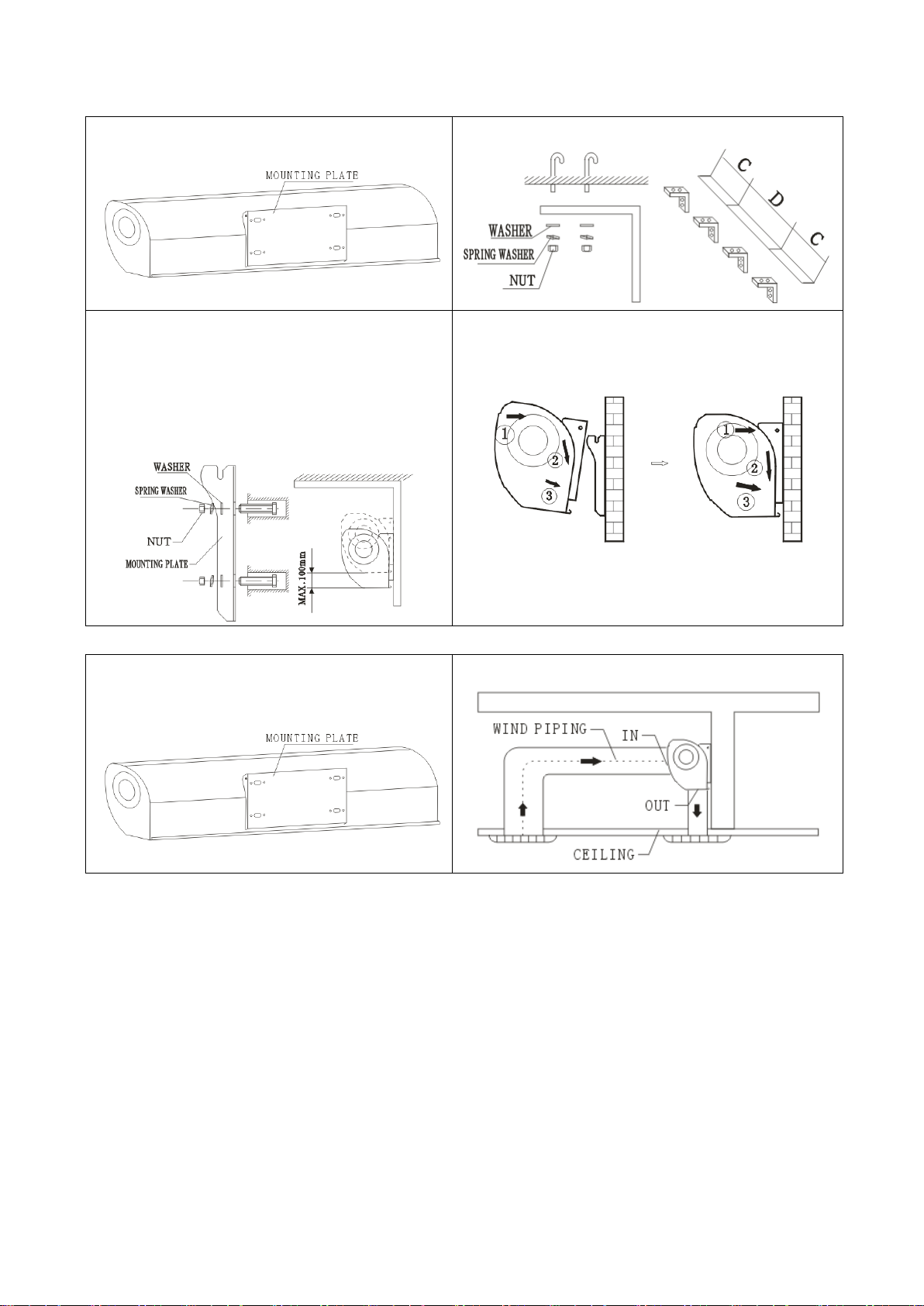

4、INSTALLATION
A、Installing on the concrete wall:
4.1.1 Removed the mounting plate
Remove the plastic parts, unclamping the
fixed screws on the back of main body to
remove the mounting plate.
1
2
MOUNTING PLATE
2
1
PLASTIC PARTS
4.1.2 Fix the bolts in the proper position (fix the
position with the mounting plate and pour cement
into the bolt holes.)
4.1.3 When the cement has freeze, fit the
mounting plate (use the washer and nut
according to the following)
4.1.4 Install the main body
Set the main body onto the upper end of the
mounting plate, and clamp it as below. Make sure
it’s well fixing
B、Installing on the wooden wall
4.2.1 Fix the mounting plate in the proper
positions with tapping screw.
4.2.2 Same as the step 4.14.

C、Hanging from the ceiling
4.3.1 Remove the mounting plate from main
body (Same as step4.1.1)
4.3.2 Fixing ceiling brackets as Fig.
4.3.3 Set the mounting plate on the ceiling
brackets and ensure safety & fixing (use the
bolts attached to the ceiling brackets as Fig.
Using the ceiling brackets to hang from the
ceiling, the position of mounting plate can be
adjusted in the limit of 100mm.
4.3.4 Do the same as step A to install the main
body.
D、For above ceiling
4.4.1 Fix the air curtain as in the procedure for
installing on the concrete wall.
4.4.2 Then install the pipe as below.

5、TECHNICAL PARAMETER
SINGLE PHASE
MODEL
Diam
Of
Wheel
(mm)
Volt.
/Freq.
(V～/Hz)
Motor
power
（W）
Heater
power
(KW) Temp.（K
）
Max.air
speed
（m/s）
Air volume
(m3/h) Net
weight
(Kg)
H
L
H
L
RM-1206S-D/Y
115 220/50
140 6
45-55 7.5 6.5
660 650 10
RM-1209S-D/Y 160 6 1000 900 12
RM-1210S-D/Y 180 6 1200 1100 13
RM-1212S-D/Y 200 8 1500 1300 14
RM-1215S-D/Y 230 10 1900 1700 17
RM-1218S-D/Y 300 12 2400 2100 20
RM-1220S-D/Y 350 14 2800 2400 22.5
THREE PHASES
MODEL
Diam
Of
Wheel
(mm)
Volt.
/Freq.
(V～
/Hz)
Motor
power
（W）
Heater
power
(KW) Temp.（K）
Max.air
speed
（m/s）
Air volume
(m3/h) Net
weight
(Kg)
H L H L
RM-1206S-3D/Y
115 380/50
140 6
45-55 7.5 6.5
660 650 10
RM-1209S-3D/Y 160 6 1000 900 12
RM-1210S-3D/Y 180 6 1200 1100 13
RM-1212S-3D/Y 200 8 1400 1200 14
RM-1215S-3D/Y 230 10 1900 1600 17
RM-1218S-3D/Y 300 12 2300 2000 20
RM-1220S-3D/Y 350 14 2800 2400 22.5
LINE SIZE
POWER
ITEM
SINGLE PHASE
（
230V~
，
MAIN LINE:L
、
N
）
THREE PHASES
（
380V~ MAIN LINE:A
、
B
、
C
、
N
）
HEATER
POWER
（KW）
6 8 10 6 8 10
MAIN LINE
（
mm
2）
4.0 6.0 10 1.5 2.5 2.5
EARTH
LINE
（
mm
2
）
1.5 2.5 2.5 0.75 1.0 1.0

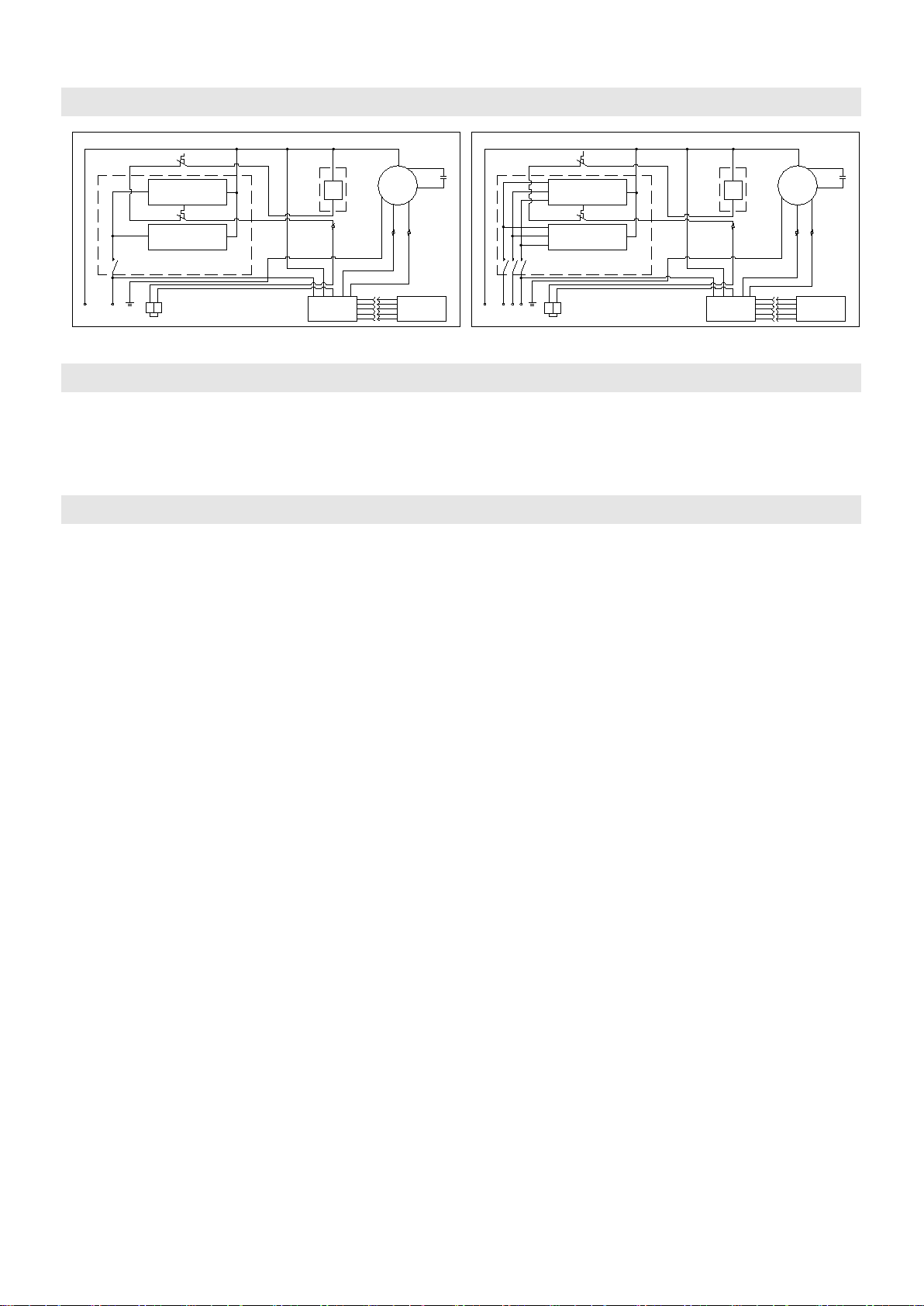

6、ELECTRIC WORK
A1
cc
A1
BROWN
BLUE
BLACK
WHITE
MOTOR
RED
K1
N L PN 4 5
RED
RED
HEATER
HEATER
BLUE
BROWN
RECEIVER
I/O
RED
A2
KM
RED
PN
RECEIVER
IC
N CA B
K1
BLACK
WHITE
(BROWN)
YELLOW
54
RED
RED
HEATER
HEATER
WHITE
RECEIVER
I/O
BLACK
RECEIVER
IC
RED
A2
KM
BLACK WHITE
(BROWN)
MOTOR
YELLOW
BLUE(BROWN/RED)BLUE(BROWN/RED)
(BROWN)
YELLOW
(BROWN)
YELLOW
7、OPERATION
6.1 Turn on the power switch
6.2 Select the air speed：High[H]、Low[L]
6.3 According to the installation place to adjust the wind direction parts to obtain the best effect.
8、CAUTIONS
a)、Use the unit at the rated voltage and frequency indicated on the nameplate.
b)、Disconnect power source before unit servicing.
c)、Routine maintenance must be done every year.
d)、Never use petrol, benzene, thinners or any other such chemical for cleaning the unit.
e)、Don’t allow water or any liquid to enter the motor.
f)、When power supply comes from a socket, the plug must be in accordance with IEC335-1. When the
power cord is connected directly ,all polarity switches that the contract gap is 3mm at least must
installed in the charging line.
g)、In order to avoid injure, must changed the line of air curtain by professional worker or factory when the
line happened trouble.
