turbofan 30D Series User manual

Revision 1, Amdt 1
11 May 2015
Service Manual
E32D Series
(Digital Operation)
(Single Speed Fan)
30DSERIES

Revision 1, Amdt 1
11 May 2015
MANUFACTURED BY
Moffat Limited
Christchurch
New Zealand
INTERNATIONAL CONTACTS
AUSTRALIA
Moffat Pty Limited
E.Mail: [email protected]m.au
Main Office: (tel) [phone]
(fax) (03 9518 3833
Service: (tel): 1800 622 216
Spares: (tel): 1800 337 963
Customer Service:(tel): 1800 335 315
(fax): 1800 350 281
CANADA
Serve Canada
Web: www.servecanada.com
E.Mail: [email protected]
Sales: (tel): 800 551 8795 (Toll Free)
Service: (tel): 800 263 1455 (Toll Free)
NEW ZEALAND
Moffat Limited
Web: www.moffat.co.nz
E.Mail: [email protected]
Main Office: (tel): 0800 663328
UNITED KINGDOM
Blue Seal
Web: www.blue-seal.co.uk
E.Mail: [email protected]
Sales: (tel): 0121 327 5575
(fax): 0121 327 9711
Spares: (tel): 0121 322 6640
(fax): 0121 327 9201
Service: (tel): 0121 322 6644
(fax): 0121 327 6257
UNITED STATES
Moffat
Web: www.moffat.com
Sales: (tel): 800 551 8795 (Toll Free)
(tel): 336 661 1556
(fax): 336 661 9546
Service: (tel): 800 858 4477 (Toll Free)
(tel): 366 661 1556
(fax): 336 661 1660
REST OF WORLD
Moffat Limited
Web: www.moffat.co.nz
E.Mail: [email protected]
The reproduction or copying of any part of this manual by any means whatsoever is strictly forbidden unless authorized previously in writing
by the manufacturer.
In line with policy to continually develop and improve its products, Moffat Ltd. reserves the right to change the specifications and design
without prior notice.
© Copyright Moffat Ltd. May 2015.

Contents List
E32D Series (Single Speed Fan) Service Manual May 2015
Revision 1, Amdt 1
E32D Series Turbofan Convection Oven (Single Speed).
Model Numbers Covered in this Manual
E32D4 - Turbofan Oven - 4 Tray Convection Oven.
E32D5 - Turbofan Oven - 5 Tray Convection Oven.
1. Specifications ....................................................................................................2
2. Installation ........................................................................................................3
Installation Requirements
Unpacking
Location
Clearances
Stand Mounted Ovens
Electrical Connection
Water Connection
Positioning and Levelling of Oven
Initial Start-Up
Commissioning
3. Operation...........................................................................................................5
Oven Control Panel
Changing User Parameters
User Settings
4 . Error Messages and Faults ................................................................................7
Controller Fault Codes
5. Parts Replacement ............................................................................................8
5.1 Access
5.2 Replacement
5.3 Adjustments and Calibration
6 . Controller Programming..................................................................................14
Controller Parameters
7. Circuit Schematics ...........................................................................................17
8. Wiring Diagrams..............................................................................................19
9. Exploded Parts Listings ...................................................................................21
10.Accessories ......................................................................................................27
Appendix 1 - Reversing Oven Door .....................................................................A.1
ALL INSTALLATION AND SERVICE REPAIR WORK MUST BE CARRIED OUT BY QUALIFIED PERSONS ONLY.
IMPROPER INSTALLATION, ALTERATION, ADJUSTMENT, MAINTENANCE OR SERVICE MAY CAUSE PROPERTY
DAMAGE, INJURY OR DEATH.
ENSURE SUPPLY IS SWITCHED OFF BEFORE SERVICING.
ALWAYS TEST AFTER SERVICE REPAIRS
WARNING:

1 Specifications
E32D Series (Single Speed Fan) Service Manual May 2015
Revision 1, Amdt 1
2
E32D - (Single Speed Fan)
E32D4 E32D5
Oven Power Ratings
220V, 1P+N+E,50/60Hz, 6.5kW 208V, 1P+N+E, 50/60Hz, 5.8kW
230-240V, 1P+N+E, 50/60Hz, 6.5kW 220-240V, 1P+N+E, 50/60Hz, 6.5kW
Tray Capacity
4 x US Full Pan 5 x US Full Pan
5 x 1/1 GN Tray
Tray Spacing
110mm / 43/8” 85mm / 31/3”
Max Water Pressure
80 psi / 550 kPa.
Connection Size
3/4” BSP

Installation 2
E32D Series (Single Speed Fan) Service Manual May 2015
Revision 1, Amdt 1
3
Installation Requirements
Unpacking
1. Remove all packaging and transit protection including
all protective plastic coating from the exterior stainless
steel panels.
2. Check the oven and supplied parts for damage. Report
any damage immediately to the carrier and distributor.
3. Check that the following parts have been supplied with
your oven:-
4 x Leg Adjustable.
Brass Adaptor.
Rubber Washer.
4. Report any deficiencies to the distributor who supplied
your oven.
5. Securely fit the 4 legs supplied with the oven.
6. Check that the available electrical supply is correct to
that shown on the Technical Data Plate located on the
front right hand side panel.
 Refer to ‘Specifications’ section, ‘Oven
Specifications Tables’.
Location
1. Position the oven in its approximate working position.
2. The unit should be positioned so that the control panel
and oven shelves are easily reachable for loading and
unloading.
Clearances
To ensure correct ventilation for the motor and controls,
the following minimum installation clearances are to be
adhered to:-
Rear 50mm / 2”.
Left-hand side 50mm / 2”.
Right-hand side 75mm / 3”.
CLEARANCE FROM SOURCE OF HEAT.
A minimum distance of 300mm (12”) from appliance
sides is required.
NOTE: Fixed installations require at least 500mm - 20”
clearance at right hand side of oven for
service access.
Stand Mounted Oven
For ovens that are to be mounted to a stand, the oven feet
are used to level the oven on the stand. Refer to the
instructions supplied with separately ordered stands for
mounting details.
Important:
The vent located on the top of the oven must NOT be
obstructed.
Important:
 Installation shall comply with local electrical, health and safety requirements.
 It is most important that this oven is installed correctly and that oven operation is correct before use.
 If you have any questions regarding the proper installation and / or operation of this oven, please contact your local
Turbofan distributor.
Technical Data Plate - Location.
Oven Vent Location
USA / Canada Only)

2 Installation
E32D Series (Single Speed Fan) Service Manual May 2015
Revision 1, Amdt 1
4
Electrical Connection
Each oven should be connected to an adequately protected
power supply with an appropriate three wire power cord.
An isolation switch must be mounted adjacent to, but not
behind the oven and must be readily accessible to the
operator. This switch must be clearly marked and readily
accessible in case of fire.
Check the electricity supply is correct to as shown on the
Technical Data Plate on the front right hand corner of the
oven side panel.
NOTE: All electrical connections must only be carried
out by a suitably qualified person.
1. Remove oven right hand side panel.
2. Bring the supply cable up through the grommet at the
back of oven and through the compression gland on the
electrical switchgear panel.
3. Connect the mains supply to the appropriately marked
terminals on the terminal block.
Water Connection - Optional -
(Not required for Main Oven Operation)
1. If the manual addition of water into the oven for
humidification or steaming effect on baked product is
required, the unit’s water connection can be used.

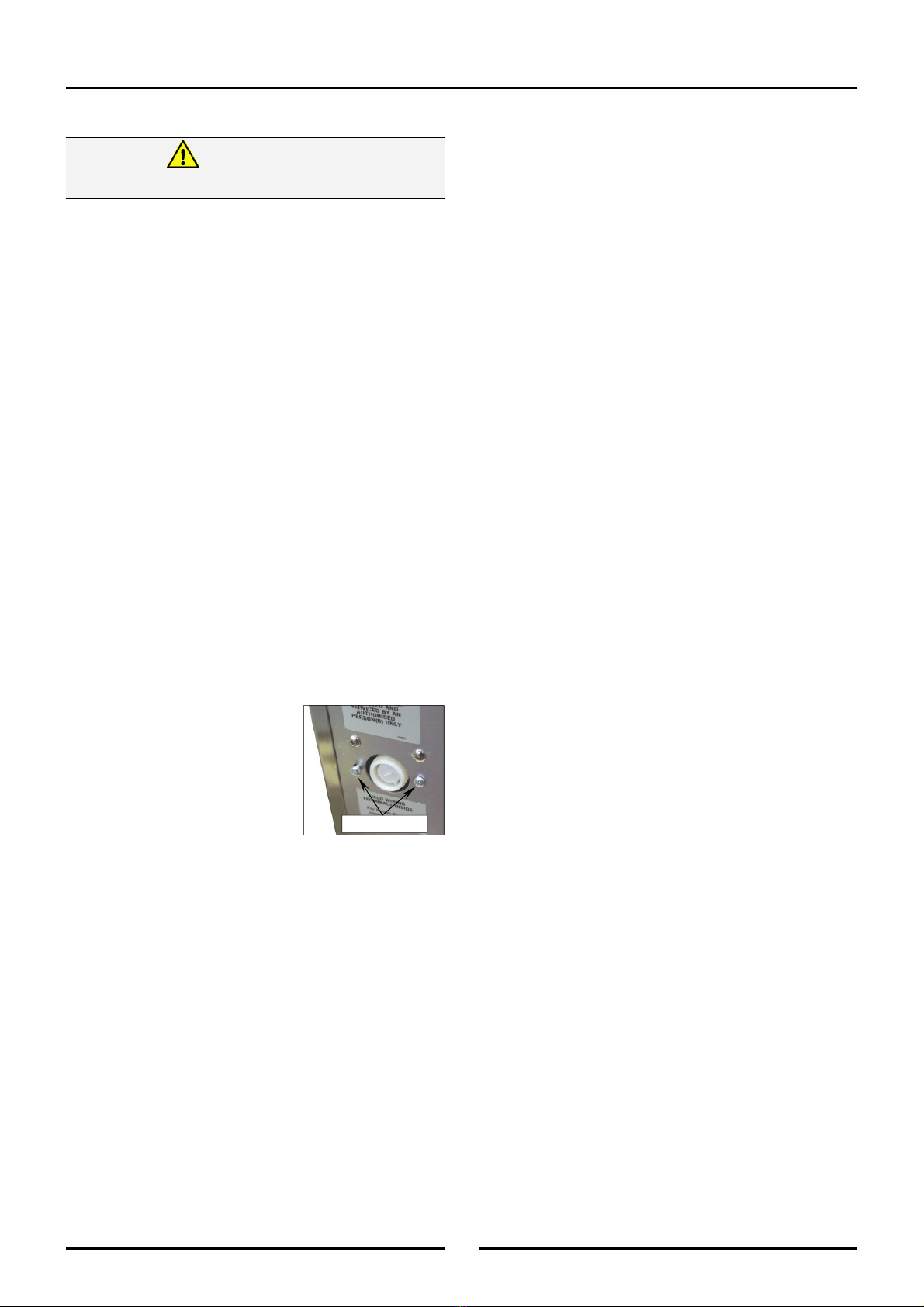

2. Tighten the 2 screws securing the water connection to
the rear of the oven. (These have
purposely been left loose to
prevent damage to the water
connection during transit).
3. A cold water supply should be
fitted to the water inlet (¾” BSP
hose connection) which is locat-
ed on the rear of the right hand side of the oven.
4. Connect to the water supply.
- Max Inlet Pressure 80psi / 550kPa.
6. Turn ‘On’ the water supply and check for leaks.
This oven must be earthed / grounded.
Warning
Tighten Screws.
Positioning and Levelling of Oven
1. Correctly locate the oven into its final operating position
and using a spirit level, adjust the oven feet so that the
oven is level and at the correct height.
Initial Start-Up
Before using the new oven;
1. For first time use of the oven, operate the oven for
about 1 hour at 200°C / 400°F to remove any fumes or
odours which may be present.
2. Please refer to the Operation Section of this manual for
details on how to correctly operate and shutdown the
oven.
Commissioning
Before leaving the new installation;
Check the oven functions in accordance with the
operating instructions specified in the ‘Operation’
section of this manual.
Ensure that the operator has been instructed in the areas
of correct operation and shutdown procedure for the
appliance.
NOTE: If it is not possible to get appliance to operate
correctly, turn Off power supply at mains
supply and contact supplier of this appliance.

Operation 3
E32D Series (Single Speed Fan) Service Manual May 2015
Revision 1, Amdt 1
5
Oven Control Panel - E32D Series (Single Speed Fan)
Temperature Display - Shows the
preset chamber temperature.
When used with ‘Temperature’ key,
shows actual oven temperature for 5
seconds.
Shows Cooking Modes and Error
Codes.
Steam Key and LED - Activates the
‘Steam Mode’.
Temperature Adjustment Control.
Time Display - Shows cook time in full
minutes only from 180 - 1, and
seconds for final minute only.
On / Off / Stand-By Key and LED
- Press ‘On / Off’ key once to turn the
oven ‘On’.
- Press and hold ‘On / Off’ key for 2
seconds to turn the oven ‘Off’.
Time Adjustment Control.
Programming Key and LED - Used
to enter the ‘Programming’ mode.
Temperature Key and LED - Shows
actual oven temperature for 5 seconds
on the Temperature Display.
LED ‘On’ when heating; LED flashes
when showing actual temperature.
Light On / Off Key and LED - Turns
oven light ‘On / Off’.
Start / Stop Key and LED - When in
the cooking cycle, pressing the ‘Start /
Stop’ key for 3 seconds will end the
cooking cycle.
For detailed operation instructions please refer to the User Manual supplied with your E32D oven.

3 Operation
E32D Series (Single Speed Fan) Service Manual May 2015
Revision 1, Amdt 1
6
Changing User Parameters
With the Oven in ‘Stand-By’ Mode:-
1. ENTER THE OPERATOR PARAMETER MODE.
Press 'Steam' and 'Start / Stop' keys together.
‘Temperature’ Display will show ‘PAS’.
The ‘Time’ Display will flash.
2. SET PASSWORD.
Rotate ‘Timer Control’ to set password;
(123) (Operator Password).
Press ‘Light On / Off’ key to confirm password.
‘Temperature’ Display will show one of Parameter Codes.
‘Time’ Display will show value of the parameter.
3. SETTING THE PARAMETERS.
Rotate ‘Timer Control’ to parameter required.
Press ‘Light’ key to confirm parameter. ‘Time’ display will flash.
While ‘Time’ display is flashing, rotate ‘Timer Control’ to
select value required.
Press ‘Light’ key to confirm value. ‘Time’ display will stop flashing.
4. EXITING THE PARAMETER MODE.
Press ‘On-Off’ key, to return to ‘Stand-By’ mode.
Table of User Settings
Parameter
Number Description Default Setting
Turn -On Pre-Heating temperature - (60 - 260˚C) (140 - 500˚F) 150ºC
(325ºF)
Light Auto ‘Off’ Setting Time -
0 = ‘On/Off’.
1 = 1 minute auto ‘Off’.
2 = 2 minutes auto ‘Off’, etc.
1
Steam Injection setting time -
0 = Steam will be emitted for as long as ‘Steam’ Key is pressed.
1 = Steam will be emitted for 1 second.
2 = Steam will be emitted for 2 seconds, etc.
0
Buzzer Volume - Can be adjusted from ‘0’ to ‘10’. 5
Program Pre-Heating Condition - (Can be adjusted from 0 to 30ºC {0 to 54ºF} above pre-heat
temperature).
20ºC
(36ºF)

Error Messages and Faults 4
E32D Series (Single Speed Fan) Service Manual May 2015
Revision 1, Amdt 1
7
Fault Code Cause
Door Open.
Door Microswitch, open circuit.
Err 001
Oven Temperature Probe Fault,
- Open Circuit - check temperature probe connection PT1 on board.
- Short Circuit - Probe damaged, replace probe.
- Probe value is outside the conversion range.
Err 003 Open circuit between terminals ID2 and COM on input plug on control board. On E32, loop wire
should be fitted.
dor
Controller Fault Codes

5 Parts Replacement
E32D Series (Single Speed Fan) Service Manual May 2015
Revision 1, Amdt 1
8
5.1 Access
5.1.1 Front Control Panel .............................................................................................................. 9
5.1.2 LH & RH Side Access Panels ................................................................................................. 9
5.2 Replacement
5.2.1 Controller............................................................................................................................ 9
5.2.2 Encoder .............................................................................................................................. 9
5.2.3 Temperature Probe.............................................................................................................10
5.2.4 Door Microswitch ................................................................................................................10
5.2.5 Cooling Fan........................................................................................................................10
5.2.6 Lighting Fuse Holder ...........................................................................................................10
5.2.7 Oven Lamp Assembly (Round Lamp) ....................................................................................11
5.2.8 Oven Lamp Assembly (Square Lamp) ...................................................................................11
5.2.9 Transformer .......................................................................................................................11
5.2.10 Overtemp...........................................................................................................................11
5.2.11 Capacitor ...........................................................................................................................11
5.2.12 Water Solenoid...................................................................................................................12
5.2.13 Fan Motor ..........................................................................................................................12
5.2.14 Heating Element .................................................................................................................12
5.2.15 Contactor...........................................................................................................................12
5.2.16 Door Inner Glass ................................................................................................................12
5.2.17 Door Removal ....................................................................................................................12
5.2.18 Door Hinge ........................................................................................................................12
5.3 Adjustment & Calibration
5.3.1 Door Microswitch ................................................................................................................13
5.3.2 Temperature Calibration......................................................................................................13
5.3.3 Door Catch Adjustment .......................................................................................................13
5.3.4 Adjusting Door Catch ..........................................................................................................13

Parts Replacement 5
E32D Series (Single Speed Fan) Service Manual May 2015
Revision 1, Amdt 1
9
5.1 Access
5.1.1 Front Control Panel
1. Remove screw on underside of control panel.
2. Lift panel up to unhook at top.
Screw
5.2 Replacement
5.2.1 Controller
1. Remove control panel (refer 5.1.1).
2. Disconnect cables (7).
3. Undo securing nuts (8) 7mm, 9/32”.
Securing Nuts (8)
5.2.2 Encoder
1. Remove encoder knob.
2. Remove control panel (refer 5.1.1).
3. Remove controller if necessary (refer 5.2.1).
4. Disconnect Encoder from controller.
5. Remove 2 securing screws.
Securing Screws
5.1.2 LH & RH Side Access Panels
1. Remove 2 screws on lower corners of side panel.
2. Pull bottom of panel out and away from bottom of
oven.
3. Pull down on panel to remove.
Securing Screws

5 Parts Replacement
E32D Series (Single Speed Fan) Service Manual May 2015
Revision 1, Amdt 1
10
5.2.3 Temperature Probe
1. Remove control panel (refer 5.1.1).
2. Disconnect temperature probe cable from controller.
3. Remove RHS oven rack.
4. Undo temperature probe bracket screw.
5. Withdraw probe and cable through oven cavity.
5.2.4 Door Microswitch
1. Remove control panel (refer 5.1.1).
2. Remove side panel.
3. Remove wires from switch.
4. Remove switch.
5. Check adjustment when new switch fitted.
Securing Screw
Temperature oC (oF) Resistance ± 5%
0 (30) 1000 Ω
10 (50) 1039 Ω
20 (68) 1078 Ω
30 (86) 1117 Ω
40 (104) 1155 Ω
50 (122) 1194 Ω
60 (140) 1232 Ω
70 (158) 1271 Ω
80 (176) 1309 Ω
90 (194) 1347 Ω
100 (212) 1385 Ω
110 (230) 1423 Ω
120 (248) 1460 Ω
130 (266) 1498 Ω
140 (284) 1536 Ω
150 (302) 1573 Ω
160 (320) 1610 Ω
170 (338) 1648 Ω
180 (356) 1685 Ω
Temperature Probe Type PT1000
5.2.5 Cooling Fan
1. Remove RH side panel
(refer 5.1.2).
2. Remove screws (2).
3. Rotate LH side of cool-
ing fan inwards to re-
move.
4. Replace cooling fan and
refit in reverse order.
Securing screws
Door Microswitch
5.2.6 Lighting Fuse Holder
1. Remove RH side panel
(refer 5.1.2).
2. Remove Cooling Fan
(refer 5.2.5).
3. Remove wires from
terminals on rear of
fuse holder.
4. Compress locking tabs
on rear of fuse holder
and push fuse holder
out of cooling fan
mounting panel.
5. Replace lighting fuse
holder and refit in
reverse order.
Fuse Holder
Disconnect
Wires
Compress Locking Tabs

Parts Replacement 5
E32D Series (Single Speed Fan) Service Manual May 2015
Revision 1, Amdt 1
11
5.2.7 Oven Lamp Assy (Round Lamps)
1. Remove the oven rack
and LH side rack from
oven.
2. Unscrew and remove the
lamp glass (anti-
clockwise) from the oven.
3. Remove the light bulb
which is a push fit into
the light holder and
replace if required.
4. Remove seal fitted
between lamp glass and
holder and replace if
required.
5. Remove the LH Oven side
panel.
6. Disconnect the electrical
connections to the oven
lamp assy being replaced.
7. Pull back the insulation to
reveal the rear of the
lamp assy.
8. Depress the 3 spring
loaded locking tabs on the
rear of the light assy and
push the assembly into
the oven and remove.
9. Refit oven light assy in
reverse order.
Disconnect
5.2.8 Oven Lamp Assy (Square Lamps)
1. Remove oven rack and LH
side rack from oven.
2. Unscrew and remove 4
screws securing light
support frame.
3. Remove light support
frame, glass lens and
gasket.
4. Remove light bulb if
required (this is a push fit
into housing).
5. Pull back insulation to
reveal rear of lamp assy.
6. Disconnect electrical
connections on rear of
lamp assy.
Securing Tabs (3)
Disconnect
Screws
7. Depress spring loaded
locking tabs on rear of
light assy and push assy
into oven and remove.
8. Refit oven lamp assy in
reverse order.
5.2.9 Transformer
1. Remove right side panel.
2. Remove front control
panel.
3. Remove wires 2 yellow
wires from controller.
4. Disconnect primary
wires.
5. Remove screws (2).
5.2.10 Overtemp
1. Remove RH side panel
(refer 5.1.2).
2. Remove securing screws.
3. Remove wires at rear of
overtemp.
4. Remove RH oven side
rack.
5. Remove Overtemp phial
holder.
6. Withdraw phial through
oven cavity.
7. Replace overtemp and
refit in reverse order.
5.2.11 Capacitor
1. Remove RH side
panel. (refer 5.1.2)
2. Remove wires from rear
of capacitor.
3. Remove securing nut.
4. Replace capacitor and
refit in reverse order.
Securing
Screws
Depress Spring
Tabs
Overtemp Phial Holder
Securing Screws
Mounting
Screws Overtemp
Securing Nut
Capacitor

5 Parts Replacement
E32D Series (Single Speed Fan) Service Manual May 2015
Revision 1, Amdt 1
12
5.2.12 Water Solenoid
1. Turn Off water.
2. Remove RH side panel.
(refer 5.1.2)
3. Remove wires from water
solenoid.
4. Disconnect water pipes.
5. Remove Nylock nuts
(7mm) and mounting
screws.
6. Remove water solenoid.
7. Replace water solenoid
and refit in reverse order.
5.2.13 Fan Motor
1. Remove oven fan.
(13mm) Counter-
clockwise to undo.
2. Remove RH side
panel. (refer 5.1.2)
3. Remove wires from
connector, note wire
positions.
4. Remove Fan Motor
mounting screws.
5. Replace Motor and Fan
and refit in reverse order.
5.2.14 Heating Element
1. Remove RHS panel.
2. Remove element wires
from terminals.
3. Remove RHS oven rack.
4. Remove element securing
screws (inside oven).
5. Replace element and
re-assemble.
Nylock Nuts
13mm Nut
Screws
5.2.15 Contactor
1. Remove RH side panel.
2. Remove wires from
contactor terminals. Note
positions.
3. Pull contactor down to
disengage clip then pull
the bottom of contactor
outwards through slot.
5.2.16 Door Inner Glass
1. Undo inner glass
retaining clip.
2. Lift inner glass up and
pull bottom outwards to
free bottom pivot.
NOTE: Spacer is a loose
fit over pivot and
may fall out.
3. Lower inner glass to free
top pivot and remove
glass.
4. Replace and refit door
inner glass in reverse
order, remembering to
refit Pivot Spacer to
bottom hinge.
5.2.17 Door Removal
1. Remove door inner glass
(refer 5.2.16)
2. Whilst supporting door,
unscrew and remove top
door pivot bolt from top
door hinge assembly.
3. Lift door off bottom
hinge.
4. Refit door in reverse
order.
5.2.18 Door Hinge
1. Remove door. (refer 5.2.17).
2. Remove 2 Hinge Plate Screws.
3. Refit hinge plates in reverse order.
Voltage Wattage
(Total)
Resistance
(per coil)
Current Draw
(per coil)
230-240V 6300W 18.5Ω13A @240V
208-220V 6300W 15.5Ω14.2A @220V
Remove Top or Bottom
Hinge Screws.
Retaining Clip
Pivot Spacer
Remove Top Door Pivot Bolt.
Screws
Element
Wires

Parts Replacement 5
E32D Series (Single Speed Fan) Service Manual May 2015
Revision 1, Amdt 1
13
5.3 Adjustment & Calibration
Microswitch
Activation Arm
5.3.1 Door Microswitch
1. Remove control panel. (refer 5.1.1)
2. Bend the microswitch activation arm so switch open
circuits when door is open.
3. Check adjustment when door is opened and closed.
5.3.2 Temperature Calibration
1. Place temperature probe in the centre of oven.
2. Close door and allow temperature to stabilise.
3. Enter service parameters settings menu on control
panel and check P10 Temperature Offset (refer to
Section 6.1 ‘Controller Parameters’).
5.3.3 Adjust Door for Correct Alignment.
Check alignment and operation of the door. Ensure that
the door is correctly aligned horizontally and vertically.
1. To align, slacken off the upper
and lower hinge plates and
correctly align the door.
Re-tighten both hinge plates.
2. Check that the roller catch
correctly retains door in the
closed position.
3. To adjust, slightly loosen
screws securing roller catch
and close the door. The roller
catch will centralise itself.
4. Open door and tighten roller
catch securing screws.
5.3.4 Adjusting Door Catch
If the door sealing requires adjustment, carry out the
following to adjust the door catch:-
1. Check that the door seals correctly when closed, by
placing a sheet of paper between the door and the seal.
2. Close the door on the
paper and attempt to
withdraw the paper by
firmly tugging on the
paper. The paper
should just pull out with
some resistance but
without tearing.
3. To adjust the door
catch, loosen the locking
nut on the door catch.
4. If paper withdraws
easily,
screw door
catch ‘In’ by ½ a turn
and repeat test above
until adjusted correctly.
5. If paper cannot be
withdrawn and door
springs open,
screw door
catch ‘Out’ by ½ a turn
and repeat the test
above until adjusted
correctly.
6. Tighten the locking nut on the door catch.
Door Catch
Locking Nut
Slacken these screws to adjust
door vertically - horizontally.

6 Controller Programming
E32D Series (Single Speed Fan) Service Manual May 2015
Revision 1, Amdt 1
14
Controller Parameters - E32D Series - Single Speed Ovens
With the Oven in ‘Stand-By’ Mode:-
1. ENTER THE OPERATOR PARAMETER MODE.
Press 'Steam' and 'Start / Stop' keys together.
Upper Display will show .
Lower Display will flash .
2. SET PASSWORD (Service / Factory Password - 321).
Rotate ‘Timer Control’ to set password;
Press ‘Light On / Off’ key to confirm password.
Upper Display will show one of Parameter Codes.
Lower Display will show value of the parameter.
3. SETTING THE PARAMETERS.
Rotate ‘Timer Control’ to parameter required.
Press ‘Light’ key to confirm parameter. ‘Time’ display will flash.
While Lower Display is flashing, rotate ‘Timer’ knob to select value required.
Press ‘Light’ key to confirm value. Lower Display will stop flashing.
4. EXITING THE PARAMETER MODE.
Press ‘On-Off’ key, to return to ‘Stand-By’ mode.
Controller Parameters

Controller Programming 6
E32D Series (Single Speed Fan) Service Manual May 2015
Revision 1, Amdt 1
15
Parameter
Number Description Min Max Default
Unit of
Measurement Pass (0)
P01
Temperature Scale. Defines temperature scale used
(C = °C, F = °F). Changing scale from °F to °C will reset all
temperature parameters to their default values.
C F C---- S
P2 Oven Model.
As the oven controller is used on E31 and E32 Ovens.
Oven type can be selected.
31 32 32 ---- S
P3 Minimum Oven Temperature Set Point.
The minimum
temperature that the oven can be set to.
0 300 60 ˚C (˚F) S
P4 NOT SHOWN WHEN P2 SET TO 32.
P5 Maximum Oven Temperature Set Point.
The maximum
temperature that the oven can be set to.
0 300 260 ˚C (˚F) S
PrH Pre-Heat Temperature.
The temperature that the oven will pre
heat to on start-up.
P3 P5 150 ˚C (˚F) O
P8 Hysteresis Temperature Gap.
The temperature drop from the
Set Point before the heating cycles back ‘On’.
1 10 1 °C / °F S
P9
Temperature Regulation Offset. The temperature below set
point that the oven heating turns off. i.e. If P9 is set to 5 and oven
temperature is set to 180, ovenheating will turn ‘Off’ at 175. This is
intended to allow for thermal over-run in the oven cavity
.
0 10 0 °C / °F S
P10
Oven Temperature Offset. This offset is always added to the raw
temperature measurement, to correct the displayed value. (Value shown
on display is the corrected value).
-25 25 0 ˚C (˚F) S
P11 Maximum Timer Setpoint. Maximum time that can be set. 1 180 180 Min S
P12 Timer Preset. Default timer setting on start-up. 1 P11 0 Min S
L-O Time Light stays On.
Duration of time for which light stays ‘On’. If
set to ‘0’, pressing Light Key will turn oven light ‘On / Off’ with no delay.
0 60 0 Min O
InJ Steam Injection Time.
The time length in seconds for each steam
injection.
0 10 0 Sec O
P15 Cooling Fan Timeout.
The time that the cooling fan will continue
running after the ‘On/Off’ key has been pressed.
0 60 10 Min S
P16 Oven Fan Rotation Time.
The time the fan will rotate in one
direction before changing direction.
1 999 120 Sec S
P17 Oven Fan Pause Time.
The time between the fan stopping and
re-starting in opposite direction.
5 10 10 Sec S
VoL Buzzer Volume.
Volume of buzzer can be adjusted between ‘O’ -No
Buzzer and ‘5’ maximum volume.
0 10 5 ---- O
P19 NOT SHOWN WHEN P2 SET TO 32.
P20 NOT USED ON E32. ID2 Digital Input Polarity. (Set to 1) 0 1 1 ---- S
(0) Defines the password level of the parameter (S = Service / Factory. O = Operator).

6 Controller Programming
E32D Series (Single Speed Fan) Service Manual May 2015
Revision 1, Amdt 1
16
Parameter
Number Description Min Max Default
Unit of
Measurement Pass (0)
P21
Program Mode - Pre-Heat Temp Condition. In Program Mode
only. The temperature above ‘Set Temperature’ that the oven will
pre-heat to. (To allow for heat loss during door opening and cold
product loading).
Note;- When Program is started, Oven Set
Temperature will revert to the programmed Set Temperature.
0 30 20 ˚C (˚F) O
P22
Maximum Open Door Time in Program Ready State. This
is the time allowance for door open when loading oven, to avoid Pre-
Heating state re-activating once the door is closed. Note;- If door has
been open longer than the time set (60) and actual
temperature has dropped below the set temperature for that
program, when the door is closed, the oven will revert to the
preheating mode.
30 180 60 Sec S
(0) Defines the password level of the parameter (S = Service / Factory. O = Operator).

Circuit Schematics 7
E32D Series (Single Speed Fan) Service Manual May 2015
Revision 1, Amdt 1
17
Electrical Schematic E32D4 / E32D5 Turbofan Oven (To LOT # 1035999)

7 Circuit Schematics
E32D Series (Single Speed Fan) Service Manual May 2015
Revision 1, Amdt 1
18
Electrical Schematic E32D4 / E32D5 Turbofan Oven (From LOT # 1036000)
