Turbonics T45 User manual

1
TWMIOM-2
Installation:
• Toester Wall-Mount hydronic fan coils are suitable for
connection to a hot water supply at any pressure up to 300
psi with a maximum water temperature of 200°F.
• Building codes and plumbing regulations may vary.
Check local codes and regulations before determining
proper application and installation.
• Examine unit for shipping damage.
25
32
55mm
73
8
188mm
17
432mm
14 17
32
369mm
T68-WM
INLET 1/2"
COPPER TUBING
OUTLET 1/2"
COPPER TUBING
WIRING INPUT
18 3
16
462mm
321
32
93mm
14 1
4
362mm
T45-WM
CAT-09852-TUR

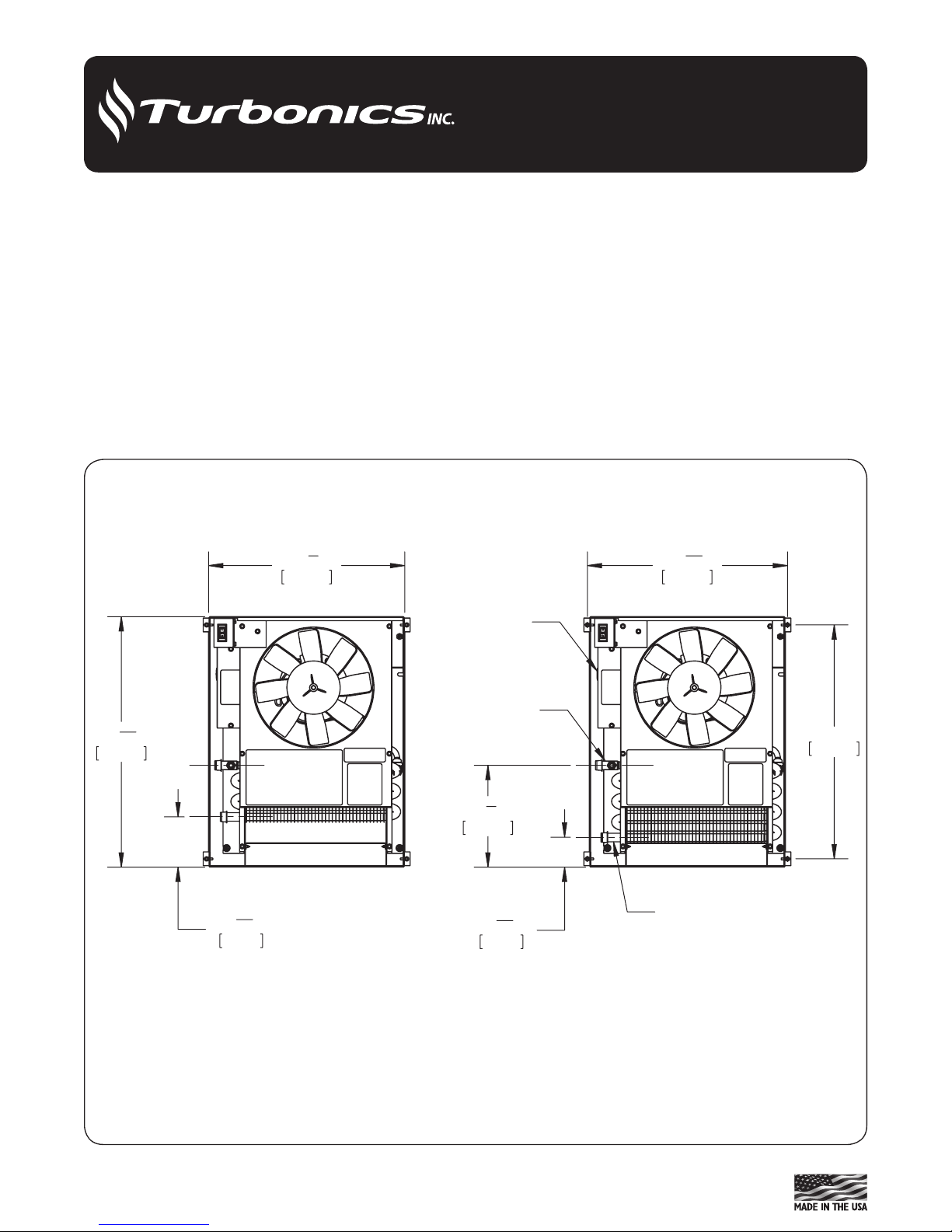

Figure 1 - T45/T68-WM-Top View
• Unit is designed to be mounted under or over sheetrock.
Install at least 6" - 8" above the oor for best performance.
Unit will t between standard 16" studs on center.
• For unit dimensions on the T45/T68 refer to Figure 1, 3, 6
& 7. For T13 refer to Figure 2, 4, 8 & 9.
• Secure unit in proper position. Unit must be level to assure
proper drainage and operation.
Toester Wall-Mount Fan Coil
Installation Instructions
Model T45/68/13 All Sizes

2
14 9
16
370mm
21 13
16
554mm
23
584mm
14 9
32
362mm
11
16
18mm
11
8
28mm
INLET 1/2"
COPPER TUBING
OUTLET 1/2"
COPPER TUBING
CAT-09853-TUR
T13-WM

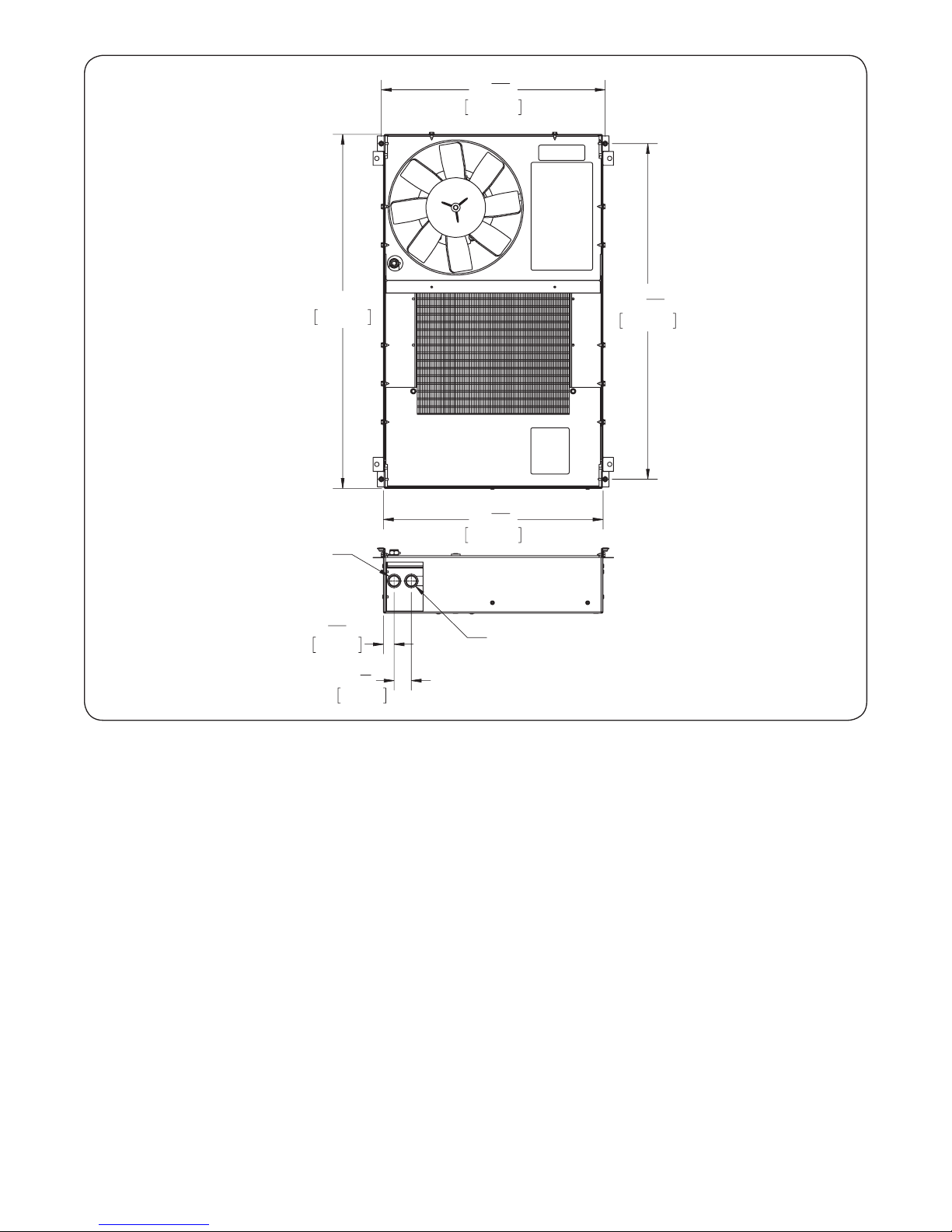

Figure 2 - T13-WM-Top View
Piping
• e piping on the unit will usually be copper or any other
locally approved piping. Accessible ½" sweat ttings are
provided on the unit itself. An optional exible stainless
steel connector kit with shut-o valves is available for
connecting the unit to any type of piping system and can
be used with an optional valve control box.
• All piping systems should be designed by a technician
with experience in the various piping arrangements that
work with this type of unit.
• As with any system employing circulated water, the pipes
passing through unheated spaces should be insulated.
NOTE: When using mono-flo or “venturi" fittings, we
suggest placement of a ball valve just after the supply
take-off and before the return is connected.
Piping: Hot Water Boiler
• e unit supply line should be taken from the boiler side
beyond any o-control valve. If the system being used
is a gravity-ow or cast iron hot water system, a separate
circuit must be installed.
Piping: Water Heater
• To install correctly, a technician with knowledge of piping
arrangements and back-o valves must design the piping
system.
Wiring the Unit
• A eld wiring connection is provided on the unit (see
Figure 5). Connect wires at this point only.
• e unit is manufactured with a built-in factory wired
aquastat with a set point of 140°F on and 110°F o. e
aquastat may be disabled in the eld if not required (see
application manuals).

3
T45/68-WM
RECESSED
COVER
T45/68-WM
SURFACE MOUNT
COVER
T45/68-WM
UNIT
4X #10-32 X 1/2" SCREW
AND NYLON WASHER
(INCLUDED)
CAT-09852-TUR
T45/68-WM
RECESSED
COVER
T45/68-WM
SURFACE MOUNT
COVER
T45/68-WM
UNIT
4X #10-32 X 1/2" SCREW
AND NYLON WASHER
(INCLUDED)
CAT-09852-TUR
4X #10-32 X 1/2" SCREW
AND NYLON WASHER
(INCLUDED)
T13-WM
SURFACE MOUNT
COVER
T13-WM
RECESSED
COVER
T13-WM
UNIT
CAT-09853-TUR
4X #10-32 X 1/2" SCREW
AND NYLON WASHER
(INCLUDED)
T13-WM
SURFACE MOUNT
COVER
T13-WM
RECESSED
COVER
T13-WM
UNIT
CAT-09853-TUR
Figure 3 - T45/68-WM
Figure 4 - T13-WM

4

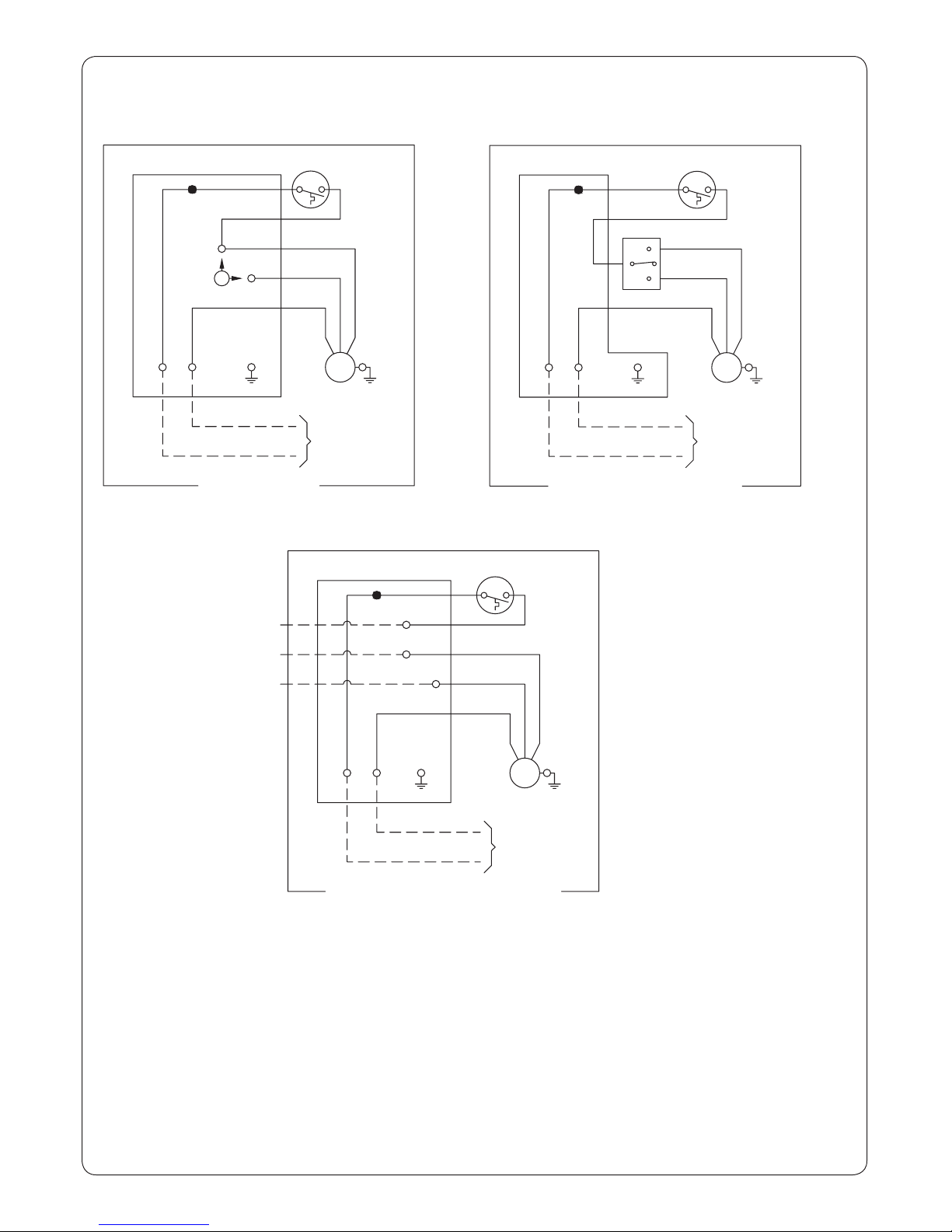

Figure 5 - Wiring Diagram T45-WM/T68-WM / T13-WM
TUR-09867C
2-SPEED
2P MOTOR
CONTROL BOX
2-SPEED
2P MOTOR
CONTROL BOX
FACTORY WIRED; LO SPEED
2-SPEED
2P MOTOR
CONTROL BOX
OPTIONAL FACTORY WIRED; 2 SPEED SWITCH OPTIONAL FIELD WIRED; 2-SPEED SWITCH INSTALLATION
1
3
OFF
2
WHITE
BLACK
RED (LO)
BLACK (HI)
BLUE
BLUE
BLACK
FIELD BLACK
TO SWITCH
COMMON
RED (LO)
FROM SWITCH
BLACK (HI)
FROM SWITCH
WHITE
WHITE
BLACK
RED (LO)
BLACK (HI)
WHITE
FUSED FIELD
115VAC 60Hz
(FROM FAN CONTROL)
BLACK
FUSED FIELD
115VAC 60Hz
(FROM FAN CONTROL)
FUSED FIELD
115VAC 60Hz
(FROM FAN CONTROL)
FUSED FIELD
115VAC 60Hz
(FROM FAN CONTROL)
A
SEE NOTE 3
NOTES:
1. FOR USE WITH MODELS:
T12-HA, T45-HA, T68-HA, T13-WM-AR, T13-WM-AS, T45-WM-AR,
T45-WM-AS, T68-WM-AR, T68-WM-AS, K-J SERIES.
2. ALL WIRING SHALL MEET ALL LOCAL AND NATIONAL CODE.
3. "A" TO DIRECT WIRE ON HIGH SPEED REPLACE RED (LO) WIRE
CONNECTION TO BLUE AQUASTAT WIRE WITH BLACK (HI) WIRE. CAP
THE DISCONNECTED RED (LO) WIRE BEFORE POWERING THE UNIT.
4. "A" TO DIRECT WIRE ON HIGH SPEED REPLACE RED (LO) WIRE
CONNECTION TO YELLOW AQUASTAT WIRE WITH BLACK (HI) WIRE.
CAP THE DISCONNECTED RED (LO) WIRE BEFORE POWERING THE
UNIT.
5. T13-WM-AR & T13-WM-AS BLUE WIRE FROM MOTOR CAPPED BY
BLUE
BLUE
AQUASTAT
AQUASTAT
WHITE
BLACK
RED (LO)
BLACK (HI)
WHITE
FUSED FIELD
115VAC 60Hz
(FROM FAN CONTROL)
BLACK
FUSED FIELD
115VAC 60Hz
(FROM FAN CONTROL)
BLUE
BLUE
AQUASTAT
2-SPEED
SWITCH
FOR USE WITH MODELS: T13-WM-AR, T13-WM-AS, T45-WM-AR, T45-WM-AS, T68-WM-AR, T68-WM-AS ONLY
2-SPEED
2P MOTOR
CONTROL BOX
2-SPEED
2P MOTOR
CONTROL BOX
FACTORY WIRED; LO SPEED
2-SPEED
2P MOTOR
CONTROL BOX
OPTIONAL FACTORY WIRED; 2 SPEED SWITCH
OPTIONAL FIELD WIRED; 2-SPEED SWITCH INSTALLATION
1
3
OFF
2
WHITE
BLACK
RED (LO)
BLACK (HI)
BLUE
BLUE
BLACK
FIELD BLACK
TO SWITCH
COMMON
RED (LO)
FROM SWITCH
BLACK (HI)
FROM SWITCH
WHITE
WHITE
BLACK
RED (LO)
BLACK (HI)
WHITE
FUSED FIELD
115VAC 60Hz
(FROM FAN CONTROL)
BLACK
FUSED FIELD
115VAC 60Hz
(FROM FAN CONTROL)
FUSED FIELD
115VAC 60Hz
(FROM FAN CONTROL)
FUSED FIELD
115VAC 60Hz
(FROM FAN CONTROL)
A
SEE NOTE 3
NOTES:
1. FOR USE WITH MODELS:
T12-HA, T45-HA, T68-HA, T13-WM-AR, T13-WM-AS, T45-WM-AR,
T45-WM-AS, T68-WM-AR, T68-WM-AS, K-J SERIES.
2. ALL WIRING SHALL MEET ALL LOCAL AND NATIONAL CODE.
3. "A" TO DIRECT WIRE ON HIGH SPEED REPLACE RED (LO) WIRE
CONNECTION TO BLUE AQUASTAT WIRE WITH BLACK (HI) WIRE. CAP
THE DISCONNECTED RED (LO) WIRE BEFORE POWERING THE UNIT.
4. "A" TO DIRECT WIRE ON HIGH SPEED REPLACE RED (LO) WIRE
CONNECTION TO YELLOW AQUASTAT WIRE WITH BLACK (HI) WIRE.
CAP THE DISCONNECTED RED (LO) WIRE BEFORE POWERING THE
UNIT.
5. T13-WM-AR & T13-WM-AS BLUE WIRE FROM MOTOR CAPPED BY
BLUE
BLUE
AQUASTAT
AQUASTAT
WHITE
BLACK
RED (LO)
BLACK (HI)
WHITE
FUSED FIELD
115VAC 60Hz
(FROM FAN CONTROL)
BLACK
FUSED FIELD
115VAC 60Hz
(FROM FAN CONTROL)
BLUE
BLUE
AQUASTAT
2-SPEED
SWITCH
FOR USE WITH MODELS: T13-WM-AR, T13-WM-AS, T45-WM-AR, T45-WM-AS, T68-WM-AR, T68-WM-AS ONLY
2-SPEED
2P MOTOR
CONTROL BOX
2-SPEED
2P MOTOR
CONTROL BOX
FACTORY WIRED; LO SPEED
2-SPEED
2P MOTOR
CONTROL BOX
OPTIONAL FACTORY WIRED; 2 SPEED SWITCH OPTIONAL FIELD WIRED; 2-SPEED SWITCH INSTALLATION
1
3
OFF
2
WHITE
BLACK
RED (LO)
BLACK (HI)
BLUE
BLUE
BLACK
FIELD BLACK
TO SWITCH
COMMON
RED (LO)
FROM SWITCH
BLACK (HI)
FROM SWITCH
WHITE
WHITE
BLACK
RED (LO)
BLACK (HI)
WHITE
FUSED FIELD
115VAC 60Hz
(FROM FAN CONTROL)
BLACK
FUSED FIELD
115VAC 60Hz
(FROM FAN CONTROL)
FUSED FIELD
115VAC 60Hz
(FROM FAN CONTROL)
FUSED FIELD
115VAC 60Hz
(FROM FAN CONTROL)
A
SEE NOTE 3
NOTES:
1. FOR USE WITH MODELS:
T12-HA, T45-HA, T68-HA, T13-WM-AR, T13-WM-AS, T45-WM-AR,
T45-WM-AS, T68-WM-AR, T68-WM-AS, K-J SERIES.
2. ALL WIRING SHALL MEET ALL LOCAL AND NATIONAL CODE.
3. "A" TO DIRECT WIRE ON HIGH SPEED REPLACE RED (LO) WIRE
CONNECTION TO BLUE AQUASTAT WIRE WITH BLACK (HI) WIRE. CA
P
THE DISCONNECTED RED (LO) WIRE BEFORE POWERING THE UNIT.
4. "A" TO DIRECT WIRE ON HIGH SPEED REPLACE RED (LO) WIRE
CONNECTION TO YELLOW AQUASTAT WIRE WITH BLACK (HI) WIRE.
CAP THE DISCONNECTED RED (LO) WIRE BEFORE POWERING THE
UNIT.
5. T13-WM-AR & T13-WM-AS BLUE WIRE FROM MOTOR CAPPED BY
BLUE
BLUE
AQUASTAT
AQUASTAT
WHITE
BLACK
RED (LO)
BLACK (HI)
WHITE
FUSED FIELD
115VAC 60Hz
(FROM FAN CONTROL)
BLACK
FUSED FIELD
115VAC 60Hz
(FROM FAN CONTROL)
BLUE
BLUE
AQUASTAT
2-SPEED
SWITCH
FOR USE WITH MODELS: T13-WM-AR, T13-WM-AS, T45-WM-AR, T45-WM-AS, T68-WM-AR, T68-WM-AS ONLY
2-SPEED
2P MOTOR
CONTROL BOX
2-SPEED
2P MOTOR
CONTROL BOX
FACTORY WIRED; LO SPEED
2-SPEED
2P MOTOR
CONTROL BOX
OPTIONAL FACTORY WIRED; 2 SPEED SWITCH OPTIONAL FIELD WIRED; 2-SPEED SWITCH INSTALLATION
1
3
OFF
2
WHITE
BLACK
RED (LO)
BLACK (HI)
BLUE
BLUE
BLACK
FIELD BLACK
TO SWITCH
COMMON
RED (LO)
FROM SWITCH
BLACK (HI)
FROM SWITCH
WHITE
WHITE
BLACK
RED (LO)
BLACK (HI)
WHITE
FUSED FIELD
115VAC 60Hz
(FROM FAN CONTROL)
BLACK
FUSED FIELD
115VAC 60Hz
(FROM FAN CONTROL)
FUSED FIELD
115VAC 60Hz
(FROM FAN CONTROL)
FUSED FIELD
115VAC 60Hz
(FROM FAN CONTROL)
A
SEE NOTE 3
NOTES:
1. FOR USE WITH MODELS:
T12-HA, T45-HA, T68-HA, T13-WM-AR, T13-WM-AS, T45-WM-AR,
T45-WM-AS, T68-WM-AR, T68-WM-AS, K-J SERIES.
2. ALL WIRING SHALL MEET ALL LOCAL AND NATIONAL CODE.
3. "A" TO DIRECT WIRE ON HIGH SPEED REPLACE RED (LO) WIRE
CONNECTION TO BLUE AQUASTAT WIRE WITH BLACK (HI) WIRE. CAP
THE DISCONNECTED RED (LO) WIRE BEFORE POWERING THE UNIT.
4. "A" TO DIRECT WIRE ON HIGH SPEED REPLACE RED (LO) WIRE
CONNECTION TO YELLOW AQUASTAT WIRE WITH BLACK (HI) WIRE.
CAP THE DISCONNECTED RED (LO) WIRE BEFORE POWERING THE
UNIT.
5. T13-WM-AR & T13-WM-AS BLUE WIRE FROM MOTOR CAPPED BY
BLUE
BLUE
AQUASTAT
AQUASTAT
WHITE
BLACK
RED (LO)
BLACK (HI)
WHITE
FUSED FIELD
115VAC 60Hz
(FROM FAN CONTROL)
BLACK
FUSED FIELD
115VAC 60Hz
(FROM FAN CONTROL)
BLUE
BLUE
AQUASTAT
2-SPEED
SWITCH
FOR USE WITH MODELS: T13-WM-AR, T13-WM-AS, T45-WM-AR, T45-WM-AS, T68-WM-AR, T68-WM-AS ONLY

5
.50
.375
1.11
1.25
4.56 2.50
19.50
A
A
.75
16.75
9.66
1.08
11 LOUVERS
21 LOUVERS
B
SECTION A-A
65°
.37
DETAIL B
SCALE 1 : 2
-001 (COVER, WALL MOUNT, T45-WM & T68-WM, RECESSED) SHOWN

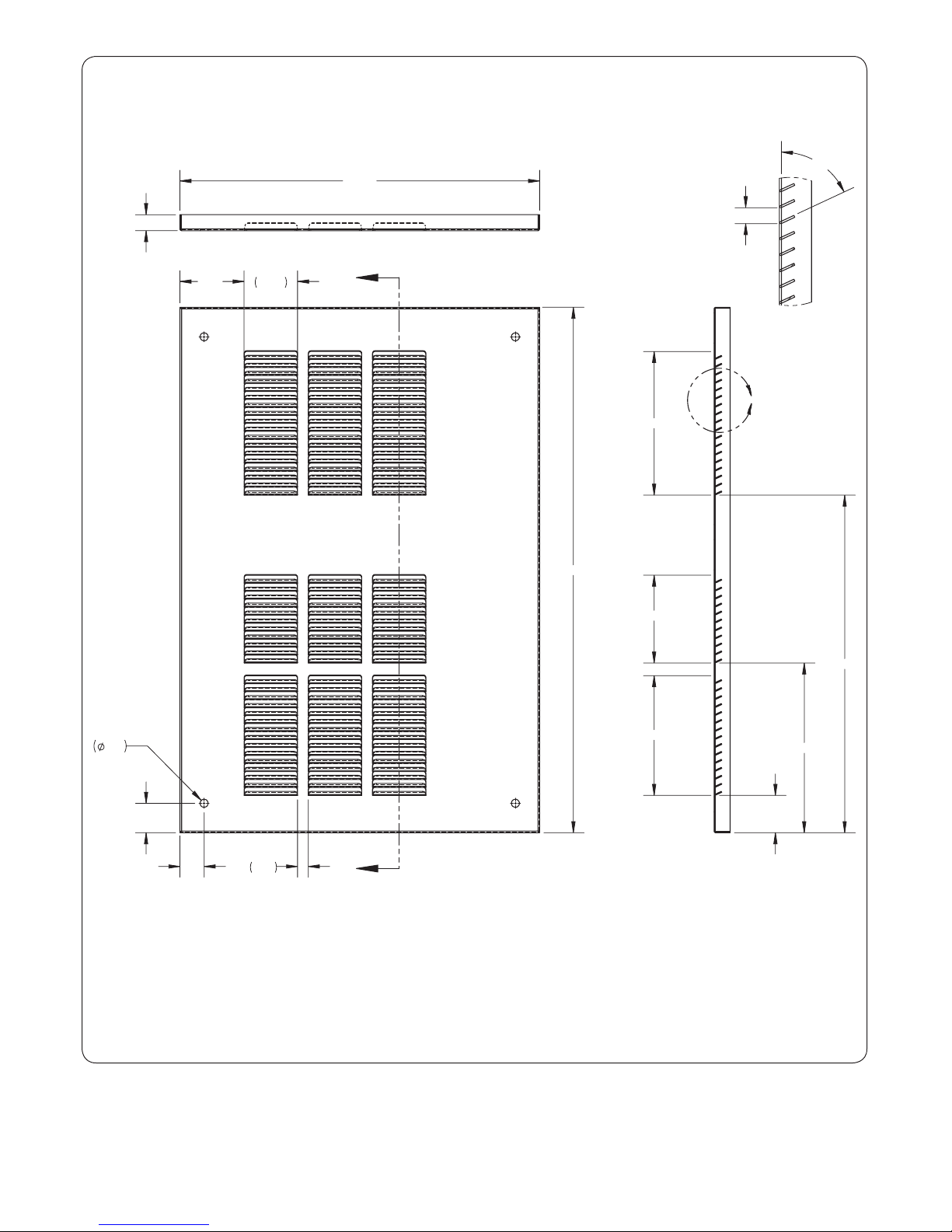

Figure 6 - T45-WM & T68-WM Recessed
TUR-10169

6
19.88
.375
1.44
1.05
.50
4.56 2.50
C
C
-002 (COVER, WALL MOUNT, T45-WM & T68-WM, SURFACE) SHOWN
4.50
16.63
.63 .125
2X RSW
.38
.39
1.00
12.78
8 LOUVERS
14 LOUVERS
D
SECTION C-C
.37
65°
DETAIL D
SCALE 1 : 2
Figure 7 - T45-WM & T68-WM Surface Mount
TUR-10169

7
3.00 2.50
1.38
1.13
.375
.50
24.56
A
A
1.75
7.93
15.78
15 LOUVERS
11 LOUVERS
18 LOUVERS
B
SECTION A-A
16.81
.75 .37
65°
DETAIL B
SCALE 1 : 2
-001 (COVER, WALL MOUNT, T13-WM, RECESSED) SHOWN

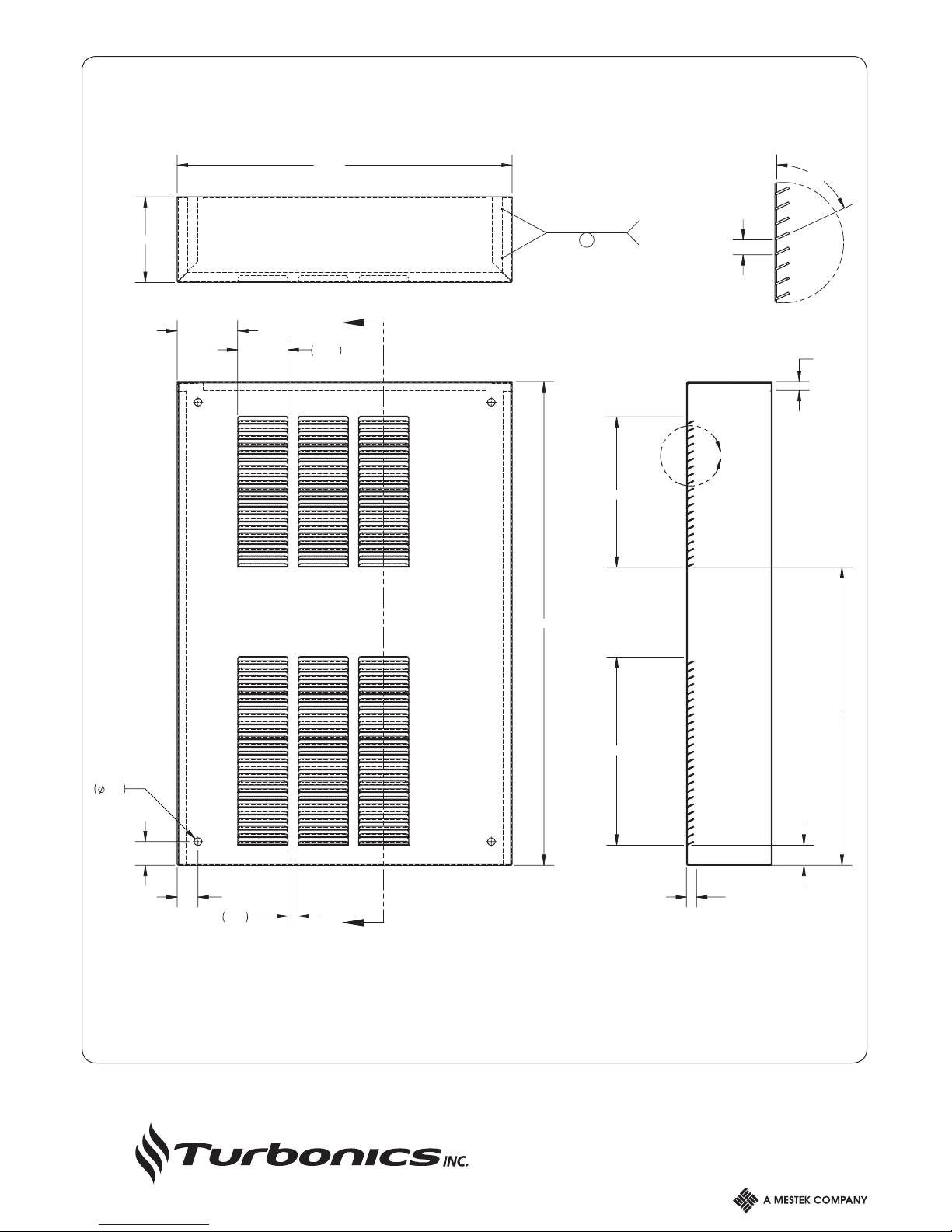

Figure 8 - T13-WM Recessed
TUR-10170

8
260 NORTH ELM STREET, WESTFIELD, MA 01085
1.04
1.17
.375
3.00
.50
2.50
24.00
C
C
16.63
4.25 .63 .125
2X RSW
1.00
.44
.50
14.79
25 LOUVERS
20 LOUVERS
D
SECTION C-C
.37
65°
DETAIL D
SCALE 1 : 2
-002 (COVER, WALL MOUNT, T13-WM, SURFACE) SHOWN
Figure 9 - T13-WM Surface Mount
TUR-10170
