HARDWIRED INSTALLATION REQUIRED

THIS HEATER MUST BE GROUNDED AND

HARDWIRED TO A PROPERLY SIZED

CURRENT PROTECTION CIRCUIT BREAKER

IN ACCORDANCE WITH THE (US) NATIONAL

ELECTRIC CODE AND LOCAL CODES.

KEEP THIS USER MANUAL FOR FUTURE

REFERENCE.

MODEL: GH7500

GARAGE

HEATER

WARRANTY REGISTRATION

SAFETY INSTRUCIONS

ELECTRICAL SAFETY INFORMATION

SPECIFICATIONS

LOCATIONG THE HEAER

INSTALLATION

MOUTING THE BRACKET

HANGING THE HEATER IN THE BRACKET

CONNECTING THE POWER

ADJUSTING AIR FLOW

OPERATING

CARE AND MAINTENANCE

TROUBLESHOOTING

WARRANTY INFORMATION

.................................................................

..........................................................................

...............................................

................................................................................

.......................................................................

........................................................................................

....................................................................

.......................................

...................................................................

..........................................................................

............................................................................................

...................................................................

.............................................................................

..................................................................

CONTENTS

WARRANTY REGISTRATION

Thank you for purchasing a TURBRO Electric Heater!

We're extremely happy that you have decided to join us.

SAFETY INSTRUCTIONS

Please read all instructions before attempting to assemble, operate or install the product.

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock,

and injury to persons, including the following:

• This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.

• Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, etc. and curtains at least 3 feet (0.9 m)

from the front of the heater and keep them away from the sides and rear.

• Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left

operating and unattended.

• Always turn off the power of heater when not in use.

• Do not operate any heater after it malfunctions. Disconnect power at the service panel and have the heater inspected

by a reputable electrician before reusing.

• Do not use outdoors.

• This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate the heater

where it may fall into a bathtub or other water container.

• This heater is not suitable for use in corrosive atmospheres such as marine greenhouses or chemical storage areas.

• To disconnect the heater, turn off the controls and power to the heater circuit at the main disconnect panel.

• Heater air flow must be directed parallel to or away from the adjacent wall.

• Observe wall, floor and ceiling clearance requirements.

To express our appreciation, we are giving you a warranty extension. All you need to do is to register your new product

at https://www.turbro.com/warranty. After registration, you'll get a 1-year extension on the 1-year manufacturer warranty

for a total of 2 years. It's that easy!

When using this heater for the first time, or after a long period of storage. The product may produce a 'new product' smell.

Please turn on the heater and run it for at least 15 minutes at the maximum heat level to remove the smell. The smell will

dissipate after a few minutes of use.

Tip for First-Time Use

During the initial use of this heater, or after prolonged storage, it may produce fumes resulting from moisture and dust.

These fumes are not harmful and will dissipate within a few minutes. However, to prevent any distress to birds and small

pets who are sensitive to fumes, we advise against using the heater around them during this period.

PET OWNERS WARNING

• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or

fire, or damage the heater.

• To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use it on soft surfaces, like a bed,

where openings may become blocked.

• Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire,

electric shock, or injury to persons.

• If you use the mounting bracket, make sure that both the mounting structure and anchoring hardware can reliably

support the weight of the heater.

• This heater may display ‘ER’ on screen which means the parts of the heater are getting excessively hot. Please turn off

the heater immediately and check for any objects on or near the heater that might be obstructing the airflow or causing

high temperatures.

DO NOT OPERATE THE HEATER WHEN DISPLAYING 'ER’ ON SCREEN.

Any attempt to disassemble or modify the product may cause damage.

KEEP THESE INSTRUCTIONS

WARNING

This heater requires hardwire installation (no plug). The installation of this product must be carried out by a Certified

Electrician and in accordance with all local and national electrical codes.

• Use only copper wires rated for at least 167℉(75ºC).

• Connect to properly grounded outlets only.

• All wiring must be done according to national and local electrical codes in the United States and the heater must be

grounded as a precaution against possible electric shock. Heater circuit must be protected with proper fuses.

• All electrical power must be disconnected and the main service box must be locked before inspecting, cleaning or

servicing the heater. This is a precaution to prevent serious electric shock.

WARNING

Improper installation or failure to follow the procedures outlined in this instruction manual can result in serious electrical

shock.

WARNING

ELECTRICAL SAFETY INFORMATION

SPECIFICATIONS

Power Supply

Rated Current

Rated Power

Adjustable Thermostat

Noise Level

Net Weight

Dimensions

Remote Control

240V / 60Hz

31.3A

7500W / 25589BTU

50°F - 95°F / 10ºC - 35ºC

≤ 55 dBA

23.8lbs / 10.8kg

14 × 10.6 × 12.6in

35.5 × 27 × 32cm

Yes

LOCATING THE HEATER

WARNING

• FOR INDOOR USE ONLY, PLACE THE HEATER IN A DRY LOCATION FREE OF GASOLINE, PAINT,

FLAMMABLE LIQUIDS OR COMBUSTIBLE DUST OR MATERIALS.

• DO NOT USE EXTENSION CORDS

• Install heater out of traffic areas, maintaining the clearances stated in Figure 2. Ensure that the airflow is not restricted

or obstructed by any items, and it should gently sweep exposed walls instead of blowing directly onto them.

12 in

8 ft / 2.4m

13in 7⅜in

24in

Minimum

Distance

to Wall

Minimum

Distance

to Wall

Minimum

Distance

From

Discharge

to Any Object

Minimum

Distance

to Floor

14in

Front View Side View

10 in

Figure 2

• When more than one heater is used in an area, the heaters should be arranged so that the air discharge of each heater

supports the air flow of the others to provide best circulation of warm air, as indicated in Figure 3.

Figure 3

INSTALLATION

Locate a ceiling joist or other firm structural element or support to mount the heater and point at the desired direction of

airflow.

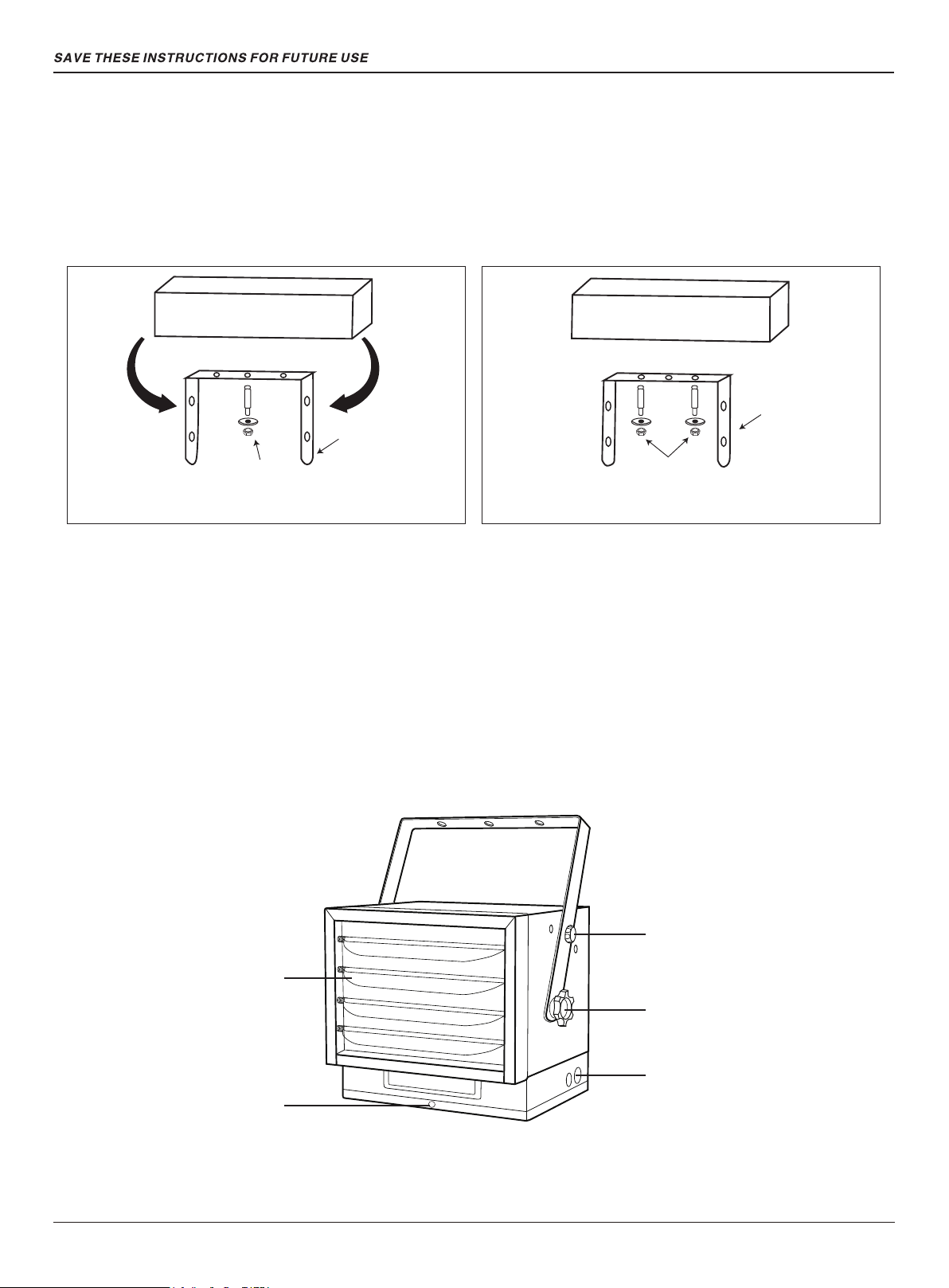

A. Mount the bracket with the wood joist. Refer to Figures 4a and 4b.

1. Drill a 0.25” pilot hole in the wood joist for the 3/8” lag bolt(s).

2. Place the bolt(s) and washers as shown in the Figures 4a or 4b.

Figure 4a: For Single-Bolt Mounting (center bracket hole only).

(If you want to swivel the heater, a longer Lag bolt may be required to properly secure the heater. This bolt is ot included.)

Figure 4b: For Double-Bolt Mounting (both off-center holes are used).

Tools Required (not included)

• Electric screwdriver

• Tape measure

• Electric power drill

Hardware Required (included)

MOUNTING THE BRACKET

A B C

Descri ption

3/8” Diameter Lag Bolt

Washer

M10 Expansion Bolt

Quantity

Part

Figure 4a: Single-Bolt Mounting, To Allow Swivel

WOOD JOIST

WASHER

3/8" DIAMETER

LAG BOLT

Figure 4b: Double-Bolt Mounting, For Fixed Position

WOOD JOIST

WASHER

BRACKET

3/8" DIAMETER

LAG BOLT

BRACKET

1. Lift the heater into the mounting bracket and align the lower bracket holes with the threaded holes nearest the heater’s

center.

2. Thread a large knob-screw through the hole on each side of the bracket.

3. Aim the heater horizontally or tilted by aligning the upper bracket holes with the top threaded holes on the heater and

secure with the small knob-screws and tighten all (See Figure 5).

NOTE: This heater is heavy. It is recommended 2 or more adults fulfill the assembly at this step to prevent damage or

injury.

HANGING THE HEATER IN THE BRACKET

B. Mount the bracket with the concrete ceiling. Refer to Figures 4c and 4d.

1. Drill a 0.47” pilot hole in the ceiling joist for the expansion bolt(s).

2. Place the bolt(s) and washers as shown in the Figures 4c or 4d.

Figure 4c: For Single-Bolt Mounting (center bracket hole only).

Figure 4d: For Double-Bolt Mounting (both off-center holes are used).

Figure 4c: Single-Bolt Mounting, To Allow Swivel

BRACKET

M10 EXPANSION

BOLT

M10 EXPANSION

BOLT

Figure 4d: Double-Bolt Mounting, For Fixed Position

CONCRETE CELLING

BRACKET

Figure 5

Use top slots/hole in bracket

and small knob-screws if

heateris to be tilted down.

Lower bracket hole

/ Large knob-screw

Adjust louvers up or down

to control air flow.

Poke the hole, and attach

the cable connector to it.

Remove screw from the

bottom lid to access power

block, See Figure 7.

WARNING: This appliance must be grounded.

WARNING: This appliance must connect to a current protection circuit or device at 50 Amp or less before being

connected to power supply!

NOTE: All wiring must be carried out by a Certified Electrician and must be in accordance with national and local

electrical codes in the United States.

1. With the power off at the breaker, remove the screw from the bottom lid to access the power block of the heater (See

Figure 5).

2. Poke the hole at the side of the heater. Attach the cable connectors to the hole (See Figure 5) and slide the wire

through the cable connector.

NOTE: For certain applications, conduit may be required (See Figure 6). Check the local electrical codes. If you plan to

run the wiring in conduit and want the flexibility to adjust the heater's position, make sure to purchase sufficient

flexible conduit that allows for easy turning of the heater.

3. Pull enough wire into the heater and connect the wire to the Power Block located in the electrical area of the heater

(See Figure 7).

4. Must tightly torque all terminal screws and power block lugs. Refer to SPECIFICATION and NEC / local codes, for

the required torque values. Failure to do so may cause overheating.

5. Turn on power at the main circuit breaker panel.

CONNECTING THE POWER

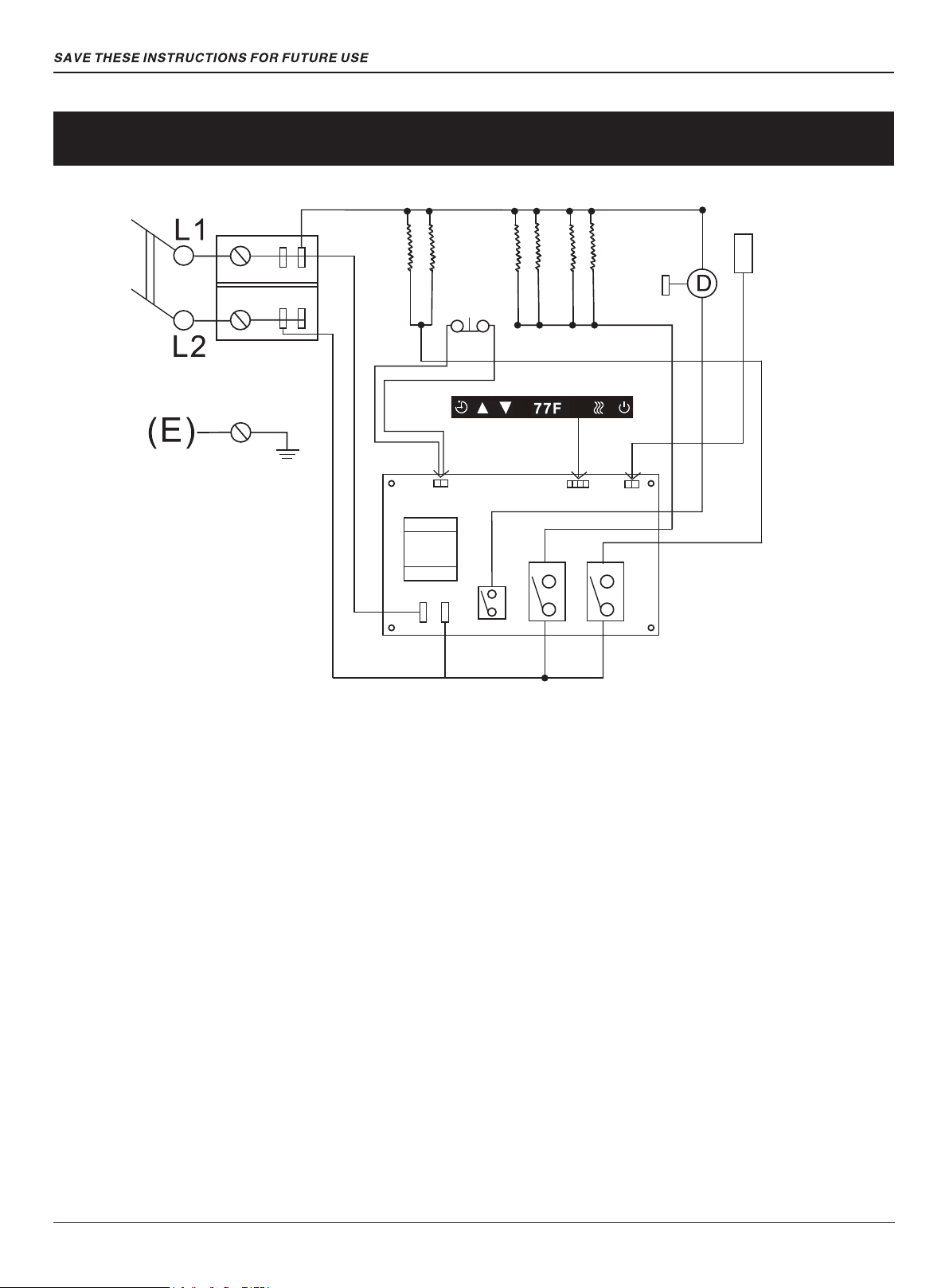

Wiring diagram

Temperature

sensor

Motor

Capacitor

overheat

Control panel

Electronic circuit board

ACL1 ACL2

J3 J1 J2

Terminal station

AC 240V/60Hz

1250W Element

1 6 2 3 4 5

WARNING: It is advised that at the start of each heater season, the power should be turned off at the circuit breaker and

the LI & L2 lug screws checked for tightness and proper torque. The heater should be cleaned and checked for

mechanical and electrical integrity. See SPECIFICATION and NEC / local codes.

HOT

Figure 7

GROUND

(or bare copper)

HOT

If Heater is to

be connected

with NM Cable.

FLEXIBLE

NM CABLE

FLEXIBLE NM CABLE

CONNECTOR

(use per electircal codes)

If Heater is to

be connected

with Flexible

Conduit.

FLEXIBLE CONDUIT

CONNECTOR

(use per electircal codes)

3ft.

min.

If Heater is to

be turned

and wire is

inside conduit.

FLEXIBLE

CONDUIT FLEXIBLE

CONDUIT

CONNECTOR

CONDUIT CONDUIT

CONNECTOR

Figure 6

ADJUSTING AIR FLOW

WARNING: To prevent electric shock, disconnect the power to the heater at the main service box before attempting to

adjust the louvers.

If the heater is mounted on a single center lag bolt (see Figure 4a / 4c), you can adjust the entire heater and

bracket assembly by turning it left or right.

1. Swivel the unit

NOTE: DO NO OPERATE THE HEATER WITH THE FRONT LOUVERS CLOSED, OTHERWISE CAUSE DAMAGE

TO THE HEATER.

Loosen the top Small Knob-Screws and thread them into provided holes in the heater until tight.

2. Tilt the unit

See Figure 5.

3. Adjust the louvers as desired.

NOTE: When the heater is on, please avoid adjusting the louvers with bare hands to prevent burns.

90 degrees 67.5 degrees

CEILING

KEY HOLES

45 degrees

OPERATING

WARNING: The heater must be properly installed before use.

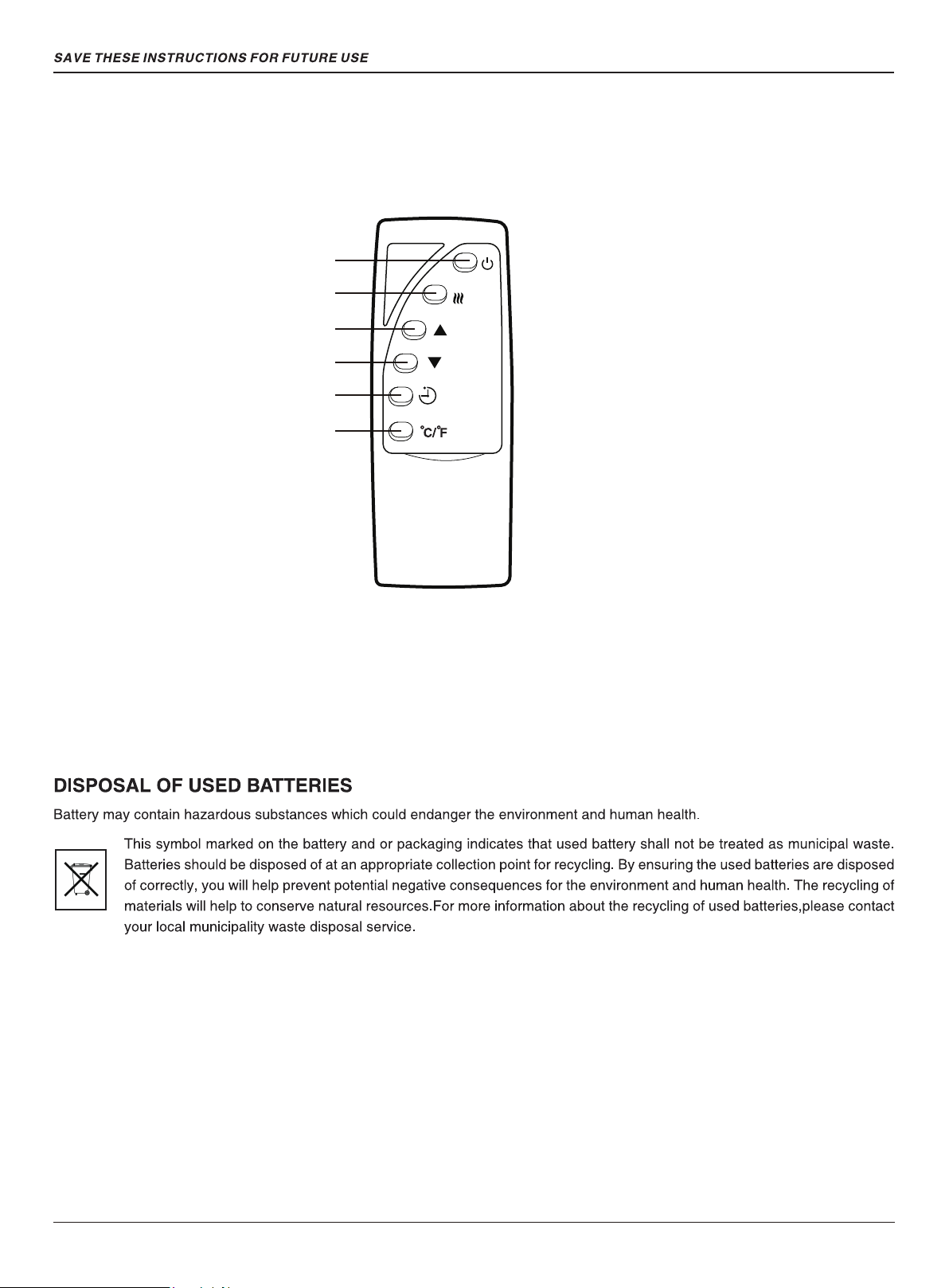

Control Panel

Power

1Heater

2LCD Screen

Down

4Up

5Timer

6 5 4 3 2

1. Power Button

• Press this button to power on the heater, all icons will display on the screen.

• Press the Power Button to turn off the heater, the motor will be turned off in 30 seconds, and the heat will be blown out.

• Press the Power button for 10 seconds, to lock the heating function. At this time, the heater button has no function when

pressing it. Then press the Power button for 10 seconds again, to unlock the heating function. (The digital screen

flashes 6 times before the setting is locked or unlocked).

NOTE: When the heating function is locked, press the heater button only to switch between ‘OFF’ and ‘FA’.

3. LCD Screen

• Displays information about the settings you are using.

• After adjusting the heater and timer settings, the screen will display the working environment temperature, heating

stages and timer setting alternatively for each 15 seconds.

2. Heater Button

• Press the Heater Button to turn on the heat. Press again to cycle through different setting as follows:

• Press and hold the Heater button for 5 seconds to switch between Fahrenheit (°F) and Celsius (°C) display.

NOTE: The heating function activates only when the setting temperature is higher than the environment temperature;

otherwise, the heater engages the fan only.

Display Value

OFF

Heater Performance

Fan Off, Heating function Off, The fan will be turned off in 30s.

Fan On, Heating function Off

Fan On, Heating function On, The default setting temperature is 77°F/25°C.

Heater Setting

OFF

Fan Only

5000W Low

7500W High

When the heater is plugged in, all buttons will flash and the screen will display the environment temperature

and heating stage ‘OFF’ alternatively every 15 seconds.

6. Timer Button

• Controls the amount of time that the heater will run before powering off.

• Press the Timer button to activate the timer function. Press again to cycle through different timer settings. See the table

for detailed timer setting instruction.

When the desired temperature is reached, the heater will automatically stop heating, and the environment

temperature reading will flash continuously.

NOTE: Heater will cycle on and off to maintain the set temperature.

THERMAL CUT-OUT

The heater will automatically shut off when parts of it overheat. The heater will turn ON again when the abnormal

temperature returns to normal levels. Should the unit overheat and cause the thermal cut-out to cycle, the cause

of the overheating should be determined and corrective action taken before further operation.

NOTE: When the thermal cut-out is activated, the control panel will show 'ER’ In this case, please turn off the

heater immediately and check for any objects on or near the heater that might be obstructing the airflow or

causing high temperature.

DO NOT OPERATE THE HEATER WHEN SHOWING 'ER’.

4 & 5. Up & Down Button

• Press the Up & Down button to adjust the temperature setting between 50°F - 95°F(10°C - 35°C). See the table for

detailed temperature setting instruction.

NOTE: Please note that the Up & Down button functions exclusively when the heating function is on.

Fahrenheit

Temperature

Display

50°F 51°F 52°F ... 93°F 94°F 95°F

50F 51F 52F ... 93F 94F 95F

Celsius

Temperature 10°C 11°C 12°C ... 33°C 34°C 35°C

10C 11C 12C ... 33C 34C 35C

Timer Interval 1 Hour 2 Hours ... OFF

Display 1 H 2 H

3 Hours

3 H

4 Hours

4 H

7 Hours

7 H

8 Hours

8 H

... \

• When the timer function is active, press the Up & Down button to adjust the timer setting.

• The timer function will exit without any action in 5s.

NOTE: The timer function is not an excuse to leave the heater unattended.

The remote control can be used up to 19.7 feet (6 meters) away from the heater, so long as there are no obstructions

between the remote control and the heater. The remote can control all the settings as the control panel does.

Remote Control

Press and slide the battery cover on the rear of the remote and remove the cover. insert two new AAA 1.5V batteries

into the battery compartment. Ensure that the polarity is correct. Batteries are not included in the package due to safety

during transportation.

NOTE: Do not mix old and new batteries together in the remote. Do not mix alkaline, standard (carbon-zinc), or

rechargeable (NiCad, NiMh, etc.) batteries together.

Remote Control Batteries

Power

Heater

Down

Timer

°F/°C Switch

NOTE:

Before cleaning, make sure the heater is OFF and has been disconnected from the power at the circuit breaker and that

the heating element of the heater is cool.

Do not disassemble the heater to clean it.

• Use a vacuum or duster to remove dust and dirt from the heater and vent areas.

• Clean with a soft, damp cloth and buff with a dry cloth to maintain the luster of this product.

• Never use abrasive cleaners, liquid sprays, or any cleaner that could scratch the surface of the appliance.

• During summer or at other times when the appliance is not in use, disconnect the power supply, and cover the whole

appliance with a dust cloth. Moreover, keep the appliance in a dry and cool place.

• All other servicing should be performed by qualified service personnel. Do not try to repair the heater yourself.

CARE AND MAINTENANCE

TROUBLESHOOTING

Possible Cause(s)

1. Overheat safety cut-off.

2. Temperature sensor is loosened

or damaged.

DISCONNECT THE POWER!

1. Check if the heater has any objects to

be covered, and if the motor is working.

Normally, when the temperature is below

149°F (65°C), the heater will restore to

the status of your settings.

2. Check the temperature sensor, re-tighten

it. If it still does not work, contact turbro

service team.

1. Temperature sensor is loosened.

2. Temperature sensor is damaged.

DISCONNECT THE POWER!

1. Check the temperature sensor, and re-

tighten it.

2. If it still does not work, contact turbro

service team.

No buttons work over 20 seconds. DISCONNECT THE POWER!

Restart the unit.

Ambient temperature is over

95°F( 35°C).

When the ambient temperature is below

95°F( 35°C), it will restore to the status of

your settings.

Popular Heater manuals by other brands

BN Thermic

BN Thermic SCHG-30 instructions

HAEGER

HAEGER iHeat Plus HE-20T.002B User instructions

Kingfisher

Kingfisher HT10FTEB manual

Biddle

Biddle Forceflow 900 Series Installation, operating, & maintenance instructions

Reznor

Reznor EURO-C 4000 RJL Application Instructions

Desa

Desa CHD24B owner's manual

White Mountain Hearth

White Mountain Hearth VFCM-25-3 Installation instructions and owner's manual

Frico

Frico PA3500 Series Original instructions

emerio

emerio CBC-124348.2 instruction manual

Hayward

Hayward ED2 FAULT CODE THUMBNAILS

Philco

Philco POH921F user manual

USSC

USSC Forester 3500 owner's manual

Zibro

Zibro Laser FF 30 operating instructions

Monuments

Monuments Edge Series Installation and operation manual

Stelrad

Stelrad LECCO quick start guide

Pro-Elec

Pro-Elec PEL00923 quick start guide

Cadet

Cadet SoftHEAT owner's guide

Trotec

Trotec TCH 2310 E operating manual

TURBRO Neighborhood GH7500 User manual

Popular Heater manuals by other brands
