TurfEx TL50 Manual

March 15, 2019
Lit. No. 72393, Rev. 00
5-Gallon Lawn Sprayer
TL50
Owner's Manual and Operating Instructions
Original Instructions
This document supersedes all editions with an earlier date.
CAUTION
Read this document before operating or
servicing the sprayer.
California Proposition 65
WARNING
This product can expose you to chemicals, including
lead, which are known to the State of California to cause
cancer and birth defects or other reproductive harm.

Lit. No. 72393, Rev. 00 3 March 15, 2019
TABLE OF CONTENTS
PREFACE..................................................................................................................................................................4
SAFETY ....................................................................................................................................................................5
OPERATING INSTRUCTIONS.................................................................................................................................9
AFTER SPRAYING CLEAN-OUT / MAINTENANCE / STORAGE .......................................................................10
TROUBLESHOOTING............................................................................................................................................11

Lit. No. 72393, Rev. 00 4 March 15, 2019
PREFACE
This manual has been prepared to acquaint you with
the safety information, operation, and maintenance
of your new sprayer. Improper operation could cause
personal injury and/or equipment and property
damage. Read and understand this Owner's Manual
before operating or making adjustments. Keep this
manual accessible.
Your authorized dealer is the best source of
replacement parts & service. To obtain prompt,
efcient service, remember to give the following
information:
• Correct part description and part number.
• Model number of yoursprayer.
OWNER'S INFORMATION
Owner's Name: ______________________________________________________________________
Date Purchased: _____________________________________________________________________
Sales Outlet Name: _________________________________________ Phone:_________________
Sales Outlet Address: _________________________________________________________________
Sprayer Type (Model): _________________________________________________________________
Production date (stamped on last page of this manual): _______________________________________
Part description and part numbers can be obtained
from the illustrated Parts List. For warranty work
always take your original sales slip, or other evidence
of purchase date, to your distributor/dealer.
WARRANTY REGISTRATION
Warranty registration is available online at
www.TurfExproducts.com. Under "Support" click
"Warranty Registration" and submit the form online.

Lit. No. 72393, Rev. 00 5 March 15, 2019
PERSONAL SAFETY
• Wear only snug-tting clothing while working on
your sprayer system.
• Wear protective clothing, eye protection, and
chemical-resistant gloves when lling, using,
and cleaning the sprayer. Wear additional
protective gear, such as face mask or apron, as
recommended on the chemical label.
• Do not wear jewelry or a necktie, and secure long hair.
• Wear safety goggles to protect your eyes from
brine, battery acid, gasoline, dirt, and dust.
• Do not eat, drink, smoke, rub your eyes, or touch
bare skin while spraying.
• Always have a re extinguisher rated BC handy, for
ammable liquids and electrical res.
• Never point spray wand at people or animals.
BATTERY SAFETY
SAFETY
SAFETY DEFINITIONS
NOTE: Indicates a situation or action that can
lead to damage to your sprayer and vehicle or
other property. Other useful information can also
be described.
WARNING
Indicates a potentially hazardous situation
that, if not avoided, could result in death or
serious personal injury.
CAUTION
Indicates a potentially hazardous situation
that, if not avoided, may result in minor or
moderate injury. It may also be used to alert
against unsafe practices.
SAFETY PRECAUTIONS
Improper operation could cause personal injury and/or
equipment and property damage. Read and understand
labels and the Owner's Manual before operating or
making adjustments.
FUSES
If a problem should occur and fuse replacement is
necessary, the replacement fuse must be of the same
type and amperage rating as the original. Installing a
fuse with a higher rating can damage the system and
could start a re. Fuse Replacement, including fuse
ratings and locations, is located in the Maintenance
section of this Owner's Manual.
CAUTION
Batteries normally produce explosive gases
which can cause personal injury. Therefore,
do not allow ames, sparks, or lit tobacco
to come near the battery. When charging or
working near a battery, always cover your
face and protect your eyes, and also provide
ventilation.
• Disconnect the battery before removing or
replacing any electrical components.
WARNING
• Always make sure personnel are clear of
areas of danger when using equipment.
• Before working with the sprayer, secure all
loose-tting clothing and unrestrained hair.
• Always wear safety glasses with side shields
when servicing sprayer. Failure to do this
could result in serious injury to the eyes.
• Do not climb onto or ride on sprayer.

Lit. No. 72393, Rev. 00 6 March 15, 2019
SAFETY
CHEMICAL SAFETY
Sprayer Leak If the sprayer develops a leak, immediately stop spraying. Turn OFF power to
the sprayer and follow directions below, as applicable.
Bodily Chemical
Contact
Personal contamination can occur when chemicals splash, spill, or spray
directly onto a person.
1. Immediately follow First Aid instructions on chemical label.
General procedures include:
1a. Eyes – immediately ush with water.
1b. Skin – wash all contaminated skin surfaces with soap and water.
1c. Clothing – remove contaminated clothing. Dispose of heavily contaminated
clothing per chemical label instructions.
2. Seek medical advice if instructed on the label or if the victim experiences
symptoms of harmful effects. Bring the chemical label for reference.
Poisoning by
Ingestion or
Inhalation
In case of poisoning from ingestion or inhalation:
If the victim has collapsed or is not breathing, call 911. Otherwise:
1. If you are the victim, immediately seek assistance from nearby personnel, because
you may become incapacitated.
2. Immediately follow First Aid instructions on chemical label.
3. Call a poison control center for further advice. In the U.S., call 1-800-222-1222.
Have the chemical label available for reference.
Chemical Spills Chemical spills must quickly be contained and properly cleaned up.
Refer to the chemical label for any specic clean-up instructions.
General procedures include:
1. Control the spill by stopping the source of the spill.
2. Contain the spill so that it does not spread and get into water sources.
3. Clean up the spill immediately.
4. Seek additional advice from:
– Chemical manufacturer: See chemical label for contact information.
– State pesticide regulatory agency: In the U.S., call the National
Pesticide Information Center at 1-800-858-7378 for assistance in
contacting your state's agency.
CAUTION
Read and adhere to manufacturer's
material package labeling, including
Safety Data Sheet requirements.
Immediate response is necessary in the event of
sprayer leaks, bodily chemical contact, poisoning, or
spills. See instructions below.

Lit. No. 72393, Rev. 00 7 March 15, 2019
SAFETY
DURING OPERATION
• Read and follow each chemical label's instructions
and warnings.
• Avoid inhaling, ingesting, or coming into contact
with any chemicals.
• Know applicable licensing and regulatory
requirements for the chemical(s) you plan to use.
• Know emergency procedures before handling
chemicals. Carefully review the Chemical Safety
section. Also see First Aid instructions on the
chemical label.
• Wear protective clothing, eye protection, and
chemical-resistant gloves when lling, using,
and cleaning the sprayer. Wear additional
protective gear, such as a face mask or apron, as
recommended on the chemical label.
• Exercise extra caution around children and pets.
Keep sprayer and spray materials away from them
at all times.
• Do not mix or pour chemicals in an enclosed,
unventilated area.
• Do not use ammable or corrosive chemicals in
the sprayer.
• Flush the sprayer before switching chemicals in
order to prevent dangerous chemical interactions.
• Store pesticides in a correctly labeled container, in
a secure location.
• Monitor the health of operators frequently exposed
to pesticides, as recommended by the chemical
label or local/federal regulations.
• Do not allow anyone younger than 16 years of age
to operate sprayer.
BEFORE SPRAYING
• Inspect and prepare sprayer before each use as
directed in this manual.
• Do not start sprayer until ready to spray in order to
avoid unintentional spray release.
• Wear additional personal protective equipment
if you will be spraying overhead. Wear
chemical-resistant head and neck protection,
full-face mask (or half-face mask with sealed
goggles), and consider using a respirator.
• Do not spray when wind speed exceeds 4 mph in
order to minimize spray drift.
• Keep sprayer and spray materials away from
children and pets. Pesticides can be especially
toxic to children and animals.
• Do not allow anyone younger than 16 years of age
to operate sprayer since pesticides are especially
toxic to children.

Lit. No. 72393, Rev. 00 8 March 15, 2019
SAFETY
DURING SPRAYING
• Do not overapply. Apply at rate recommended
by chemical manufacturer. Excess pesticide can
be dangerous to humans and animals, damage
plants, and contaminate soil and water sources.
• Do not eat, drink, smoke, rub your eyes, or touch
your bare skin while handling chemicals or spraying.
• Never point the spray wand at people or animals.
• Always hold the spray wand rmly when using it to
spray at higher pressures in order to prevent wand
from whipping. Keep good footing and balance at
all times.
• Do not spray near open ames or sources of heat.
• Exercise extra caution when spraying near areas
accessible to children and/or pets.
• Clean up spills immediately per instructions on the
chemical label.
• See Troubleshooting section of this manual before
attempting any repairs. Wear personal protective
equipment and follow safety instructions.
AFTER SPRAYING
• Clean sprayer immediately after use according to
the directions provided in this manual.
• Decontaminate yourself after you are done
spraying and have cleaned the sprayer. Wash all
exposed areas of the body with soap and water,
and remove and launder clothing.
• Dispose of or store remaining chemicals in secure
storage with correctly-marked container.

Lit. No. 72393, Rev. 00 9 March 15, 2019
ASSEM BLY
This unit comes fully assembled.
IMPORTANT: Do not modify sprayer design.
BATTERY CHARGING
It is recommended to charge the battery for 8–10
hours before using, or if the battery has been
stored for six or more months without usage. Once
fully charged, the battery should be able to power
the sprayer for 40 gallons of uid, or spray eight
consecutive tankfuls.
To charge the battery:
1. Plug the supplied lithium ion battery charger into a
110V AC electrical receptacle.
2. Insert the plug on the opposite end of the charger
into the charging jack located on the back panel of
the sprayer.
3. Unplug the charger from the unit and AC
receptacle when charging is complete.
OPERATING INSTRUCTIONS
SPRAYER OPERATION
This sprayer is designed to be pulled or pushed by hand.
Pour solution into the tank and stir to mix. For liquid
chemicals it is possible to mix by spraying the spray
wand into the tank.
Turn the switch to the "ON" position and spray by
squeezing the lever on the spray wand. The unit is
supplied with a 1.0 gal/min demand pump that will
only operate while the lever on the spray wand is
depressed.
Operation Precautions
• Do not operate the pump in an explosive
environment. Arcing from the motor brushes
or switch or excessive heat from an improperly
cycled motor may cause an explosion.
• Do not pump gasoline or other ammable liquids.
• Do not assume uid compatibility. If the uid is
improperly matched to the pump's elastomers, a
leak may occur.
CAUTION
Never leave the charger connected to the
battery for more the 20 hours, as this may
damage the battery.
CAUTION
Read and adhere to manufacturer's
material package labeling,
including Safety Data Sheet
requirements.
CAUTION
Always use appropriate personal protective
equipment, including gloves and safety
goggles, when lling sprayer.
WARNING
Never operate equipment when under the
inuence of alcohol, drugs, or medication that
might alter your judgment and/or reaction time.
CAUTION
When using spray wand, never point it at
objects (i.e., humans, vehicles, etc.). Keep at
least 10 feet away from objects while using
the spray nozzle.

Lit. No. 72393, Rev. 00 10 March 15, 2019
AFTER SPRAYING CLEAN-OUT / MAINTENANCE / STORAGE
AFTER SPRAYING CLEAN-OUT
Read and follow each chemical label's instructions
and warnings.
Wear protective clothing, eye protection, and chemical-
resistant gloves when lling, using, and cleaning sprayer.
Wear additional protective gear, such as face mask or
apron, as recommended on the chemical label.
After every use, ll the sprayer part way with water.
Start the sprayer and allow clear water to be pumped
through the plumbing system and out through the
spray wand.
Rell the tank about half full with plain water and
use a chemical neutralizer such as Nutra-Sol®tank
cleaning solution or equivalent, and repeat cleaning
instructions. Flush the entire sprayer with the
neutralizing agent. Follow the chemical manufacturer’s
disposal instructions of all wash or rinsing water.
WARNING
Some chemicals will damage the pump valves
if allowed to soak untreated for a long period
of time. Always ush the pump with water
after use. Do not allow chemicals to sit in
pump for extended times of idleness. Follow
chemical manufacturer's instructions on
disposal of all waste water from the sprayer.
Nutra-Sol® is a registered trademark of BASF.
CAUTION
Always use appropriate personal protective
equipment, including gloves and safety
goggles, when lling or emptying sprayer.
WARNING
Do not operate a machine in need of
maintenance.
Periodic Maintenance
• Inspect sprayer broken or worn parts.
• Inspect tubing, hose, and wiring.
Fuse Replacement
The sprayer contains a 5A fuse next to the
power switch. If a problem should occur and fuse
replacement is necessary, the replacement fuse must
also have a 5A rating. Installing a fuse with a higher
rating can damage the system and could start a re.
WINTER STORAGE
Proper care and maintenance will prolong the life of
the sprayer.
• Drain all water and chemical out of the sprayer
and clean as described in the "After Use" section
of this manual, paying special attention to pump
and valves. These items are especially prone to
damage from chemicals and freezing weather.
• The sprayer should be winterized before storage
by pumping a solution of RV antifreeze through
the entire plumbing.

Lit. No. 72393, Rev. 00 11 March 15, 2019
TROUBLESHOOTING
TROUBLESHOOTING
If the pump will not run:
• Check the fuse next to the power switch. If the
fuse is blown or damaged, replace it with a new
5A fuse.
• Ensure that the battery is fully charged.
• Check that the ON/OFF switch is in the "ON" position.
• Ensure that the strainer located on bottom of tank
is free of debris.
WARNING
Do not operate a machine in need of
maintenance.
WARNING
Read all warning instructions and safety
messages before servicing the sprayer.
WARNING
Always wear safety glasses with side shields
when servicing sprayer system. Failure to do
this could result in serious injury to the eyes.
Whenever service is necessary, your local
Tur f Ex ®dealer knows your sprayer system best.
Take your sprayer system to your local dealer for any
maintenance or service needs on your unit.

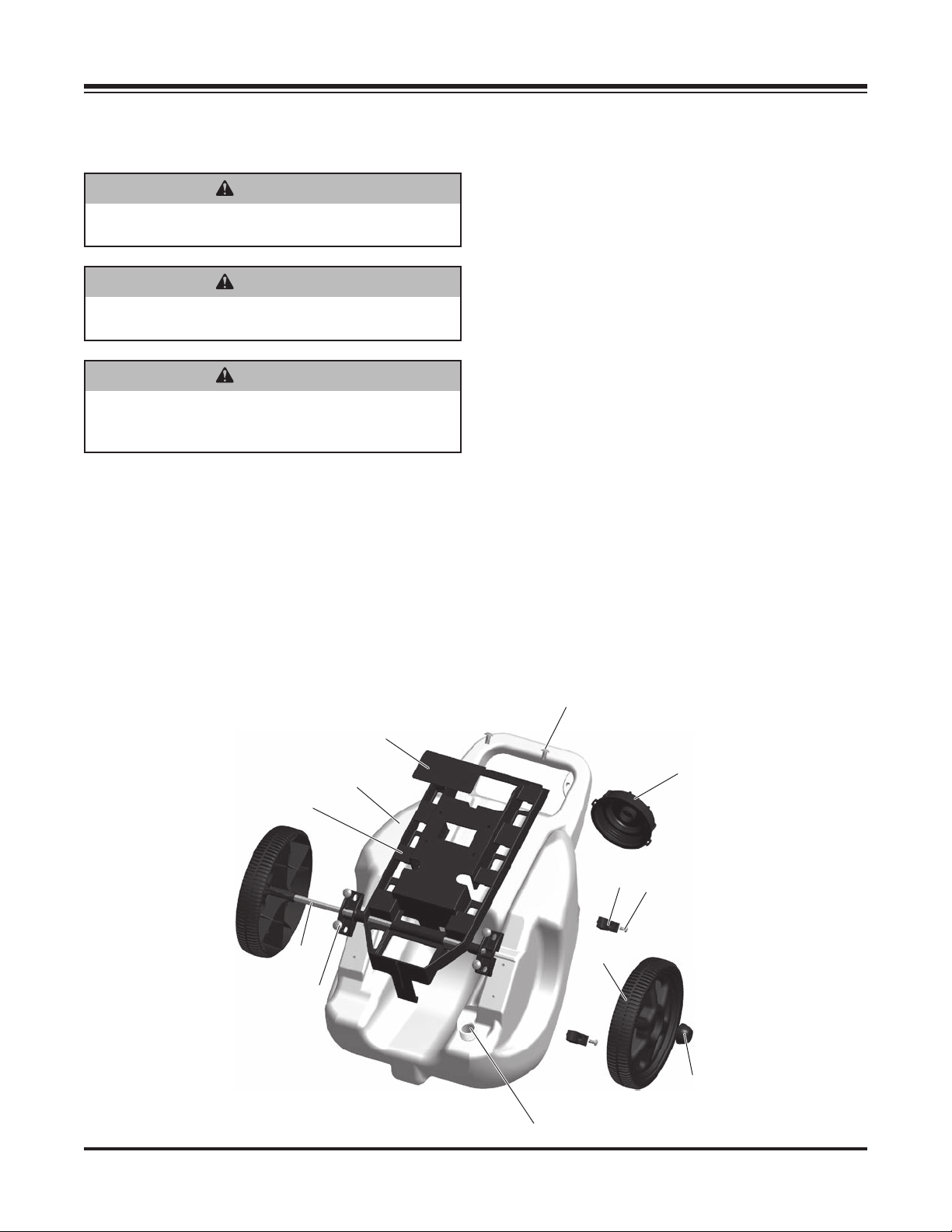

Strainer Location
Back
Panel
Tank
Charger
Panel
Door
1/4" x 1/2" Pan Head Screw
Tank
Lid
Axle
1/4" x 1/2"
Pan Head
Screw
Wand
Clip Wand
Clip
Screw
3/8"
Cap Nu
t
Wheel
Important Pump Warranty Return
Safety Instructions
When you return your pump for warranty or repair,
you must always do the following:
• Flush chemical residue from the pump (best done
in the eld).
• Attach a tag to the pump identifying the type of
chemicals sprayed with that pump.
• Include complete description of the operation
problem, such as how pump was used, symptoms
of malfunction, etc.
Since pumps can contain residues of toxic chemicals,
these steps are necessary to protect all the people
who handle return shipments and to help pinpoint the
reason for the breakdown.

Lit. No. 72393, Rev. 00 12 March 15, 2019
Copyright © 2019 Douglas Dynamics, LLC. All rights reserved. This material may not be reproduced or copied, in whole or in part, in
any printed, mechanical, electronic, lm, or other distribution and storage media, without the written consent of TrynEx International, LLC.
Authorization to photocopy items for internal or personal use by TrynEx International outlets or equipment owner is granted.
TrynEx International reserves the right under its product improvement policy to change construction or design details and furnish equipment
when so altered without reference to illustrations or specications used. TrynEx International may require or recommend optional
equipment for sprayers. TrynEx International offers a limited warranty for all equipment and accessories. Warranty information available at
www.TurfExproducts.com. The following are registered (®) or unregistered (™) trademarks of Douglas Dynamics, LLC: TurfEx®.
Printed in U.S.A.
A DIVISION OF DOUGLAS DYNAMICS, LLC
TrynEx International, LLC
531 Ajax Drive
Madison Heights, MI 48071-2429
www.turfexproducts.com
