TurfEx TL-80 Operating instructions

Walk-Behind Sprayer
TL-80 & TL-80SS
Owner's Manual and Installation Instructions
Original Instructions
November 1, 2017
Lit. No. 76760, Rev. 00
CAUTION
Read this document before operating or
servicing the sprayer.
This document supersedes all editions with an earlier date.
This document is for TurfEx®TL-80 and TL-80SS walk-behind sprayers beginning with
serial numbers TG-300099 and higher, or TH-300099 and higher.

Lit. No. 76760, Rev. 00 November 1, 2017

Lit. No. 76760, Rev. 00 3 November 1, 2017
TABLE OF CONTENTS
PREFACE.................................................................................................................................................................. 5
Owner's Information............................................................................................................................................5
SAFETY ....................................................................................................................................................................7
OPERATING ........................................................................................................................................................... 12
MAINTENANCE...................................................................................................................................................... 13
TROUBLESHOOTING............................................................................................................................................ 13
CALIBRATION........................................................................................................................................................ 14

Lit. No. 76760, Rev. 00 November 1, 2017

Lit. No. 76760, Rev. 00 5 November 1, 2017
PREFACE
This manual has been prepared to acquaint you with
the safety information, operation, and maintenance
of your new walk-behind sprayer. Please read this
manual carefully and follow all recommendations. This
will help ensure profitable and trouble-free operation
of your sprayer. Keep this manual accessible. It is a
handy reference in case minor service is required.
When service is necessary, bring your walk-behind
sprayer to your distributor. They know your sprayer
best and are interested in your complete satisfaction.
Register your sprayer online at www.turfexproducts.com
OWNER'S INFORMATION
Owner's Name: _______________________________________________________________________
Date Purchased: ______________________________________________________________________
Outlet Name: ______________________________________________ Phone: ___________________
Outlet Address: _______________________________________________________________________
Sprayer Type (Model): _________________________________ Weight: ____________________ lb/kg
Sprayer Serial Number:_________________________________________________________________

Lit. No. 76760, Rev. 00 6 November 1, 2017

Lit. No. 76760, Rev. 00 7 November 1, 2017
SAFETY
SAFETY DEFINITIONS
NOTE: Indicates a situation or action that can lead
to damage to your sprayer and vehicle or other
property. Other useful information can also be
described.
CAUTION
Indicates a potentially hazardous situation
that, if not avoided, may result in minor or
moderate injury. It may also be used to alert
against unsafe practices.
WARNING
Indicates a potentially hazardous situation
that, if not avoided, could result in death or
serious personal injury.

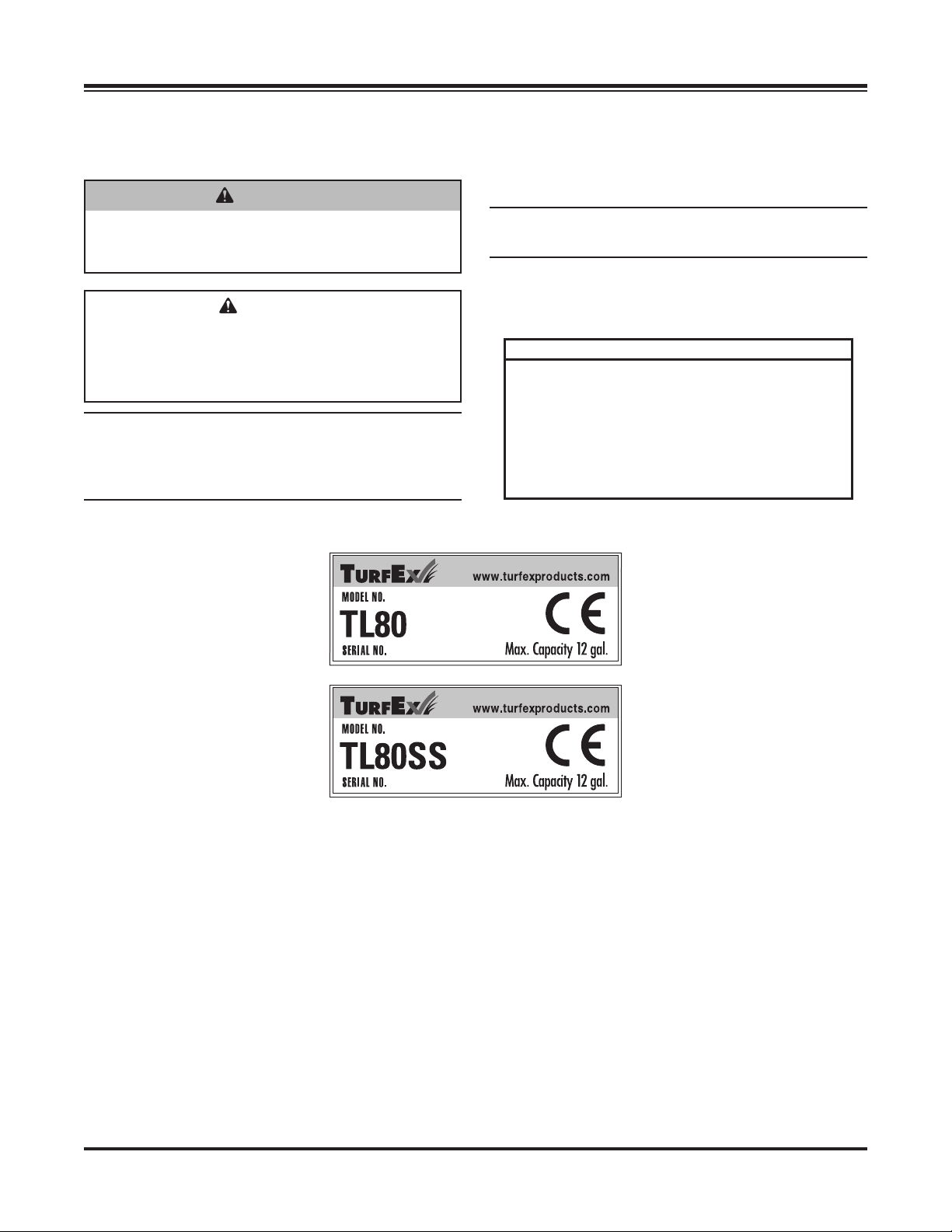

LABELS
Please become familiar with the labels on the sprayer.
NOTE: If labels are missing or cannot be read, see
your sales outlet.
YYMMDDLL####TL-80
YYMMDDLL####TL-80SS
Code Definition
YY 2-Digit Year
MM 2-Digit Month
DD 2-Digit Day
LL 2-Digit Location Code
#### 4-Digit Sequential Number
TL-80 Model Number
TL-80SS Model Number

Lit. No. 76760, Rev. 00 8 November 1, 2017
SAFETY
SAFETY PRECAUTIONS
Improper installation and operation could cause
personal injury and/or equipment and property
damage. Read and understand labels and this
Owner's Manual before installing, operating, or making
adjustments.
WARNING
• Always make sure personnel are clear of
areas of danger when using equipment.
• Before working with the sprayer, secure all
loose-fitting clothing and unrestrained hair.
• Always wear safety glasses with side shields
when servicing sprayer. Failure to do this
could result in serious injury to the eyes.
• Do not climb onto or ride on sprayer.
CAUTION
• Do not operate a sprayer in need of
maintenance.
• Before operating the sprayer, reassemble
any parts or hardware removed for cleaning
or adjusting.
• Before operating the sprayer, remove
materials such as cleaning rags, brushes,
and hand tools from the sprayer.
PERSONAL SAFETY
• Wear only snug-fitting clothing while working on
your sprayer.
• Do not wear jewelry or a necktie, and secure long
hair.
• Wear safety goggles to protect your eyes from dirt
and dust.
NOISE
Airborne noise emission during use is below 70 dB(A)
for the sprayer operator.
VIBRATION
Operating sprayer vibration does not exceed 2.5 m/s2
to the hand-arm or 0.5 m/s2to the whole body.

Lit. No. 76760, Rev. 00 9 November 1, 2017
CHEMICAL ACCIDENT PROCEDURES
Sprayer leak If the sprayer develops a leak, immediately stop spraying. Turn OFF power to the
sprayer and follow directions below, as applicable.
Bodily chemical
contact
Personal contamination can occur when chemicals splash, spill, or spray directly onto
a person.
1. Immediately follow First Aid instructions on chemical label.
General procedures can include:
a. Eyes immediately flush with water.
b. Skin wash all contaminated skin surfaces with soap and water.
c. Clothing remove contaminated clothing. Dispose of heavily contaminated
clothing per chemical label instructions.
2. Seek medical advice if instructed on the label or the victim experiences
symptoms of harmful effects. Bring the chemical label for reference.
Poisoning by
ingestion or
inhalation
In case of poisoning from ingestion or inhalation:
If the victim has collapsed or is not breathing, call 911. Otherwise:
1. If you are the victim, immediately seek assistance from nearby personnel
because you may become incapacitated.
2. Immediately follow First Aid instructions on chemical label.
3. Call a poison control center for further advice.
In the U.S. call 1-800-222-1222.
Have the chemical label available for reference.
Chemical spills Chemical spills must quickly be contained and properly cleaned up.
Refer to the chemical label for any specific clean-up instructions.
General procedures include:
1. Controlling the spill by stopping the source of the spill.
2. Containing the spill so that it does not spread and get into water sources.
3. Cleaning up the spill immediately.
4. Seeking additional advice from:
Chemical manufacturer: See chemical label for contact information.
State pesticide regulatory agency: In the U.S., call the National Pesticide Information
Center at 1-800-858-7378 for assistance in contacting your state agency.
SAFETY

Lit. No. 76760, Rev. 00 10 November 1, 2017
SAFETY
DURING OPERATION
• Read and follow each chemical label's instructions
and warnings.
• Avoid inhaling, ingesting, or coming into contact
with any chemicals.
• Know applicable licensing and regulatory
requirements for the chemical you plan to use.
• Know emergency procedures before handling
chemicals. Carefully review the Chemical Accident
Procedures listed in this Manual. Also, see First
Aid instructions on the chemical label.
• Wear protective clothing, eye protection, and
chemical resistant gloves when filling, using,
and cleaning the sprayer. Wear additional
protective gear, such as face masks or aprons, as
recommended on the chemical label.
• Exercise extra caution around children and pets.
Keep sprayer and spray materials away from them
at all times.
• Do not mix or pour chemicals in an enclosed,
unventilated area.
• Do not use flammable or corrosive chemicals in
the sprayer.
• Flush the sprayer before switching chemicals in
order to prevent dangerous chemical interactions.
BEFORE SPRAYING
• Inspect and prepare sprayer before each use as
directed in this manual.
• Do not start sprayer until ready to spray in order to
avoid unintentional spray release.
• Wear additional personal protective equipment
if you will be spraying overhead. You will be
exposed to much more mist or errant spray in
these applications. Wear chemical resistant head
and neck protection, full face mask or half-face
mask with sealed goggles, and consider using a
respirator.
• Do not spray when wind speed exceeds
4 miles per hour in order to minimize spray drift.
• Keep sprayer and spray materials away from
children and pets.
• Do not allow anyone younger than 16 to operate
sprayer.

Lit. No. 76760, Rev. 00 11 November 1, 2017
TRANSPORTING SAFETY
• Exercise caution in vehicle handling when driving
with sprayer to avoid loss of control or rollover.
◦Keep speed to a minimum so you can
maintain control. Reduce speed prior to turns.
◦Allow for more distance to stop.
◦Avoid any sudden steering maneuvers, starts,
or stops that could create liquid sloshing in the
sprayer and instability.
• Slow down and exercise caution on sloped or
uneven terrain.
• Turn OFF sprayer before leaving unattended.
• Do not attempt to lift with liquid in sprayer.
DURING SPRAYING
• Do not over-apply. Apply at a rate recommended
by the chemical manufacturer.
• Do not eat, drink, smoke, rub your eyes, or touch
your bare skin while handling chemicals and
spraying.
• Never point the spray gun at people or animals.
• Do not spray near open flames or sources of heat.
• Always hold the spray gun firmly when using it to
spray at higher pressures in order to prevent gun
from whipping. Keep good footing and balance at
all times.
• Exercise extra caution when spraying near areas
accessible to children and pets.
• Clean up spills immediately per instructions on the
chemical label.
• Turn OFF sprayer and relieve system pressure
before leaving sprayer unattended.
• See the Troubleshooting section of this
manual before attempting any repairs. Wear
personal protective equipment and follow safety
instructions.
SAFETY
AFTER SPRAYING
• Clean sprayer immediately after use according to
the directions provided in this manual.
• Decontaminate yourself after you are done
spraying and have cleaned the sprayer. Wash all
exposed areas of the body with soap and water,
and remove and launder clothing.
• Dispose or store remaining chemicals in secure
storage with correctly marked container.

Lit. No. 76760, Rev. 00 12 November 1, 2017

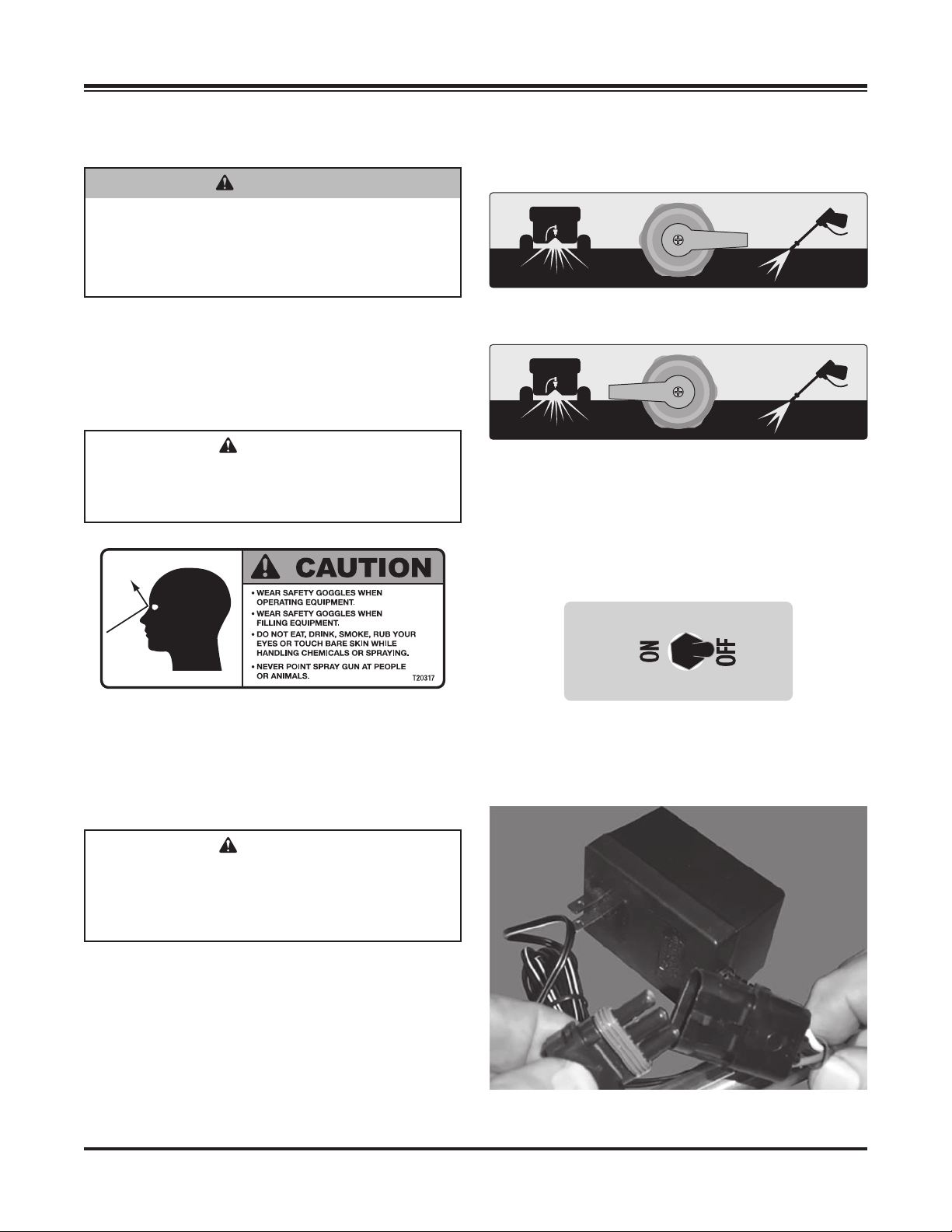

3. Select the desired application method by turning
the valve handle toward the appropriate icon:
4. When ready to spray, turn the pump switch to
the "ON" position. When done spraying, or when
not moving or spraying, be sure to turn the pump
switch to the "OFF" position.
5. Charge the battery after each use. Disconnect
the harness and connect the battery charger as
shown below. Then plug the charger into a
110 Volt outlet.
TIRE INFLATION
1. Tires are not fully inflated when shipped. Inflate
tires with a manual pump.
SPRAYER OPERATION
1. Be sure that the pump switch is in the
"OFF" position.
2. Fill the sprayer with liquid through the port on the
top of the tank.
OPERATING THE SPRAYER
CAUTION
Always use appropriate personal protective
equipment, including gloves and safety
goggles, when filling sprayer.
Turn toward the wand icon to use the spray wand.
Turn toward the spray icon to use
the front spray nozzle.
CAUTION
When using spray wand, never point it at
objects (i.e. humans, vehicles, etc.). Keep at
least 10 feet away from objects while using
the spray nozzle.
WARNING
Use safety glasses and gloves when inflating
and installing the tires. Use manual pump
only to inflate. Refer to the tire sidewall for
manufacturer's recommended pressure. Do
not exceed the maximum inflation pressure.

Lit. No. 76760, Rev. 00 13 November 1, 2017
MAINTENANCE
1. Grease axle zerks after every 20 hours of use.
2. When putting the unit into storage for the season,
drain the tank and hose lines, and flush the pump.
MAINTENANCE & TROUBLESHOOTING
TROUBLESHOOTING
Whenever service is necessary, the local
Tur f Ex ®dealer knows the sprayer best. Take the
sprayer to the local dealer for any maintenance or
service needs on the unit. If this is not possible, the
troubleshooting guide below may assist in identifying
the problem.
Preliminary checks:
• Be sure all electrical connections are tight and clean.
• Be sure nothing is obstructing the nozzles.
PROBLEM POSSIBLE
CAUSE
SOLUTION
1. Pump
doesn't
run
Loose electrical
connections
Check all
connections
Pump seized Replace pump
Electrical short Check for bare
wires
Dead battery Charge battery
2. Liquid not
spraying
Empty tank Fill tank
Pump not
running
Refer to
Problem #1
Obstructed
nozzle
Remove and
clean nozzle
WARNING
Read all warning instructions and safety
messages before servicing the sprayer.

Lit. No. 76760, Rev. 00 14 November 1, 2017
CALIBRATION
Measurements F50461 White Broadcast Nozzle F50136 Green Broadcast Nozzle
Ground speed (mph) 1.50 2.00 2.50 3.00 1.50 2.00 2.50 3.00
Capacity (gal) 12.00 12.00 12.00 12.00 12.00 12.00 12.00 12.00
Capacity (oz) 1536.00 1536.00 1536.00 1536.00 1536.00 1536.00 1536.00 1536.00
Ground speed (ft/min) 132.00 176.00 220.00 264.00 132.00 176.00 220.00 264.00
Spray width 11.00 11.00 11.00 11.00 11.00 11.00 11.00 11.00
oz sprayed per min 93.00 93.00 93.00 93.00 116.00 116.00 116.00 116.00
gal sprayed per min 0.73 0.73 0.73 0.73 0.91 0.91 0.91 0.91
Time to empty tank 16.52 16.52 16.52 16.52 13.24 13.24 13.24 13.24
Distance on one tank 2180.13 2906.84 3633.55 4360.26 1747.86 2330.48 2913.10 3495.72
ft2per minute 1452.00 1936.00 2420.00 2904.00 1452.00 1936.00 2420.00 2904.00
ft2per tank 23981.42 31975.23 39969.03 47962.84 19226.48 25635.31 32044.14 38452.97
Acres per tank 0.55 0.73 0.92 1.10 0.44 0.59 0.73 0.88
oz per ft20.06 0.05 0.04 0.03 0.08 0.06 0.05 0.04
oz per 1000 ft264.05 48.04 38.43 32.02 79.89 59.92 47.93 39.94
gal per 1000 ft20.50 0.38 0.30 0.25 0.62 0.47 0.37 0.31
oz per acre 2792.56 2094.42 1675.54 1396.28 3483.2 2612.4 2089.92 1741.60
gal per acre 21.82 16.36 13.09 10.91 27.21 20.41 16.33 13.61
NOTE: The nozzle bracket at the front of the sprayer can be moved up or down to obtain the spray width shown in the table.
DISCLAIMER
It is the responsibility of the person using this equipment to make sure that every type of material is properly calibrated
to perform as expected. This process should take place on a solid flat surface away from drains and livestock areas in
order to achieve a safe and accurate reading for proper material distribution. Failure to do so may cause an over/under
application that could damage turf areas or give an ineffective pest control treatment. Any calibration charts contained
in this manual are given as a reference point only and should not be used as an absolute condition. Spending a few
extra minutes to properly calibrate will not only save on wasted materials and time, but also protect turf and other
vegetation. Below are several points to be aware of before operating your sprayer in the field.
• Flow rates of material can change for many reasons:
1. Formulations vary within the same brand or even between brands.
2. Formulations vary between batches or dates of manufacture.
3. Poor sprayer maintenance can cause flow changes.
4. Human error can cause rate miscalculation.
• Items needed for calibration:
1. A way to catch the material for measuring.
2. A device to measure distance.
3. A bottle or bucket for measuring liquid.
4. A stop watch or other means to measure time.

Lit. No. 76760, Rev. 00 15 November 1, 2017

Copyright © 2017 Douglas Dynamics, LLC. All rights reserved. This material may not be reproduced or copied, in whole or in part, in
any printed, mechanical, electronic, film, or other distribution and storage media, without the written consent of TrynEx International, LLC.
Authorization to photocopy items for internal or personal use by TrynEx International outlets or sprayer owner is granted.
TrynEx International reserves the right under its product improvement policy to change construction or design details and furnish equipment
when so altered without reference to illustrations or specifications used. TrynEx International may require or recommend optional equipment
for sprayers. TrynEx International offers a limited warranty for all sprayers and accessories. See separately printed page for this important
information. The following are registered (®) trademarks of Douglas Dynamics, LLC: TurfEx®.
Printed in U.S.A.
A DIVISION OF DOUGLAS DYNAMICS, LLC
Tr ynE x Inter nati on al
531 Ajax Drive
Madison Heights, MI 48071-2429
www.turfexproducts.com
Lit. No. 76760, Rev. 00 November 1, 2017
This product conforms to EU Machinery Directive 2006/42/EC.
