TUV FirstBIKE User manual

Instruction manual
1. Assembly
FirstBIKE must be assembled carefully and correctly,
if necessary by a trained person or by a bicycle dealer.
Detailed assembly instructions are on pages 2 and 3.
2. Information about the vehicle
This vehicle for children from 2 - 5 years has been approved by TÜV Product Service (Germany)
on the basis of the European Safety Standard 71-1 2006. ”FirstBIKE“ complies with the strict
requirements of this toy standard, in that minimal risk is associated with the correct use of this toy.
The height of the seat is easily adjustable, without tools, to the siz
e of the rider. The adjustment
range of the seat is as follows:
- without lowering-kit: 335 mm to 435 mm
- with lowering-kit (optional accessory): 295 mm to 395 mm
After each adjustment of the height of the seat, the black star knob for fastening the seat post must
be tightened securely, so that the seatpost cannot slip when in use. Use both hands if necessary. The
seat height must always be adjusted precisely to the size of the rider: when the child is seated, both
feet must be flat on the ground.
Because the FirstBIKE frame is made of lightweight polyamide with 30% fibreglass, the bike is very
light - without brake only 3.5 kg and with brake 3.9 kg.
FirstBIKE is constructed with an ”anti-jackknife“ steering stop, which prevents the handlebar from
making a full turn. This safety feature reduces the possibility of falling, but can not entirely prevent
it. However, it must be noted that children‘s temperament and urge for physical activity may create
unforeseen situations and riding behaviour, for which the manufacturer can not be held responsible.
3. Maintenance
All parts must be checked regularly, although FirstBIKE will not require much maintenance under
normal circumstances. After extensive outdoor use, special attention should be paid to cleaning
the following parts:
- contact area between frame and seatpost
- contact area between frame and front fork.
FirstBIKE can be cleaned with an ordinary water-soluble detergent. Never use any kind of solvent
or similar aggressive cleaning product. Tyre pressure must be checked regularly. See tyre for
recommended/max. tyre inflation pressure: max. 2.5 bar (35 psi)!
4. FirstBIKE rear wheel drum-brake system - ”Safety-Stop“
The models with brake are suitable for children from the age of about 3 years. Please note that your
child, depending on their stage of development, will not be able to operate the brake effectively and
consciously until the age of about 3 years.
Mastering the use of the brake in any given hazardous situation is necessary for the brake to be
efficient. Parents should teach their child how to use the brake, until the child has acquired the
appropriate braking skills.
Different surfaces and traction, and varying hazardous situations require the controlled application of
braking power. The early mastering of braking techniques will be a great advantage when progressing
to a pedal cycle.
The brake should be checked regularly and adjusted as necessary (steps D & E).
Do not apply oil to the brake cable, as it has Teflon housing.
www.firstbike.com

3
2
1
4
6
7
10
A
B
C
D
E
9
5. Assembly Instructions
FirstBIKE ”STREET“ or FirstBIKE ”CROSS“
These models have no reflective stripe on the tyre.
Contents of assembly kit bag:
No. Qty. Description
(3) 1 pc. Axle for headset D = 12 mm
(4) 1 pc. Plastic cover for headset
(5) 1 pc. Adhesive sticker for handlebar
(6) 1 pc. Wheel bolt (front) M 8 x 120 mm
(7) 1 pc. Self-locking nut M 8
(8) 1 pc. 6 mm Allen wrench (for the wheel bolt)
Assembly procedure:

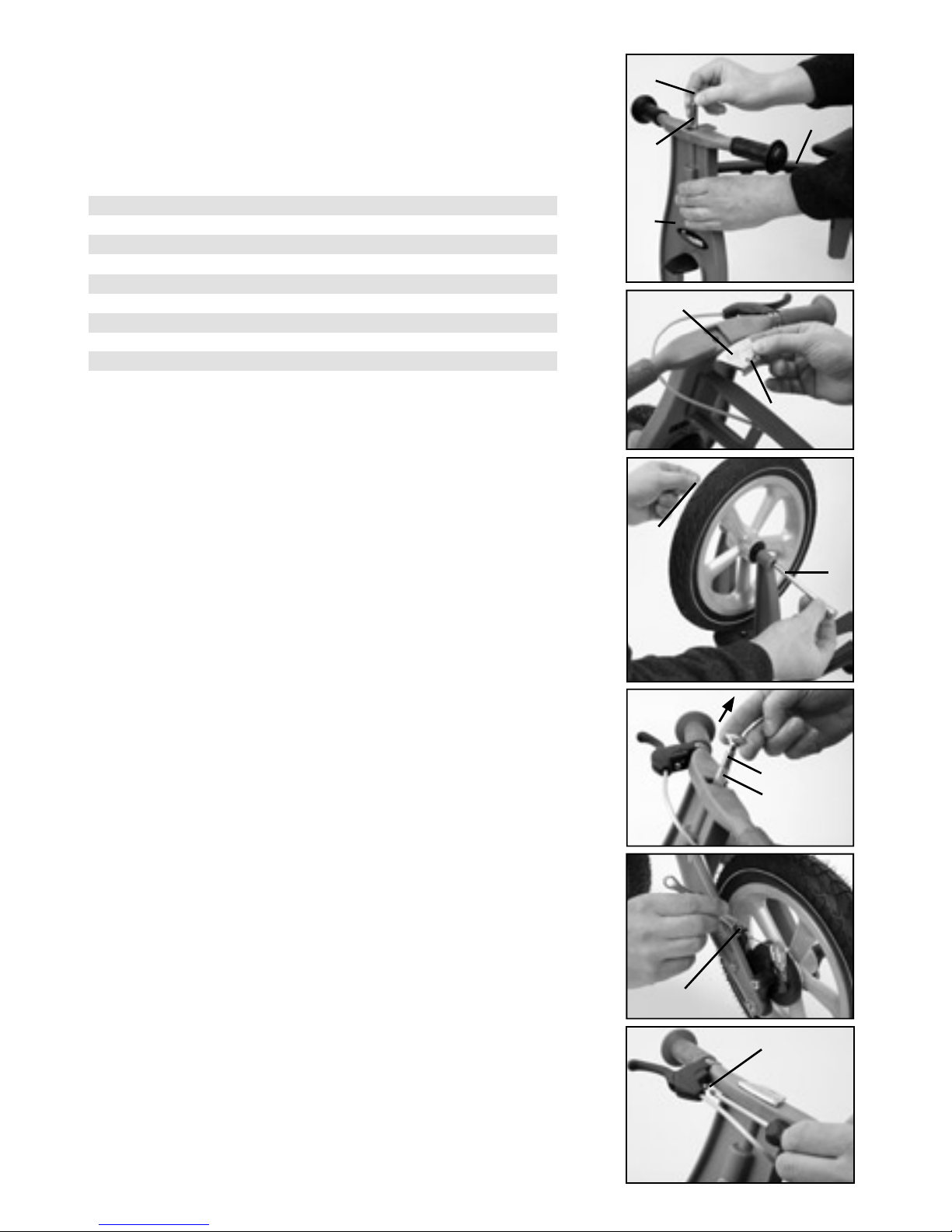

A First, hold the front fork (1) and the frame (2) together
at the headset.
Insert the axle (3) into the headset from the top. It must
be inserted completely. It may help to put the wheel
bolt (6) in the axle and to tap gently with a hammer.
B The plastic cover (4) for the headset is used to close
the opening at the top of the headset. Insert and press
into the opening - if necessary, tap gently with a hammer.
Center and place the adhesive sticker (5) on the centre
of the handlebar.
Tip: When fitting the front wheel, turn the FirstBIKE
upside down so that it rests on the seat and handlebar.
C The bolt M 8 x 120 mm. (6) and the nut M 8 (7), are used
for securing the front wheel. The nut fits in the hexagonal
hole on the left side of the fork. Tighten the bolt securely,
using the 6 mm Allen wrench (8)!
The brake adjustment for models with safety-stop
drum-brake system must be checked.
D Adjust the brake cable tension with the adjustment
screw (9) so that the brake does not rub or engage
when the brake is off.
E By adjusting the brake lever screw (10), the distance
between the handlebar and the brake lever can be reduced
(for small hands).
Recommended tyre pressure
for FirstBIKE ”STREET“ or ”CROSS“
front wheel: 1.5 bar rear wheel: 2.0 bar
6

6. Assembly Instructions
FirstBIKE ”BIG-APPLE“
This model has a reflective stripe on
a ”Schwalbe BIG-APPLE“ tyre.
The front fork can be disassembled for transport.
Contents of assembly kit bag:
No. Qty. Description
(3) 1 pc. Axle for headset D = 12 mm
(4) 1 pc. aluminium cover for headset
(5) 1 pc. screw for aluminium-cover
(6) 1 pc. Wheel bolt (front) M 8 x 120 mm
(7) 1 pc. Self-locking nut M 8
(8) 1 pc. 6 mm Allen wrench (for the wheel bolt)
(11) 1 pc. special-screw M 10 x 40 mm
Assembly procedure:
A First, hold the front fork (1) and the frame (2) together
at the headset. Insert the axle (3) into the headset from
the top. It is important that the thread is at the top.
It must be inserted completely. It may help to put the
wheel bolt (6) in the axle and to tap gently with a hammer.
B The aluminium cover (4) for the headset is used to close
the opening at the top of the headset.
Use the screw (5) to fix the aluminium cover.
Tip: When mounting the front wheel, turn the FirstBIKE
upside down so that it rests on the seat and handlebar.
C The bolt M 8 x 120 mm (6) and the nut M 8 (7), are used
for mounting the front wheel. The nut fits in the hexagonal
hole on the left side of the fork. Tighten the bolt securely,
using the 6 mm Allen wrench (8)!
Disassembly of the front fork for transport:
D To disassemble the front fork, unscrew the aluminium
cover (4). Turn the special screw (11) in the thread of
the axle (3) to pull it out.
To assemble again, repeat steps A & B.
The brake adjustment must be checked as follows:
E Adjust the brake cable tension with the adjustment
screw (9) so that the brake does not rub or engage
when the brake is off.
F By adjusting the brake lever screw (10), the distance
between the handlebar and the brake lever can be
reduced (for small hands).
Recommended tyre pressure for FirstBIKE ”BIG-APPLE“
front wheel: 1.2 bar rear wheel: 1.5 bar
3
2
1
6
7
10
A
B
C
E
F
D
5
3
9
6
4
11

7. Important safety instructions
The following important safety instructions must be observed and followed when using ”FirstBIKE“.
Please read thoroughly before using FirstBIKE!
FirstBIKE is not a road vehicle and must not be used on public roads.
Before you use FirstBIKE, you must always make sure that the vehicle is in fully functional riding
condition and that no parts are damaged. Regularly check and tighten all nuts and bolts and make
sure that tyres are correctly inflated.
The product must only be used by one child from age 2 - 5 years. The maximum weight load is
25 kg. The child must never use/ride FirstBIKE without supervision.
After each adjustment of the height of the seat, the black star knob for fastening the seatpost must
be tightened securely, so that it is impossible for children to loosen it.
The valve caps on the wheels must be tightened securely with an appropriate tool, so that they are
impossible to loosen by hand. If small parts can be loosened from the vehicle, there is a danger of
unscrewed parts being swallowed by small children.
If a defect is found, the vehicle must not be ridden until the defect has been properly repaired.
Riding FirstBIKE near roads and other areas of danger (e.g. swimming pools or open water, areas
with stairs etc), must be avoided! FirstBIKE must not be ridden on steep ground or downward slopes.
Ride only in sufficient daylight under supervision of at least one adult.
The child must be able to control their speed at all times. Practise braking with the feet and safe
handling of the vehicle carefully and conscientiously with the child, in order to avoid accidents. For
FirstBIKE-models with the rear drum-brake system, it is very important to practise with the child.
When riding, the child must always wear a safety helmet and appropriate footwear.
8. Limited liability
Any damage or problems arising from inappropriate use, violence, lack of maintenance or ordinary
wear are not subject to warranty or claim.

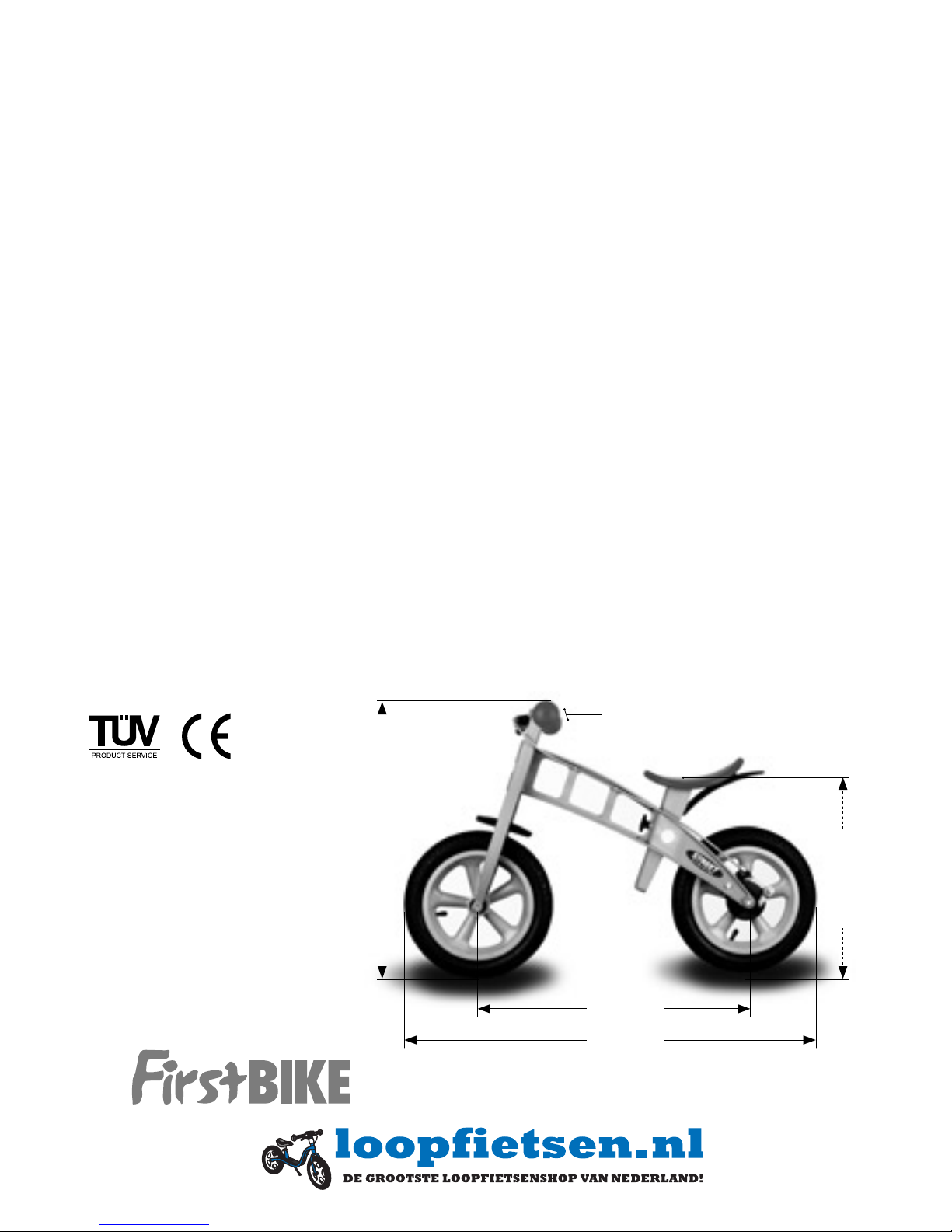

Weight without brake 3.5 kg
and with drumbarke 3.9 kg
520 mm
min. 295 mm
max. 435 mm
handlebar width 365 mm
530 mm
830 mm
