TUYA XS03A User manual

Reset key

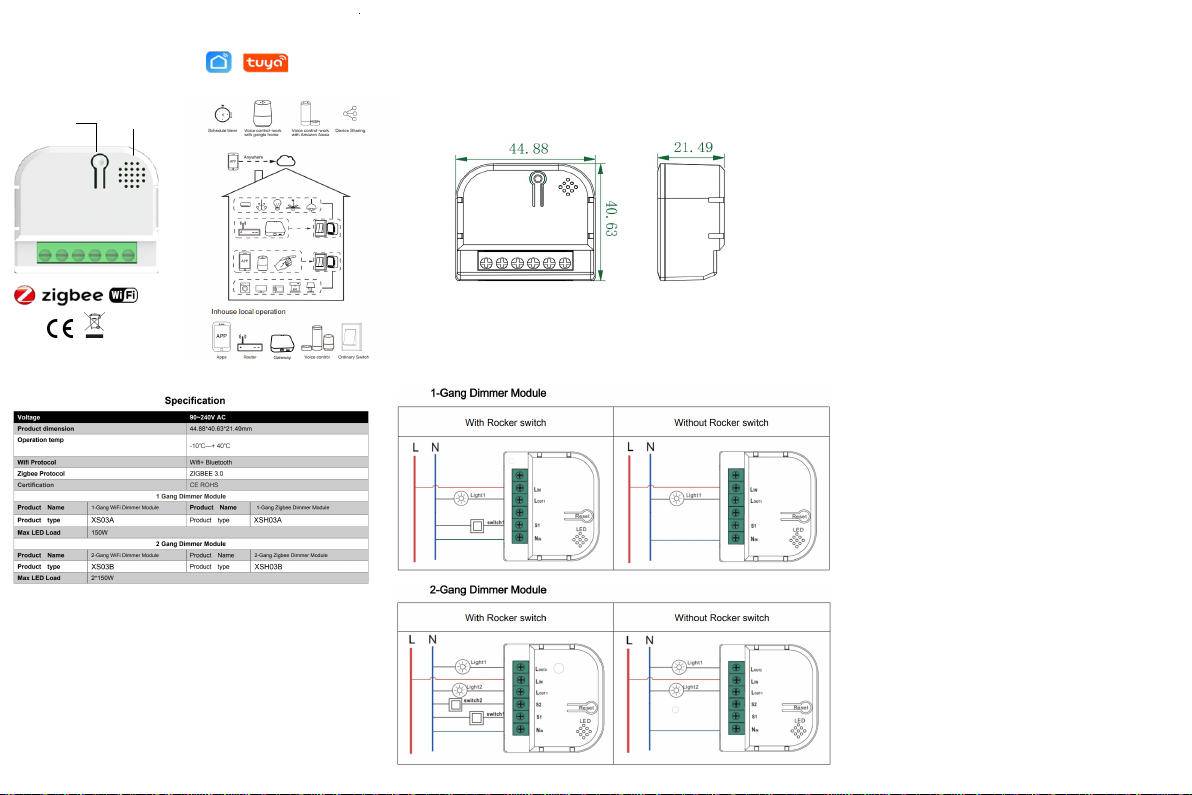

Wiring Instructions and Diagrams
Instruction Manual
1.Turn off the power supply before carrying out any
electrical installation work.
2.Connect wires according to the wiring d
iagram.
3. Insert the module into the junction box.
4.Turn on the power supply and follow switch module
configuration instructions.
Notes: Take your smartphone close to the switch when you are
configuring and confime you have mini 50% wifi signal
Q1: What should I do if I can’t configure the dimmer module?
a. Please check whether device is powered on.
b. Make sure zigbee hub available or
2.4 Ghz WIFI connected
c. Whether it’s in good internet conditions.
d. Make sure the password entered in App is correct.
e. Make sure the wiring is correct.
Q2: What device can be connected to this dimmer module?
Q3: What happens if the WIFI goes off?
You can still control the device connected the dimmer
module with your traditional switch and once WIFI is
active again the device connected to module will
connect automatically to your WIFI network.
Q4: What should I do if I change the WIFI network or
change the password?
You have to re-connect our dimmer module to the
new Wi-Fi network accordingly as per the App User Manual.
Q 5: How do I reset the device?
-10℃—+ 40℃
-10℃—+ 40℃
FAQ
Indicator
light
Triac led light, incandescent lamp or halogen lamp
Turn off the traditional button switch(the one connected
to the Zigbee dimmer module).Then press and hold about
10 seconds or more until the indicator start to flash
MANUAL OVERRIDE
The switch Dimmer terminal reserves the access of
manual override function for the end-user to switch
on/off,or adjust the light level by push-switch.
• Short Push (<1s): permanent on/off function.
• Long Push (>1s): adjust the brightness level.
Notes:
1) Both the adjustment on App and push switch can overwrite each
other, the last adjustment remains in memory.
2) App control is synchronized with the manual switch. 3) The “S
” termin
als may be left unconnected if no manual control is required.

Wifi Switch Module, How to connect APP ?
1. Download the "Tuya" or "Smart life" APP 3.How to send out signal so that APP can search for signal
Zigbee Switch Module, How to connect APP ?
Turn off the traditional button switch(the one connected
to the Zigbee/Wifi dimmer module).Then press and hold about
10 seconds or more until the indicator start to flash
2. App steps
before add device, please add zigbee gateway
