TUYA MORRIS MPH-20041S User manual

SLIMLINE PANEL HEATER
WITH WiFi FUNCTION
INSTRUCTIONS MANUAL
Model：MPH-20041S
This product is only suitable for well insulated spaces or occasional use.
Please read this manual carefully before using this product.
PICTURES IN THE MANUAL ARE FOR REFERENCE ONLY
AND IS SUBJECT TO THE PHYSICAL PRODUCT IN THE PACKING BOX

BEFORE FIRST USE
Read and follow all the instructions in this manual if you are familiar with the product and find
a place to keep it handy for future reference.
For your convenience record the complete model number (located on the product identification
plate) and the date you received the product, together with your purchase receipt and attach
to the warranty and service information. Retain in the event that warranty service is required.
NOTE: The rating of this product (as marked on the product identification plate) is based on
specific loading tests. Normal use or the use of other recommended attachment may draw
significantly less power.
IMPORTANT SAFEGUARDS
When using any electrically powered product, basic safety precautions should always be
followed, including the following.
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE PRODUCT.
WARNINGS to reduce the risk of fire, electrical shock or injury to persons or property：
•Read all instructions before using this appliance and keep them for the future
reference.
•Use only the voltage specified on the rating plate of the heater.
•Do not cover or restrict airflow to the inlet or exhaust grilles in any manner as the
appliance May overheat and become a fire risk.
•Do not cover grilles， block entry or exhaust of airflow by placing against any surface.
Keep all object at least 1 meter from the front, side and rear of the appliance.
•Do not place the appliance close to a radiant heat source.
•Do not operate in areas where gasoline， paint or other flammable liquids are used
or stored.
•This appliance heats up when in use. To avoid burns, do not let bare touch hot surface.
Switch off and let cooling before moving.
•Do not use the appliance to dry clothes.
•Do not insert or allow foreign objector metal utensils to enter any ventilation or exhaust
opening, as this may cause an electric shock, fire or damage to the appliance.
•Do not immerse in liquid or allow running into the interior of the appliance, as this could
create an electrical shock hazard.
•Do not reach for an appliance that has fallen into water. Switch of at supply and unplug
immediately.
•Do not operate any appliance with a damaged cord, plug or after the appliance
malfunctions or has been dropped or damaged in any manner. Return to a qualified
electrical person for examination, electrical or mechanical adjustment, service or repair.
•Do not operate appliance with wet hands.
•The most common cause of overheating is deposits of dust or fluff in the appliance.
Ensure these deposits are removed regularly by unplugging the appliance and vacuum
cleaning air vents and grilles.
•Do not use this appliance in a window as rain may cause electric shock
•Do not use abrasive cleaning products on this appliance. Clean with a damp cloth (not
wet), rinsed in hot soapy water only. Always remove plug from the mains supply before
cleaning.
•Do not connect the appliance to the mains voltage until completely assembled and

adjusted.
•This appliance is not intended for use in outdoor locations.
•Do not use this appliance in the immediate surrounds of a bath， a shower or a
swimming pool or other liquids.
•Always operate upright.
•Switch off and let cooling before moving.
•Do not operate with cord set coiled up as a buildup of heat is likely, which could be
sufficient to become a hazard.
•The use of an extension cord with this appliance is not recommended.
•Do not remove plug from power socket until the appliance has been switched off.
•Do not remove plug from power socket by pulling the supply cord-always grip plug.
•Always unplug appliance when not in use.
·CAUTION: This product is NOT suitable to be used on long pile carpets or Flokati rugs.
•Do not allow cord to come in contact with heated surface during operation.
•Do not run cord under carpeting， throw rugs or runners etc. Arrange cord away
from traffic areas so that it will not be tripped over.
•Do not twist, kink, or wrap the cord around the appliance as this may cause the
insulation to weaken and split. Always ensure that all cord has been removed from
any cord storage area.
•Do not use outdoors or whilst standing on a damp floor.
•Do not store appliance while it is still hot.
•This appliance is not intended for use by young children or infirm persons without
supervision.
•Young children should be supervised to ensure they do not play with the appliance. The
appliance must not be located immediately below a socket-outlet.
•Do not use this appliance with another programmer， timer or any other device that
switches the heater on automatically， since a fire risk exists if the appliance is
covered or positioned incorrectly.
•All covers of this appliance is intended to prevent direct access to the heating
elements and must be in place when the appliance is in use.
·WARNING: In order to avoid overloading do not cover the heater.
•To reduce the risk of electric shock， do not immerse or expose the product or flexible
cord to Rain, moisture or any liquid other than those necessary for correct operation of
the product.
•The fireguard does not give full protection for young children and for in firm persons.
•If the supply cord is damaged， it must be replaced by a qualified electrical person in
order to avoid a hazard.
•Do not use this appliance outdoors or on wet surfaces. Avoid spilling liquid on the
appliance.
CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this
appliance must not be supplied through an external switching device, such a timer, or
connected to a circuit that is regularly on and off by the utility.
•Use this appliance only as described in this manual. Any other use is not recommended
by the manufacturer and may cause fire, electric shock or injury.
•This appliance is intended for household use only and not for commercial or industrial

use.

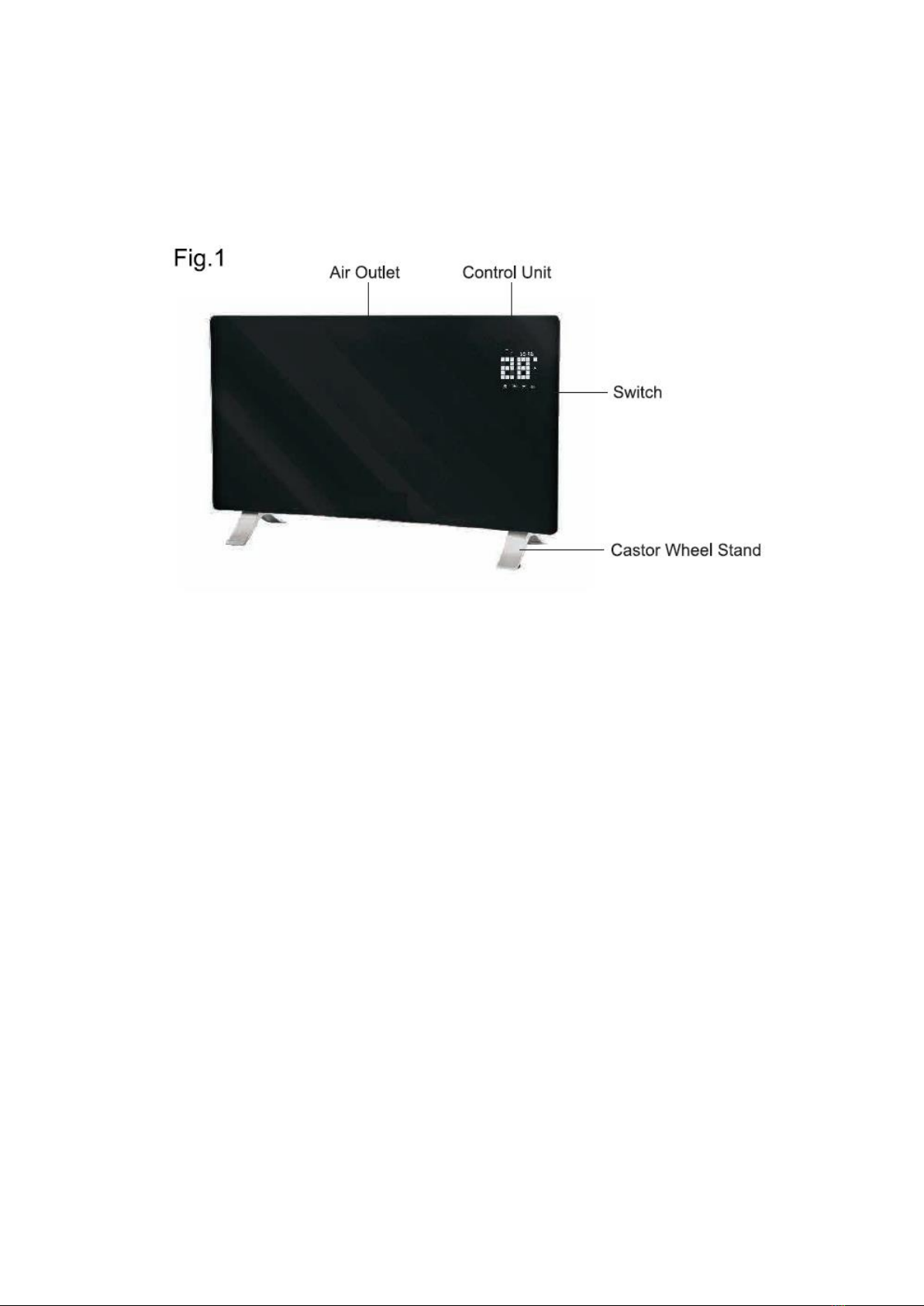

Overview of the appliance
Specifications
Model Number MPH-20041S
Rated Power 1200W/2400W
Rated Voltage 220-240V~50Hz
Dimensions(mm) 865*105* 475

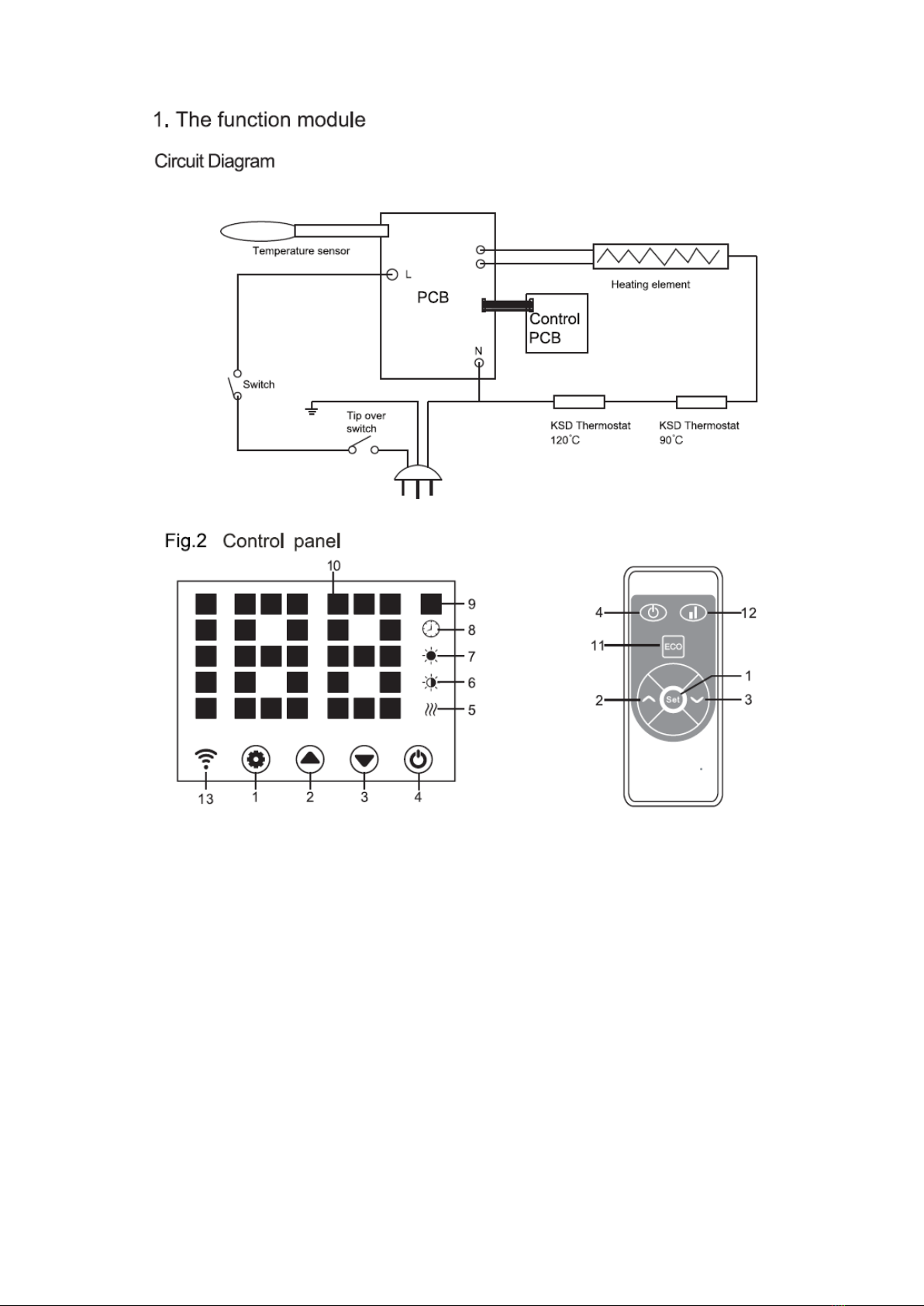

Guide to the control panel
"1"一Setting Button
"2"一Up Button
"3"一Down Button
"4"一Power Button
"5"一Heating Element Working Indicator
"6"一Low Heating Indicator
"7"一High Heating Indicator
"8"一Timer Indicator
"9"一Temperature (℃/F) Indicator
"10"一LED Number Display
"11"一LED Screen Οn / Οff Button
"12"一Low / Ηigh Heating Selection
"13"一Wi-Fi Indicator (If connected OK, WIFI indicator lights on; if failed, it flashes)

2.1 Starting
2.1.1 Take out the heater from the carton carefully. Please save the carton for off-season
storage.
2.1.2 Make sure the power switch is in the OFF position before plugging it in.

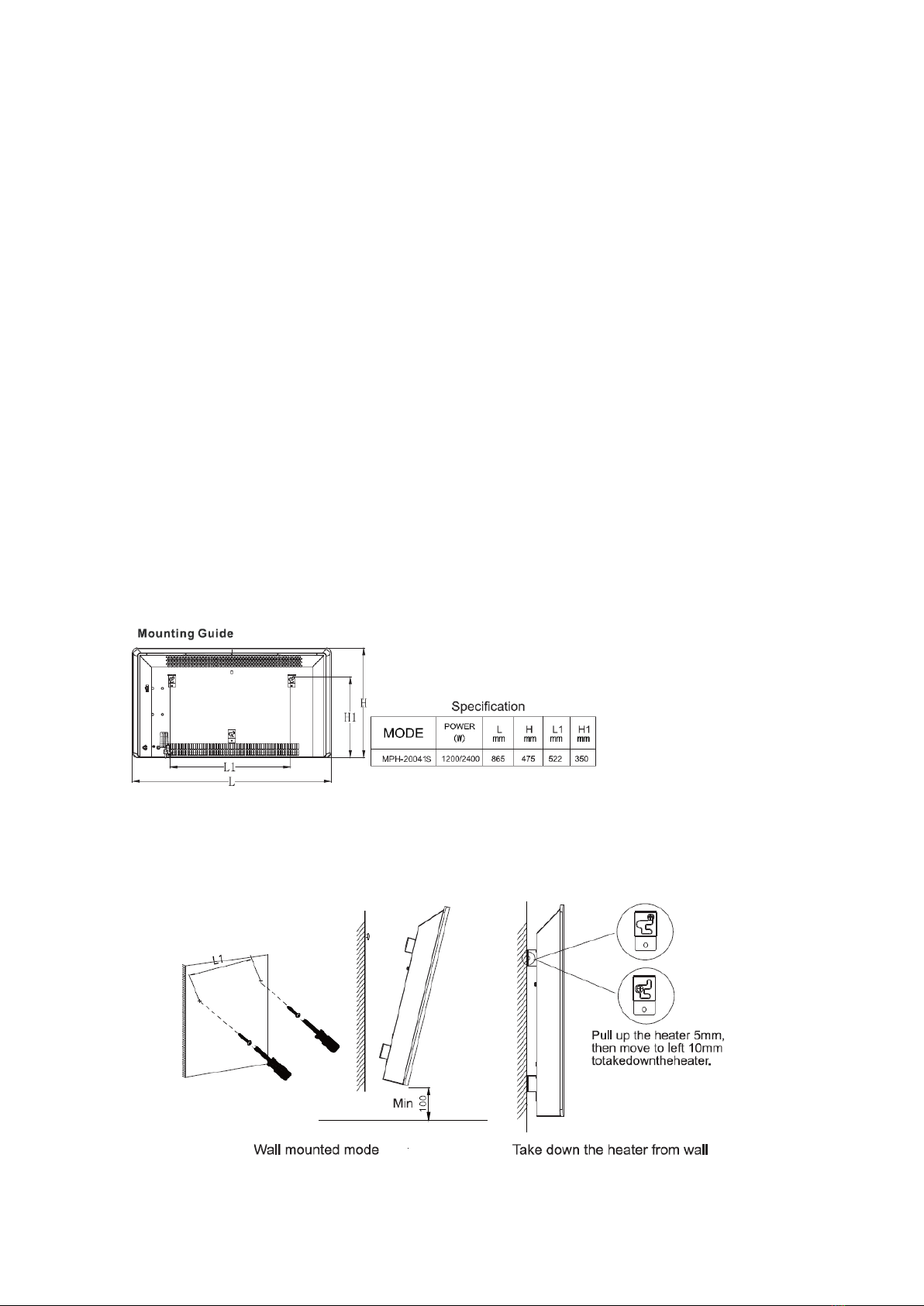

2.1.3 Ensure the heater is fully assembled according to the Mounting Guide.
2.1.4 It is better not to use the same electric outlet with other high wattage electrical appliances
in order to avoid overloading your circuit.
2.2 Turn On
Plug in the unit and turn on its power switch, heater is in stand-by with buttons 1/2/3/4 on.
Setting timer and press button 4, heater turns on, display shows current area temperature.
2.3 Setting the Temperature
Press button 1, temp. indicator flashes and its setting is activated. By pressing buttons 2 and
3, you select desired temp. and save it. Heater is heating, display shows current temperature
and button 5 lights on.
2.4 Setting Timer
Timer Start Heating Time.
In off-heating mode, press 1 twice to set timer (0H to 24H) and 2&3 to set temperature. After
setting, it shows area temperature. Indicator 8 lights on in timer period and off when timer ends,
then heater starts heating at high level.
Timer Stop Heating Time
In heating mode (high or low level) press 1 twice to set timer and 2&3 to set temperature. After
setting, it shows area temperature. Indicator 8 lights on in timer period and off when timer ends.
Then heater stops heating.
2.5 Select High / Low heating level
a. In working mode, button 2 shifts between high heating and stop heating (indicator
7 lights on when high heating and off when off heating).
b. In working mode, button 3 runs between low heating and off heating (indicator 6
lights on when low heating and off when off heating).
c. In working mode, button 12 shifts among Off/Low/High heating, 7 lights on in
high heating, 6 light on in low heat, and no light on when off heating).
2.6 Setting Child-lock function
In heating mode, press both 2&3 for 3 sec., child lock function is activated and system is
locked, no setting could be done. After 5sec., display shows area temperature.

To unlock: Press both 2&3 for 3 sec.
2.7 Display buttons activation
Normally display buttons lights are off when unit is working. Touch the panel area below
temperature, they are on again.
2.8 ECO function
By chosing this mode, LED display screen turns OFF.
2.9 Switching the Display Between Degrees Fahrenheit And Celsius
Press the keys 1&2 (the two keys on the left) for about 10 sec.
2.10 Open-window Detection
When area temperature decreases 3℃ or more in 2mins, heater activates ‘open-window
detection’ and unit stops heating, indicator 9 flashes. Press button 4, run off heater, then turn
on again, open-window detection is de-activated.
2.11 WiFi Reset
In heating mode, press button 1 for 3 sec., WIFI is reset with its indicator light on.
2.12 Turn off
Press button 4, turn off the heater.
MAINTENANCE
The heater requires regular cleaning to ensure trouble fee operation：
•Unplug the heater from the mains supply before cleaning.
•Ensure that the heater has been allowed to cool down completely before cleaning.
•Use a damp cloth (not wet) to wipe the exterior of the heater to remove dust and dirt.
•Use a vacuum cleaner to remove dust and fluff from around the grilles.
•Ensure the heater is dry before plugging back into the mains supply.
5. Warning
5.1. Fixing the heater righting on the wall or put the heater in the right position.
5.2. The heater is to be installed so that the controls can not be touched by a person.
5.3. The heater is to be installed so that the controls can not be touched by a socket outlet.
5.4. When the heater is working as it is in freestanding mode with the foot set,
please do not use it in the vicinity of bath, shower or swimming pool.

5.5. When the heater is working as it is in wall mounted mode, do not touch the control unit
when using it in the vicinity of bath, shower or swimming pool.
5.6. Consult a qualified electrician or service technician if the power cord is damaged.
5.7. Do not cover the heater when it is working.
5.8. Always store the heater when not in use.
5.9. Make sure the heater has cooled down before store it away.
6. Service
When you require service, contact you local dealer.
REPLACEMENT OF SUPPLY CORD
The supply cord damaged must be replaced by a service agent or equivalent qualified person
in order to prevent a hazard.
7. Storage
If you do not plan to use the heater for extended periods of time, recommended that the heater
is cleaned and then stored (preferably in its original packaging) in a cool dry place.

Table for information requirements for electric local space heaters
Model: MPH-200041S
Item
Symbol
Value
Unit
Item
Unit
Heat output
Type of heat input, for electric local space heaters
only (select one)
Nominal heat
output
Pnom
2.4
kW
Manual heat charge control with
integrated thermostat
[no]
Minimum heat
output (indicative)
Pmin
1.2
kW
Manual heat charge control with room
and/or outdoor temperature feedback
[no]
Maximum
continuous heat
output
Pmax.c
2.32
kW
Electronic heat charge control with room
and/or outdoor temperature feedback
[no]
Auxiliary electricity consumption
Fan assisted heat output
[no]
At nominal heat
output
elmax
2.322
kW
Type of heat output/room temperature control (select
one)
At minimum heat
output
elmin
1.165
kW
Single stage heat output and no room
temperature control
[no]
In standby mode
elSB
0.0004
W
Two or more manual stages, no room
temperature control
[no]
With mechanic thermostat room
temperature control
[no]
With electronic room temperature control
[no]
Electronic room temperature control plus
day timer
[no]
Electronic room temperature control plus
week timer
[yes]
Other control options (multiple selections
possible)
Room temperature control, with
presence detection
[no]
Room temperature control, with open
window detection
[yes]
With distance control option
[yes]
With adaptive start control
[no]
With working time limitation
[no]
With black bulb sensor
[yes]
Contact details:
Kalliopi Karyda & CO LP
87A, 17th Noemvriou str., PC 55535
T. [phone] | F. [phone]

NOTICE ABOUT RECYCLING
Your product is designed and manufactured with high quality
materials and components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their
end-of-life,
should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste
collection/ recycling centre.
In the European Union there are separate collection systems for used electrical
and electronic products.
Please help us to conserve the environment we live in!
DECLARATION OF CONFORMITY
Herewith, Kalliopi Karyda & CO., LP states that this product complies with the
requirements of below directives:
EMC-Directive: 14 / 30 / EU
Low Voltage Directive: 14 / 35 / EU
RED Directive: 14 / 53 / EU
ErP Directive: 09 / 125 / EC
RoHS Directive 11 / 65 / EU & 15 / 863 / EU
CE Marking Directive: 93 / 68 / EEC
The detailed declaration of conformity can be found at
www.morris.gr
Exclusive importer in Greece:
Kalliopi Karyda & CO LP
87A, 17th Noemvriou str, P.C. 55534
Thessaloniki – Greece
T: [phone] | F: [phone]
www.morris.gr
