TV One 1T-CT-653 User manual

1T-CT-653 Transmitter 1T-CT-654A Receiver
Instruction Manual
1T-CT-653/1T-CT-654A
HDMI Over Single Cat.6
With LAN/IR/RS-232

Table of Contents
1.0
Introduction
2
2.0
Package Contents
3
3.0
Specifications
4
4.0
Connecting The Hardware
5
5.0
Operating The Unit
7
6.0
Troubleshooting
7
7.0
Limited Warranty
8
8.0
Regulatory Compliance
9
9.0
Contact Information
9

2
1.0 INTRODUCTION
Thanks for purchasing this HDMI over single Cat.6 product from tvONE. The product
group consists of a 1T-CT-653 Transmitter coupled with a 1T-CT-654A Receiver which
employs HDMI v1.4 capability and HDBaseT 5Play™ technology to allow transmission of
uncompressed, 1080p high definition television signals over a single Cat.5e or Cat.6 cable
(this is the type cable typically employed for Ethernet computer networks). HDMI v1.4
signals - including 3D and 4K x 2K formats - are supported and the system will also allow
DVI signal transmission with appropriate DVI to HDMI Cable adapters. In addition,
embedded 7.1CH LPCM, Dolby TrueHD and DTS-HD Master Audio capability is standard.
The 1T-CT-653/1T-CT-654A system can achieve signal distribution distances of up to 100
meters (325 feet) for uncompressed 1080p signals without signal degradation. Control
signals can be transmitted (Ethernet, Infrared or RS-232) and PoH (Power Over HDBaseT)
technology is employed to allow powering of the Receiver from the Transmitter, negating
the need for a separate power supply for that unit.
Our professional video conversion products have been serving the industry for over
twenty years. tvONE offers a full line of high quality Seamless Switchers, Video Scalers,
Up/Down/Cross Converters, Analog-Digital Converters (SD/HD-SDI, HDMI, DVI), Format
Converters, Standards Converters, TBC/Frame Synchronizers, Matrix Routing Switchers,
Signal Distribution Amplifiers and Cat.5 Transmission Systems.
1.1 Liability Statement
Every effort has been made to ensure that this product is free of errors. tvONE cannot be
held liable for the use of this hardware or any direct or indirect consequential damages
arising from its use. It is the responsibility of the user of the hardware to check that it is
suitable for his/her requirements and that it is installed correctly. All rights reserved. No
parts of this manual may be reproduced or transmitted by any form or means electronic or
mechanical, including photocopying, recording or by any information storage or retrieval
system without the written consent of the publisher.
tvONE reserves the right to revise any of its hardware and software following its policy to
modify and/or improve its products where necessary or desirable. This statement does not
affect the legal rights of the user in any way.
All third party trademarks and copyrights are recognised. The tvONE logo and CORIO
logo are the registered trademarks of tvONE. All other trademarks are the property of their
respective holders.

3
1.2 Features
The 1T-CT-653/1T-CT-654A HDMI over single Cat.6 system has many features that enable
it to perform in a superior manner. Among these features you will find:
HDMI with 3D, 4k(24Hz/30Hz) support
Compliant with HDMI v1.4a, HDCP 1.1 and DVI 1.0 specifications
Uncompressed signal distribution to 100 meters (325 feet)
Uses HDBaseT performance enhancing technology *
Full HD resolution support (1080p@60Hz/36bit), UHD support (4k@30Hz)
HD 3D formats & PC resolutions up to WUXGA
Supports Embedded HDMI Lossless Digital Audio
Supports CEC bypass
Uses a single Cat.5e/Cat.6/Cat.6a/Cat.7 Ethernet cable via RJ45 connectors
Output resolution follows input
Bi-directional Infrared remote control extension support
Bi-directional RS-232 remote control
Bi-directional Ethernet support
Receiver supports both PoH (Power over HDBaseT) and local power.
* technology provides a methodology to distribute uncompressed video plus
embedded audio (at a bit rate of up to 10.2 Gbps), 100Mbps Ethernet, RS-232, IR and up to
100 Watts of power over distances of up to 100 meters (325 ft.) via a single cable. Video
signals above 1920x1200@60Hz require the use of Cat.6a or Cat.7 cable in order to reach
100 meter transmission distances. Individual transmitter/receiver pairs can be cascaded to
extend the total transmission distance.
NOTE: Not all HDBaseT products will support all of the features listed. The PoH function is designed for powering
compatible receiver units only! Receivers of another brand may not be compatible and are not supported. Non-PoH
tvONE receivers (1T-CT-652, 1T-CT-642, etc.) will need their own power supply.
2.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make certain the
following items are contained in the shipping carton:
1x Transmitter (1T-CT-653) or Receiver (1T-CT-654A) unit
1x Power Adapter
1x IR Emitter Device (with 1T-CT-653) or
1x IR Receiver Device (with 1T-CT-654A)
1x Operations Manual
Note: Please retain the original packing material should the need ever arise to return the unit. If you find any items are
missing, contact your reseller or tvONE immediately. Have the Model Number, Serial Number and Invoice available for
reference when you call.

4
3.0 SPECIFICATIONS:

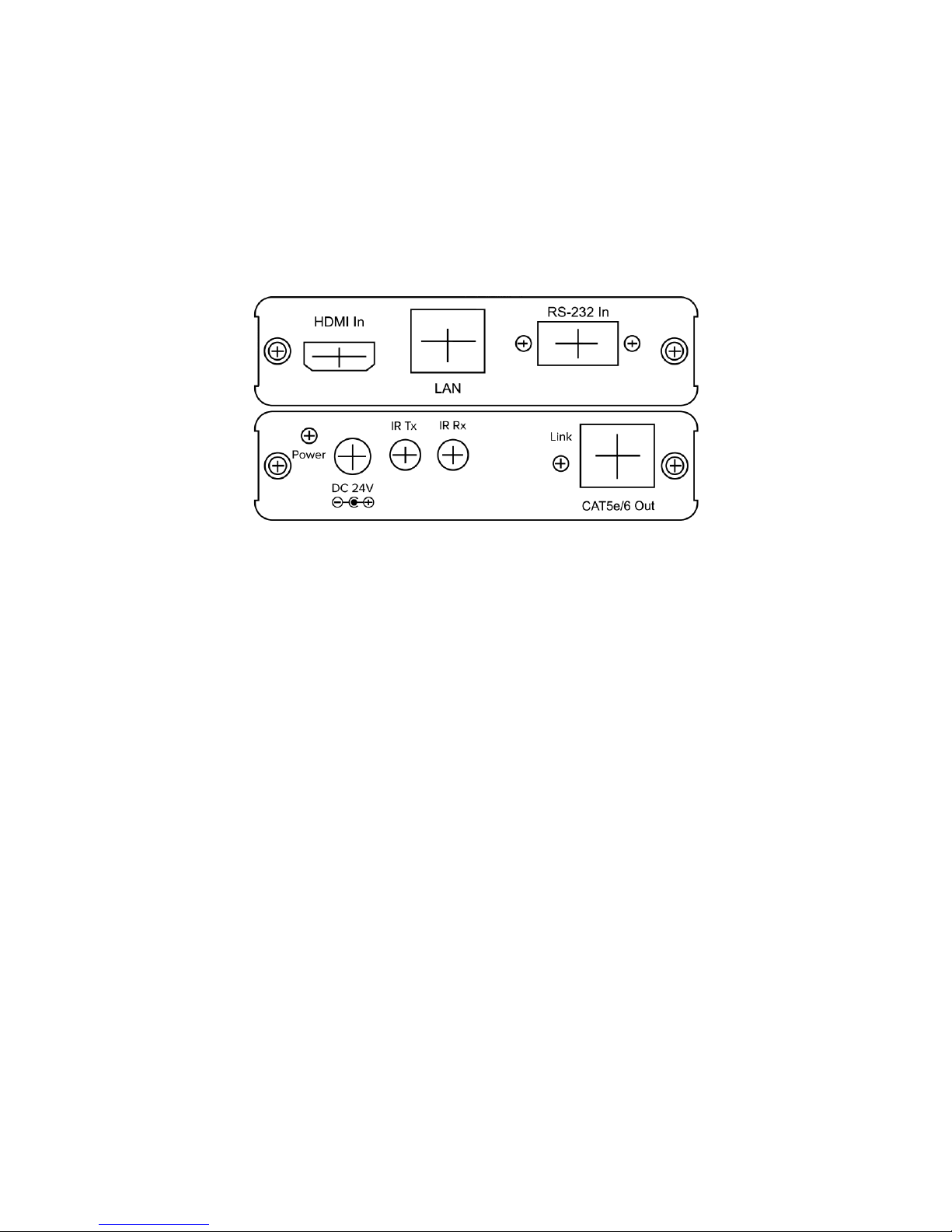

Video Inputs/Outputs
1T-CT-653 Tx - HDMI Input
1x via HDMI Connector
1T-CT-654A Rx - HDMI Output
1x via HDMI Connector
Cat.5e/Cat.6 Cable Inputs/Outputs
1T-CT-653 Tx - Cat.5e/Cat.6 Output
1x via RJ45 Connector
1T-CT-654A Rx - Cat.5e/Cat.6 Input
1x via RJ45 Connector
Additional Inputs/Outputs
Connectors (each unit)
1x RJ45 (Ethernet), 2x 3.5mm mini-jack (Infrared),
1x DB-9 (RS-232)
Supported Signals & Protocols
Industry Standards
HDMI v1.4a (3D, 4k), HDCP 1.1, DVI 1.0, Infrared,
RS-232, Ethernet
Video Performance
Maximum Resolution
HD up to 1080p@60Hz/36bit,
UHD up to 4k@30Hz, PC up to WUXGA
Audio Support
Formats Supported
7.1 CH LPCM, Dolby TrueHD, DTS-HD Master Audio
HDBaseT Support
Maximum Bandwidth
Uncompressed Video/Audio to 10.2Gbps
Maximum Range
up to 1920x1200@60Hz (rates below 5.3 Gbps)
100m (325 ft.) using high quality Cat.5e/6 (23AWG)
up to 3840×2160@30Hz (rates above 5.3 Gbps)
70m (230 ft.) using high quality Cat.5e/6 (23AWG)
100m (325 ft.) using high quality Cat.6a/7 (23AWG)
Cable Requirements (T/R)
Ethernet Cable (UTP or STP)
Highest Quality Cat.5e, Cat.6, Cat.6a, Cat.7 cable
Warranty
Limited Warranty
3 Years Parts and Labor
Mechanical
1T-CT-653 Size (H-W-D)
1T-CT-653 Weight (Net)
25 x 102 x 113mm (0.98 x 4.0 x 4.45”)
252g (0.55 lbs.)
1T-CT-654A Size (H-W-D)
1T-CT-654A Weight (Net)
25 x 102 x 113mm (0.98 x 4.0 x 4.45”)
256g (0.56 lbs.)
Environmental
Operating Temperature
Operating Humidity
0to +40C (+32to +104F)
20% to 90%, Non-condensing
Storage Temperature
Storage Humidity
-20to +60C (-4to +140F)
20% to 90%, Non-condensing
Power Requirement
External Power Supply (1T-CT-653)
1x [email protected], screw lock connector
Optional External Power Supply (1T-CT-654A)
1x [email protected], screw lock connector
Regulatory Approvals
Transmitter/Receiver Units
FCC, CE, RoHS
Power Supply
UL, CUL, CE, PSE, GS, RoHS
Accessories Included
1x AC Power Adapter
US, UK and Euro Type
1x IR Emitter or Receiver
1x Operations Manual
