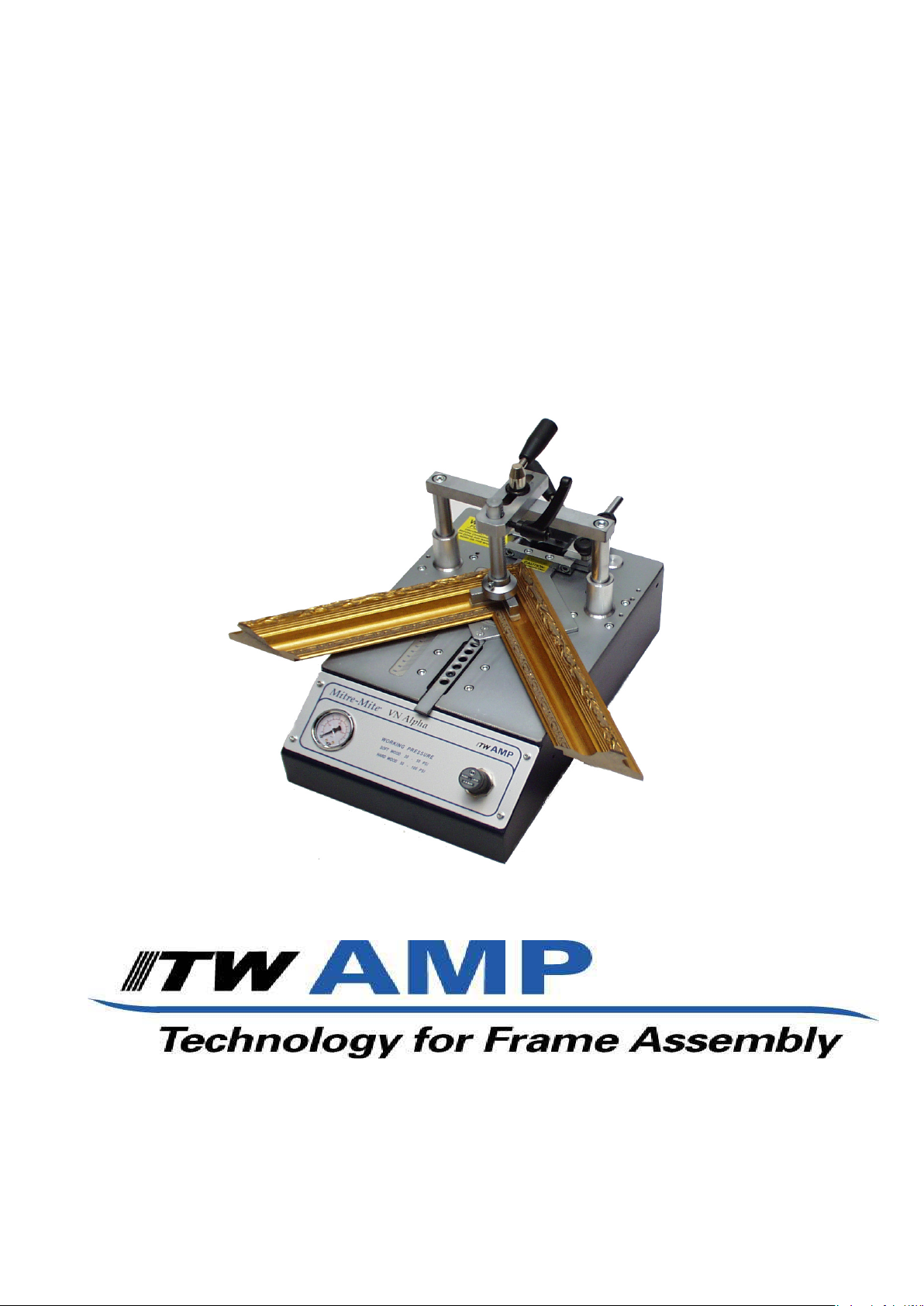

Tw amp Mitre-mite vn alpha User manual

100 Fairway Drive Suite 114 Vernon Hills, IL 60061

Phone: 1-800-322-4204

Fax: 1-800-426-7019

Instruction Manual

Version E

Mitre-Mite

VN Alpha

Index

1. GENERAL INFORMATION 3

1.1 PRODUCER 3

1.2 ASSISTANCE CENTERS 3

1.3 CERTIFICATION 3

1.4 WARRANTY 3

1.5 PRE-ARRANGEMENTS CHARGED TO THE

CUSTOMER 3

1.6 HANDBOOK STRUCTURE 3

1.6.1 Object and contents 3

1.6.2 Users 3

1.6.3 Preservation 3

1.6.4 Symbols utilized 4

2. MACHINE DESCRIPTION 5

2.1 WORKINGPRINCIPLE 5

2.2 MAIN COMPONENTS 5

2.3 MACHINE STRUCTURE 5

2.4 DIMENSIONS 5

2.5 SURROUNDING CONDITIONS 5

2.6 LIGHTING 5

2.7 VIBRATIONS 5

2.8 NOISE EMISSIONS 5

2.9 TECHNICAL DATA 6

2.10 STANDARD EQUIPMENT 6

2.10.1 Standard accessories 6

2.10.2 Upgrading and implementing of mechanical parts 6

2.10.3 Optional accessories 6

2.10.4 Customized optional accessories 6

2.11 ELECTROMAGNETICAMBIENT 6

3. SAFETY 7

3.1 GENERAL WARNINGS 7

3.2 SCHEDULED USE 7

3.3 INADVISABLE USE 7

3.4 DANGEROUS AREAS 7

3.5 PROTECTION DEVICES 7

3.6 STOP FUNCTIONS 7

3.7 SAFE WORKING PROCEDURES 7

3.8 RESIDUAL RISKS 8

3.9 PLATES 8

4. INSTALLATION 8

4.1 SHIPPING AND HANDLING 8

4.2 STORAGE 8

4.3 PRELIMINARYARRANGEMENTS 9

4.4 UNPACKING 9

4.5 CONNECTIONS 9

4.5.1 Pneumatic connection 9

4.6 PRELIMINARY CONTROLS 10

4.7 MACHINE ARRANGEMENT 10

4.7.1 V-Nails(R) magazine loading 10

4.7.2 V-nail(R) clawhead replacement to change V-nails size10

4.8 ADJUSTMENTS 11

4.8.1 V-nails(R) inserting positions adjustment 11

4.8.2 Vertical clamp adjustment 12

4.8.2a Vertical clamp position adjustment 12

4.8.2b Vertical clamp height adjustment 12

4.8.3 Frontal clamp adjustment 12

4.8.4 Working pressure adjustment 13

4.8.5 Protective shield adjustment 14

4.9 CHECKING OPERATIONS TO BE EFFECTED

BEFORE WORKING START 14

5. FUNCTIONING 15

5.1 OPERATORS 15

5.2 FUNCTIONING DESCRIPTION 15

5.3 TIPS FOR PERFECT JUNCTIONS 15

5.4 MACHINE STOP 16

5.5 MACHINE REINSTATEMENT 16

5.6 PUTTING OUT OF SERVICE 16

6. MAINTENANCE 16

6.1 STATE OF MAINTENANCE 16

6.2 MACHINE ISOLATION 16

6.3 SPECIAL CAUTIONS 16

6.4 CLEANING 16

6.5 LUBRICATION 17

6.6 ORDINARY MAINTENANCE 17

6.7 EXTRAORDINARY MAINTENANCE 17

7. DIAGNOSTIC 18

7.1 SAFETY WARNINGS 18

7.2 TROUBLESHOOTING 18

7.3 REQUEST OF ASSISTANCE 19

8. SPARE PARTS 20

8.1 SPARE PARTS LIST 20

8.2 SPARE PARTS ORDERING 20

9 DEMOLITION 20

9.1 DEMOLITION 20

10.ATTACHMENTS 20

10.1 DECLARATIONS 20

10.2 SCHEMES 20

1. GENERAL INFORMATION

1.1 PRODUCER

The firm Alfamacchine-ITW/AMP can boast more than 10

years of experience in the construction of Woodworking

Machines. It has acquired the technological know-how,

developed during years of research in strict touch with

manufacturing departments and international

commercialization. We offer the best warranty that anyone

can grant its customers.

TEL 1-800-322-4204 FAX 1- 800-426-7019

1.2 ASSISTANCE CENTERS

ITW/AMP is represented in North and SouthAmerica by a

numerous and prepared sales organization. Contact our firm

directly to get the name of your local distributor.

For every need regarding Use, Maintenance or Request of

Spare Parts, the Customer should call the local authorized

service center or directly to ITW/AMP, specifying the

machine identification data impressed on the plate.

1.3 CERTIFICATION

The machine is produced in conformity to the pertinent

European Community Norms in force at the moment of its

introduction on the market.

1.4 WARRANTY

The ITW/AMP’s products are constructed to have a long life

and are tested one by one.

If, in spite of this, if any damages or malfunctioning would

occur, the replacement of defective parts is warranted

(counting from the date written on the delivery bill) for a

period of:

- 24 months for mechanical components

- 12 months for pneumatic part

Thedriverbladeistestedfor about 1.000.000 workingcycles.

TheWarranty does not include the sending of technical staff.

The repair interventions will be performed at your local

distributor or ITW/AMP’s plants.The shipping costs will be

entirely charged to the Customer.

The warranty does not cover the damages due to an

inappropriate use of the machine or not corresponding to

the instructions described in this handbook.

Warranty decays in case of unauthorized modifications or

because of accidental damages or tampering performed by

unqualified personnel.

The warranty is also void in case you use V-nails(R) different

from the original ITW/AMP ones.

To take advantage of warranty services is necessary, at the

moment you receive your machine, to fill out the warranty

card and send it back as soon as possible to ITW/AMP.

The warranty will be valid only after ITW/AMP receives the

warranty card & records it.

1.5 PRE-ARRANGEMENTS CHARGED TO

THE CUSTOMER

It is the customer’s duty, on times agreed with the producer,

to execute what is indicated in our documentation.

Things normally charged to the customer are:

•Premises predisposition, included building works and/

or canalization eventually requested

•Pneumatic supplyng of compressed air (see the

paragraph 4.5)

1.6 HANDBOOK STRUCTURE

The customer must pay extreme attention to the indications

reported on this handbook. The proper Pre-Arrangement,

Installation and Use of the Machine, constitute the basis of

a correct customer-manufacturer relationship.

1.6.1 Object and contents

This goal of this handbook is to provide to the customer all

the necessary information so that they can properly use the

machine & be able to run it in complete autonomy and safety.

The handbook contains information concerning the

technical aspects, machine working and standstill,

maintenance, spare parts and safety. Before making any

operation on the machine, the qualified technicians and

operators must read carefully this handbook. In case of doubt

about the correct interpretation of these instructions, ask

ITW/AMP or your local distributor to have the problem

explained.

1.6.2 Users

This handbook is made for the operators and technicians

authorized to perform the machine maintenance.

The operators can not execute operations reserved to the

maintaince staff or the qualified technicians.

The producer does not answer to damages derived from not-

observing this prohibition.

1.6.3 Preservation

The instruction handbook must be kept very closed to the

machine, into a special container protected from liquids and

whatever could compromise its legibility

1.6.4 Symbols utilized

P...

A...

O...

I...

C...

R...

WARNING

OBSERVATION

INQUIRY

EXAMINATION

ADJUSTMENT

It indicates a danger with a mortal risk for the operator

It indicates a warning or a note about key functions or useful

information. Pay the maximum attention to the paragraph

marked with this symbol.

It is requested to take a measurement data, to check a

signal,....

The user is requested to check the proper positioning of any

element of the machine, before operating a certain command

It’s necessary to consult the handbook before performing a

certain operation

In case of a strange sitituation and/or anomalies, you can be

requested to perform a certain mechanical adjustment.

DANGER

2. MACHINE DESCRIPTION

2.1 WORKING PRINCIPLE

The benchtop Frame Assembling Machine Mitre Mite VN

Alpha has been manufactured to assemble any kind of frame.

The Mitre MiteVNAlpha , being of simple construction and

extremely easy to use, makes it possible to join with absolute

precision any kind of moulding by means of special steelV-

nails(R).

It usesV-Nails (R) with the “pulling power” effect in different

sizes.

2.2 MAIN COMPONENTS

The main components constituting the machine are:

- Pneumatic clamping device to allow a proper locking

of the mouldings to insert several V-nails(R) in different

positions

- Magnetic pressure pads of several types, at quick

replacement, to have the proper clamping of any profile

- Dual functions foot operating pedal for separate control

of clamping and nail insertion

- Pneumatic opening of the V-nail(R) magazine for a very

quick reloading

- Nail heads sizes 7, 10 and 15 mm.

2.3 MACHINE STRUCTURE

The movement directions during the machine working are

the followings:

- X AXIS

Movement of horizontal clamp

- Y AXIS

Movement of vertical clamp

2.4 DIMENSIONS

The overall dimensions are reported on table 2.9-A

2.5 SURROUNDING CONDITIONS

The machine does not need special surrounding conditions.

It has to be installed inside an industrial building, lit, aired

andwitha compact and flat floor.The permittedtemperatures

go from 41° to 104° F, with a humidity level not higher than

50% at 104° F or 90% at 68° F.

2.6 LIGHTING

Premises lighting must be conformed to the norms in force

in that Country where the machine is installed and has to

guarantee a clear visibility and can not create dangerous

light reflections.

2.7 VIBRATIONS

In standard conditions conformed to the indication of

machine proper utilization the vibrations do not create

dangerous conditions.The average quadratic weighed level,

according to the acceleration frequency to which arms are

exposed does not exceed 2,5 m/s2.

2.8 NOISE EMISSIONS

Themachine is designed andprojected for reducing the noise

emission level to its source. In standard working conditions

the Machine noise power level is:

Acoustic Continuous Equivalent weighed

pression A <70dB

Acoustic Istantaneous weighed

pression <130dB

The noise levels indicated are emission levels and are not

representative of operating levels. In spite of existing a

relationship between emission levels and exposure ones,

this can not be used in a reliable way to define if further

precautions are necessary. The factors determining the

exposure level to which the working force is subjected,

include exposure length, working premises characteristics

and other noise sources (number of machines, closed

building, etc…). Furthermore the allowed exposure levels

could change according to the several Countries. At any

rate, the information provided, will allow the Machine

Operator to achieve a better understanding of the dangers

and risks they are submitted to.

The indicated noise levels are emission

ones measured in standard conditions of

use. In case of any machine modification,

the above mentioned levels could be

changed and should be tested on the same

machine.

2.9 TECHNICAL DATA

We have listed below the Machine’s data and technical

characteristics to which make reference for any eventual

contact with your distributor for Technical Assistance.

TABLE 2. 9 A

Frames thickness min.-max. .24”- 3.15”

Frames width min.-max. .24”- 2.76”

V-nails magazine capacity n. 220

V-nails size mm 7-10-15

V-nails size on request mm 3-5-12

Pneumatic Supplying 40-100 PSI

Weight about 62 LB

Height of working bench 5.1”

Overall dimensions 17.1”x13”x11.8”

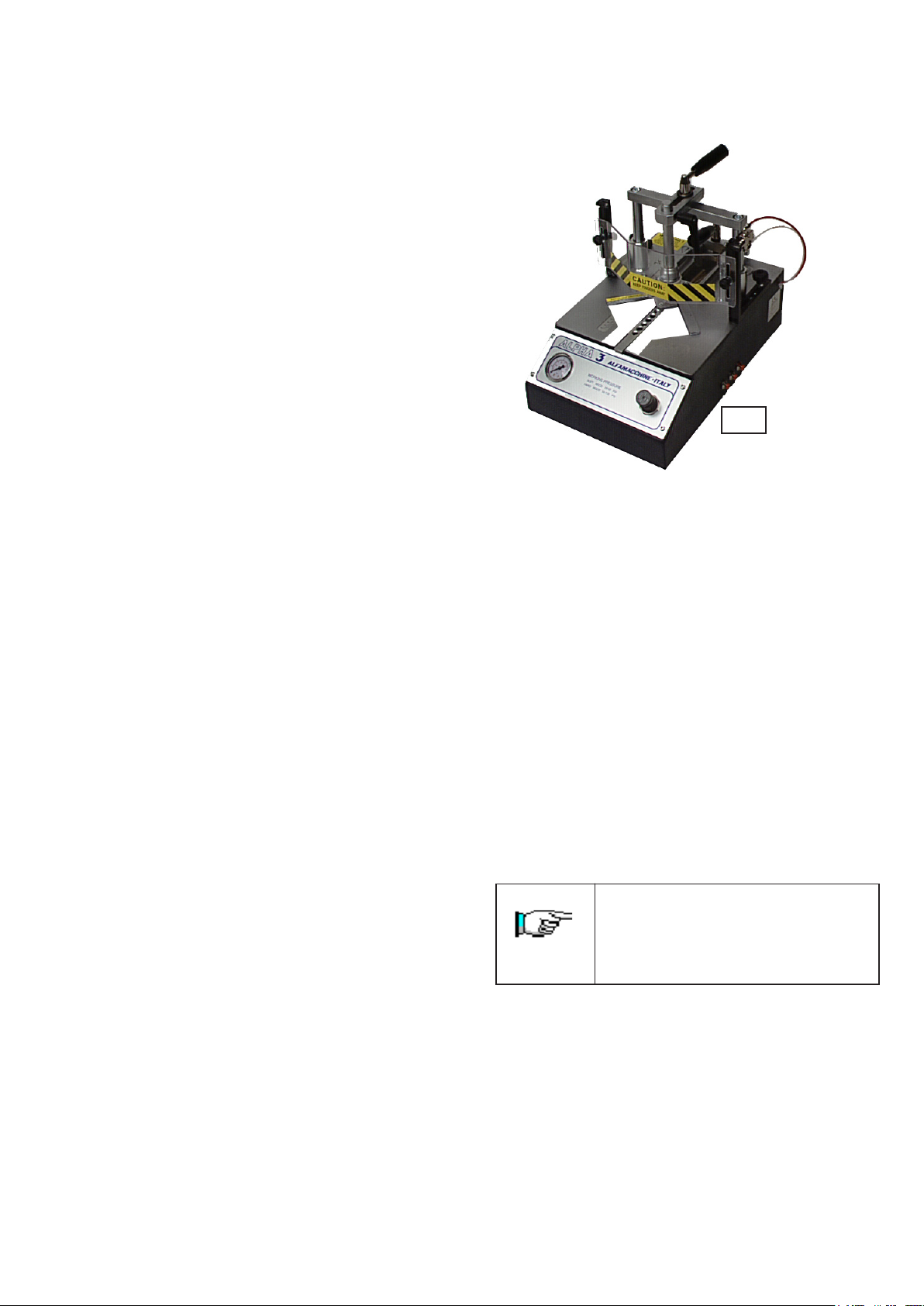

Picture 1

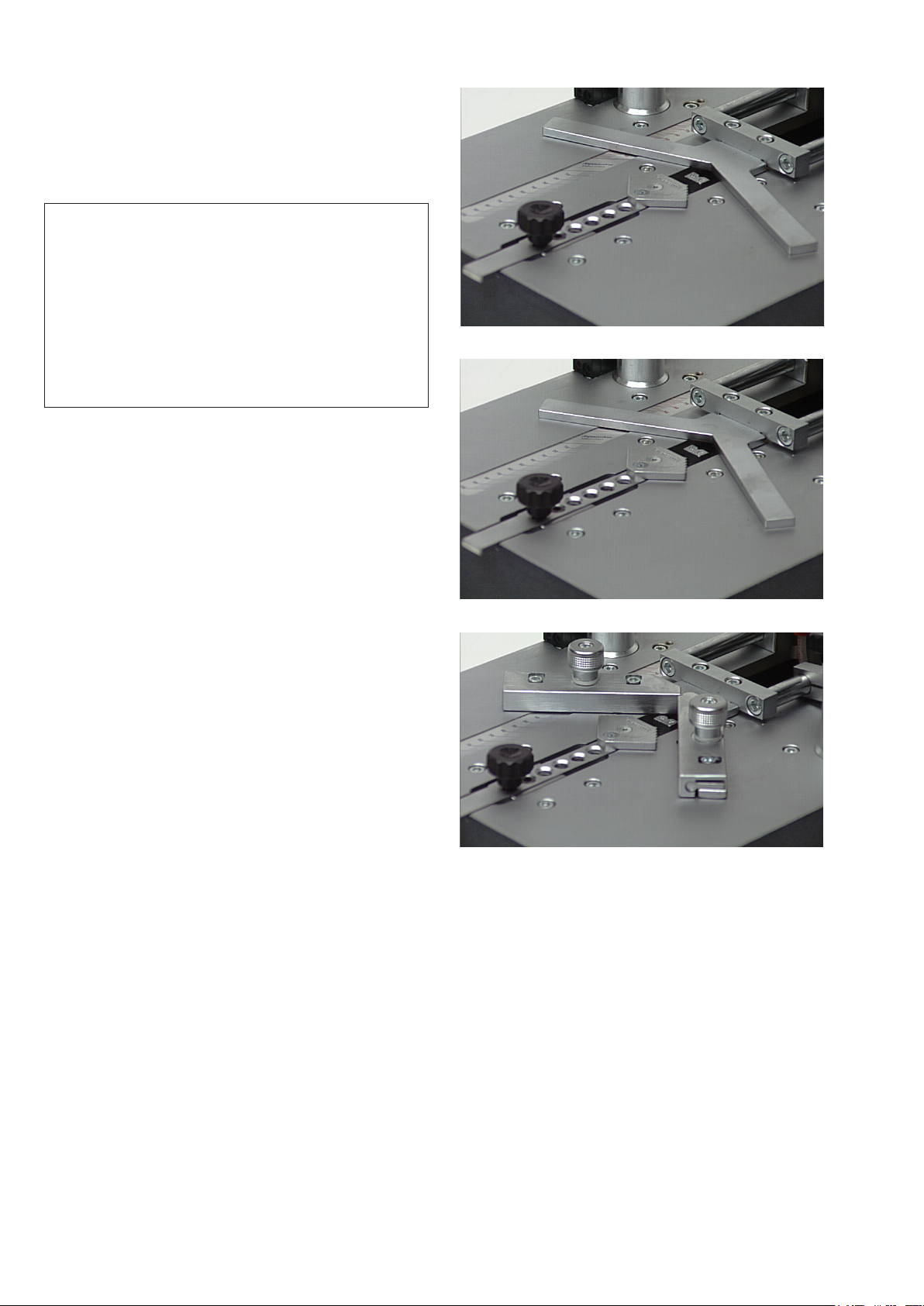

Picture 2

Picture 3

2.10 STANDARD EQUIPMENT

The equipment listed below is standard.

2.10.1Standard accessories

Once you have removed the packaging, please check the

presence of the following accessories:).

- N.1 nail head mm. 7

- N.1 nail head mm.10

- N.1 nail head mm.15

- N.1 L shaped pressure pad

- N.1 Rounding pressure pad

- N.1 Allen Wrench 5 mm. for V-nails head replacement

- N.1 Brass rod magnet to remove V-nails

2.10.2Upgradingandimplementingofmechanical

parts

This machine has been manufactured following a modular

criteria, therefore the existing equipment can be further

upgraded with additional accessories that will not alter its

basic structure.

Technical upgrades on the machine model, if any, will be

such that they can be installed at any time without requiring

any substantial modifications to the machine structure.

2.10.3Optional accessories

•Soft clamping of the moulding that allows to clamp the

moulding at low pressure

•Floor stand

•Adjustable tilting fences (see fig. 3)

•Wooden working bench extension

•Metallic working bench extension

•Special fences for octagons (fig.1)

•Special fences for hexagons (fig.2)

•Round and square pressure pads in rubber

•V-nails claw heads size 3-5-12 mm.

2.10.4Customized optional accessories

Thanks to its versatility this machine can be ‘custom-made’

to meet our users requirements. Additional accessories can

be made by your local machine shop, that can make the

frame assembling easier: EX: special fences for peculiar

moulding shapes, special clamps to ensure the mouldings

are locked properly during V-nail firing, and so on.

2.11 ELECTROMAGNETIC AMBIENT

The Machine is designed to operate properly in an industrial

electromagnetic ambient without altering it being an

exclusively pneumatic machine.

3.1 GENERAL WARNINGS

The operator must pay the maximum attention to the

information written in this Handbook, expressively about

proper precautions for Safety listed in this chapter.

It is imperative for the operator to follow the warnings listed

below:

•Keep the machine and the working clean & ordered

•Provide appropriate containers to stock the pieces you

will be working with

•Use the Machine only in a normal psycho-physical

conditions

•Wear adequate clothing to avoid obstacles and/or

dangerous entanglements to/from the machine

•Wear the individual protection gears prescribed by the

instruction handbook, regarding the effected operations

•Do not remove or alter the warning plates and adhesive

signs

•Do not remove or elude the Machine Safety Systems

•Keep the fingers away from the working area

•Disconnect the air pressure supply during any

maintenance intervention

•Keep your foot off of the pedal during machine

maintenance

3.2 SCHEDULED USE

The Machine is designed and built to assemble mitred

corners.

The machine is projected for manual use only (under

operator’s control).

Dangerous zone

3. SAFETY

3.4 DANGEROUS AREAS

The area where the frames are assembled is defined as the

“working area”

The dangerous areas of the machine, include the movable

parts and the surrounding zones

3.3 INADVISABLE USE

The machine can not be used:

•For uses different from those listed in paragraph 3.2

•In an explosive or aggressive atmosphere, where there

is a high density of dust or oily substances suspended

in the air

•In a flammable atmosphere

•Outside in all weather severity

•For working materials not suitable with the machine’s

characteristics

Figure 3.4.A- Working area and dangerous zones

3.5 PROTECTION DEVICES

The machine is equipped with adequate protections for

persons exposed to the risks due to the transmission mobile

elements,taking part in working (driver blade, horizontal

clamp, vertical clamp).

3.6 STOP FUNCTIONS

The machine stop functions are the following:

•Fast clutch fitting stop (Category 0).

•Foot pedal Stop (Category 1).

STOP CATEGORY 0

It is obtained by disconnecting the fast clutch fitting from

the air feed system (uncontrolled stop).

STOP CATEGORY 1

Controlled stop is obtained by lifting the foot from the

pneumatic pedal, which does not allow the v-nails(R) to fire

or the clamps to work.

The other risks related with using the machine are:

- Finger crushing in the vertical clamp working area

- Finger crushing in the frontal clamp working area

It is necessary to carefully follow the following instructions:

1 Keep the fingers away from frontal and vertical clamp

working areas

2 Disconnect the air pressure during any maintenance

interventions

3 Keep the foot away from the pedal during machine

maintenance

The machine is projected and realized to

eliminate any risk connected with its use.

Theuser is requested toachieve an adequate

training to be instructed by your local

distributor or ITW/AMP’s technicians.

3.7 SAFE WORKING PROCEDURES

3.8 RESIDUAL RISKS

During the normal working cycle and while performing

maintenance, the operators are exposed to several residual

risks that, because of operations own nature, can not be

totally eliminated.

•Risk of finger crushing in the working areas of the

vertical and frontal clamps

3.9 PLATES

The warning plates carrying out safety functions & can not

be removed, covered or damaged.

To see the location of the plates or adhesive signs , see

Fig.10.2-D

Table 3.8 A- Types of plates

Plate concerning machine characteristics

Adhesive sign concerning the finger danger zone

Adhesive sign concerning the behaviour to be kept during

the working cycle

Adhesive sign concerning the behaviour to be kept during

the working cycle

4.1 SHIPPING AND HANDLING

The shipment must be performed by a professionally

qualified staff.The machine has to be shipped in a safe way

to avoid any damage to its parts.

•All the protections and guard devices must be properly

closed and locked.

•The machine has to be shipped like positioned for

installation.

•Before the shipment, it is necessary to lubricate the parts

which are not painted

•According to the type of shipment, it is necessary to

protect the machine from any jarring impact or stress

Figure 4.1A – machine handling indications

4. INSTALLATION

Machine total weight: about 62 LB

The machine lifting must be performed by 2

operators.

Any damaging of the machine caused during its shipment

or handling is not covered under warranty.

Repairs or replacements of damaged parts are charged to the

customer.

4.2 STORAGE

In case of long inactivity, the machine must be stored with

precautions concerning storage place and times.

•Store the machine indoors

•Protect the machine from jarring impacts and stresses

•Protect the machine from humidity and high

temperatures

•Avoid corrosive materials that could touch the machine

•Lubricate the parts which are not painted

Picture 4

Picture 5

Picture 6

Once you have connected the machine with the pneumatic

system, check the proper operation of the foot pedal in the

following way: Move the vertical bar to its full up position

(see paragraph 4.8.2b).

•Pressing the footpedal half way down activates the

horizontal clamp, vertical clamp and the fence locking

•The foot pedal pressed full down activates the V-nail(R)

driver

4.3 PRELIMINARY ARRANGEMENTS

In order to install the machine it is necessary to prepare a

working area adequate to the machines dimension & the

length of moulding you will be working with.

To fulfill the characteristics of precision and steadiness, the

bench frame assembling machines must be positioned on a

solid and leveled plane able to sustain the weight of the

machine. The bench must be studied and prepared by the

customer and/or qualified staff.

4.4 UNPACKING

The benchtop machine is shipped packed into an

appropriate carton and protected by polystyrene parts.

Remove the external packing and save it for a future use.

Check for any casual shipping damage and report it

immediately to the carrier. Shipping damages or any other

defects must be reported to ITW AMP or your local

distributor, within 3 days from receipt of the machine.

4.5 CONNECTIONS

To avoid any problems while setting up your machine, it is

recommended that you follow the instructions below.

4.5.1 Pneumaticconnection

The machine is controlled by a dual action footpedal.

The 3 pipes the pedal must inserted into the 3 fittings located

on machine’s right side in the following sequence (fi. 4-5):

Upper connection Red pipe into the red fitting

(external side)

Central connection Black pipe into the black fitting

(central fitting)

Lower connection Transparent pipe into the 3rd fitting

(user side)

Use the supplied fast clutch fitting to connect the air

compressor system. You could use also another fitting

suitable with your pneumatic system (see fig. 6).

We recommend that you install a filter/

lubricator on the compressed air system to

obtain clean and lubricated air.

Use only silicone lubricating oil for

pneumatic systems. The use of inadequate

oil could damage the valves.

Check the foot pedal operating when the

V-nail(R) magazine is closed. The foot

pedal control is deactivated when the V-

Picture 7

Picture 8

Picture 9

4.6 PRELIMINARY CONTROLS

The Machine preliminary operations before starting the

machine, must be executed by a technician appointed by

the customer. Before setting up the machine, it is necessary

to execute certain verifications and checks to prevent

mistakes or accidents during setup.

•Verify that the machine has not been damaged during

the assembly steps.

•Verify with extreme care, the pipes integrity

4.7 MACHINE ARRANGEMENT

4.7.1 V-Nails(R) magazineloading

To load the V-nails(R) magazine proceed as follows:

•Move the clawpusher backwards by pulling backwards

on the control wire (see fig. 7).

•Insert one or more V-nail(R) strips, making sure that the

sharpened edge of theV-nails(R) (glue side) faces up and

that they are loaded with the V of the nails pointing in

the direction indicated in the figures 8 and 9. Make sure

that you have the correct type of claw head for the nails

that you are using.

•Move the claw pusher forward by gently releasing the

control wire (see fig.7)

4.7.2 V-nail(R) clawheadreplacementtochangeV-

nail(R) size

TheV-nail(R) guide head must be changed each time you use

V-nails(R) of different sizes.

Proceed as follows to replace it:

•Loosen the locking screw of the V-nail(R) guide head

using the proper 5 mmAllen wrench (the screw is on the

opposite side from the V-nail(R) magazine(See fig. 10)

•Remove the V-nail(R) guide head

•Move the clawpusher backwards by pulling backwards

on the control wire. This will permit access to the V-

nail(R) magazine (see fig. 8).

•Remove all the V-nails(R) that are still in the magazine

(usingtheproper brass magnet, if necessary)(see fig.11).

•Insert the new V-nail(R) stick(of desired height) into the

magazine

•Move the clawpusher forward by geltly releasing the

control wire. (see figure 7).

•Insert the new size V-nail guide head to match the V-

nails to be used (see fig. 12).

•Tighten the locking screw of the V-nail guide head (see

fig.10).

Picture 10

Picture 11

Picture 12

Picture 13

Picture 14

4.8 ADJUSTMENTS

The machine has been completely tested & checked in ITW/

AMP’s plants before its shipment.All the operator has to do

is perform the following adjustments:

4.8.1 V-nail(R) inserting positions adjustment

To properly position the mouldings to be assembled, the

Mitre Mite VN Alpha is equipped with a 90° fence.

The fence can be shifted forward or backward in order to

allow the proper positioning of the v-nails(R) in the

moulding.

The fence stops (backward and forward) can be set with

precision by means of locking clamps. (see fig. 13).

The operator can easily use the machine to insert V-nails

with extreme precision into 2 different positions (fig. 14).

Picture 16

Picture 17

4.8.2 Vertical clamp adjustment

The vertical clamp can be adjusted in height and position.

Proceed as follows to adjust them:

4.8.2aVertical clamp position adjustment

•Position the mouldings to be assembled on the working

bench

•Select the pressure pad suitable with the profile of the

moulding to be assembled and put it on the vertical bar

•Loosen the handle (see fig.15) that locks the clamp,

which holds the vertical bar. This will permit its

movement forwards or backwards. You will need to

position the pressure pad directly over where the v-

nails(R) will be inserted.

•Tighten the handle once you have reached the proper

position

4.8.2bVertical clamp height adjustment

•Loosen the side handle (see fig. 16) and adjust the

pressure pad height over the frame. It is recommended

that you set the height between 5 and 8 mm above the

moulding.This will help to avoid any accidental fingers

crushing.

•Tighten the handle once you have reached the proper

position.

•Lower the vertical clamp by pressing half way down on

the foot pedal.This will verify that the mouldings to be

assembled are properly clamped.

•Press all the way down on the foot pedal to insert the V-

nail(R).

Picture 15

4.8.3 Frontal clamp adjustment

The Frontal Clamp (horizontal clamp) has a series of holes

in the flat bar (see fig.17).

Lift the bar upwards to take it out of its initial position. You

will now be able to move it forwards and backwards.

To lock the bar it is sufficient to insert it into the proper peg

located in the middle of the guide channel.

Proceed as follows to position the frontal Clamp correctly:

1. Remove the bar from the peg by lifting it upwards by

about 10-15 mm. Move it forward until it touches the

moulding to be assembled (see fig.18).

2. Lower the bar into the next available hole & over the

peg.

Picture 18

Picture 19

In case of continued use without needing

to remove the frontal clamp from its

position, it is possible to fix it into the peg

using the proper screw.

When shipping the machine, it is advisable

to fix the bar using the supplied knob.

4.8.4 Working pressure adjustment

The working pressure must be adjusted to the hardness of

the mouldings to be assembled.

The pressure regulation allows you to change the clamping

pressure.

Too high of a working pressure may cause a bad assembly

junction, & on small-size frames the moulding can be

crushed.

Too low of a working pressure may cause an incomplete

insertion of the V-nail(R) into the frame.

The working pressure is adjusted by means of the regulator

on the panel near the pressure gauge (see fig. 19).

Proceed as follows to adjust the working pressure:

1. Pull up on the regulator cap about 3- 4 mm to unlock it.

2. Turn it clockwise to increase the pressure and counter-

clockwise to decrease it.

3. Push the regulator cap back down, to lock it into position

DO NOTADJUST the pressure

if the machine is not connected

to the air supply.

The suggested pressures are:

Softwoods (samba,........) 30-40 PSI

Medium (ramin,........) 40-60 PSI

Very hard woods (oak) 60-80 PSI

The values listed above apply to 7 and 10 mm highV-nails(R).

Increase the pressure by 10 % for 15 mm highV-nails(R).

When stacking 2 or more V-nails(R), increase the working

pressure by 10 to 15 %.

4.8.5 Protective shield adjustment

You can order a protective shield made of transparent plastic

material (see fig. 20).

Picture 20

Proceed as follows to adjust the protection shield:

1. Loosen the 2 knobs which hold the shield in place and

lift or lower it to a height of about 6-8 mm above the

mouldings to be assembled;

2. Tighten the knobs to lock the protection shield.

Even if the protective shield is properly adjusted, it is

necessary to follow the instructions listed below:

6 Keep the fingersawayfrom the frontal and verticalclamp

working areas.

7 Disconnect the air supply during any maintenance

intervention.

8 Keep your foot off of the pedal while adjusting the

machine.

Opening the protection shield causes the

foot pedal to be deactivated.

4.9 CHECKING OPERATIONS TO BE

EFFECTED BEFORE WORKING START

Oncethe machine has been properlyinstalled(likepreviously

described), check that:

The mouldings to be assembled are properly positioned on

the working bench.

The magazine is loaded with the type of V-nails(R) suitable

with the mouldings to be assembled

Theadjustment of vertical andhorizontal clamps are correct

(chapter 4.8.2 and 4.8.3).

The working pressure is adequate to the wood hardness (see

chapter 4.8.4).

Pressing halfway down on the pedal both the frontal and

vertical clamps hold the frame properly.

The protective shield is properly positioned (see chapter

4.8.5)

Press the pedal all the way down to insert the V-nail(R).

If you want to insert 2 or moreV-nails(R), one

upontheother in the same position, youmust

release the pedal halfway and then press it

full down to insert the second V-nail(R).

5.2 FUNCTIONING DESCRIPTION

The machine has only one possible operating mode:

•Manual operation by using the pneumatic footpedal.

Press the foot pedal half way down to clamp the moulding.

Press the foot pedal full down to drive theV-nail(R).

To assemble a corner, you must operate as follows:

1 Set the inserting positions, using the fence locking

clamps

2 Place the mouldings on the working bench. Move the

fence & the moulding to the first inserting position.

3 Adjust the vertical clamp height and position.

4 Adjust the frontal clamp position.

5 Verify and adjust the proper working pressure according

to the mouldings to be assembled.

6. lock the fence into the first position (see fig. 5.2)

7. Press halfway down on the pneumatic pedal to verify

that the mouldings are properly clamped.

8. Press the pedal all the way down to insert theV-nail(R). If

you want to insert 2 or more V-nails one upon the other

in the same position, you must release the pedal halfway

and then press it full down to insert the second V-nail

and so on.

9. Remove your foot from the foot pedal.

10.Loosen the fence locking handle (see fig. 5.2).

11.Shift the mouldings and the fence to the next position

and repeat the steps 6,7 and 8.

Fiura 5.2

5. FUNCTIONING

5.1 OPERATORS

The machine has been projected to be used by only one

operator.

The staff assigned to operate with the machine, must be in

possession (or acquire through adequate training) the

requirements indicated below. In addition they must have

the knowledge of this handbook and of every information

concerning safety:

•General and technical culture sufficient to comprehend

the handbook contents and properly understand the

drawings and schemes.

•Knowledge of the main sanitary, technological and anti-

accidental norms.

•Overallknowledge of the production line and plant where

the machine is installed.

•Specific experience in the assembly of frames.

•To know how operate in case of emergency, where to

find theindividualprotection means andhow touse them

properly.

The Maintenance people, in addition to the above

mentioned characteristics, must be in possession of an

adequate technical education. 5.3 TIPS FOR PERFECT JUNCTIONS

a) V-nail(R) types

In order to allow the machine to make excellent quality

junctions using different materials, it has been necessary to

manufacture different V-nail(R) types for different uses (see

attachment D).

V-nails(R) can be classified into three different groups:

for soft woods and

soft plastic

for medium woods

for hard woods

Suggested V-

nail(R) code

Suggested V-

nail(R) code

Suggested V-

nails(R) code

b) Assembling positions

It is advisable to operate as follows in order to achieve the

best results in terms of junction is quality:

Never drive V-nails(R) near the junction vertex. The

minimum recommended distance from the external

vertex is at least 10 mm.

When you want to make the junction using only oneV-

nail(R), the most suitable position is in the middle of the

moulding (see fig. 21)

In case you want to insert 2 or more V-nails(R) into each

junction, we recommend you to insert the most external

one 1/3 from the external vertex and the most internal

one 1/4 from the internal vertex.

Picture 21

5.4 MACHINE STOP

The machine can only work by pressing the pneumatic foot

pedal.To stop the machine remove your foot from the pedal.

It is possible also to disconnect the fast clutch fitting from

the compressed air.

5.5 MACHINE REINSTATEMENT

The machine reinstatement is effected by pressing the

pneumatic foot pedal.

5.6 PUTTING OUT OF SERVICE

Incase on long inactivity periods it is necessary todisconnect

the fast clutch fitting from pneumatic system.

6. MAINTENANCE

6.1 STATE OF MAINTENANCE

The maintenance operations must be performed with the

machine in the conditions described at the “state of the

machine” table (tab 6.6.A and 6.7.A)

6.2 MACHINE ISOLATION

Before performing any type of maintenance or repair , it is

necessary to isolate the machine from it’s supplying sources,

by making the following operations:

1) Disconnect the fast clutch fitting from the pneumatic

system.

Once the maintenance is finished the & before you reconnect

the pneumatic supply, ascertain that all components and

any pneumatic connections are properly reinstalled.

6.3 SPECIAL CAUTIONS

During the maintenance or repair operations is suggested to

proceed as follows:

•Before starting any operation place a sign “machine

under maintenance” in a highly visible position.

•Do not use solvents or flammable materials.

•Do not step on the machine parts, because they have

not been projected to sustain the weight of persons.

•Onceall the operations are finished, restore and properly

place the protections and shields that were removed or

opened.

6.4 CLEANING

The machine structure is simple and robust therefore the

mechanical parts do not require any special maintenance.

It is advisable to follow the rules listed below:

•Regularlyremove glue or other residues from theV-nail(R)

head and from the upper part of the driver blade;

•Always keep the V-nail(R) magazine clean & without

residues.

•Remove any residue from the V-nails(R) guide “L” shaped

support.

Do not use water to clean the machine, otherwise metallic

parts may rust.

Beforeperforming any cleaning intervention,

the operator must disconnect the pneumatic

system.

TAB 6.6 A

TAB. 6.7 A

6.5 LUBRICATION

Use preferably CASTROL MAGNA GC 32 or equivalent oil( ITW/AMP part number T-064).

Furthermore, we recommend to lubricate the driver blade every 200 working hours.

Unsuitable lubricants may cause to the valves seal problems (seals may become too large) and consequent

jamming of them.

6.6 ORDINARY MAINTENANCE

The following operations must be performed at the times indicated below. Not observing the following instructions exonerate

the Producer from any responsibility regarding the warranty.

The operations described below, even if simple, must be executed by qualified personnel.

The scheduled ordinary maintenance includes overhauls, checks and interventions that, to prevent stops and breakdowns,

keep the system working properly.

•Lubrication state of the machine

•Wear and tear parts state

Maintenance

V-nail(R) driver blade

Movable parts lubrication

V-nails(R) claw heads

“L” shaped supports (V-nails(R)

guide)

Description

Replacement every 1.000.000 V-nails(R)

shot

Lubricate the driver blade every 200

working hours

Replacement every 5.000.000 V-nails(R)

shot

Replacement every 5.000.000 V-nails(R)

shot

Machine state

Isolation for maintenance

6.7 EXTRAORDINARY MAINTENANCE

Listed below are the operations that need the intervention of ITW/AMP or your local distributor’s TechnicalAssistance (see the

paragraph 1.2). You can also use qualified staff authorized by the Producer

The extraordinary maintenance includes interventions to be performed in exceptional cases:

•Breakage

•Revisions

MAINTENANCE

Valves and Reducers

Frontal and vertical clamping

gaskets

DESCRIPTION

Suggested replacement every 6/8 million

of V-nails(R)++ shot

Replacement in case of leak of air

MACHINE STATE

Isolation for maintenance

TABLE 7. 2 - A

7. DIAGNOSTIC

7.1 SAFETY WARNINGS

The interventions must be executed by personnel properly trained and they must take all precautions in order to avoid

accidental starts.

7.2 TROUBLESHOOTING

TROUBLE
