Introduction
The VERA DLV20 dolly is an accessory for the VERA20 loudspeaker.
It is characterized by a subtle look, a remarkable size to weight ratio and ease of use.
Instructions in this user manual
NOTE
TIP
CAUTION
WARNING
Thank you for choosing a high-quality product “MADE IN GERMANY” from the brand
TW AUDiO.
If you lend your product to another party, inform that party of the safety-related operating pro-
cedures and hand over this assembly guide. If you require additional copies of this manual,
you can obtain them free of charge from TW AUDiO or download them from www.twaudio.de
Strictly adhere to the instructions contained in this operating manual that are marked as
follows:
This symbol in combination with the signal word “Warning” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to serious injury or even death.
This symbol in combination with the signal word “Caution” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to light or moderate injury.
This symbol in combination with the signal word “Note” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to product damage.
This symbol in combination with the signal word “Tip” identifies additional information or
notes that will simplify working with TWAUDiO products on the basis of practical experience.

Operation manual VERA DLV20
3
Notes on the products
Read manual
before use!
Before using the dolly, carefully read the operation manual and keep it in a safe place together
with the VERA DLV20 dolly.
General information
Operation manual: OM-VERA DLV20
Version 2.0 en, 11/2022
© by TWAMBO 2022; all rights reserved.
All information contained in this operating manual was correct to the best of our knowledge
at the time of printing.
Quality warranties or assurance of suitability for a certain type of use based on the technical
specifications, dimensions and weights are not granted by TWAMBO.
TWAMBO also shall not assume liability for any secondary damage (property damage and/or
personal injury) nor for the failure to comply with this operating manual!
TWAMBO reserves the right to update this document based on recent developments.
TWAMBO GmbH
Karl-Hofer-Str. 42
14163 Berlin
Germany
Phone : + 49 (0) 71 41-48 89 89 0
Fax: + 49 (0) 71 41-48 89 89 99
E-Mail: [email protected]
WWW: www.twaudio.de

Operation manual VERA DLV20
4
Content
1. Safety | Intended use...................................................................................................... 5
2. Overview ........................................................................................................................ 7
2.1 Components ........................................................................................................... 7
3. Technical specifications .................................................................................................. 8
3.1 Data sheet............................................................................................................... 8
4. Commissioning............................................................................................................... 9
4.1 Mounting VERA20 loudspeaker on the VERA DLV20 dolly........................................ 9
5. Transport and Storage.................................................................................................. 16
6. CE Declaration of Conformity........................................................................................ 17
7. Disposal ....................................................................................................................... 17

Operation manual VERA DLV20
5
1. Safety | Intended use
The VERA DLV20 dolly was developed for use in professional sound systems. The dolly may
only be used by trained and qualified personnel.
The VERA DLV20 dolly may only be used with the VERA20 loudspeaker.
These assembly instructions describe how to use the VERADLV20 dolly. Any other use shall
be deemed improper and may result in damage or even injury.
Modifications or alterations to individual parts of the VERA DLV20 dolly are not permitted!
Danger to life!
WARNING
During and after each system setup, check that all quick-lock pins are always completely
inserted! All quick-lock pins must always be used!
WARNING
Before each use, check the integrity of the VERADLV20 dolly and ensure that all components
are in perfect condition.
WARNING
The VERA DLV20 is an accessory designed both for indoor and outdoor use.
CAUTION
The VERA DLV20 dolly may only be used by trained and qualified personnel. Personnel must
check the VERA DLV20 for its full suitability before each use.
WARNING
When visible damage to any part of the VERA DLV20 dolly is detected, it must be decommis-
sioned immediately.
WARNING
Note the operating modes described in this assembly instructions. Other uses are not per-
missible.
Damage caused by improper use is not covered by TWAMBO.
Please adhere to the following safety instructions to avoid risks when using accessories.

Operation manual VERA DLV20
6
When moving the VERA DLV20 dolly, ensure full load-bearing capacity and stability of the
substrate.
The VERADLV20 dolly is specified for a load of not more than four VERA20 loudspeakers.
This load capacity must never be exceeded!
WARNING
During movement (assembly or dismantling, transport to the place of use) of the
VERA DLV20 dolly with VERA20 loudspeakers, ensure sufficient space to prevent collisions
with other objects.
WARNING

Operation manual VERA DLV20
7
1. Transport dolly top part - Polyurea coated surface
2. Transport dolly bottom part - Polyurea coated surface
3. Swivel castors with brakes, 100mm (2 pieces)
4. Swivel castors, 100mm (2 pieces)
5. Captive quick-locking pins
Figure 2.1 - Overview
2. Overview
2.1 Components
1
2
4
3
5

Operation manual VERA DLV20
8
Maximum load capacity 4x VERA20
Dimensions (h x w x d) 600 x 500 x 440 mm [23.62 x 19.67 x 17.32 in]
Weight 15,3 kg [33.73 lbs]
Surface Polyurea-coated
3. Technical specifications
3.1 Data sheet

Operation manual VERA DLV20
9
4.1 Mounting VERA20 loudspeaker on the VERA DLV20 dolly
4. Commissioning
NOTE
To prepare the VERA20 loudspeakers for transport on the dolly, proceed as follows:
NOTE
1. Press down the locking brakes on the two castors with your foot. This will secure the dolly
from rolling away.
2. Lift off the top of the dolly.
Figure 4.1.1 - Dolly
3. Loosen the two quick-locking pins at the front of four VERA20 loudspeakers.
4. Both splay links in the front rigging tracks must be extended downwards.
Figure 4.1.2 - Loosen quick-locking pins
1.
2.
1.

Operation manual VERA DLV20
10
WARNING
WARNING
NOTE
Figure 4.1.3 - First VERA20 loudspeaker on VERADLV20 dolly
5. Please note that setting up the VERA DLV20 dolly with VERA20 loudspeakers always
requires two persons!
6. Have two persons place the first VERA20 loudspeaker on the lower part of the
VERA DLV20 dolly.
7. Insert the VERA20 loudspeaker´s two front quick-locking pins into the holes of the
VERA DLV20 dolly.
8. Check that all quick-locking pins are always completely inserted!

Operation manual VERA DLV20
11
WARNING
NOTE

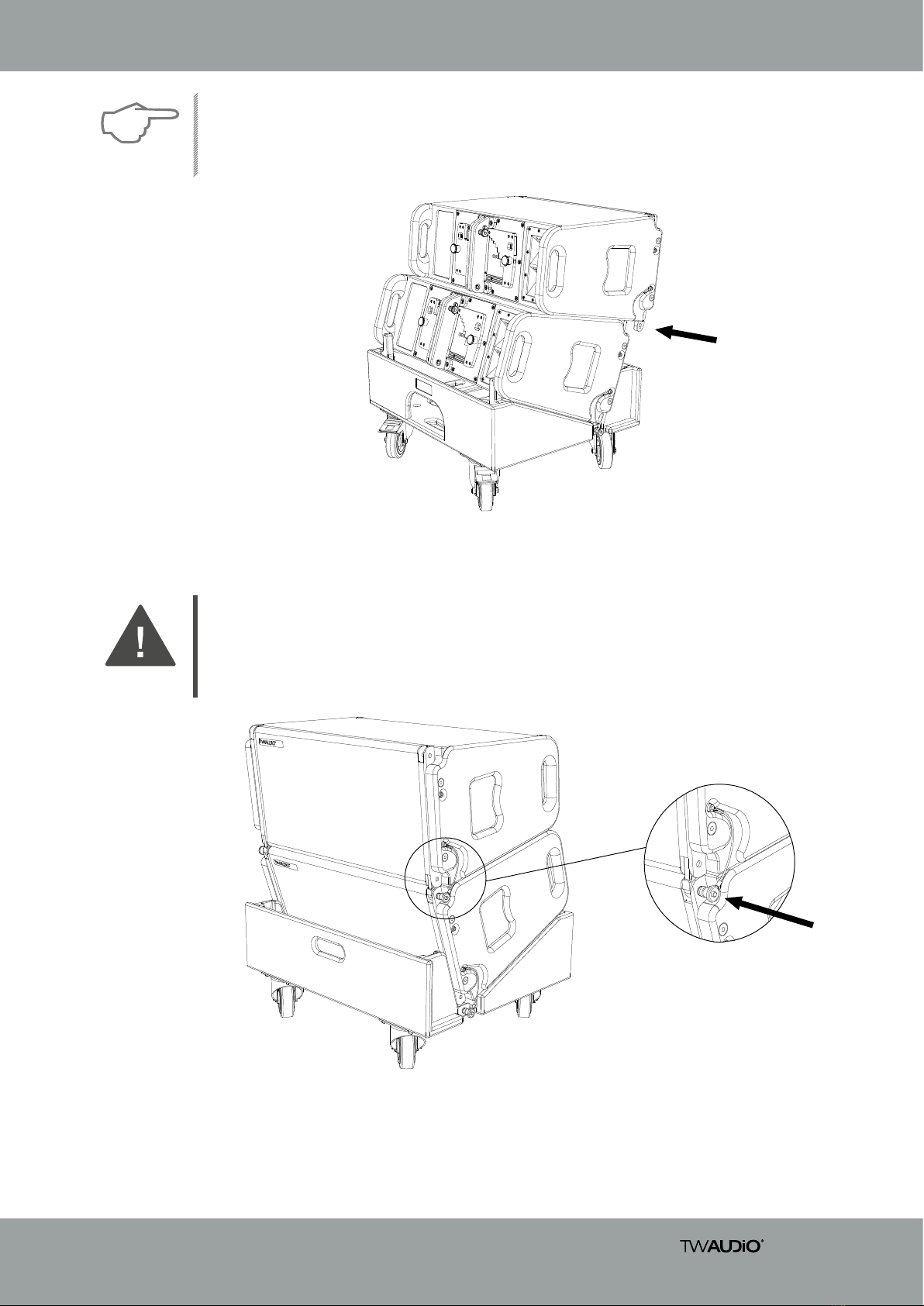

Figure 4.1.5 - Insert quick-locking pins
11.Insert the VERA20 loudspeaker´s two front quick-locking pins into the holes of the lower
loudspeaker.
12.Check that all quick-locking pins are always completely inserted!
Figure 4.1.4 - Second VERA20 loudspeaker on VERADLV20 dolly
9. Have two persons place the second VERA20 loudspeaker on the first one.
10.Pull back the VERA20 loudspeaker until its front splay links align with the rigging tracks of
the lower loudspeaker.

Operation manual VERA DLV20
12
WARNING

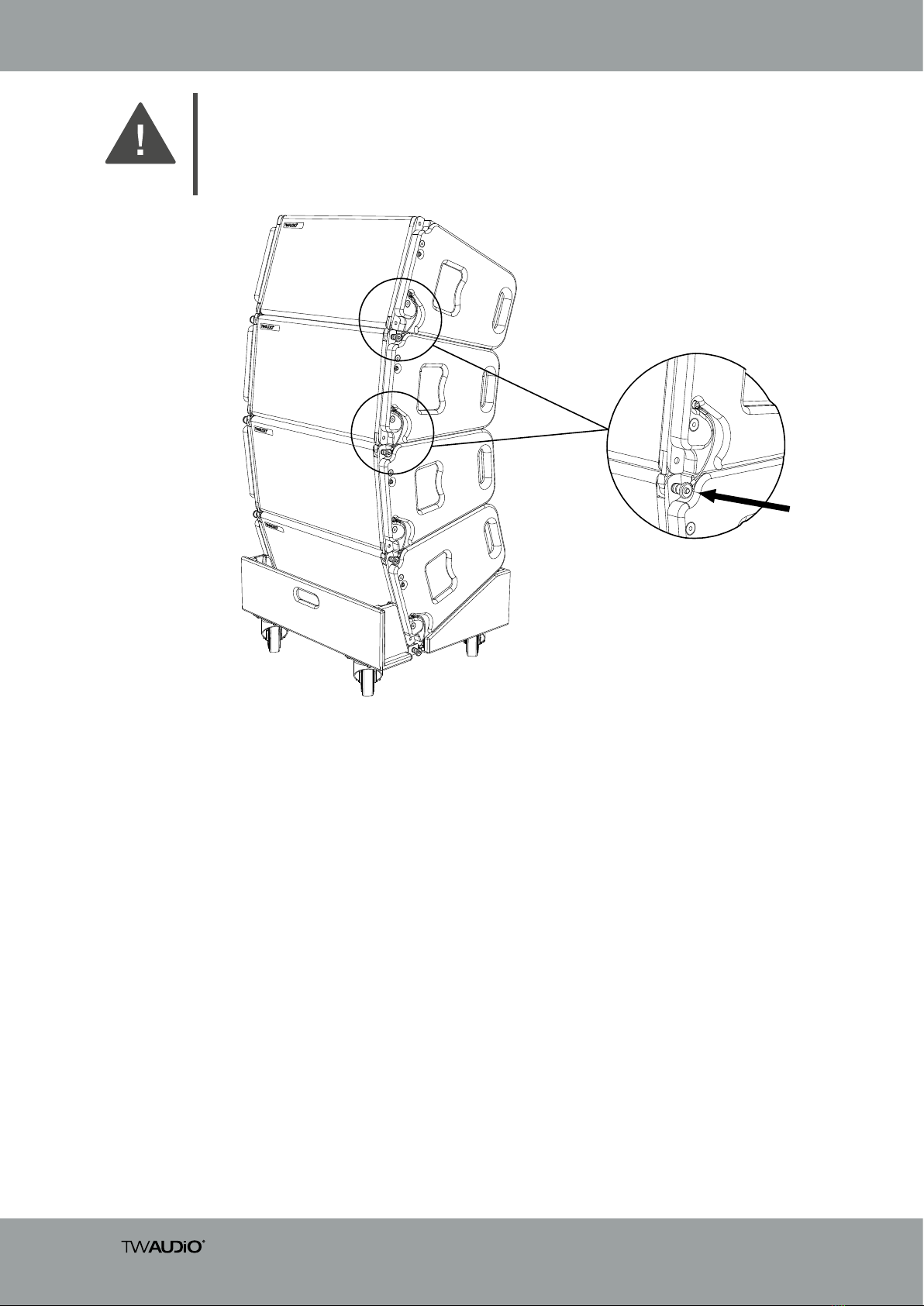

Figure 4.1.6 - Third and fourth VERA20 loudspeaker on VERA DLV20 dolly
13.Follow steps 9 to 12 to mount the third and fourth VERA20 loudspeaker in the same
manner.
14.Check that all quick-locking pins are always completely inserted!

Operation manual VERA DLV20
13
NOTE

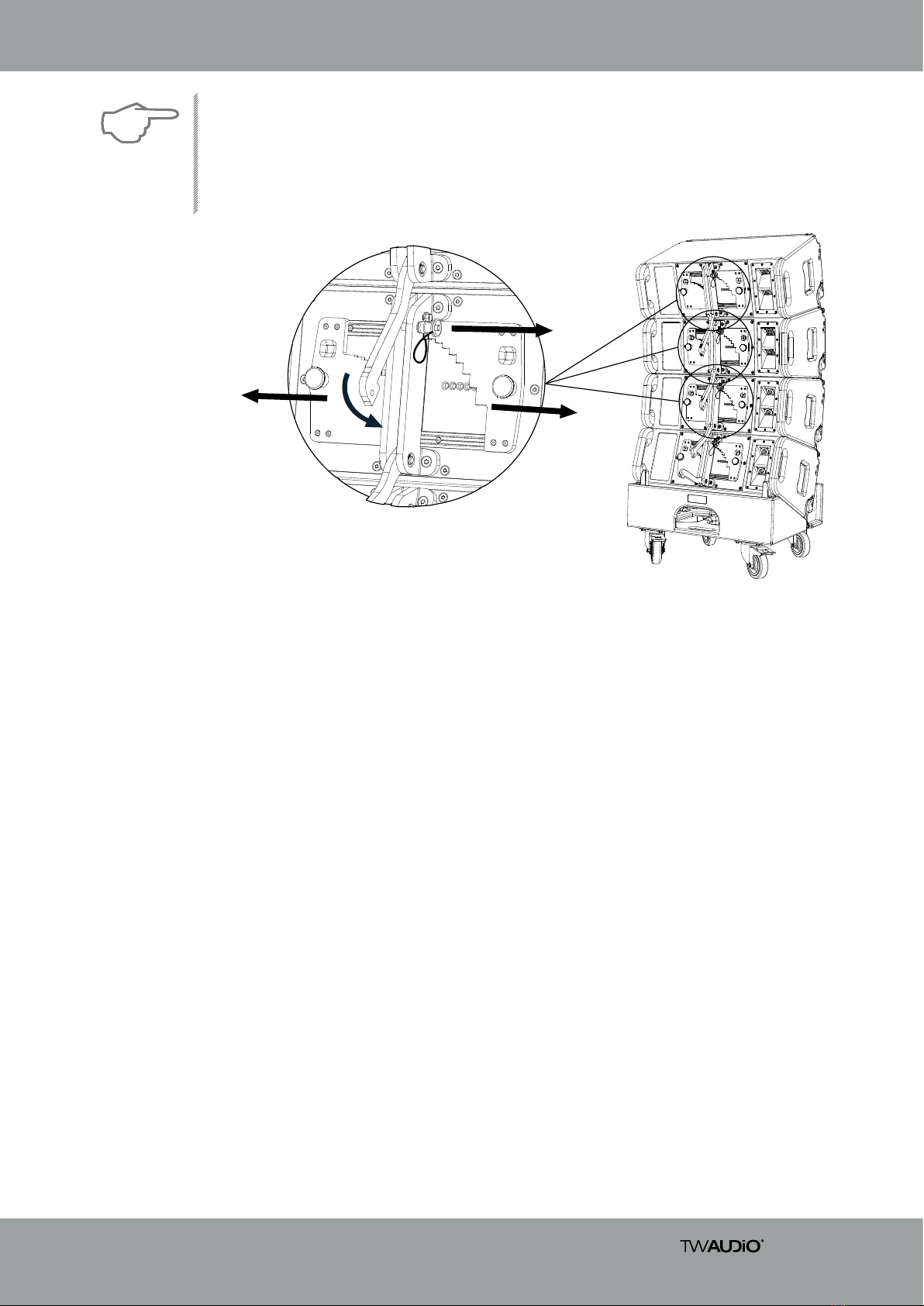

Figure 4.1.7 - Open sliders
15.Move all right-hand sliders completely to the right and all left-hand sliders completely to
the left.
16.Loosen the quick-locking pin on the main carrier of the upper three loudspeaker´s back
rigging and fold out the hook completely downwards until each of the three hooks tou-
ches the back rigging support plate.
15.
15.
16.
16.

Operation manual VERA DLV20
14
WARNING
17.Insert the quick-locking pin on the main carrier of the upper three VERA20 loudspeaker´s
back rigging so that all three hooks are fixed.
18.Check that all quick-locking pins are always completely inserted!
Figure 4.1.8 - Insert quick-locking pins and close slides
19.Push all slides on the right completely to the left, so that the back rigging is closed.
20.Make sure that the top three hooks attach to the support plate, that all quick-locking pins
have been pushed through completely and that all right slides are closed! This ensures that
all VERA20 loudspeakers and the VERA DLV20 dolly form a firmly connected unit.
21.Fold back the hook on the back rigging of the bottom speaker so that it rests against the
quick-locking pin.
17.
19.
NOTE
WARNING
WARNING

Operation manual VERA DLV20
15
WARNING
Figure 4.1.9 - VERADLV20 dolly top part
22.Remove both quick-locking pins on the left and right of the VERA DLV20 dolly´s top.
23.Put the top part of the dolly onto your system structure.
24.Insert the two quick-locking pins of the VERA DLV20 dolly into the holes of the upper
VERA20 loudspeaker.
25.Check that all quick-locking pins are always completely inserted!
26.Pull the Cover4V20 Cover over the dolly and close it.
27.Lift the locking brakes on the two castors with your foot. This will unlock the dolly.
Figure 4.1.10 - Fully assembled VERADLV20 dolly
NOTE
NOTE
NOTE

Operation manual VERA DLV20
16
Ensure that the surface of the dolly is not damaged during transport and storage. Moisture
can penetrate exposed wood surfaces and cause the wood to swell.
This is why the product should be transported and stored in a safe, careful, dry and largely
dust-free manner.
The following accessories are available from TW AUDiO for the dolly:
• Cover4V20 (Cover)
NOTE
5. Transport and Storage
The original packaging is unsuitable as permanent storage and transport packaging.

Operation manual VERA DLV20
17
as well as all model variants based on these, provided that they correspond to the original
factory models and have not been technically modified in any way.
Applicable directives:
• 2001/95/EG
Applicable national standards and technical specifications:
• DIN EN ISO 12 100
• DGUV Vorschrift 17 und 18
Berlin, Germany, January 1st, 2021
Bernhard Wüstner
7. Disposal
This declaration applies to the following components
• VERA DLV20
6. CE Declaration of Conformity
If you have any question regarding the disposal of used devices, please contact us under the
following telephone number:
+49 (0) 71 41 - 48 89 89 0
In countries outside of the European Union, comply with local regulations.
Copy and translation of the original CE Conformity Declaration:
We hereby declare that the below-referenced components by virtue of their design and con-
struction, and in the configuration placed on the market by us, satisfy the safety and health
requirements of the applicable EC directives. This declaration becomes invalid in case of modi-
fications that have not been approved by us.
