TW Audio VERADL10 User manual
Operating manual
VERA DL10
Operating manual VERA DL10
2
Introduction
Thank you for choosing a high-quality product “MADE IN GERMANY” from TW AUDiO.
The VERA DL10 dolly is an accessory for the VERA10 loudspeaker and VERARF300 rigging
frame.
This accessory set is characterized by a subtle look, a remarkable size to weight ratio and
ease of use.
If you lend your product to another party, inform that party of the safety-related operating pro-
cedures and hand over this assembly guide. If you require additional copies of this manual,
you can obtain them free of charge from TWAUDiO or download them from www.twaudio.de
Instructions in this user manual
Strictly adhere to the instructions contained in this operating manual that are marked as
follows:
This symbol in combination with the signal word “Caution” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to light or moderate injury.
This symbol in combination with the signal word “Note” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to product damage.
This symbol in combination with the signal word “Tip” identifies additional information or
notes that will simplify working with TWAUDiO products on the basis of practical experience.
This symbol in combination with the signal word “Warning” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to serious injury or even death.
NOTE
TIP
CAUTION
WARNING
Operating manual VERA DL10
3
Notes on the products
Read manual
before use!
Beforeusingthedevice, carefullyread theoperating manual and keep itwiththe VERA DL10 dolly.
General information
Operation manual: OM-VERA DL10
Version 1.0 en, 03/2019
© by TW AUDiO 2019; all rights reserved.
All information contained in this operating manual was correct to the best of our knowledge
at the time of printing.
Quality warranties or assurance of suitability for a certain type of use based on the technical
specifications, dimensions and weights are not granted by TWAUDiO.
TW AUDiO also shall not assume liability for any secondary damage (property damage and/or
personal injury) nor for the failure to comply with this operating manual!
TW AUDiO reserves the right to update this document based on recent developments.
TW AUDiO GmbH
Osterholzallee 140
71636 Ludwigsburg
Germany
Phone : + 49 (0) 71 41-48 89 89 0
Fax: + 49 (0) 71 41-48 89 89 99
WWW: www.twaudio.de
Operating manual VERA DL10
4
Content
1. Safety | Intended use...................................................................................................... 5
2. Overview ........................................................................................................................ 6
2.1 Components ........................................................................................................... 6
3. Technical specifications .................................................................................................. 7
3.1 Data sheet............................................................................................................... 7
4. Commissioning............................................................................................................... 8
4.1 Using VERA DL10 dolly with VERA10 loudspeaker................................................... 8
5. Transport and Storage.................................................................................................. 10
6. CE Conformity Declaration............................................................................................ 11
7. Disposal ....................................................................................................................... 11
Operating manual VERA DL10
5
1. Safety | Intended use
To avoid risks please observe the following safety instructions when using accessories.
The VERA DL10 dolly was developed for professional use in sound systems. The dolly may
only be used by trained and qualified personnel.
Note the operating modes described in this operating manual. Other uses are not permis-
sible.
Damage caused by improper use is not covered by TW AUDiO.
Before each use, check the integrity of the VERA DL10 dolly and ensure that all components
are in perfect condition.
WARNING
The VERA DL10 dolly may only be used with the VERA10 loudspeaker.
These operating manual describe how to use the VERA DL10 dolly. Any other use shall be
deemed improper and may result in damage or even injury.
Modifications or alterations to individual parts of the VERA DL10 dolly are not permitted!
Danger to life!
WARNING
The VERA DL10 is an accessory designed both for indoor and outdoor use.
CAUTION
The VERA DL10 dolly may only be used by trained and qualified personnel. Personnel must
check the VERA DL10 for its full suitability before each use.
WARNING
When visible damage to any part of the VERA DL10 dolly is detected, it must be decommis-
sioned immediately.
WARNING
When moving the VERADL10 dolly, ensure full load-bearing capacity and stability of the sub-
strate.
The VERA DL10 dolly is specified for a load of not more than twelve VERA10 loudspeaker
and two VERA RF300 rigging frames. This load capacity must never be exceeded!
WARNING
During movement (assembly or dismantling, transport to the place of use) of the
VERA DL10 dolly with the VERA10 loudspeaker and VERARF300 rigging frame, ensure suf-
ficient space to prevent collisions with other objects.
WARNING
Operating manual VERA DL10
6

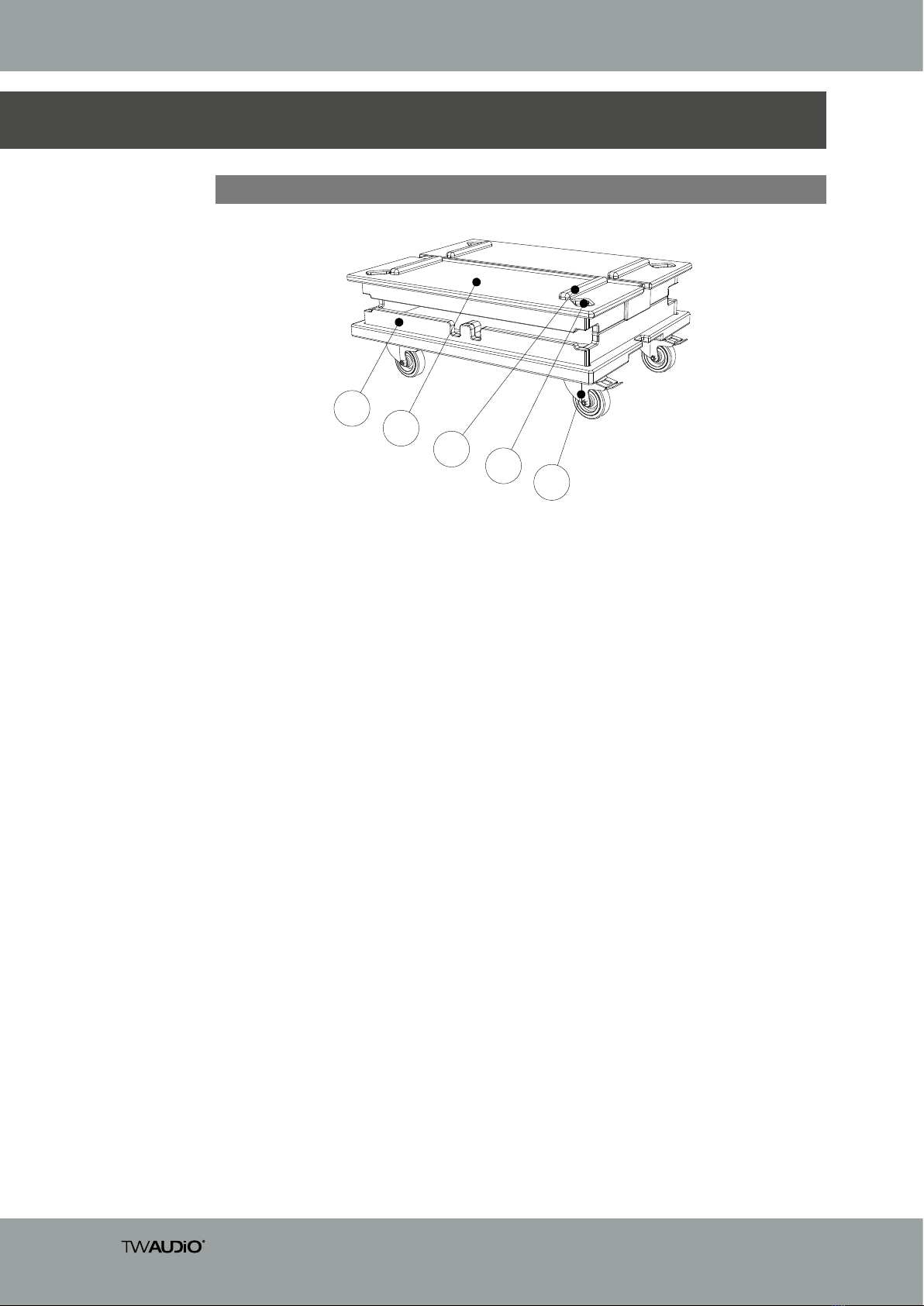

2. Overview
2.1 Components
1. Dolly bottom - Surface Polyurea-coated
2. Dolly top - Surface Polyurea-coated
3. Guide rails for the VERA RF300 rigging frame
4. Recesses for stacking the dollys (4 pieces)
5. 100mm castor with stopper (2 pieces)
Figure 2.1 - Overview
1
2
4
5
3
Operating manual VERA DL10
7
3. Technical specifications
3.1 Data sheet
Maximum load capacity 12x VERA10 and 2x VERA RF300
Dimensions (h x w x d) 800 x 600 x 330 mm (31.5 x 23.6 x 13in)
Weight 25,4 kg (56 lbs)
Surface Polyurea-coated
Operating manual VERA DL10
8
4. Commissioning
4.1 Using VERA DL10 dolly with VERA10 loudspeaker
Please note that two persons are always required to set up the VERADL10 dolly with the
VERA10 loudspeaker and VERA RF300 rigging frame!
WARNING
Attach all VERA10 loudspeaker and VERA RF300 rigging frames to the VERA DL10 dolly! Use
a lashing strap with a ratchet.
Make sure that the lashing strap is pulled tightly and without twisting around the loudspea-
kers, rigging frames and the dolly. (see figure 4.1)
WARNING
Figure 4.1 - Transport setup VERA10 loudspeaker with VERA DL10
Operating manual VERA DL10
9

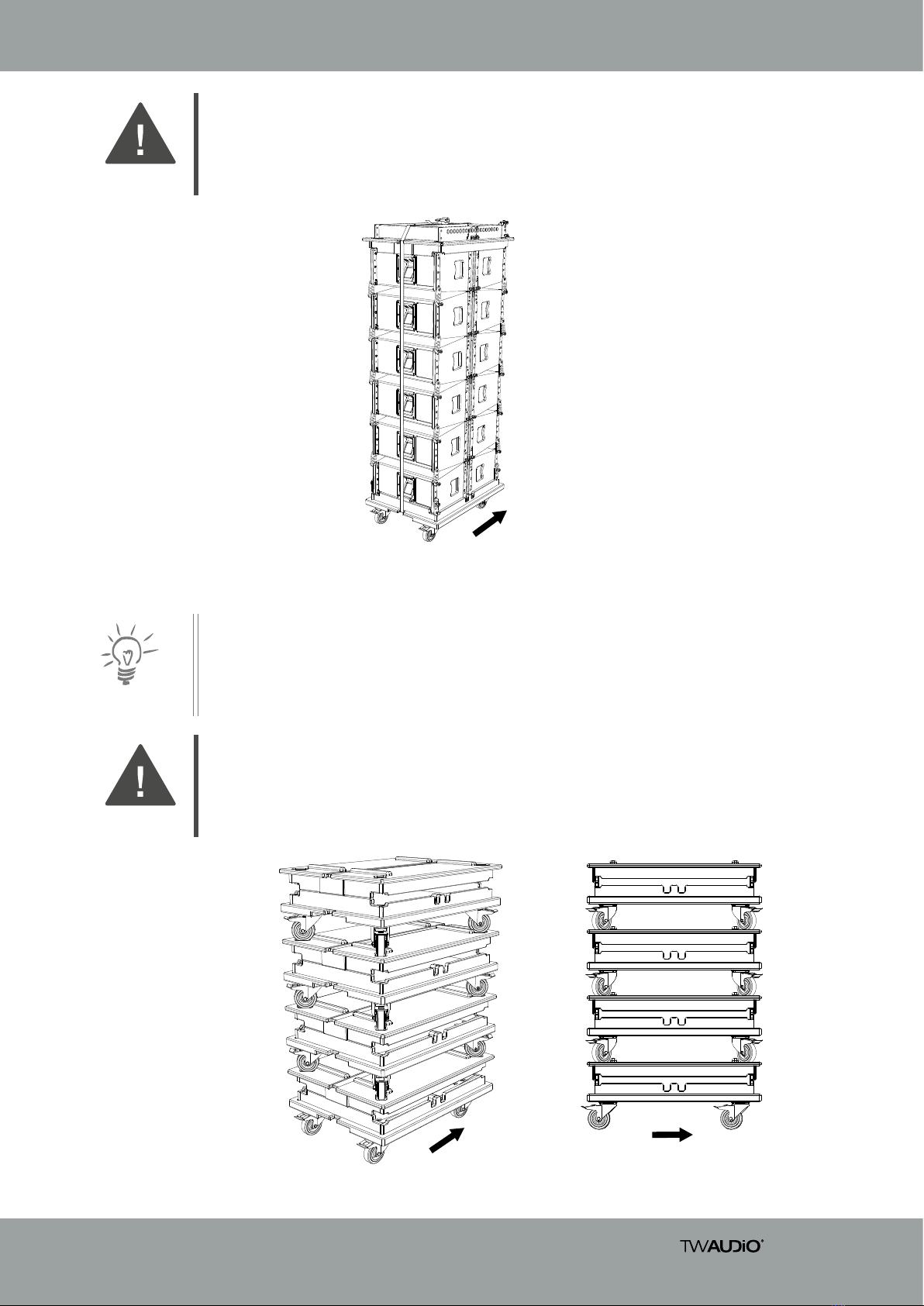

Figure 4.2 - Moving VERA10 loudspeaker with VERADL10
Move the transport setup longitudinally to avoid overturning during transport.
When moving the VERADL10 dolly transport setup with the VERA10 loudspeaker and
VERA RF300 rigging frame, note that there is a risk of tipping due to the high center of gravity.
When moving the stacked VERA DL10 dolly, note that there is a risk of tipping on each indi-
vidual VERA DL10 dolly.
Figure 4.3 - Stacking the VERADL10 dolly
The VERA DL10 dolly can be stacked for storage. For this purpose, recesses (see figure 2.1
- Pos.4) are provided in the dolly (see figure 2.1 - Pos.2).
WARNING
WARNING
TIP
Operating manual VERA DL10
10
5. Transport and Storage
Ensure that the surface of the rigging frame is not damaged during transport and storage.
Moisture may penetrate where steel surfaces are exposed by scratches and result in corro-
sion.
This is why the product should be transported in a safe, careful, dry and largely dust-free
manner.
The following transport and storage accessories are available from TW AUDiO:
• Lashing strap
The original packaging is not suitable as permanent storage and transport packaging.
NOTE
Operating manual VERA DL10
11
Copy and translation of the original CE Conformity Declaration:
We hereby declare that the below-referenced components by virtue of their design and
construction, and in the configuration placed on the market by us, satisfy the safety and
health requirements of the applicable EC directives. This declaration becomes invalid in
case of modifications that have not been approved by us.
This declaration applies to the following components
• VERA DL10
as well as all model variants based on these, provided that they correspond to the original
factory models and have not been technically modified in any way.
Applicable directives:
• 2001/95/EG
Applicable national standards and technical specifications:
• DIN EN ISO 12 100
• DGUV Vorschrift 17 und 18
Ludwigburg, Germany, July 1st, 2010
Tobias Wüstner
If you have any question regarding the disposal of used devices, please contact us under the
following telephone number:
+49 (0) 71 41 - 48 89 89 0
In countries outside of the European Union, comply with local regulations.
6. CE Conformity Declaration
7. Disposal
Operating manual VERA DL10
12
TW AUDiO GmbH
Osterholzallee 140
71636 Ludwigsburg
Germany
Phone : + 49 (0) 71 41-48 89 89 0
Fax: + 49 (0) 71 41-48 89 89 99
WWW: www.twaudio.de
