TW Audio VERADLV36 User manual
Operation manual
VERA DLV36
Operation manual VERA DLV36
2
Introduction
Thank you for choosing a high-quality product “MADEIN GERMANY” from TW AUDiO.
The VERA DLV36 dolly is an accessory for the VERA36 loudspeaker.
It is characterized by a subtle look, a remarkable size to weight ratio and ease of use.
If you lend your product to another party, inform that party of the safety-related operating pro-
cedures and hand over this operating manual. If you require additional copies of this manual,
you can obtain them free of charge from TW AUDiO or download them from: www.twaudio.de
Instructions in this user manual
Strictly adhere to the instructions contained in this operating manual that are marked as
follows:
This symbol in combination with the signal word “Caution” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to light or moderate injury.
This symbol in combination with the signal word “Note” identifies a potentially hazardous situ-
ation. Failure to comply with this safety instruction can lead to product damage.
This symbol in combination with the signal word “Tip” identifies additional information or notes
that will simplify working with TW AUDiO products on the basis of practical experience.
This symbol in combination with the signal word “Warning” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to serious injury or even death.
NOTE
TIP
CAUTION
WARNING
Operation manual VERA DLV36
3
Notes on the products
Read manual
before use!
Before using the dolly, carefully read the operation manual and keep it in a safe place together
with the VERA DLV36 dolly.
General information
Operation manual: OM-VERA DLV36
Version 1.0 en, 03/2019
© by TW AUDiO 2019; all rights reserved.
All information contained in this operating manual was correct to the best of our knowledge
at the time of printing.
Quality warranties or assurance of suitability for a certain type of use based on the technical
specifications, dimensions and weights are not granted by TWAUDiO.
TW AUDiO also shall not assume liability for any secondary damage (property damage and/or
personal injury) nor for the failure to comply with this operating manual!
TW AUDiO reserves the right to update this document based on recent developments.
TW AUDiO GmbH
Osterholzallee 140
71636 Ludwigsburg
Germany
Phone : + 49 (0) 71 41-48 89 89 0
Fax: + 49 (0) 71 41-48 89 89 99
WWW: www.twaudio.de
Operation manual VERA DLV36
4
Content
1. Safety | Intended use...................................................................................................... 5
2. Overview ........................................................................................................................ 7
2.1 Components ........................................................................................................... 7
3. Technical specifications .................................................................................................. 8
3.1 Data sheet............................................................................................................... 8
4. Commissioning............................................................................................................... 9
4.1 Preparation VERA36 loudspeaker............................................................................ 9
4.2 Mounting VERA36 loudspeaker on the VERA DLV36 dolly...................................... 11
4.3 Danger of tipping VERA DLV36 dolly with VERA36 loudspeaker ............................. 17
5. Transport and Storage.................................................................................................. 18
6. CE Declaration of Conformity........................................................................................ 19
7. Disposal ....................................................................................................................... 19
Operation manual VERA DLV36
5
1. Safety | Intended use
To avoid risks please observe the following safety instructions when using accessories.
The VERA DLV36 dolly was developed for use in professional sound systems. The loudspea-
ker may only be used by trained and qualified personnel.
Note the operating modes described in this operating manual. Other uses are not permis-
sible.
Damage caused by improper use is not covered by TWAUDiO.
The VERA DLV36 dolly may only be used with the VERA36 loudspeaker.
These assembly instructions describe how to use the VERADLV36 dolly. Any other use shall
be deemed improper and may result in damage or even injury.
Modifications or alterations to individual parts of the VERA DLV36 dolly are not permitted!
Danger to life!
WARNING
During and after each system setup, check that all quick-lock pins are always completely
inserted! All quick-lock pins must always be used!
WARNING
Before each use, check the integrity of the VERADLV36 dolly and ensure that all components
are in perfect condition.
WARNING
The VERA DLV36 is an accessory designed both for indoor and outdoor use.
CAUTION
The VERA DLV36 dolly may only be used by trained and qualified personnel. Personnel must
check the VERA DLV36 for its full suitability before each use.
WARNING
When visible damage to any part of the VERA DLV36 dolly is detected, it must be decommis-
sioned immediately.
WARNING
Operation manual VERA DLV36
6
When moving the VERA DLV36 dolly, ensure full load-bearing capacity and stability of the
substrate.
The VERA DLV36 dolly is specified for a load of not more than six VERA36 loudspeakers. This
load capacity must never be exceeded!
WARNING
During movement (assembly or dismantling, transport to the place of use) of the
VERA DLV36 dolly with VERA36 loudspeakers, ensure sufficient space to prevent collisions
with other objects.
WARNING
Operation manual VERA DLV36
7
1. Transport dolly - Polyurea coated surface
2. Retaining bracket
3. Ergonomic handle
4. Front angle (2 pieces)
5. Recesses for stacking the VERA DLV36 dollys (4 pieces)
6. Handle (4 pieces)
7. Swivel castors with brakes, 100mm (4 pieces)
Figure 2.1 - Overview
2. Overview
2.1 Components
1
23
4
6
7
5
Operation manual VERA DLV36
8
Maximum load capacity 6x VERA36
Dimensions (h x w x d) 100 x 700 x 650 mm [3,94 x 27,56 x 25,59 in]
Weight 10,5 kg [23,15 lbs]
Surface Pulyurea-coated
3. Technical specifications
3.1 Data sheet
Operation manual VERA DLV36
9
4.1 Preparation VERA36 loudspeaker
4. Commissioning
1. Loosen the two locking pins at the front of four VERA36 loudspeakers.
NOTE

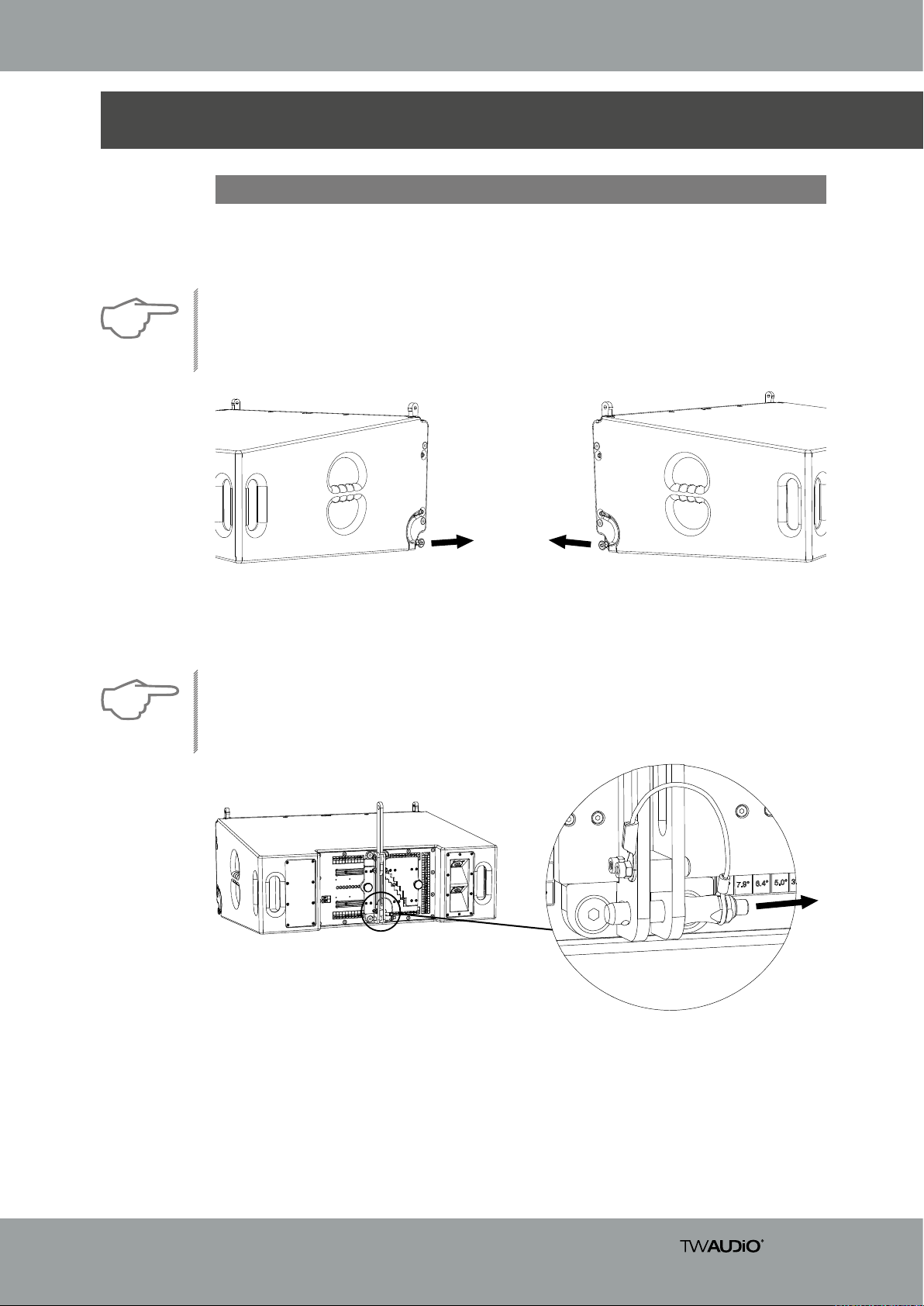

Figure 4.1.1 - loosen locking pin in front
To prepare the VERA36 loudspeakers for transport on the dolly, proceed as follows:
2. Loosen the rear locking pin of four VERA36 loudspeakers.
NOTE
Figure 4.1.2 - loosen rear locking pin
Operation manual VERA DLV36
10
Figure 4.1.3 - move all sliders to sero degree
WARNING
3. Slide the right slider completely to the right. With one hand, pull the bracket all the way up
and with the other hand, slide the left slider completely to the right so that the rear rigging
is set to 0 degrees. Repeat this for all four VERA36 loudspeakers.
Operation manual VERA DLV36
11
WARNING
Figure 4.2.2 - first VERA36 loudspeaker on VERADLV36 dolly
4. Now attach the two locking pins of the VERA36 into the holes in the front angles (see
figure 2.1-pos.4) of the VERADLV36 dolly.
5. Check that all locking pins are always completely inserted!
WARNING
2. Please note that setting up the VERADLV36 dolly with VERA36 loudspeakers always
requires two persons!
3. Have two persons place the first VERA36 loudspeaker on the VERA DLV36 dolly.
NOTE
4.2 Mounting VERA36 loudspeaker on the VERA DLV36 dolly
To load the VERA36 loudspeakers onto the dolly, proceed as follows:
1. Press down the locking levers on the two castors with your foot. This will secure the dolly
from rolling away.
NOTE
Figure 4.2.1 - dolly
Operation manual VERA DLV36
12

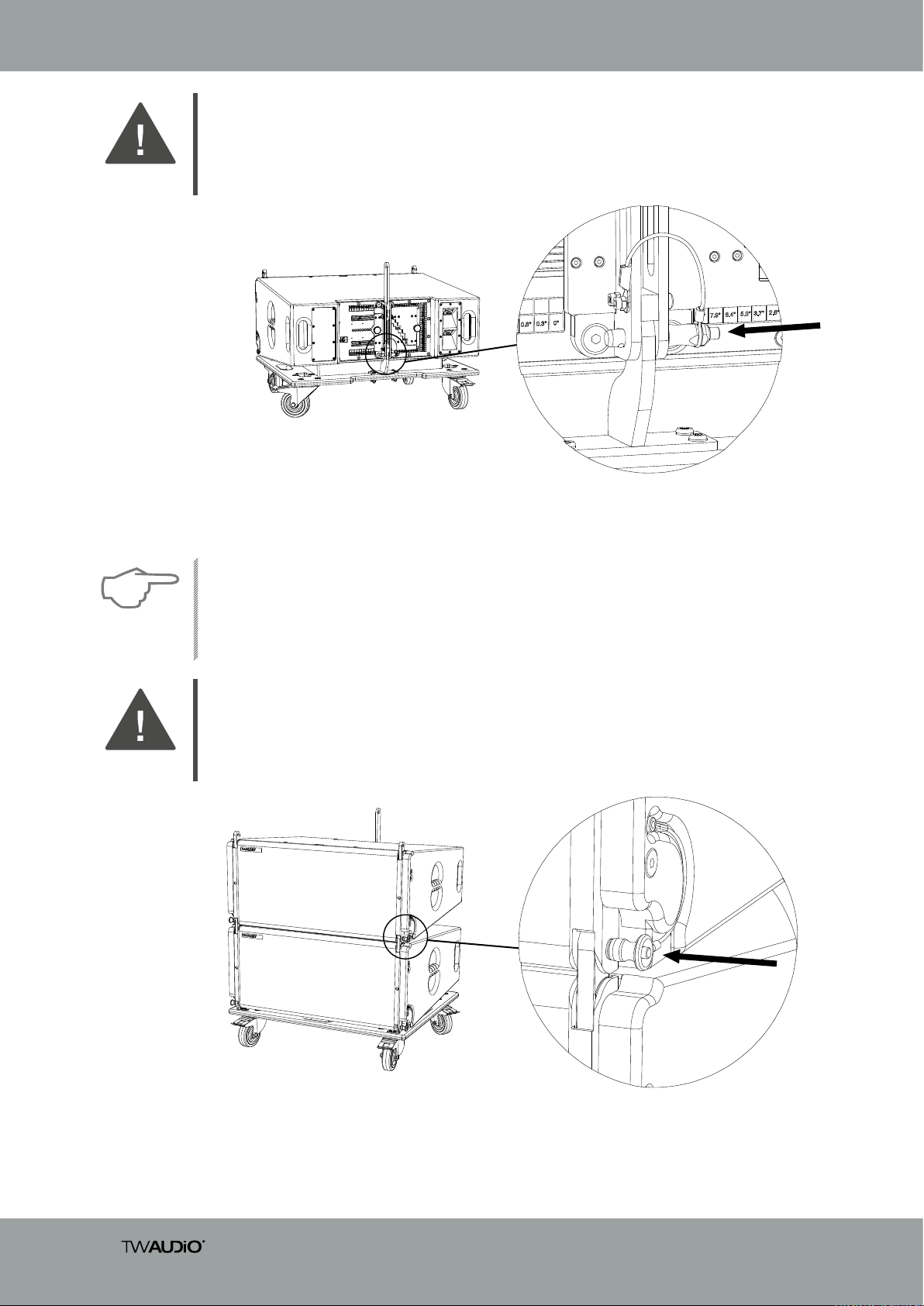

Figure 4.2.4 - insert front locking pins
WARNING
NOTE
WARNING
Figure 4.2.3 - insert rear locking pin
6. Now attach the rear locking pin of the VERA36 to the hole in the retaining bracket (see
figure 2.1 - pos.2) of the VERADLV36 dolly.
7. Check that the locking pin is always completely inserted!
8. Next, use two people to put the second VERA36 loudspeaker on top.
9. Make sure that the links on the first VERA36 loudspeaker interlock at the front and rear of
the second rigging tracks.
10.Now attach the two front locking pins of the second VERA36 loudspeaker in the holes of
the upper speaker.
11.Check that all locking pins are always completely inserted!
Operation manual VERA DLV36
13

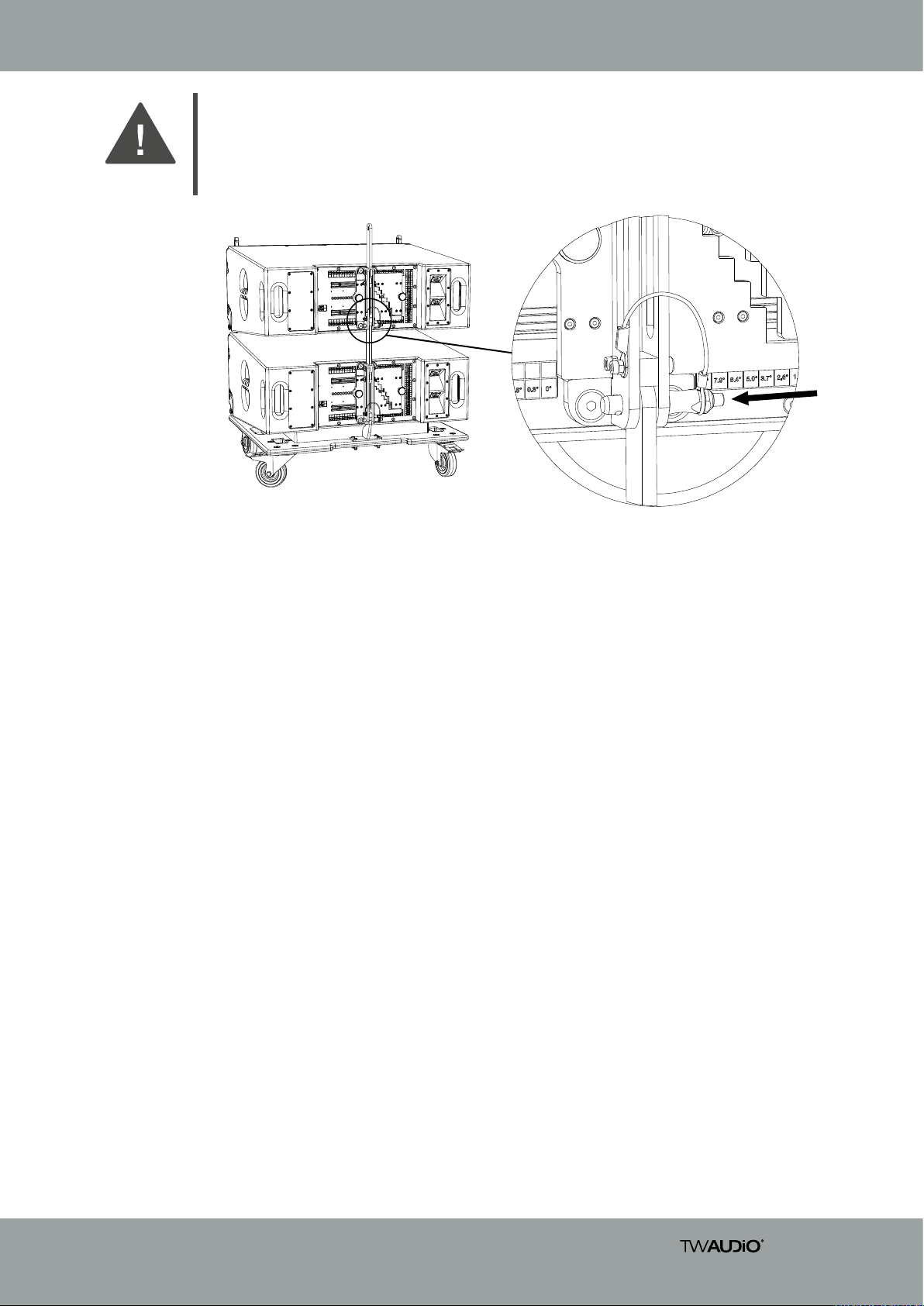

Figure 4.2.5 - insert rear locking pin
WARNING
12.Now attach the rear locking pin of the second VERA36 to the hole in the bracket of the
first VERA36 speaker.
13.Check that the locking pin is always completely inserted!
Operation manual VERA DLV36
14
WARNING
14.Follow steps 8 to 11 to mount in front the third and fourth VERA36 loudspeaker in the
same manner.
15.Check that all locking pins are always completely inserted!
Figure 4.2.6 - third and fourth VERA36 loudspeaker on VERA DLV36 dolly
Operation manual VERA DLV36
15
WARNING
16.Follow steps 12 and 13 to mount rear the third and fourth VERA36 loudspeaker in the
same manner.
17.Check that all locking pins are always completely inserted!

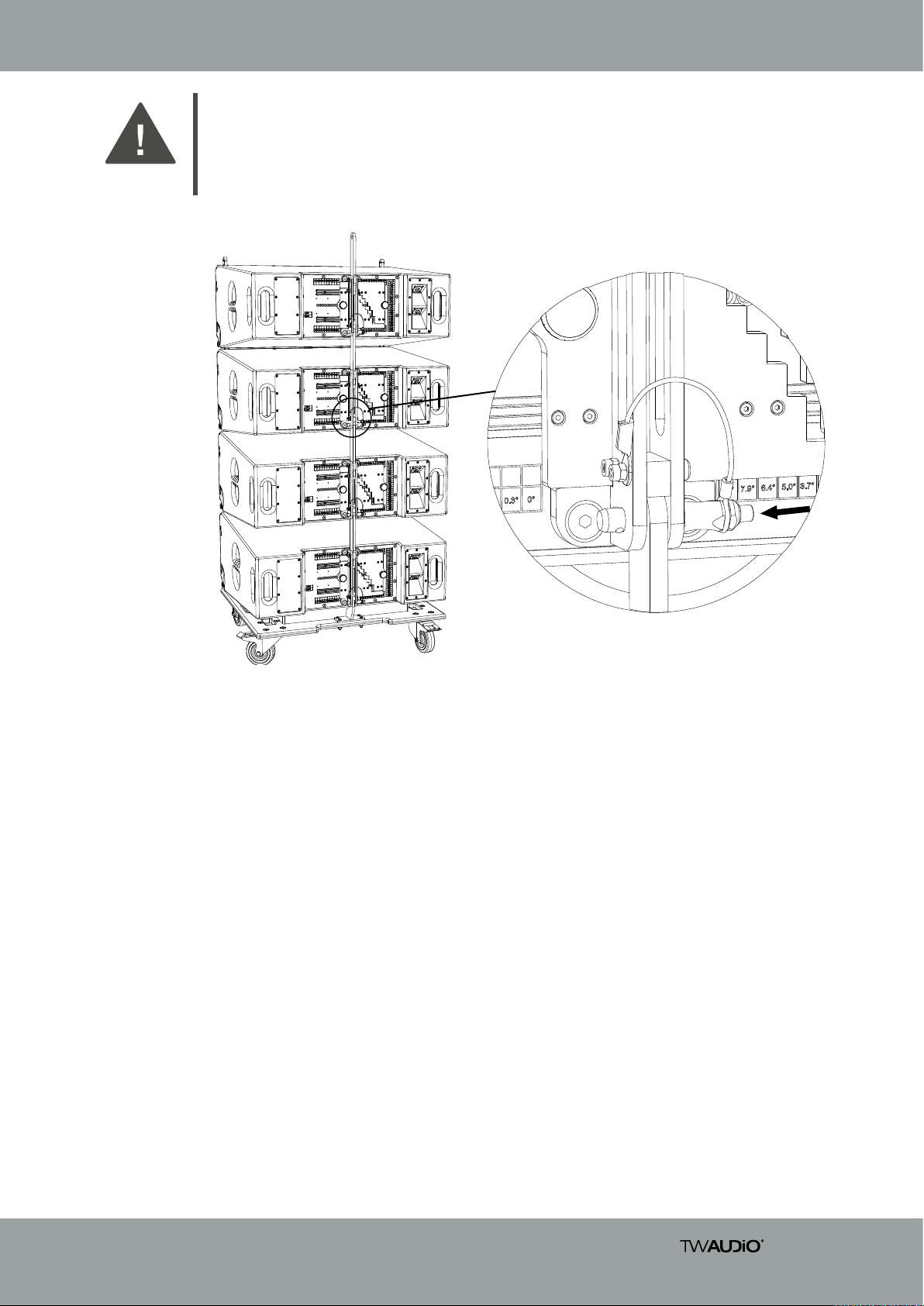

Figure 4.2.7 - third and fourth VERA36 loudspeaker on VERA DLV36 dolly
Operation manual VERA DLV36
16

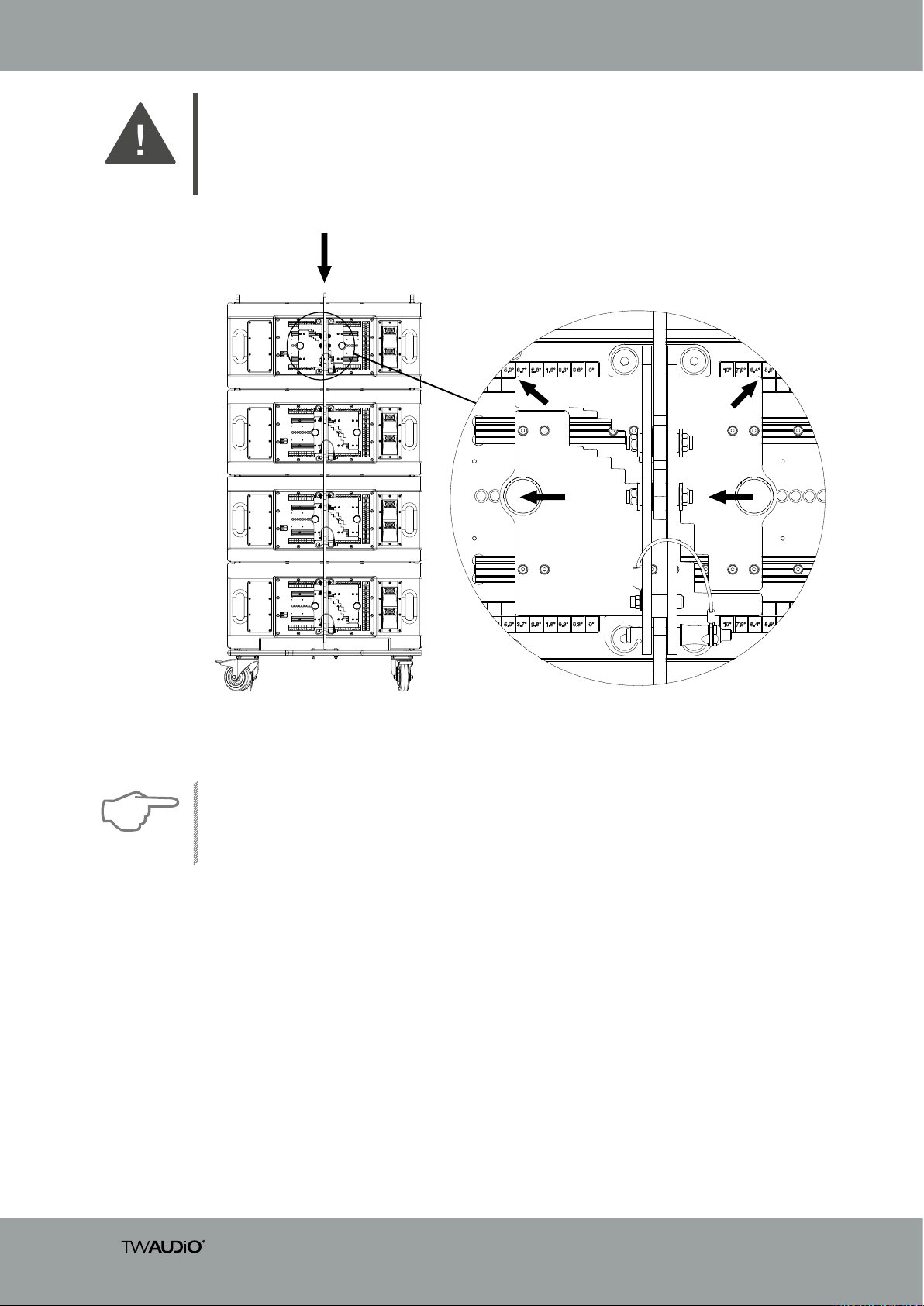

Figure 4.2.8 - move the slider on the top VERA36 loudspeaker to five degree
WARNING
18.At the top VERA36 loudspeaker, slide the left slider to the left to 5 degrees. Hold the bracket
with one hand and lower it. Then, with the other hand on the top VERA36 loudspeaker,
slide the right slider to the left to 5 degrees so that the rear rigging on this VERA36 loudspe-
aker is closed.
NOTE
19.Pull the Cover4V36 cover over the dolly and close it.
20.Lift the locking levers on the two castors with your foot. This will unlock the dolly.
Operation manual VERA DLV36
17

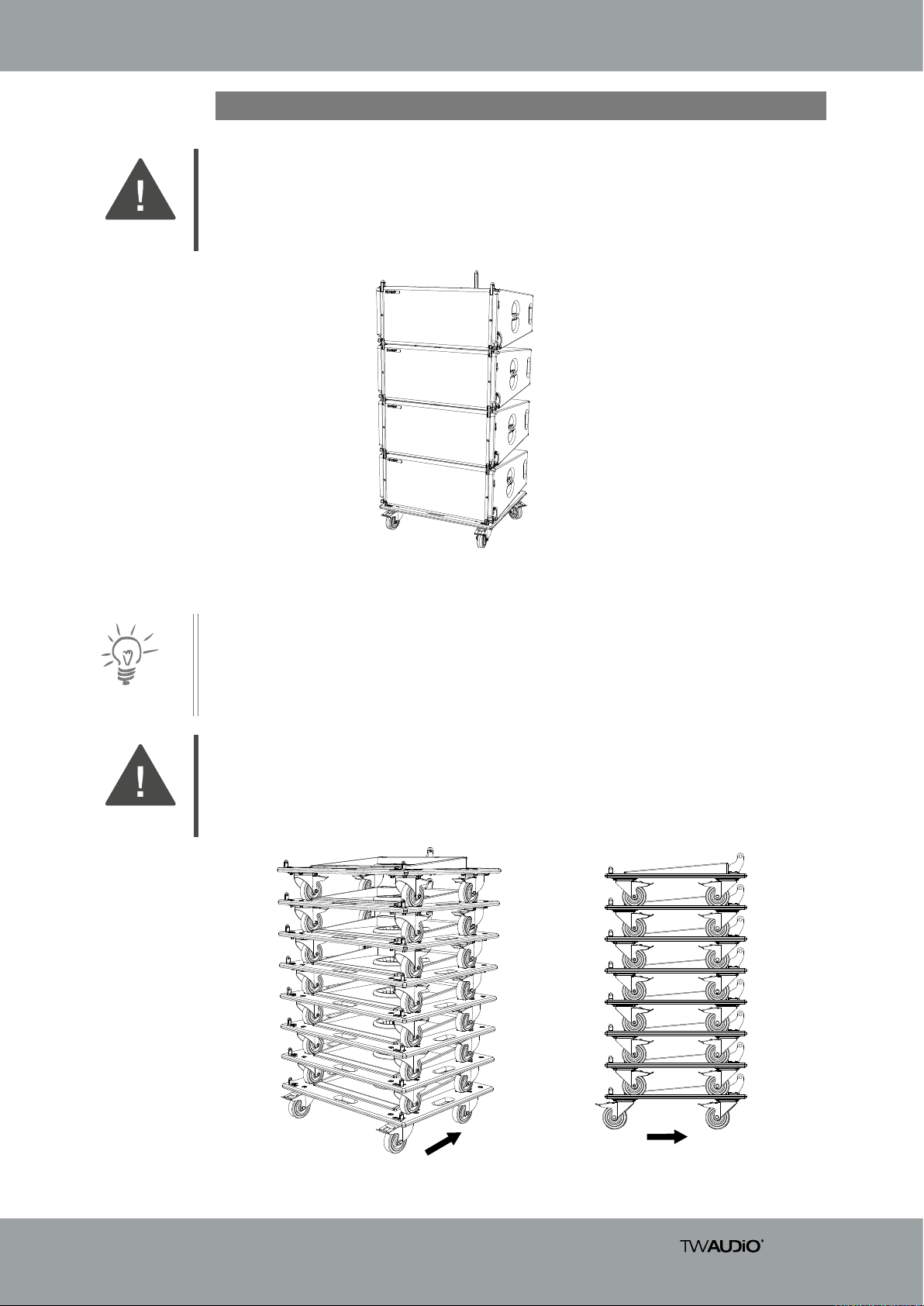

Figure 4.2 - Moving VERA36 loudspeaker with VERADLV36
When moving the VERA DLV36 dolly transport setup with the VERA36 loudspeaker, note that
there is a risk of tipping due to the high center of gravity.
When moving the stacked dollys, note that there is a risk of tipping on each individual dolly.
Figure 4.3 - Stacking the dollys
The VERA DLV36 dolly can be stacked for storage. For this purpose, recesses (see figure 2.1
- Pos.5) are provided in the dolly (see figure 2.1 - Pos.1).
WARNING
WARNING
TIP
4.3 Danger of tipping VERA DLV36 dolly with VERA36 loudspeaker
Operation manual VERA DLV36
18
Ensure that the surface of the transport dolly is not damaged during transport and storage.
Moisture can penetrate exposed wood surfaces and cause the wood to swell.
This is why the product should be transported and stored in a safe, careful, dry and largely
dust-free manner.
The following accessories are available from TWAUDiO for the transport dolly:
• Cover4V36 (Cover)
The original packaging is not suitable as permanent storage and transport packaging.
NOTE
5. Transport and Storage
Operation manual VERA DLV36
19
If you have any question regarding the disposal of used devices, please contact us under the
following telephone number:
+49 (0) 71 41 - 48 89 89 0
In countries outside of the European Union, comply with local regulations.
7. Disposal
Copy and translation of the original CE Conformity Declaration:
We hereby declare that the below-referenced components by virtue of their design and con-
struction, and in the configuration placed on the market by us, satisfy the safety and health
requirements of the applicable EC directives. This declaration becomes invalid in case of modi-
fications that have not been approved by us.
This declaration applies to the following components
• VERA DLV36
as well as all model variants based on these, provided that they correspond to the original
factory models and have not been technically modified in any way.
Applicable directives:
• 2001/95/EG
Applicable national standards and technical specifications
• DIN EN 18 800
• DIN EN ISO 12 100
• DGUV Vorschrift 17 und 18
Ludwigsburg, Germany, October 1st, 2012
Tobias Wüstner
6. CE Declaration of Conformity
