TW SOLAR 182-72-PERC User manual

1
Bifacial Module Installation Manual for
182-72-PERC of Tongwei Solar (Hefei) Co., Ltd.

2
Tongwei Solar (Hefei) Co., Ltd
Bifacial Module Installation Manual for 182-72-PERC
Serial number:TWsolar-M-RD-TS001 Version number:A0
2023-06-05 Published 2023-06-05 Implemented

1
PV Module Installation Manual
Bifacial Module:
Max. System Voltage: up to 1500VDC (Voc at STC)
With ½ cut of 182 mono c-Si cells:
TWMPD-72HD540
TWMPD-72HD545
TWMPD-72HD550
TWMPD-72HD555
The modules mentioned in this installation manual are only allowed to be installed below 2000m
above sea level.
Meaning of crossed-out wheeled dustbin: Do not dispose of electrical appliances as unsorted
municipal waste, use separate collection facilities. Contact your local government for information
regarding the collection systems available.
If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the
groundwater and get into the food chain, damaging your health and well-being. When replacing old
appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals
at least free of charge.

1
2
01
CONTENTS
Purpose of this Manual .............................................................................................................03
Disclaimer .................................................................................................................................03
Safety & Transport ................................................................................................................... 04
Mechanical Installation .............................................................................................................. 9
Electrical Installation ................................................................................................................14
Grounding .................................................................................................................................16
Bypass Diodes and Block Diodes .............................................................................................17
Maintenance ............................................................................................................................. 18

1
3
02
PURPOSE OF THIS MANUAL
This manual applies exclusively to the bifacial module (here in after referred to as
Module) of TW solar energy Co., Ltd (here in after referred to as TW). The contents of
this manual involve the installation methods, operation safety and maintenance
information of TW’s Modules.
Modules must be installed by professionals. Please read this manual carefully before
installation. The installers must follow all the rules in this manual strictly as well as local
requirements and regulations by law or authorized organizations.
Before installing, the installer must be familiar with their mechanical and electrical
requirements. Please keep this manual in a safe place for future reference (care and
maintenance) and in case of sale or disposal of the Modules.
DISCLAIMER
TW shall not be responsible for any loss arising from the installation, operation, use or
maintenance of the Modules which is not complying with the guidance of this manual,
including breakdown or damage of the Modules or any other expenses incurred.
Any customer shall not get any patent or authorization of the patent when using the
Modules, expressed or implied. Any infringement of patents or other rights of the third
party, which may result from the use of the Module, is not within the responsibility scope
of TW. The information in this manual is based on TW’s knowledge and experience and
is believed to be reliable, but such information including product specification (without
limitation) and relevant suggestions do not constitute a warranty, expressed or implied.
TW reserves the rights to change the manual, the Modules, the specifications or any other
information of the Modules without prior notice.

1
4
03
SAFETY & TRANSPORT
General Detailed Rules
Keep all the Modules and electrical connectors clean and dry before installation.
Use both hands to carry Modules. Do not overlap Modules.
Be cautious when carrying Modules. Slip-proof gloves are necessary.
Use supportive disassembling tools when unpacking.
Do not stamp on Modules or put weight on Modules.
Do not disassemble or drop Modules. Do not remove any nameplate or component
of the module.
Do not use mirrors or magnifiers to concentrate sunlight onto Modules.
Do not lift the module by grasping the junction box or cable wire.
Do not use any sharp object with Modules.
Do not directly apply pressure on the glass surface or backsheet of Modules.
Do not touch the surface of the coated glass with bare hands.
Ensure all contacts and the operating environment are clean and dry.
Module Carry and Installation Instruction
Both hands when handling Modules
Ensure Modules are fixed properly
Do not use sharp objects with Modules
Do not pull the wiring cables or junction
box
Do not stamp on Modules
Do not touch Modules with bare or dirty
hands
Do not pile up Modules on uneven ground
Do not drop or throw Modules

1
5
04
SAFETY & TRANSPORT
Electrical Performance Safety
PV modules can produce DC current under sunlight. Any contact of exposed metal at
module's wiring parts may result in electrical shock or burn. Any contact of 30V or larger
DC Voltage can be fatal.
In case of no connected load or external circuits, modules can still produce voltage.
Please use insulation tools and wear rubber gloves when operating modules in the
sunlight.
No switch is on the PV modules. Operating of PV modules can only be stopped when
they are kept from sunlight or covered by hard board or UV-proof materials or when the
angle of the modules facing sun are placed on smooth and flat surfaces.
To avoid electric arc or electric shock hazards, please do not break down electric
connection in loaded conditions. Incorrect connections will also lead to electric arc or
shock. Keep connectors dry and clean and make sure that they are in good operating
condition. Do not insert other metals into the connectors or carry out electric connection
by whatever means.
Snow, water or other reflective medium in surrounding environments that intensify light
re-flection will increase output current and power. And module voltage and power will
increase under low temperature condition.
If module glass or other sealing materials are damaged, please wear personal protective
equipment and then isolate modules from the circuit.
Work only under dry conditions,and use only dry tools. Do not operate when modules
are wet unless you wear personal protective equipment. Please follow the cleaning
requirements in this manual when cleaning modules.
Installation must be carried out under the guidance of a qualified electrician.
No matter how weather condition is, personnel entering the power station shall wear
safety helmet, insulating gloves and insulating shoes correctly, taking-safety protection
measures.
The application class of TW module is Class A (IEC61730:2005) and Class II (IEC61730:2016),
which can be used in systems operating at greater than 50 V DC or 240W, where general contact
access is anticipated;

1
6
05
SAFETY & TRANSPORT
Description of Package Signs
Before the operation, it is necessary to read carefully the unpacking instruction and outer
packing box instruction, and carry out the operation as instructed.
1. DO NOT expose the module to rain or
moisture.
2. The Modules in the carton box are fragile.
Handle with care.
3. The package shall never be upside down
during the transportation.
4. It is prohibited to tramp on the packing
box and module.
5. During the stacking of the Modules, the
outer packing box can be stacked not
exceed the maximum layer allowed .(n=2
means it is allowed to stack for at most
two layers.)
6. One module shall be handled by two
people together.
n

1
7
06
SAFETY & TRANSPORT
Unloading, Transportation and Storage
When the Modules are delivered to the project site, the freight car shall be ready in the
flat, even and open area for parking and unloading.
Forklift unloading: Choose the appropriate carrying forklift according to the commodity
weight, unload the Modules from the freight car and place them on flat ground.
Unloading with a crane: Affix the lifting belt in the wood supporting frame buckle (Fig. 1,
2). It is allowed only to lift one pallet at a time. Before lifting, it is necessary to confirm
whether the pallet and paper box are damaged and ensure that the lifting rope is robust
and firm. When being lifted close to the ground, the paper box will be gently placed in a
relatively flat position on the project site by two people, one on each side.
Figure 1 Wood Supporting Frame Figure 2 Lifting Schematics
It is prohibited to stack the Modules in the project site.
During the transportation at the project site, the Modules shall not be stacked, but only
allowing for one layer in transportation.

1
8
07
SAFETY & TRANSPORT
Storage in the project site warehouse:
Storage environment requirements: Humidity<85%, temperature -20 ~+50℃; Modules
statically stacked for ≤2 layers.
Temporary storage at the project site: The Modules shall be stored in a dry,
well-ventilated place. They shall not be stacked but shall be covered with waterproof
cloth to prevent dampness in the Modules.
Unpacking description
1. In the outdoor unpacking process, it is prohibited to operate in rainy conditions;
2. If there is wind in the field, special attention shall be paid. Particularly in the event of
heavy wind, it is recommended not to handle the module, and it is necessary to properly
secure the unpacked Modules;
3. The working surface shall be such that the packing box can be placed in a stable, level
position, avoiding being overturned;
4. During the unpacking, it is necessary to wear protective gloves, and avoid scratching
the hands and leaving the fingerprints on the glass;
5. In the case of operation not according to the requirements or in the case of an
unskillful operation, it will result in the fall-off of the protective corner in small amounts,
which will be normal. The effect of the protective corner is to reduce damage due to external
force during transport, and the fall-off of the protective corner will not influence the reliability
of the Modules;
6. Before the unpacking, it is necessary to carefully check the product information on the
carton box, and carefully read the unpacking instruction;
7. Every module shall be carried by two people. When carrying the module by two
people, it is prohibited to pull the junction box.

1
9
08
MECHANICAL INSTALLATION
Location Selection
Select suitable places to install Modules. The module in the north latitude region shall
face south, and shall face north in the south latitude region.
Install Modules at the places with sufficient sunlight and without shade at any time. If a
module is shaded or even partially shaded, it will result in lower power output. A
permanent or regular shade will cause module damage, which will result in the invalidity
of product’s limited warranty.
Do not store, install or use Modules at the places where combustible gas is easily
generated or gathering.
The straight-line distance between the installation site and coastline shall not be shorter
than 1 km unless there is a writ ten approval from TW or an engagement specified in the
contract.
Location Selection
Modules in the same string should be installed at the same angle. Modules installed in
different angles will receive different irradiation, which will cause current different. As a
result, it will decrease the operation efficiency of the system.
Please refer to Table 1 for the recommended mounting tilt angles of the Modules.
Local latitude
Mounting Tilt Angles
0°-15°
15°
15°-25°
Local latitude
25°-30°
Local latitude + 5°
30°-35°
Local latitude + 10°
35°- 40°
Local latitude + 15°
>40°
Local latitude + 20°
Table 1 Mounting Tilt Angle of Modules

1
10
09
9
MECHANICAL INSTALLATION
Installation requirements
The installation structure shall be made of the durable 、corrosion-resistant and
ultraviolet-resistant materials. It is necessary to ensure that the support and structure in
use have been tested, certified and approved.
No matter where the Modules are installed, it is necessary to ensure that the module is
firmly mounted on the support, and ensure that it can undertake the corresponding wind
loading and snow loading.
Choose proper installation height of the photovoltaic support system, the lower part of the
module should not be covered with snow for a long time in winter. Additionally, it is
necessary to ensure that the lowest part of the module is high enough, to avoid being
shaded by the plant or damaged by the flying sand.
For the photovoltaic system installed on the ground, TW recommends that the minimum
distance from the module bottom to the ground surface shall be 24 inches (60cm). The
higher the lower point of the module from the ground, the higher the power generation
efficiency on the back of the module. When the module is installed on the roof, it is
necessary to ensure that the roof structure is suitable and the installed module shall not be
beyond the roof zone. Additionally, the roof shall be have water-proof treatment to
prevent the roof from water leakage.
If the module will be installed on the column, the chosen column and the module support
structure shall be able to undertake the locally expected loads of wind and snow. Ensure
that such loads are within the range of the respective maximums loading permitted by
TW, meanwhile, the module will not be subjected to the thermal expansion force from the
support structure. The stacking of Modules shall be prohibited.
The back of the module shall be well ventilated to facilitate the cooling of the module.
TW recommends that there shall be the gap of 30cm between the module and the
installation surface, if the surface is finished with the light-color and highly reflective
materials such as white paint and aluminum foil, the back of the module could contribute
5%-30% additional power output.
To prevent the influence of thermal expansion between the Modules upon the module,
TW recommends that the minimum distance between two Modules shall not be less than
10mm, which is the minimum linear distance between two Modules.
It is necessary to always observe the instruction guide and safety rules attached for
module installation.
It is prohibited to drill the holes in the glass surface. Otherwise, it will invalidate the
quality guarantee.

1
11
10
MECHANICAL INSTALLATION
Framed Modules
Installation with the mounting clamp

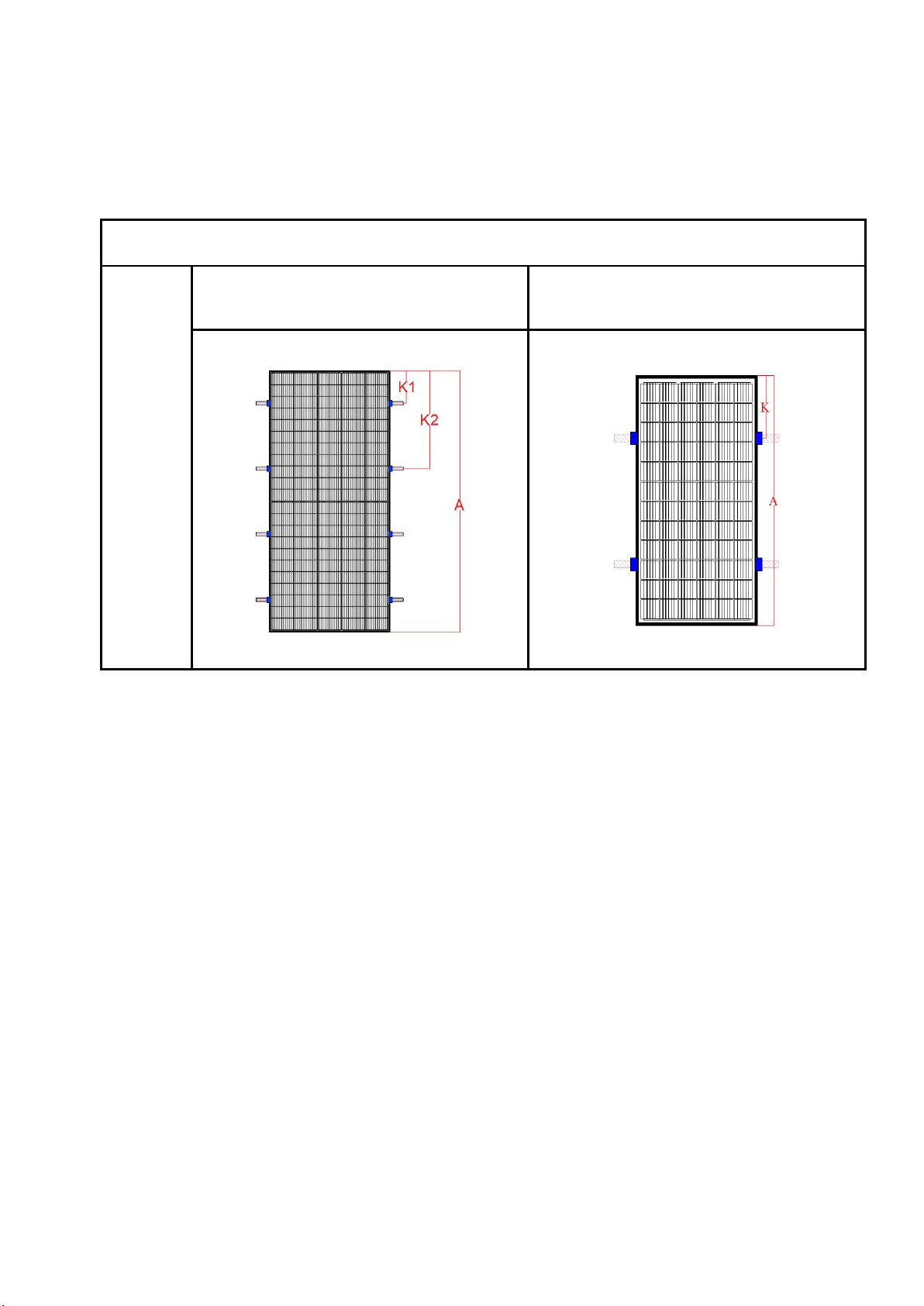

Table 1 Installation Method
Clamping
on the
long side
Installation Method A
Installation Method B
Note: The length of the clamp≥50mm.

1
12
11
MECHANICAL INSTALLATION
Table 2 Installation method and load capacity
Installation method
Installation method A
Installation method B
Modules model
Modules size
(mm)
Mounting clamp
position
K1
(mm)
Mounting clamp
position
K2
(mm)
Design load:
front/back,
γm=1.5
(Pa)
Mounting clamp
position
K1
(mm)
Design load:
front/back,
γm=1.5
(Pa)
TWMPD-72HD540
TWMPD-72HD545
TWMPD-72HD550
TWMPD-72HD555
2278*1134*30
A/8±50
3A/8±50
3600/1600
A/4±50
3600/1600
Note: Test load = γm(safety factors) × design load

1
13
12
MECHANICAL INSTALLATION
The Modules may be installed and fixed with the following methods:
Clamping system: use proper clamp, and fix the module with the installation support, as
shown in Fig. 3.
The clamp must maintain an overlap of unless 8 mm with the frame of the module(you can
change the cross section of the clamp if the module is securely installed). The applied value of
torque should refer to mechanical design standard and the bolt type customer is using, for
example: M8: 16-20 N•m.
Figure 3 Mounting clamps

1
14
13
ELECTRICAL INSTALLATION
DC power generated by the photovoltaic system can be converted into AC power and fed
into the grid. Policies on connecting renewable energy system to the grid vary from region to
region. Consult senior system designer before designing the system. Generally, the system
installation shall be formally approved by the local public sector.
General Installation
Installation structure should be compatible with module, in order to avoid galvanic
corrosion. Any defects caused by such corrosion will void the warranty.
The DC-side system potential of the photovoltaic array includes the practice of floating
ground, positive-pole grounding and negative-pole grounding according to the system
requirements; and different cell technologies have different adaptability. In a
power-station project, particularly the module of the crystalline silicon photovoltaic cells,
too large an absolute value of the negative to the ground might cause potential induced
degradation (PID). Consequently, it is appropriate to use the negative grounding system
so that the potential of the circuit is positive. Consult the inverter manufacturer for
details.
It is forbidden for non-professionals to open the lock nuts of the connector. Make sure
that the connectors are clean, dry and fully connected.
(A click sound should be heard when fully connected), otherwise it may lead to electric
arc sparks which will damage the connector or cause a fire.
Under normal conditions, a module is likely to experience conditions that produce more
current and/or voltage than reported at standard test conditions, Accordingly, the values
of ISC and VOC marked on the Module should be multiplied by a factor of 1.3 when to
determining component voltage ratings, current ratings, fuse sizes, and size of controls
connected to the PV output.
Completely cover the Modules with an opaque material to prevent electricity from being
generated during disassembling the conductors.
It is not allowed to use the Modules in different models in the same solar photovoltaic
system. When the Modules are connected in series, the voltage of every string shall not
be higher than the maximum voltage of the system (as shown in Figure 4). Reference
equation of the maximum number of the Modules in serial connection: maximum system
voltage of the module/ (1.3* open-circuit voltage).
When connected in parallel, the current output is equal to the sum of each string’s current
(as shown in Figure 5). Fuse is necessary for each module string. Take reference to the
local regulation. Recommended maximum parallel Modules configurations: Fuse rating/
(1.3* short-circuit current).

1
15
14
ELECTRICAL INSTALLATION
Figure 4 Connection in Series Figure 5 Connection in parallel
Refer to the local regulations to determine the system wire size, types and temperatures.
The cross section of the cables and the capacity of the connectors must be selected to suit
the maximum system short circuit current (The recommended section area for a single
piece of Module is 4 mm2, and the recommended rated current for the connector is greater
than 20A), otherwise the cables and connectors shall be overheated under large current.
Caution: The maximal temperature of the cable is 85 ℃while the upper limited
temperature of the connector is 105℃.
Make sure the electric components such as the connectors and inverters are off-state
during the installation. To reduce lightning damage, the loop area should be kept as small
as possible when laying cables. It is recommended to use fuses in each string.

1
16
15
GROUNDING
Grounding by cable
The grounding bolts must be made of stainless steel and be used in the specified
grounding holes. First, make the M3. 5 stainless steel bolt pass through the spring
washer, flat washer, cup washer (copper conductor with a diameter of 2.1 mm) and
star washer, and then insert through the grounding hole, flat washer and spring
washer on the frame. Finally, tighten with a M3.5 nut. Caution: The upper limited
temperature of the conductor is 85℃. As for the installation, refer to Figure 6.
Grounding by lugs
All the module frames and mounting structures shall be grounded according to
regional and national electricity regulations. Use recommended hardware to connect
grounding cables and fasten to the Module frames.
While using the metal structure, make sure the surface of the system have been
electroplated to keep a good conducting circuit.
Use suitable grounding conductors to connect the Module frame to the mounting
structure. This can achieve proper grounding effects.
The grounding conductor must be connected to ground via an appropriate grounding
electrode. It is recommended to use lugs to connect the grounding cables. If it is only
mechanically connected to a grounded module without bolts and nuts, the mounting
system should be grounded as well.
First, peel the grounding cable to a proper length without damage to the metal core.
Then insert the peeled cable into the lug, tighten the screw. As shown in Figure 7,
connect the lug to the aluminum frame with stainless steel bolts and connection
components. The recommended tightening torque for M3 bolts is 2.3N•m.
Figure 6 Figure 7
Nut(M3.5,SS)
Spring washer(SS)
Flat washer(SS)
Flat washer(SS)
Star washer(SS)
Cup washer(SS)
Spring washer(SS)
Bolt (M3.5, SS)
Copper wire
Nut(M3,SS)
Frame
Spring washer
Frame
Grounding Lug
Grounding
cable
Flat washer
Star washer
Bolt (M3, SS)

1
17
16
BYPASS DIODES AND BLOCK DIODES
In a system with two or more Modules connected in series, if part of a Module is shaded
while the other part is exposed to the sun, a very high reverse current will go through the cells
which have been partly or entirely covered and it will cause overheat on the cells, which may
damage the Module. Using bypass diodes can protect Modules from this kind of risk. There
are bypass diodes in junction boxes, which can reduce the effects of partial shadows. Do not
privately disassemble the junction box to replace the diodes, even when the diodes are broken.
This should be processed by the professionals.
In a system with batteries, if the controller doesn’t have the function of backswing
protection, block diodes installed between the battery and the Module can prevent the reverse
current from damaging the Module.

1
18
17
MAINTENANCE
Normally, the Modules do not need repair. Follow the maintenance methods below to
ensure the best performance of the Modules:
In most conditions, the normal rainwater can keep the module glass clean. Clean the glass
surfaces with wet soft sponge or cloth if necessary. Use mild non-abrasive cleaning agent
to remove stubborn dirt.
Do not try to clean a Module with broken glass or perforated backsheet. It will cause
serious electrical shock. Take a regular inspection on grounding, mechanical and
electrical connections every 6 months. Make sure all the Module connectors are
connected, clean and without damage or corrosion.
When disassembling the connectors, must make sure all the components are working well;
otherwise the connector’s shall be replaced. Damage on the connector will cause
electronic leakage. The tightening torque of the nut should be 1.5 N • m - 3 N •m.
Use opaque material to completely cover the Modules during repair to avoid electric
shock. When exposed to the sunshine, the Modules will produce high voltage. The repair
work must be carried out by professionals.
Warning: Shut down the system before any electric repair.
Improper maintenance may cause electric shock or fire.
Table of contents
Other TW SOLAR Solar Panel manuals
Popular Solar Panel manuals by other brands

Solbian
Solbian SL40L installation manual

Kings Adventure
Kings Adventure 160W Monocrystalline user manual

Lightway
Lightway LW6P72-340 installation manual

PondXpert
PondXpert SolarShower 3000 instruction manual

Alternative Energy Company
Alternative Energy Company AE375M6-72 installation manual

Ubiquiti
Ubiquiti sunMAX user guide
