Twisted Hobbys GYM-STAR HIGH WING 3D TRAINER User manual

Rev: 2013.06.25.v001b 1
Specifications
Wing span – 31.5”
Length - 28.0"
AUW – 5.5oz (15 g)
1 00kV - 2100kV motor (17g - 22g)
- 10 amp ESC
2s - 3 0/500mAh battery
4 channel radio
4x 5g to 7g servos
8x4.3 to 7x3.5 prop
USA Distributor
Twisted Hobbys
www.twistedhobbys.com

Rev: 2013.06.25.v001b 2
TABLE OF CONTENTS
TABLE OF CONTENTSTABLE OF CONTENTS
TABLE OF CONTENTS
Page
WARNING INFORMATION ....................................................................................................................................................... 3
SHIPPING DAMAGE.................................................................................................................................................................... 3
OUR MISSION............................................................................................................................................................................... 3
SAFETY NOTES............................................................................................................................................................................ 4
IMPORTANT: PRIOR TO ANY ASSEMBLY................................................................................................................... 4
KIT CONTENTS............................................................................................................................................................................ 5
OPTIONAL PARTS....................................................................................................................................................................... 6
TOOLS & ADHESIVES NEEDED .............................................................................................................................................. 7
THE BUILD.................................................................................................................................................................................... 8
CENTER OF GRAVITY ............................................................................................................................................................. 29
CONTROL THROWS................................................................................................................................................................. 29
Extreme & 3D 29
Beginner & Sport 29
Mixes 29
EXTREME & 3D SET UP PRECAUTIONS 29
PRE-FLIGHT & TESTING ........................................................................................................................................................ 30
P REFLIGHT C HECKS 30
Motor 30
Flight Controls 30
Batteries 30
Radio 30
Range Check 30
F LIGHT T ESTING 30
S TORAGE 30
NOTES & S/U SHEET................................................................................................................................................................. 31
TIPS AND TRICKS ..................................................................................................................................................................... 32

Rev: 2013.06.25.v001b 3
TWISTED HOBBYS
Website: www.twistedhobbys.com – email: [e-mail]
Thank you for your purchasing a Twisted Hobbys’ model. Please read through the entire manual before beginning to
build this model. If you have any questions please contact us at the above indicated email address.
WARNING INFORMATION
WARNING INFORMATIONWARNING INFORMATION
WARNING INFORMATION
This R/C Aircraft is not a toy! Read and understand the entire manual before assembly. If misused, it can cause serious bodily harm and
property damage. Fly only in open areas, and AMA Academy of Model Aeronautics) approved flying sites. Do not over look the warnings
and instructions enclosed or those provided by other manufactures’ products. If you are not an experienced pilot and airplane modeler you
must use the help of an experienced pilot or an authorized flight instructor for the building and flying of this model aircraft.
These instructions are suggestions only on how to assemble this model. There are other ways and methods to do so. Twisted Hobbys has
no control over the final assembly, the materials and accessories used when assembling this kit, or the manner in which the assembled
model, installed radio gear and electronic parts are used and maintained. Thus, no liability is assumed or accepted for any damage
resulting from the use of the assembled model aircraft or from this instruction manual including but not limited to direct, indirect,
incidental, special, and consequential damages. By the act of using this user-assembled product, the user accepts all resulting liability. In
no event shall Twisted Hobbys’ liability exceed the original purchase price of the kit.
SHIPPING DAMAGE
SHIPPING DAMAGESHIPPING DAMAGE
SHIPPING DAMAGE
Twisted Hobbys checks each plane before shipping to ensure that each kit is in fine condition. We have no bearing on the condition of any
component parts damaged by use, modification, or assembly of the model. Inspect the components of this kit upon receipt. If you find any
parts damaged or missing, contact Twisted Hobbys immediately. We will not accept the return or replacement of parts on which assembly
work has already begun. Twisted Hobbys reserves the right to change this warranty at anytime without notice.
OUR MISSION
OUR MISSIONOUR MISSION
OUR MISSION
To provide the best products and service to our customers at the lowest prices possible. We take great pride in
our company, our commitment to customer service and in the products we sell. Our online store is designed
to provide you with a safe and secure environment to browse our product catalog.
Thank you for shopping with Twisted Hobbys!

Rev: 2013.06.25.v001b 4
SAFETY NOTES
SAFETY NOTESSAFETY NOTES
SAFETY NOTES
Before assembling and flying this model, read carefully any instructions and warnings of other
manufacturers for all the products you installed or used on your model, especially radio
equipment and power source.
Check thoroughly before every flight that the airplanes’ components are in good shape and
functioning properly. If you find a fault do not fly the model until you have corrected the
problem.
Radio interference caused by unknown sources can occur at any time without notice. In such a
case, your model will be uncontrollable and completely unpredictable. Make sure to perform a
range check before every flight. If you detect a control problem or interference during a flight,
immediately land the model to prevent a potential accident.
Youngsters should only be allowed to assemble and fly these models under the instruction and
supervision of an experienced adult.
Do not operate this model in a confined area.
Do not stand in line with, or in front of a spinning propeller and never touch it with any object.
IMPORTANT: PRIOR TO ANY ASSEMBLY
Please Note: after removing kit from shipping box, lay each piece flat on a
hard surface, this will allow the airframe to straighten out if lightly bent
from shipping. Do not worry since EPP is very pliable and can be bent back
if out of shape.

Rev: 2013.06.25.v001b 5

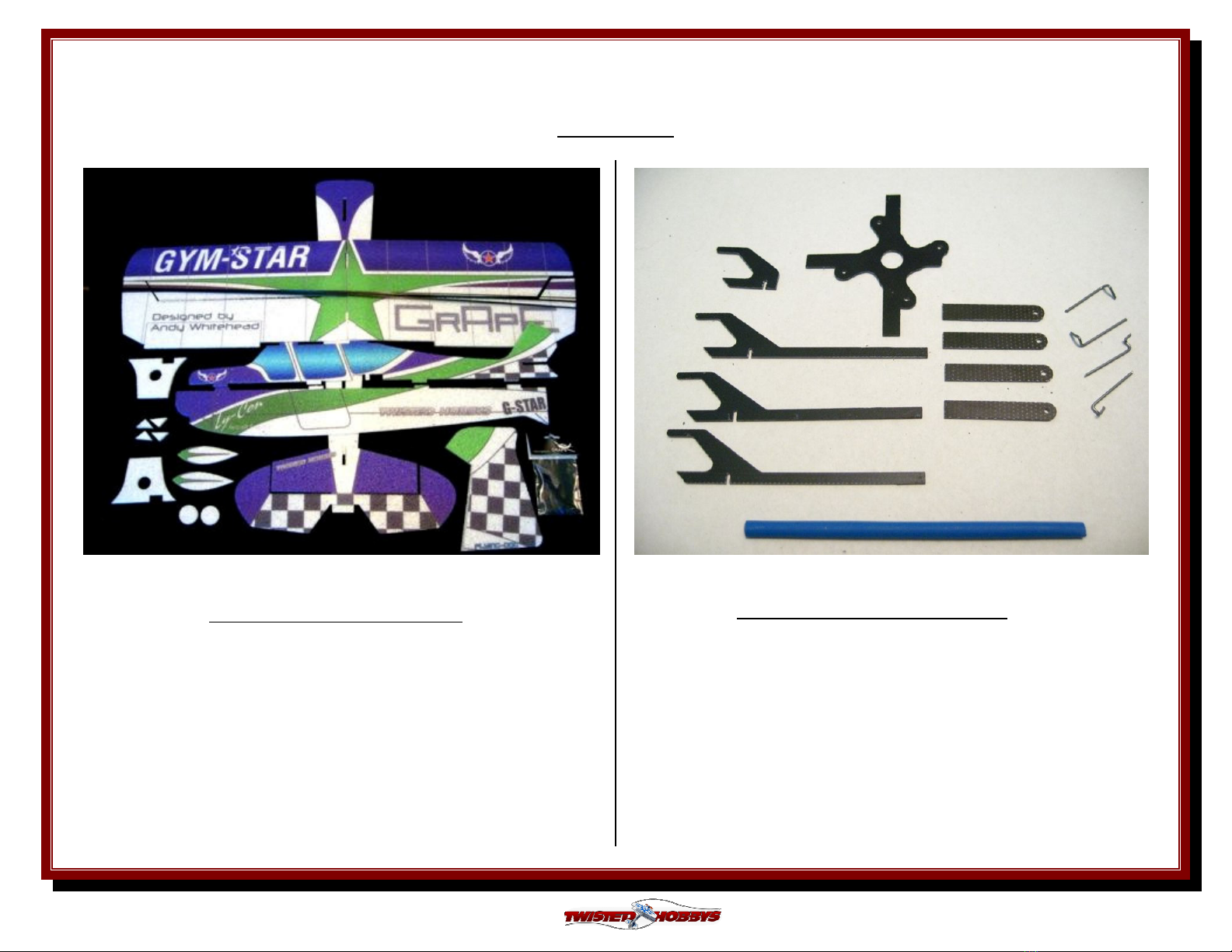

kit contents
kit contentskit contents
kit contents
P RTS LIST
IRFR ME COMPONENTS
1x Wing 4pcs) 2x Mock Wheels
1x Vert. Fuse 2 pcs) 1x 3mm x 1000mm Flat
1x Horz. Fuse wing and elev. spars)
1x Rudder 1x 2mm x 500mm Round
1x Elevator 2 pcs) landing gear)
2x Wing Struts 3x 1.5mm x 1000mm Round
4x Motor Gussets trussing & bracing)
2x Wheel Pants 1x 1mm x 1000mm Round
1x Hardware Pack push rod assemblies)
see detail)
DET IL - H RDW RE P CK
1x Motor Mount Plate
1x Elevator Control Horn
3x Control Horns for Rudder & Ailerons
1x Shrink Tubing
4x Control Rod Guides
4x Clip Rod Ends

Rev: 2013.06.25.v001b 6
Perfect choice for building and
repairing your Twisted Hobbys
EPP planes! This is the only
adhesive you will ever need.
Welder virtually bonds anything
to anything! Clear, heavy-duty,
flexible and water-proof when
dry. Use indoors or out. 1) 1 oz
tube
Note: many of these “optional parts”
shown or similar items, may be
available from the Twisted Hobbys’
web store.
OPTIONAL PARTS
OPTIONAL PARTSOPTIONAL PARTS
OPTIONAL PARTS
CA and Kicker
Various thickness CA glues
and
Activator available from
Twisted Hobbys’
Blenderm tape is one of the
best know tapes used for
hinging and repairing your
Depron or Epp models. Each
3M Blenderm key features are
its high strength adhesive,
extremely flexible and long
lasting. Each roll consists of
1/2" wide x 4m in length
Specifications
6 Channel / DSM2 / 2.4GHZ
25mm X 19mm X 11mm
Weight: 3.0g / Input: 3.5–9.6V
Bind plug included
Power Combo Kit
Matched by Twisted Hobbys)
1) 19g 1750kV Crack Series Motor
1) Twisted Hobbys 6A ESC
4) 5g Micro Servo
1) 8 x 4.3 DD or Slow Fly Prop

Rev: 2013.06.25.v001b 7
Tools
Tools Tools
Tools &
&&
& A hesives Nee e
A hesives Nee e A hesives Nee e
A hesives Nee e
•Tape Measure and Ruler
•Lighter
•Small drill bits
•Welders Glue
•Hobby Knife w/new Blade
•Needle Nose Pliers
•Wire Cutters
•Low Temp Hot Glue Gun
•Course Sand Paper
•Scissors
•Small Phillips Screw Driver
•C and pplicator Tips
•ctivator
Tools shown and listed are suggestions only
.
D
epending
on your building technique you may not need everything
indicated – and/or – you may find that other tools
available to yourself may be of benefit, to your Build.
It is also recommended that you have a flat building
surface, one that will accept stick pins and push pins.
An Acrostic Ceiling panel from your local hardware store
fits this bill nicely, and will lay flat on your work table.
Over size / long push pins are available at your local
craft store. These two items are by no means required,
but will aid in the building process, and can be used for
future projects.

Rev: 2013.06.25.v001b 8
THE BUILD
THE BUILDTHE BUILD
THE BUILD
CONSTRUCTION METHODS:
Building surface should be at least 2ft x 4ft and flat. Weights or some small heavy objects will be handy for holding things in place during
the time glue is setting.
Welders glue is the primary adhesive used for this build. The Rod Guides and End Links use thin CA with Applicator and Activator. When
using the Welders glue for a butt joint, apply a thin film to each surface, allow to sit for approx five minutes and then assemble.
Note that this method will create a nearly instant bond, so locate carefully when bringing the two pieces together. If alignment is
necessary or a slip joint, do not allow the glue to tack up, simple apply and join immediately, you will have several minutes to locate the
two parts before the glue sets up. In most cases the parts being glued can be handled with care in 30 minutes, full cure is approx 24
hours.
Open up you kit and inspect for damage and / or missing parts.
Use the Parts List on page 5 to verify that your kit is complete.
Do the same with the Power Set, confirm that you have all your
items and that they appear to be in sound condition. Testing of
functionality will be one of the first steps that will follow shortly.

Rev: 2013.06.25.v001b 9
Make a new program in your Radio. Zero all
the Trims and Subtrims. For starters all the
ATV can be set to 100%. Adjustment of
additional setting will be done at the end of
the build.
Compare your Reciever to the included
diagram from the side as shown above.
Make a note of the polarity of the pins. In
most cases, either Black or Brown is used
to identify Negative -).
Identify the porper pins for the; Throttle,
Aileron, Elevator and Rudder Channels.
Carefully compare to the diagram to make
sure you have the correct orientations.
Plug Motor wires into the ESC, the ESC into
the Throttle Channel, and the servos to
their appropriate channel. Bind per your
Radio’s Instructions.
Program the Throttle End Points per the
ESC Instructions and next couple steps….
… turn off your Tra
nsmitter and unplug the
flight battery from the ESC, position the
Throttle Stick to full HIGH postion and
power on the radio…

Rev: 2013.06.25.v001b 10
…. reconnect the battery to the ESC
and listen for two quick short beeps,
immediately following the beeps,
move the Throttle stick to low
position.
Next you should hear a series of
tones to indicate that programing is
complete.
Re-
bind the system and double check
correct operation of all components.
Center all servos as close to 90 deg
as possible. Install the Longest
single
arms on the servos.
Set up a Dual Aileron type Wing
We start by laying out the 6 wing parts as
shown.
We apply Welder Adhesive to the top
matting hinge of the elevator as shown
Smear Welder Adhesive as show to the
hinge only

Rev: 2013.06.25.v001b 11
Repeat for the opposite side of the elevator
and wait 5-10 mins to tack dry
Carefully bring the two pieces together as
show in picture. Notice there should be
equal distance gaps on both sides of the
elevator. Do not press to hard or the hinge
will become to stiff
Repeat the Welder Adhesive hinge method
for both ailerons as shown in picture. We
used a razors thickness for our inter gap
Leave all 3 assemblies parts to side flat and
dry cure

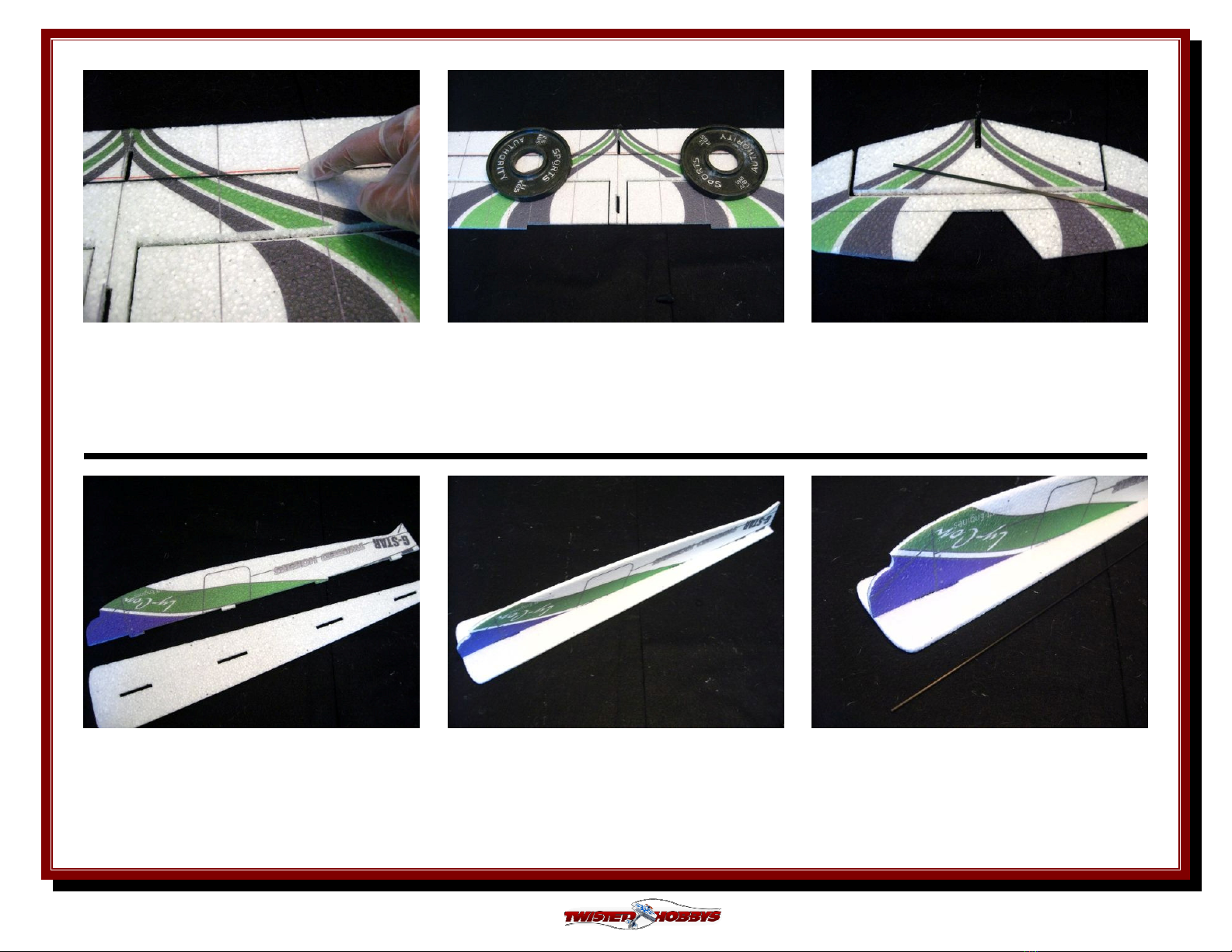

Now we can join the two wing halves
together with Welder Adhesive
Once both wing halves are together locate
the precut wing spar slot. Add glue to the
slot as shown. Cut the Wing spar to length
from the supplied stock - approx 30" long

Rev: 2013.06.25.v001b 12
Install the flat carbon fiber wing spar as
shown
You can apply some weight if needed and
let pieces fully cure
Repeat the same process with the elevator
flat carbon rod support -
this spar is the left
over after cutting the wing spar -
should be
approx 10" long
Apply glue to the to matting locations of the
lower fuse to the horizontal fuse piece.
Notice the correct placement of the printed
side of the fuse is facing downward
Attach both pieces as shown Make sure the nose of the two half are
square to each other as shown

Rev: 2013.06.25.v001b 13

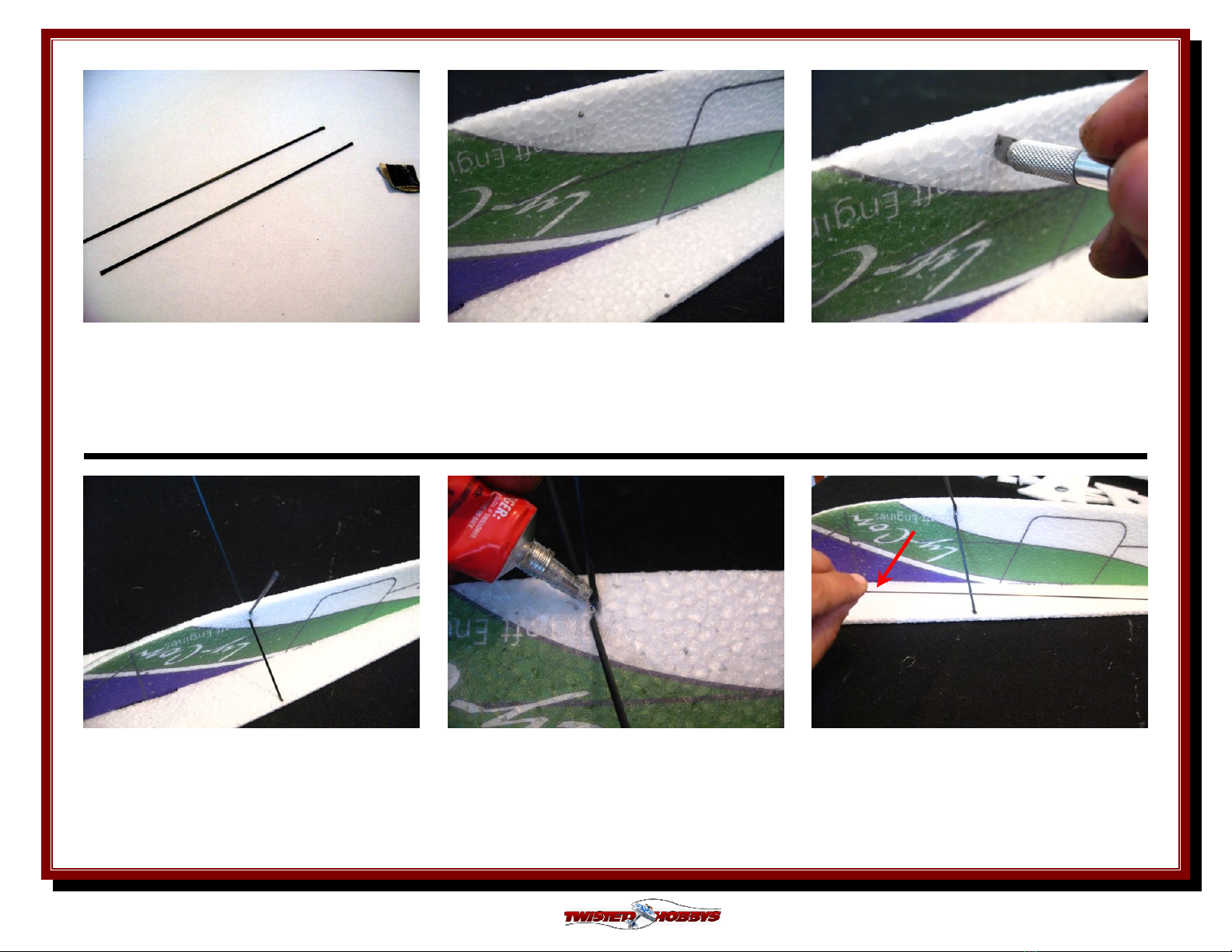

Find the 2mm rod and cut in half to create
two equal landing gear legs as shown
Locat
e the printed locations for the landing
gear rods as shown
Carefully cut slots in all locations
Apply Welder Adhesive glue to the lower
fuse and also to the horizontal fuse
Assembly dry and make sure legs are
square to each other
Locate the 1mm rod, this is used for the
fuse trussing

Rev: 2013.06.25.v001b 14
We start by the landing gear legs and work
our way back to the elevator tail section)
First side working back Opposite side
The sa
me process is carried out all the way
down both sides of the fuse. Cut the rod as
need lengths, follow the printed dots for
location guides
You can leave of one side off the furthest
back support if you run out of carbon fiber
rod
Make sure glue joints are good

Rev: 2013.06.25.v001b 15
Before glue is fully cure make sure and
adjust fuse to be square. Once all bracing is
complete leave to completely dry and cure
Located the top half of the fuse Glue two matting contact parts as shown
Joint both halves together as shown Make sure nose is completely square to
other halves. Leave assembled parts aside
and let fully cure
Time to assembly wing strut supports to
main wing

Rev: 2013.06.25.v001b 16
Apply guide to the printed guide locations Attached struts as shown Let both sides fully cure as shown

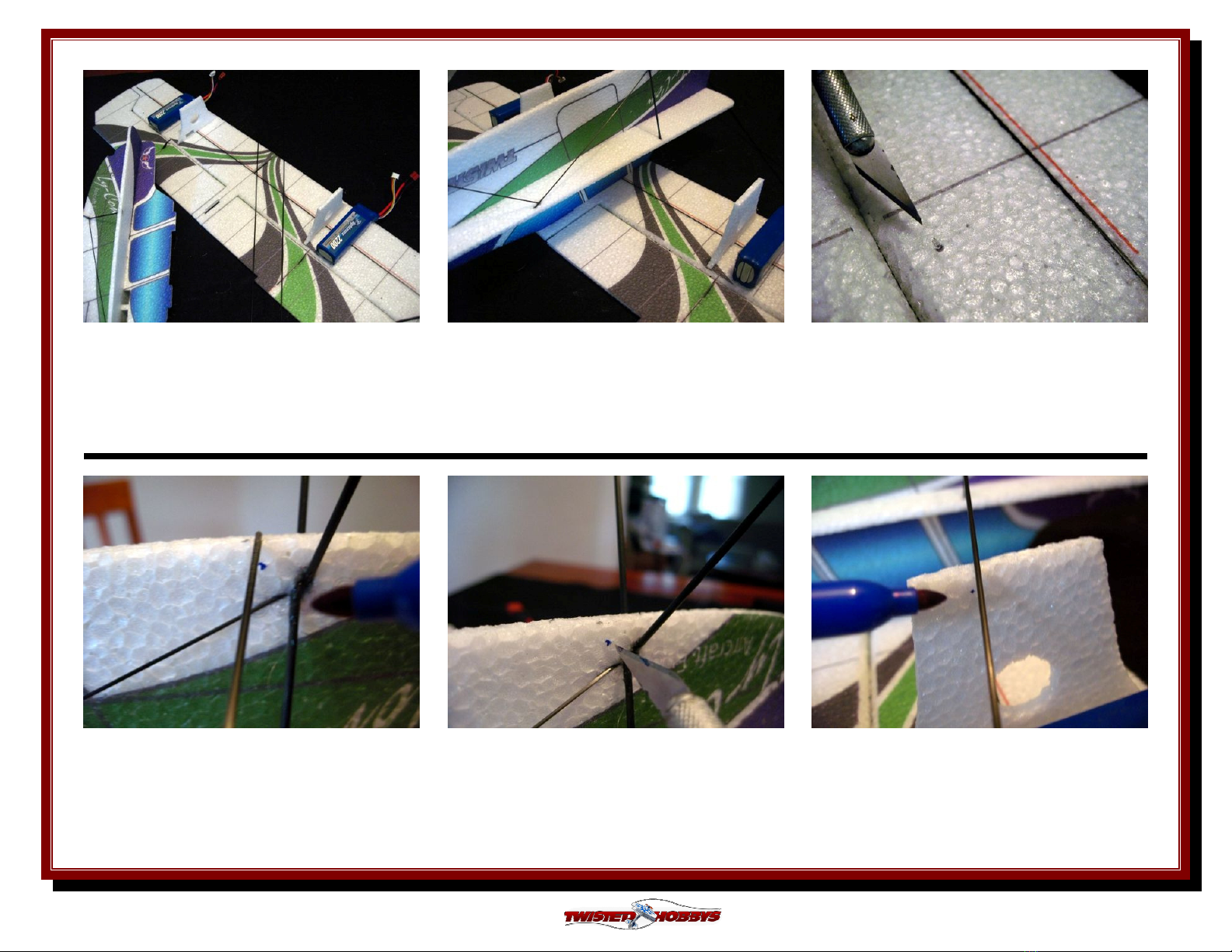

Located both ailerons printed guide marks
and cut slots for horns as shown
Glue and install horns
Notice the location of the horn front piece in
relationship to the hinge line

Rev: 2013.06.25.v001b 17
Notice the location of the horn front piece in
relationship to the hinge line
Apply some weight to the wings as shown
Start by locating the main wing rod support
dot as shown
Start by locating the main wing rod support
dot as shown
Mark locations nearest to the landing gear
assembly as shown
Next mark wing strut in which the carbon
rod will need to pass through

Rev: 2013.06.25.v001b 18
Glue in place as shown Repeat for the front rod brace assembly.
Once right side is completed repeat the
same process for the left side wing
assembly
Make sure all joints are glue in well. Now
let all glue joints fully cure and dry before
moving to the next step
Now that glue is completely cured we can
flip model right side up as shown
Locate elevator and rudder pieces
Trim excess rod to length as shown

Rev: 2013.06.25.v001b 19

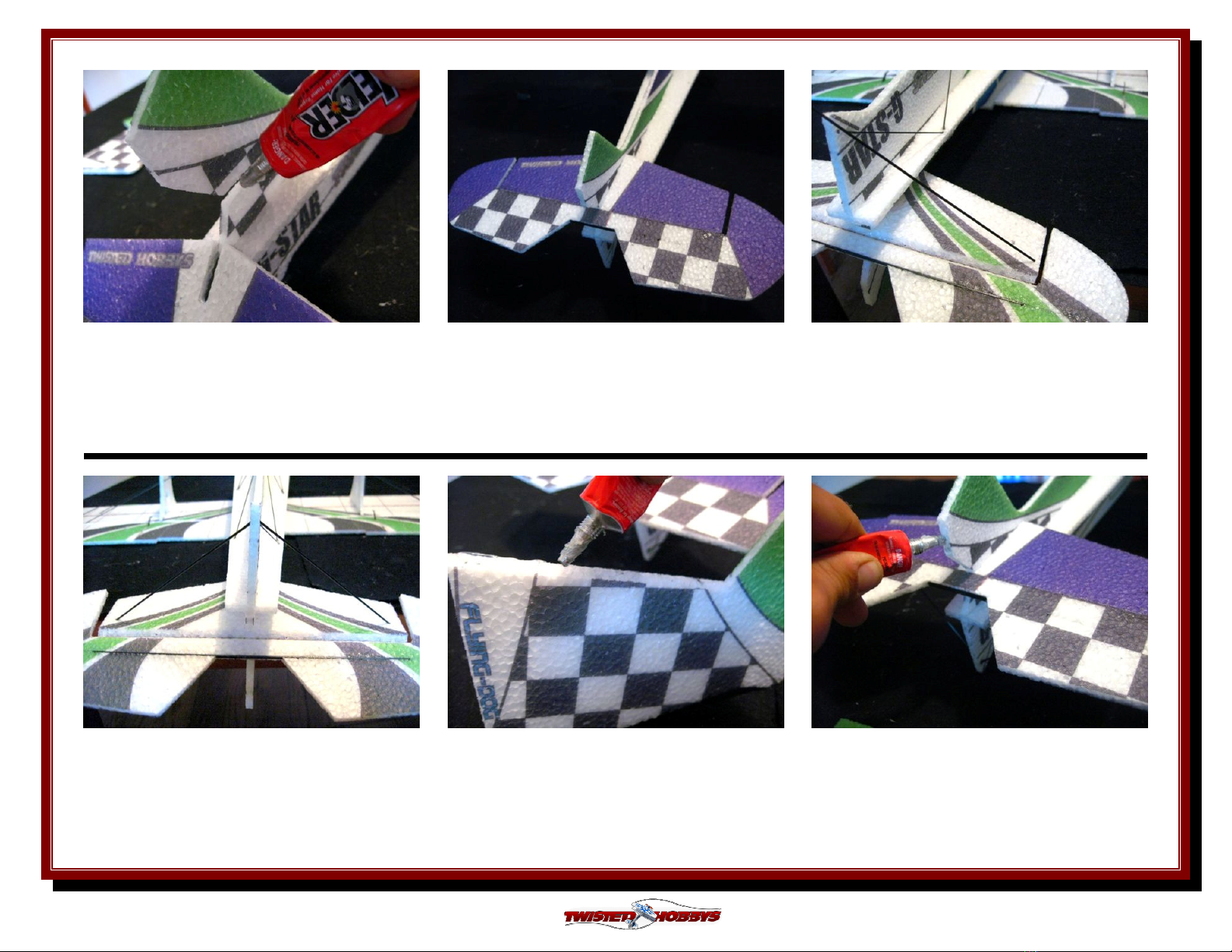

We now glue in the elevator Final assembly of elevator, make sure
elevator is square to main wings
Flip model over on its back side. Time to
install the 1.5
mm rod lower fuse to elevator
stab as shown
Make sure stab is square and level once
rods supports are installed
Time to install rudder to tail section. We
will repeat the same process of hinges as we
did with the elevator and ailerons in the
beginning of the manual
A little Glue on both surfaces

Rev: 2013.06.25.v001b 20
Smooth the glue bead out Once Welder Adhesive is tacky attached
rudder to tail section
You can pin rudder while glue is curing. Let
cure before moving to the next step
There may be some trimming required
between the rudder and elevator
Time to install the motor mount. We do this
by applying Welder Adhesive to the front
flat section of the model as shown
Glue the matting side of the motor mount
