TYAN S1830 TSUNAMI AT User manual

Tyan S1830
Tsunami AT
Motherboard User’s Manual
Revision 1.20
Copyright © Tyan Computer Corporation, 1998. All rights reserved. No part of this
manual may be reproduced or translated without prior written consent from Tyan
Computer Corp.
All registered and unregistered trademarks and company names contained in this
manual are propery of their respective companies including, but not limited to the
following.
AMIBIOS is a trademark of American Megatrends Incorporated.
Windows is a trademark of Microsoft Corporation.
IBM, PC, AT, PS/2 are trademarks of IBM Corporation.
INTEL, Pentium II, Celeron are trademarks of Intel Corporation.
S1830S/SL Tsunami AT is a trademark of TYAN Computer Corporation.
Information contained in this publication has been carefully checked for accuracy and
reliability. In no event will Tyan Computer be held liable for any direct or indirect,
incidental or consequential damage, loss of use, loss of data, or other malady resulting
from errors or inaccuracies of information contained in this manual. The information
contained in this document is subject to change without notice.
PRINTEDINUSA

Table of Contents
1.Introduction.................................................................................................... 4
Overview.............................................................................................. 4
Icons.................................................................................................... 5
HardwareSpecifications/Features................................................... 5
SoftwareSpecifications..................................................................... 7
TechnicalSupport.............................................................................. 8
ReturningMerchandise for Service................................................ 8
2.BoardInstallation......................................................................................... 10
Unpacking........................................................................................... 10
Installation.......................................................................................... 10
SettingJumpers.................................................................................. 23
3.OnboardResourceSettings........................................................................ 24
QuickReferenceforJumpers............................................................ 24
Mapof Motherboard Jumpers......................................................... 25
HardwareCMOS& PasswordReset............................................... 28
SoftPowerConnector........................................................................ 29
SpeakerConnectorInstallation........................................................ 29
HardwareReset SwitchConnector Installation............................. 29
ExternalSMI........................................................................................ 30
CMOSRTC.......................................................................................... 30
FlashEEPROM................................................................................... 30
RAMInstallation............................................................................... 31
CacheMemory.................................................................................... 32
FrequentlyAskedQuestions........................................................... 32
4.BIOSConfiguration..................................................................................... 34
StandardSetup................................................................................... 35
AdvancedSetup................................................................................ 39
ChipsetSetup..................................................................................... 44
PowerManagementSetup................................................................ 49
PnP/PCISetup.................................................................................... 53
PeripheralSetup................................................................................. 56
SupervisorandUser Security........................................................... 58
Anti-VirusSecurity............................................................................. 59
DetectIDEUtility............................................................................... 60
LanguageUtility................................................................................. 61
FlashWriterUtility............................................................................. 61
5.SystemResources........................................................................................ 62
BeepCodes......................................................................................... 62
TroubleshootingSystemProblems................................................. 63

DisplayedErrorMessages............................................................... 64
Glossary............................................................................................... 66

http://www.tyan.com
4
Chapter 1
Introduction
Overview
TheS1830S and S1830SL (S1830) Tsunami ATis aquality, high performance
mainboard designed for Intel Pentium II and Celeron microprocessors. This
mainboard utilizes the Intel 440BX AGPset and can support CPU speeds of
233MHz through 450MHz, and host bus speeds of 66MHz or 100MHz. The
Tsunami AT also has 100MHz Front Side Bus support, which allows you to
takefull advantage of100MHz SDRAM memorymodules.
The S1830 mainboard, with built-in AGP slot, provides high performance
capabilities that are ideal for a wide range of demanding applications such as
CAD, CAM, CAE, desktop publishing, 3D animation, and video production.
This integrated system board achieves high reliability with numerous features
and yet is small enough to be supported in a Baby AT form factor. Some of the
features included are onboard dual channel PCI PIO, Bus Master IDE and
UltraDMA/33, onboard floppy controller, and onboard high speed I/O.
Flexibility and expandability have been designed into the Tsunami AT. With I/
O and drive controller support built onboard, the one AGP slot, four PCI and
four ISA slots (one shared, eight usable) are free for numerous add-on
epansion cards.
chapter 1
Introduction

S1830 TsunamiAT
5
INTRO
Remember to take a look at TYAN Computer’s web site located at
http://www.tyan.com. There you can find information on all of TYAN’s
products along with FAQs, distributors list, drivers, and BIOS setting explana-
tions.
Icons
In order to help you navigate this manual and set up your system, we have
added several icons to our format.
This icon alerts you to particularly important details regarding the
setup or maintenance of your system. This icon often appears next
to information that may keep you from damaging your board or
system. While we will often point out the most vital paragraphs in a
chapter, you should always read every word in the text. Failing to do so can
lead to exasperation and expense.
Wherever possible, we have included step-by-step instructions for
setting up your system, which are indicated by this icon. However,
it is in your best interest to read an entire section (and perhaps the
entire manual) before you begin to fiddle with your motherboard.
While we have alerted you to potential dangers in several places
in the manual with this icon, these warnings should not be
regarded as the whole of your safety regimen. Never forget that
computers are electrical devices, and are capable of delivering a
shock. Prevent damage to yourself and to your board: always ensure that your
system is turned off and unplugged whenever you are working with it, and that
you are equipped with a static safety device.
HardwareSpecifications/Features

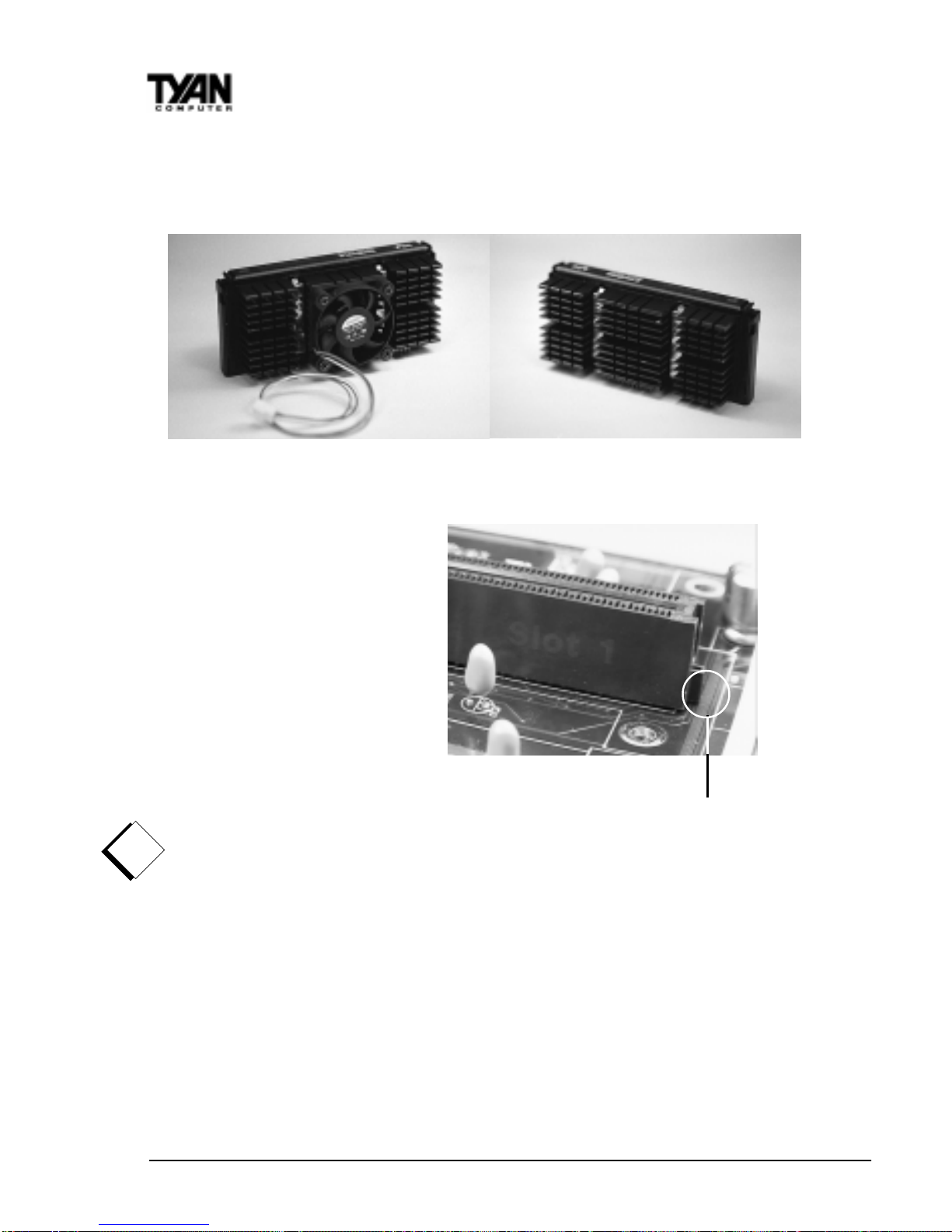

ProcessorInformation •One SEC slot (Slot One type)
•66MHzto100MHz BIOSselectable
bus support
•PentiumII233-450MHz
•Supports Celeron CPU
ChipsetInformation •Intel440BXAGPset
•IntelPIIX4e controller
!
important!
procedure
1.
2.
3.
warning

http://www.tyan.com
6
Chapter 1
Introduction
•National 309 Super I/O chipset
VoltageandPower •AT/ATX power supply connectors
Information •+12Vpower source for DC fan
onboard
•3.3VDRAM support
•Utilizes GTL+ bus to reduce power
consumption and EMI
•Power recovery after interrupt
•Wake-on LAN 3-pin header
(requires ATX 2.01 compliant power
supply)
•VRM component installed onboard
•Onboard CPU/chassis fan headers
MainMemory •Up to 1024MB onboard
•Four 168-pin DIMM sockets
•Supports66 or100MHz SDRAM
(100 MHzSDRAM requiredfor
100MHz bus speeds)
•SupportsSDRAM w/SPD,
SDRAM+ECC
SystemManagement •National LM79and LM75
(1830SLonly) ASICs with onboard alarm for
monitoring temperature, supply
voltages, and fan speed. Reports to the
OS for system monitoring
•Intel LANDesk®Client Manager
software
ExpansionSlots •One 32-bit AGP slot
•Four 32-bit PCI Bus Master slots
•Four 16-bit ISA slots
•One shared, eight usable
PhysicalDimensions •Baby AT design.
•13inches x 8.6inches
BIOSInformation •AMI Plug and Play flash BIOS
•DeepGreen, Energy Star,Year2000

S1830 TsunamiAT
7
INTRO
compliant
•YellowLED forsleep,PC98 ready
DiskDrive& SystemI/O •UltraDMA/33(UIDE) built-in(upto
33MB/s DTR)
•Two PCIbus masteringEIDE
channels
•SupportsEIDECD-ROMs
•PIO Mode 3&4 (up to 17MB/s
DTR)
•Bus mastering mode (up to 22MB/s
DTR)
•Support for two floppy drives
(supports Mode 3 and up to 2.88MB)
•Two serialports (16550UARTs)

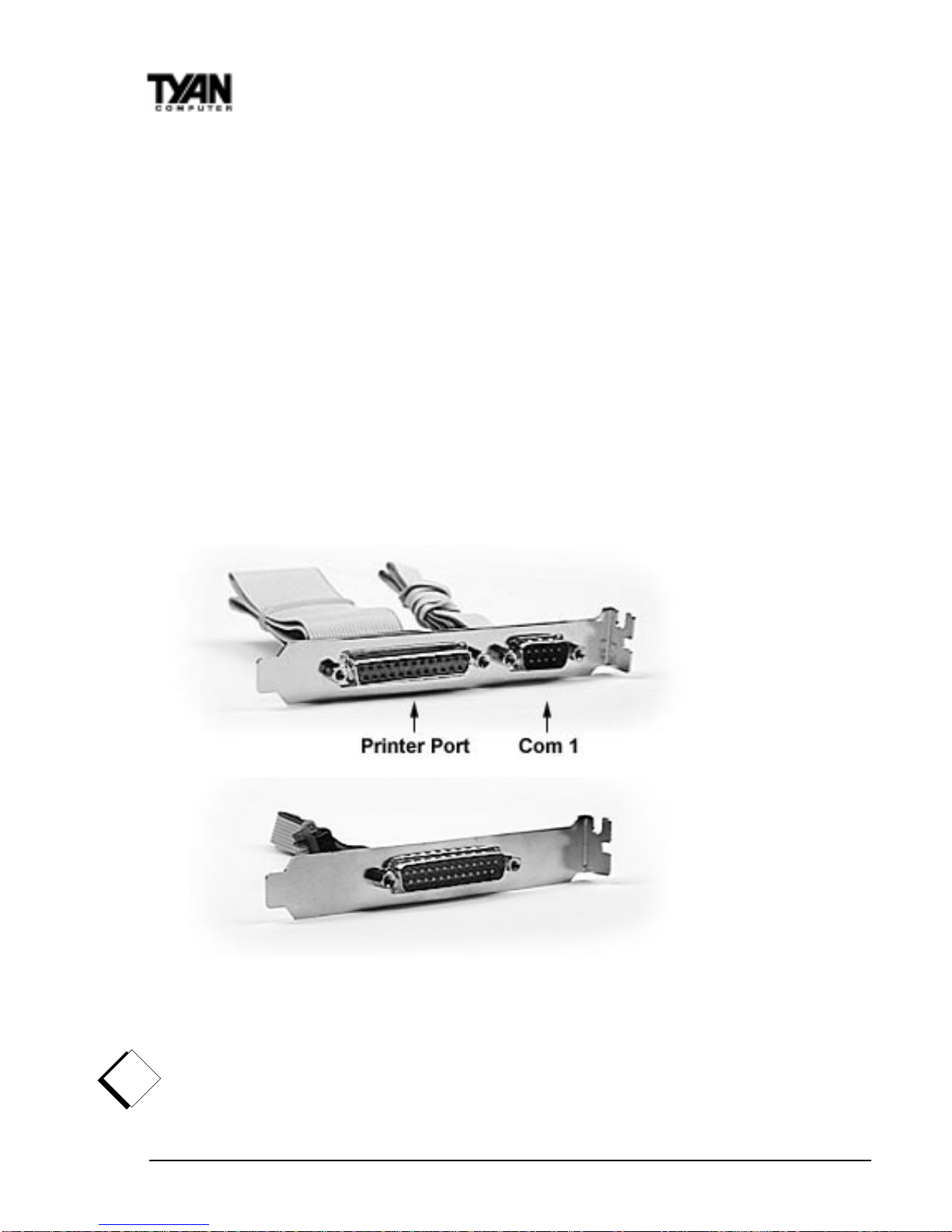

•OneECP/EPPparallel port
•OneIR (InfraRed) I/Ointerface port
header
•Two USB rev 1.2 port headers.
•One PS/2 mouse port.
•One AT keyboard connector.
Warranty •3 year manufacturer’s warranty.
Software Specifications
OS •Operates with MS-DOS, Windows
3.x,Windows forWorkGroups 3.x,
Windows 95, Windows 98, Windows
NT,OS/2, NovellNetware,Solaris,
andSCOUnix.
Information presented in this publication has been carefully checked for
reliability. However, no responsibility is assumed for inaccuracies. The
information contained in this document is subject to change without notice.

http://www.tyan.com
8
Chapter 1
Introduction
TechnicalSupport
If a problem arises with your system, you should turn to your dealer for help
first. Your system has most likely been configured by them, and they should
have the best idea of what hardware and software your system contains.
Hence, they should be of the most assistance. Further, if you purchased your
system from a dealer near to you, you can actually bring your system in to
them to have it serviced, instead of attempting to do so yourself (which can
have expensive consequences).
Helpresources:
1. See FAQ and beep codes sections of this manual.
2. See Tyan web site for FAQ, bulletins, driver updates, etc.
http://www.tyan.com
3. Contact your dealer or distributor for help BEFORE calling Tyan.
4. Check the Tyan user group: alt.comp.periphs.mainboard.tyan
5. Email Tyan tech support: [email protected]
6. Call Tyan tech support: 510-440-8808
ReturningMerchandiseforService
During the warranty period, contact your distributor or system vendor FIRST
for any product problems. This warranty only covers normal customer use and
does not cover damages incurred during shipping or failure due to the
alteration, misuse, abuse, or improper maintenance of products.
ForResellersOnly:
A receipt or copy of your invoice marked with the date of purchase is required
before any warranty service can be rendered. You can obtain service by calling
the manufacturer for a Return Merchandise Authorization (RMA) number. The
RMA number should be prominently displayed on the outside of the shipping
carton and the package should be mailed prepaid, or hand-carried to the
manufacturer. TYAN will pay to have the board shipped back to you.

S1830 TsunamiAT
9
This page has been intentionally left blank.

http://www.tyan.com
10
procedure
1.
2.
3.
Chapter 2
Board Installation
chapter 2
Board Installation
Unpacking
The mainboard package should contain the following:
(1) S1830S/SLmainboard
(1) 40-pin IDE and 34-pin floppy cable pack
(1) One PS/2 Mouse cable
(1) User’smanual
(1) CPUretention module
(1) SystemManagment &Driver CD(Intel LANDesk- 1830SL only)
(1) OneBX DriverDiskette (1830Sonly)
Installation
You are now ready to install your mainboard. The mounting hole pattern of the
S1830 matches the Baby AT system board specifications. Your chassis should
be that of a standard AT mainboard form factor with AT or ATX power supply.
How to install our products right...the first time.
What’sthefirstthingIshoulddo?
The first thing you should do is read this user’s manual. It contains important
